◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#62555) — 31 parça

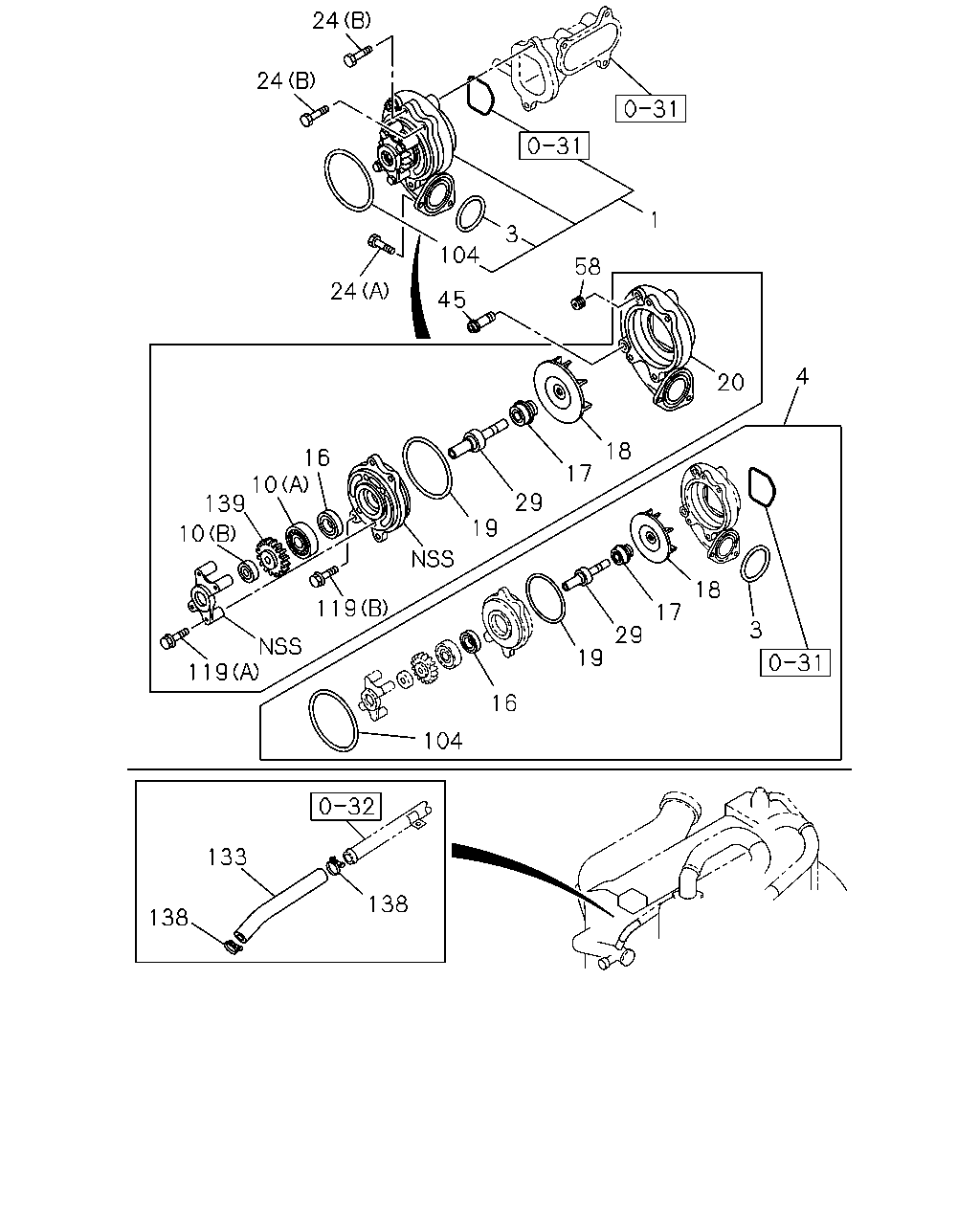

çizim 170542
24 24 24 45 58 1 3 104 18 17 29 20 4 19 19 29 18 17 3 16 104 119 119 10 139 10 16 138 133 138
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; WATER,W/GASKET 8-98146-073-0 01 1 1008-1207
1 PUMP ASM; WATER,W/GASKET 1-87310-865-0 01 1 1208-1312
1 PUMP ASM; WATER,W/GASKET 1-87310-957-0 01 1 1401-1406
1 PUMP ASM; WATER,W/GASKET 1-87310-996-0 01 1 1407-
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 1008-
4 REPAIR KIT; WATER PUMP 1-87813-077-1 01 1 1008-1111
4 REPAIR KIT; WATER PUMP 1-87813-813-0 01 1 1112-1207
4 REPAIR KIT; WATER PUMP 1-87813-957-0 01 1 1208-1312
4 REPAIR KIT; WATER PUMP 1-87813-813-0 01 1 1401-1406
4 REPAIR KIT; WATER PUMP 1-87814-621-0 01 1 1407-
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 1008-
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 1008-
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 1008-
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1008-1207
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1208-1312
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1406
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1407-
18 IMPELLER; WATER PUMP 8-97608-969-0 01 1 1008-
19 GASKET; COVER TO BODY 8-97606-729-0 01 1 1008-
20 COVER; WATER PUMP 8-97611-134-0 01 1 1008-
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28151-025-0 02 1 1008-
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28151-090-0 04 1 1008-
29 SHAFT; WATER PUMP 8-98141-463-0 01 1 1008-
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 1008-
58 PLUG; HTR
PT3/8 		5-09605-005-0 02 1 1008-
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 1008-
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28050-840-0 04 1 1008-
119 BOLT; PUMP COVER
(B) M10X20 FLANGE 		0-28151-020-0 01 1 1008-
133 HOSE; RUBBER,WATER PIPE
L=100 SERVICED BY L=3000 		0-03580-300-0 01 1 1008-
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 02 1 1008-
139 GEAR; WATER PUMP,DRIVE 8-97606-219-1 01 1 1008-
