◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#62552) — 26 parça

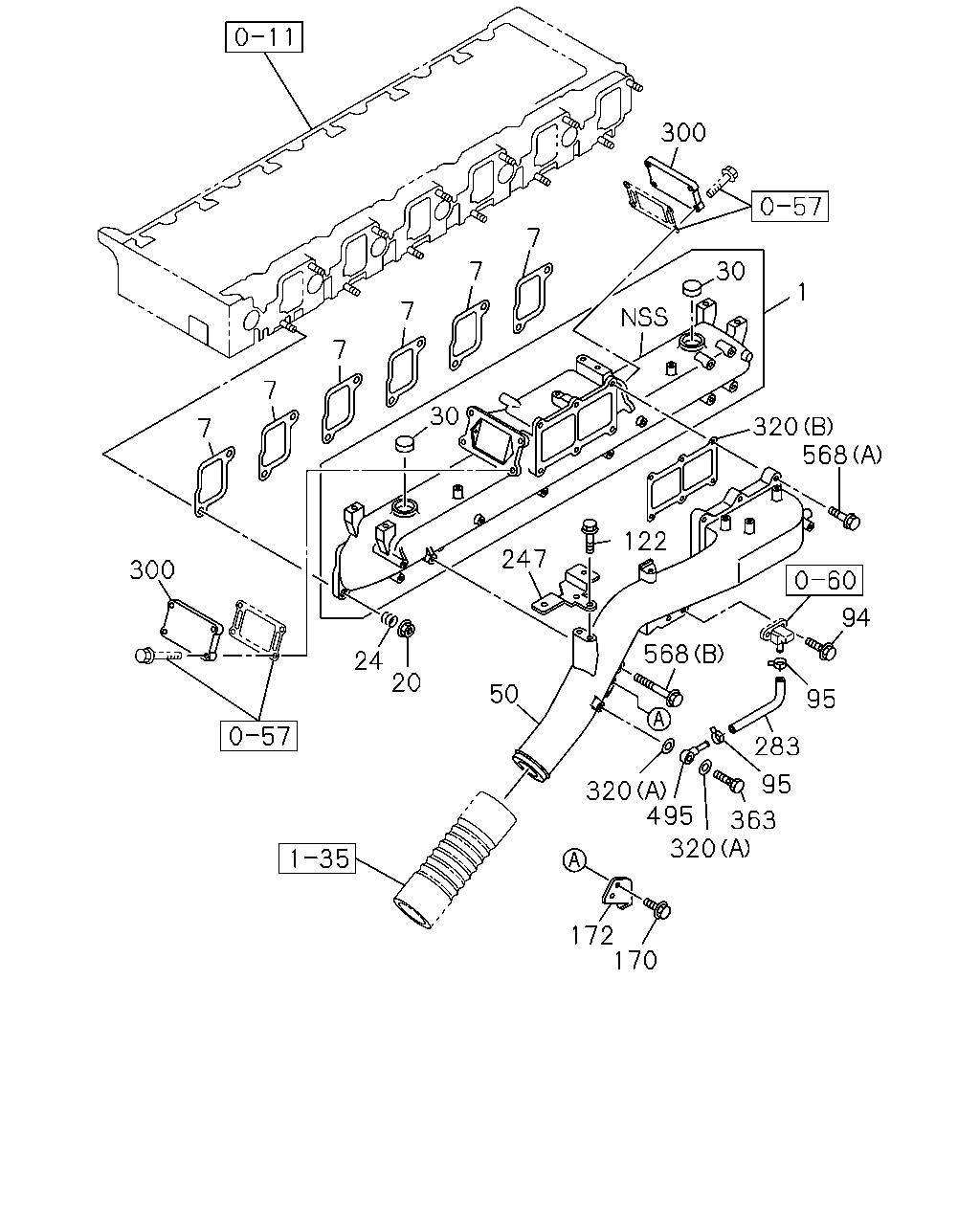

çizim 170217
300 30 1 7 7 7 7 7 7 300 24 20 50 568 320 495 320 172 247 122 320 568 94 95 283 95 363 170 30
BalonParca AdiParca NoAdetTipApplied Date
1 MANIFOLD; INL 1-14110-620-0 01 1 1008-1010
1 MANIFOLD; INL 8-98167-210-0 01 1 1011-
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-096-1 06 1 1008-
20 NUT; INL MANIF
M10 FLANGE 		0-91180-110-0 12 1 1008-
24 SPRING; INL MANIF 1-09580-156-0 12 1 1008-
30 CUP; SEALING,INL MANIF
OD=40 		8-94241-637-0 02 1 1008-1010
50 PIPE; INL 8-97617-049-0 01 1 1008-
94 BOLT
M6X12 FLANGE 		0-28050-612-0 02 1 1008-
95 CLIP; RUBBER HOSE
ID=11 WHITE 		5-09707-005-1 02 1 1008-
122 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 1008-
170 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1008-
172 BRACKET; HARNESS 1-14119-428-1 01 1 1008-
247 BRACKET; CLIP 1-14319-130-1 01 1 1008-
283 RUBBER 1-14119-416-0 01 1 1008-
300 COVER; INL MANIF 1-11749-208-0 02 1 1008-1011
300 COVER; INL MANIF 8-98178-944-0 02 1 1012-
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 1008-
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-14115-094-1 01 1 1008-
363 BOLT; EYE
M8X24 		8-97257-826-0 01 1 1008-
495 PIPE; BOOST SENSOR 8-94428-807-0 01 1 1008-
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28151-030-0 06 1 1008-
568 BOLT; PIPE
(B) M10X80 FLANGE 		0-28151-080-0 01 1 1008-

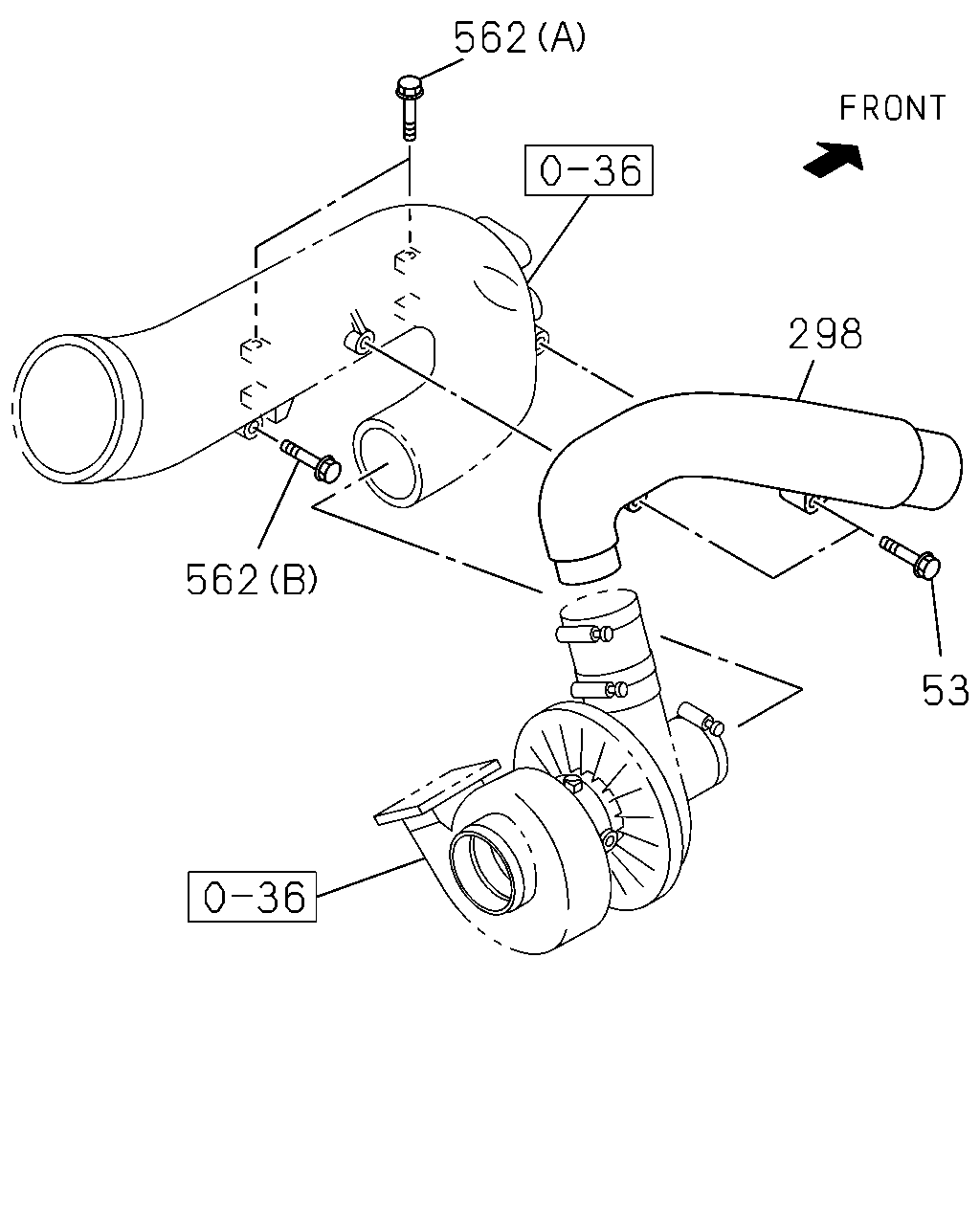

çizim 170518
562 298 53 562
BalonParca AdiParca NoAdetTipApplied Date
53 BOLT; INL PIPE
M10X60 FLANGE 		0-28151-060-0 02 1 1008-
298 PIPE; INL,TURBOCHARGER TO INL COVER 1-14112-710-1 01 1 1008-
562 BOLT; INL DUCT
(B) M10X40 FLANGE 		0-28151-040-0 01 1 1008-
562 BOLT; INL DUCT
(A) M10X50 FLANGE 		0-28151-050-0 02 1 1008-
