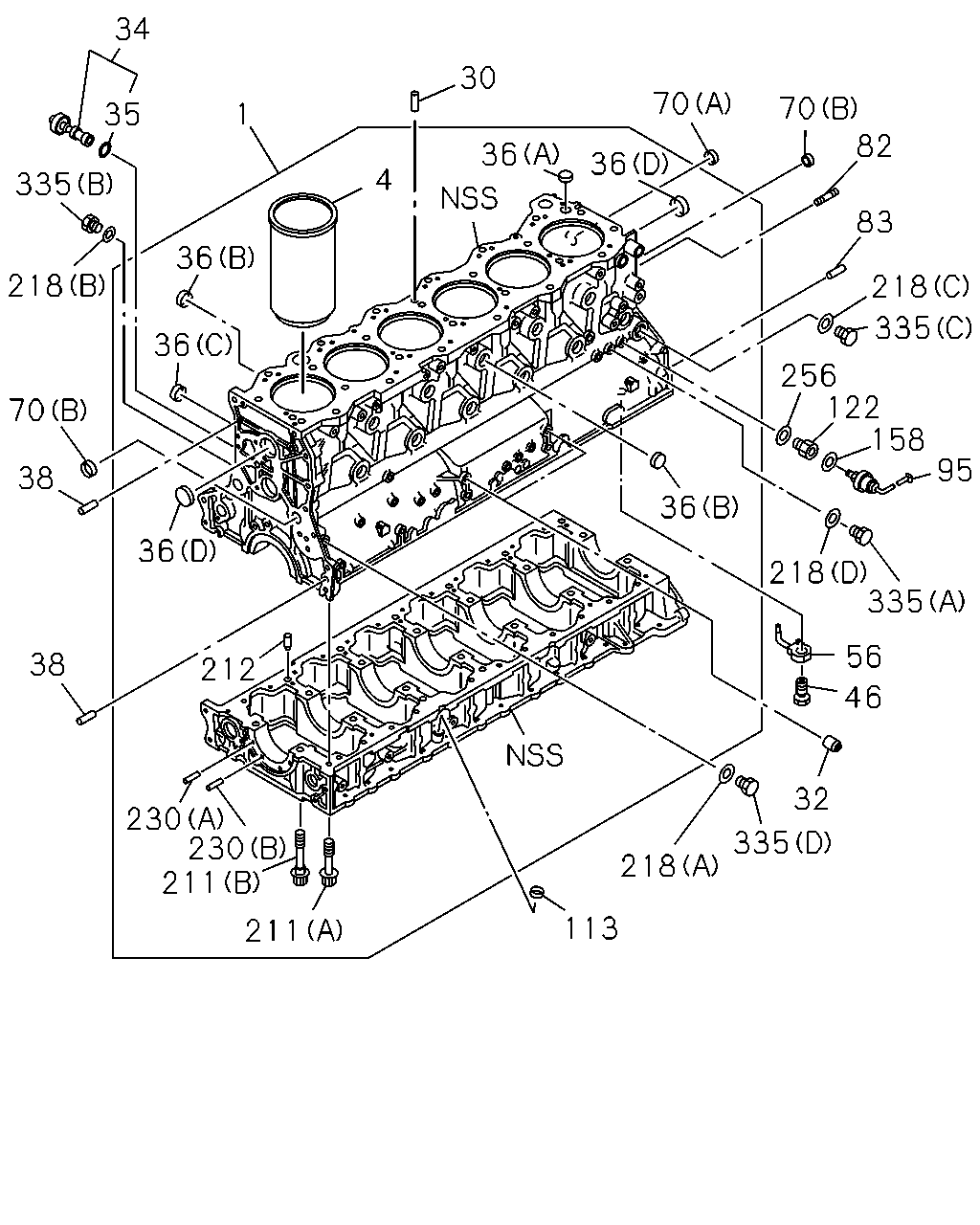

0-12 — CYLINDER BLOCK (#62546) — 42 parça

2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X	1-87812-928-5	06	1	1008-
2	LINER SET; ENG CYL GRADE=3X	1-87812-929-5	06	1	1008-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-379-2	06	1	1008-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-380-2	06	1	1008-

34 35 335 218 70 38 38 36 212 230 230 211 211 113 218 32 335 46 335 56 218 95 158 122 256 335 218 83 82 70 70 36 36 30 4 1 36 36 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	8-98180-452-1	01	1	1008-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-379-2	06	1	1008-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-380-2	06	1	1008-
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	02	1	1008-
32	PIN; INJ PUMP BRKT	8-94325-506-1	02	1	1008-
34	VALVE; OIL RELIEF	1-13160-030-3	01	1	1008-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	1-09623-297-0	01	1	1008-
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	01	1	1008-
36	CUP; SEALING,WATER JACKET (B) OD=40	1-09600-065-1	02	1	1008-
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94241-637-0	13	1	1008-
36	CUP; SEALING,WATER JACKET (D) OD=45	8-97351-451-0	04	1	1008-
38	PIN; TIMING GEAR CASE OD=10 L=18	9-08151-018-0	02	1	1008-
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-014-0	06	1	1008-
56	JET; OIL,PISTON COOLING	1-13342-125-5	06	1	1008-
70	CUP; SEALING,FRT & RR (A) OD=32	1-09600-012-2	01	1	1008-
70	CUP; SEALING,FRT & RR ENGINE REAR PTO(SV1) (B) OD=25	1-09600-016-0	03	1	1008-
70	CUP; SEALING,FRT & RR EXC. ENGINE REAR PTO(SV1) (B) OD=25	1-09600-016-0	04	1	1008-
82	STUD; FLYWHEEL HSG EXC. ENGINE REAR PTO(SV1) M14X35 L=56	0-44011-435-0	01	1	1008-
83	PIN; FLYWHEEL HSG	9-08151-428-0	02	1	1008-
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	1008-
113	CUP; SEALING OD=15.6	5-11129-003-0	01	1	1008-
122	ADAPTER; OIL PRESSURE SWITCH	8-94390-391-0	01	1	1008-
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	1008-
211	BOLT; CRANKCASE (A) M12X114	1-09070-087-3	28	1	1008-
211	BOLT; CRANKCASE (B) M18X150	1-09070-151-0	14	1	1008-
212	PIN; CRANKCASE	1-09740-068-1	02	1	1008-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1008-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	01	1	1008-1312
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	8-98251-344-0	01	1	1401-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22	1-09630-089-0	01	1	1008-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) (D) ID=14.2 OD=25	1-09630-141-0	01	1	1008-
230	PIN; THRUST METAL,CR/SHF (A) L=25	1-09749-025-1	02	1	1008-
230	PIN; THRUST METAL,CR/SHF (B) OD=5 L=10	9-08160-510-0	02	1	1008-
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	1008-
335	PLUG; C/BL,SIDE (C) M22X12	1-09604-035-0	01	1	1008-
335	PLUG; C/BL,SIDE (D) M10X7	1-09604-094-0	01	1	1008-
335	PLUG; C/BL,SIDE (B) M12X9	8-98047-054-0	01	1	1008-
335	PLUG; C/BL,SIDE EXC. ENGINE REAR PTO(SV1) (A) M14X9	8-98042-944-0	01	1	1008-
