◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11240 - FVR-RHD(EUROPE)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#62532) — 123 parça

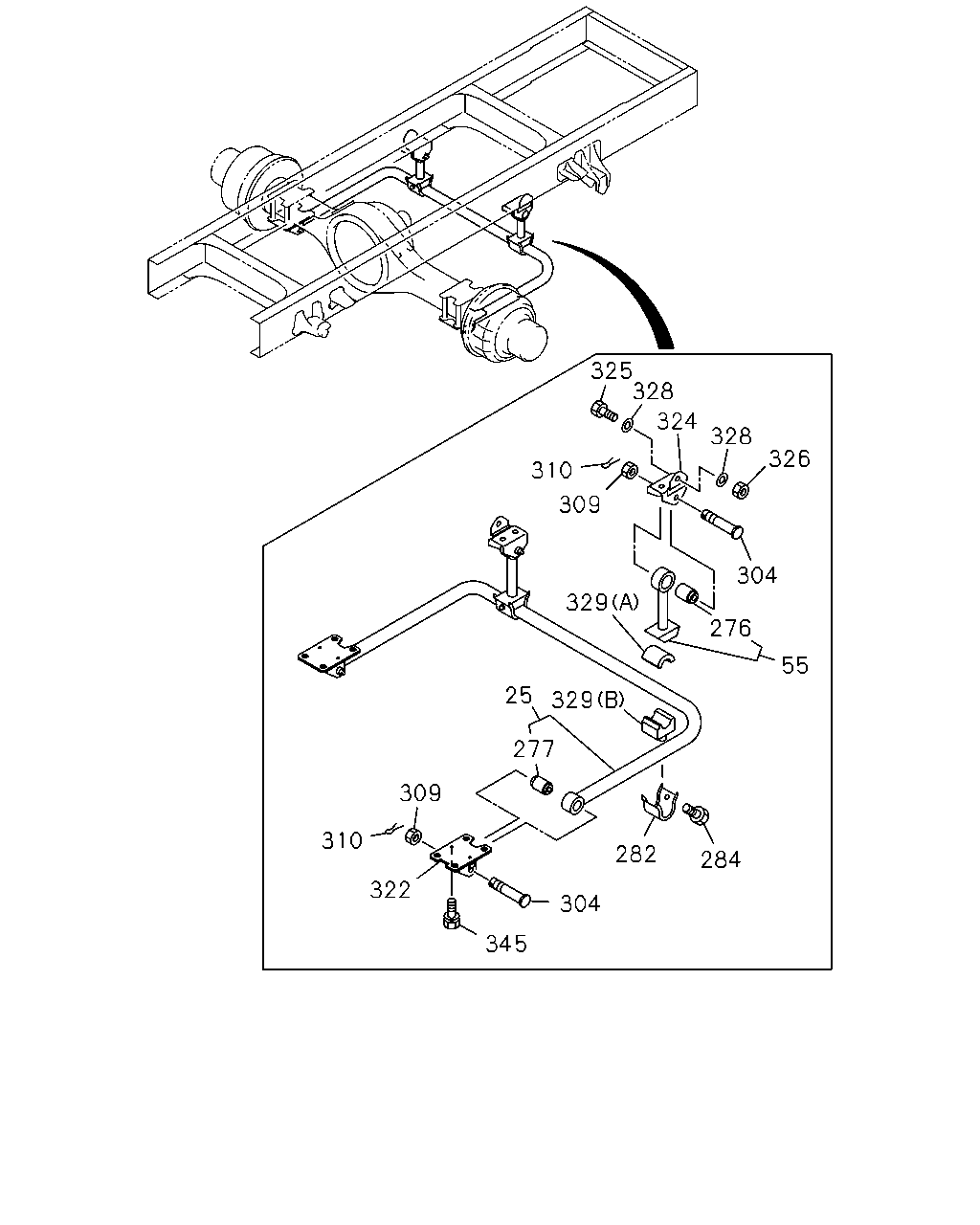

çizim 166502
325 328 324 328 326 310 309 304 329 276 55 25 329 277 309 310 282 284 322 304 345
BalonParca AdiParca NoAdetTipApplied Date A B
25 BAR ASM; STAB,RR SUSP
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-030-2 01 1 0906- ●
55 ROD; STAB
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-035-1 02 1 0906- ●
276 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-019-0 02 1 0906- ●
277 BUSHING; STAB,RR UPR
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-067-0 02 1 0906- ●
282 RETAINER; STAB BAR
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-015-2 02 1 0906- ●
284 BOLT; RET TO RET
STABILIZER REAR LIGHT DUTY<GN1> M10X25 		8-94463-351-0 08 1 0906- ●
304 PIN; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-020-2 04 1 0906- ●
309 NUT; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> M24 		9-99116-424-0 04 1 0906- ●
310 PIN; SPLIT,STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> OD=4.6 L=45 		0-81125-045-0 04 1 0906- ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-127-0 01 1 0906- ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-048-4 01 1 0906- ●
324 BRACKET; STAB BAR TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-059-0 02 1 0906- ●
325 BOLT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14X40 		0-20951-440-0 02 1 0906- ●
325 BOLT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14X45 		9-92061-445-0 04 1 0906- ●
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14 		0-91110-514-0 06 1 0906- ●
328 WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> ID=15 		8-98010-627-1 12 1 0906- ●
329 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> (A) 		1-51789-051-1 02 1 0906- ●
329 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> (B) 		1-51789-052-0 02 1 0906- ●
345 BOLT; BRKT
STABILIZER REAR LIGHT DUTY<GN1> M10X16 FLANGE 		0-28051-016-0 04 1 0906- ●
çizim 166508
512 197 208 208 212 197 208 212 208 208 208 197 212
BalonParca AdiParca NoAdetTipApplied Date A B
197 BOLT
(B) M20X65 		1-09000-769-0 16 1 0906-1302 ●
197 BOLT
(B) M20X65 		1-09000-769-0 16 1 1303- ●
197 BOLT
(A) M16X65 		8-98076-160-0 04 1 0906-1302 ●
197 BOLT
(A) M16X65 		8-98076-160-0 04 1 1303- ●
197 BOLT
(C) M16X60 		8-98091-013-0 04 1 0906-1302 ●
197 BOLT
(C) M16X60 		8-98091-013-0 04 1 1303- ●
208 WASHER; LK
(A) ID=16 		1-09503-314-0 16 1 0906-1302 ●
208 WASHER; LK
(A) ID=16 		1-09503-314-0 16 1 1303- ●
208 WASHER; LK
(B) ID=20 		1-09503-315-0 32 1 0906-1302 ●
208 WASHER; LK
(B) ID=20 		1-09503-315-0 32 1 1303- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 0906-1302 ●
212 NUT
(A) M16 		1-09400-160-0 08 1 1303- ●
212 NUT
(B) M20 		1-09400-161-0 16 1 0906-1302 ●
212 NUT
(B) M20 		1-09400-161-0 16 1 1303- ●
512 FIXING KIT; BRKT TO FRAME 8-98074-226-0 01 1 0906-1302 ●
512 FIXING KIT; BRKT TO FRAME 8-98074-226-0 01 1 1303- ●

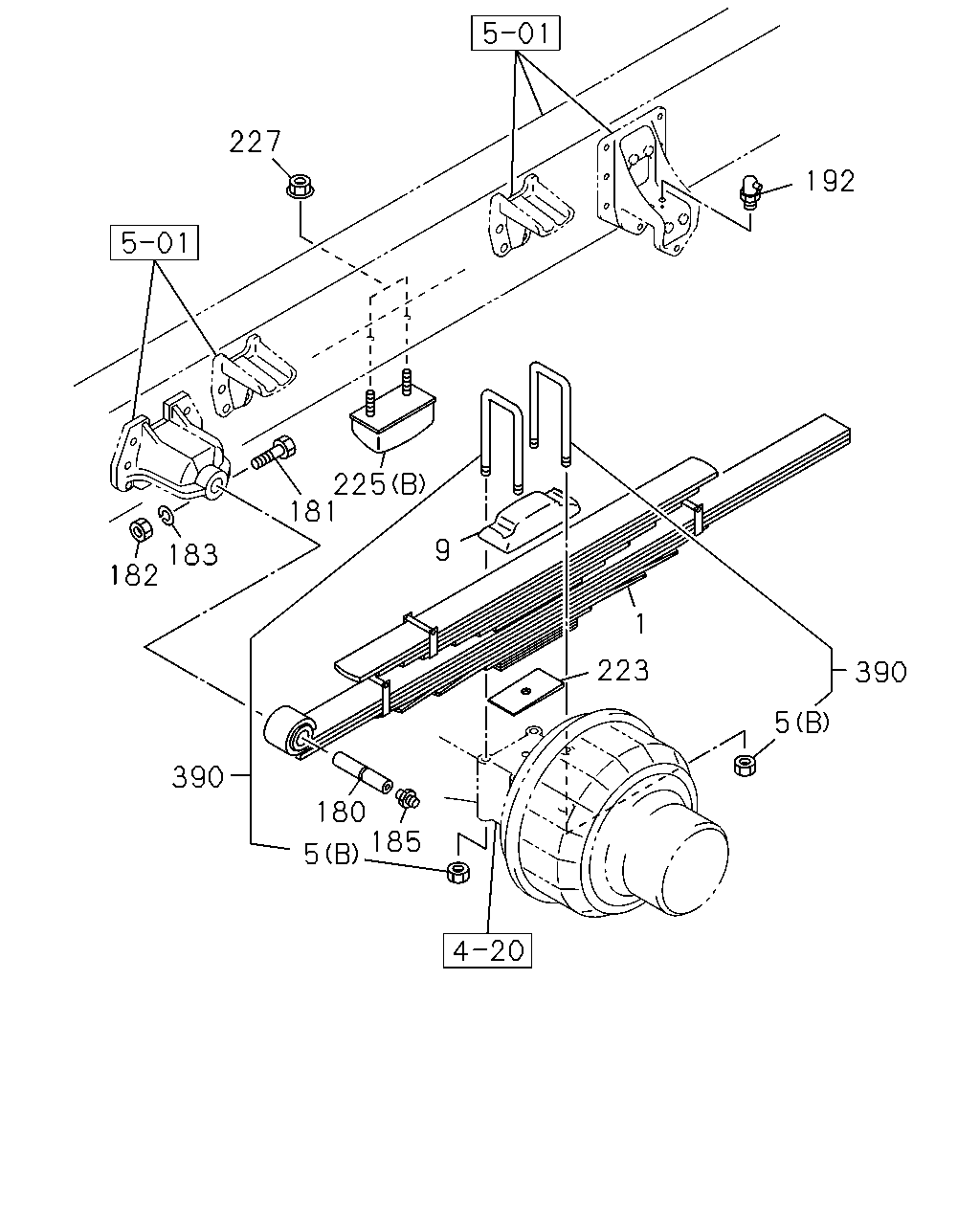

çizim 166648
227 192 225 181 9 183 182 1 223 390 5 390 180 185 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-98017-566-1 02 1 0906- ●
5 NUT; U-BOLT,RR SPR
(A) 		8-98074-194-0 01 1 0906-1302 ●
5 NUT; U-BOLT,RR SPR
(A) 		8-98074-194-0 01 1 1303- ●
5 NUT; U-BOLT,RR SPR
(B) M24 		0-91112-824-0 08 1 0906- ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 0906- ●
180 PIN; RR SPR 1-51361-020-0 02 1 0906- ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 02 1 0906- ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 0906- ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 0906- ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0906- ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0906- ●
223 SPACER; U BOLT,RR SPR
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M) 		1-51377-385-0 02 1 1012- ●
223 SPACER; U BOLT,RR SPR
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W) P60 PROP SHAFT(C2M) 		8-98091-873-0 02 1 1012- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 3900MM(39W) 		1-51377-369-1 02 1 0906-1011 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 3900MM(39W) P90 PROP SHAFT(C5T) 		1-51377-369-1 02 1 1012-1312 ●
223 SPACER; U BOLT,RR SPR
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M) 		1-51377-369-1 02 1 1012-1312 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 3900MM(39W) P90 PROP SHAFT(C5T) 		8-98220-149-0 02 1 1401- ●
223 SPACER; U BOLT,RR SPR
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M) 		8-98220-149-0 02 1 1401- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) 		1-51377-371-1 02 1 0906-1011 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) P90 PROP SHAFT(C5T) 		1-51377-371-1 02 1 1012- ●
223 SPACER; U BOLT,RR SPR
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) P60 PROP SHAFT(C2M) 		1-51377-371-1 02 1 1012- ●
225 RUBBER; CUSHION,RR SPR
(A) 		8-98099-522-0 01 1 0906- ●
225 RUBBER; CUSHION,RR SPR
(A) 		8-98099-523-0 01 1 0906- ●
225 RUBBER; CUSHION,RR SPR
(B) 		1-53366-045-1 02 1 0906- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0906- ● ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-4 04 1 0906- ●

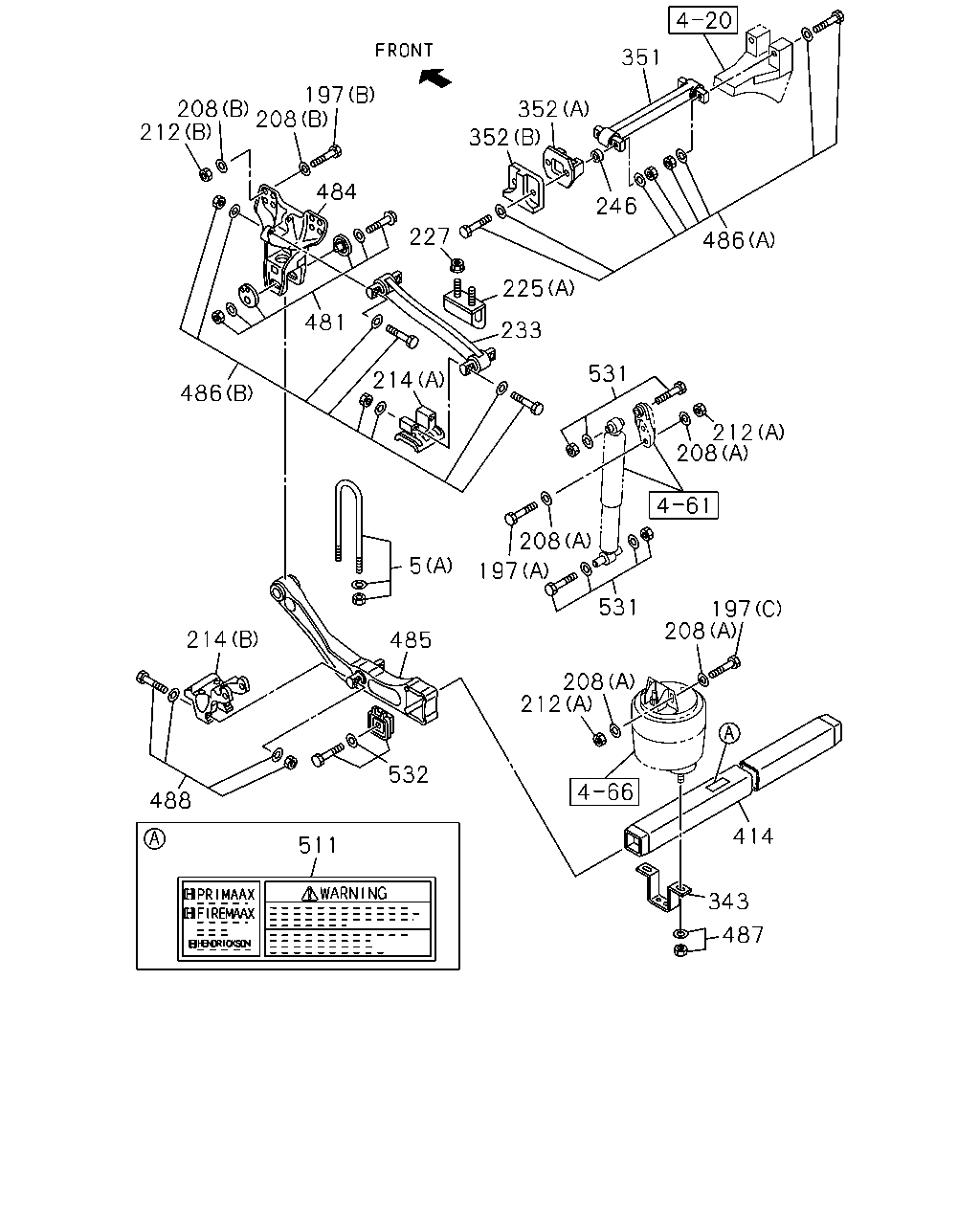

çizim 166685
351 197 208 208 212 352 352 484 246 227 486 225 481 233 531 214 486 212 208 208 5 197 531 197 208 214 485 208 212 532 488 414 511 343 487
BalonParca AdiParca NoAdetTipApplied Date A B
5 NUT; U-BOLT,RR SPR
(A) 		8-98074-194-0 01 1 0906-1302 ●
5 NUT; U-BOLT,RR SPR
(A) 		8-98074-194-0 01 1 1303- ●
5 NUT; U-BOLT,RR SPR
(B) M24 		0-91112-824-0 08 1 0906- ●
197 BOLT
(B) M20X65 		1-09000-769-0 16 1 0906-1302 ●
197 BOLT
(B) M20X65 		1-09000-769-0 16 1 1303- ●
197 BOLT
(A) M16X65 		8-98076-160-0 04 1 0906-1302 ●
197 BOLT
(A) M16X65 		8-98076-160-0 04 1 1303- ●
197 BOLT
(C) M16X60 		8-98091-013-0 04 1 0906-1302 ●
197 BOLT
(C) M16X60 		8-98091-013-0 04 1 1303- ●
208 WASHER; LK
(A) ID=16 		1-09503-314-0 16 1 0906-1302 ●
208 WASHER; LK
(A) ID=16 		1-09503-314-0 16 1 1303- ●
208 WASHER; LK
(B) ID=20 		1-09503-315-0 32 1 0906-1302 ●
208 WASHER; LK
(B) ID=20 		1-09503-315-0 32 1 1303- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 0906-1302 ●
212 NUT
(A) M16 		1-09400-160-0 08 1 1303- ●
212 NUT
(B) M20 		1-09400-161-0 16 1 0906-1302 ●
212 NUT
(B) M20 		1-09400-161-0 16 1 1303- ●
214 SEAT; SPR
(B) 		8-98074-191-0 02 1 0906-1302 ●
214 SEAT; SPR
(B) 		8-98074-191-0 02 1 1303- ●
214 SEAT; SPR
(A) 		8-98075-842-0 02 1 0906-1302 ●
214 SEAT; SPR
(A) 		8-98075-842-0 02 1 1303- ●
225 RUBBER; CUSHION,RR SPR
(A) 		8-98099-522-0 01 1 0906- ●
225 RUBBER; CUSHION,RR SPR
(A) 		8-98099-523-0 01 1 0906- ●
225 RUBBER; CUSHION,RR SPR
(B) 		1-53366-045-1 02 1 0906- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0906- ● ●
233 ROD ASM; TORQUE,RR SUSP
L=670 		8-98092-474-0 01 1 0906-1302 ●
233 ROD ASM; TORQUE,RR SUSP
L=670 		8-98092-474-0 01 1 1303- ●
233 ROD ASM; TORQUE,RR SUSP
L=670 		8-98092-475-0 01 1 0906-1302 ●
233 ROD ASM; TORQUE,RR SUSP
L=670 		8-98092-475-0 01 1 1303- ●
246 WASHER; TORQUE ROD 8-97372-224-0 02 1 1101- ●
343 BRACKET; AIR SPR,LOW 8-98074-221-0 02 1 0906-1302 ●
343 BRACKET; AIR SPR,LOW 8-98074-221-0 02 1 1303- ●
351 ROD ASM; RADIUS 8-98076-276-0 01 1 0906-1302 ●
351 ROD ASM; RADIUS 8-98076-276-0 01 1 1303- ●
352 BRACKET; RADIUS ROD,FRAME
(A) 		1-53353-132-0 01 1 0906-1302 ●
352 BRACKET; RADIUS ROD,FRAME
(A) 		1-53353-132-0 01 1 1303- ●
352 BRACKET; RADIUS ROD,FRAME
(B) 		8-98075-799-0 02 1 0906-1302 ●
352 BRACKET; RADIUS ROD,FRAME
(B) 		8-98075-799-0 02 1 1303- ●
414 BEAM; AIR SPR 8-98074-183-0 01 1 0906-1302 ●
414 BEAM; AIR SPR 8-98074-183-0 01 1 1303- ●
481 ROLLER; REBOUND 8-98076-207-0 01 1 0906-1302 ●
481 ROLLER; REBOUND 8-98076-207-0 01 1 1303- ●
484 BRACKET; REAR SPRING 8-98074-144-0 02 1 0906-1302 ●
484 BRACKET; REAR SPRING 8-98074-144-0 02 1 1303- ●
485 SPRING; LEAF 8-98074-447-0 01 1 0906-1302 ●
485 SPRING; LEAF 8-98074-447-0 01 1 1303- ●
485 SPRING; LEAF 8-98074-448-0 01 1 0906-1302 ●
485 SPRING; LEAF 8-98074-448-0 01 1 1303- ●
486 FIXING KIT; TORQUE ROD
(A) 		8-98076-027-0 01 1 0906-1302 ●
486 FIXING KIT; TORQUE ROD
(A) 		8-98076-027-0 01 1 1303- ●
486 FIXING KIT; TORQUE ROD
(B) 		8-98076-029-0 01 1 0906-1302 ●
486 FIXING KIT; TORQUE ROD
(B) 		8-98076-029-0 01 1 1303- ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 02 1 0906-1302 ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 02 1 1303- ●
488 FIXING KIT; BEAM 8-98074-217-0 01 1 0906-1302 ●
488 FIXING KIT; BEAM 8-98074-217-0 01 1 1303- ●
511 LABEL 8-98079-246-0 01 1 0906-1302 ●
511 LABEL 8-98079-246-0 01 1 1303- ●
531 FIXING KIT; S/ABS 8-98074-200-1 01 1 0906-1302 ●
531 FIXING KIT; S/ABS 8-98074-200-1 01 1 1303- ●
532 CAP KIT 8-98074-184-0 01 1 0906-1302 ●
532 CAP KIT 8-98074-184-0 01 1 1303- ●
