◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11240 - FVR-RHD(EUROPE)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#62531) — 10 parça

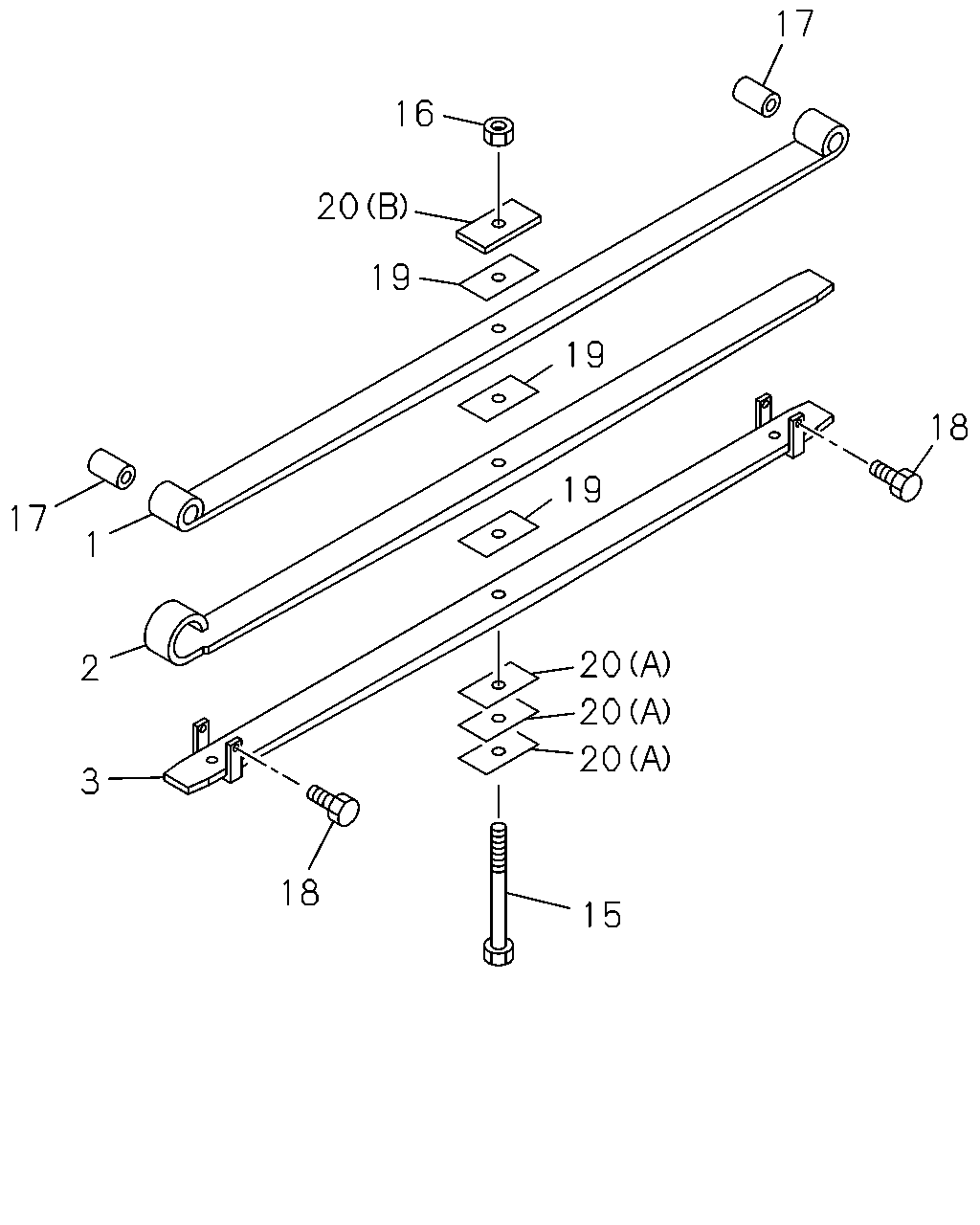

çizim 166487
17 16 20 19 19 18 19 17 1 20 2 20 20 3 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98069-483-0 		8-98073-686-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98069-483-0 		8-98073-687-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98069-483-0 		8-98073-688-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: A = 8-98069-483-0 		8-98048-521-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98069-483-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 8-98069-483-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: A = 8-98069-483-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98069-483-0 		1-51177-071-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A), T=9 ASM PART: A = 8-98069-483-0 		1-51177-114-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=14 ASM PART: A = 8-98069-483-0 		1-51177-127-0 01 1 -
