◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11240 - FVR-RHD(EUROPE)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#62522) — 68 parça

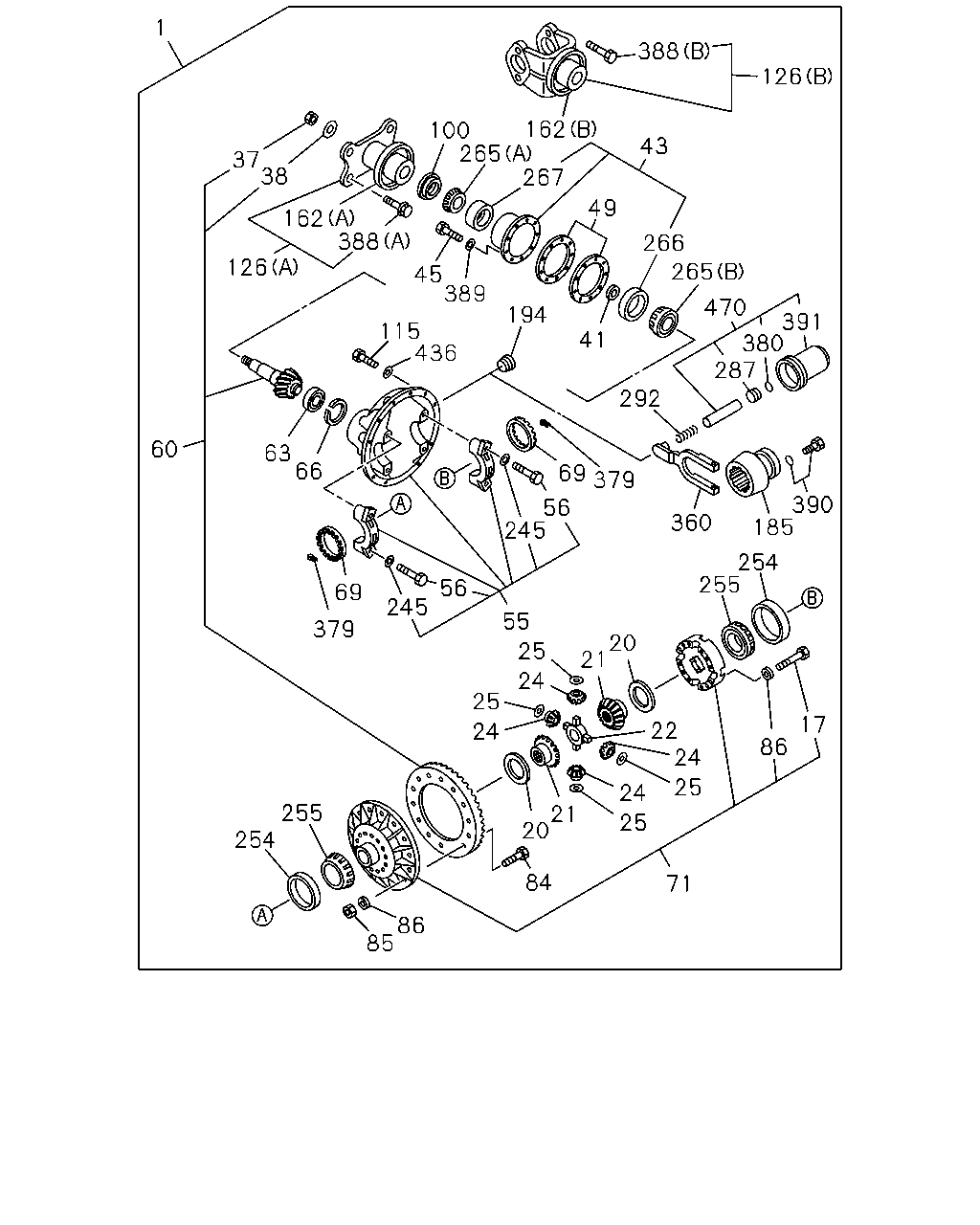

çizim 166513
1 388 126 162 267 100 265 43 37 38 49 162 388 266 126 265 45 389 470 194 391 380 287 115 436 41 292 60 63 66 69 379 390 185 56 245 360 254 255 56 69 245 55 379 20 21 25 24 25 17 22 24 24 86 25 24 255 254 21 20 25 84 71 86 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DRIVE ASM; FINAL,RR
43/8 		1-41002-743-0 01 1 0906- ●
1 DRIVE ASM; FINAL,RR
45/8 		1-41002-744-0 01 1 0906- ●
1 DRIVE ASM; FINAL,RR
43/7 		1-41002-745-0 01 1 0906- ●
1 DRIVE ASM; FINAL,RR
41/6 		1-41002-747-0 01 1 0906- ●
1 DRIVE ASM; FINAL,RR
43/10 		1-41002-742-0 01 1 0906- ●
1 DRIVE ASM; FINAL,RR
41/9 		1-41002-900-0 01 1 0906- ●
17 BOLT; DIFF CAGE SETTING 1-41519-095-0 12 1 0906- ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 0906- ● ● ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-116-0 02 1 0906- ● ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 0906- ● ● ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 0906- ● ● ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 0906- ● ● ● ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 0906- ● ● ● ● ● ●
38 WASHER; PL,DRIVING PINION 1-41349-058-0 01 1 0906- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-360-0 01 1 0906- ● ● ● ● ● ●
43 CAGE; FINAL PINION 1-41151-098-0 01 1 0906- ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-008-0 08 1 0906- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-114-0 01 1 0906- ● ● ● ● ● ●
55 CARRIER; DIFF 1-41110-126-0 01 1 0906- ● ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 0906- ● ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
43/8 		1-41210-650-0 01 1 0906- ●
60 GEAR SET; FINAL DRIVE,RR
45/8 		1-41210-651-0 01 1 0906- ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-652-0 01 1 0906- ●
60 GEAR SET; FINAL DRIVE,RR
41/6 		1-41210-654-0 01 1 0906- ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		1-41210-649-0 01 1 0906- ●
60 GEAR SET; FINAL DRIVE,RR
41/9 		1-41210-661-0 01 1 0906- ●
63 BEARING; PINION PILOT 1-41219-036-0 01 1 0906- ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-037-0 01 1 0906- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-040-0 01 1 0906- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-049-0 01 1 0906- ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-286-0 01 1 0906- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-285-0 01 1 0906- ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 12 1 0906- ● ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 0906- ● ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41229-168-0 24 1 0906- ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 0906- ● ● ● ● ● ●
115 BOLT; DIFF CARRIER
EXC. DIFF LOCK<C3N> 		1-41119-072-0 01 1 0906- ● ● ● ●
115 BOLT; DIFF CARRIER 1-41119-072-0 01 1 0906- ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-364-0 01 1 0906- ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 0906- ● ● ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 0906- ● ● ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-190-0 01 1 0906- ● ● ●
185 COLLAR; SHIFT FORK
DIFF LOCK<C3N> 		1-41379-004-0 01 1 0906- ● ● ● ●
194 PLUG
EXC. DIFF LOCK<C3N> 		1-41119-077-0 01 1 0906- ● ● ● ●
194 PLUG 1-41119-077-0 01 1 0906- ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 0906- ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41229-131-0 01 1 0906- ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41519-083-0 01 1 0906- ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-032-0 01 1 0906- ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-084-0 01 1 0906- ● ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-033-0 01 1 0906- ● ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-124-0 01 1 0906- ● ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-032-0 01 1 0906- ● ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41349-050-0 01 1 0906- ● ● ● ● ● ●
287 PISTON; SHIFT UNIT
DIFF LOCK<C3N> 		1-48262-013-0 01 1 0906- ● ● ● ●
292 SPRING; PISTON
DIFF LOCK<C3N> 		1-48265-008-0 01 1 0906- ● ● ● ●
360 FORK; SHIFT
DIFF LOCK<C3N> 		1-41371-008-0 01 1 0906- ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 01 1 0906- ● ● ● ● ● ●
379 PIN; SPLIT 1-41129-013-0 01 1 0906- ● ● ● ● ● ●
380 GASKET; PISTON
DIFF LOCK<C3N> 		1-48269-075-0 01 1 0906- ● ● ● ●
388 BOLT; COUPLING
(A) 		1-37249-160-0 04 1 0906- ● ● ●
388 BOLT; COUPLING
(B) 		1-37249-204-0 04 1 0906- ● ● ●
389 WASHER; FINAL PINION CAGE 1-41329-084-0 08 1 0906- ● ● ● ● ● ●
390 BOLT; CAGING
DIFF LOCK<C3N> 		1-48269-071-0 01 1 0906- ● ● ● ●
391 CYLINDER; SHIFT
DIFF LOCK<C3N> 		1-48269-070-0 01 1 0906- ● ● ● ●
436 WASHER; PL,DIFF CARRIER
EXC. DIFF LOCK<C3N> 		1-41229-168-0 12 1 0906- ● ● ● ●
436 WASHER; PL,DIFF CARRIER 1-41229-168-0 12 1 0906- ● ●
470 SHIFT KIT
DIFF LOCK<C3N> 		1-48269-258-0 01 1 0906- ● ● ● ●
