◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11240 - FVR-RHD(EUROPE)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#62521) — 62 parça

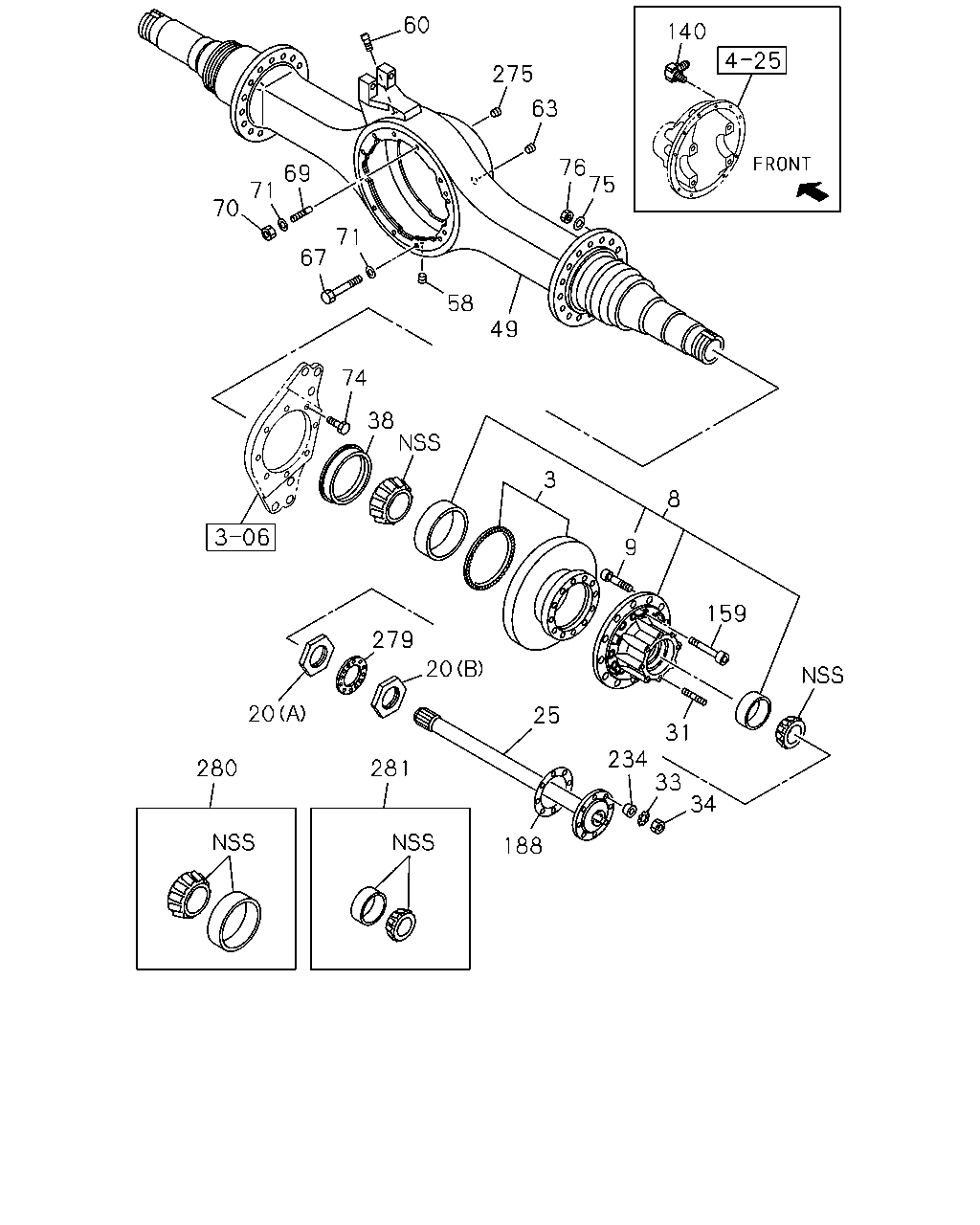

çizim 166520
60 275 76 63 75 140 49 58 71 67 69 71 70 74 38 3 8 9 159 34 33 31 234 188 25 20 279 281 20 280
BalonParca AdiParca NoAdetTipApplied Date A B
3 ROTOR; DISC BRK,RR 1-42116-013-0 02 1 0906- ● ●
8 HUB; RR AXLE 1-42311-149-0 02 1 0906- ● ●
9 PIN; WHEEL,RR AXLE 1-42337-063-0 20 1 0906- ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0906- ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0906- ● ●
25 SHAFT; AXLE,RR 1-42171-586-0 01 1 0906- ● ●
25 SHAFT; AXLE,RR 1-42171-587-0 01 1 0906- ● ●
31 STUD; AXLE SHAFT TO HUB 1-42319-171-0 16 1 0906- ● ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0906- ● ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0906- ● ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0906- ● ●
49 CASE; RR AXLE 1-42119-234-0 01 1 0906- ●
49 CASE; RR AXLE 1-42119-235-0 01 1 0906- ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 01 1 0906- ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0906- ● ●
63 PLUG; OIL FILLER,AXLE CASE 1-42129-054-0 01 1 0906- ● ●
67 BOLT; FINAL DRIVE SETTING 1-42119-136-0 08 1 0906- ● ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0906- ● ●
70 NUT; CARRIER 1-42179-005-0 04 1 0906- ● ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0906- ● ●
74 BOLT; RR BRK ASM SETTING 1-42119-233-0 16 1 0906- ● ●
75 WASHER; LK,RR BRK ASM SETTING 1-41229-168-0 16 1 0906- ● ●
76 NUT; RR BRK ASM SETTING 1-42179-005-0 16 1 0906- ● ●
140 CONNECTOR; AXLE CASE
DIFF LOCK<C3N> M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906- ● ●
159 BOLT; ROTOR TO HUB 1-42119-230-0 24 1 0906- ● ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0906- ● ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0906- ● ●
275 PLUG 1-42119-135-0 01 1 0906- ● ●
279 RING & WASHER; LK,BRG NUT 1-42179-022-0 02 1 0906- ● ●
280 BEARING SET; HUB,INNER 1-85573-012-0 02 1 0906- ● ●
281 BEARING SET; HUB,OUTER 1-85573-013-0 02 1 0906- ● ●

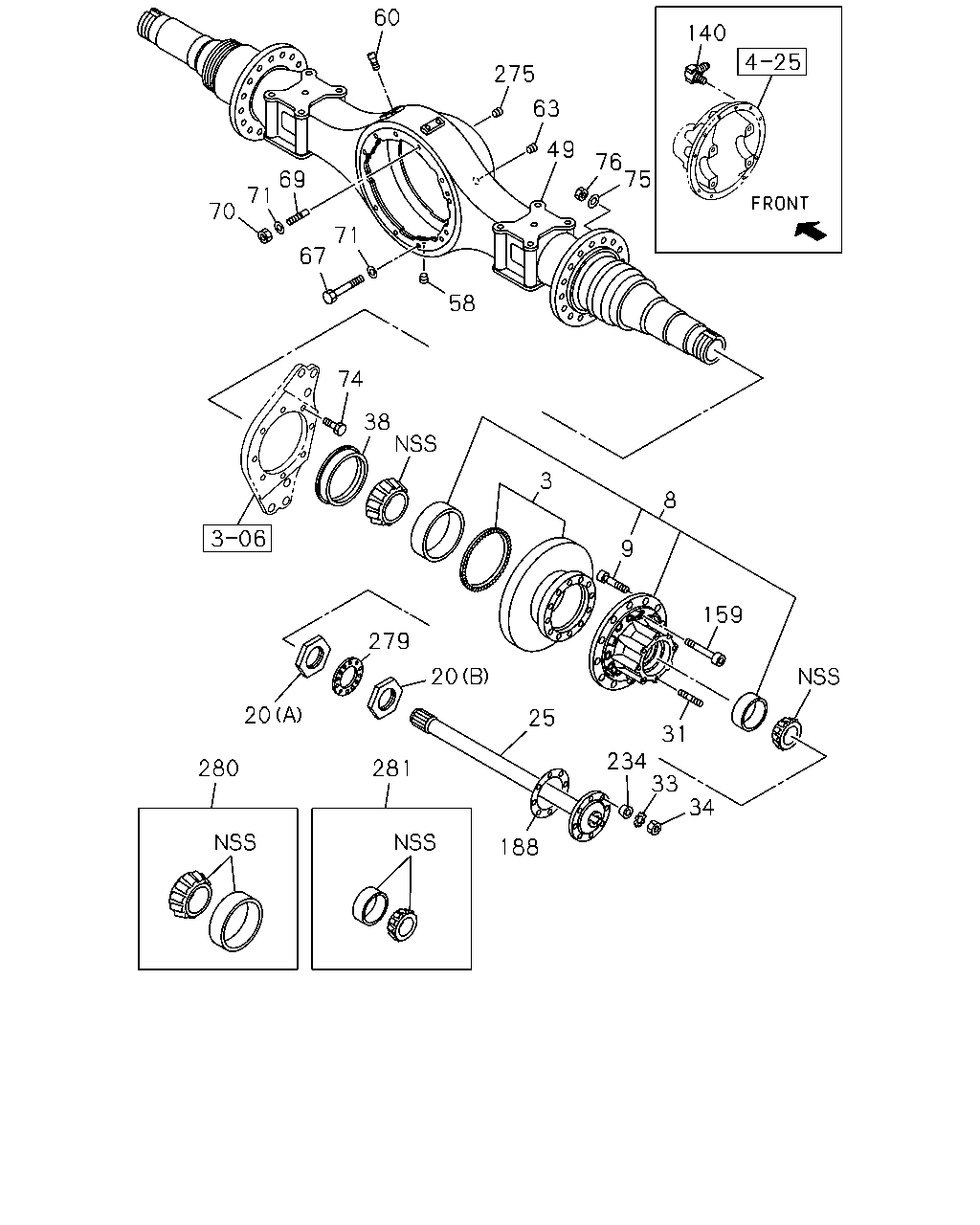

çizim 166523
60 275 49 63 76 75 58 71 71 70 69 67 74 3 38 8 9 159 31 33 34 234 188 25 20 281 280 20 279 140
BalonParca AdiParca NoAdetTipApplied Date A B
3 ROTOR; DISC BRK,RR 1-42116-013-0 02 1 0906- ● ●
8 HUB; RR AXLE 1-42311-149-0 02 1 0906- ● ●
9 PIN; WHEEL,RR AXLE 1-42337-063-0 20 1 0906- ● ●
20 NUT; BRG,RR HUB
(B) 		1-42129-067-0 02 1 0906- ● ●
20 NUT; BRG,RR HUB
(A) 		1-42129-065-0 02 1 0906- ● ●
25 SHAFT; AXLE,RR 1-42171-586-0 01 1 0906- ● ●
25 SHAFT; AXLE,RR 1-42171-587-0 01 1 0906- ● ●
31 STUD; AXLE SHAFT TO HUB 1-42319-171-0 16 1 0906- ● ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0906- ● ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0906- ● ●
38 SEAL; OIL,RR HUB,INNER 1-42319-172-0 02 1 0906- ● ●
49 CASE; RR AXLE 1-42119-234-0 01 1 0906- ●
49 CASE; RR AXLE 1-42119-235-0 01 1 0906- ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 01 1 0906- ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0906- ● ●
63 PLUG; OIL FILLER,AXLE CASE 1-42129-054-0 01 1 0906- ● ●
67 BOLT; FINAL DRIVE SETTING 1-42119-136-0 08 1 0906- ● ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0906- ● ●
70 NUT; CARRIER 1-42179-005-0 04 1 0906- ● ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0906- ● ●
74 BOLT; RR BRK ASM SETTING 1-42119-233-0 16 1 0906- ● ●
75 WASHER; LK,RR BRK ASM SETTING 1-41229-168-0 16 1 0906- ● ●
76 NUT; RR BRK ASM SETTING 1-42179-005-0 16 1 0906- ● ●
140 CONNECTOR; AXLE CASE
DIFF LOCK<C3N> M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906- ● ●
159 BOLT; ROTOR TO HUB 1-42119-230-0 24 1 0906- ● ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0906- ● ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0906- ● ●
275 PLUG 1-42119-135-0 01 1 0906- ● ●
279 RING & WASHER; LK,BRG NUT 1-42179-022-0 02 1 0906- ● ●
280 BEARING SET; HUB,INNER 1-85573-012-0 02 1 0906- ● ●
281 BEARING SET; HUB,OUTER 1-85573-013-0 02 1 0906- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
