◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11240 - FVR-RHD(EUROPE)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#62518) — 927 parça

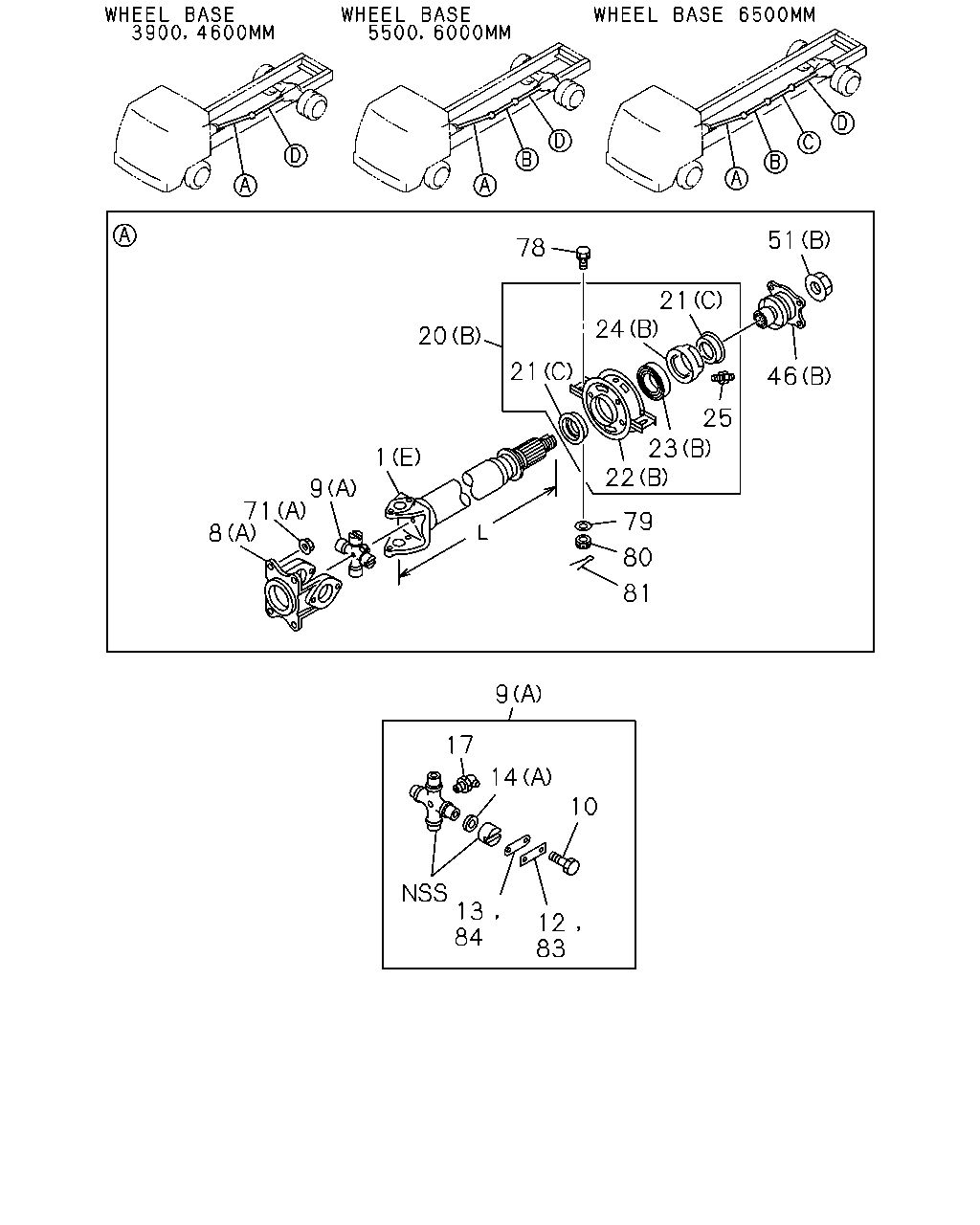

çizim 166484
51 78 21 24 20 21 46 25 23 22 1 9 71 8 79 80 81 9 17 14 10 13 84 12 83
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (H) L=1074 		1-37151-832-0 02 1 1012- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1012- ● ● ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1279 		8-98173-566-0 01 1 1012- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1104 		8-98173-565-0 01 1 1012- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=869 		1-37124-216-0 01 1 0906- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=904 		1-37124-613-0 01 1 0906- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 0906-1011 ● ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1012- ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98091-464-0 01 1 0906- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=1174 		1-37152-080-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1174 		1-37152-080-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1299 		1-37125-407-0 01 1 0906-0907 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=995 		8-98091-465-0 01 1 0906- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 0906- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 0906-1011 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1012- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1239 		8-98039-901-0 01 1 0906- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1220 		8-98091-472-0 01 1 0906- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1224 		1-37151-978-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1224 		1-37151-978-0 01 1 1012- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-219-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-219-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1095 		8-98091-482-0 01 1 0906- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1094 		1-37123-928-0 01 1 0906-0907 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		1-37123-958-0 01 1 0908- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1074 		1-37151-832-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (G) L=1074 		1-37151-832-0 01 1 1012- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1074 		8-98091-302-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1074 		8-98091-302-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1184 		1-37125-347-0 01 1 0906- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1070 		8-98091-474-0 02 1 0906- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0906-0907 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0908- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0906- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0906- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 0906- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 0906- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0906- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0906- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 04 1 0906- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 0906-1011 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 0906-1011 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 1012- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 1012- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 1012- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 0906-1011 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 0906-1011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 1012- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 1012- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 67.5 		1-37300-110-0 02 1 0906-0907 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 90 		1-37300-111-0 01 1 0906- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 90 		1-37300-111-0 01 1 0906- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 67.5 		1-37300-110-0 01 1 0906- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 90 		1-37300-111-0 02 1 0906- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) 1ST,5500MM 2ND M10X20 		0-20951-020-0 08 1 0906-1011 ● ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) 1ST,5500MM 2ND M10X20 		0-20951-020-0 08 1 0906-1011 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) 1ST,5500MM,6000MM 2ND M10X20 		0-20951-020-0 08 1 1012- ● ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) 1ST,5500MM,6000MM 2ND M10X20 		0-20951-020-0 08 1 1012- ●
10 BOLT; UJT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 1ST,5500MM,6000MM 2ND M10X20 		0-20951-020-0 08 1 1012- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) END,6500MM 2ND,3RD M10X20 		0-20951-020-0 16 1 0906- ● ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) END,6500MM 2ND,3RD M10X20 		0-20951-020-0 16 1 0906- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) 2ND M10X20 		9-02061-020-0 08 1 0906-1011 ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 2ND M10X20 		9-02061-020-0 08 1 1012- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0906- ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0906- ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0906- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 08 1 0906- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0906- ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0906- ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0906- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 08 1 0906- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0906-0907 ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0908- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0906- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0906- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 0906- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 0906- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0906- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0906- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 16 1 0906- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0906-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0906-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007-1011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007-1011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0906-0907 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0906-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908-1011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908-1011 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1012- ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1012- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		9-09031-210-0 01 1 0906-1011 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		9-09031-210-0 01 1 1012- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0906- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0906- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0906- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0906- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0906- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 0906- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 02 1 0906- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0906- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0906- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0906- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0906- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0906- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0906- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 04 1 0906- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 02 1 0906- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 02 1 0906- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0906- ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0906- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0906- ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0906- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 0906- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 02 1 0906- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0906- ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0906- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0906- ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0906- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 0906- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 02 1 0906- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0906- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0906- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0906- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0906- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 0906- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 02 1 0906- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0906- ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0906- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 0906- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0906- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0906- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0906- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0906- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 0906- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 02 1 0906- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0906- ● ● ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0906- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0906- ● ● ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0906- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 0906- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 02 1 0906- ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 0906- ● ● ● ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 0906- ● ● ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0906- ● ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0906- ● ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0906-1204 ● ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0906- ● ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0906- ● ● ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0906- ● ● ● ● ●

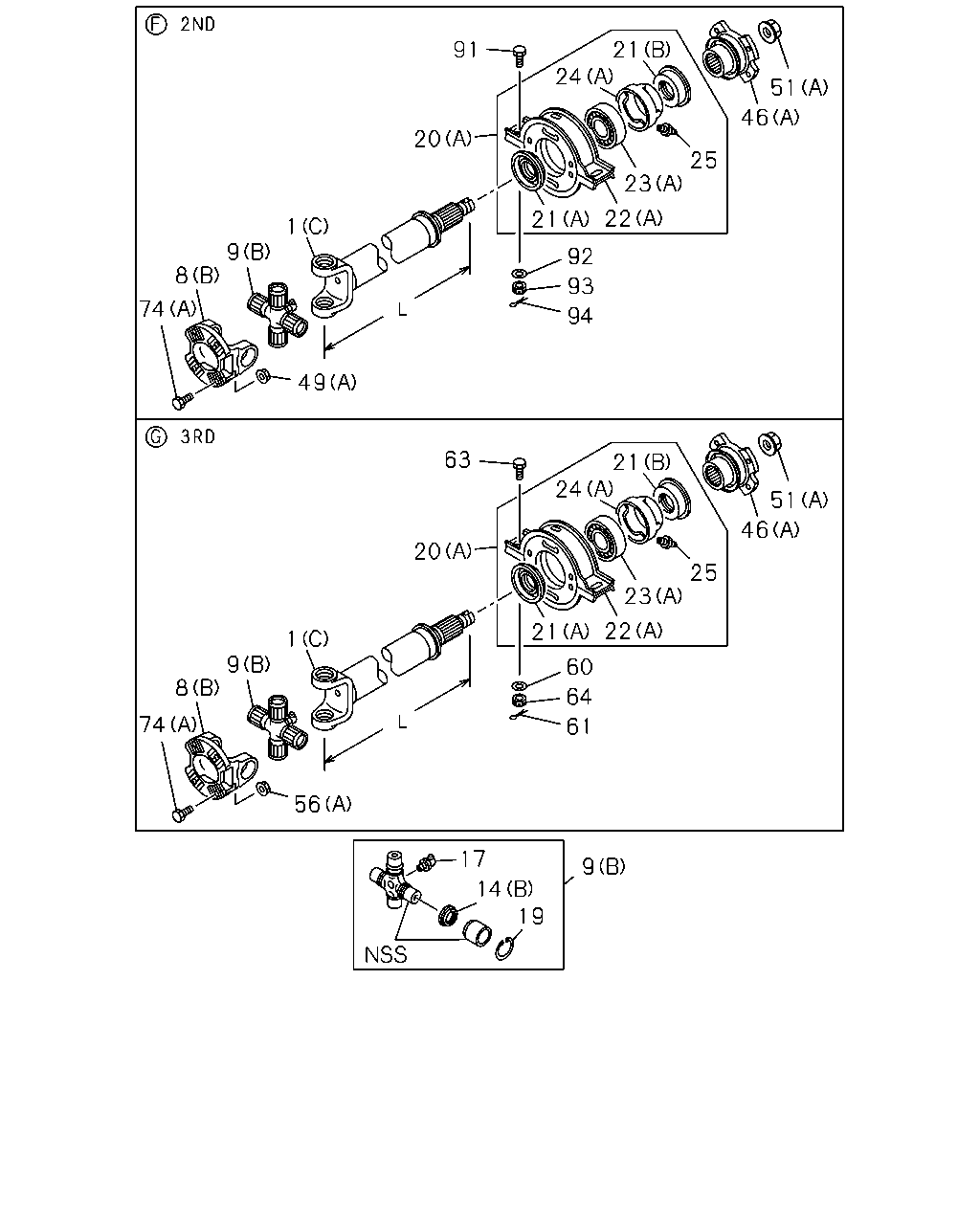

çizim 166501
91 21 24 51 46 20 25 23 22 21 1 9 8 92 93 74 94 49 63 21 24 51 46 20 25 23 22 21 1 9 8 60 64 74 61 56 17 9 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (H) L=1074 		1-37151-832-0 02 1 1012- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1012- ● ● ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1279 		8-98173-566-0 01 1 1012- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1104 		8-98173-565-0 01 1 1012- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=869 		1-37124-216-0 01 1 0906- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=904 		1-37124-613-0 01 1 0906- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 0906-1011 ● ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1012- ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98091-464-0 01 1 0906- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=1174 		1-37152-080-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1174 		1-37152-080-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1299 		1-37125-407-0 01 1 0906-0907 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=995 		8-98091-465-0 01 1 0906- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 0906- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 0906-1011 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1012- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1239 		8-98039-901-0 01 1 0906- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1220 		8-98091-472-0 01 1 0906- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1224 		1-37151-978-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1224 		1-37151-978-0 01 1 1012- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-219-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-219-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1095 		8-98091-482-0 01 1 0906- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1094 		1-37123-928-0 01 1 0906-0907 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		1-37123-958-0 01 1 0908- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1074 		1-37151-832-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (G) L=1074 		1-37151-832-0 01 1 1012- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1074 		8-98091-302-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1074 		8-98091-302-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1184 		1-37125-347-0 01 1 0906- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1070 		8-98091-474-0 02 1 0906- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0906-0907 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0908- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0906- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0906- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 0906- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 0906- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0906- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0906- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 04 1 0906- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 0906-1011 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 0906-1011 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 1012- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 1012- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 1012- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 0906-1011 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 0906-1011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 1012- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 1012- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 67.5 		1-37300-110-0 02 1 0906-0907 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 90 		1-37300-111-0 01 1 0906- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 90 		1-37300-111-0 01 1 0906- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 67.5 		1-37300-110-0 01 1 0906- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 90 		1-37300-111-0 02 1 0906- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0906-0907 ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0908- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0906- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0906- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 0906- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 0906- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0906- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0906- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 16 1 0906- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0906-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0906-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007-1011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007-1011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0906-0907 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0906-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908-1011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908-1011 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1012- ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1012- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		9-09031-210-0 01 1 0906-1011 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		9-09031-210-0 01 1 1012- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0906- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 08 1 0906-0907 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 08 1 0908- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 0906- ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 0906- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 16 1 0906- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0906- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0906- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0906- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0906- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 0906- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 02 1 0906- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0906- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0906- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0906- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0906- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0906- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0906- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 04 1 0906- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 02 1 0906- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 02 1 0906- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0906- ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0906- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0906- ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0906- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 0906- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 02 1 0906- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0906- ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0906- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0906- ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0906- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 0906- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 02 1 0906- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0906- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0906- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0906- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0906- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 0906- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 02 1 0906- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0906- ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0906- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 0906- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0906- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0906- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0906- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0906- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 0906- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 02 1 0906- ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 0906- ● ● ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 0906- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0906- ● ● ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0906- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0906- ● ● ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0906- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 0906- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 02 1 0906- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 0906- ● ● ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 0906- ● ● ● ● ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 0906- ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 0906- ●
60 WASHER; PL,RET TO BRKT
ID=17 		1-09503-241-1 02 1 0906- ●
61 PIN; SPLIT
OD=3.7 L=25 		0-81124-025-0 02 1 0906- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M16X45 		1-09042-030-0 02 1 0906- ●
64 NUT; RET TO BRKT
M16 SLOTTED 		0-91116-516-0 02 1 0906-1204 ●
64 NUT; RET TO BRKT
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0906- ● ● ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0906- ● ● ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0906- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0906- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0906- ● ● ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0906- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0906- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0906- ● ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 0906- ● ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 0906-1204 ● ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0906- ● ● ●

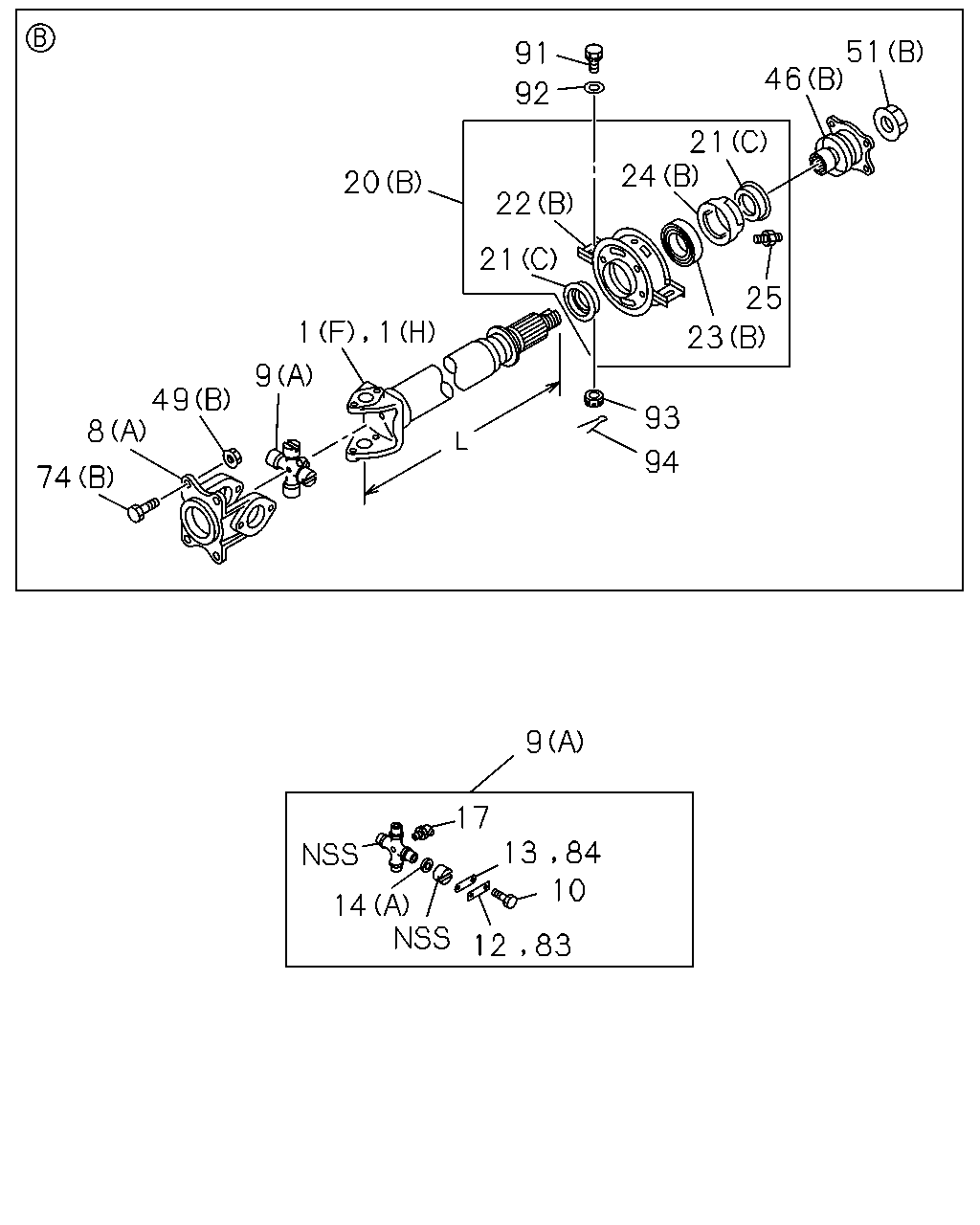

çizim 166504
51 46 91 92 21 24 20 22 21 25 1 1 23 9 49 93 8 94 74 9 17 13 84 10 14 12 83
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (H) L=1074 		1-37151-832-0 02 1 1012- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1012- ● ● ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1279 		8-98173-566-0 01 1 1012- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1104 		8-98173-565-0 01 1 1012- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=869 		1-37124-216-0 01 1 0906- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=904 		1-37124-613-0 01 1 0906- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 0906-1011 ● ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1012- ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98091-464-0 01 1 0906- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=1174 		1-37152-080-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1174 		1-37152-080-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1299 		1-37125-407-0 01 1 0906-0907 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=995 		8-98091-465-0 01 1 0906- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 0906- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 0906-1011 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1012- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1239 		8-98039-901-0 01 1 0906- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1220 		8-98091-472-0 01 1 0906- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1224 		1-37151-978-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1224 		1-37151-978-0 01 1 1012- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-219-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-219-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1095 		8-98091-482-0 01 1 0906- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1094 		1-37123-928-0 01 1 0906-0907 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		1-37123-958-0 01 1 0908- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1074 		1-37151-832-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (G) L=1074 		1-37151-832-0 01 1 1012- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1074 		8-98091-302-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1074 		8-98091-302-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1184 		1-37125-347-0 01 1 0906- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1070 		8-98091-474-0 02 1 0906- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0906-0907 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0908- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0906- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0906- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 0906- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 0906- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0906- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0906- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 04 1 0906- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 0906-1011 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 0906-1011 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 1012- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 1012- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 1012- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 0906-1011 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 0906-1011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 1012- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 1012- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 67.5 		1-37300-110-0 02 1 0906-0907 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 90 		1-37300-111-0 01 1 0906- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 90 		1-37300-111-0 01 1 0906- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 67.5 		1-37300-110-0 01 1 0906- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 90 		1-37300-111-0 02 1 0906- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) 1ST,5500MM 2ND M10X20 		0-20951-020-0 08 1 0906-1011 ● ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) 1ST,5500MM 2ND M10X20 		0-20951-020-0 08 1 0906-1011 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) 1ST,5500MM,6000MM 2ND M10X20 		0-20951-020-0 08 1 1012- ● ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) 1ST,5500MM,6000MM 2ND M10X20 		0-20951-020-0 08 1 1012- ●
10 BOLT; UJT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 1ST,5500MM,6000MM 2ND M10X20 		0-20951-020-0 08 1 1012- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) END,6500MM 2ND,3RD M10X20 		0-20951-020-0 16 1 0906- ● ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) END,6500MM 2ND,3RD M10X20 		0-20951-020-0 16 1 0906- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) 2ND M10X20 		9-02061-020-0 08 1 0906-1011 ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 2ND M10X20 		9-02061-020-0 08 1 1012- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0906- ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0906- ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0906- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 08 1 0906- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0906- ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0906- ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0906- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 08 1 0906- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0906-0907 ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0908- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0906- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0906- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 0906- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 0906- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0906- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0906- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 16 1 0906- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0906-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0906-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007-1011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007-1011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0906-0907 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0906-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908-1011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908-1011 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1012- ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1012- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		9-09031-210-0 01 1 0906-1011 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		9-09031-210-0 01 1 1012- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0906- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0906- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0906- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0906- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0906- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 0906- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 02 1 0906- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0906- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0906- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0906- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0906- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0906- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0906- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 04 1 0906- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 02 1 0906- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 02 1 0906- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0906- ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0906- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0906- ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0906- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 0906- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 02 1 0906- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0906- ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0906- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0906- ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0906- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 0906- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 02 1 0906- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0906- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0906- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0906- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0906- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 0906- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 02 1 0906- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0906- ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0906- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 0906- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0906- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0906- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0906- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0906- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 0906- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 02 1 0906- ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 0906- ● ● ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 0906- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0906- ● ● ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0906- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0906- ● ● ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0906- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 0906- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 02 1 0906- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0906- ● ● ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0906- ● ● ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0906- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0906- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0906- ● ● ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0906- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0906- ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0906- ● ● ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0906- ● ● ● ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0906- ● ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 0906- ● ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 0906-1204 ● ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0906- ● ● ●
çizim 166507
74 56 9 1 8 128 225 104 9 8 106 74 56 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (H) L=1074 		1-37151-832-0 02 1 1012- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1012- ● ● ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1279 		8-98173-566-0 01 1 1012- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1104 		8-98173-565-0 01 1 1012- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=869 		1-37124-216-0 01 1 0906- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=904 		1-37124-613-0 01 1 0906- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 0906-1011 ● ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1012- ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98091-464-0 01 1 0906- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=1174 		1-37152-080-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1174 		1-37152-080-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1299 		1-37125-407-0 01 1 0906-0907 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=995 		8-98091-465-0 01 1 0906- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 0906- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 0906-1011 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1012- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1239 		8-98039-901-0 01 1 0906- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1220 		8-98091-472-0 01 1 0906- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1224 		1-37151-978-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1224 		1-37151-978-0 01 1 1012- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-219-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-219-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1095 		8-98091-482-0 01 1 0906- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1094 		1-37123-928-0 01 1 0906-0907 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		1-37123-958-0 01 1 0908- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1074 		1-37151-832-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (G) L=1074 		1-37151-832-0 01 1 1012- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1074 		8-98091-302-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1074 		8-98091-302-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1184 		1-37125-347-0 01 1 0906- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1070 		8-98091-474-0 02 1 0906- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0906-0907 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0908- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0906- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0906- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 0906- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 0906- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0906- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0906- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 04 1 0906- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 0906-1011 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 0906-1011 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 1012- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 1012- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 1012- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 0906-1011 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 0906-1011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 1012- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 1012- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 67.5 		1-37300-110-0 02 1 0906-0907 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 90 		1-37300-111-0 01 1 0906- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 90 		1-37300-111-0 01 1 0906- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 67.5 		1-37300-110-0 01 1 0906- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 90 		1-37300-111-0 02 1 0906- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0906-0907 ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0908- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0906- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0906- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 0906- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 0906- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0906- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0906- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 16 1 0906- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0906-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0906-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007-1011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007-1011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0906-0907 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0906-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908-1011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908-1011 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1012- ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1012- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		9-09031-210-0 01 1 0906-1011 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		9-09031-210-0 01 1 1012- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0906- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 08 1 0906-0907 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 08 1 0908- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 0906- ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 0906- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 16 1 0906- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 0906- ● ● ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 0906- ● ● ● ● ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 0906- ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 0906- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0906- ● ● ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0906- ● ● ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0906- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0906- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0906- ● ● ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0906- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0906- ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0906-0907 ● ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0908- ● ● ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) 		1-09600-067-0 01 1 0908- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0906-0907 ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0908- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0908- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 0906- ● ● ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 0906- ● ● ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0906-0907 ● ● ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0908- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 0906- ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) L=330 		1-37241-124-0 01 1 0906-0907 ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) L=330 		1-37241-124-0 01 1 0908- ● ● ● ●
çizim 166525
63 51 46 60 21 24 20 22 21 25 1 1 23 9 56 64 8 74 56 61 74 8 9 1 128 107 9 8 106 106 225 104 74 56 17 9 13 84 10 14 12 83
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (H) L=1074 		1-37151-832-0 02 1 1012- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1012- ● ● ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1279 		8-98173-566-0 01 1 1012- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1104 		8-98173-565-0 01 1 1012- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=869 		1-37124-216-0 01 1 0906- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=904 		1-37124-613-0 01 1 0906- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 0906-1011 ● ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1012- ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98091-464-0 01 1 0906- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=1174 		1-37152-080-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1174 		1-37152-080-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1299 		1-37125-407-0 01 1 0906-0907 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=995 		8-98091-465-0 01 1 0906- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 0906- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 0906-1011 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1012- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1239 		8-98039-901-0 01 1 0906- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1220 		8-98091-472-0 01 1 0906- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1224 		1-37151-978-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1224 		1-37151-978-0 01 1 1012- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-219-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-219-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1095 		8-98091-482-0 01 1 0906- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1094 		1-37123-928-0 01 1 0906-0907 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		1-37123-958-0 01 1 0908- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1074 		1-37151-832-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (G) L=1074 		1-37151-832-0 01 1 1012- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1074 		8-98091-302-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1074 		8-98091-302-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1184 		1-37125-347-0 01 1 0906- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1070 		8-98091-474-0 02 1 0906- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0906-0907 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0908- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0906- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0906- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 0906- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 0906- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0906- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0906- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 04 1 0906- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 0906-1011 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 0906-1011 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 1012- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 1012- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 1012- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 0906-1011 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 0906-1011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 1012- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 1012- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 67.5 		1-37300-110-0 02 1 0906-0907 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 90 		1-37300-111-0 01 1 0906- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 90 		1-37300-111-0 01 1 0906- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 67.5 		1-37300-110-0 01 1 0906- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 90 		1-37300-111-0 02 1 0906- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) 1ST,5500MM 2ND M10X20 		0-20951-020-0 08 1 0906-1011 ● ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) 1ST,5500MM 2ND M10X20 		0-20951-020-0 08 1 0906-1011 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) 1ST,5500MM,6000MM 2ND M10X20 		0-20951-020-0 08 1 1012- ● ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) 1ST,5500MM,6000MM 2ND M10X20 		0-20951-020-0 08 1 1012- ●
10 BOLT; UJT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 1ST,5500MM,6000MM 2ND M10X20 		0-20951-020-0 08 1 1012- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) END,6500MM 2ND,3RD M10X20 		0-20951-020-0 16 1 0906- ● ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) END,6500MM 2ND,3RD M10X20 		0-20951-020-0 16 1 0906- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) 2ND M10X20 		9-02061-020-0 08 1 0906-1011 ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 2ND M10X20 		9-02061-020-0 08 1 1012- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0906- ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0906- ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0906- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 08 1 0906- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0906- ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0906- ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0906- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 08 1 0906- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0906-0907 ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0908- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0906- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0906- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 0906- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 0906- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0906- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0906- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 16 1 0906- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0906-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0906-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007-1011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007-1011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0906-0907 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0906-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908-1011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908-1011 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1012- ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1012- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		9-09031-210-0 01 1 0906-1011 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		9-09031-210-0 01 1 1012- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0906- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0906- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0906- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0906- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0906- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 0906- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 02 1 0906- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0906- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0906- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0906- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0906- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0906- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0906- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 04 1 0906- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 02 1 0906- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 02 1 0906- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0906- ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0906- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0906- ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0906- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 0906- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 02 1 0906- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0906- ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0906- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0906- ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0906- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 0906- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 02 1 0906- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0906- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0906- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0906- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0906- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 0906- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 02 1 0906- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0906- ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0906- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 0906- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0906- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0906- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0906- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0906- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 0906- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 02 1 0906- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0906- ● ● ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0906- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0906- ● ● ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0906- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 0906- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 02 1 0906- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 0906- ● ● ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 0906- ● ● ● ● ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 0906- ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 0906- ●
60 WASHER; PL,RET TO BRKT
ID=17 		1-09503-241-1 02 1 0906- ●
61 PIN; SPLIT
OD=3.7 L=25 		0-81124-025-0 02 1 0906- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M16X45 		1-09042-030-0 02 1 0906- ●
64 NUT; RET TO BRKT
M16 SLOTTED 		0-91116-516-0 02 1 0906-1204 ●
64 NUT; RET TO BRKT
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0906- ● ● ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0906- ● ● ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0906- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0906- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0906- ● ● ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0906- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0906- ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0906- ● ● ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0906- ● ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0906-0907 ● ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0908- ● ● ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) 		1-09600-067-0 01 1 0908- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0906-0907 ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0908- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0908- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 0906- ● ● ● ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 0906- ● ● ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 0906- ● ● ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0906-0907 ● ● ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0908- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 0906- ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) L=330 		1-37241-124-0 01 1 0906-0907 ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) L=330 		1-37241-124-0 01 1 0908- ● ● ● ●
çizim 166529
78 21 24 51 46 20 25 23 22 21 1 9 8 79 80 81 71 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (H) L=1074 		1-37151-832-0 02 1 1012- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1012- ● ● ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1279 		8-98173-566-0 01 1 1012- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1104 		8-98173-565-0 01 1 1012- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=869 		1-37124-216-0 01 1 0906- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=904 		1-37124-613-0 01 1 0906- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 0906-1011 ● ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1012- ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98091-464-0 01 1 0906- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=1174 		1-37152-080-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1174 		1-37152-080-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1299 		1-37125-407-0 01 1 0906-0907 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=995 		8-98091-465-0 01 1 0906- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 0906- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 0906-1011 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1012- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1239 		8-98039-901-0 01 1 0906- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1220 		8-98091-472-0 01 1 0906- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1224 		1-37151-978-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1224 		1-37151-978-0 01 1 1012- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-219-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-219-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1095 		8-98091-482-0 01 1 0906- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1094 		1-37123-928-0 01 1 0906-0907 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		1-37123-958-0 01 1 0908- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1074 		1-37151-832-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (G) L=1074 		1-37151-832-0 01 1 1012- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1074 		8-98091-302-0 01 1 0906-1011 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1074 		8-98091-302-0 01 1 1012- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1184 		1-37125-347-0 01 1 0906- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1070 		8-98091-474-0 02 1 0906- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0906-0907 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0908- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0906- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0906- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 0906- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 0906- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0906- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0906- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 04 1 0906- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 0906-1011 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 0906-1011 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 1012- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 1012- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 67.5 		1-37300-094-1 AR 1 1012- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 0906-1011 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 0906-1011 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 1012- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) NIPPLE 90 		1-37300-095-1 AR 1 1012- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 67.5 		1-37300-110-0 02 1 0906-0907 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 90 		1-37300-111-0 01 1 0906- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 90 		1-37300-111-0 01 1 0906- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 67.5 		1-37300-110-0 01 1 0906- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) NIPPLE 90 		1-37300-111-0 02 1 0906- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0906-0907 ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0908- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0906- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0906- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 0906- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 0906- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0906- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0906- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 16 1 0906- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0906-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0906-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007-1011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007-1011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0906-0907 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0906-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908-1011 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908-1011 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1012- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1012- ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1012- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		9-09031-210-0 01 1 0906-1011 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		9-09031-210-0 01 1 1012- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0906- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 08 1 0906-0907 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 08 1 0908- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 0906- ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 0906- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 16 1 0906- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0906- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0906- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0906- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0906- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 0906- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 02 1 0906- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0906- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0906- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0906- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0906- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0906- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0906- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 04 1 0906- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 02 1 0906- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 02 1 0906- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0906- ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0906- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0906- ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0906- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 0906- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 02 1 0906- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0906- ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0906- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0906- ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0906- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 0906- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 02 1 0906- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0906- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0906- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0906- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0906- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 0906- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 02 1 0906- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0906- ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0906- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 0906- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0906- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0906- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0906- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0906- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 0906- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 02 1 0906- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0906- ● ● ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0906- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0906- ● ● ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0906- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 0906- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 02 1 0906- ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 0906- ● ● ● ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 0906- ● ● ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0906- ● ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0906- ● ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0906-1204 ● ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0906- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
