◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11240 - FVR-RHD(EUROPE)EURO5 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#62514) — 75 parça
çizim 166448
12 51 202 264 51 229 436 435 434 297 367
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
M12 		0-91111-512-0 01 1 0906- ● ●
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906- ● ●
51 UNION
(B) M12 2WAY 		1-09654-059-2 01 1 0906- ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0906- ● ●
229 ADAPTER; NYLON TUBE
FULLER FSO5206B OD M/T(Y4V) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0906-1011 ● ●
229 ADAPTER; NYLON TUBE
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012- ● ●
264 HOSE; FLEX
MZW6P M/T(RSZ) L=300 		1-09363-611-0 01 1 1012- ●
264 HOSE; FLEX
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W) L=270 		1-09363-687-0 01 1 1012- ●
264 HOSE; FLEX
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W) L=370 		1-09363-771-0 01 1 1012- ●
264 HOSE; FLEX
L=340 		1-09363-617-0 01 1 0906- ●
264 HOSE; FLEX
L=320 		1-09363-625-0 01 1 0906-1011 ●
264 HOSE; FLEX
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) L=320 		1-09363-625-0 01 1 1012- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0906- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0906- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0906- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0906- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0906- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0906- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0906- ● ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0906- ● ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0906- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0906- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0906- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0906- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●

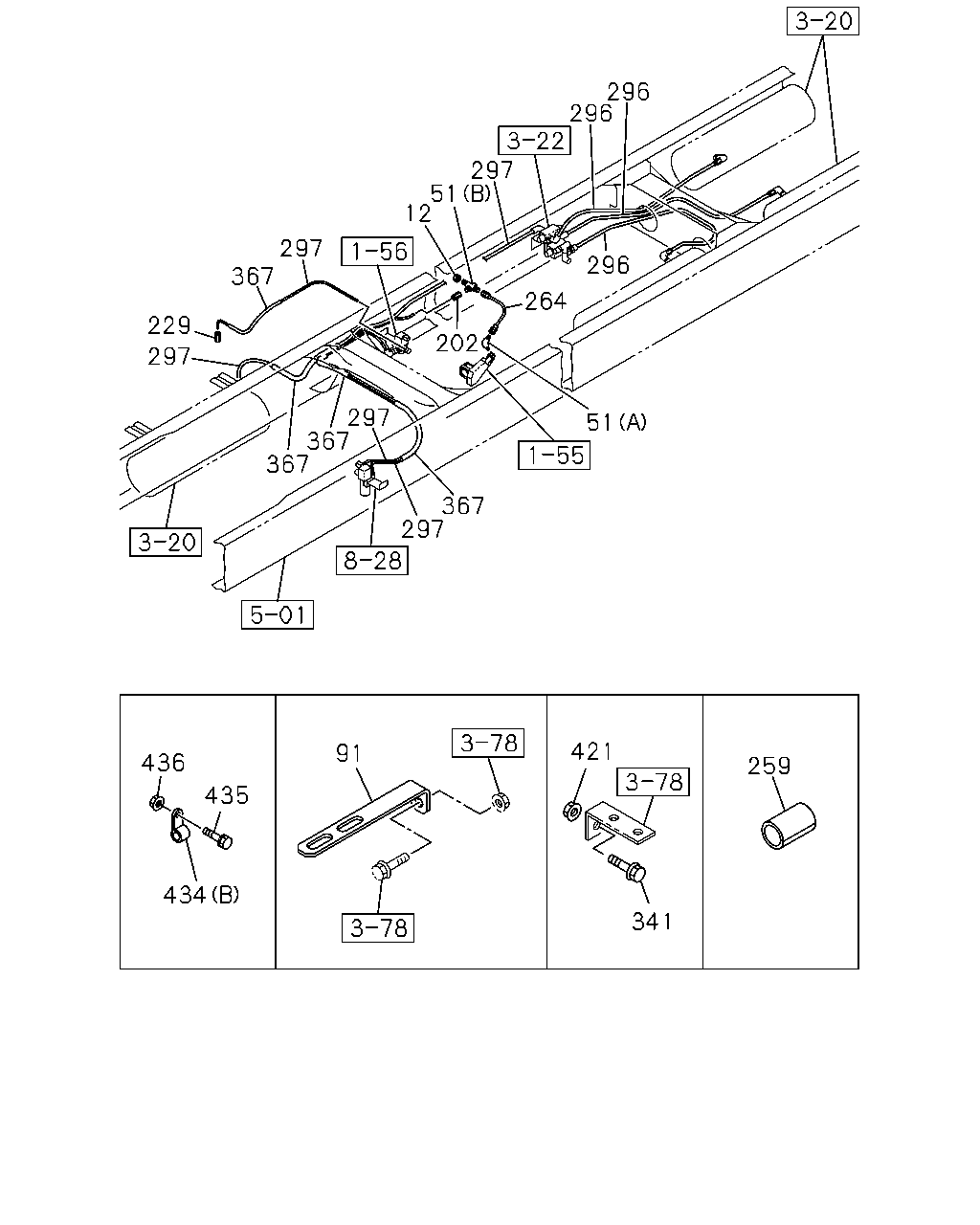

çizim 166455
296 296 297 51 12 297 367 296 264 229 202 297 297 367 367 51 367 297 421 91 436 259 435 434 341
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
M12 		0-91111-512-0 01 1 0906- ● ●
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906- ● ●
51 UNION
(B) M12 2WAY 		1-09654-059-2 01 1 0906- ● ●
91 BRACKET; TUBE CLIP
L=150 H=30 		1-47477-629-2 01 1 0906- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0906- ● ●
229 ADAPTER; NYLON TUBE
FULLER FSO5206B OD M/T(Y4V) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0906-1011 ● ●
229 ADAPTER; NYLON TUBE
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012- ● ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0906- ●
264 HOSE; FLEX
MZW6P M/T(RSZ) L=300 		1-09363-611-0 01 1 1012- ●
264 HOSE; FLEX
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W) L=270 		1-09363-687-0 01 1 1012- ●
264 HOSE; FLEX
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W) L=370 		1-09363-771-0 01 1 1012- ●
264 HOSE; FLEX
L=340 		1-09363-617-0 01 1 0906- ●
264 HOSE; FLEX
L=320 		1-09363-625-0 01 1 0906-1011 ●
264 HOSE; FLEX
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) L=320 		1-09363-625-0 01 1 1012- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0906- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0906- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0906- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0906- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0906- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0906- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0906- ● ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0906- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0906- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0906- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0906- ● ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0906- ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0906- ● ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0906- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0906- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0906- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0906- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●

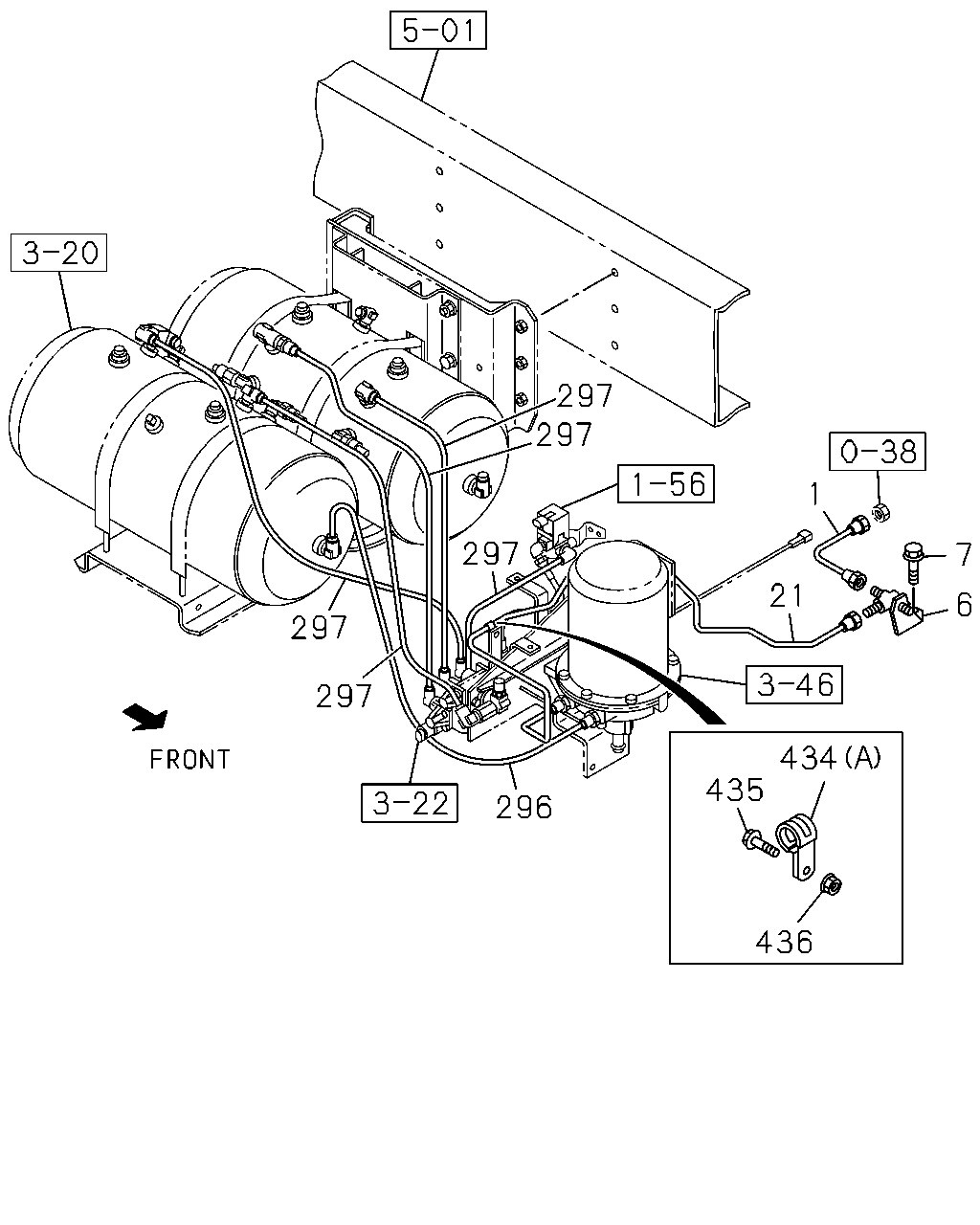

çizim 166517
297 297 1 297 7 21 6 297 297 434 435 296 436
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0906- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 0906- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0906- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=2033 		8-98126-152-1 01 1 0906- ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1715 		8-98095-083-0 01 1 0906- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0906- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0906- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0906- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0906- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0906- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0906- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0906- ● ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 0906- ● ●
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 0906- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0906- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0906- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0906- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
