◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11240 - FVR-RHD(EUROPE)EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#62494) — 176 parça

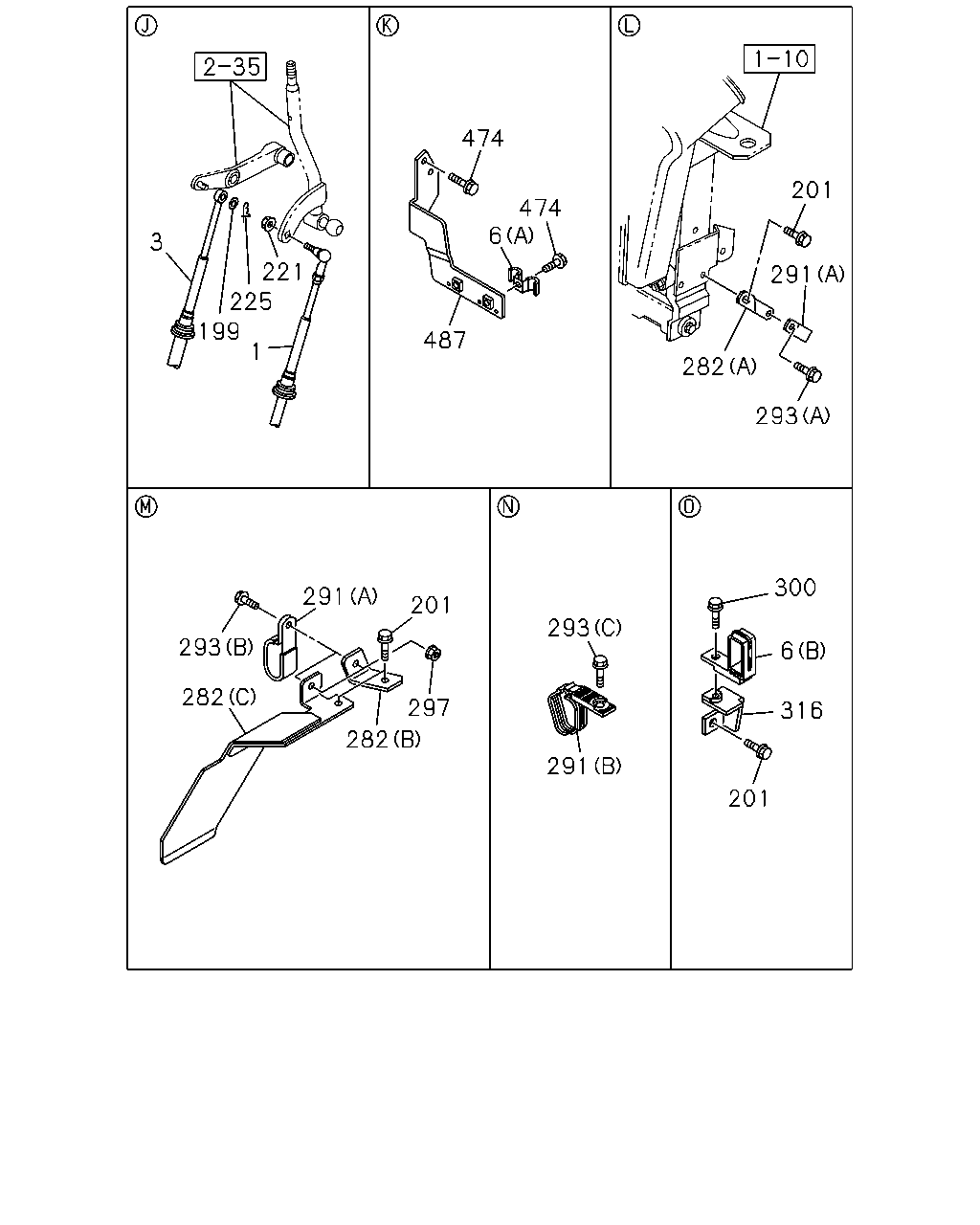

çizim 166401
474 201 474 6 3 291 221 225 199 487 1 282 293 300 291 201 293 293 6 282 297 316 282 291 201
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3550 		8-98010-435-4 01 1 1012- ● ●
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-4 01 1 1012- ● ●
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3610 		8-98047-800-3 01 1 0906- ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=3600 		8-98047-804-2 01 1 0906- ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) L=3620 		8-98099-965-2 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3755 		8-98010-475-2 01 1 1012- ● ●
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3790 		8-98047-814-2 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=3680 		8-98047-818-1 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) L=3700 		8-98099-967-1 01 1 0906- ● ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0906- ● ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0906- ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0906- ● ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0906- ● ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0906- ● ●
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0906- ● ●
201 BOLT; BRKT
M12X35 FLANGE 		0-28151-235-0 01 1 0906- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0906-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0906- ● ●
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 0906-1103 ● ●
282 BRACKET; TRANS SIDE
(C) 		8-98171-762-0 01 1 1104- ● ●
282 BRACKET; TRANS SIDE
6HK1-TCC ENG(81L) (A) 		8-98010-418-0 01 1 0906- ● ●
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L) (A) 		8-98098-265-2 01 1 0906- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 0906- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0906- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0906- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0906- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0906- ● ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0906- ● ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0906- ● ●
316 BRACKET; CLIP
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> 		8-98073-017-1 01 1 1012- ● ●
316 BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 		8-98086-439-0 01 1 0906- ● ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 0906- ● ●
487 BRACKET; CONT CABLE 8-98021-923-2 01 1 0906-1012 ● ●
487 BRACKET; CONT CABLE 8-98180-729-0 01 1 1101- ● ●

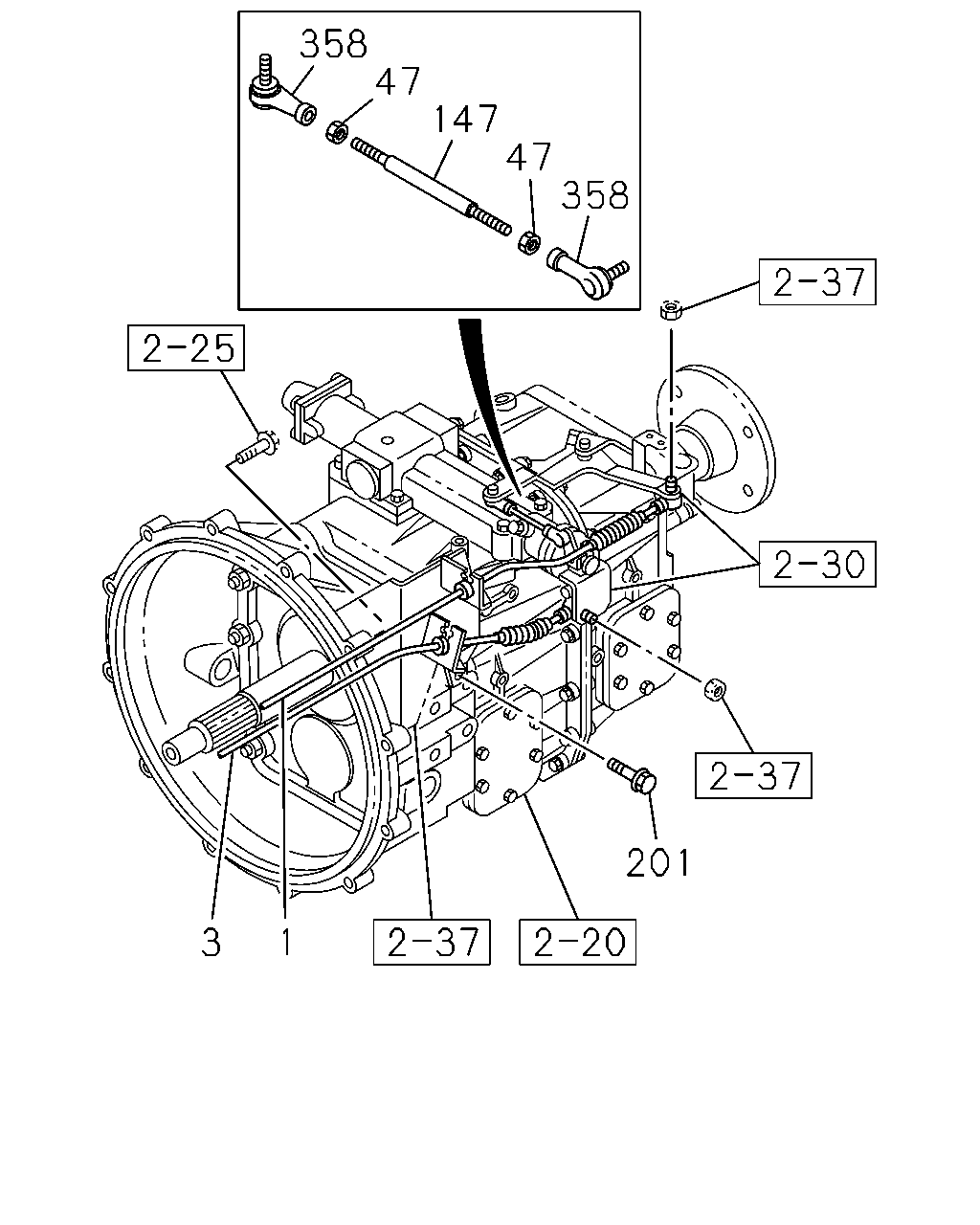

çizim 166409
358 47 147 47 358 201 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3550 		8-98010-435-4 01 1 1012- ● ●
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-4 01 1 1012- ● ●
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3610 		8-98047-800-3 01 1 0906- ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=3600 		8-98047-804-2 01 1 0906- ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) L=3620 		8-98099-965-2 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3755 		8-98010-475-2 01 1 1012- ● ●
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3790 		8-98047-814-2 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=3680 		8-98047-818-1 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) L=3700 		8-98099-967-1 01 1 0906- ● ●
47 NUT; LK,LINK ROD
FULLER FSO5206B OD M/T(Y4V) M8 		0-91111-508-0 02 1 0906- ● ●
147 ROD; LINK
FULLER FSO5206B OD M/T(Y4V) 		0-84000-808-0 01 1 0906- ● ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0906- ● ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0906- ● ●
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0906- ● ●
201 BOLT; BRKT
M12X35 FLANGE 		0-28151-235-0 01 1 0906- ● ●
358 ROD END; SCREW
FULLER FSO5206B OD M/T(Y4V) L=45.5 		1-09760-118-1 02 1 0906- ● ●

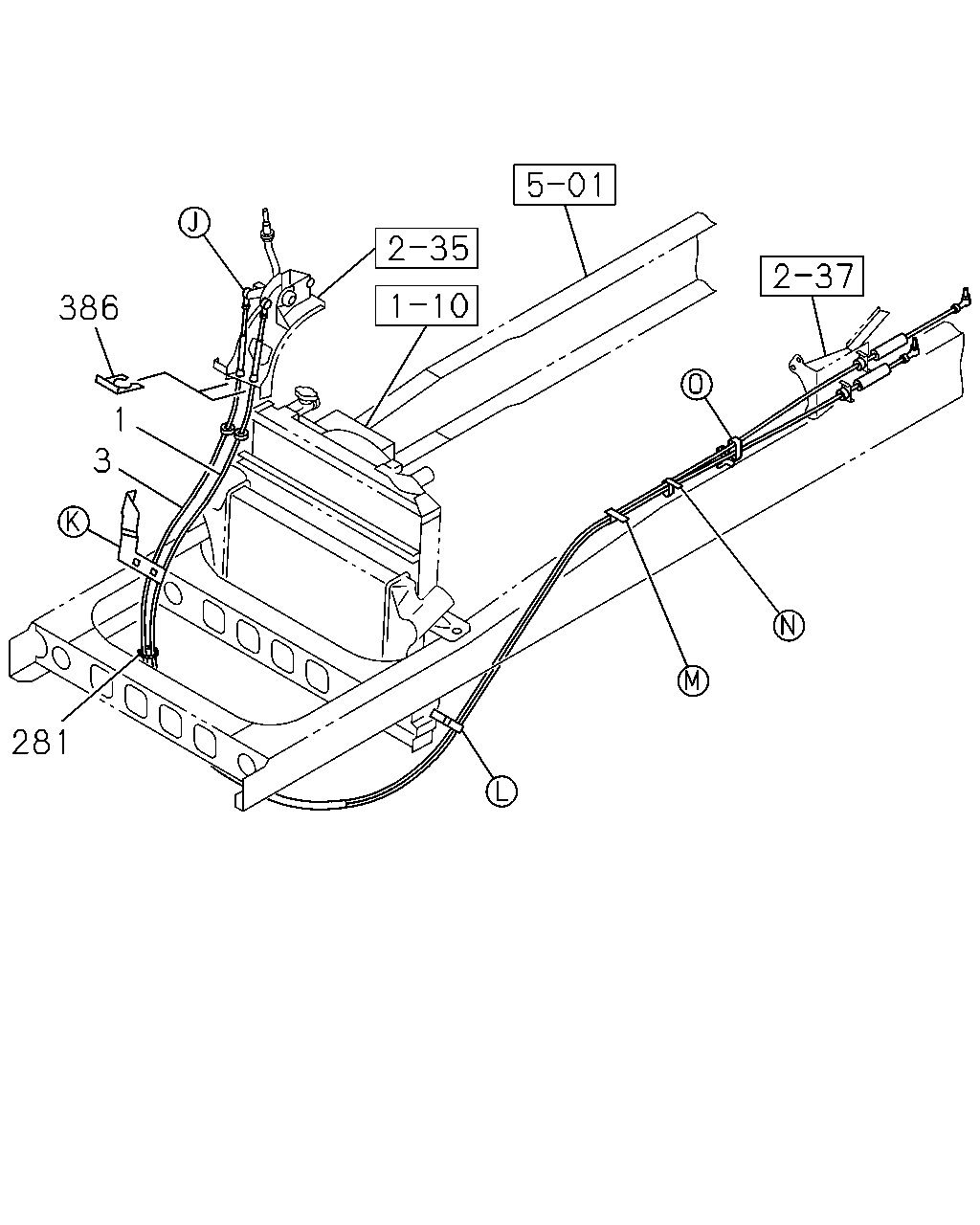

çizim 166410
386 1 3 281
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3550 		8-98010-435-4 01 1 1012- ● ●
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-4 01 1 1012- ● ●
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3610 		8-98047-800-3 01 1 0906- ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=3600 		8-98047-804-2 01 1 0906- ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) L=3620 		8-98099-965-2 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3755 		8-98010-475-2 01 1 1012- ● ●
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3790 		8-98047-814-2 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=3680 		8-98047-818-1 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) L=3700 		8-98099-967-1 01 1 0906- ● ●
281 CLIP; BAND
6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) L=300 		1-09707-001-1 01 1 0906- ● ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 0906- ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0906- ● ●

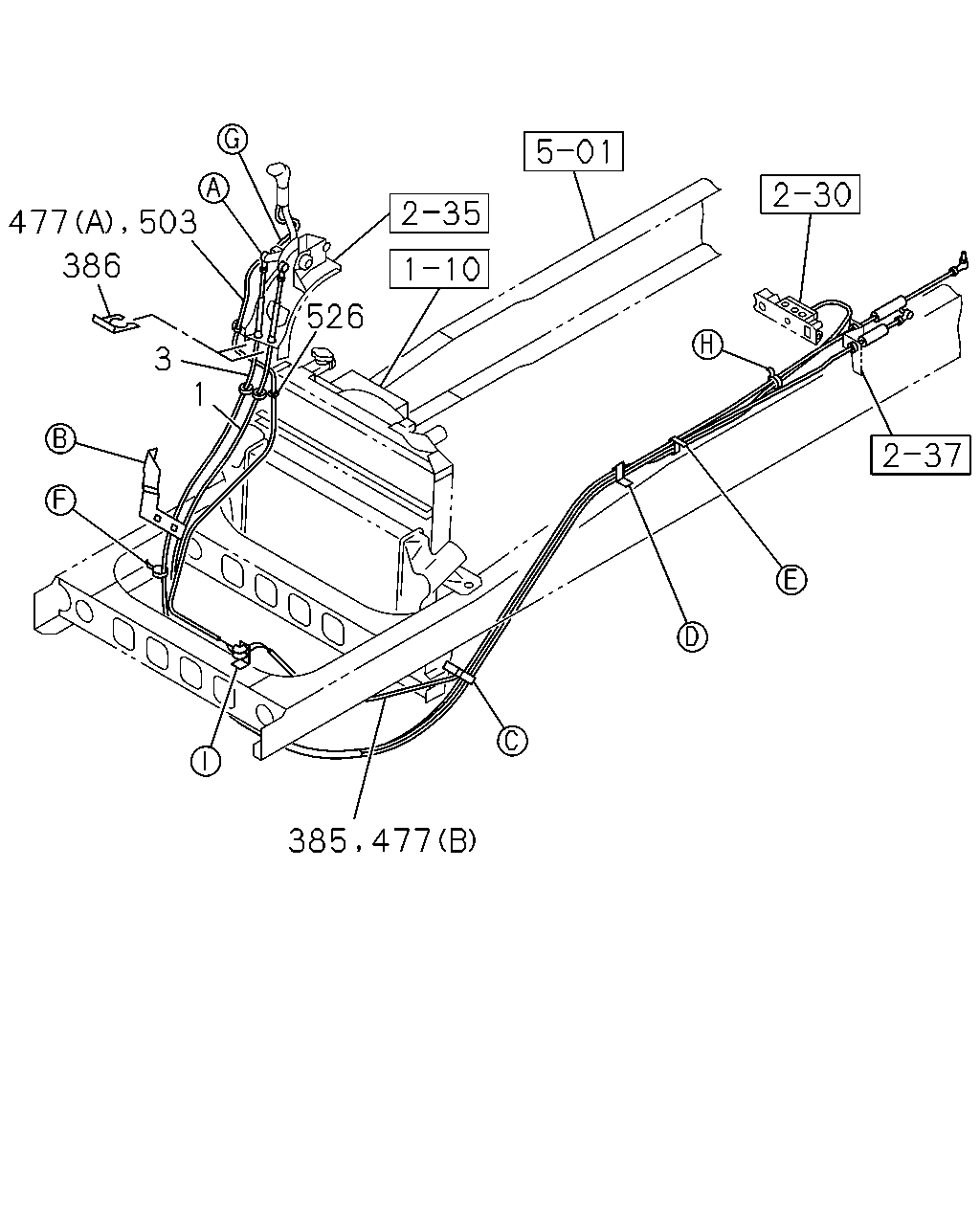

çizim 166451
503 477 386 526 3 1 385 477
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3550 		8-98010-435-4 01 1 1012- ● ●
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-4 01 1 1012- ● ●
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3610 		8-98047-800-3 01 1 0906- ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=3600 		8-98047-804-2 01 1 0906- ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) L=3620 		8-98099-965-2 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3755 		8-98010-475-2 01 1 1012- ● ●
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3790 		8-98047-814-2 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=3680 		8-98047-818-1 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) L=3700 		8-98099-967-1 01 1 0906- ● ●
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0906- ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0906- ● ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) (A) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0906- ● ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) (B) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0906- ● ●
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0906- ● ●
526 GROMMET
ZF9S1110 M/T(Y5E) 		5-09333-062-0 01 1 0906- ● ●

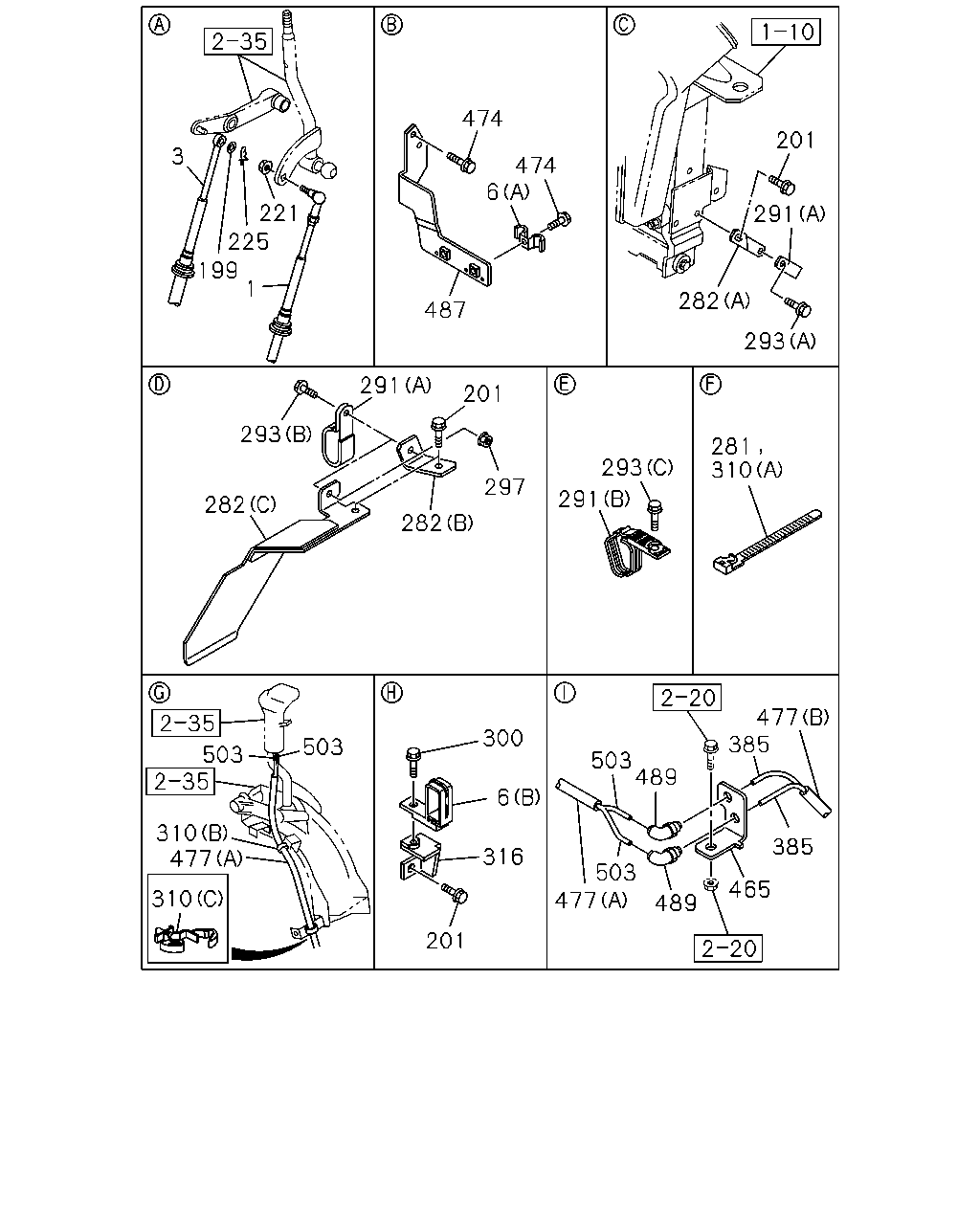

çizim 166474
474 201 3 474 6 291 221 225 199 1 282 487 293 291 201 293 281 310 293 297 291 282 282 477 385 300 503 503 503 489 6 310 477 385 316 465 503 477 310 489 201
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3550 		8-98010-435-4 01 1 1012- ● ●
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-4 01 1 1012- ● ●
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3610 		8-98047-800-3 01 1 0906- ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=3600 		8-98047-804-2 01 1 0906- ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) L=3620 		8-98099-965-2 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3755 		8-98010-475-2 01 1 1012- ● ●
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3790 		8-98047-814-2 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=3680 		8-98047-818-1 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) L=3700 		8-98099-967-1 01 1 0906- ● ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0906- ● ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0906- ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0906- ● ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0906- ● ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0906- ● ●
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0906- ● ●
201 BOLT; BRKT
M12X35 FLANGE 		0-28151-235-0 01 1 0906- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0906-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0906- ● ●
281 CLIP; BAND
6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) L=300 		1-09707-001-1 01 1 0906- ● ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 0906- ● ●
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 0906-1103 ● ●
282 BRACKET; TRANS SIDE
(C) 		8-98171-762-0 01 1 1104- ● ●
282 BRACKET; TRANS SIDE
6HK1-TCC ENG(81L) (A) 		8-98010-418-0 01 1 0906- ● ●
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L) (A) 		8-98098-265-2 01 1 0906- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 0906- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0906- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0906- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0906- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0906- ● ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0906- ● ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0906- ● ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) (A) L=100 		5-09707-036-1 01 1 0906-1011 ● ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) L=100 		5-09707-036-1 01 1 1012- ● ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) ID=12 		8-94218-436-0 01 1 0906- ● ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) (B) ID=6 & 10-13 		8-97069-515-0 01 1 0906-1011 ● ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) ID=6 & 10-13 		8-97069-515-0 01 1 1012- ● ●
316 BRACKET; CLIP
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> 		8-98073-017-1 01 1 1012- ● ●
316 BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 		8-98086-439-0 01 1 0906- ● ●
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0906- ● ●
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) 		8-98085-414-0 01 1 0906-0907 ● ●
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98141-474-0 01 1 0908- ● ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 0906- ● ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) (A) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0906- ● ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) (B) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0906- ● ●
487 BRACKET; CONT CABLE 8-98021-923-2 01 1 0906-1012 ● ●
487 BRACKET; CONT CABLE 8-98180-729-0 01 1 1101- ● ●
489 CONNECTOR
ZF9S1110 M/T(Y5E) 		8-98085-747-0 02 1 0906-1011 ● ●
489 CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-747-0 02 1 1012- ● ●
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0906- ● ●

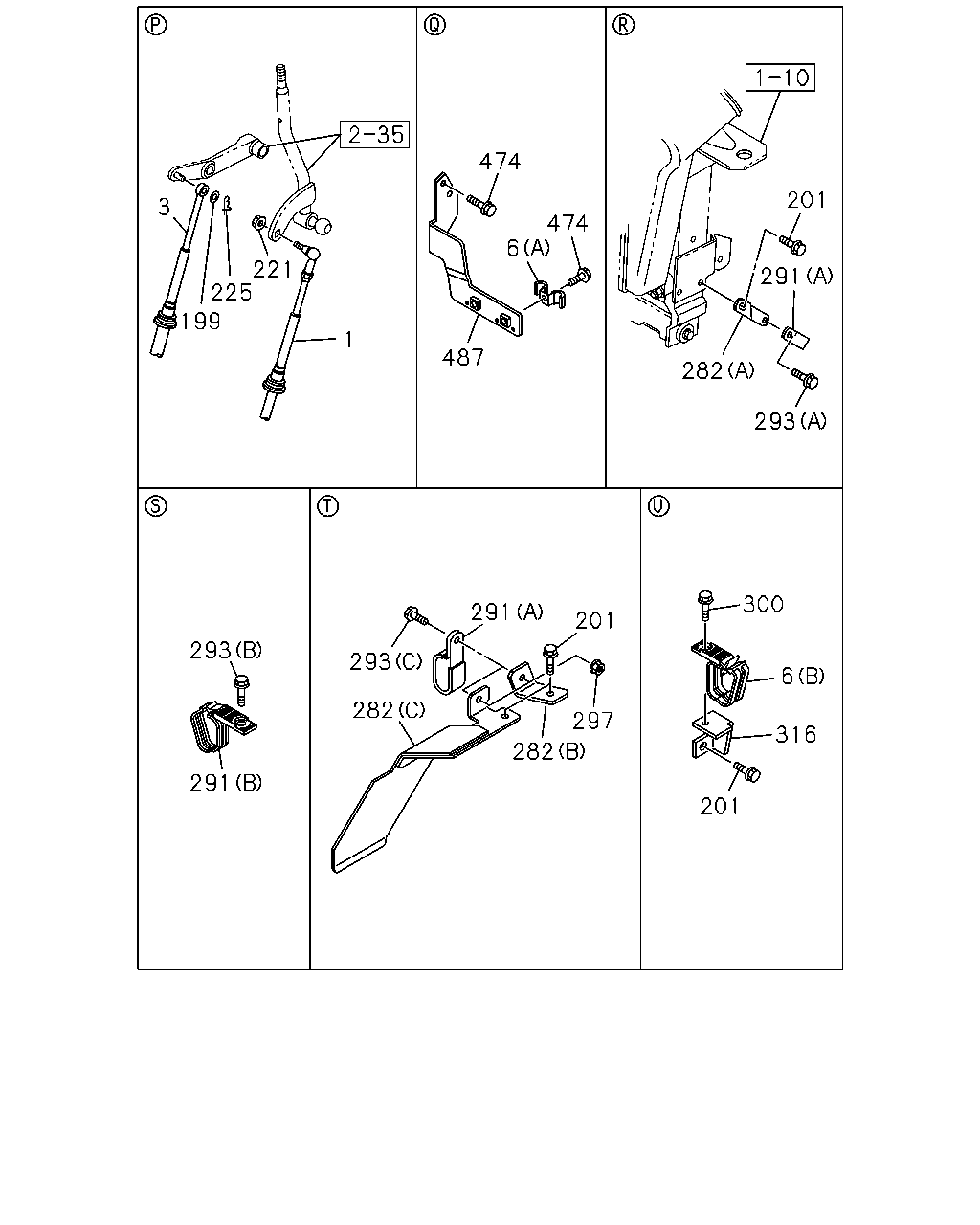

çizim 166561
474 201 3 474 6 221 225 291 199 1 487 282 293 300 291 201 293 293 6 282 297 316 282 291 201
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3550 		8-98010-435-4 01 1 1012- ● ●
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-4 01 1 1012- ● ●
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3610 		8-98047-800-3 01 1 0906- ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=3600 		8-98047-804-2 01 1 0906- ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) L=3620 		8-98099-965-2 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3755 		8-98010-475-2 01 1 1012- ● ●
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3790 		8-98047-814-2 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=3680 		8-98047-818-1 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) L=3700 		8-98099-967-1 01 1 0906- ● ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0906- ● ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0906- ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0906- ● ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0906- ● ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0906- ● ●
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0906- ● ●
201 BOLT; BRKT
M12X35 FLANGE 		0-28151-235-0 01 1 0906- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0906-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0906- ● ●
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 0906-1103 ● ●
282 BRACKET; TRANS SIDE
(C) 		8-98171-762-0 01 1 1104- ● ●
282 BRACKET; TRANS SIDE
6HK1-TCC ENG(81L) (A) 		8-98010-418-0 01 1 0906- ● ●
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L) (A) 		8-98098-265-2 01 1 0906- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 0906- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0906- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0906- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0906- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0906- ● ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0906- ● ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0906- ● ●
316 BRACKET; CLIP
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> 		8-98073-017-1 01 1 1012- ● ●
316 BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 		8-98086-439-0 01 1 0906- ● ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 0906- ● ●
487 BRACKET; CONT CABLE 8-98021-923-2 01 1 0906-1012 ● ●
487 BRACKET; CONT CABLE 8-98180-729-0 01 1 1101- ● ●

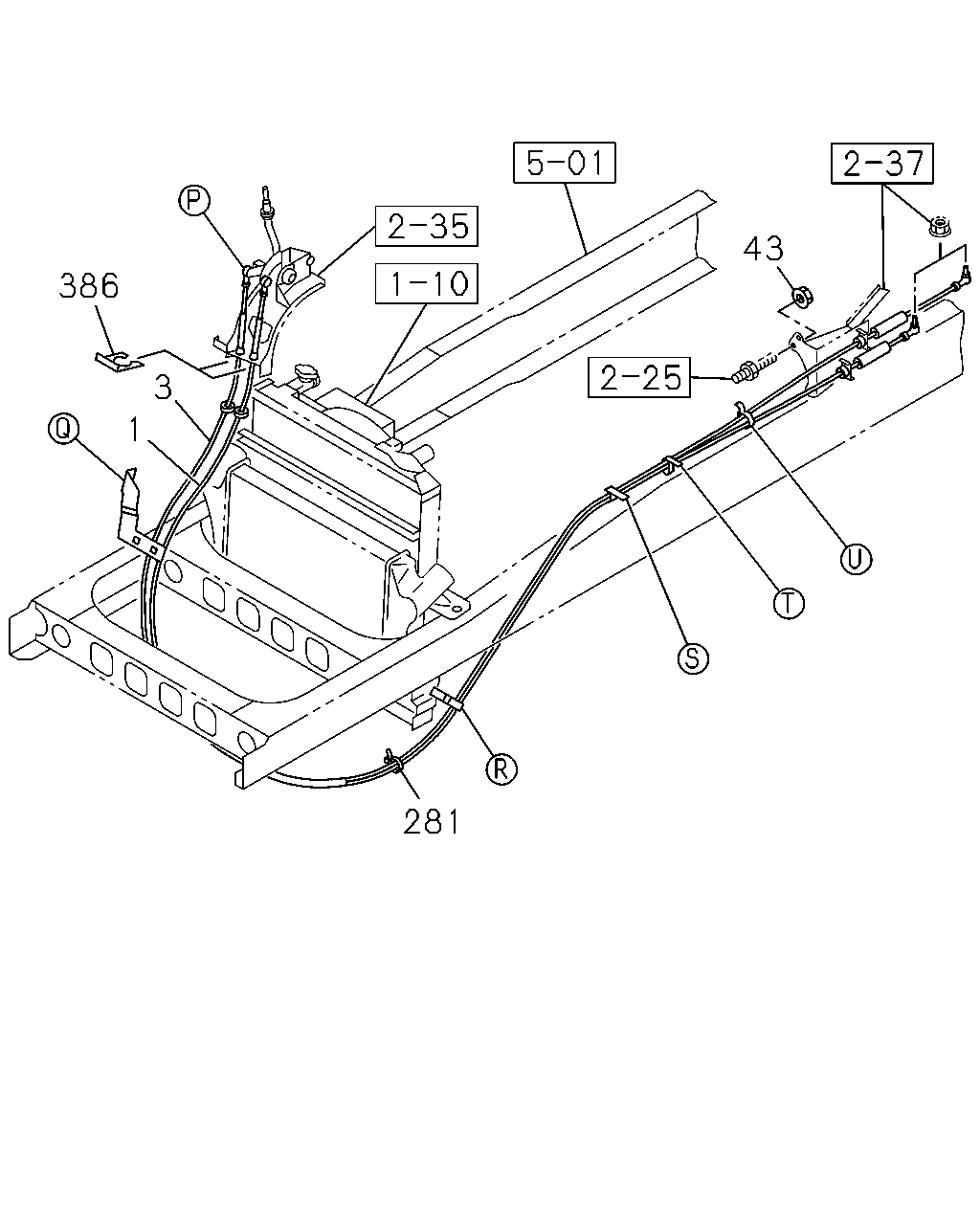

çizim 166570
43 386 3 1 281
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3550 		8-98010-435-4 01 1 1012- ● ●
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-4 01 1 1012- ● ●
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3610 		8-98047-800-3 01 1 0906- ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=3600 		8-98047-804-2 01 1 0906- ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) L=3620 		8-98099-965-2 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) L=3755 		8-98010-475-2 01 1 1012- ● ●
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3790 		8-98047-814-2 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=3680 		8-98047-818-1 01 1 0906- ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) L=3700 		8-98099-967-1 01 1 0906- ● ●
43 NUT; BRKT
MZW6P M/T(RSZ) M10 FLANGE 		0-91180-210-0 02 1 1012- ● ●
281 CLIP; BAND
6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) L=300 		1-09707-001-1 01 1 0906- ● ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 0906- ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0906- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
