2-05 — CLUTCH PIPING (#62475) — 200 parça

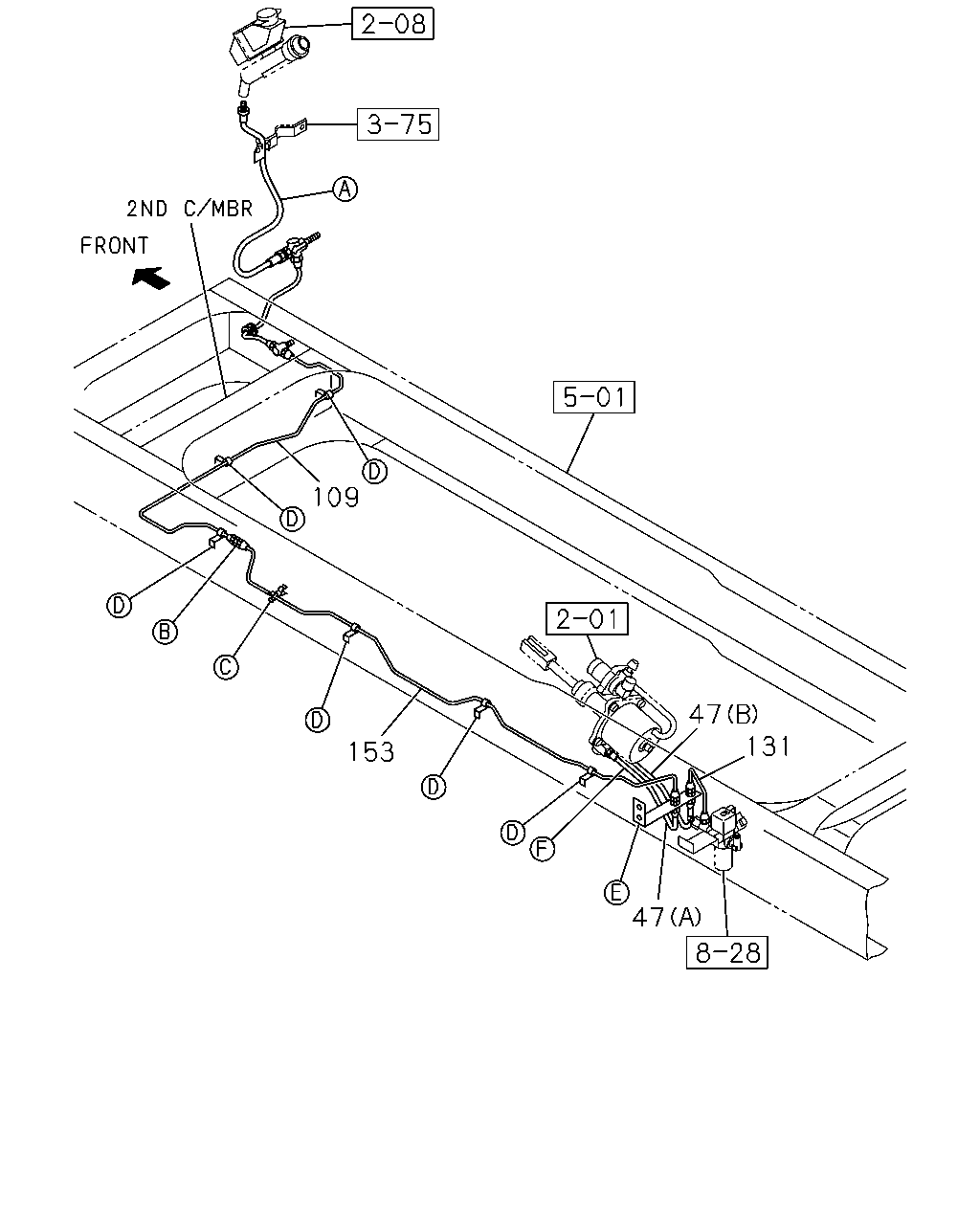

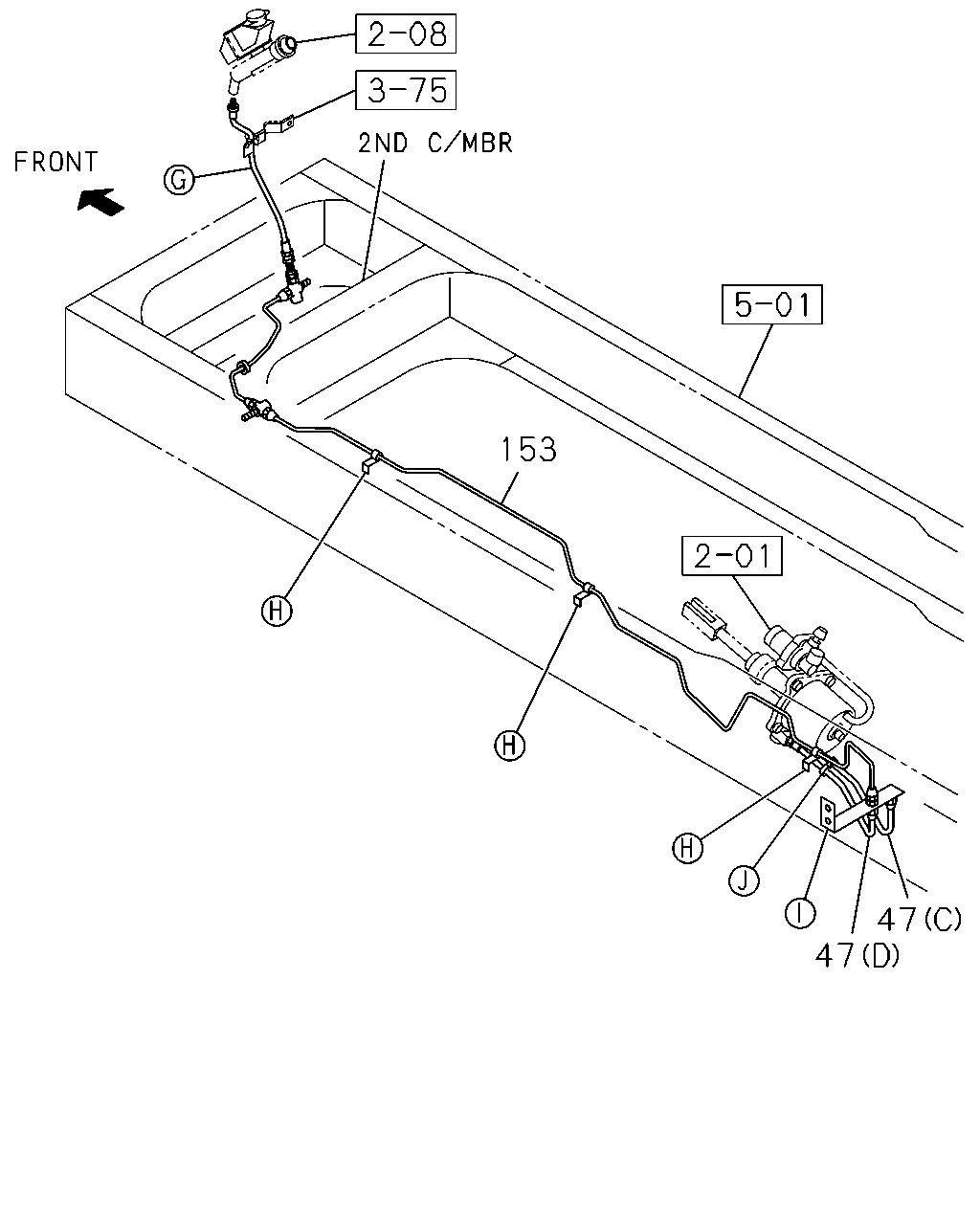

153 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (F) L=375	1-09364-407-0	01	1	1012-	●	●
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (E) L=380	1-09363-884-0	01	1	1012-	●	●
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (G) L=470	1-09363-716-0	01	1	1012-	●	●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	0906-	●	●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0906-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09363-720-0	01	1	0906-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09364-329-0	01	1	0906-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1012-	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0906-0907	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0906-	●	●

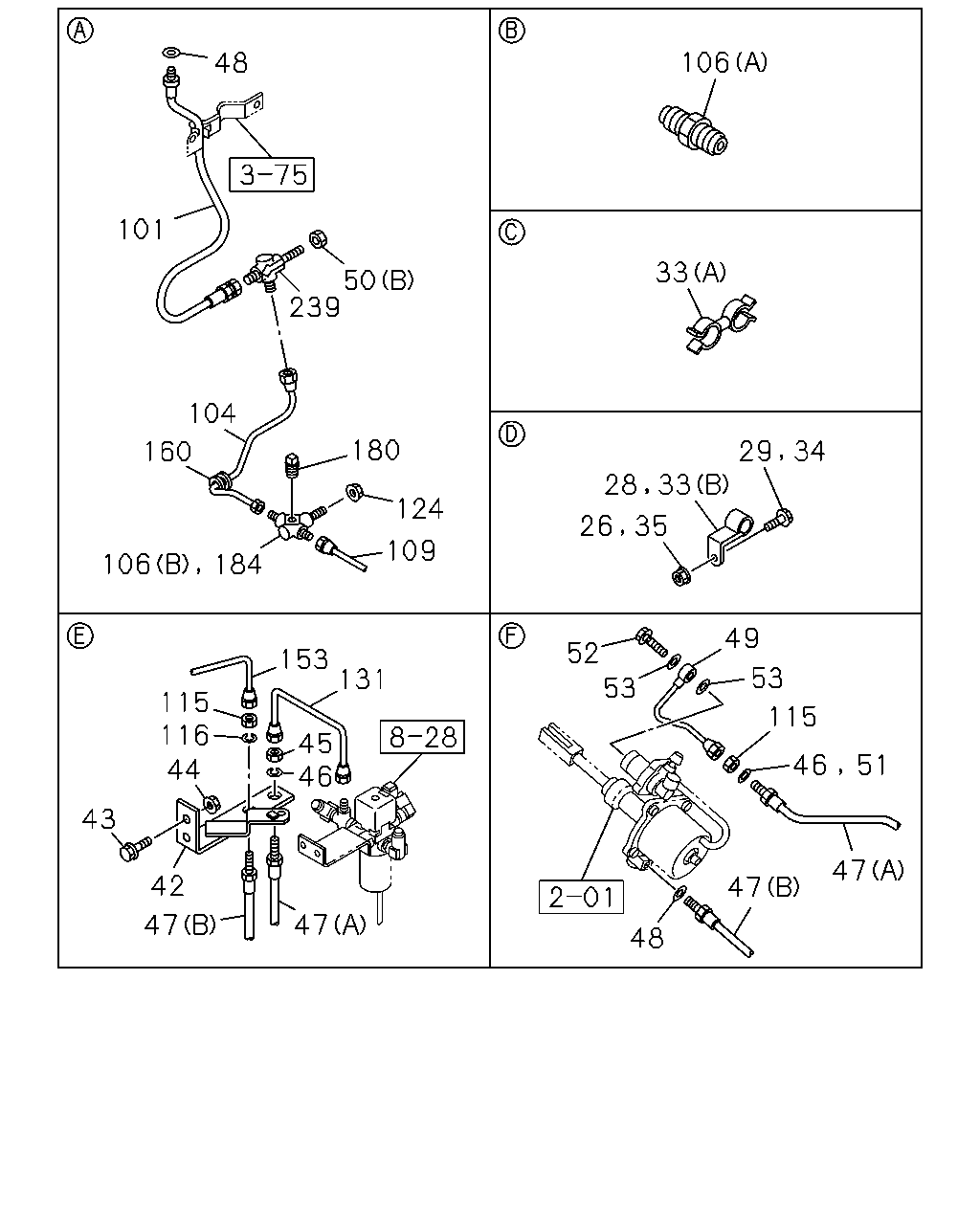

109 47 131 153 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (F) L=375	1-09364-407-0	01	1	1012-	●	●
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (E) L=380	1-09363-884-0	01	1	1012-	●	●
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (G) L=470	1-09363-716-0	01	1	1012-	●	●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	0906-	●	●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0906-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09363-720-0	01	1	0906-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09364-329-0	01	1	0906-	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	0906-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0906-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0906-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1012-	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0906-0907	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0906-	●	●

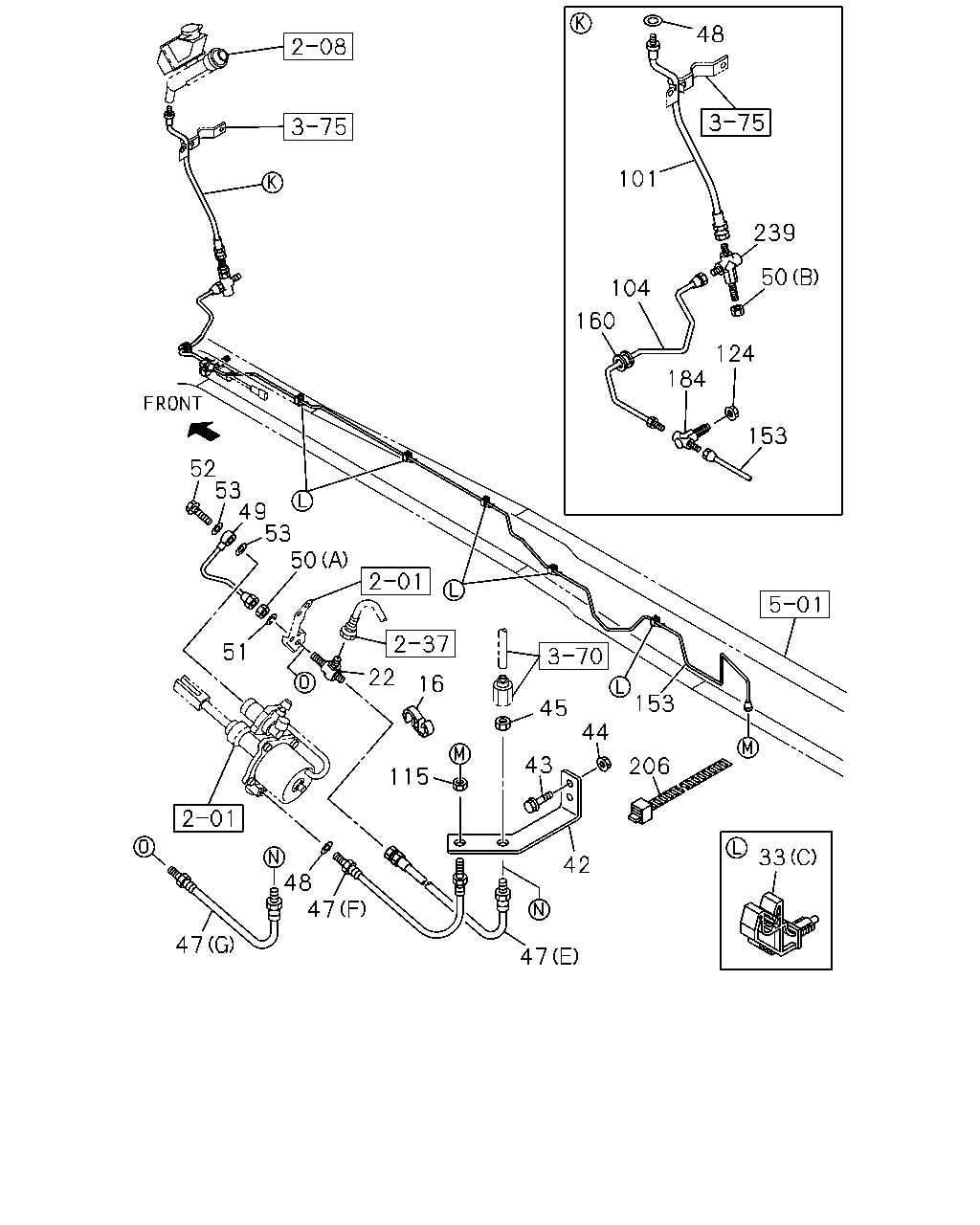

48 101 50 239 104 160 180 124 184 109 106 106 33 47 46 131 153 45 47 43 115 116 44 42 48 47 47 46 51 115 53 49 53 52 26 35 28 33 29 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	NUT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0906-	●	●
28	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) ID=8 H=20 L=20	1-09700-604-0	03	1	0906-	●	●
29	BOLT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0906-0906	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0907-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28650-825-0	02	1	0906-	●	●
33	CLIP; OIL PIPE MZW6P M/T(RSZ) (C) ID=6.35	1-09701-247-1	05	1	1012-	●	●
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0906-	●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0906-	●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	0906-	●	●
34	BOLT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	0906-	●	●
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	0906-	●	●
35	NUT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	0906-	●	●
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0906-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ)	8-98105-654-0	01	1	1012-	●	●
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	0906-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	0906-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0906-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1012-	●	●
45	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0906-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0906-1011	●	●
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (F) L=375	1-09364-407-0	01	1	1012-	●	●
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (E) L=380	1-09363-884-0	01	1	1012-	●	●
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (G) L=470	1-09363-716-0	01	1	1012-	●	●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	0906-	●	●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0906-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09363-720-0	01	1	0906-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09364-329-0	01	1	0906-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0906-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239	1-49117-401-0	01	1	1012-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V)	1-49116-838-0	01	1	0906-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	0906-	●	●
50	NUT; UNION MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1012-	●	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0906-	●	●
51	WASHER; LK MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-812-0	01	1	1012-	●	●
51	WASHER; LK FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	01	1	1012-	●	●
51	WASHER; LK MZW6P M/T(RSZ) ID=12.2	0-91510-512-0	01	1	1012-	●	●
52	BOLT; EYE,AIR PIPE ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0906-1011	●	●
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	1012-	●	●
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0906-1011	●	●
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312	●	●
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=500	8-98072-350-0	01	1	0906-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=554	8-98114-452-0	01	1	1012-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=533 SERVICED BY L=550	1-47428-753-0	01	1	0906-1011	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	1012-	●	●
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0906-	●	●
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	0906-	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	0906-	●	●
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1012-	●	●
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0906-	●	●
116	WASHER; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=14.2	0-91510-814-0	01	1	0906-1011	●	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0906-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0906-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0906-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1012-	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0906-0907	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0906-	●	●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-	●	●
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) PT1/4	9-99204-513-0	01	1	0906-	●	●
184	UNION; FLEX HOSE MZW6P M/T(RSZ)	8-98150-865-0	01	1	1012-	●	●
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1012-	●	●
239	UNION; CLU HOSE	8-98107-850-0	01	1	0906-1011	●	●
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E)	8-98107-850-0	01	1	1012-	●	●

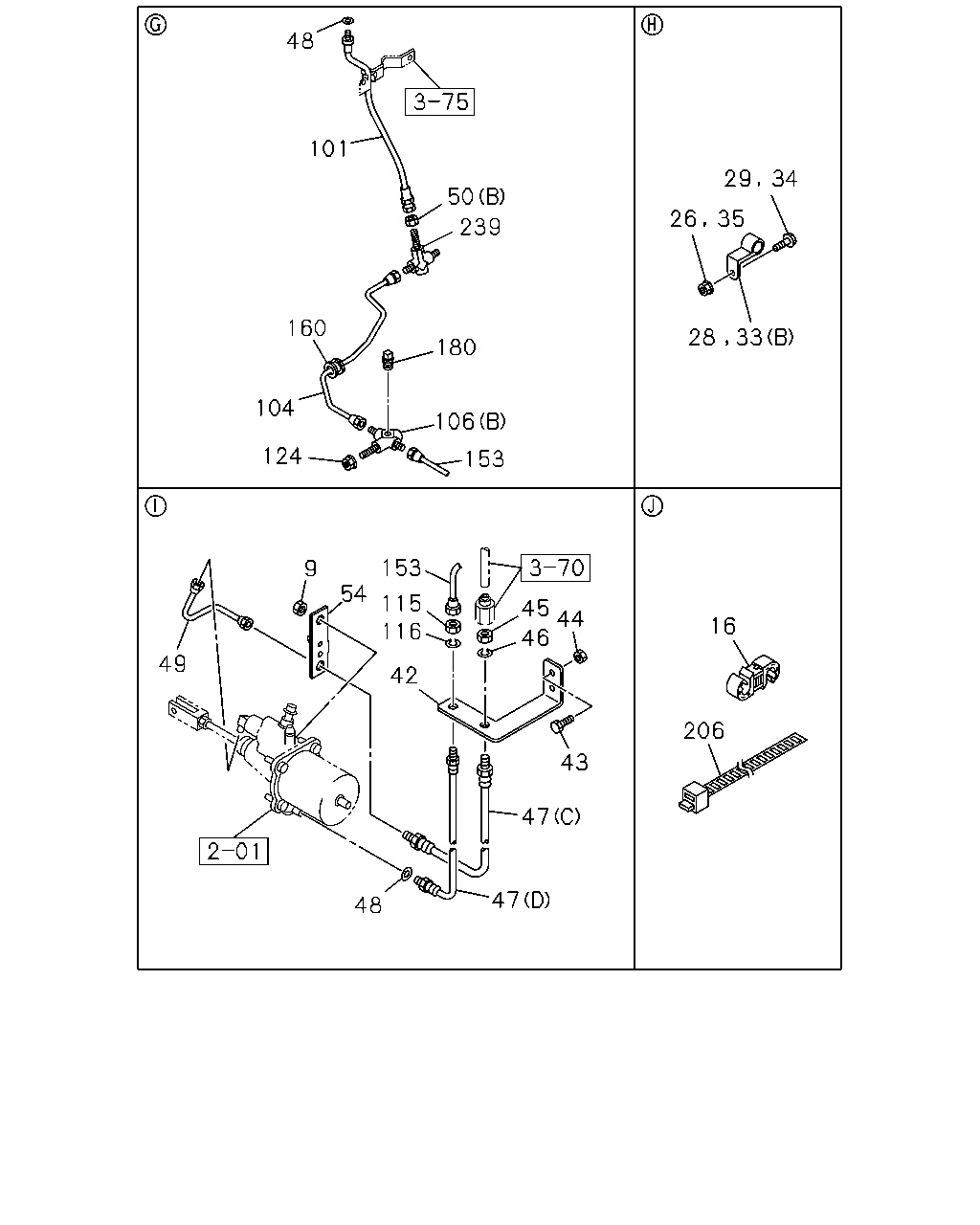

48 101 29 34 50 26 35 239 160 180 104 106 124 153 153 9 54 115 116 45 44 46 16 49 42 206 43 47 47 48 28 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-208-0	02	1	0906-	●	●
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	0906-	●	●
26	NUT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0906-	●	●
28	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) ID=8 H=20 L=20	1-09700-604-0	03	1	0906-	●	●
29	BOLT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0906-0906	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0907-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28650-825-0	02	1	0906-	●	●
33	CLIP; OIL PIPE MZW6P M/T(RSZ) (C) ID=6.35	1-09701-247-1	05	1	1012-	●	●
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0906-	●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0906-	●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	0906-	●	●
34	BOLT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	0906-	●	●
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	0906-	●	●
35	NUT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	0906-	●	●
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0906-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ)	8-98105-654-0	01	1	1012-	●	●
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	0906-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	0906-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0906-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1012-	●	●
45	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0906-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0906-1011	●	●
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (F) L=375	1-09364-407-0	01	1	1012-	●	●
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (E) L=380	1-09363-884-0	01	1	1012-	●	●
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (G) L=470	1-09363-716-0	01	1	1012-	●	●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	0906-	●	●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0906-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09363-720-0	01	1	0906-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09364-329-0	01	1	0906-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0906-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239	1-49117-401-0	01	1	1012-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V)	1-49116-838-0	01	1	0906-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	0906-	●	●
50	NUT; UNION MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1012-	●	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0906-	●	●
54	BRACKET; AIR,FLEX HOSE FULLER FSO5206B OD M/T(Y4V)	1-47475-372-0	01	1	0906-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=500	8-98072-350-0	01	1	0906-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=554	8-98114-452-0	01	1	1012-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=533 SERVICED BY L=550	1-47428-753-0	01	1	0906-1011	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	1012-	●	●
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0906-	●	●
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	0906-	●	●
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1012-	●	●
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0906-	●	●
116	WASHER; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=14.2	0-91510-814-0	01	1	0906-1011	●	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0906-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1012-	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0906-0907	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0906-	●	●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-	●	●
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) PT1/4	9-99204-513-0	01	1	0906-	●	●
206	CLIP; TUBE FULLER FSO5206B OD M/T(Y4V) L=350	1-09707-183-0	01	1	0906-1011	●
206	CLIP; TUBE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) L=350	1-09707-183-0	01	1	1012-	●
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1012-	●	●
239	UNION; CLU HOSE	8-98107-850-0	01	1	0906-1011	●	●
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E)	8-98107-850-0	01	1	1012-	●	●

33 47 42 206 153 44 45 43 115 47 48 47 22 51 16 50 53 49 53 52 153 184 124 160 104 50 239 101 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	0906-	●	●
22	UNION; CLU PIPE MZW6P M/T(RSZ) M12 3WAY	0-92138-706-0	01	1	1012-	●	●
33	CLIP; OIL PIPE MZW6P M/T(RSZ) (C) ID=6.35	1-09701-247-1	05	1	1012-	●	●
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0906-	●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0906-	●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	0906-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ)	8-98105-654-0	01	1	1012-	●	●
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	0906-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	0906-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0906-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1012-	●	●
45	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0906-	●	●
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (F) L=375	1-09364-407-0	01	1	1012-	●	●
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (E) L=380	1-09363-884-0	01	1	1012-	●	●
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (G) L=470	1-09363-716-0	01	1	1012-	●	●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	0906-	●	●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0906-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09363-720-0	01	1	0906-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09364-329-0	01	1	0906-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0906-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239	1-49117-401-0	01	1	1012-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V)	1-49116-838-0	01	1	0906-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	0906-	●	●
50	NUT; UNION MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1012-	●	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0906-	●	●
51	WASHER; LK MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-812-0	01	1	1012-	●	●
51	WASHER; LK FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	01	1	1012-	●	●
51	WASHER; LK MZW6P M/T(RSZ) ID=12.2	0-91510-512-0	01	1	1012-	●	●
52	BOLT; EYE,AIR PIPE ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0906-1011	●	●
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	1012-	●	●
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0906-1011	●	●
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312	●	●
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=500	8-98072-350-0	01	1	0906-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=554	8-98114-452-0	01	1	1012-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=533 SERVICED BY L=550	1-47428-753-0	01	1	0906-1011	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	1012-	●	●
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1012-	●	●
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0906-	●	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0906-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1012-	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0906-0907	●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0906-	●	●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-	●	●
184	UNION; FLEX HOSE MZW6P M/T(RSZ)	8-98150-865-0	01	1	1012-	●	●
206	CLIP; TUBE FULLER FSO5206B OD M/T(Y4V) L=350	1-09707-183-0	01	1	0906-1011	●
206	CLIP; TUBE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) L=350	1-09707-183-0	01	1	1012-	●
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1012-	●	●
239	UNION; CLU HOSE	8-98107-850-0	01	1	0906-1011	●	●
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E)	8-98107-850-0	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
