1-56 — EXHAUST BRAKE SYSTEM (#62470) — 148 parça

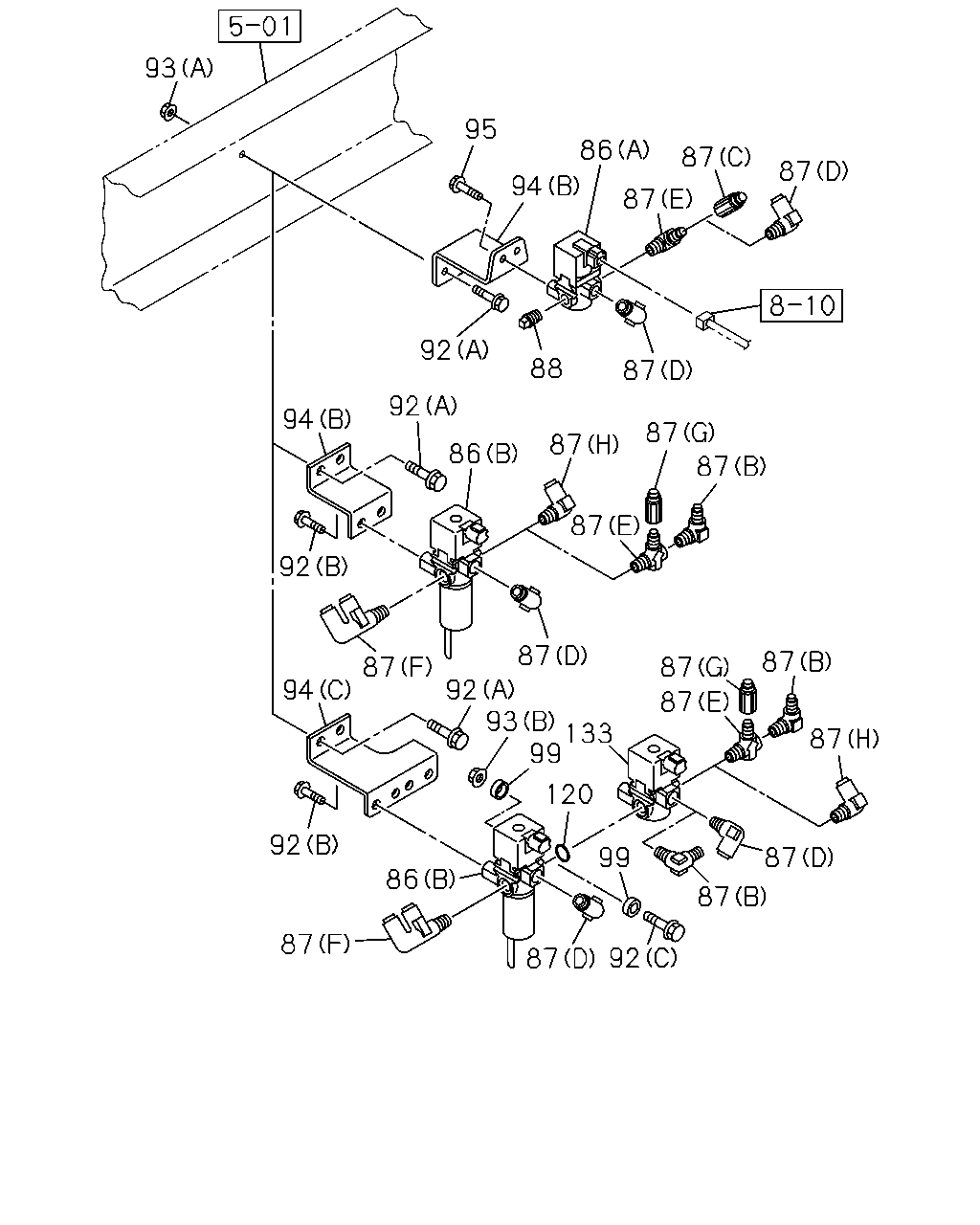

çizim 166368
93 95 86 87 87 94 87 92 88 87 92 94 87 87 87 86 87 92 87 87 87 94 87 92 93 133 99 87 87 120 92 87 99 86 87 87 92 87
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK
FVR AIR SUS(FGD***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (B) 		8-97633-075-0 01 1 1112- ● ●
86 VALVE; MAG,EXH BRK
FVR LEAF SUS(FGR***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B) 		8-97633-075-0 01 1 1112- ● ●
86 VALVE; MAG,EXH BRK
FVR AIR SUS(FGD***) MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) 		8-97633-075-0 01 1 1112- ● ●
86 VALVE; MAG,EXH BRK
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B) 		8-97633-075-0 01 1 1112- ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0906- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (F) 		8-98179-708-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (F) 		8-98179-708-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) MZW6P M/T(RSZ) PTO CONTROL<SV6> (F) 		8-98179-708-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (F) 		8-98179-708-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (H) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (H) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) MZW6P M/T(RSZ) PTO CONTROL<SV6> (H) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0906-1111 ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0906- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0906-1111 ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) MZW6P M/T(RSZ) PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906-1005 ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1006-1009 ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) FULLER FSO5206B OD M/T(Y4V) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1006-1009 ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1010-1111 ● ●
87 CONNECTOR
MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0906-1005 ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1006-1009 ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) FULLER FSO5206B OD M/T(Y4V) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1006-1009 ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1010- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0906-1005 ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1006-1009 ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1010-1111 ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ● ●
88 PLUG
FVR AIR SUS(FGD***) PT1/4 		9-99204-513-0 01 1 0906-1011 ● ●
88 PLUG
FVR LEAF SUS(FGR***) FULLER FSO5206B OD M/T(Y4V) PT1/4 		9-99204-513-0 01 1 0906-1011 ● ●
88 PLUG
FVR AIR SUS(FGD***) PT1/4 		9-99204-513-0 01 1 1012- ● ●
88 PLUG
FVR LEAF SUS(FGR***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) PT1/4 		9-99204-513-0 01 1 1012- ● ●
92 BOLT; MAG VLV
FVR AIR SUS(FGD***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ● ●
92 BOLT; MAG VLV
FVR LEAF SUS(FGR***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ● ●
92 BOLT; MAG VLV
FVR AIR SUS(FGD***) MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ● ●
92 BOLT; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ● ●
92 BOLT; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (C) M6X50 FLANGE 		0-28050-650-0 01 1 1112- ● ●
92 BOLT; MAG VLV
MZW6P M/T(RSZ) PTO CONTROL<SV6> (C) M6X50 FLANGE 		0-28050-650-0 01 1 1112- ● ●
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0906- ● ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0906- ● ●
93 NUT; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112- ● ●
93 NUT; MAG VLV
MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112- ● ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●
93 NUT; MAG VLV
ZF9S1110 M/T(Y5E) (A) M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (C) 		8-98101-296-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
MZW6P M/T(RSZ) PTO CONTROL<SV6> (C) 		8-98101-296-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) (B) 		1-47471-374-1 01 1 0906-1004 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) (B) 		8-98154-633-0 01 1 1005-1111 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR LEAF SUS(FGR***) MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR LEAF SUS(FGR***) FULLER FSO5206B OD M/T(Y4V) (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR LEAF SUS(FGR***) (A) 		8-98057-863-0 01 1 0906-1005 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98057-863-0 01 1 1006-1009 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR LEAF SUS(FGR***) FULLER FSO5206B OD M/T(Y4V) (A) 		8-98057-863-0 01 1 1006-1009 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR LEAF SUS(FGR***) (A) 		8-98057-863-0 01 1 1010- ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0906- ● ●
99 WASHER; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112- ● ●
99 WASHER; MAG VLV
MZW6P M/T(RSZ) PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112- ● ●
120 GASKET; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112- ● ●
120 GASKET; MAG VLV
MZW6P M/T(RSZ) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112- ● ●
133 VALVE; MAG,PTO CONT
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> 		1-82563-871-2 01 1 1112- ● ●
133 VALVE; MAG,PTO CONT
MZW6P M/T(RSZ) PTO CONTROL<SV6> 		1-82563-871-2 01 1 1112- ● ●

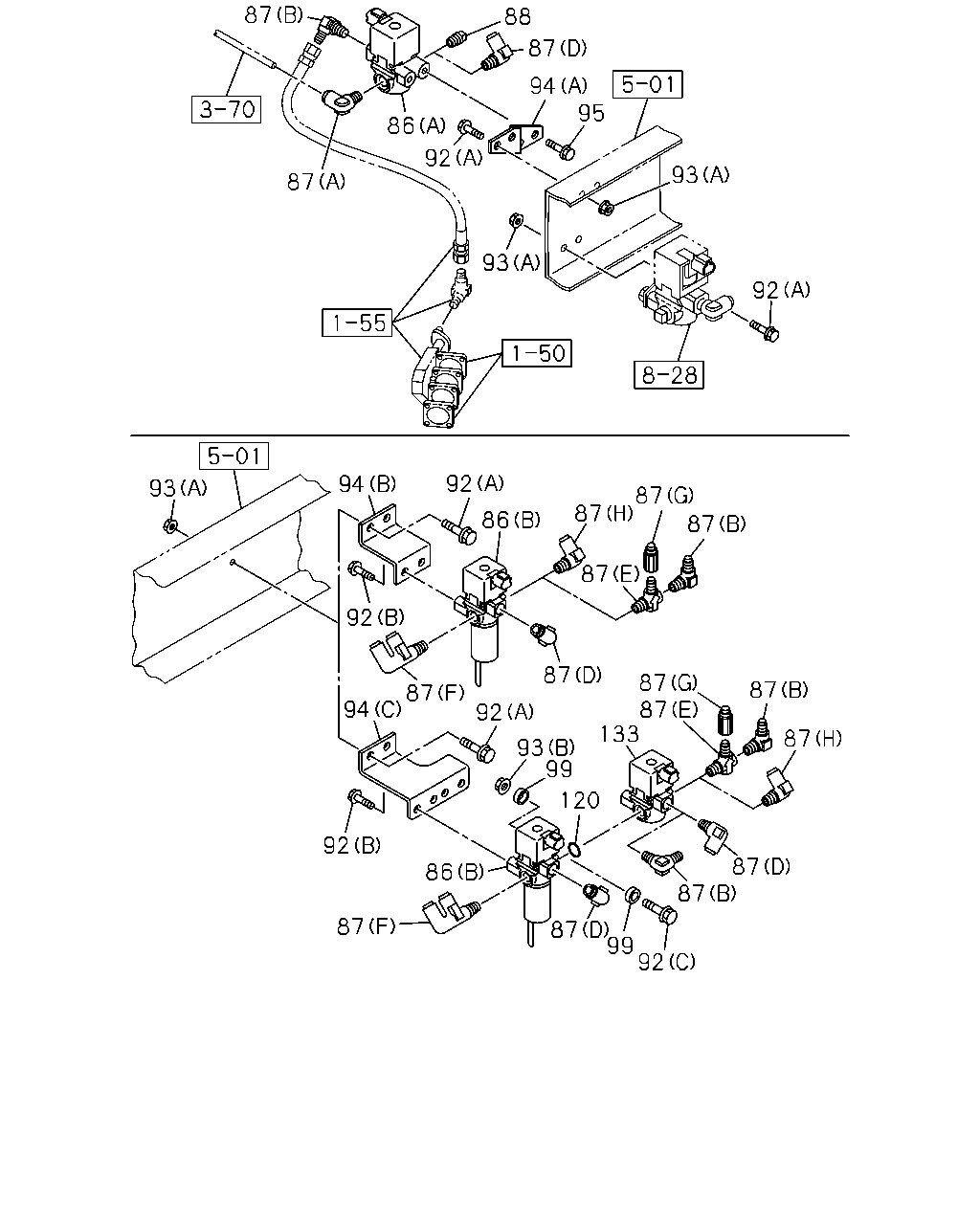

çizim 166404
87 88 87 94 95 86 92 93 87 93 92 92 94 93 87 87 86 87 87 92 87 87 87 133 87 87 94 92 87 93 99 120 92 87 87 86 87 87 99 92
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK
FVR AIR SUS(FGD***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (B) 		8-97633-075-0 01 1 1112- ● ●
86 VALVE; MAG,EXH BRK
FVR LEAF SUS(FGR***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B) 		8-97633-075-0 01 1 1112- ● ●
86 VALVE; MAG,EXH BRK
FVR AIR SUS(FGD***) MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) 		8-97633-075-0 01 1 1112- ● ●
86 VALVE; MAG,EXH BRK
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B) 		8-97633-075-0 01 1 1112- ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0906- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (F) 		8-98179-708-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (F) 		8-98179-708-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) MZW6P M/T(RSZ) PTO CONTROL<SV6> (F) 		8-98179-708-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (F) 		8-98179-708-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (H) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (H) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) MZW6P M/T(RSZ) PTO CONTROL<SV6> (H) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0906-1111 ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0906- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0906-1111 ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) MZW6P M/T(RSZ) PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906-1005 ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1006-1009 ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) FULLER FSO5206B OD M/T(Y4V) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1006-1009 ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1010-1111 ● ●
87 CONNECTOR
MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0906-1005 ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1006-1009 ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) FULLER FSO5206B OD M/T(Y4V) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1006-1009 ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1010- ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0906-1005 ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1006-1009 ● ●
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1010-1111 ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ● ●
87 CONNECTOR
FVR AIR SUS(FGD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ● ●
88 PLUG
FVR AIR SUS(FGD***) PT1/4 		9-99204-513-0 01 1 0906-1011 ● ●
88 PLUG
FVR LEAF SUS(FGR***) FULLER FSO5206B OD M/T(Y4V) PT1/4 		9-99204-513-0 01 1 0906-1011 ● ●
88 PLUG
FVR AIR SUS(FGD***) PT1/4 		9-99204-513-0 01 1 1012- ● ●
88 PLUG
FVR LEAF SUS(FGR***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) PT1/4 		9-99204-513-0 01 1 1012- ● ●
92 BOLT; MAG VLV
FVR AIR SUS(FGD***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ● ●
92 BOLT; MAG VLV
FVR LEAF SUS(FGR***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ● ●
92 BOLT; MAG VLV
FVR AIR SUS(FGD***) MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ● ●
92 BOLT; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ● ●
92 BOLT; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (C) M6X50 FLANGE 		0-28050-650-0 01 1 1112- ● ●
92 BOLT; MAG VLV
MZW6P M/T(RSZ) PTO CONTROL<SV6> (C) M6X50 FLANGE 		0-28050-650-0 01 1 1112- ● ●
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0906- ● ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0906- ● ●
93 NUT; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112- ● ●
93 NUT; MAG VLV
MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112- ● ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●
93 NUT; MAG VLV
ZF9S1110 M/T(Y5E) (A) M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (C) 		8-98101-296-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
MZW6P M/T(RSZ) PTO CONTROL<SV6> (C) 		8-98101-296-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) (B) 		1-47471-374-1 01 1 0906-1004 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) (B) 		8-98154-633-0 01 1 1005-1111 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR LEAF SUS(FGR***) MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR LEAF SUS(FGR***) FULLER FSO5206B OD M/T(Y4V) (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR LEAF SUS(FGR***) (A) 		8-98057-863-0 01 1 0906-1005 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98057-863-0 01 1 1006-1009 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR LEAF SUS(FGR***) FULLER FSO5206B OD M/T(Y4V) (A) 		8-98057-863-0 01 1 1006-1009 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR LEAF SUS(FGR***) (A) 		8-98057-863-0 01 1 1010- ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0906- ● ●
99 WASHER; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112- ● ●
99 WASHER; MAG VLV
MZW6P M/T(RSZ) PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112- ● ●
120 GASKET; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112- ● ●
120 GASKET; MAG VLV
MZW6P M/T(RSZ) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112- ● ●
133 VALVE; MAG,PTO CONT
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> 		1-82563-871-2 01 1 1112- ● ●
133 VALVE; MAG,PTO CONT
MZW6P M/T(RSZ) PTO CONTROL<SV6> 		1-82563-871-2 01 1 1112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
