Isuzu WW
▶
TRUCKS
▶
FVR
▶
11240 - FVR-RHD(EUROPE)EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

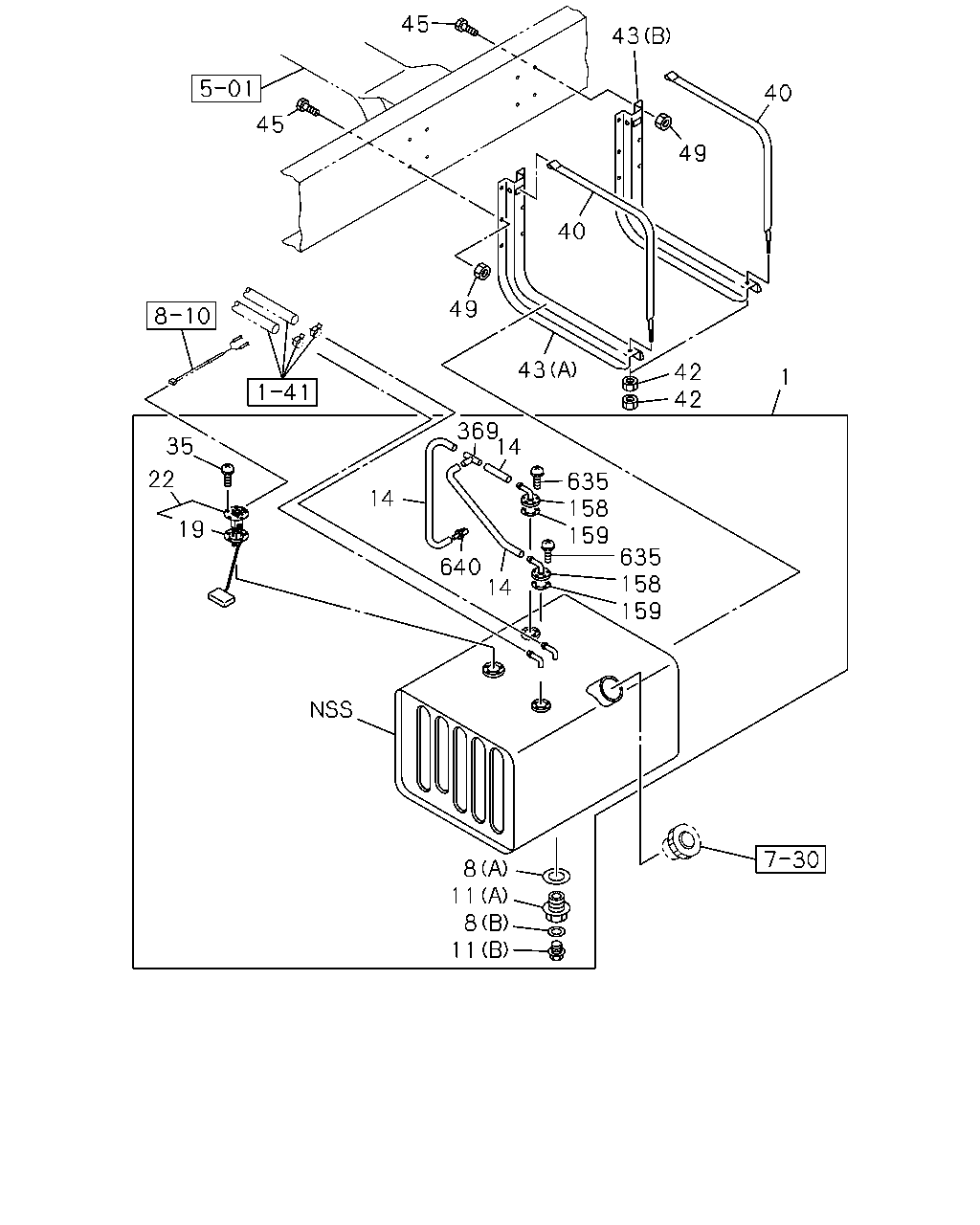

1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#62465) — 30 parça
Tümü
A - FGD5MV
B - FGR5MV
45
43
40
45
49
40
49
43
42
42
1
369
14
35
22
635
158
159
14
19
635
158
159
640
14
8
11
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; FUEL
855X603X453 183L
8-98122-996-1
01
1
0906-1103
●
●
1
TANK; FUEL
855X603X453 200L
8-98170-958-1
01
1
1104-
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
(A) ID=30
8-98067-041-0
01
1
0906-
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
(B) ID=14.2 OD=23.0
9-09572-014-0
01
1
0906-
●
●
11
PLUG; DRAIN,FUEL TANK
(A) M30
8-98067-038-0
01
1
0906-
●
●
11
PLUG; DRAIN,FUEL TANK
(B) M14X14
9-09862-156-0
01
1
0906-
●
●
14
HOSE; BREATHER,OUTLET
L=90 SERVICED BY L=3000
0-01256-300-0
01
1
0906-
●
●
14
HOSE; BREATHER,OUTLET
L=170 SERVICED BY L=3000
0-01256-300-0
01
1
0906-
●
●
14
HOSE; BREATHER,OUTLET
L=600 SERVICED BY L=3000
0-01256-300-0
01
1
0906-1003
●
●
14
HOSE; BREATHER,OUTLET
L=540 SERVICED BY L=3000
0-01256-300-0
01
1
1004-
●
●
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
0906-
●
●
22
UNIT; FUEL TANK
8-98113-182-0
01
1
0906-1103
●
●
22
UNIT; FUEL TANK
8-98099-321-0
01
1
1104-
●
●
35
SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER
0-36220-512-0
05
1
0906-
●
●
40
BELT; SUPPORT,FUEL TANK
8-98067-501-1
02
1
0906-
●
●
42
NUT; SUPPORT BELT
M12
0-91110-512-0
04
1
0906-
●
●
43
BRACKET; FUEL TANK
(A)
8-98010-733-0
01
1
0906-
●
●
43
BRACKET; FUEL TANK
(B)
8-98122-884-0
01
1
0906-
●
●
45
BOLT; BRKT,FUEL TANK
M12X35 FLANGE
0-28651-235-0
08
1
0906-
●
●
49
NUT; BRKT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) M12 FLANGE
0-91180-212-0
08
1
0908-1011
●
●
49
NUT; BRKT
6HK1-TCS ENG(80L) MZW6P M/T(RSZ) M12 FLANGE
0-91180-212-0
08
1
1012-
●
●
49
NUT; BRKT
6HK1-TCC ENG(81L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M12 FLANGE
0-91180-212-0
08
1
1012-
●
●
49
NUT; BRKT
M12 FLANGE
0-91180-212-0
08
1
0906-0907
●
●
49
NUT; BRKT
6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12 FLANGE
0-91180-212-0
04
1
0908-
●
●
49
NUT; BRKT
6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) M12 FLANGE
0-91180-212-0
04
1
0908-
●
●
158
VALVE; ROLL OVER & FLOAT
8-98067-039-0
02
1
0906-
●
●
159
SEAL; ROLL OVER & FLOAT VALVE
1-83149-003-0
02
1
0906-
●
●
369
JOINT; HOSE
8-98067-080-0
01
1
0906-
●
●
635
SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER
0-36220-512-0
10
1
0906-
●
●
640
VENTILATOR; HOSE,BREATHER
8-98092-398-0
01
1
0906-
●
●
