◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#6245) — 170 parça

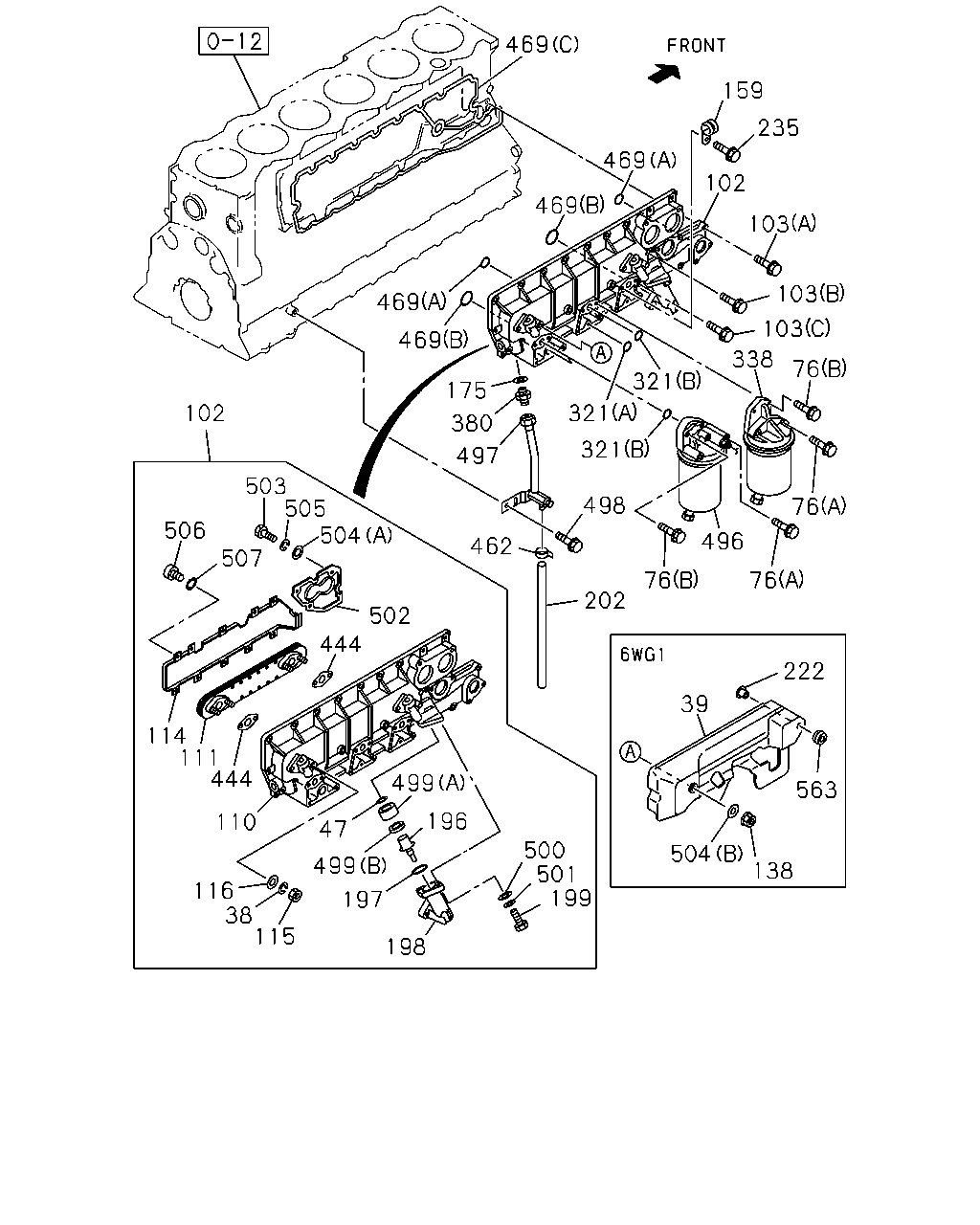

çizim 7625
469 159 235 469 102 469 103 103 469 103 469 338 76 321 175 321 102 380 321 497 503 505 504 498 76 506 496 462 507 76 76 202 502 444 222 39 114 111 444 499 563 196 110 47 500 501 199 504 499 138 116 38 115 197 198
BalonParca AdiParca NoAdetTipApplied Date A B C
38 WASHER; LK,OIL COOLER
ID=10.2 		9-09150-510-0 04 1 9906-9906 ● ● ●
38 WASHER; LK,OIL COOLER
ID=10.2 		9-09150-510-0 04 1 9907-9907 ● ●
39 COVER; OIL COOLER 1-19380-151-1 01 1 9906- ●
47 RING; SEAL,THERMO VLV 1-21779-001-0 01 1 9906-9906 ● ● ●
47 RING; SEAL,THERMO VLV 1-21779-001-0 01 1 9907- ● ●
76 BOLT; OIL FILTER
(A) M10X95 FLANGE 		8-94397-027-1 04 1 9906-9906 ● ●
76 BOLT; OIL FILTER
(A) M10X95 FLANGE 		8-94397-027-1 04 1 9907- ●
76 BOLT; OIL FILTER
(B) M10X50 FLANGE 		0-28181-050-0 04 1 9906-9906 ● ● ●
76 BOLT; OIL FILTER
(B) M10X50 FLANGE 		0-28181-050-0 04 1 9907- ● ●
76 BOLT; OIL FILTER
(A) M10X90 FLANGE 		0-28181-090-0 04 1 9906- ●
102 COOLER ASM; OIL 1-21700-337-0 01 1 9906-9906 ● ● ●
102 COOLER ASM; OIL 1-21700-337-2 01 1 9907- ● ●
103 BOLT; OIL COOLER
(A) M10X30 FLANGE 		0-28181-030-0 17 1 9906-9906 ● ● ●
103 BOLT; OIL COOLER
(A) M10X30 FLANGE 		0-28181-030-0 17 1 9907- ● ●
103 BOLT; OIL COOLER
(C) M10X110 FLANGE 		0-28186-011-0 01 1 9906-9906 ● ● ●
103 BOLT; OIL COOLER
(C) M10X110 FLANGE 		0-28186-011-0 01 1 9907- ● ●
103 BOLT; OIL COOLER
(B) M10X65 FLANGE 		8-94344-540-1 08 1 9906-9906 ● ● ●
103 BOLT; OIL COOLER
(B) M10X65 FLANGE 		8-94344-540-1 08 1 9907- ● ●
110 BODY; CASE,OIL COOLER 1-21721-092-0 01 1 9906-9906 ● ● ●
110 BODY; CASE,OIL COOLER 1-21721-092-2 01 1 9907- ● ●
111 CORE; OIL COOLER 1-21723-053-0 01 1 9906-9906 ● ● ●
111 CORE; OIL COOLER 1-21723-053-1 01 1 9907- ● ●
114 PLATE; BAFFLE,OIL COOLER 1-21729-086-1 01 1 9906-9906 ● ● ●
114 PLATE; BAFFLE,OIL COOLER 1-21729-086-1 01 1 9907- ● ●
115 NUT; ELEMENT
M10 		9-09120-410-0 04 1 9906-9906 ● ● ●
115 NUT; ELEMENT
M10 		9-09120-410-0 04 1 9907-9907 ● ●
115 NUT; ELEMENT
M10 FLANGE 		0-91150-110-0 04 1 9908- ● ●
116 WASHER; PL,ELEMENT
ID=10.5 OD=22 		9-09160-610-0 04 1 9906-9906 ● ● ●
116 WASHER; PL,ELEMENT
ID=10.5 OD=22 		9-09160-610-0 04 1 9907-9907 ● ●
138 NUT
M10 FLANGE 		0-91150-110-0 02 1 9906- ●
159 CLIP; CABLE HARNESS,OIL COOLER
L=20 H=31 		1-09700-770-0 01 1 9906-9906 ● ● ●
159 CLIP; CABLE HARNESS,OIL COOLER
L=20 H=31 		1-09700-770-0 01 1 9907- ● ●
175 GASKET; DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 01 1 9906-9906 ● ● ●
175 GASKET; DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 01 1 9907- ● ●
196 THERMOSTAT; OIL COOLER 1-21770-004-0 01 1 9906-9906 ● ● ●
196 THERMOSTAT; OIL COOLER 1-21770-004-0 01 1 9907- ● ●
197 GASKET; THERMOSTAT 1-09623-419-0 01 1 9906-9906 ● ● ●
197 GASKET; THERMOSTAT 1-09623-419-0 01 1 9907- ● ●
198 JOINT; THERMOSTAT 1-21726-054-0 01 1 9906-9906 ● ● ●
198 JOINT; THERMOSTAT 1-21726-054-0 01 1 9907-9907 ● ●
198 JOINT; THERMOSTAT 1-21726-053-2 01 1 9908- ● ●
199 BOLT; JOINT,THERMOSTAT
M10X35 		0-20801-035-0 02 1 9906-9906 ● ● ●
199 BOLT; JOINT,THERMOSTAT
M10X35 		0-20801-035-0 02 1 9907- ● ●
202 HOSE; WATER,WATER DRAIN
L=310 SERVICED BY L=3000 		0-03259-300-0 01 1 9906-9906 ● ● ●
202 HOSE; WATER,WATER DRAIN
L=310 SERVICED BY L=3000 		0-03259-300-0 01 1 9907- ● ●
222 RUBBER; MTG,OIL COOLER 1-09337-020-0 02 1 9906- ●
235 BOLT; CLIP TO OIL COOLER
M10X20 FLANGE 		0-28181-020-0 01 1 9906-9906 ● ● ●
235 BOLT; CLIP TO OIL COOLER
M10X20 FLANGE 		0-28181-020-0 01 1 9907- ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8 		1-09623-478-0 01 1 9906-9906 ● ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8 		1-09623-478-0 01 1 9907- ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2 		1-09623-479-0 03 1 9906-9906 ● ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2 		1-09623-479-0 03 1 9907- ● ●
338 FILTER ASM; OIL PARTIAL 1-13200-863-4 01 1 9906-9906 ● ● ●
338 FILTER ASM; OIL PARTIAL 1-13200-863-4 01 1 9907- ● ●
380 CONNECTOR; WATER 1-09660-011-1 01 1 9906-9906 ● ● ●
380 CONNECTOR; WATER 1-09660-011-1 01 1 9907- ● ●
444 GASKET; ELEMENT TO BODY 1-21729-093-1 02 1 9906-9906 ● ● ●
444 GASKET; ELEMENT TO BODY 1-21729-093-1 02 1 9907- ● ●
462 CLIP; HOSE,DRAIN
ID=14 		5-09707-004-1 01 1 9906-9906 ● ● ●
462 CLIP; HOSE,DRAIN
ID=14 		5-09707-004-1 01 1 9907- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8 		1-09623-478-0 02 1 9906-9906 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8 		1-09623-478-0 02 1 9907- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2 		1-09623-479-0 02 1 9906-9906 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2 		1-09623-479-0 02 1 9907- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-11219-186-0 01 1 9906-9906 ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-11219-186-0 01 1 9907- ● ●
496 FILTER ASM; OIL 1-13200-862-7 01 1 9906-9906 ● ● ●
496 FILTER ASM; OIL 1-13200-862-7 01 1 9907- ● ●
497 PIPE; WATER DRAIN
W/COCK 		1-13721-496-3 01 1 9906-9906 ● ● ●
497 PIPE; WATER DRAIN
W/COCK 		1-13721-496-3 01 1 9907- ● ●
498 BOLT; WATER PIPE
M10X20 FLANGE 		0-28181-020-0 01 1 9906-9906 ● ● ●
498 BOLT; WATER PIPE
M10X20 FLANGE 		0-28181-020-0 01 1 9907- ● ●
499 SUPPORT; THERMOSTAT
(A) 		1-21729-101-0 01 1 9906-9906 ● ● ●
499 SUPPORT; THERMOSTAT
(A) 		1-21729-101-0 01 1 9907-9907 ● ●
499 SUPPORT; THERMOSTAT
(A) 		1-21729-085-4 01 1 9908- ● ●
499 SUPPORT; THERMOSTAT
(B) 		1-21729-102-0 01 1 9906-9906 ● ● ●
499 SUPPORT; THERMOSTAT
(B) 		1-21729-102-0 01 1 9907-9907 ● ●
499 SUPPORT; THERMOSTAT
(B) 		1-21729-094-1 01 1 9908- ● ●
500 WASHER; PL,JOINT
ID=10.5 OD=22 		9-09160-610-0 02 1 9906-9906 ● ● ●
500 WASHER; PL,JOINT
ID=10.5 OD=22 		9-09160-610-0 02 1 9907- ● ●
501 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 02 1 9906-9906 ● ● ●
501 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 02 1 9907- ● ●
502 COVER; THERMOSTAT 1-21722-041-0 01 1 9906-9906 ● ● ●
502 COVER; THERMOSTAT 1-21722-041-0 01 1 9907- ● ●
503 BOLT; COVER 1-21729-089-0 04 1 9906-9906 ● ● ●
503 BOLT; COVER 1-21729-089-0 04 1 9907- ● ●
504 WASHER; PL,COVER
(A) 		1-21729-090-0 04 1 9906-9906 ● ● ●
504 WASHER; PL,COVER
(A) 		1-21729-090-0 04 1 9907- ● ●
504 WASHER; PL,COVER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 9906- ●
505 WASHER; LK,COVER 1-21729-091-0 04 1 9906-9906 ● ● ●
505 WASHER; LK,COVER 1-21729-091-0 04 1 9907-9907 ● ●
506 SCREW; BAFFLE
M6X10 		9-03486-608-0 10 1 9906-9906 ● ● ●
506 SCREW; BAFFLE
M6X10 		9-03486-608-0 10 1 9907- ● ●
507 WASHER; LK,BAFFLE 1-21729-092-0 10 1 9906-9906 ● ● ●
507 WASHER; LK,BAFFLE 1-21729-092-0 10 1 9907- ● ●
563 TUBE; DISTANCE 1-19389-134-1 02 1 9906- ●
çizim 44018
496 265 2 71 292 282 509 508 282 292 280 281 290 287 288 290 287 284
BalonParca AdiParca NoAdetTipApplied Date A B C
2 ELEMENT; OIL FILTER
(A) MAIN TSUCHIYA 		1-13240-165-0 01 1 9906-9906 ● ● ●
2 ELEMENT; OIL FILTER
(A) MAIN TSUCHIYA 		1-13240-165-0 01 1 9907- ● ●
2 ELEMENT; OIL FILTER
(B) PARTIAL TSUCHIYA 		1-13240-200-0 01 1 9906-9906 ● ● ●
2 ELEMENT; OIL FILTER
(B) PARTIAL TSUCHIYA 		1-13240-200-0 01 1 9907- ● ●
71 VALVE ASM; RELIEF,OIL FILTER 1-13262-005-0 01 1 9906-9906 ● ● ●
71 VALVE ASM; RELIEF,OIL FILTER 1-13262-005-0 01 1 9907- ● ●
265 BODY; OIL FILTER 1-13211-216-1 01 1 9906-9906 ● ● ●
265 BODY; OIL FILTER 1-13211-216-1 01 1 9907- ● ●
280 CASE ASM; OIL FILTER 1-13210-038-2 01 1 9906-9906 ● ● ●
280 CASE ASM; OIL FILTER 1-13210-038-2 01 1 9907- ● ●
281 COVER; OIL FILTER 1-13211-206-1 01 1 9906-9906 ● ● ●
281 COVER; OIL FILTER 1-13211-206-1 01 1 9907- ● ●
282 GASKET; BODY TO CASE
(A) 		1-09623-548-0 01 1 9906-9906 ● ● ●
282 GASKET; BODY TO CASE
(A) 		1-09623-548-0 01 1 9907- ● ●
282 GASKET; BODY TO CASE
(B) 		1-09623-552-0 01 1 9906-9906 ● ● ●
282 GASKET; BODY TO CASE
(B) 		1-09623-552-0 01 1 9907- ● ●
284 BOLT; CENTER,OIL FILTER
(A) 		1-13219-281-1 01 1 9906-9906 ● ● ●
284 BOLT; CENTER,OIL FILTER
(A) 		1-13219-281-1 01 1 9907- ● ●
284 BOLT; CENTER,OIL FILTER
(B) 		1-13231-075-0 01 1 9906-9906 ● ● ●
284 BOLT; CENTER,OIL FILTER
(B) 		1-13231-075-0 01 1 9907- ● ●
287 GASKET; CENTER BOLT
(A) 		1-09623-549-0 01 1 9906-9906 ● ● ●
287 GASKET; CENTER BOLT
(A) 		1-09623-549-0 01 1 9907- ● ●
287 GASKET; CENTER BOLT
(B) 		1-09623-551-0 01 1 9906-9906 ● ● ●
287 GASKET; CENTER BOLT
(B) 		1-09623-551-0 01 1 9907- ● ●
288 PLUG; OIL DRAIN 1-13219-272-0 01 1 9906-9906 ● ● ●
288 PLUG; OIL DRAIN 1-13219-272-0 01 1 9907- ● ●
290 GASKET; PLUG,OIL DRAIN 1-09623-550-0 02 1 9906-9906 ● ● ●
290 GASKET; PLUG,OIL DRAIN 1-09623-550-0 02 1 9907- ● ●
292 SPRING; ELEMENT
(A) 		1-09580-387-0 01 1 9906-9906 ● ● ●
292 SPRING; ELEMENT
(A) 		1-09580-387-0 01 1 9907- ● ●
292 SPRING; ELEMENT
(B) 		1-09580-484-0 01 1 9906-9906 ● ● ●
292 SPRING; ELEMENT
(B) 		1-09580-484-0 01 1 9907- ● ●
292 SPRING; ELEMENT
(C) 		1-13263-007-0 01 1 9906-9906 ● ● ●
292 SPRING; ELEMENT
(C) 		1-13263-007-0 01 1 9907- ● ●
496 FILTER ASM; OIL 1-13200-862-7 01 1 9906-9906 ● ● ●
496 FILTER ASM; OIL 1-13200-862-7 01 1 9907- ● ●
508 CHAMBER ASM; SW,FILTER 1-13260-107-1 01 1 9906-9906 ● ● ●
508 CHAMBER ASM; SW,FILTER 1-13260-107-1 01 1 9907- ● ●
509 GASKET; SW 1-09630-114-0 01 1 9906-9906 ● ● ●
509 GASKET; SW 1-09630-114-0 01 1 9907- ● ●
çizim 44020
338 390 2 282 282 269 292 390 290 287 290 132 287 284
BalonParca AdiParca NoAdetTipApplied Date A B C
2 ELEMENT; OIL FILTER
(A) MAIN TSUCHIYA 		1-13240-165-0 01 1 9906-9906 ● ● ●
2 ELEMENT; OIL FILTER
(A) MAIN TSUCHIYA 		1-13240-165-0 01 1 9907- ● ●
2 ELEMENT; OIL FILTER
(B) PARTIAL TSUCHIYA 		1-13240-200-0 01 1 9906-9906 ● ● ●
2 ELEMENT; OIL FILTER
(B) PARTIAL TSUCHIYA 		1-13240-200-0 01 1 9907- ● ●
132 PLUG; PARTIAL OIL FILTER 1-13219-272-0 01 1 9906-9906 ● ● ●
132 PLUG; PARTIAL OIL FILTER 1-13219-272-0 01 1 9907- ● ●
269 WASHER; ELEMENT,OIL FILTER 1-13234-005-0 01 1 9906-9906 ● ● ●
269 WASHER; ELEMENT,OIL FILTER 1-13234-005-0 01 1 9907- ● ●
282 GASKET; BODY TO CASE
(A) 		1-09623-548-0 01 1 9906-9906 ● ● ●
282 GASKET; BODY TO CASE
(A) 		1-09623-548-0 01 1 9907- ● ●
282 GASKET; BODY TO CASE
(B) 		1-09623-552-0 01 1 9906-9906 ● ● ●
282 GASKET; BODY TO CASE
(B) 		1-09623-552-0 01 1 9907- ● ●
284 BOLT; CENTER,OIL FILTER
(A) 		1-13219-281-1 01 1 9906-9906 ● ● ●
284 BOLT; CENTER,OIL FILTER
(A) 		1-13219-281-1 01 1 9907- ● ●
284 BOLT; CENTER,OIL FILTER
(B) 		1-13231-075-0 01 1 9906-9906 ● ● ●
284 BOLT; CENTER,OIL FILTER
(B) 		1-13231-075-0 01 1 9907- ● ●
287 GASKET; CENTER BOLT
(A) 		1-09623-549-0 01 1 9906-9906 ● ● ●
287 GASKET; CENTER BOLT
(A) 		1-09623-549-0 01 1 9907- ● ●
287 GASKET; CENTER BOLT
(B) 		1-09623-551-0 01 1 9906-9906 ● ● ●
287 GASKET; CENTER BOLT
(B) 		1-09623-551-0 01 1 9907- ● ●
290 GASKET; PLUG,OIL DRAIN 1-09623-550-0 02 1 9906-9906 ● ● ●
290 GASKET; PLUG,OIL DRAIN 1-09623-550-0 02 1 9907- ● ●
292 SPRING; ELEMENT
(A) 		1-09580-387-0 01 1 9906-9906 ● ● ●
292 SPRING; ELEMENT
(A) 		1-09580-387-0 01 1 9907- ● ●
292 SPRING; ELEMENT
(B) 		1-09580-484-0 01 1 9906-9906 ● ● ●
292 SPRING; ELEMENT
(B) 		1-09580-484-0 01 1 9907- ● ●
292 SPRING; ELEMENT
(C) 		1-13263-007-0 01 1 9906-9906 ● ● ●
292 SPRING; ELEMENT
(C) 		1-13263-007-0 01 1 9907- ● ●
338 FILTER ASM; OIL PARTIAL 1-13200-863-4 01 1 9906-9906 ● ● ●
338 FILTER ASM; OIL PARTIAL 1-13200-863-4 01 1 9907- ● ●
390 BODY; OIL FILTER,PARTIAL
(A) 		1-13211-217-1 01 1 9906-9906 ● ● ●
390 BODY; OIL FILTER,PARTIAL
(A) 		1-13211-217-1 01 1 9907- ● ●
390 BODY; OIL FILTER,PARTIAL
(B) 		1-13211-218-1 01 1 9906-9906 ● ● ●
390 BODY; OIL FILTER,PARTIAL
(B) 		1-13211-218-1 01 1 9907- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
