◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11239 - FVR-LHD(EUROPE)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#62425) — 47 parça
çizim 166249
24 34 30 36 46 72 47 74 51 76
BalonParca AdiParca NoAdetTipApplied Date
24 TANK ASM; WASHER 8-98039-663-2 01 1 0906-
30 MOTOR ASM; FRT WASHER TANK 8-98070-170-0 01 1 0906-
34 CAP; WASHER TANK 8-97855-140-0 01 1 0906-
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 0906-
36 HOSE; WASHER
(C) 		8-98070-174-0 01 1 0906-
36 HOSE; WASHER
(A) 		8-98078-825-0 01 1 0906-
36 HOSE; WASHER
(D) 		8-98078-826-0 01 1 0906-
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98078-966-1 01 1 0906-
47 ARM; CRANK,WIPER MOTOR 8-98078-805-0 01 1 0906-
51 NUT; WIPER MOTOR LINK 1-83319-012-0 01 1 0906-
72 BRACKET; WIPER MOTOR 8-98078-807-0 01 1 0906-
74 WASHER; ARM TO MOTOR 1-83319-011-0 01 1 0906-
76 SCREW; BRKT TO WIPER MOTOR 1-86810-062-0 03 1 0906-

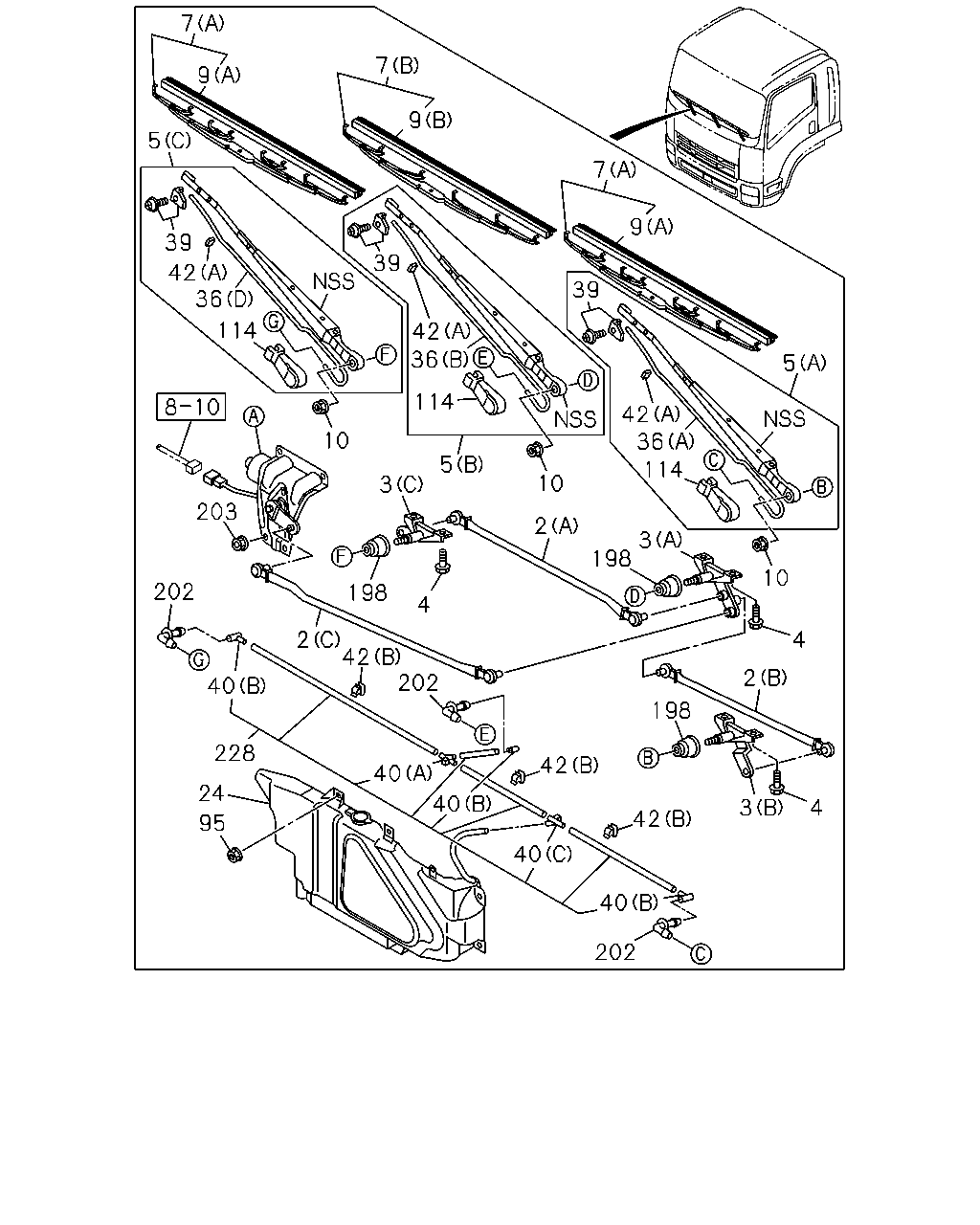

çizim 166262
7 9 5 42 114 36 10 4 2 4 3 198 198 2 39 10 5 114 36 42 39 9 7 7 9 5 39 36 42 114 10 203 3 4 198 2 42 202 40 40 42 42 40 40 228 40 202 3 95 24 202
BalonParca AdiParca NoAdetTipApplied Date
2 LINK; FRT WIPER
(A) 		8-98078-813-0 01 1 0906-
2 LINK; FRT WIPER
(B) 		8-98078-969-0 01 1 0906-
2 LINK; FRT WIPER
(C) 		8-98080-170-0 01 1 0906-
3 PIVOT ASM; FRT WIPER
(C) 		8-98068-140-0 01 1 0906-
3 PIVOT ASM; FRT WIPER
(B) 		8-98078-818-0 01 1 0906-
3 PIVOT ASM; FRT WIPER
(A) 		8-98078-971-0 01 1 0906-
4 BOLT; WIPER LINK TO BODY
M8X20 FLANGE 		0-28650-820-0 06 1 0906-
5 ARM; WIPER
(A) 		8-98078-974-1 01 1 0906-
5 ARM; WIPER
(B) 		8-98078-975-1 01 1 0906-
5 ARM; WIPER
(C) 		8-98078-976-1 01 1 0906-
7 BLADE; WIPER
(A) 		8-98079-088-0 02 1 0906-
7 BLADE; WIPER
(B) 		8-98079-089-0 01 1 0906-
9 RUBBER; FRT WIPER BLADE
(A) 		1-83355-015-0 02 1 0906-
9 RUBBER; FRT WIPER BLADE
(B) 		1-83355-016-0 01 1 0906-
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 0906-
24 TANK ASM; WASHER 8-98039-663-2 01 1 0906-
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 0906-
36 HOSE; WASHER
(C) 		8-98070-174-0 01 1 0906-
36 HOSE; WASHER
(A) 		8-98078-825-0 01 1 0906-
36 HOSE; WASHER
(D) 		8-98078-826-0 01 1 0906-
39 NOZZLE; WINDSHIELD WASHER 1-83315-086-0 03 1 0906-
40 JOINT; WASHER HOSE
(A) 		8-97167-258-0 01 1 0906-
40 JOINT; WASHER HOSE
(B) 		8-97307-026-0 03 1 0906-
40 JOINT; WASHER HOSE
(C) 		8-97855-163-0 01 1 0906-
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 03 1 0906-
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 03 1 0906-
95 NUT; WASHER TANK
M6 FLANGE 		0-91180-106-0 04 1 0906-
114 COVER; FRT WIPER ARM 1-83318-127-0 03 1 0906-
198 COVER; PIVOT,WIPER 8-98038-892-0 03 1 0906-
202 GROMMET; WIPER 1-86815-003-2 03 1 0906-
203 NUT; WIPER MOTOR
M8 FLANGE 		0-91180-208-0 04 1 0906-
228 HOSE ASM; WASHER 8-98039-706-0 01 1 0906-

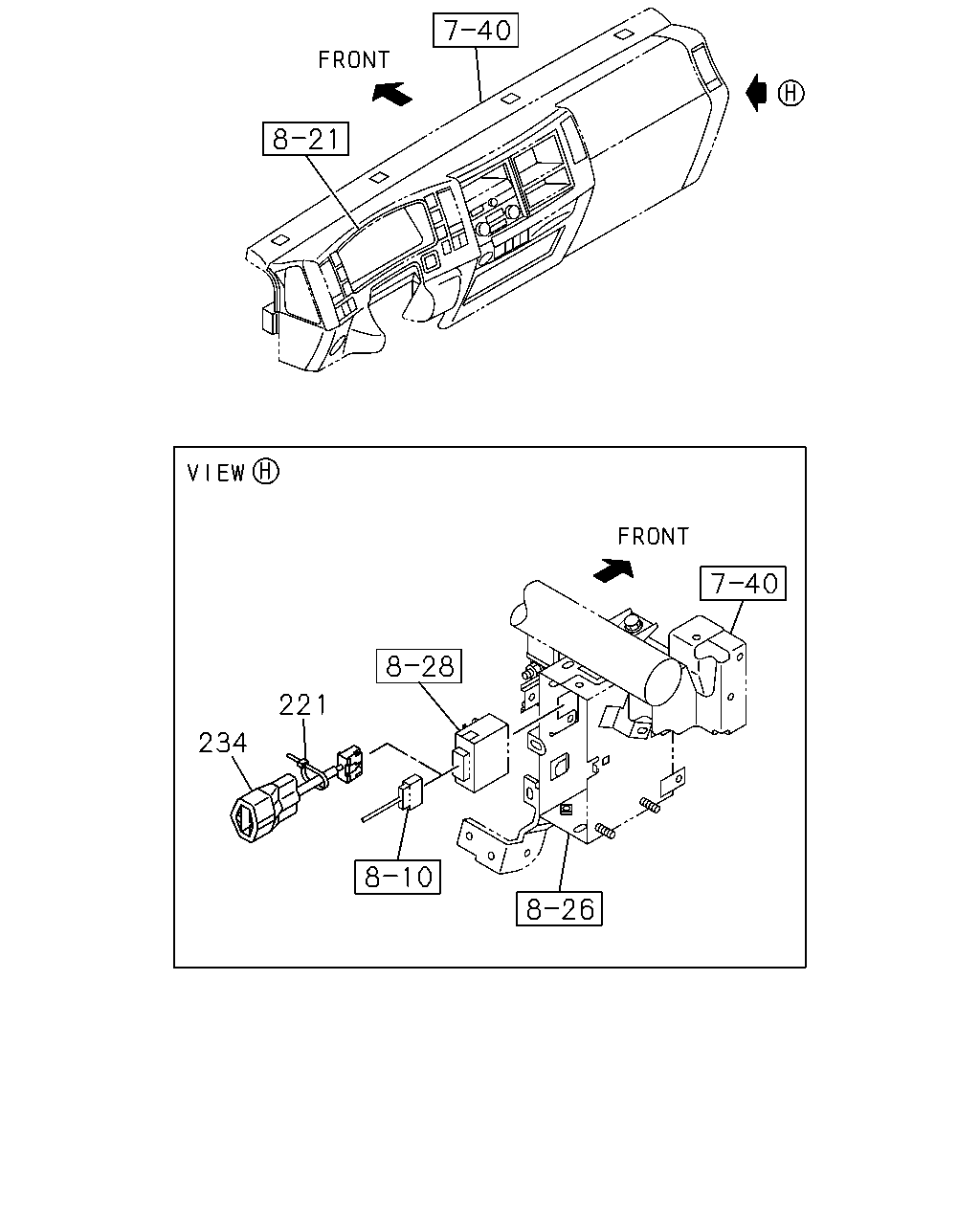

çizim 339359
221 234
BalonParca AdiParca NoAdetTipApplied Date
221 CLIP
L=140 		5-09707-031-1 01 1 1302-1308
234 HARNESS; EXT,WIPER 8-98236-609-0 01 1 1302-1308
