Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#62415) — 266 parça

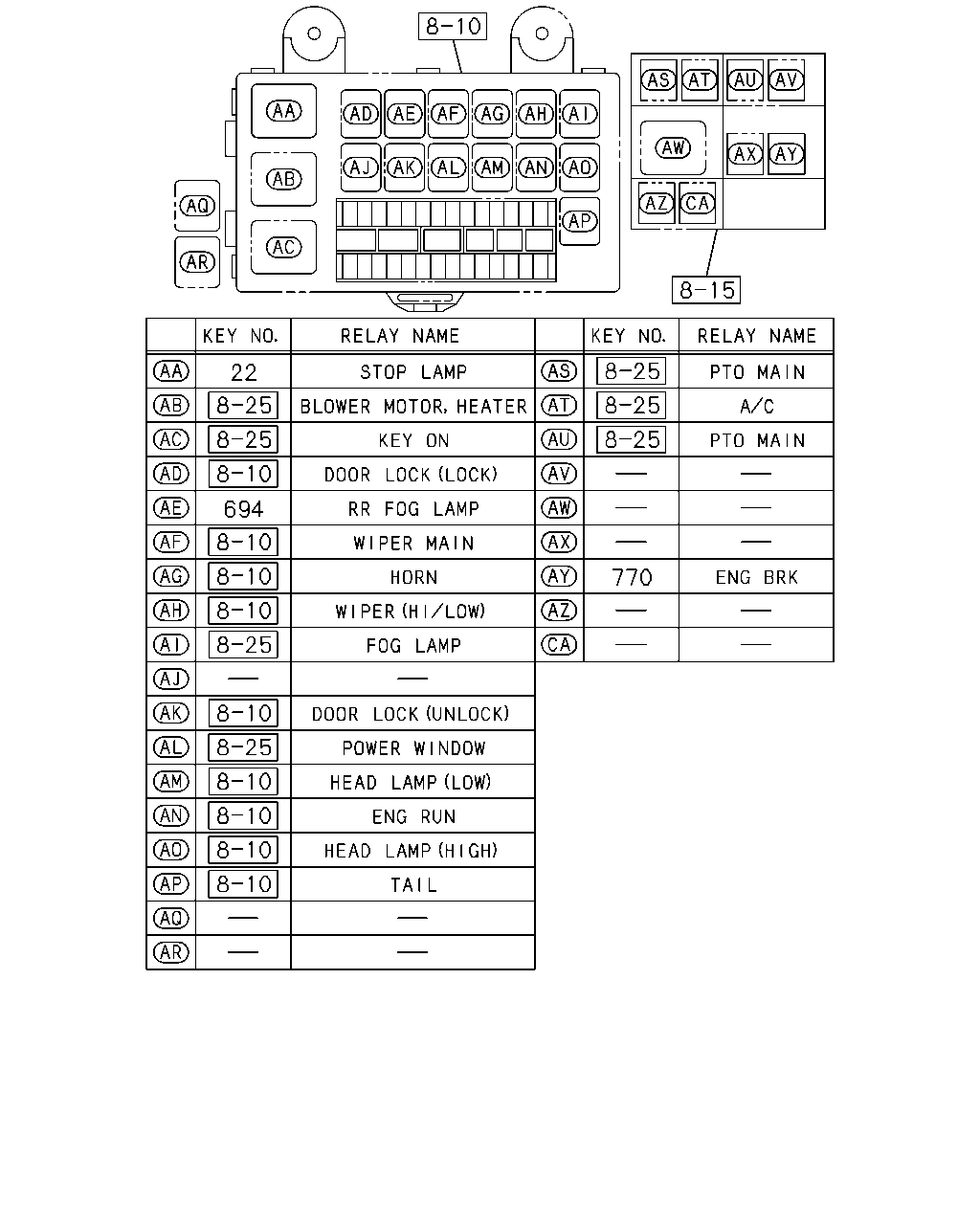

22 694 770

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0906-
694	RELAY; RR FOG LAMP 24V 10A MATSUSHITA	8-97173-035-1	01	1	0906-
770	RELAY; ENG BRK 24V 10A MATSUSHITA	8-97173-035-1	01	1	0906-

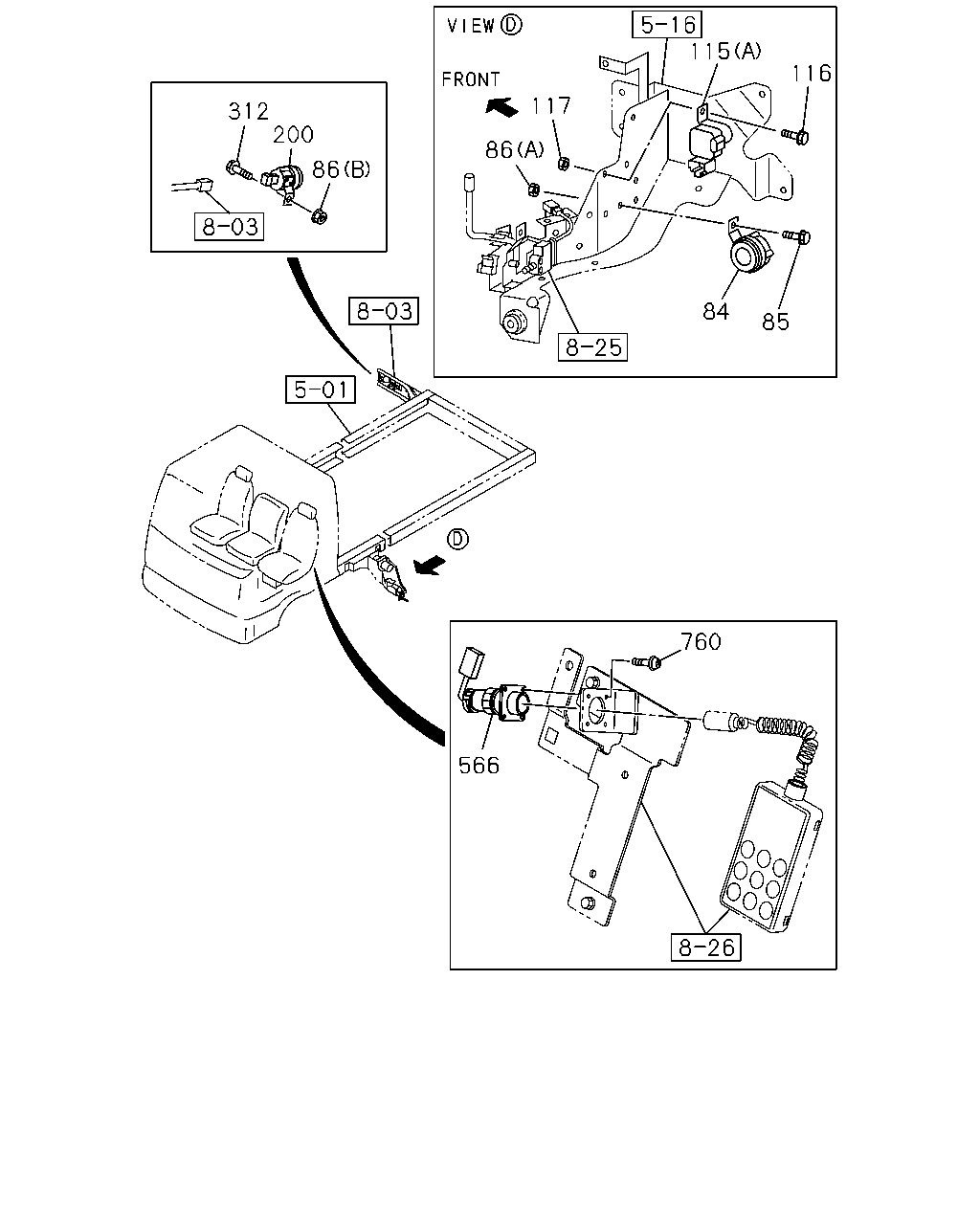

115 116 117 312 200 86 86 84 85 760 566

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
84	BUZZER; POWER CAB TILT METRO	8-98069-860-0	01	1	0906-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0906-
86	NUT; BUZZER (A) M8 FLANGE	0-91180-108-0	01	1	0906-
86	NUT; BUZZER (B) M10 FLANGE	0-91180-210-0	01	1	0906-
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0906-
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	0906-
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	0906-
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0906-
200	BUZZER; WARNING,AIR SUSP	1-83460-104-0	01	1	0906-
312	BOLT; BUZZER M10X30 FLANGE	0-28651-030-0	01	1	0906-
566	HARNESS; REMOTE CONT	1-82626-888-1	01	1	0906-
760	SCREW; HARNESS CONN M3X10	9-93490-310-0	04	1	0906-

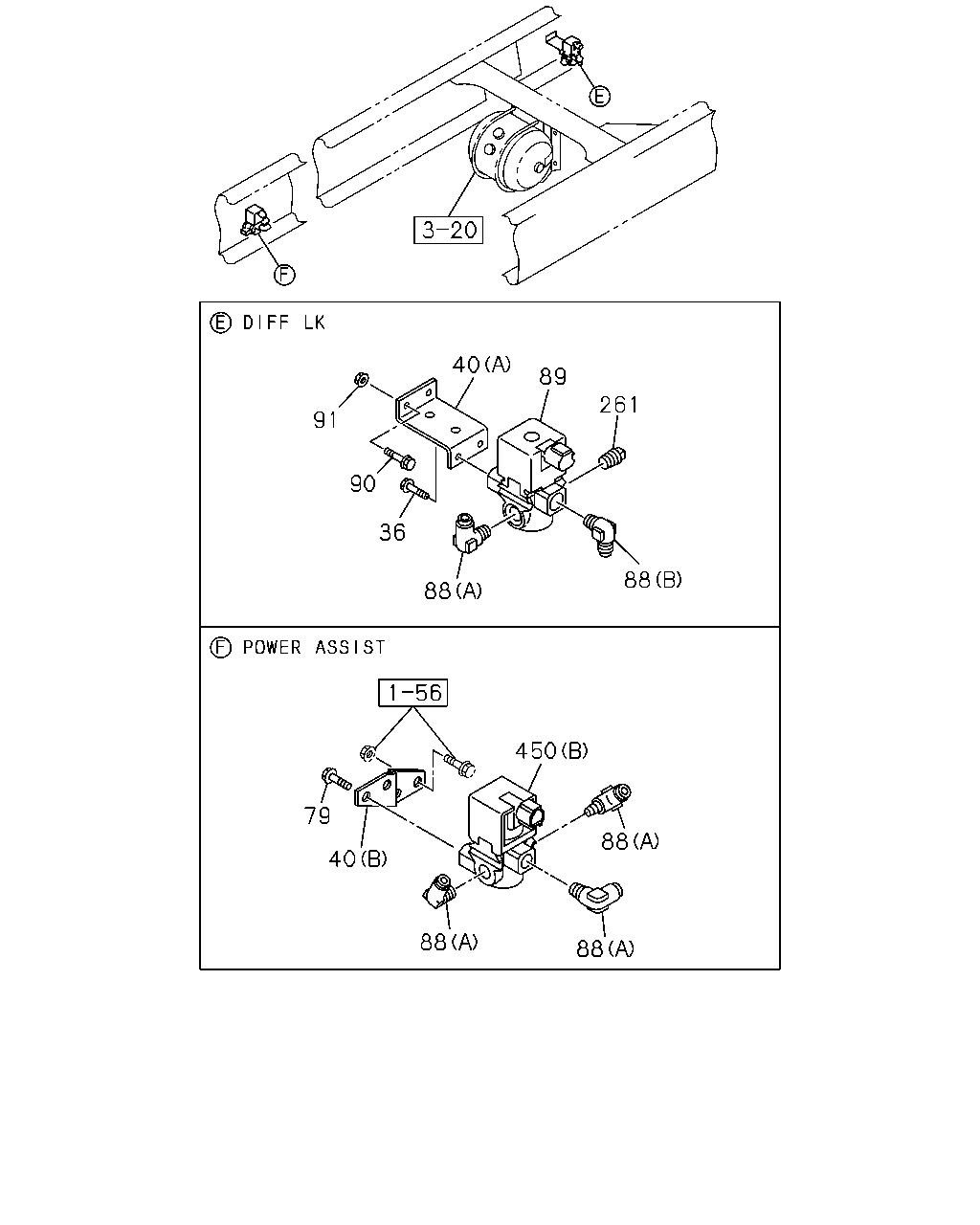

40 89 261 91 90 36 88 88 450 79 88 40 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	BOLT; MAG VLV,PTO CONT DIFF LOCK<C3N> M8X20 FLANGE	0-28650-820-0	02	1	0906-
40	BRACKET; MAG VLV DIFF LOCK<C3N> (A)	1-47471-374-1	01	1	0906-1004
40	BRACKET; MAG VLV DIFF LOCK<C3N> (A)	8-98154-633-0	01	1	1005-
40	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) (B)	8-98057-863-0	01	1	0906-
79	BOLT; MAG VLV ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28650-820-0	02	1	0906-
88	CONNECTOR; MAG VLV (E) DIN12 & M22 STRAIGHT	1-09661-050-0	03	1	0906-
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1011
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1011
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1112-
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1112-
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0906-
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1005
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1005
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1006-1011
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1006-1011
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1112-
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0906-1005
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0906-1005
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1006-1011
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1006-1011
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1112-
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1112-
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1112-
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-1005
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1006-1011
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1012-1111
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1012-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0906-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0906-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1112-
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) EXC. PTO CONTROL<SV6> (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) EXC. PTO CONTROL<SV6> (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1112-
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) M12 & PT1/4 3WAY	1-09656-586-1	02	1	0906-1111
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	1-82563-871-2	01	1	0906-1205
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	8-97641-594-0	01	1	1206-
90	BOLT; MAG VLV DIFF LOCK<C3N> M8X35 FLANGE	0-28650-835-0	02	1	0906-
91	NUT; MAG VLV DIFF LOCK<C3N> M8 FLANGE	0-91180-108-0	02	1	0906-
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	0906-1205
261	PLUG; MAG VLV DIFF LOCK<C3N>	0-92004-813-0	01	1	1206-1206
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1207-
450	VALVE; MAG (A)	8-97376-939-3	01	1	0906-0910
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-1111
450	VALVE; MAG ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A)	8-97633-075-0	01	1	1112-
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0906-1011
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0906-1011
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	1012-1111
450	VALVE; MAG MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1012-1111
450	VALVE; MAG ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	1-82563-871-2	01	1	1112-
450	VALVE; MAG ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1112-
450	VALVE; MAG ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) ASSISTOR SHIFT CONTROL<WX8> (B)	1-82563-871-2	01	1	1112-

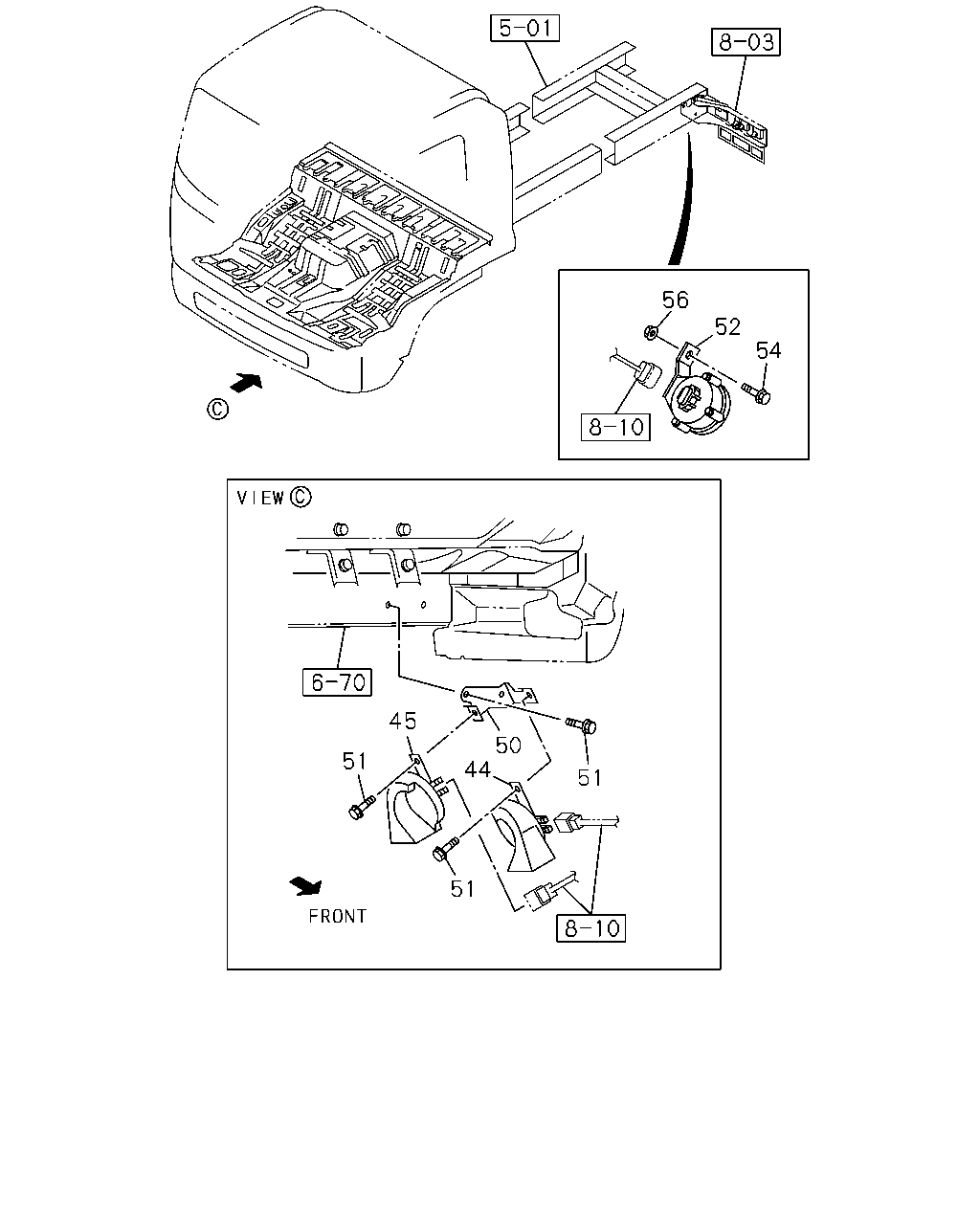

56 52 54 45 50 44 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	8-97611-677-2	01	1	0906-
45	HORN; LOW NOTE	8-97611-676-2	01	1	0906-
50	BRACKET; HORN	8-97616-529-2	01	1	0906-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	0906-1008
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1009-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1009-
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9>	8-97617-027-0	01	1	0906-
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X30 FLANGE	0-28651-030-0	01	1	0906-
56	NUT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10 FLANGE	0-91180-210-0	01	1	0906-

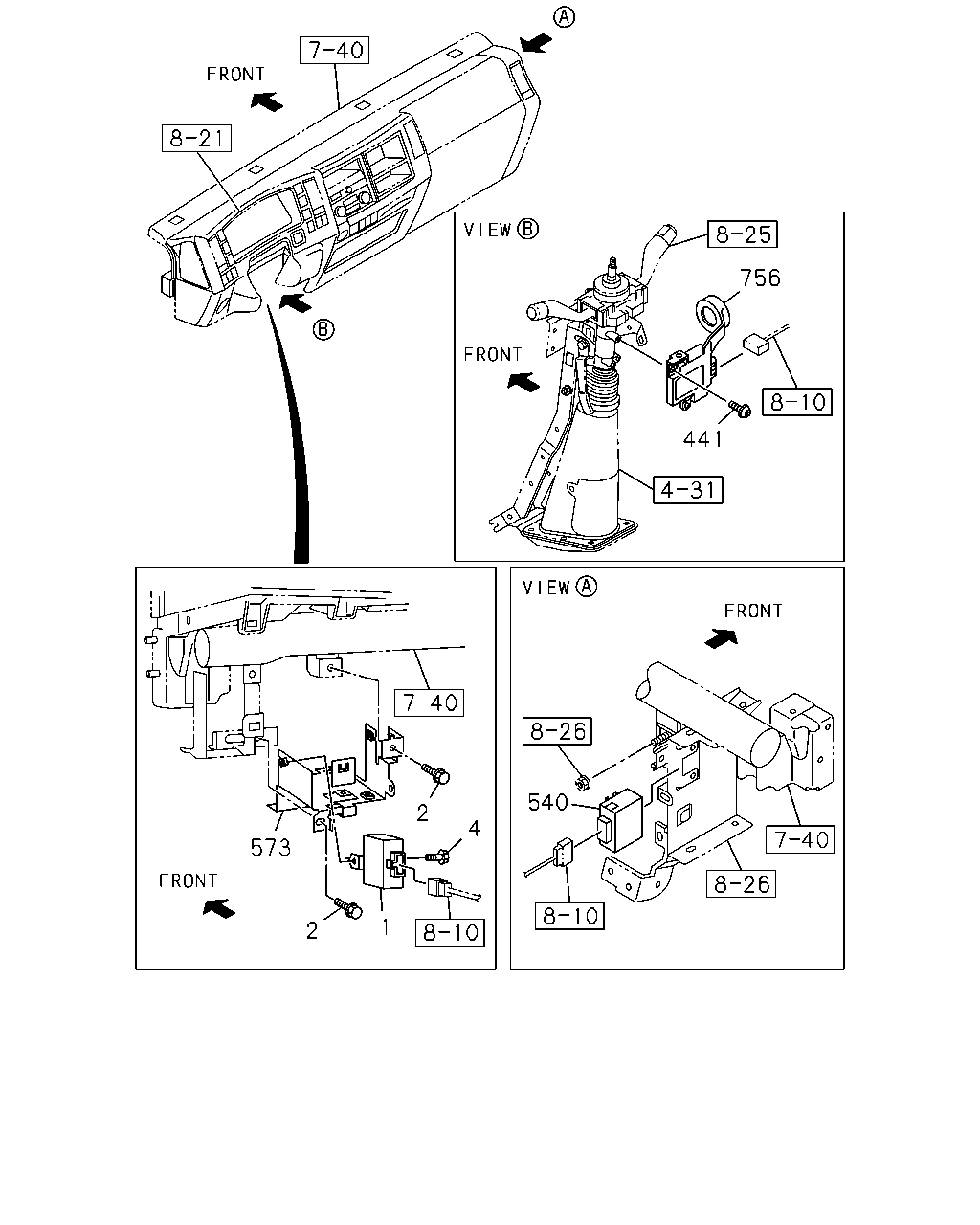

756 441 540 2 4 573 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-98025-533-1	01	1	0906-
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	0906-
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	0906-
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0906-
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	0906-1308
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-
573	BRACKET; FLASHER UNIT	8-97616-351-3	01	1	0906-
756	CONTROL UNIT; IMMOBILIZER	8-98097-554-0	01	1	0906-1005
756	CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1006-

531 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0906-
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	0906-
531	RELAY; MAIN 24V 30A JIDECO	8-97238-540-0	01	1	0906-1402
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-

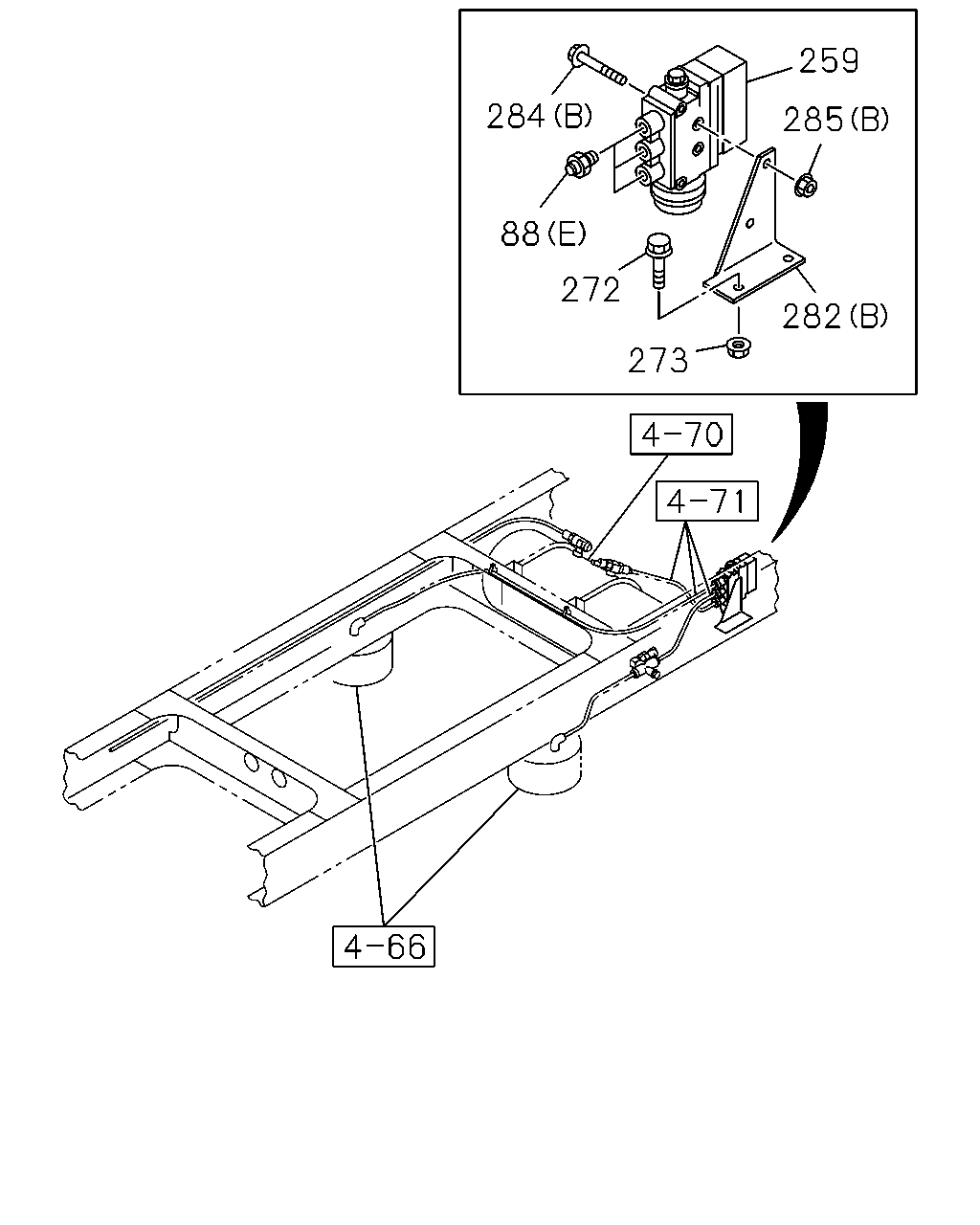

259 284 285 88 272 282 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
88	CONNECTOR; MAG VLV (E) DIN12 & M22 STRAIGHT	1-09661-050-0	03	1	0906-
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1011
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1011
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1112-
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1112-
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0906-
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1005
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1005
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1006-1011
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1006-1011
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1112-
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0906-1005
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0906-1005
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1006-1011
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1006-1011
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1112-
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1112-
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1112-
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-1005
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1006-1011
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1012-1111
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1012-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0906-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0906-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1112-
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) EXC. PTO CONTROL<SV6> (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) EXC. PTO CONTROL<SV6> (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1112-
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) M12 & PT1/4 3WAY	1-09656-586-1	02	1	0906-1111
259	VALVE; MAG,AIR SUSP CONT	1-82563-978-0	01	1	0906-
272	BOLT; MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	0906-
273	NUT; MAG VLV M10 FLANGE	0-91180-210-0	02	1	0906-
282	BRACKET; MAG VLV (B)	1-47478-319-0	01	1	0906-
282	BRACKET; MAG VLV FULLER FSO5206B OD M/T(Y4V) (C)	1-47471-374-1	01	1	0906-1004
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C)	1-47471-374-1	01	1	0906-1004
282	BRACKET; MAG VLV FULLER FSO5206B OD M/T(Y4V) (C)	8-98154-633-0	01	1	1005-1005
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C)	8-98154-633-0	01	1	1005-1005
282	BRACKET; MAG VLV FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (C)	8-98154-633-0	01	1	1006-1011
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C)	8-98154-633-0	01	1	1006-1011
282	BRACKET; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (C)	8-98154-633-0	01	1	1012-1111
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C)	8-98154-633-0	01	1	1012-1111
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) EXC. PTO CONTROL<SV6> (C)	8-98154-633-0	01	1	1112-
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A)	8-98101-296-0	01	1	0906-1011
282	BRACKET; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (A)	8-98101-296-0	01	1	1012-1111
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A)	8-98101-296-0	01	1	1012-1111
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6> (A)	8-98101-296-0	01	1	1112-
284	BOLT; MAG VLV (B) M8X70	0-10855-870-0	02	1	0906-
284	BOLT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	0906-1011
284	BOLT; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-1111
284	BOLT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-1111
284	BOLT; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1112-
285	NUT; MAG VLV (B) M8 FLANGE	0-91180-108-0	02	1	0906-
285	NUT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	0906-1011
285	NUT; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	1012-1111
285	NUT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	1012-1111
285	NUT; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	1112-

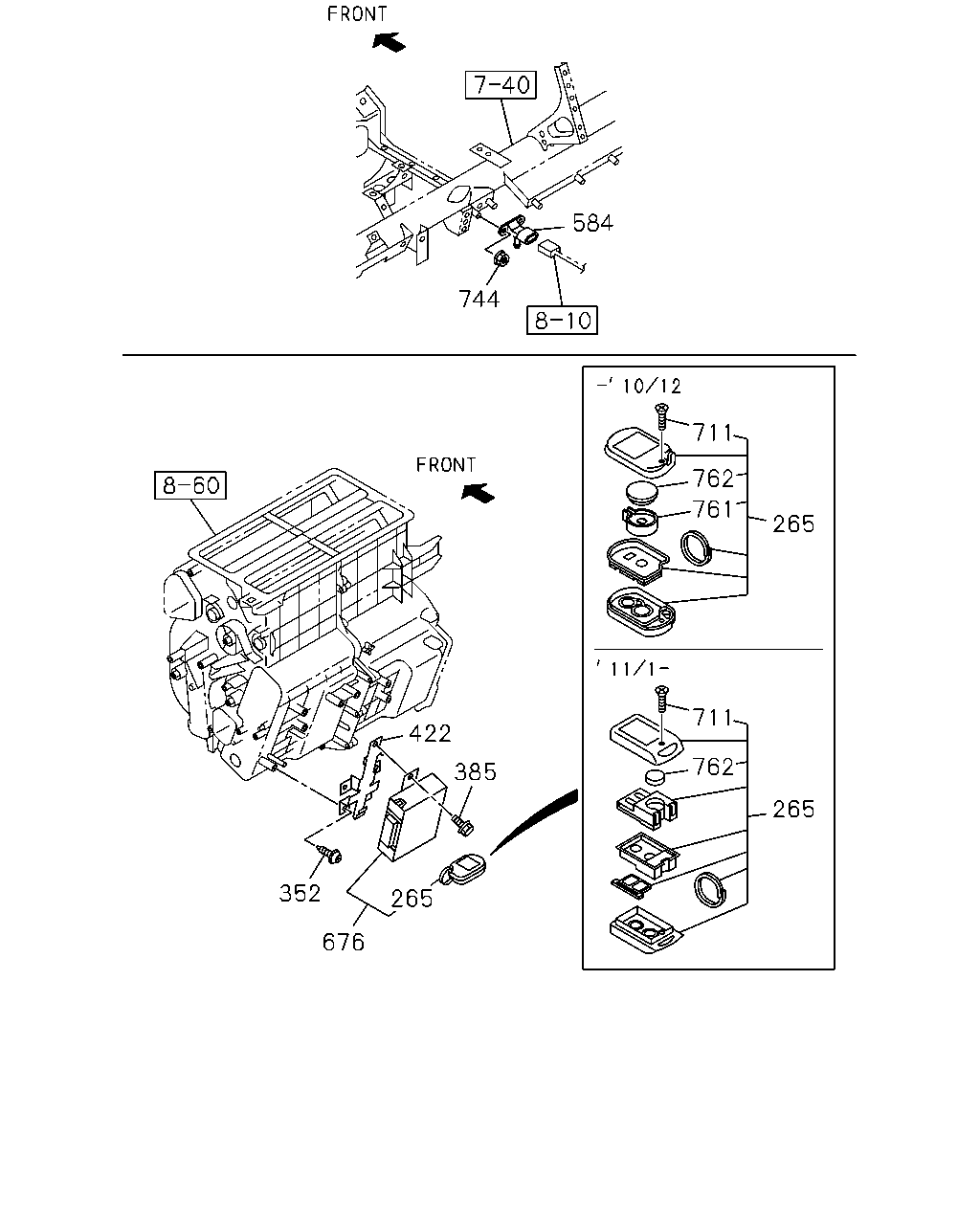

584 744 711 762 761 265 711 422 762 385 265 352 265 676

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	0906-1012
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98180-751-0	02	1	1101-1205
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1206-
352	SCREW; BRKT M5X16 TAPPING	0-72180-516-0	02	1	0906-
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0906-
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	0906-
584	SENSOR; PRESSURE	8-98020-514-0	01	1	0906-
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	0906-1012
676	CONTROL UNIT; KEYLESS ENTRY	8-98181-809-0	01	1	1101-1205
676	CONTROL UNIT; KEYLESS ENTRY	8-98218-231-0	01	1	1206-
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	0906-1205
711	SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1206-
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	0906-
761	HOLDER; BATTERY	8-98078-063-0	02	1	0906-1012
762	BATTERY	8-98078-061-0	02	1	0906-

41 282 424 267 450 88 39 88 88 88 88 88 88 88 41 282 267 88 424 450 210 284 39 450 88 424 88 602 88 210 285 88 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV M8X35 FLANGE	0-28650-835-0	02	1	0906-
41	NUT; BRKT,MAG VLV M8 FLANGE	0-91180-108-0	02	1	0906-
88	CONNECTOR; MAG VLV (E) DIN12 & M22 STRAIGHT	1-09661-050-0	03	1	0906-
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1011
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1011
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1112-
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1112-
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0906-
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1005
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1005
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1006-1011
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1006-1011
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1112-
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0906-1005
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0906-1005
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1006-1011
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1006-1011
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1112-
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1112-
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1112-
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-1005
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1006-1011
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1012-1111
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1012-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0906-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0906-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1112-
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) EXC. PTO CONTROL<SV6> (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-1111
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) EXC. PTO CONTROL<SV6> (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1112-
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) M12 & PT1/4 3WAY	1-09656-586-1	02	1	0906-1111
210	WASHER; PL,BRKT ZF9S1110 M/T(Y5E) PTO CONTROL<SV6>	1-82569-266-0	02	1	0906-1011
210	WASHER; PL,BRKT MZW6P M/T(RSZ) PTO CONTROL<SV6>	1-82569-266-0	02	1	1012-1111
210	WASHER; PL,BRKT ZF9S1110 M/T(Y5E) PTO CONTROL<SV6>	1-82569-266-0	02	1	1012-1111
210	WASHER; PL,BRKT ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6>	1-82569-266-0	02	1	1112-
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0906-1111
267	BOLT; VLV TO BRKT ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M8X20 FLANGE	0-28650-820-0	02	1	1112-
282	BRACKET; MAG VLV (B)	1-47478-319-0	01	1	0906-
282	BRACKET; MAG VLV FULLER FSO5206B OD M/T(Y4V) (C)	1-47471-374-1	01	1	0906-1004
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C)	1-47471-374-1	01	1	0906-1004
282	BRACKET; MAG VLV FULLER FSO5206B OD M/T(Y4V) (C)	8-98154-633-0	01	1	1005-1005
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C)	8-98154-633-0	01	1	1005-1005
282	BRACKET; MAG VLV FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (C)	8-98154-633-0	01	1	1006-1011
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C)	8-98154-633-0	01	1	1006-1011
282	BRACKET; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (C)	8-98154-633-0	01	1	1012-1111
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C)	8-98154-633-0	01	1	1012-1111
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) EXC. PTO CONTROL<SV6> (C)	8-98154-633-0	01	1	1112-
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A)	8-98101-296-0	01	1	0906-1011
282	BRACKET; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (A)	8-98101-296-0	01	1	1012-1111
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A)	8-98101-296-0	01	1	1012-1111
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6> (A)	8-98101-296-0	01	1	1112-
284	BOLT; MAG VLV (B) M8X70	0-10855-870-0	02	1	0906-
284	BOLT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	0906-1011
284	BOLT; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-1111
284	BOLT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-1111
284	BOLT; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1112-
285	NUT; MAG VLV (B) M8 FLANGE	0-91180-108-0	02	1	0906-
285	NUT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	0906-1011
285	NUT; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	1012-1111
285	NUT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	1012-1111
285	NUT; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	1112-
424	ADAPTER FULLER FSO5206B OD M/T(Y4V) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0906-1011
424	ADAPTER ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0906-1011
424	ADAPTER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1012-1111
424	ADAPTER ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1012-1111
424	ADAPTER ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-
450	VALVE; MAG (A)	8-97376-939-3	01	1	0906-0910
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-1111
450	VALVE; MAG ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A)	8-97633-075-0	01	1	1112-
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0906-1011
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0906-1011
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	1012-1111
450	VALVE; MAG MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1012-1111
450	VALVE; MAG ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B)	1-82563-871-2	01	1	1112-
450	VALVE; MAG ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1112-
450	VALVE; MAG ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) ASSISTOR SHIFT CONTROL<WX8> (B)	1-82563-871-2	01	1	1112-
602	GASKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0906-1011
602	GASKET; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1012-1111
602	GASKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1012-1111
602	GASKET; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1112-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
