◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11419 - FSS(AUST)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#62408) — 106 parça

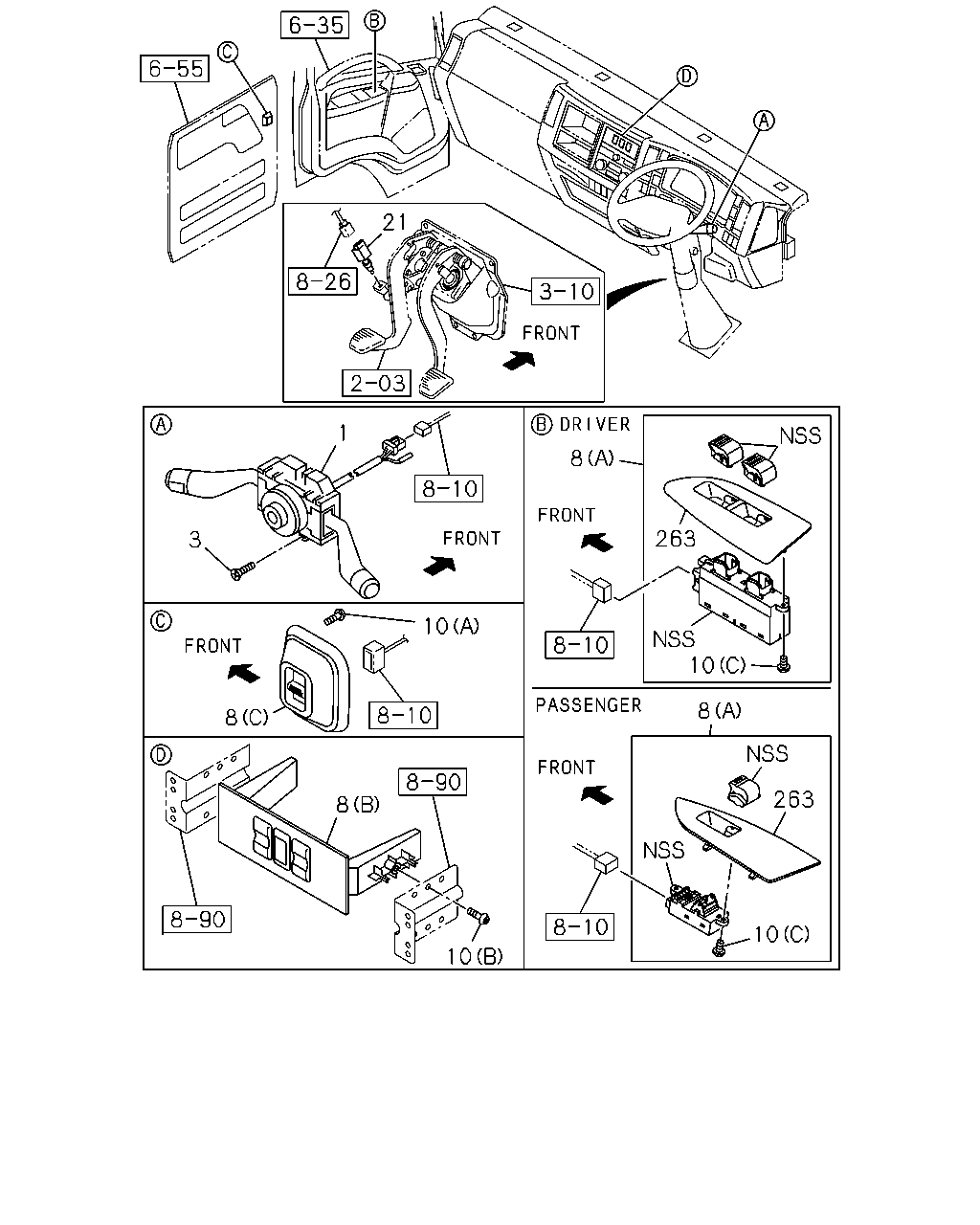

çizim 146334
21 1 8 263 3 10 10 8 8 263 8 10 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> AUTO CRUISE<K30> 		8-98146-619-0 01 1 0911-1210 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> AUTO CRUISE<K30> 		8-98217-821-0 01 1 1211-1310 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> AUTO CRUISE<K30> 		8-98243-692-0 01 1 1311- ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> 		8-98064-764-1 01 1 0712-0905 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> 		8-98146-618-0 01 1 0906-0910 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> EXC. AUTO CRUISE<K30> 		8-98146-618-0 01 1 0911-1210 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> EXC. AUTO CRUISE<K30> 		8-98217-820-0 01 1 1211-1310 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> EXC. AUTO CRUISE<K30> 		8-98243-691-0 01 1 1311- ● ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> 		8-98060-302-1 01 1 0712-0910 ● ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5>,AUTO CRUISE<K30> 		8-98060-302-1 01 1 0911-1310 ● ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5>,AUTO CRUISE<K30> 		8-98243-704-0 01 1 1311- ● ●
1 SWITCH; COMB
AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> 		8-98024-269-1 01 1 0911-1310 ● ●
1 SWITCH; COMB
AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> 		8-98243-705-0 01 1 1311- ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0712- ● ●
8 SWITCH; POWER WINDOW
(A) PASSENGER 		8-97387-034-2 01 1 0712- ● ●
8 SWITCH; POWER WINDOW
(A) DRIVER 		8-98003-785-1 01 1 0712-0809 ● ●
8 SWITCH; POWER WINDOW
(A) DRIVER 		8-98129-844-0 01 1 0810-1001 ● ●
8 SWITCH; POWER WINDOW
(A) DRIVER 		8-98159-543-0 01 1 1002- ● ●
8 SWITCH; POWER WINDOW
(B) REAR 		8-97386-987-1 01 1 0712- ●
8 SWITCH; POWER WINDOW
(C) REAR 		8-97387-035-0 02 1 0712- ●
10 SCREW; POWER WINDOW SW
(C) 		8-98153-865-0 03 1 0712- ● ●
10 SCREW; POWER WINDOW SW
(B) M5X10 TAPPING 		0-71240-510-0 02 1 0712-0904 ●
10 SCREW; POWER WINDOW SW
(B) M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0905- ●
10 SCREW; POWER WINDOW SW
(A) M4X14 TAPPING 		0-74360-414-0 04 1 0712- ●
21 SWITCH; CLU
PTO CONTROL<SV6> 		8-94337-761-0 01 1 0712- ● ●
21 SWITCH; CLU
EXC. PTO CONTROL<SV6> 		8-97358-248-0 01 1 0712- ● ●
263 COVER; SW
DRIVER 		8-98153-836-0 01 1 0712- ● ●
263 COVER; SW
PASSENGER 		8-98153-841-0 01 1 0712- ● ●
çizim 146339
164
BalonParca AdiParca NoAdetTipApplied Date A B
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712- ●
164 RELAY; A/C COMPRESSOR
(B) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0712-0712 ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0712- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0712- ●

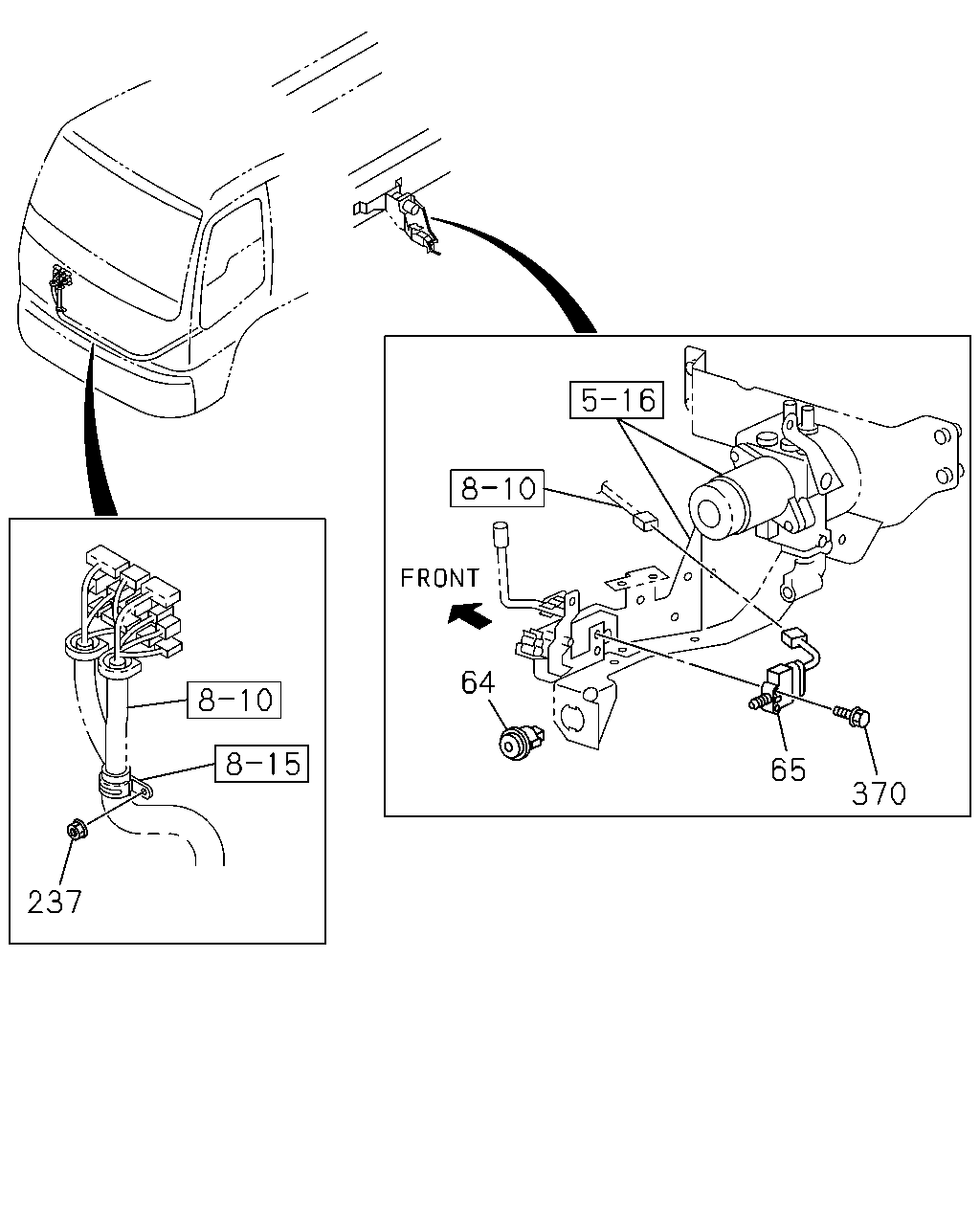

çizim 146340
64 65 370 237
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 0712- ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-172-1 01 1 0712- ●
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 0712- ●

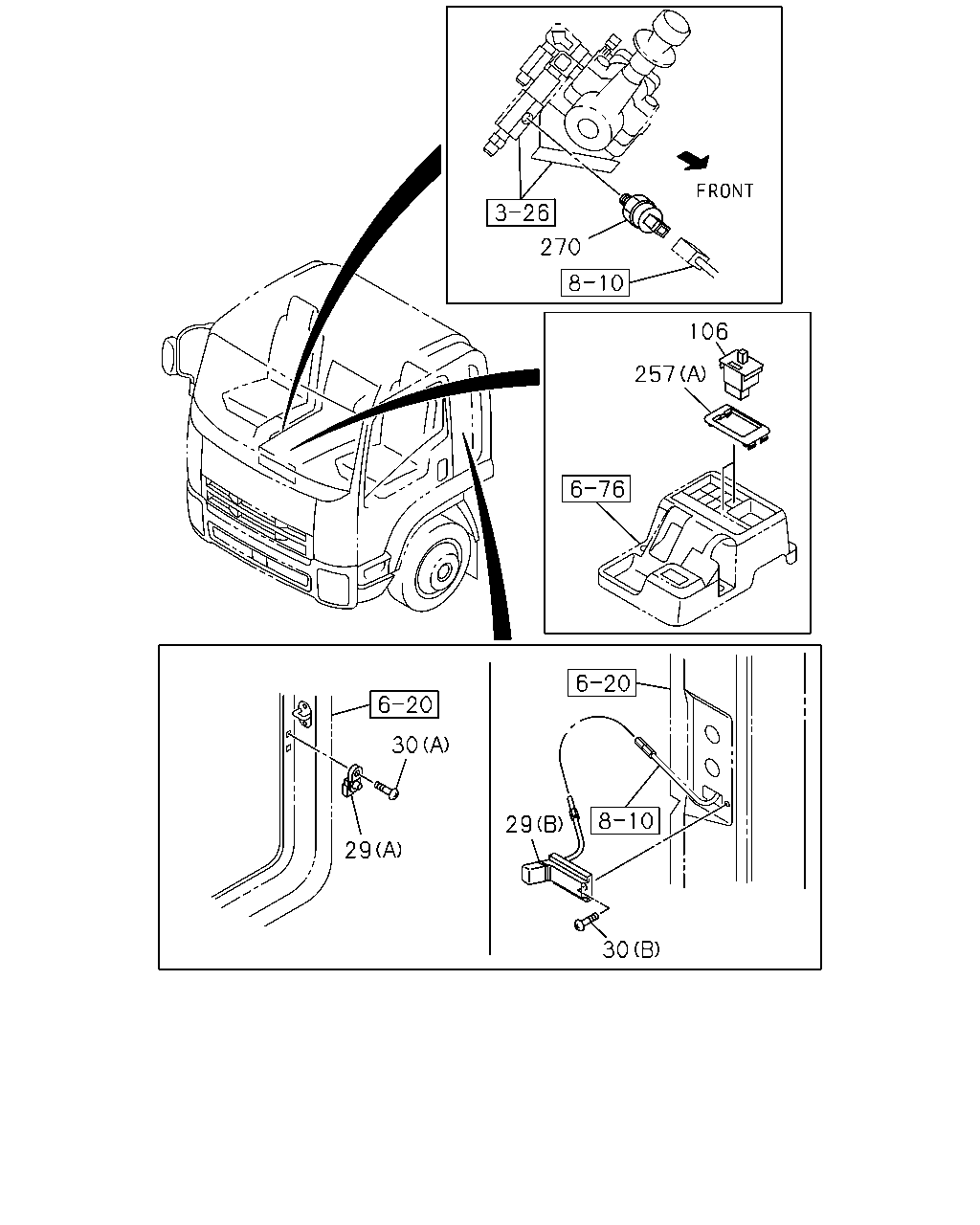

çizim 146343
270 106 257 30 29 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 02 1 0712- ●
29 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 02 1 0712- ●
29 SWITCH; DOOR
(B) REAR 		8-98054-195-0 02 1 0712- ●
30 SCREW; DOOR SW
(A) M5X18 		8-98047-201-0 02 1 0712- ●
30 SCREW; DOOR SW
(B) M5X11 		1-09981-536-1 04 1 0712- ●
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		1-82350-223-0 02 1 0712- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 0712-0812 ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 04 1 0901-0901 ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 05 1 0902- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 0712-0812 ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 0901-0901 ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0901-0901 ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0901-0901 ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0901-0901 ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 0902- ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0902- ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0902- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0712- ● ●
257 COVER; HOLE,SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-97619-254-1 02 1 0712- ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 0712-0812 ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0712-0812 ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0712-0812 ● ●
270 SWITCH; PRESS,WHEEL PARKING 8-98010-856-1 01 1 0712- ● ●

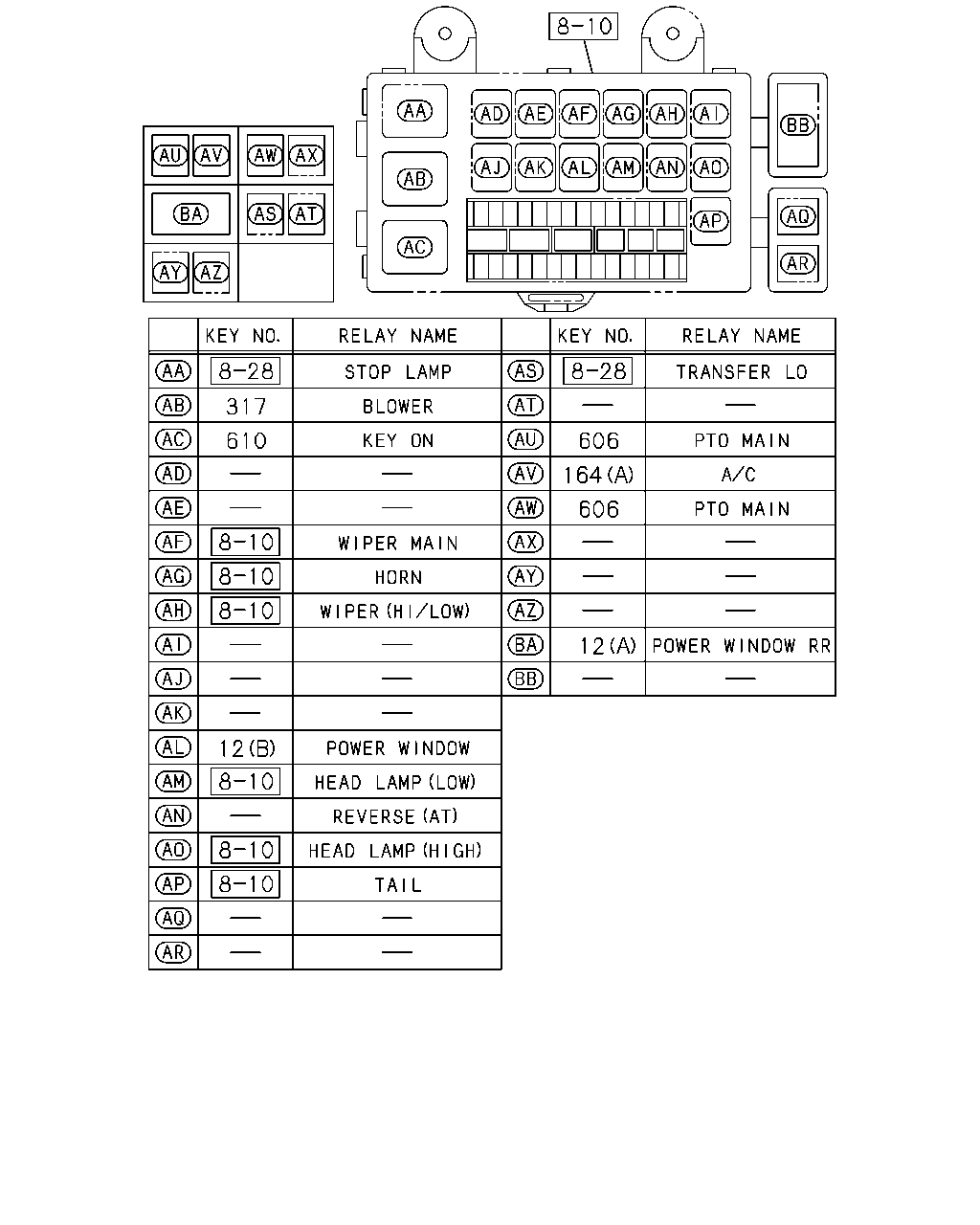

çizim 146346
317 610 606 164 606 12 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
(B) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712- ● ●
12 RELAY; POWER WINDOW
(A) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0712- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712- ●
164 RELAY; A/C COMPRESSOR
(B) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0712-0712 ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0712- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0712- ●
317 RELAY; BLOWER MOTOR,HTR
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0712-0806 ● ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0807- ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0807- ●
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712- ● ●
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712- ● ●
610 RELAY; KEY ON
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0712- ● ●

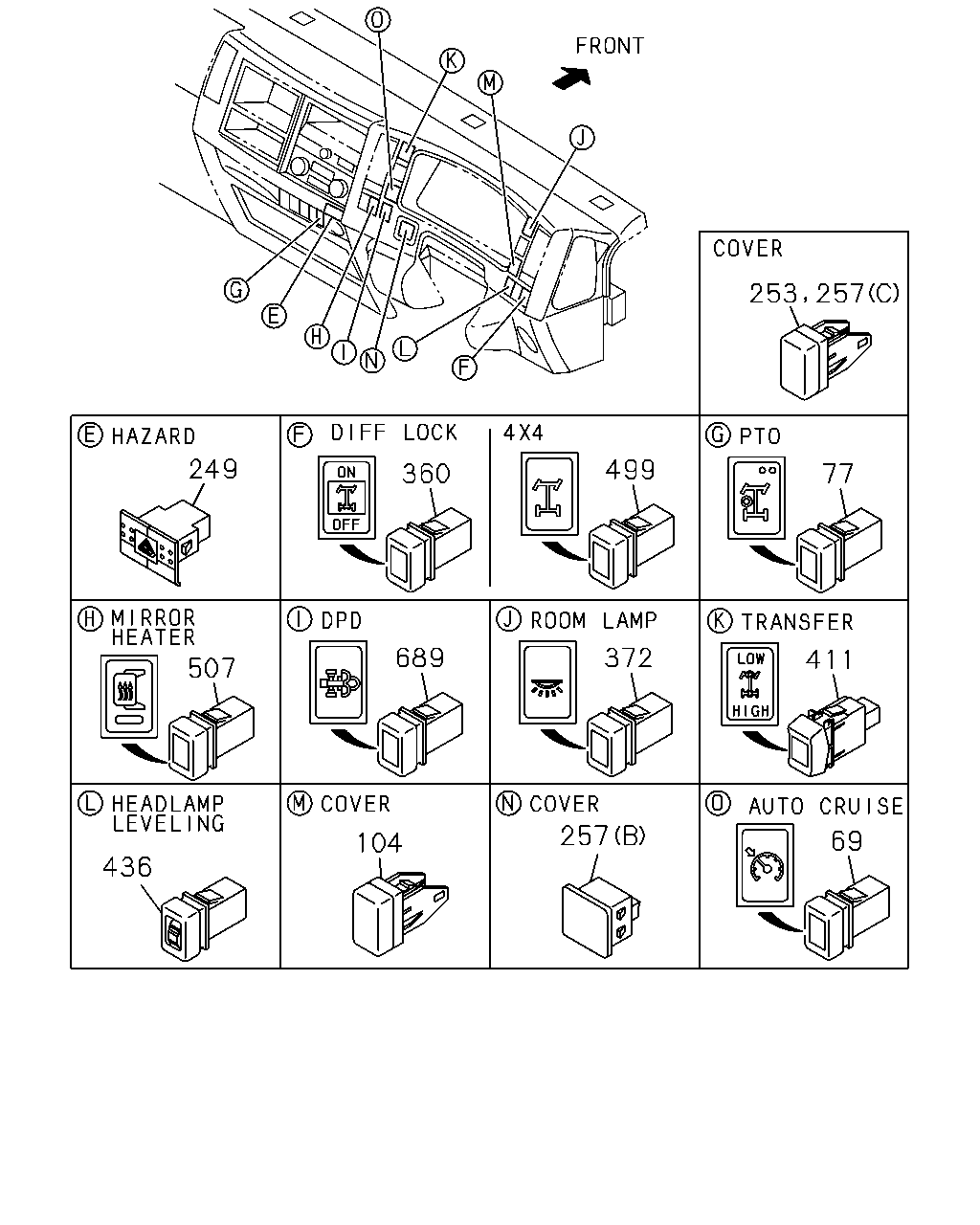

çizim 146358
249 499 360 77 507 689 372 411 257 69 104 436 253 257
BalonParca AdiParca NoAdetTipApplied Date A B
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-1 01 1 0911- ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97615-488-2 01 1 0712- ● ●
104 COVER; SW HOLE,FOG LAMP 8-98025-954-1 01 1 0712- ● ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 0712- ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 0712-0910 ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 0712-0910 ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 0712-0910 ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 0911- ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 0911- ● ●
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 0911- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 0712-0812 ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 04 1 0901-0901 ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 05 1 0902- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 0712-0812 ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 0901-0901 ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0901-0901 ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0901-0901 ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0901-0901 ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 0902- ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0902- ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0902- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0712- ● ●
257 COVER; HOLE,SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-97619-254-1 02 1 0712- ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 0712-0812 ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0712-0812 ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0712-0812 ● ●
360 SWITCH ASM; DIFF LK 8-97616-567-0 01 1 0712-0712 ● ●
372 SWITCH; ROOM LAMP 8-97386-917-2 01 1 0712- ● ●
411 SWITCH; TRANSFER 8-97613-967-1 01 1 0712- ● ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 0712- ● ●
499 SWITCH; 4X4 8-97386-914-3 01 1 0712- ● ●
507 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97386-924-3 01 1 0712- ● ●
689 SWITCH; DPD 8-97386-921-2 01 1 0712- ● ●
