◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11419 - FSS(AUST)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#62406) — 479 parça
çizim 146319
335 312 335 428 428 428 312
BalonParca AdiParca NoAdetTipApplied Date A B
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 0712- ● ●
312 BRACKET; CLIP HARNESS
(A) 		8-98094-804-0 01 1 0712- ● ●
335 BRACKET; CONNECTOR
(A) 		1-47477-193-0 01 1 0712-0804 ●
335 BRACKET; CONNECTOR
(B) 		1-82698-167-0 01 1 0712- ● ●
428 BRACKET
(B) 		1-47475-519-0 01 1 0712- ●
428 BRACKET
(B) L=90 W/NUT 		1-47475-520-0 01 1 0712-0712 ● ●
428 BRACKET
(B) L=90 W/NUT 		1-47475-520-0 01 1 0712-0803 ●
428 BRACKET
(C) 		8-98090-951-0 01 1 0712-0806 ● ●
428 BRACKET
(C) 		8-98116-461-0 01 1 0807- ● ●
428 BRACKET
(A) L=95 		1-82699-085-0 02 1 0712-0902 ●

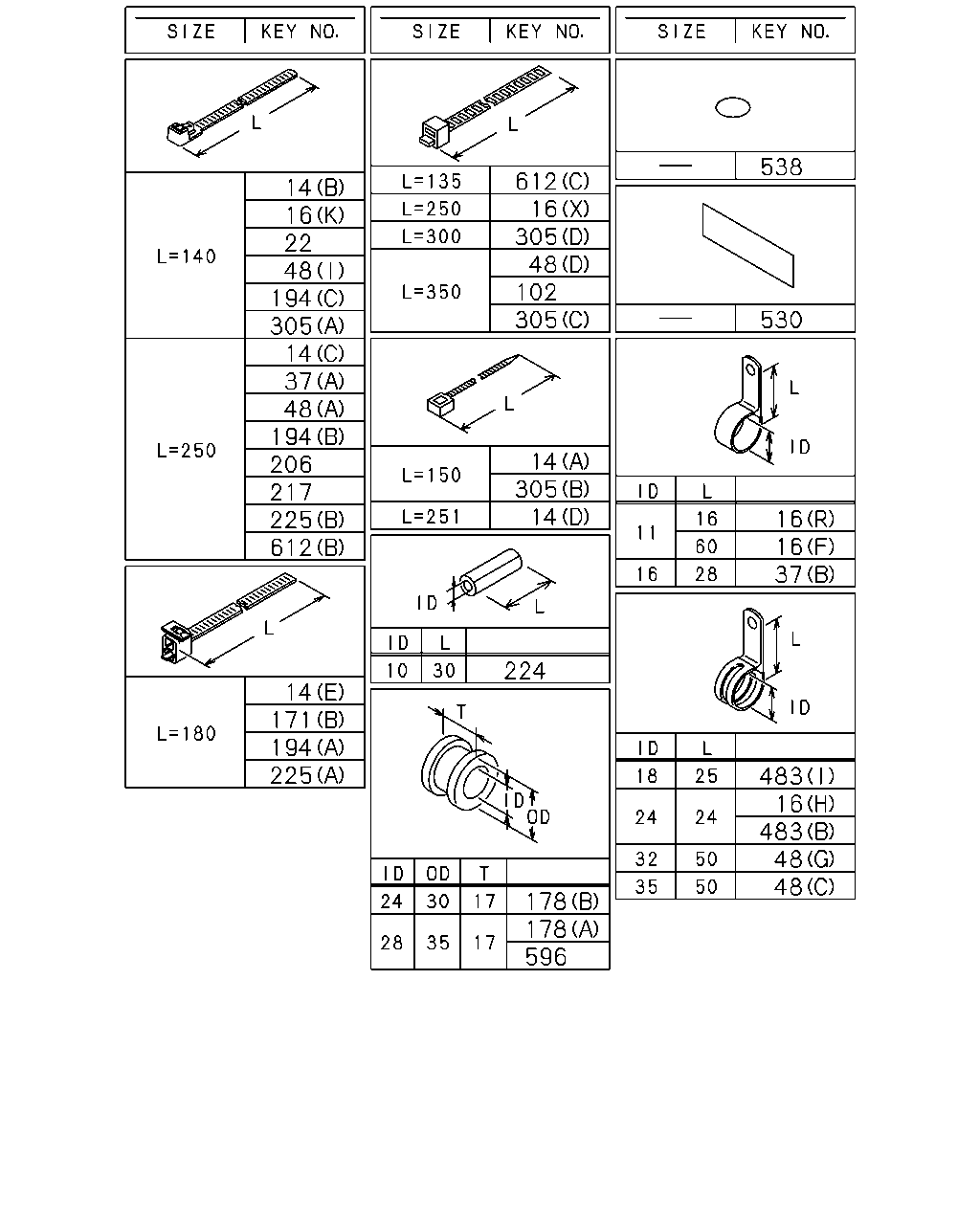

çizim 146327
538 612 16 305 48 102 305 14 16 22 48 194 305 14 37 48 194 206 217 225 612 530 14 305 14 16 16 37 224 14 171 194 225 483 16 483 48 48 178 178 596
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 02 1 0712- ● ●
14 CLIP; BAND,HARNESS
(A) L=150 		8-97355-273-0 01 1 0712- ● ●
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 0712- ● ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 0803-0808 ● ●
14 CLIP; BAND,HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=140 		5-09707-031-1 02 1 0809-1107 ●
14 CLIP; BAND,HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 02 1 0809-1107 ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1108- ● ●
14 CLIP; BAND,HARNESS
MLD6Q M/T(X5J) (E) L=180 		1-09707-162-1 01 1 0906- ● ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 04 1 0712-0803 ● ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 05 1 0804- ● ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 03 1 0712-0803 ● ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 04 1 0804- ● ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 06 1 0712-0905 ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 05 1 0906-1004 ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 06 1 1005- ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712-0804 ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712-0804 ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0805- ●
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 01 1 0712- ●
16 CLIP; HARNESS
(F) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ●
16 CLIP; HARNESS
(G) ID=35 L=33 		1-09700-945-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(G) ID=35 L=33 		1-09700-945-0 01 1 0804- ●
16 CLIP; HARNESS
(U) ID=19 L=39 H=21 		1-09700-972-1 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0712- ● ●
16 CLIP; HARNESS
(I) 		1-09701-203-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=41 		1-09700-403-0 01 1 0804- ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 02 1 0804-0902 ●
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 02 1 0712-0905 ● ●
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 01 1 0906- ● ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 03 1 0712-0911 ● ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 04 1 0912- ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 02 1 0712-0911 ● ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 01 1 0912- ●
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 02 1 0712- ● ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0712- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 02 1 0712-0712 ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0803- ●
16 CLIP; HARNESS
(P) L=36.5 		8-97019-892-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712- ● ●
16 CLIP; HARNESS
(W) ID=10 & 16 		8-94413-325-0 01 1 0801- ● ●
16 CLIP; HARNESS
(X) L=250 		1-09707-126-0 02 1 0807- ● ●
16 CLIP; HARNESS
GENERATOR 24V90A(K44) (K) L=140 		5-09707-031-1 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(O) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0803- ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 03 1 0912- ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 02 1 0912- ●
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 03 1 0712-0803 ● ●
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 02 1 0804- ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=16 L=28 		0-95235-556-0 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		1-09709-178-0 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(C) ID=13-18 L=18 		1-09709-291-0 02 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(A) L=250 		5-09707-030-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
(K) ID=11 H=45 L=25 		1-09700-866-0 01 1 1108- ●
48 CLIP; FRAME HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 03 1 0712-0804 ●
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 02 1 0805-0905 ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 12 1 0712-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 11 1 0903-1007 ●
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0804-0905 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0906- ●
48 CLIP; FRAME HARNESS
(I) L=140 		5-09707-031-1 02 1 0811-0905 ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 0712-0712 ● ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 01 1 0712-0803 ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 01 1 0804- ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 01 1 0804- ●
48 CLIP; FRAME HARNESS
(E) OD=9 H=9.5 		1-09709-179-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0712-0712 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0712-0803 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0712-0803 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0804-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 0804-1107 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1108- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=20 L=50 		9-09917-430-0 15 1 0712-0803 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=20 L=50 		9-09917-430-0 14 1 0804-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (J) ID=14 L=44 		9-09917-427-0 12 1 1008- ●
102 CLIP; BAND
L=350 		1-09707-183-0 01 1 0712-0911 ● ●
171 CLIP; STARTER HARNESS
(E) 		8-97101-436-0 01 1 0712- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (B) L=180 		1-09707-162-1 01 1 0806-0905 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (C) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (D) L=36 		8-94224-891-1 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (A) OD=8 H=3.8 		1-09709-309-0 01 1 0804-0906 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) OD=8 H=3.8 		1-09709-309-0 01 1 0907- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0712- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0712- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 03 1 0712-0905 ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0906- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712-0905 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0906-1004 ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0906-1004 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1005- ● ●
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 0712- ● ●
194 CLIP; BAND
(B) L=250 		5-09707-030-1 01 1 0712- ● ●
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0712- ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 01 1 0712- ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0712- ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0712- ● ●
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0712-0803 ● ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 0712-0807 ● ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 04 1 0808- ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 0712-0807 ● ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 02 1 0808- ●
305 CLIP; ENG HARNESS
(C) L=350 		8-94152-256-1 01 1 0712-0905 ● ●
305 CLIP; ENG HARNESS
(D) L=300 		1-09707-001-1 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(B) L=150 		8-97355-273-0 01 1 0712-0905 ● ●
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 0804-0905 ● ●
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 02 1 0906- ● ●
483 CLIP; ENG HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(J) 		1-09701-124-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(K) 		1-09987-281-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(I) ID=18 L=25 		8-94121-004-1 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(F) ID=14.5 & 6 		8-94312-791-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(M) ID=21 L=24 		1-09701-201-0 01 1 1005- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 02 1 0712- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-94225-185-0 02 1 0712-0801 ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-97367-985-1 02 1 0802- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (H) 		8-97101-436-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0712- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 1306- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0712-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0712-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306- ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0712- ● ●
596 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ● ●
612 CLIP; HARNESS DPD
(C) L=135 		1-09987-143-1 01 1 0712- ● ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0804- ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0804-0808 ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0809- ● ●
çizim 146333
171 483 483 483 223 16 223 16 171 16 37 171 223 470 48 16 483 16 16 612 48 213 48 37 48 223 16 483 16 49 16 48 16 483 48 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 06 1 0712-0905 ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 05 1 0906-1004 ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 06 1 1005- ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712-0804 ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712-0804 ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0805- ●
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 01 1 0712- ●
16 CLIP; HARNESS
(F) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ●
16 CLIP; HARNESS
(G) ID=35 L=33 		1-09700-945-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(G) ID=35 L=33 		1-09700-945-0 01 1 0804- ●
16 CLIP; HARNESS
(U) ID=19 L=39 H=21 		1-09700-972-1 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0712- ● ●
16 CLIP; HARNESS
(I) 		1-09701-203-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=41 		1-09700-403-0 01 1 0804- ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 02 1 0804-0902 ●
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 02 1 0712-0905 ● ●
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 01 1 0906- ● ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 03 1 0712-0911 ● ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 04 1 0912- ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 02 1 0712-0911 ● ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 01 1 0912- ●
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 02 1 0712- ● ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0712- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 02 1 0712-0712 ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0803- ●
16 CLIP; HARNESS
(P) L=36.5 		8-97019-892-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712- ● ●
16 CLIP; HARNESS
(W) ID=10 & 16 		8-94413-325-0 01 1 0801- ● ●
16 CLIP; HARNESS
(X) L=250 		1-09707-126-0 02 1 0807- ● ●
16 CLIP; HARNESS
GENERATOR 24V90A(K44) (K) L=140 		5-09707-031-1 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(O) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0803- ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 03 1 0912- ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 02 1 0912- ●
37 CLIP; HARNESS,POWER TILT
(B) ID=16 L=28 		0-95235-556-0 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		1-09709-178-0 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(C) ID=13-18 L=18 		1-09709-291-0 02 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(A) L=250 		5-09707-030-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
(K) ID=11 H=45 L=25 		1-09700-866-0 01 1 1108- ●
48 CLIP; FRAME HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(G) ID=32 L=50 		1-09701-055-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 03 1 0712-0804 ●
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 02 1 0805-0905 ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 12 1 0712-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 11 1 0903-1007 ●
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0804-0905 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0906- ●
48 CLIP; FRAME HARNESS
(I) L=140 		5-09707-031-1 02 1 0811-0905 ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 0712-0712 ● ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 01 1 0712-0803 ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 01 1 0804- ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 01 1 0804- ●
48 CLIP; FRAME HARNESS
(E) OD=9 H=9.5 		1-09709-179-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0712-0712 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0712-0803 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0712-0803 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0804-0902 ●
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 0804-1107 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1108- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=20 L=50 		9-09917-430-0 15 1 0712-0803 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=20 L=50 		9-09917-430-0 14 1 0804-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (J) ID=14 L=44 		9-09917-427-0 12 1 1008- ●
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 		1-09700-972-1 01 1 0808- ● ●
171 CLIP; STARTER HARNESS
(E) 		8-97101-436-0 01 1 0712- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (B) L=180 		1-09707-162-1 01 1 0806-0905 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (C) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (D) L=36 		8-94224-891-1 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (A) OD=8 H=3.8 		1-09709-309-0 01 1 0804-0906 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) OD=8 H=3.8 		1-09709-309-0 01 1 0907- ● ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 0712- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0712-0807 ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0808- ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0712-0807 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0808-0902 ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0903- ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0903- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=10 & 10 		1-09709-277-1 04 1 0712-0807 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=10 & 10 		1-09709-277-1 02 1 0808- ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0712-0902 ●
223 CLIP; AIR TANK HARNESS
(D) ID=6.35 & 10.0 		1-09709-274-1 01 1 0808- ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0712-1205 ● ●
483 CLIP; ENG HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(J) 		1-09701-124-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(K) 		1-09987-281-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(I) ID=18 L=25 		8-94121-004-1 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(F) ID=14.5 & 6 		8-94312-791-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(M) ID=21 L=24 		1-09701-201-0 01 1 1005- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 02 1 0712- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-94225-185-0 02 1 0712-0801 ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-97367-985-1 02 1 0802- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (H) 		8-97101-436-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0712- ● ●
612 CLIP; HARNESS DPD
(C) L=135 		1-09987-143-1 01 1 0712- ● ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0804- ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0804-0808 ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0809- ● ●
çizim 146337
16 483 16 16 16 16 171 483 303 483 16 483 116 16 16 483
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 06 1 0712-0905 ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 05 1 0906-1004 ●
16 CLIP; HARNESS
(R) ID=11 L=16 		0-95235-025-0 06 1 1005- ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712-0804 ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712-0804 ●
16 CLIP; HARNESS
(T) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0805- ●
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 01 1 0712- ●
16 CLIP; HARNESS
(F) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ●
16 CLIP; HARNESS
(G) ID=35 L=33 		1-09700-945-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(G) ID=35 L=33 		1-09700-945-0 01 1 0804- ●
16 CLIP; HARNESS
(U) ID=19 L=39 H=21 		1-09700-972-1 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0712- ● ●
16 CLIP; HARNESS
(I) 		1-09701-203-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=41 		1-09700-403-0 01 1 0804- ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 02 1 0804-0902 ●
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 02 1 0712-0905 ● ●
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 01 1 0906- ● ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 03 1 0712-0911 ● ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 04 1 0912- ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 02 1 0712-0911 ● ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 01 1 0912- ●
16 CLIP; HARNESS
(S) ID=5-12 L=18 		1-09709-287-0 02 1 0712- ● ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0712- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 02 1 0712-0712 ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0803- ●
16 CLIP; HARNESS
(P) L=36.5 		8-97019-892-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712- ● ●
16 CLIP; HARNESS
(W) ID=10 & 16 		8-94413-325-0 01 1 0801- ● ●
16 CLIP; HARNESS
(X) L=250 		1-09707-126-0 02 1 0807- ● ●
16 CLIP; HARNESS
GENERATOR 24V90A(K44) (K) L=140 		5-09707-031-1 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(O) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(A) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0803- ●
16 CLIP; HARNESS
(D) ID=10 & 10 		1-09709-277-1 03 1 0912- ●
16 CLIP; HARNESS
(V) ID=10 & 12 		1-09709-278-1 02 1 0912- ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 02 1 1202- ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 04 1 0712- ● ●
171 CLIP; STARTER HARNESS
(E) 		8-97101-436-0 01 1 0712- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (B) L=180 		1-09707-162-1 01 1 0806-0905 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (C) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (D) L=36 		8-94224-891-1 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (A) OD=8 H=3.8 		1-09709-309-0 01 1 0804-0906 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) OD=8 H=3.8 		1-09709-309-0 01 1 0907- ● ●
303 CLIP; HARNESS POWER TILT RELAY 8-97375-754-0 01 1 0712- ●
483 CLIP; ENG HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(J) 		1-09701-124-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(K) 		1-09987-281-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(I) ID=18 L=25 		8-94121-004-1 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(F) ID=14.5 & 6 		8-94312-791-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(M) ID=21 L=24 		1-09701-201-0 01 1 1005- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 02 1 0712- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-94225-185-0 02 1 0712-0801 ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-97367-985-1 02 1 0802- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (H) 		8-97101-436-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0712- ● ●

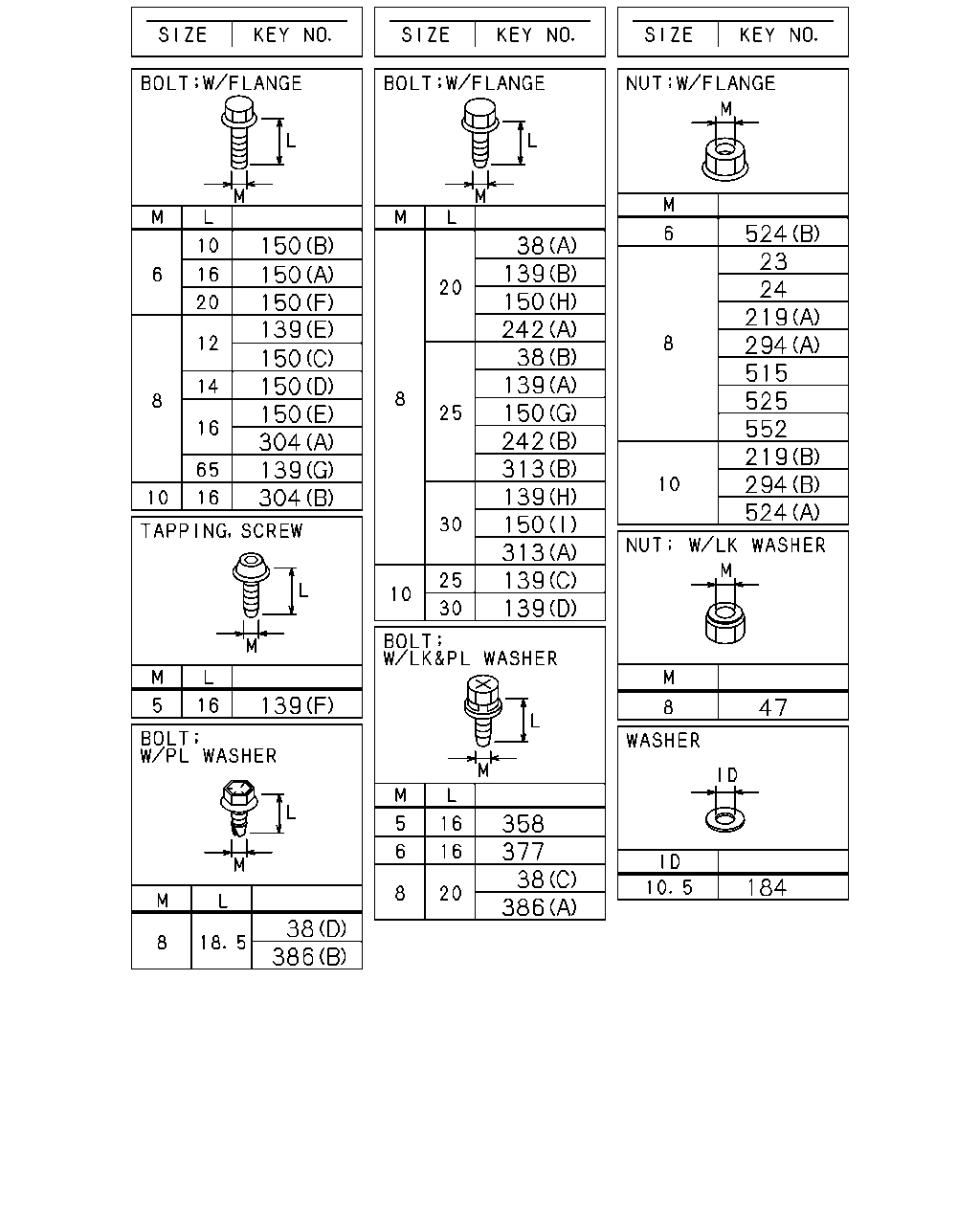

çizim 146338
150 304 139 304 150 150 150 139 150 150 139 38 386 358 377 38 386 184 47 524 294 219 552 525 515 294 219 24 23 524 139 313 139 150 139 313 242 150 139 38 242 150 139 38
BalonParca AdiParca NoAdetTipApplied Date A B
23 NUT; FLOOR STAY
M8 FLANGE 		0-91180-108-0 01 1 0712- ●
24 NUT; HARNESS
M8 FLANGE 		0-91180-108-0 02 1 0712-0807 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 08 1 0712-0804 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 07 1 0805-0905 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 05 1 0906-1004 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 06 1 1005- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0808- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0803 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0804-0902 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0807 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0808-0905 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0906-1107 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1108- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1108- ●
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0712-1201 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0803 ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ●
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) M8X65 FLANGE 		1-09044-072-1 01 1 0809- ●
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G) M8X65 FLANGE 		1-09044-072-1 01 1 0809- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING 		0-72180-516-0 01 1 0801-0803 ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING 		0-72180-516-0 01 1 0801-0803 ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (F) M5X16 TAPPING 		0-72180-516-0 01 1 0804- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (F) M5X16 TAPPING 		0-72180-516-0 01 1 0804- ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0712- ● ●
139 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0902 ● ●
139 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0903- ● ●
139 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0903- ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0804 ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0804 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0805-0807 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0808-0902 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0903- ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ● ●
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 01 1 0712- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0805-0807 ● ●
139 BOLT; BRKT
(H) M8X30 FLANGE 		0-28650-830-0 02 1 0808- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0804 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0805-0807 ● ●
139 BOLT; BRKT
(H) M8X30 FLANGE 		0-28650-830-0 01 1 0808-1107 ● ●
139 BOLT; BRKT
(H) M8X30 FLANGE 		0-28650-830-0 01 1 1108- ● ●
139 BOLT; BRKT
(H) M8X30 FLANGE 		0-28650-830-0 01 1 1108- ●
150 BOLT; CLIP
(I) M8X30 FLANGE 		0-28650-830-0 01 1 0810-0902 ●
150 BOLT; CLIP
(B) M6X10 FLANGE 		0-28050-610-0 01 1 0712-0803 ● ●
150 BOLT; CLIP
(F) M6X20 FLANGE 		0-28050-620-0 01 1 0712-1004 ● ●
150 BOLT; CLIP
(F) M6X20 FLANGE 		0-28050-620-0 02 1 1005- ● ●
150 BOLT; CLIP
(E) M8X16 FLANGE 		0-28050-816-0 01 1 0712- ● ●
150 BOLT; CLIP
(D) M8X14 FLANGE 		0-28080-814-0 01 1 0712-0803 ● ●
150 BOLT; CLIP
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0712- ● ●
150 BOLT; CLIP
(H) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0809 ● ●
150 BOLT; CLIP
(H) M8X20 FLANGE 		0-28650-820-0 01 1 0810-0902 ●
150 BOLT; CLIP
(H) M8X20 FLANGE 		0-28650-820-0 01 1 0903- ● ●
150 BOLT; CLIP
(G) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0803 ● ●
150 BOLT; CLIP
POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X12 FLANGE 		0-28050-812-0 01 1 0712- ● ●
150 BOLT; CLIP
(C) M8X12 FLANGE 		0-28050-812-0 01 1 0712- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0712- ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 0712-0905 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0906-0906 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0907-1004 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 1005- ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0906-0906 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0907-1107 ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1108- ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1108- ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0804-0902 ●
219 NUT
MLD6Q M/T(X5J) (B) M10 FLANGE 		0-91180-210-0 01 1 0806- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1108- ●
242 BOLT; BRKT,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0804 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0804 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0805-0902 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0805-0902 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0903- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0903- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0903- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0902 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0903- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 0712-0902 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0903- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0903- ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0712-0803 ● ●
304 BOLT; ENG HARNESS CLIP
(B) M10X16 FLANGE 		0-28151-016-0 01 1 0712-0803 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0807 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0712 ● ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0902 ● ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0903- ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0712 ●
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0903- ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0712- ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0712- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0712-1202 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1108- ●
524 NUT; HARNESS
(B) M6 FLANGE 		0-91180-106-0 04 1 0712- ● ●
524 NUT; HARNESS
(A) M10 FLANGE 		0-91180-110-0 01 1 0809- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0803 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0803 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0803 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0804- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0808- ● ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0712-1107 ● ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 1108- ● ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 1108- ●
çizim 146341
53 7 53 53 59 53 53 59 59 137 59 137 137 137 246
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0712- ● ●
53 BRACKET; HARNESS
(D) 		1-47479-630-1 01 1 1108- ●
53 BRACKET; HARNESS
(E) 		1-82698-569-0 01 1 1108- ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98084-590-0 01 1 0801-0803 ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98084-590-0 01 1 0801-0803 ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98084-590-0 01 1 0804- ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98084-590-0 01 1 0804- ●
53 BRACKET; HARNESS
(A) 		8-98049-871-0 01 1 0712- ● ●
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 0712- ● ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW) (A) 		8-97609-264-2 01 1 0811-0906 ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-97609-264-2 01 1 0907- ●
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 0712-0802 ● ●
59 BRACKET; FRAME HARNESS
(A) 		8-98099-963-0 01 1 0803-0810 ● ●
59 BRACKET; FRAME HARNESS
MLD6Q M/T(X5J) (A) 		8-98099-963-0 01 1 0811- ●
59 BRACKET; FRAME HARNESS
(A) 		8-98099-963-0 01 1 0811- ●
59 BRACKET; FRAME HARNESS
(B) 		8-97619-533-0 01 1 0712-0712 ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-98047-276-1 01 1 0712- ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97622-828-0 01 1 0712- ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0712- ● ●
137 BRACKET; HARNESS CLAMP
(D) 		1-21464-170-2 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97616-565-1 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
(C) 		8-98085-819-0 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
(A) 		8-98097-516-0 01 1 0712-0804 ●
246 BRACKET; CLIP,SPD SENSOR 1-21464-170-2 01 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
