◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11419 - FSS(AUST)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#62405) — 507 parça

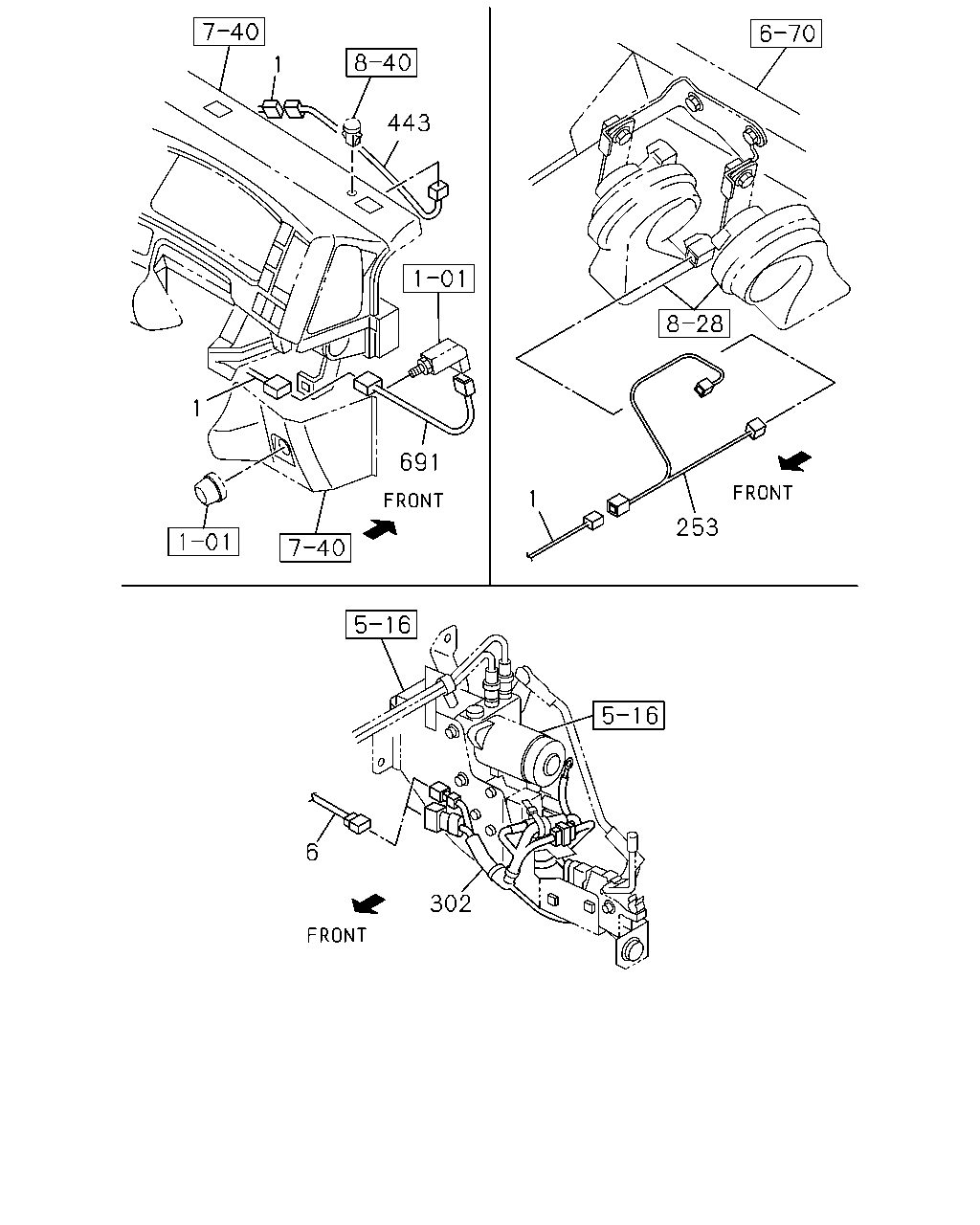

çizim 146308
1 443 1 691 1 253 6 302
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98187-921-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98187-921-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-920-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-920-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98187-924-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98187-924-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-923-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-923-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98187-922-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98187-922-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> IN HOUSE PRODUCTION<TKF> 		8-98187-925-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98187-925-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98099-260-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-260-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98099-259-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98099-259-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98099-257-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-257-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98099-256-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98099-256-1 01 1 1201-1203 ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68) 		8-98099-253-1 01 1 0712- ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> 		8-98099-254-1 01 1 0712- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98099-261-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-261-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98099-258-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-258-1 01 1 1201-1203 ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> 		8-98099-255-1 01 1 0712- ●
6 HARNESS; FRAME 8-98074-483-0 01 1 0712-0804 ●
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98074-483-0 01 1 0805-0808 ●
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98122-343-1 01 1 0809-0906 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98122-343-1 01 1 0907-0910 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. AUTO CRUISE<K30> 		8-98122-343-1 01 1 0911-0911 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98120-017-0 01 1 0806-0808 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98123-077-1 01 1 0809-0910 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) EXC. AUTO CRUISE<K30> 		8-98123-077-1 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) AUTO CRUISE<K30> 		8-98153-713-0 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98153-713-1 01 1 1011-1107 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98185-103-1 01 1 1108- ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) AUTO CRUISE<K30> 		8-98153-712-0 01 1 0911-0911 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98153-712-1 01 1 0911-1107 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98185-102-1 01 1 1108- ●
6 HARNESS; FRAME 8-98074-484-1 01 1 0712-0804 ●
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98074-484-3 01 1 0805-0906 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98074-484-3 01 1 0907-0910 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. AUTO CRUISE<K30> 		8-98074-484-3 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98120-018-2 01 1 0806-0910 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) EXC. AUTO CRUISE<K30> 		8-98120-018-2 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) AUTO CRUISE<K30> 		8-98153-711-0 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98153-711-3 01 1 1011- ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) AUTO CRUISE<K30> 		8-98153-710-0 01 1 0911-1010 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98153-710-3 01 1 1011- ●
253 HARNESS; EXT,HORN 8-98074-081-2 01 1 0801- ● ●
302 HARNESS; POWER CAB TILT 8-97622-116-0 01 1 0712- ●
443 HARNESS; EXT,A/C
FULLAUTO AIR CONDITIONER(C68) 		8-98096-565-0 01 1 0712- ●
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 0712- ● ●

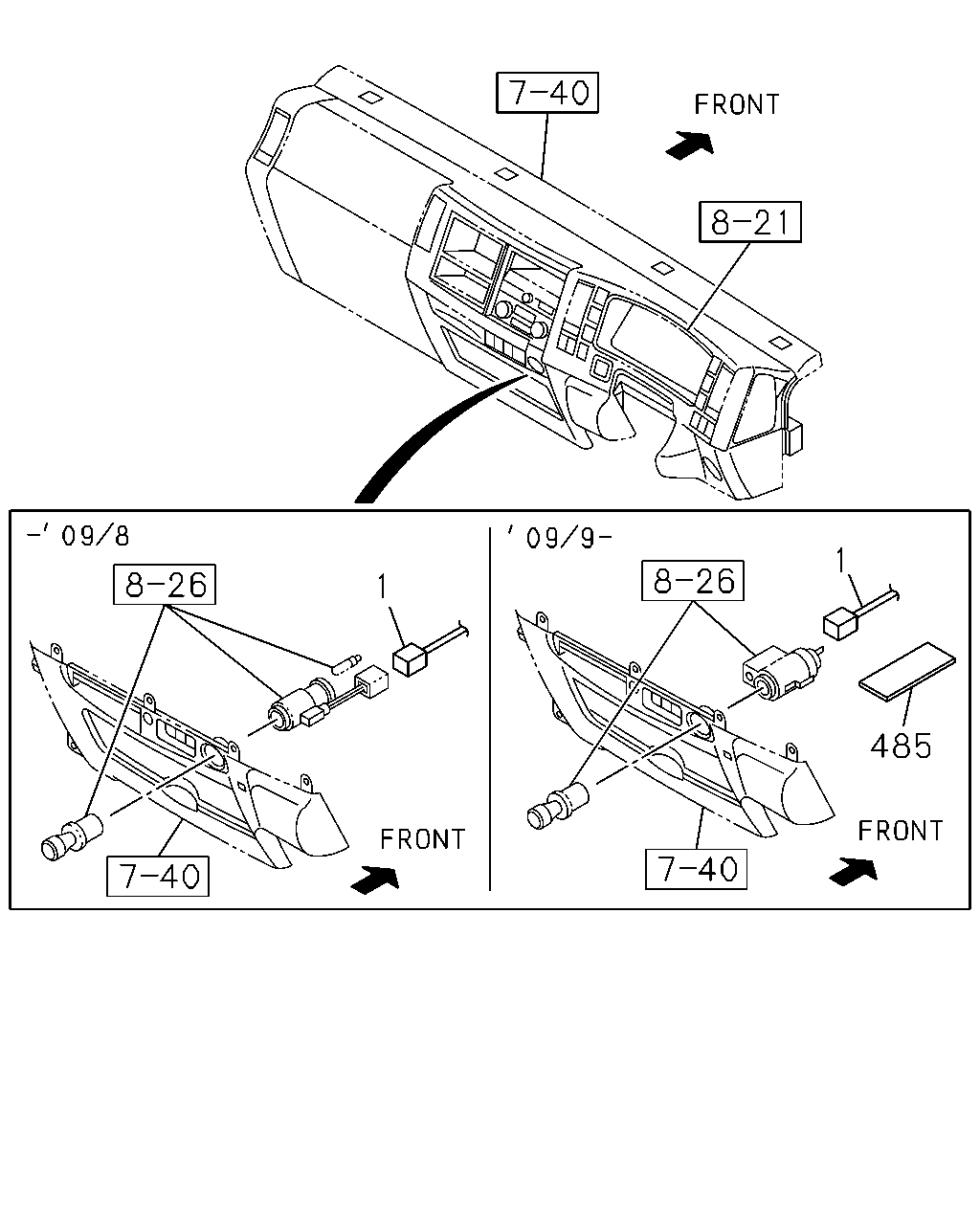

çizim 146314
1 1 485
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98187-921-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98187-921-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-920-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-920-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98187-924-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98187-924-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-923-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-923-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98187-922-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98187-922-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> IN HOUSE PRODUCTION<TKF> 		8-98187-925-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98187-925-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98099-260-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-260-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98099-259-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98099-259-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98099-257-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-257-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98099-256-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98099-256-1 01 1 1201-1203 ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68) 		8-98099-253-1 01 1 0712- ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> 		8-98099-254-1 01 1 0712- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98099-261-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-261-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98099-258-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-258-1 01 1 1201-1203 ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> 		8-98099-255-1 01 1 0712- ●
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 0909- ● ●

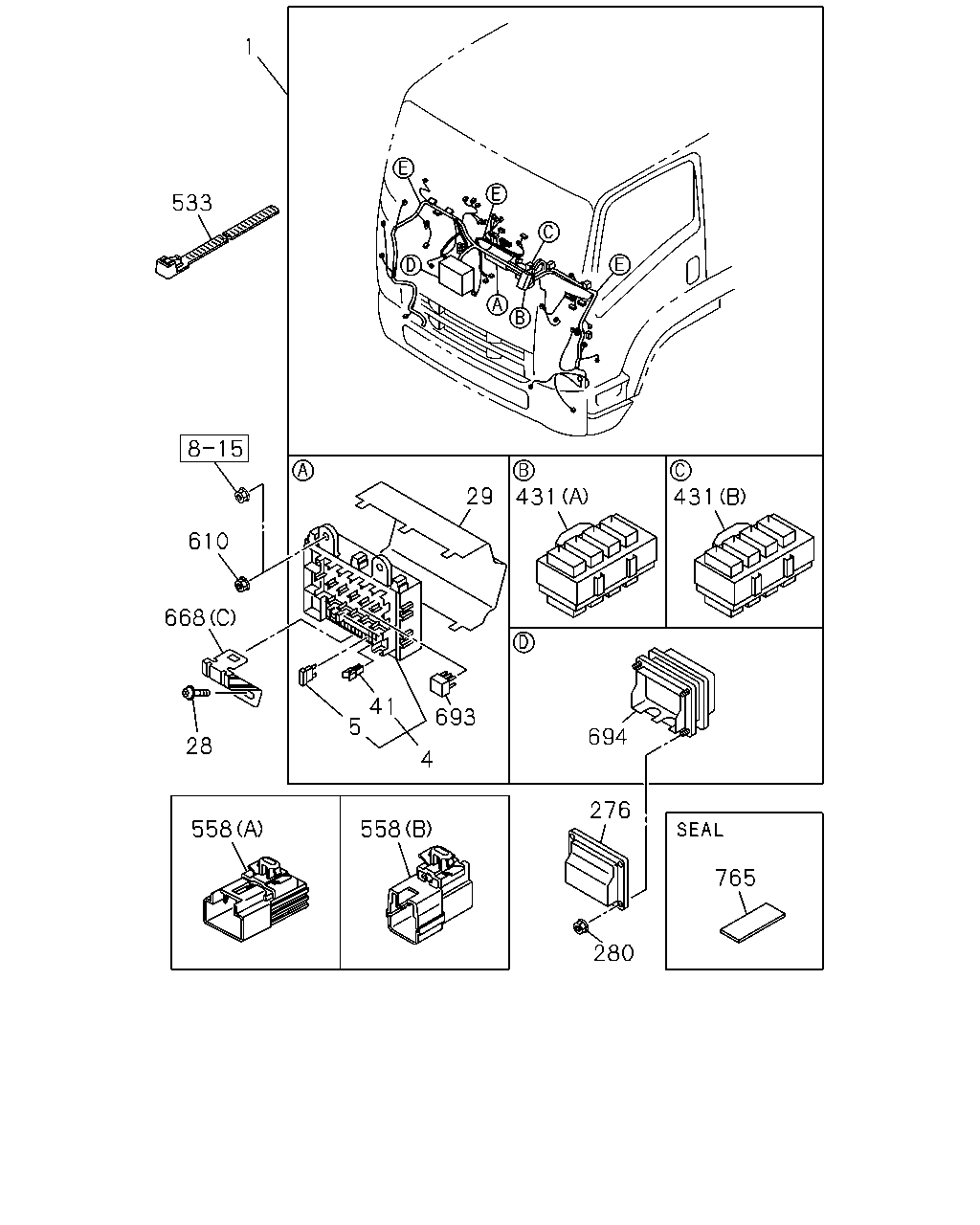

çizim 146317
1 533 610 668 28 41 5 4 693 29 431 431 694 276 765 280 558 558
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98187-921-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98187-921-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-920-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-920-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98187-924-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98187-924-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-923-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-923-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98187-922-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98187-922-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> IN HOUSE PRODUCTION<TKF> 		8-98187-925-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98187-925-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98099-260-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-260-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98099-259-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98099-259-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98099-257-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-257-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98099-256-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98099-256-1 01 1 1201-1203 ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68) 		8-98099-253-1 01 1 0712- ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> 		8-98099-254-1 01 1 0712- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98099-261-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-261-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98099-258-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-258-1 01 1 1201-1203 ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> 		8-98099-255-1 01 1 0712- ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 0712- ● ●
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0712- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0712- ● ●
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0712- ● ●
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 01 1 0712- ● ●
28 SCREW; FUSE BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X16 FLANGE 		0-28650-616-0 01 1 0909- ●
28 SCREW; FUSE BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE 		0-28650-616-0 01 1 0909- ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		8-94496-177-1 01 1 0712-0712 ● ●
28 SCREW; FUSE BOX
M5X12 TAPPING W/TORQUES 		8-98081-722-0 01 1 0801-0908 ● ●
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X12 TAPPING W/TORQUES 		8-98081-722-0 01 1 0909- ●
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X12 TAPPING W/TORQUES 		8-98081-722-0 01 1 0909- ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 0712- ● ●
41 PULLER; FUSE 8-98054-260-0 01 1 0712- ● ●
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 0712- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 0712- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0712- ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0712- ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0712- ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0712- ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0712- ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 03 1 0712- ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 03 1 0712- ●
533 CLIP
L=180 		1-09707-162-1 01 1 1206- ● ●
533 CLIP
L=250 		5-09707-030-1 01 1 1206- ● ●
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		1-82690-668-0 01 1 0809- ●
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 0809- ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 0802-0803 ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 0802-0803 ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98108-678-0 01 1 0804- ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98108-678-0 01 1 0804- ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 0802-0803 ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 0802-0803 ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98108-679-0 01 1 0804- ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98108-679-0 01 1 0804- ●
610 NUT; BRKT,FUSE BOX
M6 FLANGE 		0-91180-106-0 04 1 0801-0807 ● ●

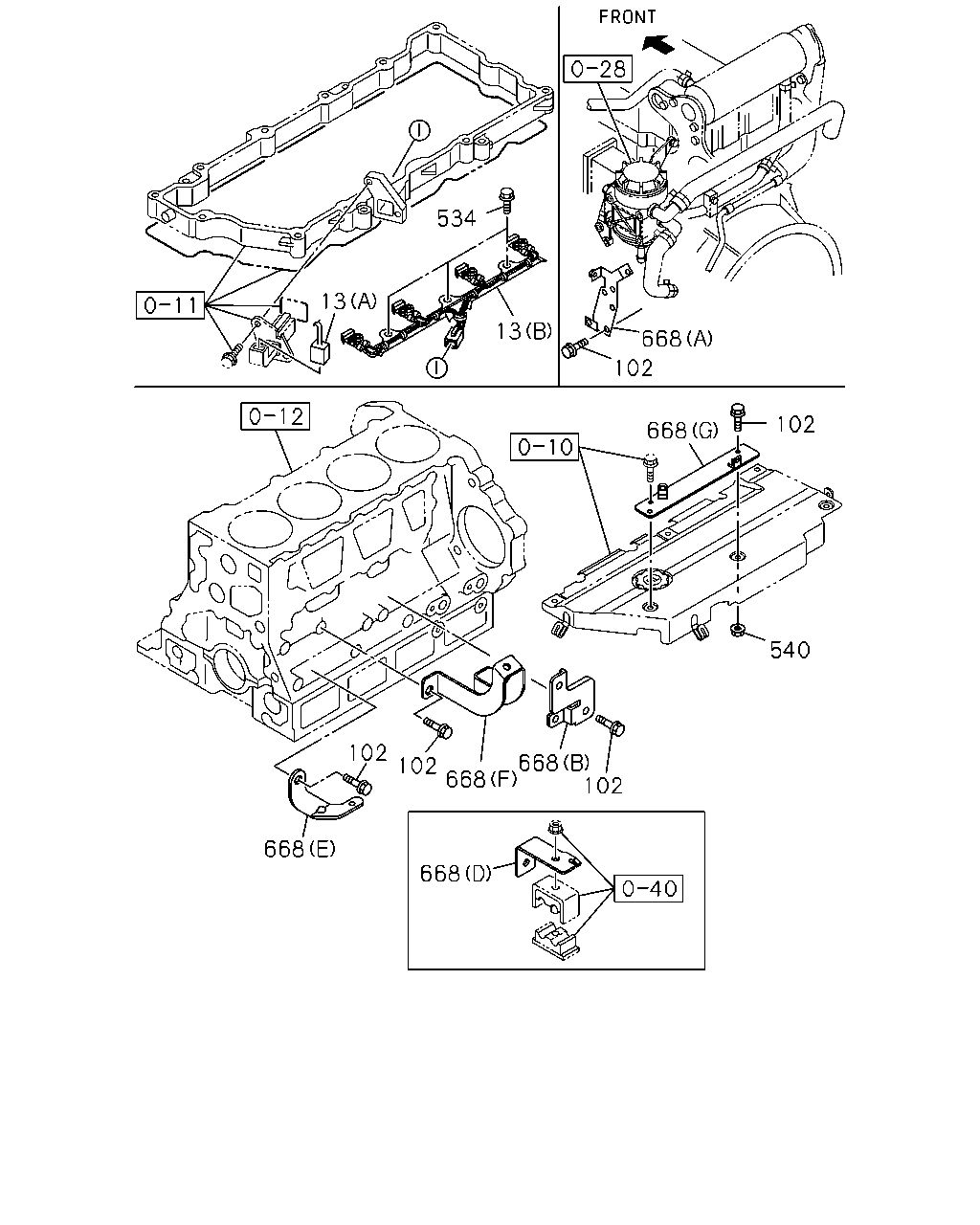

668 BRACKET; HARNESS
(B) 		8-97379-783-1 01 1 0712-0803 ● ●
668 BRACKET; HARNESS
(D) 		8-98001-095-0 01 1 0712- ● ●
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 0712-1408 ● ●
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409- ● ●
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 0712- ● ●
668 BRACKET; HARNESS
(G) 		8-98022-106-2 01 1 0712-1004 ● ●
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 0712- ● ●
668 BRACKET; HARNESS
(C) 		8-98095-653-2 01 1 0712- ● ●

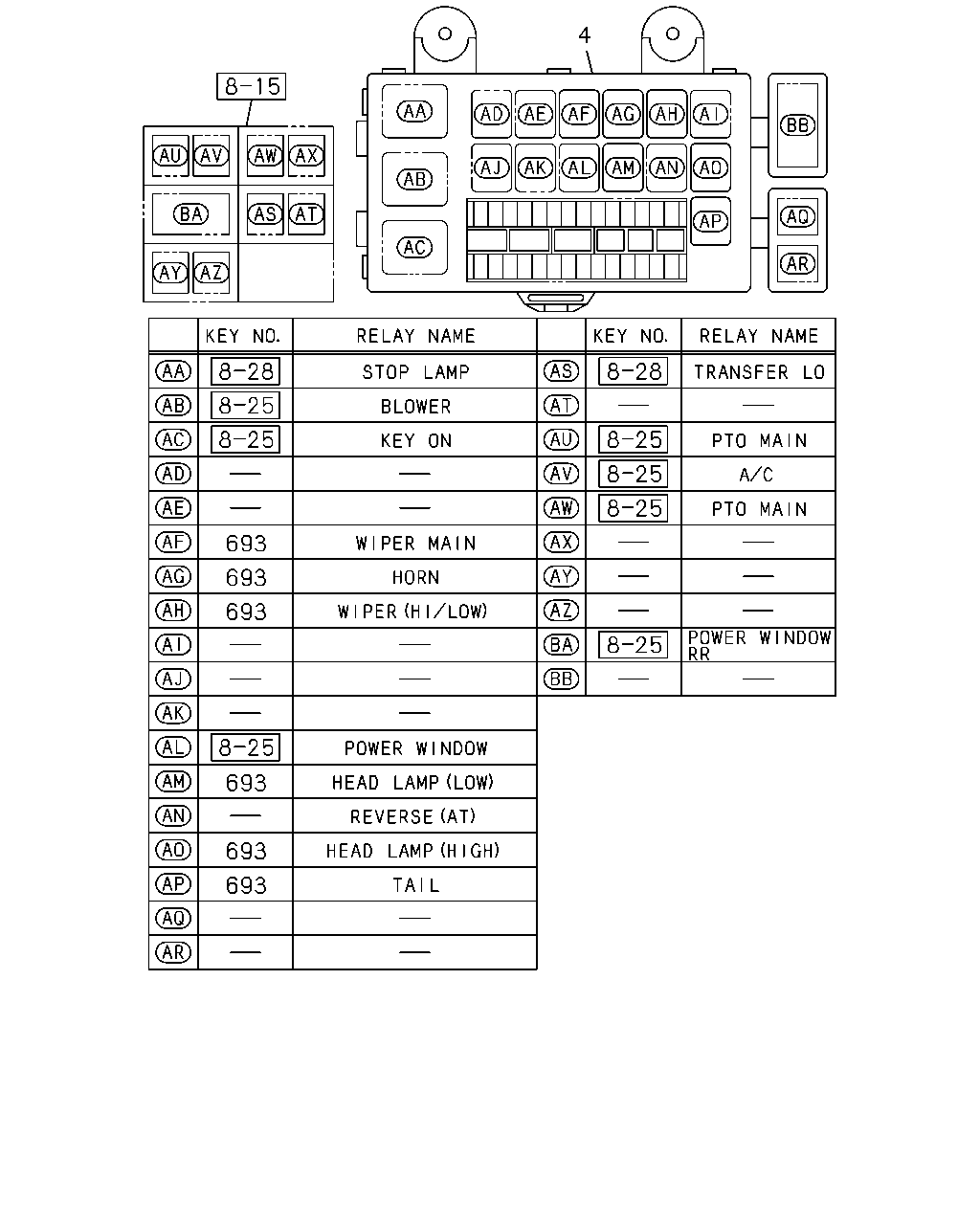

693 RELAY; FUSE BOX
24V 10A MATSUSHITA 		8-97173-035-1 AR 1 0712- ● ●
694 BOX ASM; CONNECTOR 8-98063-269-0 01 1 0712- ● ●
765 TAPE
100X40 		1-72498-022-1 01 1 1409- ● ●
çizim 146318
6 595 486 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98187-921-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98187-921-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-920-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-920-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98187-924-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98187-924-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-923-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-923-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98187-922-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98187-922-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> IN HOUSE PRODUCTION<TKF> 		8-98187-925-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98187-925-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98099-260-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-260-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98099-259-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98099-259-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98099-257-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-257-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98099-256-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98099-256-1 01 1 1201-1203 ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68) 		8-98099-253-1 01 1 0712- ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> 		8-98099-254-1 01 1 0712- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98099-261-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-261-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98099-258-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-258-1 01 1 1201-1203 ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> 		8-98099-255-1 01 1 0712- ●
6 HARNESS; FRAME 8-98074-483-0 01 1 0712-0804 ●
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98074-483-0 01 1 0805-0808 ●
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98122-343-1 01 1 0809-0906 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98122-343-1 01 1 0907-0910 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. AUTO CRUISE<K30> 		8-98122-343-1 01 1 0911-0911 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98120-017-0 01 1 0806-0808 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98123-077-1 01 1 0809-0910 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) EXC. AUTO CRUISE<K30> 		8-98123-077-1 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) AUTO CRUISE<K30> 		8-98153-713-0 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98153-713-1 01 1 1011-1107 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98185-103-1 01 1 1108- ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) AUTO CRUISE<K30> 		8-98153-712-0 01 1 0911-0911 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98153-712-1 01 1 0911-1107 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98185-102-1 01 1 1108- ●
6 HARNESS; FRAME 8-98074-484-1 01 1 0712-0804 ●
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98074-484-3 01 1 0805-0906 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98074-484-3 01 1 0907-0910 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. AUTO CRUISE<K30> 		8-98074-484-3 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98120-018-2 01 1 0806-0910 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) EXC. AUTO CRUISE<K30> 		8-98120-018-2 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) AUTO CRUISE<K30> 		8-98153-711-0 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98153-711-3 01 1 1011- ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) AUTO CRUISE<K30> 		8-98153-710-0 01 1 0911-1010 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98153-710-3 01 1 1011- ●
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 0712- ● ●
486 HARNESS; ALL SPEED ACCEL
POWER TAKE OFF-FLYWHEEL(6SZ) 		1-82675-898-0 01 1 0712- ● ●
595 HARNESS; WARNING,BRK 8-97621-003-3 01 1 0712- ● ●

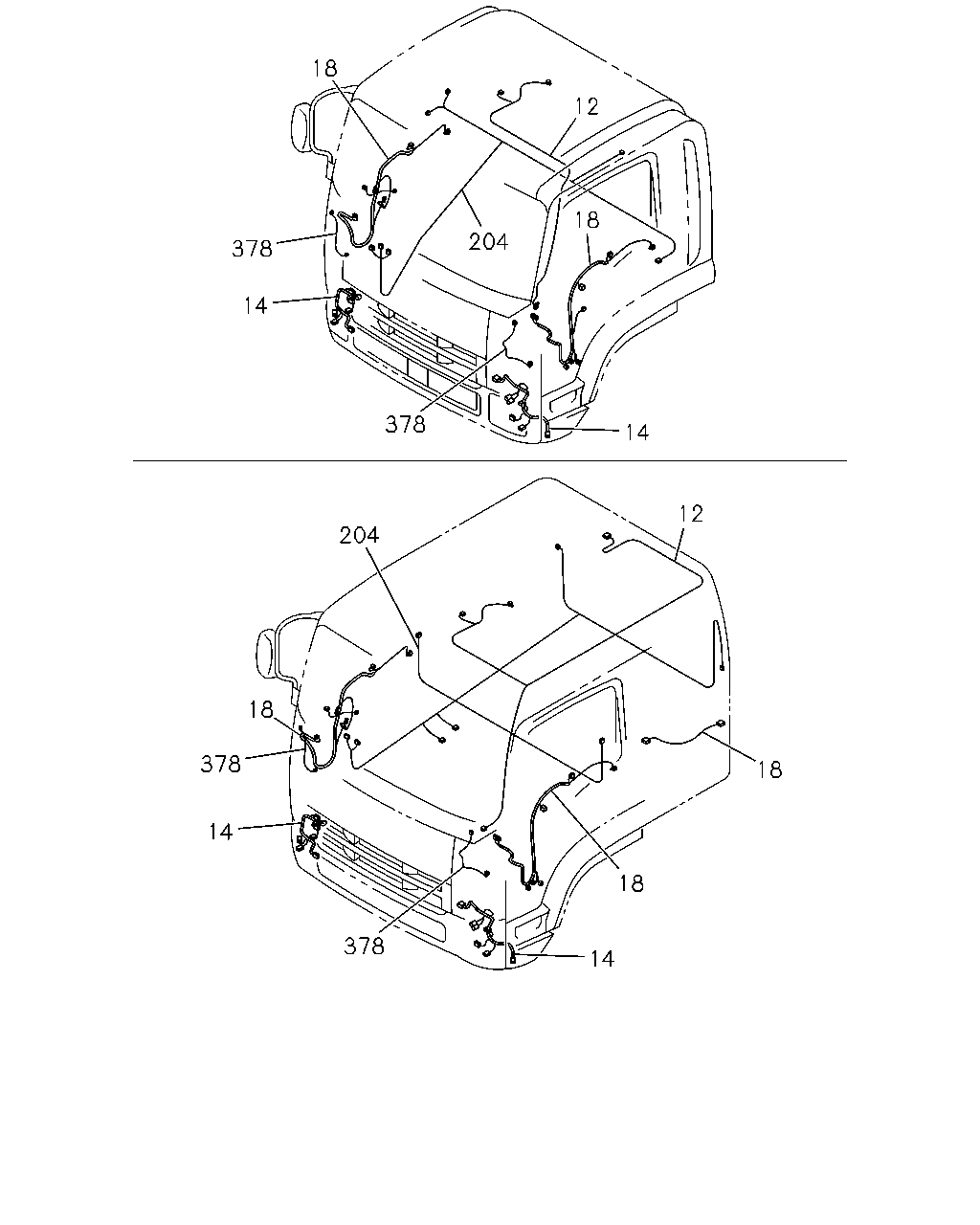

çizim 146324
18 12 18 204 378 14 378 14 12 204 18 378 18 14 18 378 14
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF 8-98079-071-1 01 1 0712- ●
12 HARNESS; ROOF 8-98085-265-0 01 1 0712- ●
14 HARNESS; HEADLAMP 8-97622-119-0 02 1 0712-0801 ● ●
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97622-119-0 02 1 0802- ● ●
14 HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98100-021-0 02 1 0802- ● ●
18 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98108-439-1 01 1 1203- ● ●
18 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98108-440-1 01 1 1203- ● ●
18 HARNESS; DOOR
FRONT 		8-98079-079-5 01 1 0712-1202 ● ●
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98079-079-5 01 1 1203- ● ●
18 HARNESS; DOOR
FRONT 		8-98079-076-5 01 1 0712-1202 ● ●
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98079-076-5 01 1 1203- ● ●
18 HARNESS; DOOR
REAR 		8-98056-047-1 02 1 0712- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98084-201-1 01 1 0712- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) 		8-98084-196-2 01 1 0712- ●
204 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> 		8-98084-192-1 01 1 0712- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98085-255-1 01 1 0712- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) 		8-98085-253-1 01 1 0712- ●
204 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> 		8-98085-252-1 01 1 0712- ●
378 HARNESS; EXT,MIRROR 8-98031-603-1 02 1 0712-0901 ● ●
çizim 146325
201 9
BalonParca AdiParca NoAdetTipApplied Date A B
9 HARNESS; FRAME,RR 8-98074-498-1 01 1 0712-1007 ●
9 HARNESS; FRAME,RR 8-98168-587-0 01 1 1008- ●
9 HARNESS; FRAME,RR 8-98097-388-1 01 1 0712-1007 ●
9 HARNESS; FRAME,RR 8-98168-601-0 01 1 1008- ●
201 HARNESS; AIR TANK 8-98074-481-1 01 1 0712-0807 ●
201 HARNESS; AIR TANK 8-98123-531-1 01 1 0808- ●
201 HARNESS; AIR TANK 8-98074-482-3 01 1 0712- ●

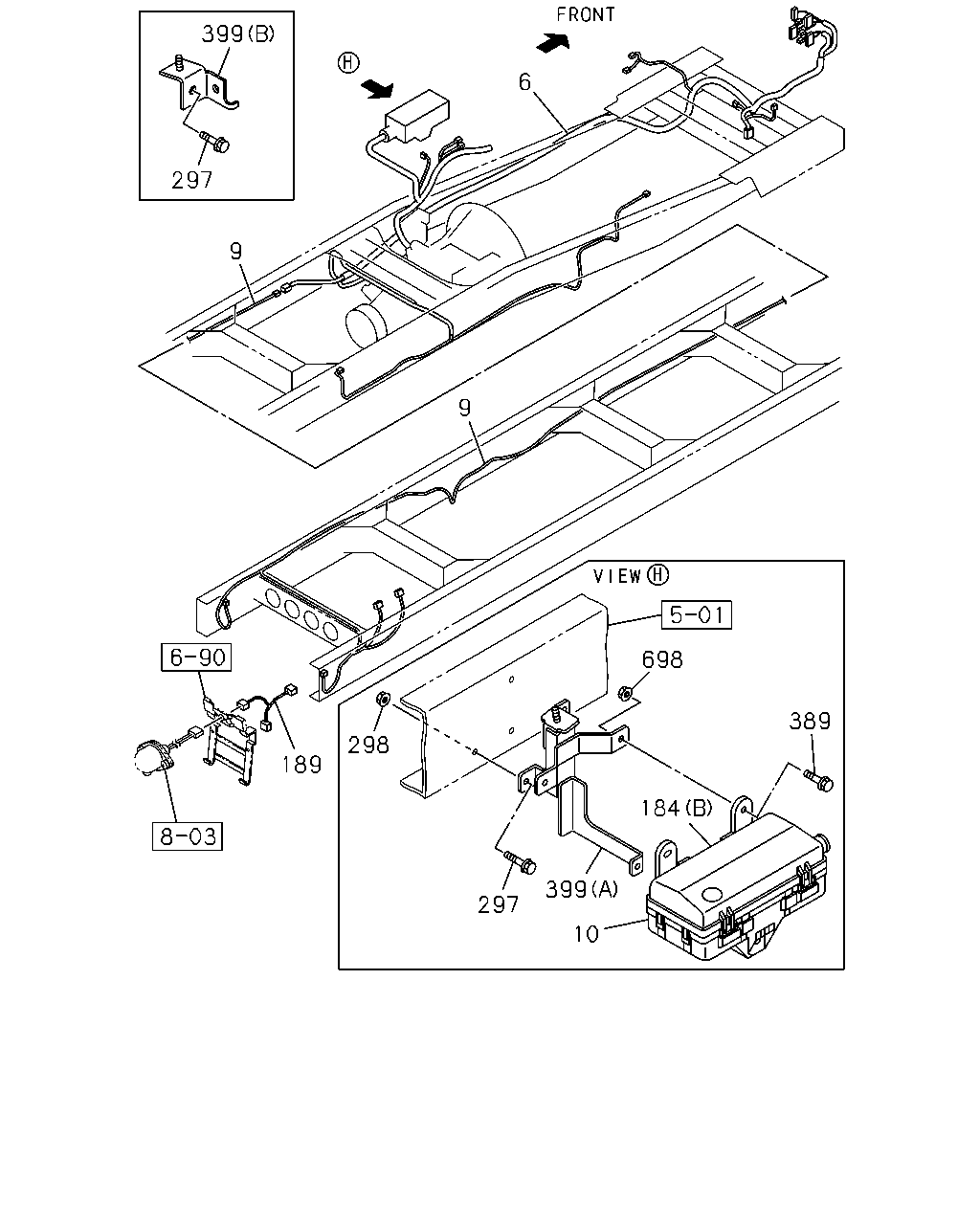

çizim 146328
10 297 399 184 389 698 298 189 9 9 297 6 399
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME 8-98074-483-0 01 1 0712-0804 ●
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98074-483-0 01 1 0805-0808 ●
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98122-343-1 01 1 0809-0906 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98122-343-1 01 1 0907-0910 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. AUTO CRUISE<K30> 		8-98122-343-1 01 1 0911-0911 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98120-017-0 01 1 0806-0808 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98123-077-1 01 1 0809-0910 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) EXC. AUTO CRUISE<K30> 		8-98123-077-1 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) AUTO CRUISE<K30> 		8-98153-713-0 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98153-713-1 01 1 1011-1107 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98185-103-1 01 1 1108- ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) AUTO CRUISE<K30> 		8-98153-712-0 01 1 0911-0911 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98153-712-1 01 1 0911-1107 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98185-102-1 01 1 1108- ●
6 HARNESS; FRAME 8-98074-484-1 01 1 0712-0804 ●
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98074-484-3 01 1 0805-0906 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98074-484-3 01 1 0907-0910 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. AUTO CRUISE<K30> 		8-98074-484-3 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98120-018-2 01 1 0806-0910 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) EXC. AUTO CRUISE<K30> 		8-98120-018-2 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) AUTO CRUISE<K30> 		8-98153-711-0 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98153-711-3 01 1 1011- ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) AUTO CRUISE<K30> 		8-98153-710-0 01 1 0911-1010 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98153-710-3 01 1 1011- ●
9 HARNESS; FRAME,RR 8-98074-498-1 01 1 0712-1007 ●
9 HARNESS; FRAME,RR 8-98168-587-0 01 1 1008- ●
9 HARNESS; FRAME,RR 8-98097-388-1 01 1 0712-1007 ●
9 HARNESS; FRAME,RR 8-98168-601-0 01 1 1008- ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 0712- ● ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 0712- ● ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 0712- ● ●
189 HARNESS; EXT 8-98131-066-0 01 1 1206- ● ●
297 BOLT; BOX BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0712-0803 ●
297 BOLT; BOX BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0805- ●
298 NUT; BOX BRKT
M8 FLANGE 		0-91180-108-0 03 1 0712-0803 ●
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 0712- ● ●
399 BRACKET; BOX
(A) 		8-97614-191-0 01 1 0712-0803 ●
399 BRACKET; BOX
(B) 		8-98097-516-0 01 1 0805- ●
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
çizim 146329
1 2 2 431 431 314
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98187-921-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98187-921-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-920-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-920-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98187-924-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98187-924-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-923-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-923-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98187-922-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98187-922-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> IN HOUSE PRODUCTION<TKF> 		8-98187-925-0 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98187-925-0 01 1 1204- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98099-260-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-260-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98099-259-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98099-259-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98099-257-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-257-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98099-256-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98099-256-1 01 1 1201-1203 ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68) 		8-98099-253-1 01 1 0712- ●
1 HARNESS; CAB
FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> 		8-98099-254-1 01 1 0712- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98099-261-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-261-1 01 1 1201-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98099-258-1 01 1 0712-1112 ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-258-1 01 1 1201-1203 ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER<AK5> 		8-98099-255-1 01 1 0712- ●
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 0712- ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 03 1 0712- ● ●
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0712- ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0712- ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0712- ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0712- ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0712- ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 03 1 0712- ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 03 1 0712- ●

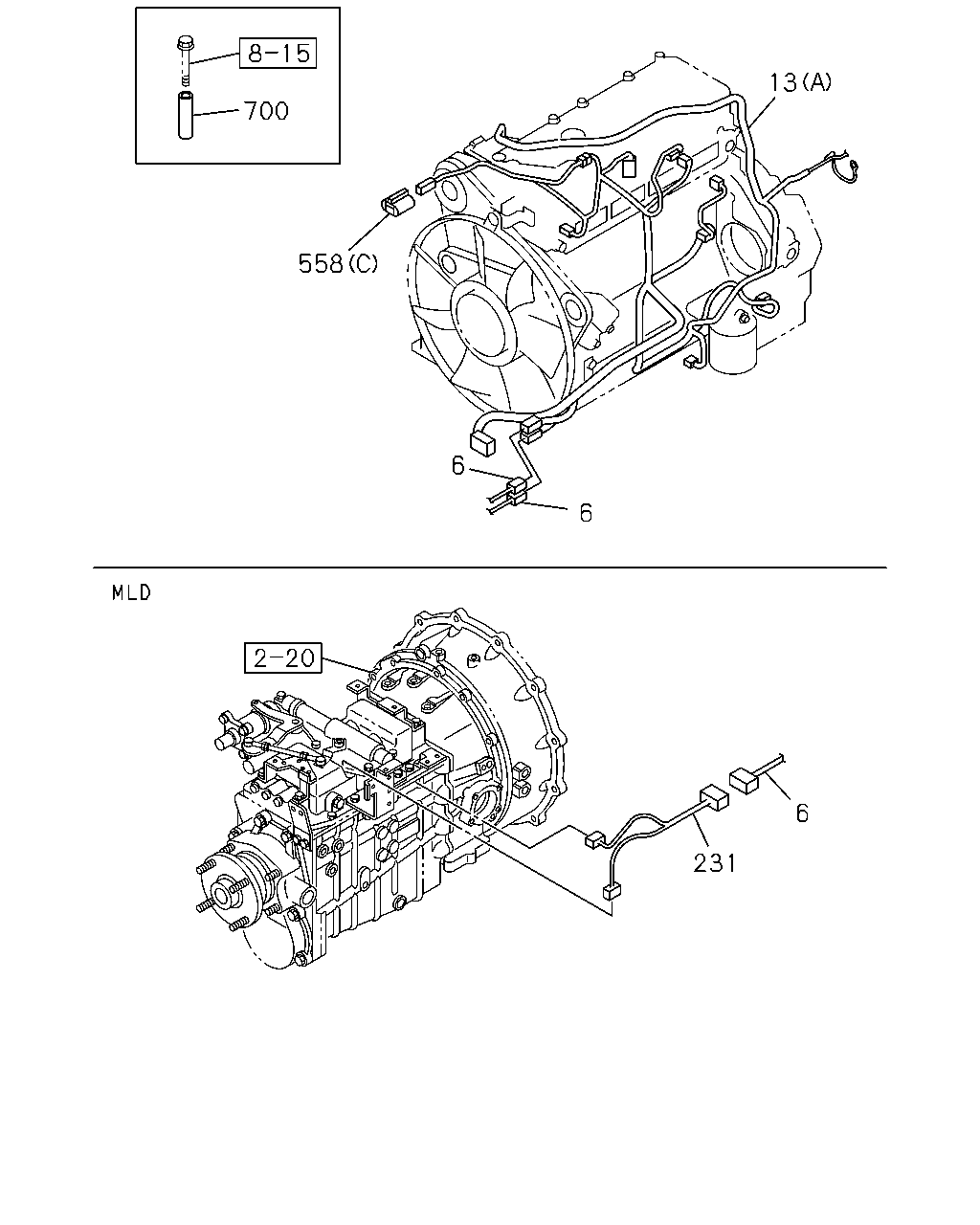

çizim 146330
13 700 558 6 6 6 231
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME 8-98074-483-0 01 1 0712-0804 ●
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98074-483-0 01 1 0805-0808 ●
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98122-343-1 01 1 0809-0906 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98122-343-1 01 1 0907-0910 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. AUTO CRUISE<K30> 		8-98122-343-1 01 1 0911-0911 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98120-017-0 01 1 0806-0808 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98123-077-1 01 1 0809-0910 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) EXC. AUTO CRUISE<K30> 		8-98123-077-1 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) AUTO CRUISE<K30> 		8-98153-713-0 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98153-713-1 01 1 1011-1107 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98185-103-1 01 1 1108- ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) AUTO CRUISE<K30> 		8-98153-712-0 01 1 0911-0911 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98153-712-1 01 1 0911-1107 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98185-102-1 01 1 1108- ●
6 HARNESS; FRAME 8-98074-484-1 01 1 0712-0804 ●
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98074-484-3 01 1 0805-0906 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98074-484-3 01 1 0907-0910 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. AUTO CRUISE<K30> 		8-98074-484-3 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98120-018-2 01 1 0806-0910 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) EXC. AUTO CRUISE<K30> 		8-98120-018-2 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) AUTO CRUISE<K30> 		8-98153-711-0 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98153-711-3 01 1 1011- ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) AUTO CRUISE<K30> 		8-98153-710-0 01 1 0911-1010 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98153-710-3 01 1 1011- ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98057-561-3 01 1 0712-0712 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98095-868-2 01 1 0801-1004 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98162-628-1 01 1 1005-1406 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-006-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98162-614-1 01 1 1005-1406 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-000-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98057-560-3 01 1 0712-0712 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98095-869-2 01 1 0801-1004 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98162-629-1 01 1 1005-1406 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-007-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98162-615-1 01 1 1005-1406 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-001-0 01 1 1407- ●
13 HARNESS; ENG
(A) 		8-97332-133-3 01 1 0712-1007 ● ●
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1008- ● ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-97386-195-3 01 1 0712-0712 ● ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98097-708-0 02 1 0801-1004 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98097-708-0 01 1 1005- ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98055-770-3 01 1 0712-0712 ● ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98097-709-0 02 1 0801-1004 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98097-709-0 01 1 1005- ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98081-165-0 01 1 0712-0712 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98095-873-2 01 1 0801-1004 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98162-633-1 01 1 1005-1406 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-011-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98094-817-1 01 1 0801-1004 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98162-618-1 01 1 1005-1406 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-004-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98081-166-0 01 1 0712-0712 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98095-874-2 01 1 0801-1004 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98162-634-1 01 1 1005-1406 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-012-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98094-819-1 01 1 0801-1004 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98162-619-1 01 1 1005-1406 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-005-0 01 1 1407- ●
231 HARNESS; TRANS
MLD6Q M/T(X5J) 		8-97627-969-0 01 1 0806- ● ●
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		1-82690-668-0 01 1 0809- ●
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 0809- ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 0802-0803 ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 0802-0803 ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98108-678-0 01 1 0804- ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98108-678-0 01 1 0804- ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 0802-0803 ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 0802-0803 ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98108-679-0 01 1 0804- ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98108-679-0 01 1 0804- ●
700 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=51 		1-11369-157-0 01 1 0809- ●
700 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51 		1-11369-157-0 01 1 0809- ●
çizim 146332
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 0712- ● ●
693 RELAY; FUSE BOX
24V 10A MATSUSHITA 		8-97173-035-1 AR 1 0712- ● ●

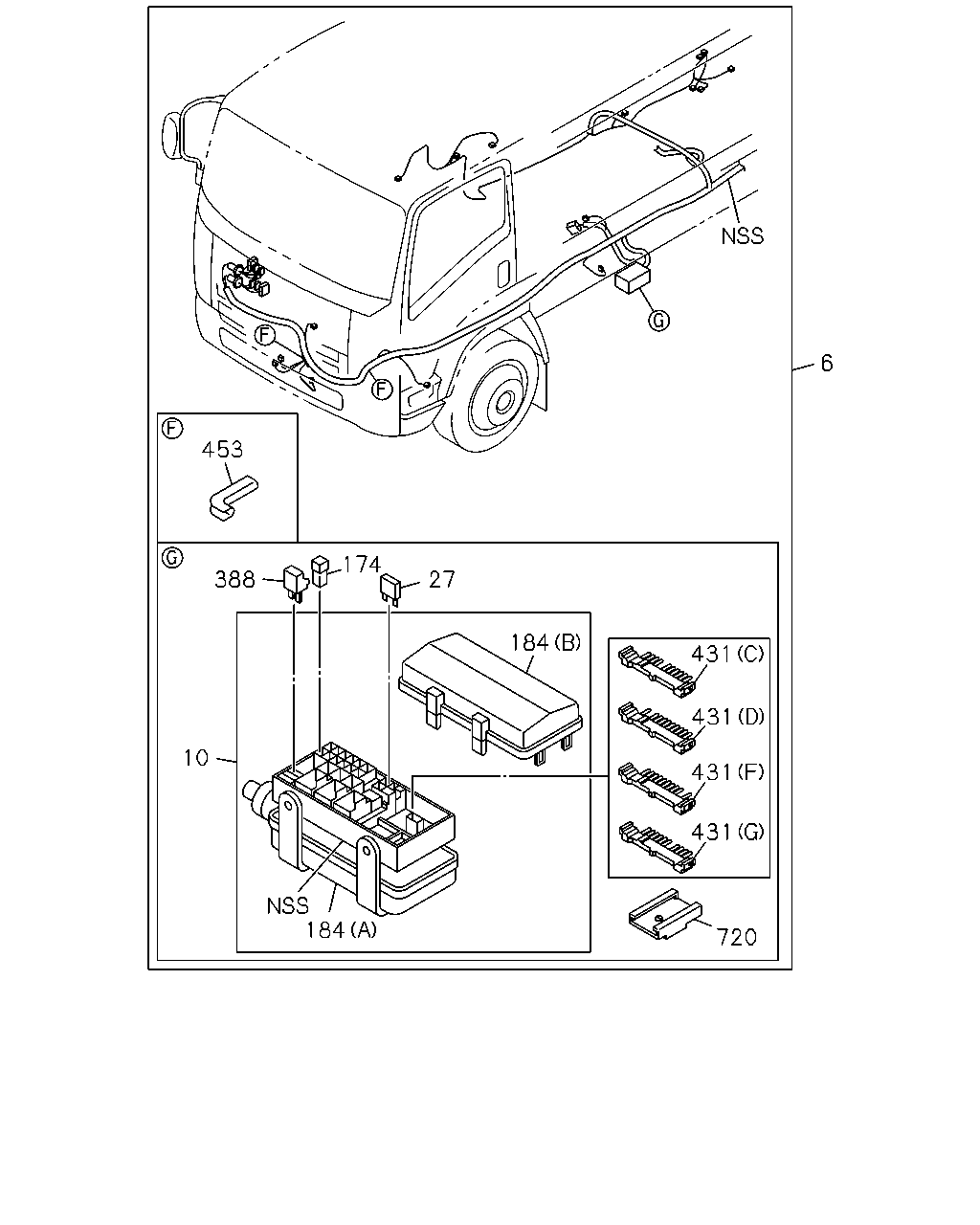

çizim 146335
6 453 174 388 27 184 431 431 10 431 431 184 720
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME 8-98074-483-0 01 1 0712-0804 ●
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98074-483-0 01 1 0805-0808 ●
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98122-343-1 01 1 0809-0906 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98122-343-1 01 1 0907-0910 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. AUTO CRUISE<K30> 		8-98122-343-1 01 1 0911-0911 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98120-017-0 01 1 0806-0808 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98123-077-1 01 1 0809-0910 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) EXC. AUTO CRUISE<K30> 		8-98123-077-1 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) AUTO CRUISE<K30> 		8-98153-713-0 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98153-713-1 01 1 1011-1107 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98185-103-1 01 1 1108- ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) AUTO CRUISE<K30> 		8-98153-712-0 01 1 0911-0911 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98153-712-1 01 1 0911-1107 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98185-102-1 01 1 1108- ●
6 HARNESS; FRAME 8-98074-484-1 01 1 0712-0804 ●
6 HARNESS; FRAME
MZX6P M/T(RSW) 		8-98074-484-3 01 1 0805-0906 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98074-484-3 01 1 0907-0910 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. AUTO CRUISE<K30> 		8-98074-484-3 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98120-018-2 01 1 0806-0910 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) EXC. AUTO CRUISE<K30> 		8-98120-018-2 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) AUTO CRUISE<K30> 		8-98153-711-0 01 1 0911-1010 ●
6 HARNESS; FRAME
MLD6Q M/T(X5J) 		8-98153-711-3 01 1 1011- ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) AUTO CRUISE<K30> 		8-98153-710-0 01 1 0911-1010 ●
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98153-710-3 01 1 1011- ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 0712- ● ●
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 0712- ● ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 0712- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1107-1107 ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107-1107 ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1108- ● ●
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 0712- ● ●
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 0712- ● ●
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 0712- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 03 1 0712-1106 ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 03 1 1107-1107 ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1108- ● ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 0712- ● ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 0712- ● ●
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 0712- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0712- ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0712- ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0712- ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0712- ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0712- ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0712- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 03 1 0712- ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 03 1 0712- ●
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 0712-0803 ● ●
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 0804-0805 ●
453 PROTECTOR; HARNESS
MZX6P M/T(RSW) 		1-82699-709-0 02 1 0806-0808 ●
453 PROTECTOR; HARNESS
MLD6Q M/T(X5J) 		1-82699-709-0 02 1 0806-0808 ●
453 PROTECTOR; HARNESS
MZX6P M/T(RSW),MLD6Q M/T(X5J) 		1-82699-709-0 02 1 0809-0901 ●
453 PROTECTOR; HARNESS
MLD6Q M/T(X5J) 		1-82699-709-0 02 1 0809-0901 ●
453 PROTECTOR; HARNESS
MZX6P M/T(RSW),MLD6Q M/T(X5J) 		1-82699-709-0 02 1 0902-0906 ●
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 0907-0910 ●
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 0911-1010 ●
453 PROTECTOR; HARNESS
AUTO CRUISE<K30> 		1-82699-709-0 02 1 0911-1010 ●
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 1011- ● ●
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 0804-0805 ●
453 PROTECTOR; HARNESS
MLD6Q M/T(X5J) 		1-82699-709-0 01 1 0806-0808 ●
453 PROTECTOR; HARNESS
MZX6P M/T(RSW) 		1-82699-709-0 01 1 0806-0808 ●
453 PROTECTOR; HARNESS
MZX6P M/T(RSW) 		1-82699-709-0 01 1 0809-0901 ●
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 0902-0910 ●
453 PROTECTOR; HARNESS
EXC. AUTO CRUISE<K30> 		1-82699-709-0 01 1 0911-1010 ●
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 0712- ● ●
çizim 146383
534 13 13 668 102 102 668 540 102 102 668 668 102 668 668
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98057-561-3 01 1 0712-0712 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98095-868-2 01 1 0801-1004 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98162-628-1 01 1 1005-1406 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-006-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98162-614-1 01 1 1005-1406 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-000-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98057-560-3 01 1 0712-0712 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98095-869-2 01 1 0801-1004 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98162-629-1 01 1 1005-1406 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-007-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98162-615-1 01 1 1005-1406 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-001-0 01 1 1407- ●
13 HARNESS; ENG
(A) 		8-97332-133-3 01 1 0712-1007 ● ●
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1008- ● ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-97386-195-3 01 1 0712-0712 ● ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98097-708-0 02 1 0801-1004 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98097-708-0 01 1 1005- ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98055-770-3 01 1 0712-0712 ● ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98097-709-0 02 1 0801-1004 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98097-709-0 01 1 1005- ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98081-165-0 01 1 0712-0712 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98095-873-2 01 1 0801-1004 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98162-633-1 01 1 1005-1406 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-011-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98094-817-1 01 1 0801-1004 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98162-618-1 01 1 1005-1406 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-004-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98081-166-0 01 1 0712-0712 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98095-874-2 01 1 0801-1004 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98162-634-1 01 1 1005-1406 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-012-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98094-819-1 01 1 0801-1004 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98162-619-1 01 1 1005-1406 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-005-0 01 1 1407- ●
102 BOLT; BRKT,HARNESS CONNECTOR
M6X25 FLANGE 		0-28050-625-0 01 1 0712-1004 ● ●
102 BOLT; BRKT,HARNESS CONNECTOR
M8X12 FLANGE 		0-28050-812-0 01 1 0712-0803 ● ●
102 BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE 		0-28050-816-0 03 1 0712- ● ●
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 03 1 0712- ● ●
534 BOLT
M10X55 FLANGE 		8-94399-863-1 03 1 0712-0805 ● ●
534 BOLT
M10X55 FLANGE 		8-97365-449-0 03 1 0806- ● ●
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 01 1 0712- ● ●
668 BRACKET; HARNESS
(B) 		8-97379-783-1 01 1 0712-0803 ● ●
668 BRACKET; HARNESS
(D) 		8-98001-095-0 01 1 0712- ● ●
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 0712-1408 ● ●
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409- ● ●
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 0712- ● ●
668 BRACKET; HARNESS
(G) 		8-98022-106-2 01 1 0712-1004 ● ●
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 0712- ● ●
668 BRACKET; HARNESS
(C) 		8-98095-653-2 01 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
