7-70 — SEPARATER AND BED (#62401) — 64 parça

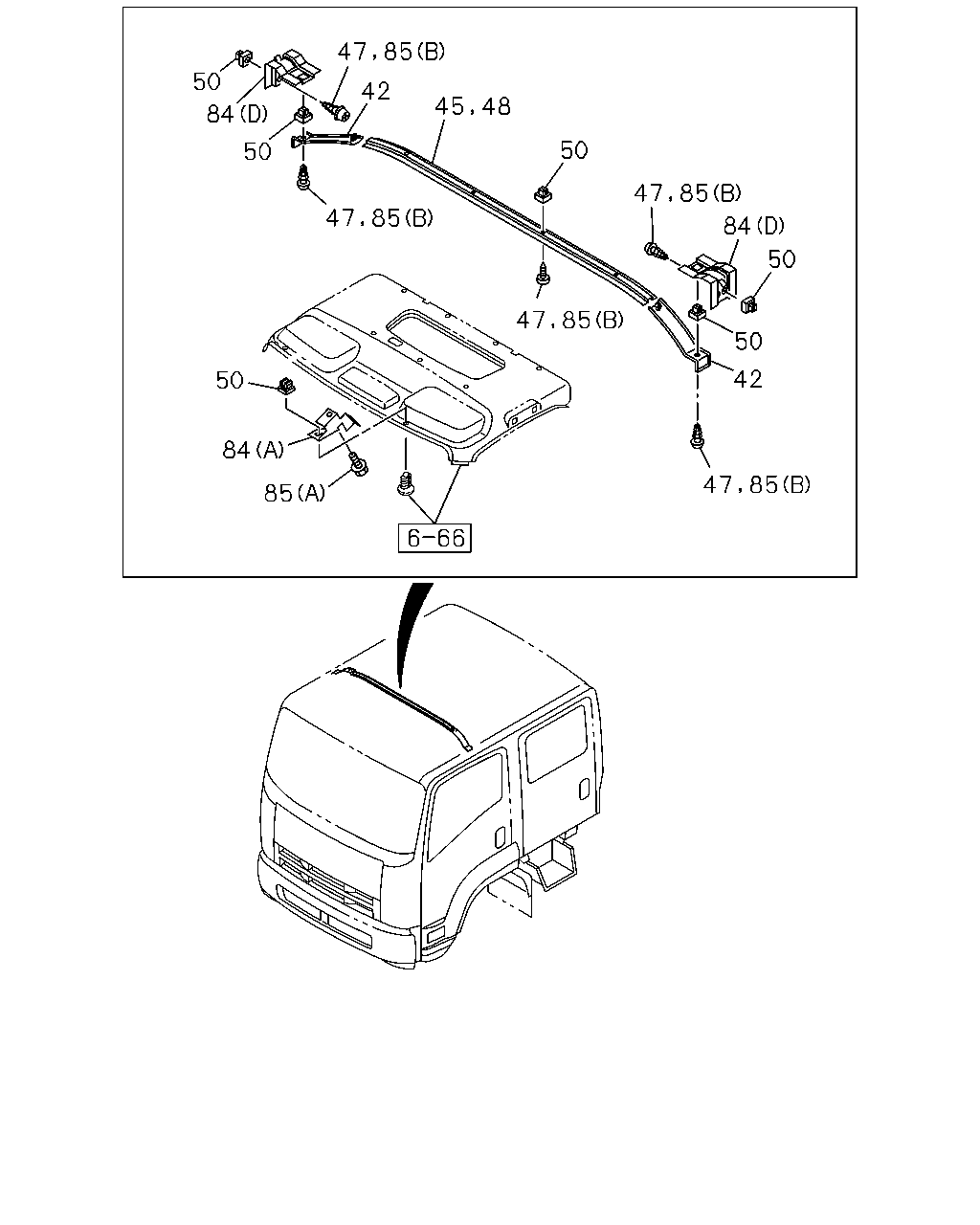

50 42 84 50 50 84 50 50 42 50 84 85 47 85 45 48 47 85 47 85 47 85 47 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-972-2	01	1	0712-	●	●
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-499-2	01	1	0712-	●	●
45	RAIL; CURTAIN,FRT DARK GRAY	8-97407-485-0	01	1	0909-	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0712-	●	●
48	RAIL; CURTAIN,BACK DARK GRAY	8-97407-485-0	01	1	0712-0908	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0712-0804	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1406-	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0712-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0712-		●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	0712-	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0712-	●	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	0712-1405	●
84	BRACKET; CURTAIN RAIL (D)	8-98028-821-1	01	1	0712-0712	●
84	BRACKET; CURTAIN RAIL (D)	8-98049-761-1	01	1	0712-0712	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0712-0712		●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0801-0804	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	04	1	0805-	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0805-		●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	0712-0804	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	06	1	0805-1405	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	1406-	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0712-0810	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0712-0810	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	02	1	0712-		●

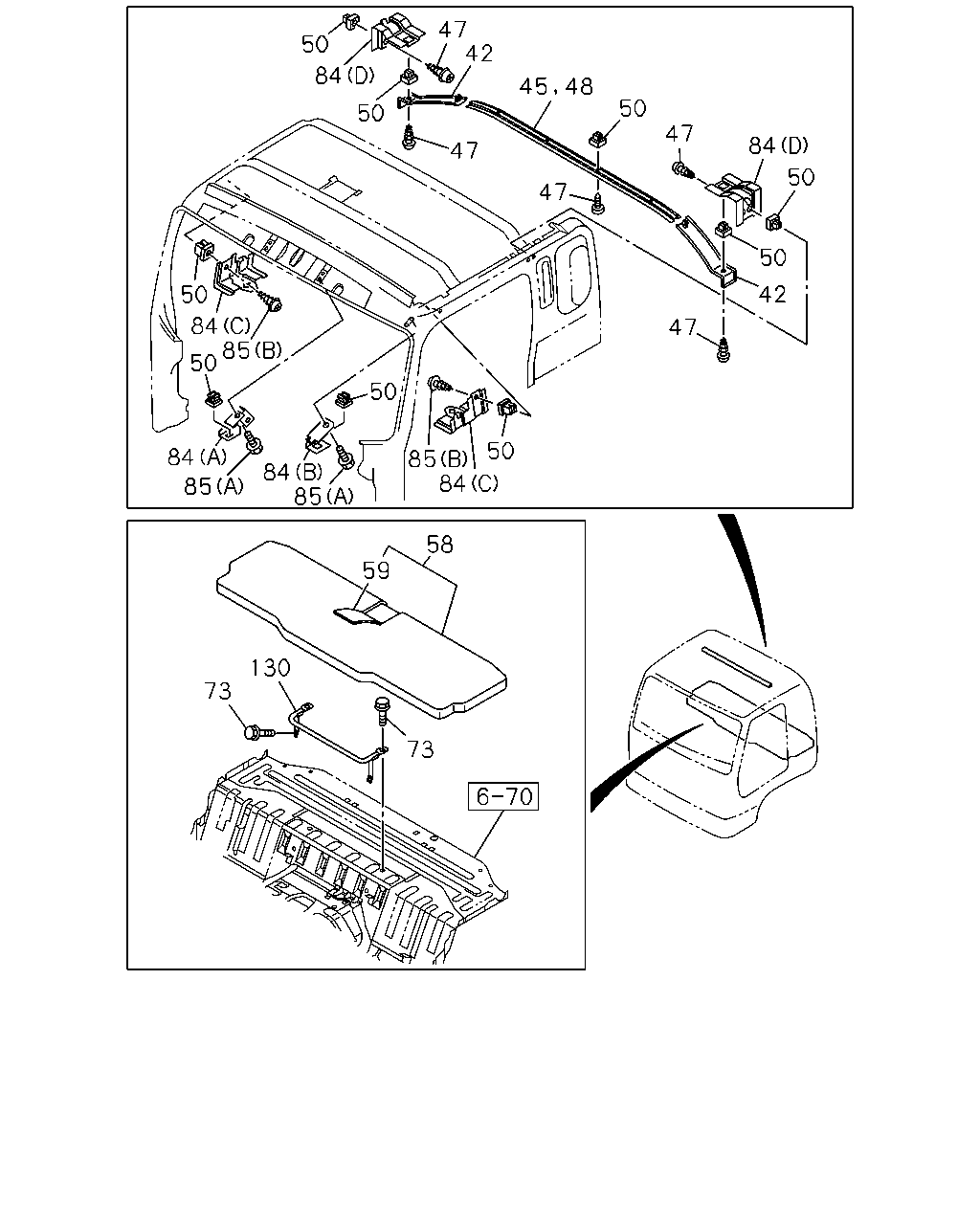

47 42 50 84 50 50 47 84 47 50 47 50 42 50 84 85 50 47 50 50 84 85 84 84 85 85 58 59 130 73 73 45 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-972-2	01	1	0712-	●	●
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-499-2	01	1	0712-	●	●
45	RAIL; CURTAIN,FRT DARK GRAY	8-97407-485-0	01	1	0909-	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0712-	●	●
48	RAIL; CURTAIN,BACK DARK GRAY	8-97407-485-0	01	1	0712-0908	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0712-0804	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1406-	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0712-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0712-		●
58	BED; MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-772-1	01	1	0712-0912	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97407-382-2	01	1	1001-1402	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-106-0	01	1	0712-0912	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97412-045-1	01	1	1001-1402	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	0712-1402	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	0712-	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0712-	●	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	0712-1405	●
84	BRACKET; CURTAIN RAIL (D)	8-98028-821-1	01	1	0712-0712	●
84	BRACKET; CURTAIN RAIL (D)	8-98049-761-1	01	1	0712-0712	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0712-0712		●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0801-0804	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	04	1	0805-	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0805-		●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	0712-0804	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	06	1	0805-1405	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	1406-	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0712-0810	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0712-0810	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	02	1	0712-		●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	0712-1402	●
