Isuzu WW
▶
TRUCKS
▶
FSS
▶
11419 - FSS(AUST)EURO4
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶
7-60 — SEAT BELT
(#62400) — 41 parça
Tümü
A - FCS5WS
B - FCS5MS
◀

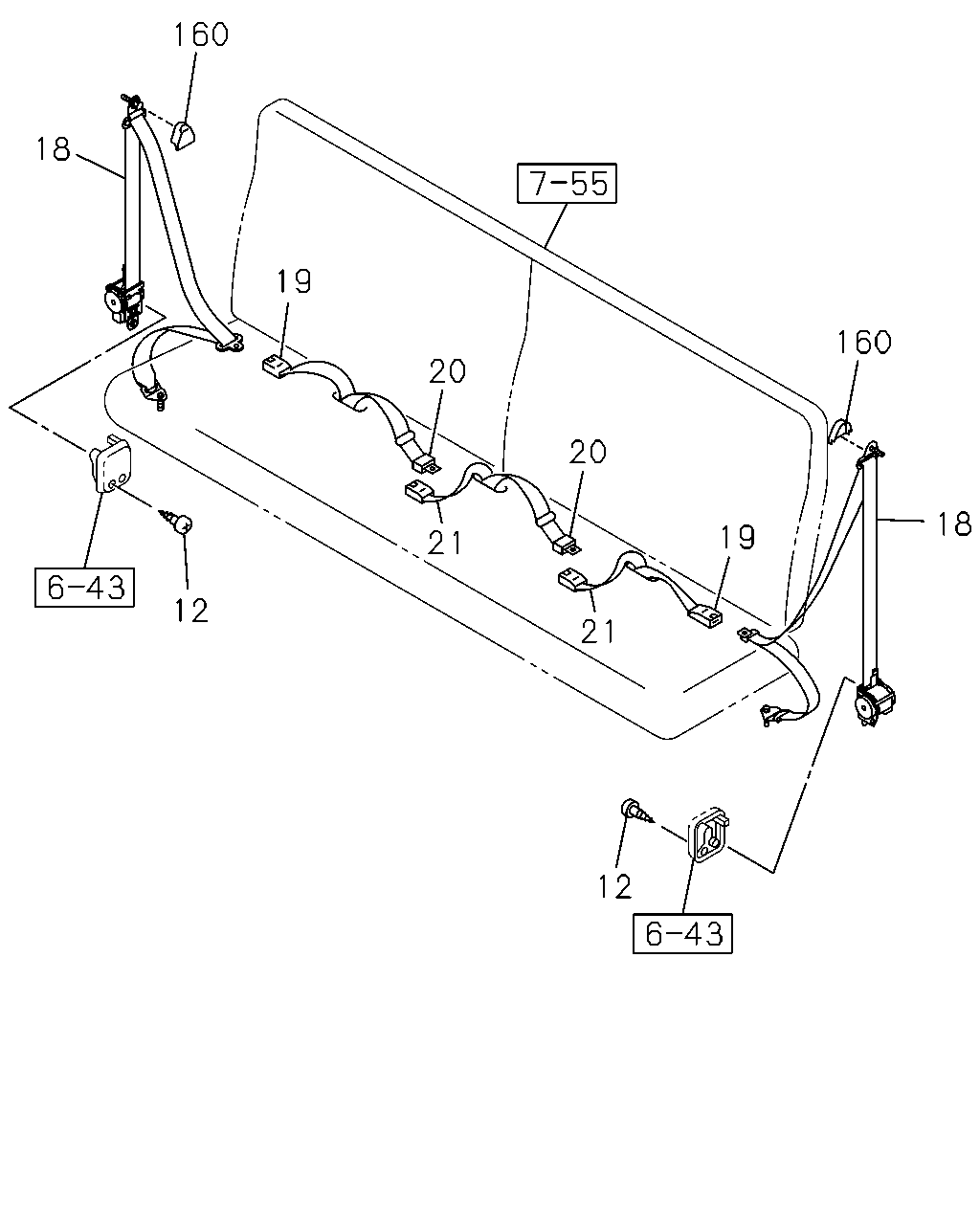

[760A] REAR SEAT (13 parça)
[760A] SEAL AND PLUG (9 parça)

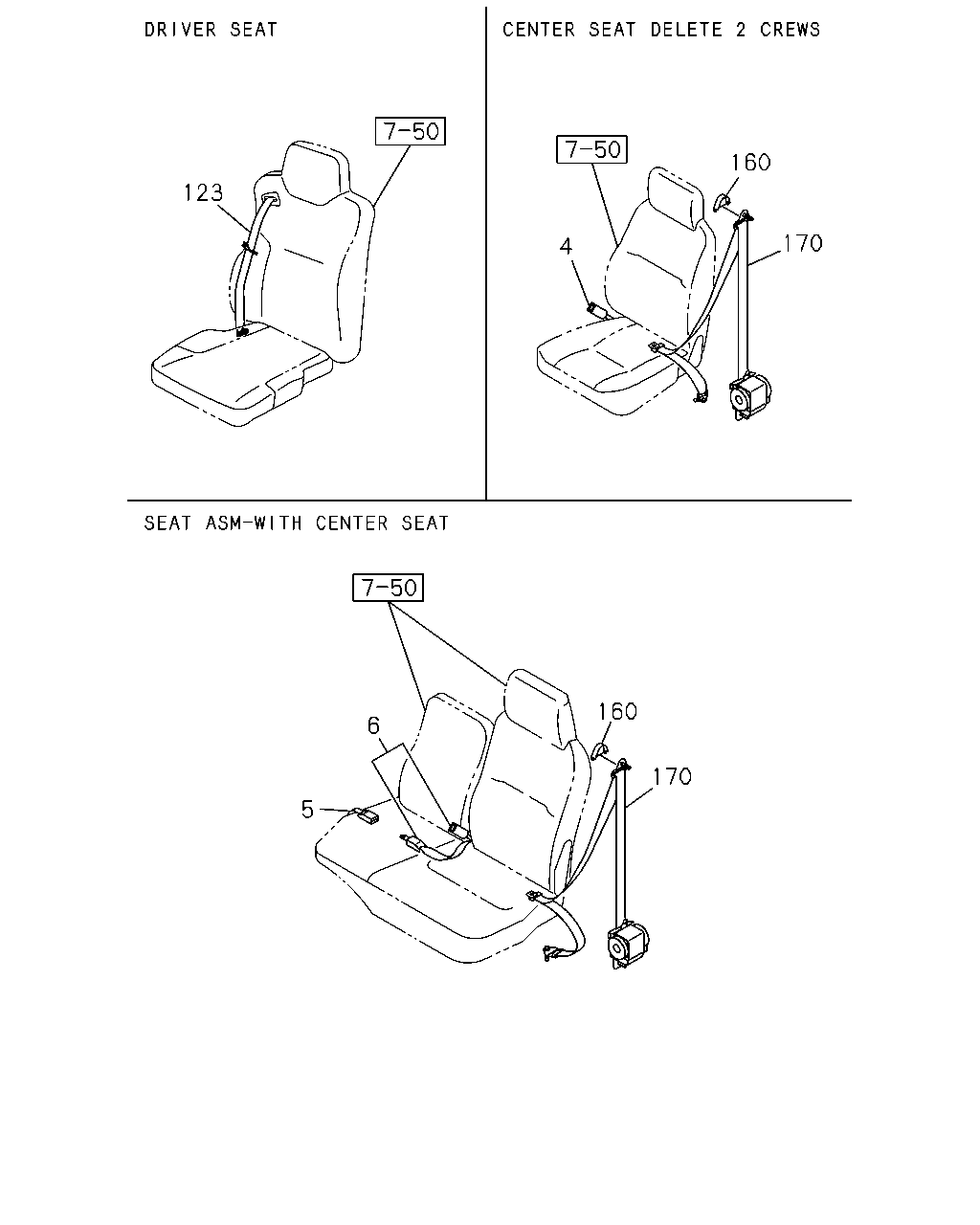

[760A] DRIVER AND PASSENGER (19 parça)
▶
160
18
19
160
20
20
18
19
21
12
21
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING
0-74360-414-0
04
1
0712-
●
18
BELT; SEAT,RR
GRAY
8-97405-185-8
02
1
0802-
●
19
BELT; RR SEAT,BUCKLE SIDE
GRAY
8-97407-379-0
02
1
0802-
●
20
BELT; RR SEAT CTR,TONGUE SIDE
GRAY
8-97409-771-2
01
1
0801-1209
●
20
BELT; RR SEAT CTR,TONGUE SIDE
GRAY
8-97423-710-1
01
1
1210-
●
20
BELT; RR SEAT CTR,TONGUE SIDE
GRAY
8-97409-770-2
01
1
0801-1209
●
20
BELT; RR SEAT CTR,TONGUE SIDE
GRAY
8-97423-709-1
01
1
1210-
●
21
BELT; RR SEAT CTR,BUCKLE SIDE
GRAY
8-97407-381-1
01
1
0801-
●
21
BELT; RR SEAT CTR,BUCKLE SIDE
GRAY
8-97407-380-0
01
1
0801-
●
160
COVER; THROUGH ANCHOR
GRAY
8-97405-991-0
02
1
0712-1104
●
●
160
COVER; THROUGH ANCHOR
GRAY
8-97405-991-0
02
1
0712-1104
●
160
COVER; THROUGH ANCHOR
GRAY
8-97405-991-0
01
1
1105-
●
●
160
COVER; THROUGH ANCHOR
GRAY
8-97405-991-0
02
1
1105-
●
169
88
169
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
88
PLUG; HOLE
DARK GRAY
8-97411-466-0
01
1
0712-
●
169
SEAL
CENTER SEAT DELETE 2 CREWS<SP9> (A) OD=25 BLACK
1-76798-019-0
01
1
0712-1201
●
169
SEAL
CENTER SEAT DELETE 2 CREWS<SP9> (A) OD=25 BLACK
1-76798-019-0
01
1
0712-1201
●
169
SEAL
CENTER SEAT DELETE 2 CREWS<SP9> (A) OD=25 BLACK
1-76798-019-0
01
1
1202-
●
169
SEAL
BODY COLOR ARC WHITE(729) (B) OD=36
8-94271-620-1
02
1
0712-0905
●
169
SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=36
8-94271-620-1
02
1
0906-
●
169
SEAL
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0712-0905
●
169
SEAL
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORCARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),B ODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BOD Y COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0906-0906
●
169
SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0906-
●
160
123
170
4
160
6
170
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE 2 CREWS<SP9> GRAY
8-97407-376-1
01
1
0712-
●
5
BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY
8-97407-377-1
01
1
0712-
●
5
BELT; CENTER SEAT,BUCKLE SIDE
GRAY
8-97407-377-1
01
1
0712-
●
6
BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY
8-97409-768-3
01
1
0712-1209
●
6
BELT; CENTER SEAT,TONGUE SIDE
GRAY
8-97409-768-3
01
1
0712-1209
●
6
BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY
8-97423-515-1
01
1
1210-
●
6
BELT; CENTER SEAT,TONGUE SIDE
GRAY
8-97423-515-1
01
1
1210-
●
123
BELT ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>
8-98097-971-0
01
1
0712-
●
●
123
BELT ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>
8-98097-969-0
01
1
0712-
●
●
160
COVER; THROUGH ANCHOR
GRAY
8-97405-991-0
02
1
0712-1104
●
●
160
COVER; THROUGH ANCHOR
GRAY
8-97405-991-0
02
1
0712-1104
●
160
COVER; THROUGH ANCHOR
GRAY
8-97405-991-0
01
1
1105-
●
●
160
COVER; THROUGH ANCHOR
GRAY
8-97405-991-0
02
1
1105-
●
170
BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97407-771-5
01
1
0712-1209
●
●
170
BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97423-521-2
01
1
1210-1407
●
●
170
BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97428-394-0
01
1
1408-
●
●
170
BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97407-770-4
01
1
0712-1209
●
●
170
BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97423-516-1
01
1
1210-1407
●
●
170
BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97428-435-0
01
1
1408-
●
●
