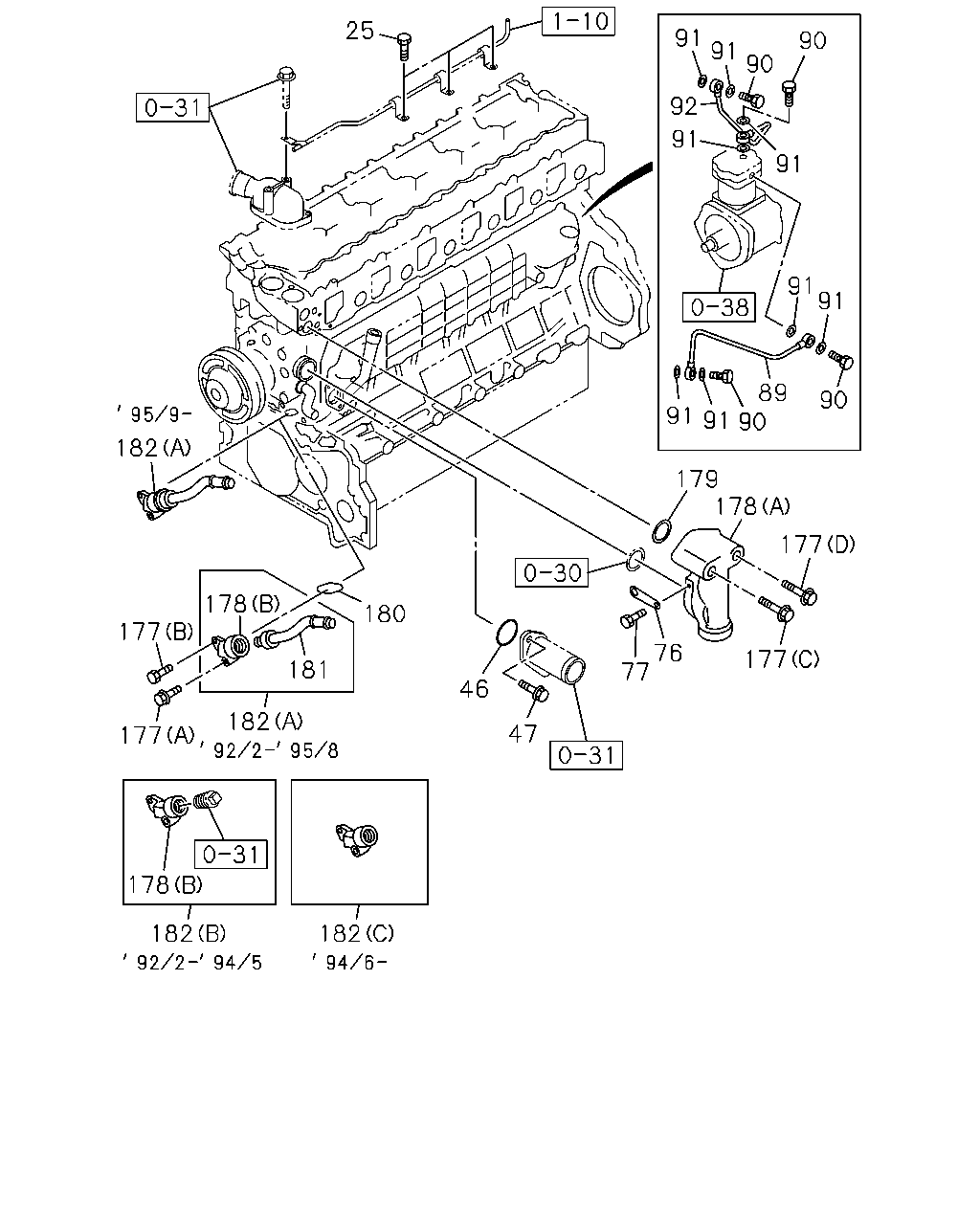

25 |
BOLT; WATER PIPE
M8X12 FLANGE
|
0-28080-812-0 |
03 |
1 |
9202- |
● |
● |
| |
46 |
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=48.5 OD=53.3
|
8-94396-680-2 |
01 |
1 |
9202- |
● |
● |
| |
47 |
BOLT; DUCT,TO OIL COOLER
M8X18 FLANGE
|
0-28080-818-0 |
01 |
1 |
9202- |
● |
● |
| |
47 |
BOLT; DUCT,TO OIL COOLER
M8X40 FLANGE
|
0-28080-840-0 |
01 |
1 |
9202- |
● |
● |
| |
76 |
BRACKET; WATER DUCT,PUMP
|
8-94396-611-0 |
01 |
1 |
9202-9208 |
● |
● |
| |
76 |
BRACKET; WATER DUCT,PUMP
|
8-94394-784-0 |
01 |
1 |
9209- |
● |
● |
| |
77 |
BOLT; BRKT,WATER DUCT
M8X22 FLANGE
|
0-28080-822-0 |
01 |
1 |
9202-9503 |
● |
● |
| |
77 |
BOLT; BRKT,WATER DUCT
M8X50 FLANGE
|
0-28080-850-0 |
01 |
1 |
9504- |
● |
● |
| |
89 |
PIPE; WATER,AIR CMPR,IN
AIR COMPRESSOR HEAVY DUTY<E1Q>
|
8-94397-035-1 |
01 |
1 |
9202- |
● |
● |
| |
90 |
BOLT; EYE,WATER PIPE,AIR CMPR
AIR COMPRESSOR HEAVY DUTY<E1Q>
M14X27 EYE-BOLT
|
1-09675-193-0 |
04 |
1 |
9202- |
● |
● |
| |
91 |
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
AIR COMPRESSOR HEAVY DUTY<E1Q>
ID=14.2 OD=19.2
|
1-09630-085-0 |
08 |
1 |
9202- |
● |
● |
| |
92 |
PIPE; WATER,AIR CMPR,OUT
AIR COMPRESSOR HEAVY DUTY<E1Q>
|
8-94397-036-2 |
01 |
1 |
9202-9410 |
● |
● |
| |
92 |
PIPE; WATER,AIR CMPR,OUT
AIR COMPRESSOR HEAVY DUTY<E1Q>
|
8-94395-742-1 |
01 |
1 |
9411- |
● |
● |
| |
177 |
BOLT; WATER DUCT
(B)
M8X22 FLANGE
|
0-28080-822-0 |
01 |
1 |
9202- |
● |
● |
| |
177 |
BOLT; WATER DUCT
(A)
M8X65
|
8-94158-393-1 |
01 |
1 |
9202-9306 |
● |
● |
| |
177 |
BOLT; WATER DUCT
(A)
M8X65 FLANGE
|
1-09044-072-1 |
01 |
1 |
9307- |
● |
● |
| |
177 |
BOLT; WATER DUCT
(C)
M8X79 FLANGE
|
8-94311-617-1 |
01 |
1 |
9202- |
● |
● |
| |
177 |
BOLT; WATER DUCT
(D)
M16X75 FLANGE
|
8-94397-360-0 |
01 |
1 |
9202- |
● |
● |
| |
178 |
DUCT; WATER,BYPASS
(A)
|
8-94396-627-2 |
01 |
1 |
9202- |
● |
● |
| |
178 |
DUCT; WATER,BYPASS
(B)
|
8-94396-721-1 |
01 |
1 |
9202-9508 |
● |
● |
| |
179 |
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=31.2
|
8-94396-679-0 |
01 |
1 |
9202- |
● |
● |
| |
180 |
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
|
8-94396-720-1 |
01 |
1 |
9202- |
● |
● |
| |
181 |
CONNECTOR; BYPASS,DUCT
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
|
8-94397-341-2 |
01 |
1 |
9202-9508 |
● |
● |
| |
182 |
DUCT; WATER,HTR
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(A)
|
8-94396-724-2 |
01 |
1 |
9202-9508 |
● |
● |
| |
182 |
DUCT; WATER,HTR
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(A)
|
8-94396-724-3 |
01 |
1 |
9509- |
● |
● |
| |
182 |
DUCT; WATER,HTR
EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(B)
|
8-94396-726-0 |
01 |
1 |
9202-9405 |
● |
● |
| |
182 |
DUCT; WATER,HTR
EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(C)
|
8-94390-283-0 |
01 |
1 |
9406- |
● |
● |
