◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11419 - FSS(AUST)EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#62392) — 120 parça

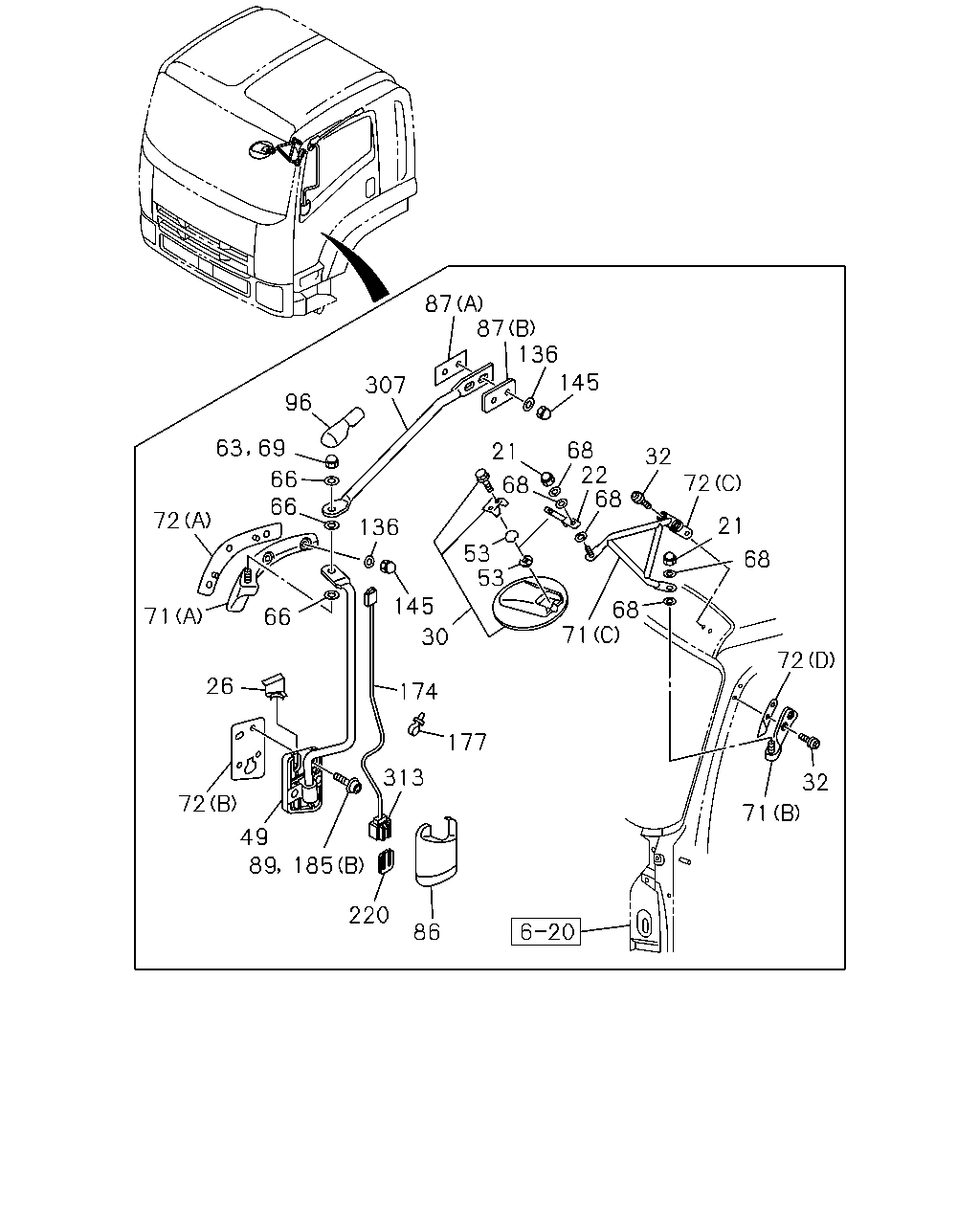

çizim 146326
87 87 136 145 307 96 68 22 68 21 32 66 66 72 68 72 21 136 53 53 68 145 68 71 71 66 30 72 26 174 177 313 32 72 71 49 89 185 220 86 63 69
BalonParca AdiParca NoAdetTipApplied Date A B
21 NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9> M10 CAP NUT 		1-09984-134-0 02 1 0712- ● ●
22 STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-493-0 01 1 0712- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0712- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0712- ● ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> 		8-98055-994-0 01 1 0712- ● ●
32 SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9> M8X26 W/PL WASHER 		8-98067-249-2 04 1 0712- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98075-055-0 01 1 0712-1202 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-185-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98075-054-0 01 1 0712-1202 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-184-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-779-0 01 1 0712-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-201-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-778-0 01 1 0712-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-200-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-069-0 01 1 0712-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-213-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-068-0 01 1 0712-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-212-0 01 1 1203- ● ●
53 PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> ID=19.1 		1-71737-633-2 02 1 0712- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 0808- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0712- ● ●
68 WASHER; STAY
MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 05 1 0712-0805 ● ●
68 WASHER; STAY
MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0806- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 02 1 0712-0807 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 0801-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98092-492-3 01 1 0712- ● ●
72 SHEET
(B) 		8-98080-418-0 02 1 0712-0804 ● ●
72 SHEET
(B) 		8-98101-864-0 01 1 0805- ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 0712- ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 0712- ● ●
72 SHEET
(B) 		8-98101-865-0 01 1 0805- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98060-245-1 01 1 0712- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98064-776-0 01 1 0712- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0712- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0712- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 0712- ● ●
87 SPACER
(B) 		8-98063-789-0 02 1 0712- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0808- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0712- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0712- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0712- ● ●
174 HARNESS; MIRROR
MIR O/S RR VIEW LONG ARM<DH2> 		8-98136-172-0 02 1 0902- ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 0902- ● ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0902- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 0712-0807 ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0801-1202 ● ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1203- ● ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 0902- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0712- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0712- ● ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 0902- ● ●

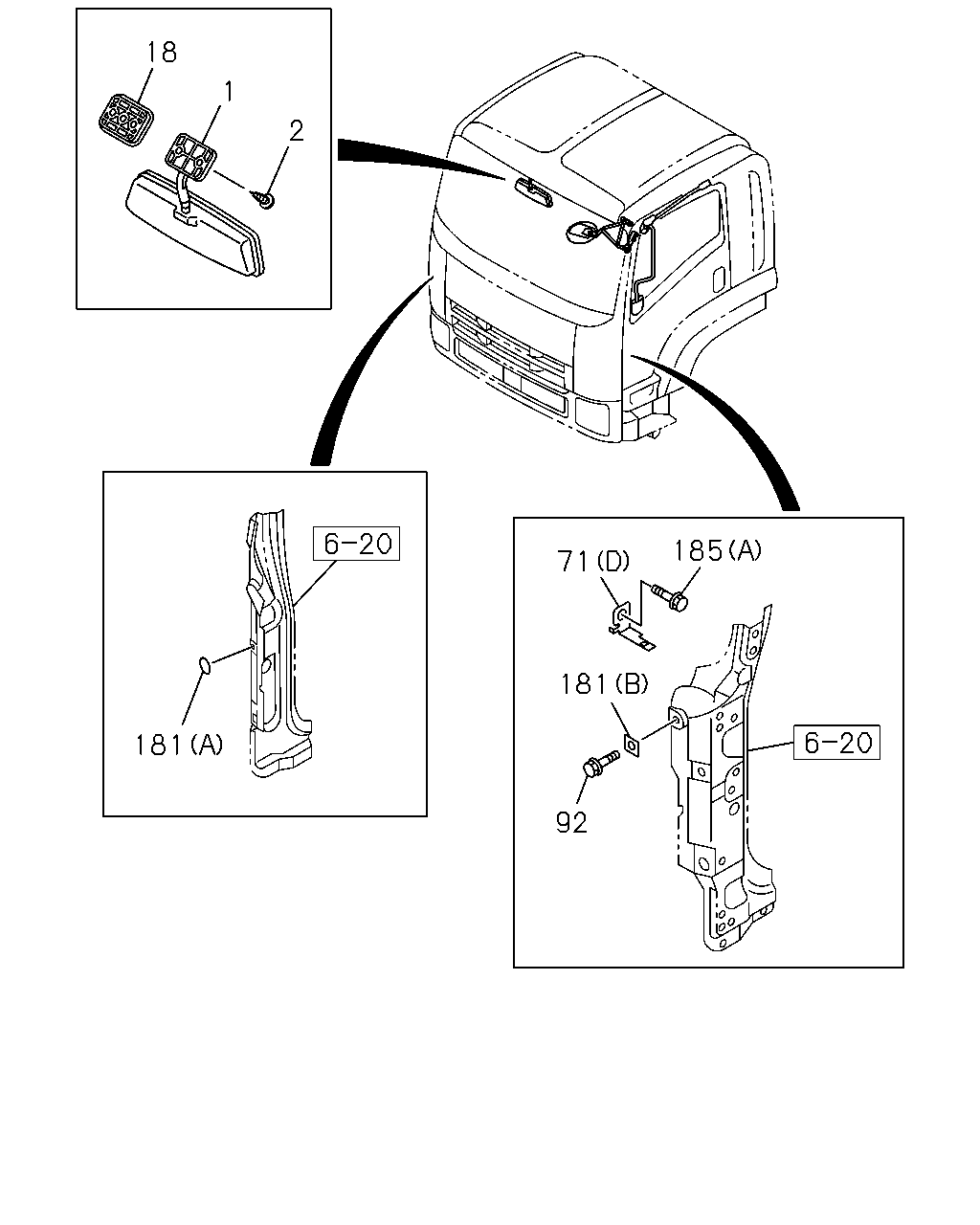

çizim 146670
18 1 2 185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
DARK GRAY 		8-97405-193-1 01 1 0712-0802 ● ●
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 0803- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0712- ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 0801-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98092-492-3 01 1 0712- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 0712- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 0712-0808 ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 0809- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0712- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 0712-0807 ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0801-1202 ● ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1203- ● ●

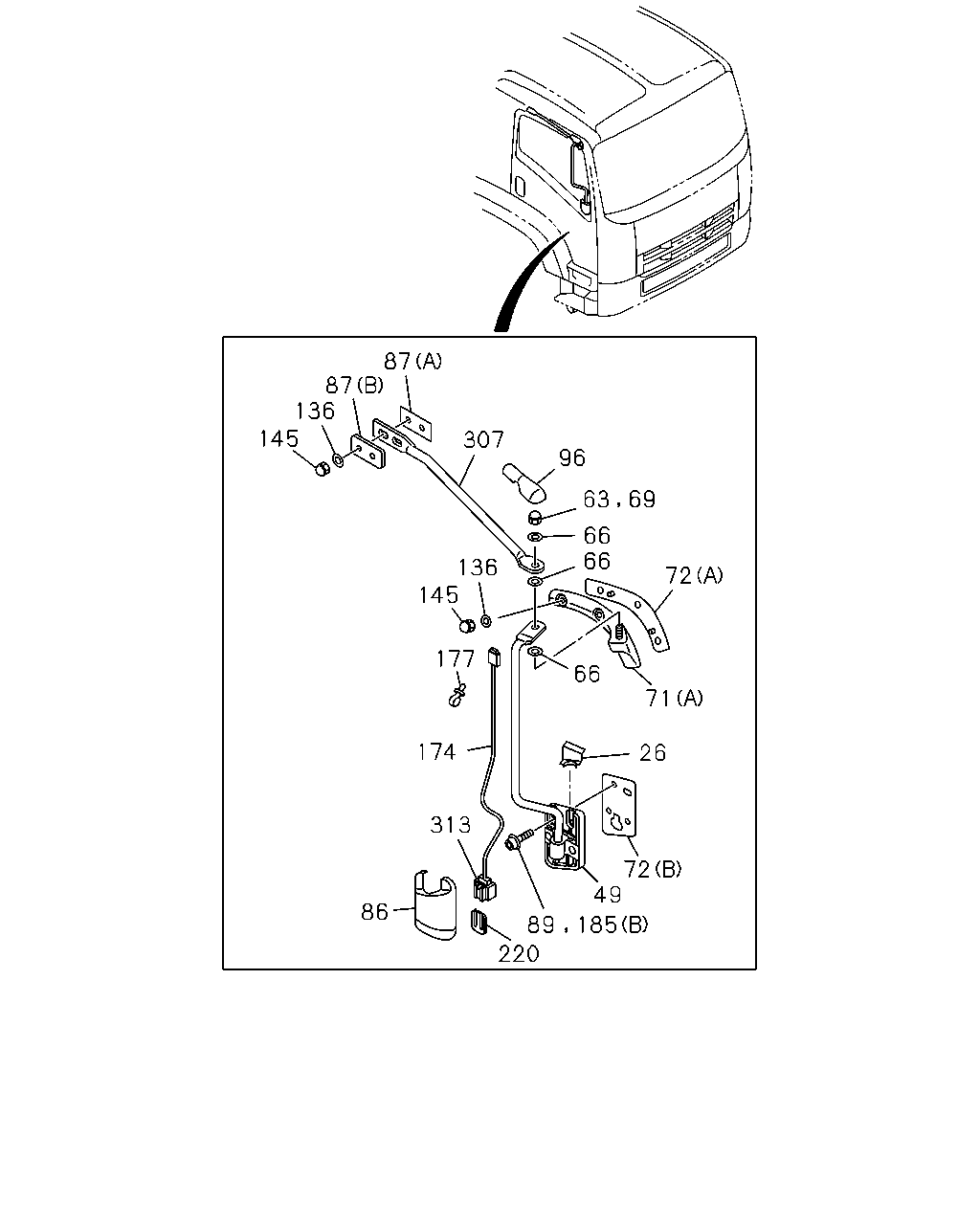

çizim 146677
87 87 136 145 307 96 66 66 136 145 72 177 66 71 174 26 313 72 49 86 89 185 220 63 69
BalonParca AdiParca NoAdetTipApplied Date A B
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0712- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0712- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98075-055-0 01 1 0712-1202 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-185-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98075-054-0 01 1 0712-1202 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-184-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-779-0 01 1 0712-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-201-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-778-0 01 1 0712-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-200-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-069-0 01 1 0712-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-213-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-068-0 01 1 0712-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-212-0 01 1 1203- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 0808- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0712- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 02 1 0712-0807 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 0801-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (D) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98092-492-3 01 1 0712- ● ●
72 SHEET
(B) 		8-98080-418-0 02 1 0712-0804 ● ●
72 SHEET
(B) 		8-98101-864-0 01 1 0805- ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 0712- ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 0712- ● ●
72 SHEET
(B) 		8-98101-865-0 01 1 0805- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98060-245-1 01 1 0712- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98064-776-0 01 1 0712- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0712- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0712- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 0712- ● ●
87 SPACER
(B) 		8-98063-789-0 02 1 0712- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0808- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0712- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0712- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0712- ● ●
174 HARNESS; MIRROR
MIR O/S RR VIEW LONG ARM<DH2> 		8-98136-172-0 02 1 0902- ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 0902- ● ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0902- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 0712-0807 ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0801-1202 ● ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1203- ● ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 0902- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0712- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0712- ● ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 0902- ● ●
