◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11419 - FSS(AUST)EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#62382) — 189 parça

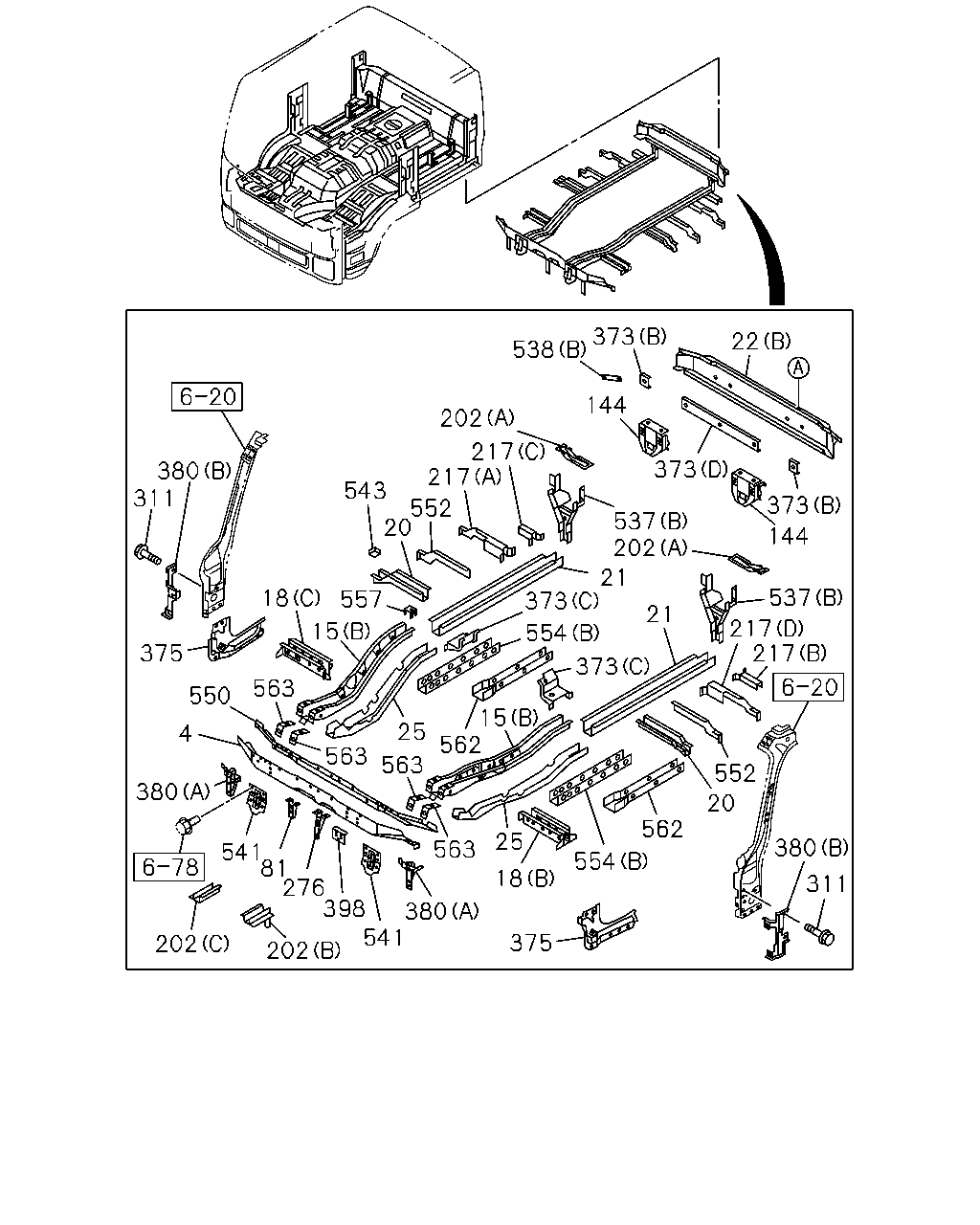

çizim 146306
311 380 217 217 144 373 22 373 537 202 21 21 537 552 20 562 554 18 375 25 563 380 541 398 202 202 276 81 541 380 4 550 375 563 563 563 562 25 15 18 311 380 15 373 554 373 557 20 543 552 217 217 202 538 373 144
BalonParca AdiParca NoAdetTipApplied Date A B
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 0712- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0712- ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0712- ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0712- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0712- ● ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-397-5 01 1 0712- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 0712- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-539-2 01 1 0712- ●
20 FRAME; FLOOR SIDE,REAR 8-98057-164-1 01 1 0712- ●
20 FRAME; FLOOR SIDE,REAR 8-98057-167-1 01 1 0712- ●
21 FRAME; FLOOR CENTER 8-97410-938-2 01 1 0712- ●
21 FRAME; FLOOR CENTER 8-97410-950-3 01 1 0712- ●
22 FRAME; FLOOR REAR
(A) 		8-97584-430-5 01 1 0712- ●
22 FRAME; FLOOR REAR
(B) 		8-97410-959-1 01 1 0712- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-225-4 01 1 0712- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-226-4 01 1 0712- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0712- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0712- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0712- ● ●
202 PANEL; CENTER MTG REINF
(A) 		8-97584-426-0 02 1 0712- ●
202 PANEL; CENTER MTG REINF
(B) 		8-97607-514-0 01 1 0712- ●
202 PANEL; CENTER MTG REINF
(C) 		8-97607-515-0 01 1 0712- ●
217 PANEL; SEAT STAND
(C) 		8-97410-945-1 01 1 0712- ●
217 PANEL; SEAT STAND
(B) 		8-97410-956-1 01 1 0712- ●
217 PANEL; SEAT STAND
(A) 		8-98057-178-1 01 1 0712- ●
217 PANEL; SEAT STAND
(D) 		8-98057-196-1 01 1 0712- ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0712- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0712- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-98081-349-3 01 1 0801- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(D) 		8-97410-963-1 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-97410-965-0 02 1 0712- ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 0712- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0712- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0712- ● ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-391-4 01 1 0712- ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-417-4 01 1 0712- ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-940-1 01 1 0712- ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-951-1 01 1 0712- ●
538 REINFORCEMENT ASM; AIR INT DUCT
(A) 		8-97610-207-2 01 1 0712- ●
538 REINFORCEMENT ASM; AIR INT DUCT
(B) 		8-97613-311-0 01 1 0712- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0712- ● ●
543 GUSSET; RR PILLAR,LWR 8-98024-396-0 01 1 0712- ●
543 GUSSET; RR PILLAR,LWR 8-98035-734-0 01 1 0712- ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 0712- ● ●
552 PANEL; STEP RR 8-98057-170-0 01 1 0712- ●
552 PANEL; STEP RR 8-98057-171-0 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 0712- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 0712- ●
557 PATCH; SEAT 8-98074-333-0 01 1 0712- ●
562 REINFORCEMENT; FLOOR 8-97410-939-3 02 1 0712- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0712- ● ●

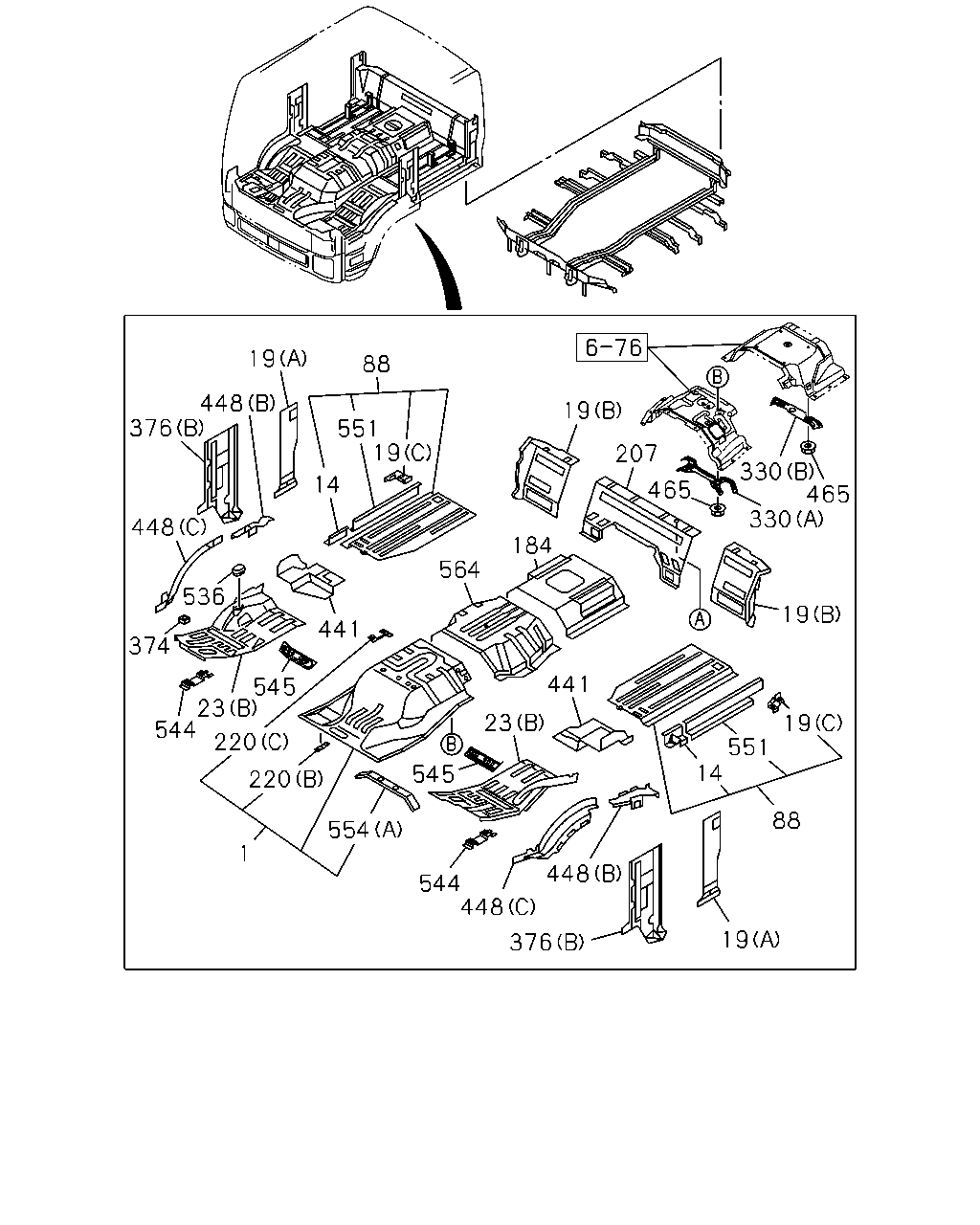

çizim 146666
19 448 376 448 536 374 544 23 545 220 220 14 551 88 19 564 441 554 545 23 441 19 184 207 465 330 330 465 19 19 551 14 88 19 448 376 448 544 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 8-97410-865-7 01 1 0712- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-047-0 01 1 0712- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-048-0 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-051-1 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-052-1 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-963-1 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-964-1 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-841-1 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-842-1 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-690-1 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-882-4 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-371-7 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-876-4 01 1 0712- ●
88 BOARD ASM; FLOOR 8-97615-912-2 01 1 0712- ●
88 BOARD ASM; FLOOR 8-97615-913-3 01 1 0712- ●
184 HOOD ASM; ENG RR 8-97410-869-1 01 1 0712- ●
207 PANEL; FLOOR,RR CTR 8-97410-927-3 01 1 0712- ●
220 PATCH
(A) 		8-97588-840-4 01 1 0712- ●
220 PATCH
(B) 		8-97589-603-3 01 1 0712- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 0712- ● ●
330 REINFORCEMENT; FLOOR
(A) 		8-98248-128-0 01 1 0712- ●
330 REINFORCEMENT; FLOOR
(B) 		8-98248-129-0 01 1 0712- ●
374 NUT; FLOOR
M6 		1-09984-110-0 03 1 0712- ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-554-4 01 1 0712-1403 ●
376 CLOSING; PILLAR,LWR
(A) 		8-98199-228-0 01 1 1404- ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-556-5 01 1 0712- ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-015-5 01 1 0712- ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-016-5 01 1 0712- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-98058-016-2 01 1 0712- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-98074-232-1 01 1 0712- ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 0712- ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 0712- ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 0712- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 0712- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 0712- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 0712- ●
465 NUT; REINFORCEMENT
M6 FLANGE 		0-91180-106-0 04 1 0712- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0712- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0712- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0712- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0712- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0712- ● ●
551 PANEL; FLOOR SIDE,CTR 8-98010-049-2 01 1 0712- ●
551 PANEL; FLOOR SIDE,CTR 8-98010-050-2 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 0712- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 0712- ●
564 PANEL; ENG HOOD EXT FRT 8-97610-271-1 01 1 0712- ●

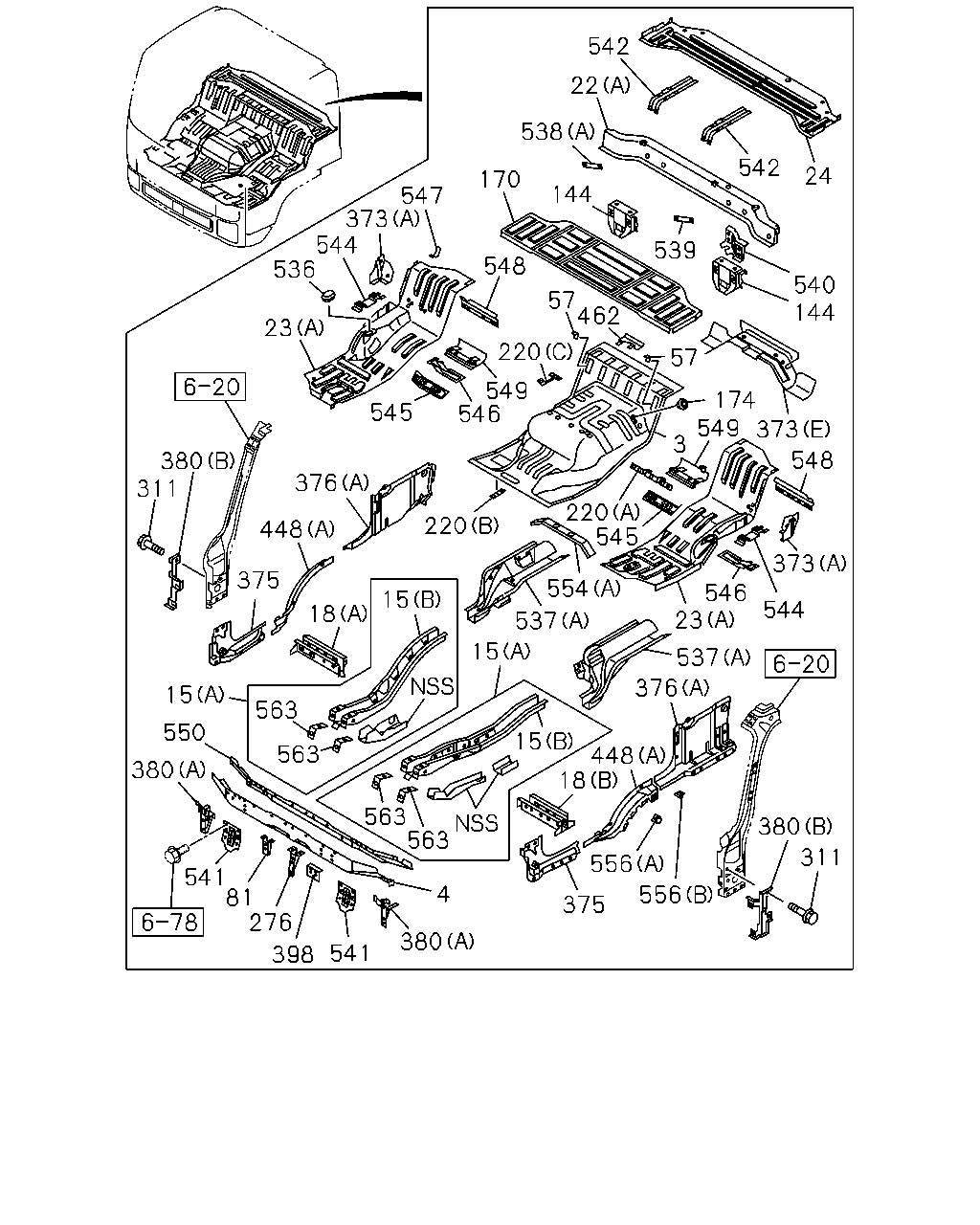

çizim 146684
542 22 538 542 24 170 144 547 373 544 536 539 548 540 144 57 462 23 220 57 549 546 174 549 545 373 3 548 380 311 376 220 545 220 448 373 375 554 546 23 15 544 18 537 15 537 376 15 563 550 563 15 448 18 380 563 563 380 311 556 556 541 81 276 4 375 380 541 398
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG 8-98081-357-4 01 1 0712- ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 0712- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0712- ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0712- ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0712- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0712- ● ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-397-5 01 1 0712- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 0712- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-539-2 01 1 0712- ●
22 FRAME; FLOOR REAR
(A) 		8-97584-430-5 01 1 0712- ●
22 FRAME; FLOOR REAR
(B) 		8-97410-959-1 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-690-1 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-882-4 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-371-7 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-876-4 01 1 0712- ●
24 PANEL; BED PAN 8-97584-377-6 01 1 0712- ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0712- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0712- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0712- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0712- ● ●
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 0712- ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0712- ●
220 PATCH
(A) 		8-97588-840-4 01 1 0712- ●
220 PATCH
(B) 		8-97589-603-3 01 1 0712- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 0712- ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0712- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0712- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-98081-349-3 01 1 0801- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(D) 		8-97410-963-1 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-97410-965-0 02 1 0712- ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 0712- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 0712- ● ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-554-4 01 1 0712-1403 ●
376 CLOSING; PILLAR,LWR
(A) 		8-98199-228-0 01 1 1404- ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-556-5 01 1 0712- ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-015-5 01 1 0712- ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-016-5 01 1 0712- ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0712- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0712- ● ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 0712- ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 0712- ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 0712- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 0712- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 0712- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 0712- ●
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 0712-1002 ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0712- ● ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-391-4 01 1 0712- ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-417-4 01 1 0712- ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-940-1 01 1 0712- ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-951-1 01 1 0712- ●
538 REINFORCEMENT ASM; AIR INT DUCT
(A) 		8-97610-207-2 01 1 0712- ●
538 REINFORCEMENT ASM; AIR INT DUCT
(B) 		8-97613-311-0 01 1 0712- ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 0712- ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0712- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0712- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 0712- ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0712- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0712- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0712- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0712- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 0712- ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0712- ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 0712- ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 0712- ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 0712- ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 0712- ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 0712- ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 0712- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 0712- ●
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 0712- ●
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 0712- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
