◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11419 - FSS(AUST)EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#62380) — 34 parça

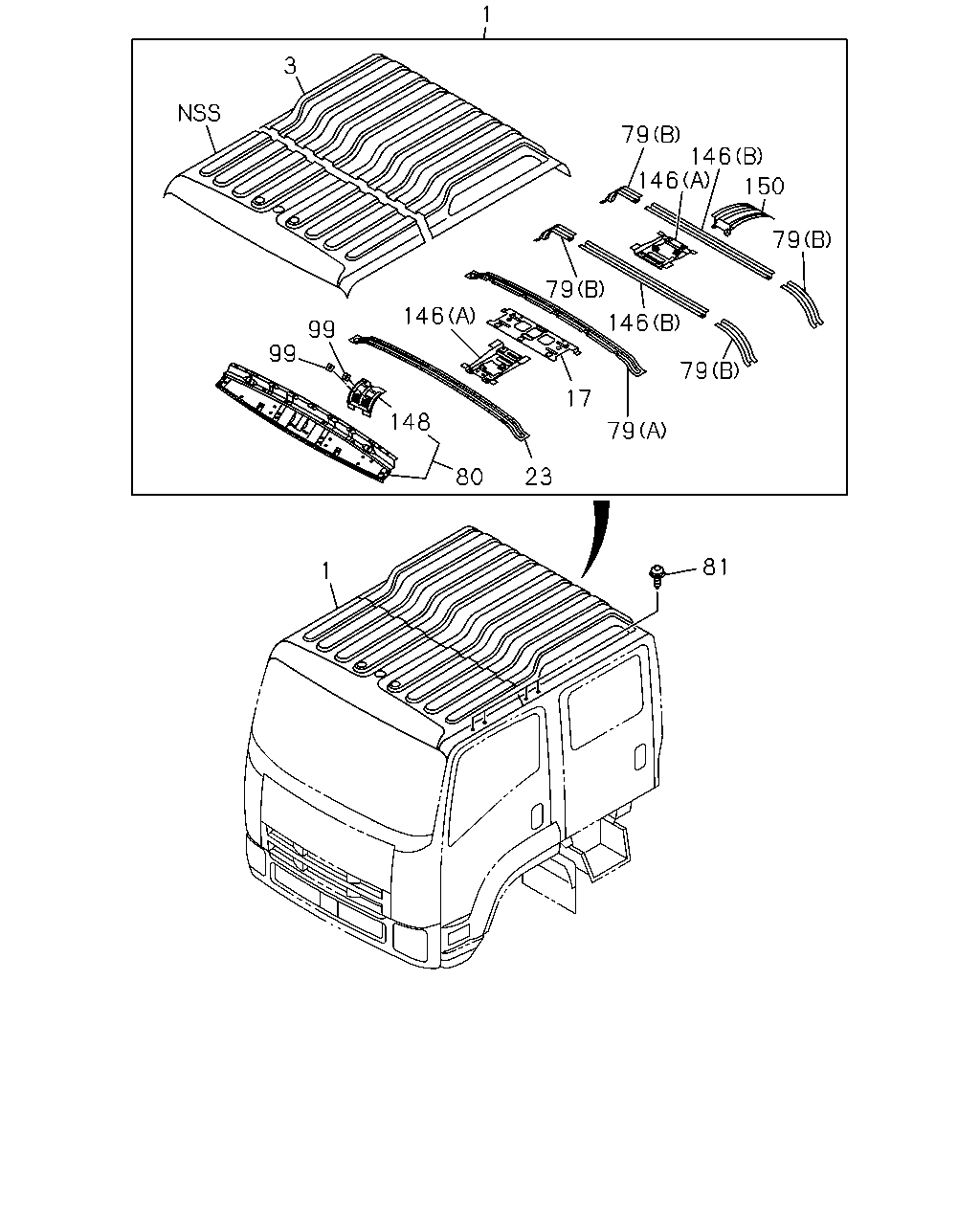

çizim 146673
1 3 79 146 146 150 79 79 146 146 99 99 79 17 148 79 23 80 81 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-170-7 01 1 0712- ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98017-276-6 01 1 0712- ●
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97587-641-7 01 1 0712- ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98065-284-6 01 1 0712- ●
3 PANEL; ROOF,RR 8-97411-040-1 01 1 0712- ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 0712- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 0712- ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-199-1 01 1 0712- ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(B) 		8-98008-023-0 04 1 0712- ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-191-4 01 1 0712- ● ●
81 BOLT; ROOF
M8X15.5 HEX SOCKET 		8-98028-744-0 08 1 0712-0910 ● ●
81 BOLT; ROOF
M8X15.5 HEX SOCKET 		8-98141-874-0 08 1 0911- ● ●
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 0712- ● ●
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98075-827-0 01 1 0712- ●
146 REINFORCEMENT; ROOM LAMP
(B) 		8-98010-736-1 02 1 0712- ●
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98075-827-0 02 1 0712- ●
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-015-1 01 1 0712- ● ●
150 REINFORCEMENT; ROOF BACK 8-98085-374-0 01 1 0712- ●

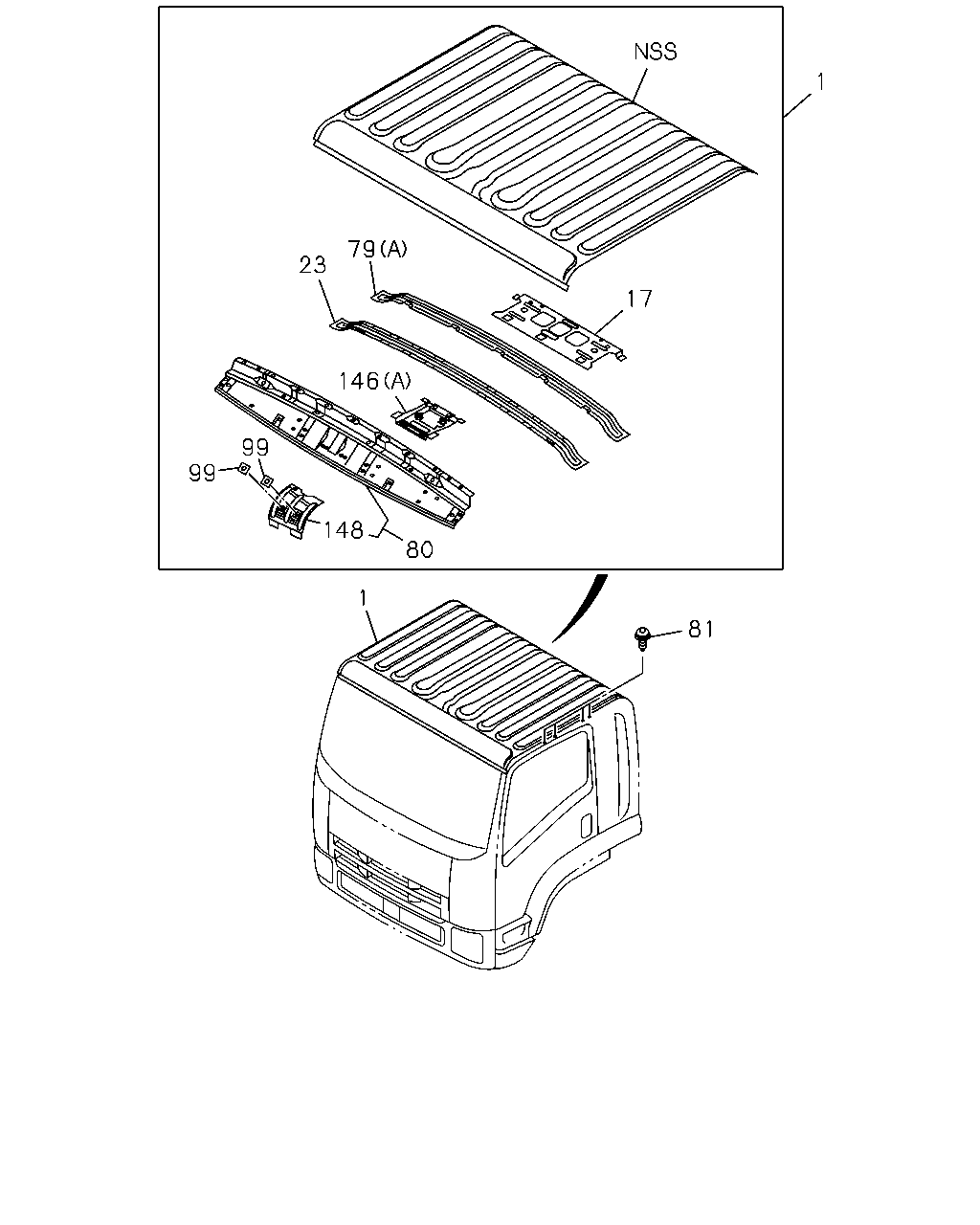

çizim 146680
1 79 23 17 146 99 99 148 80 1 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-170-7 01 1 0712- ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98017-276-6 01 1 0712- ●
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97587-641-7 01 1 0712- ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98065-284-6 01 1 0712- ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 0712- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 0712- ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-199-1 01 1 0712- ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(B) 		8-98008-023-0 04 1 0712- ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-191-4 01 1 0712- ● ●
81 BOLT; ROOF
M8X15.5 HEX SOCKET 		8-98028-744-0 08 1 0712-0910 ● ●
81 BOLT; ROOF
M8X15.5 HEX SOCKET 		8-98141-874-0 08 1 0911- ● ●
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 0712- ● ●
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98075-827-0 01 1 0712- ●
146 REINFORCEMENT; ROOM LAMP
(B) 		8-98010-736-1 02 1 0712- ●
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98075-827-0 02 1 0712- ●
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-015-1 01 1 0712- ● ●
