◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#6237) — 31 parça
çizim 7998
52 45 52 51
BalonParca AdiParca NoAdetTipApplied Date A B C
45 CLIP; FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) ID=11 L=20 		9-09525-035-0 02 1 9906- ●
45 CLIP; FUEL CUT CABLE
ID=11 L=20 		9-09525-035-0 02 1 9906- ●
51 BOLT; CLIP,FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9906- ●
51 BOLT; CLIP,FUEL CUT CABLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9906- ●
52 CABLE; FUEL CUT
ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> L=3334 		1-73907-534-0 01 1 9906- ●
52 CABLE; FUEL CUT
L=3334 		1-73907-534-0 01 1 9906- ●
52 CABLE; FUEL CUT
ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> L=3199 		1-73907-528-0 01 1 9906- ●

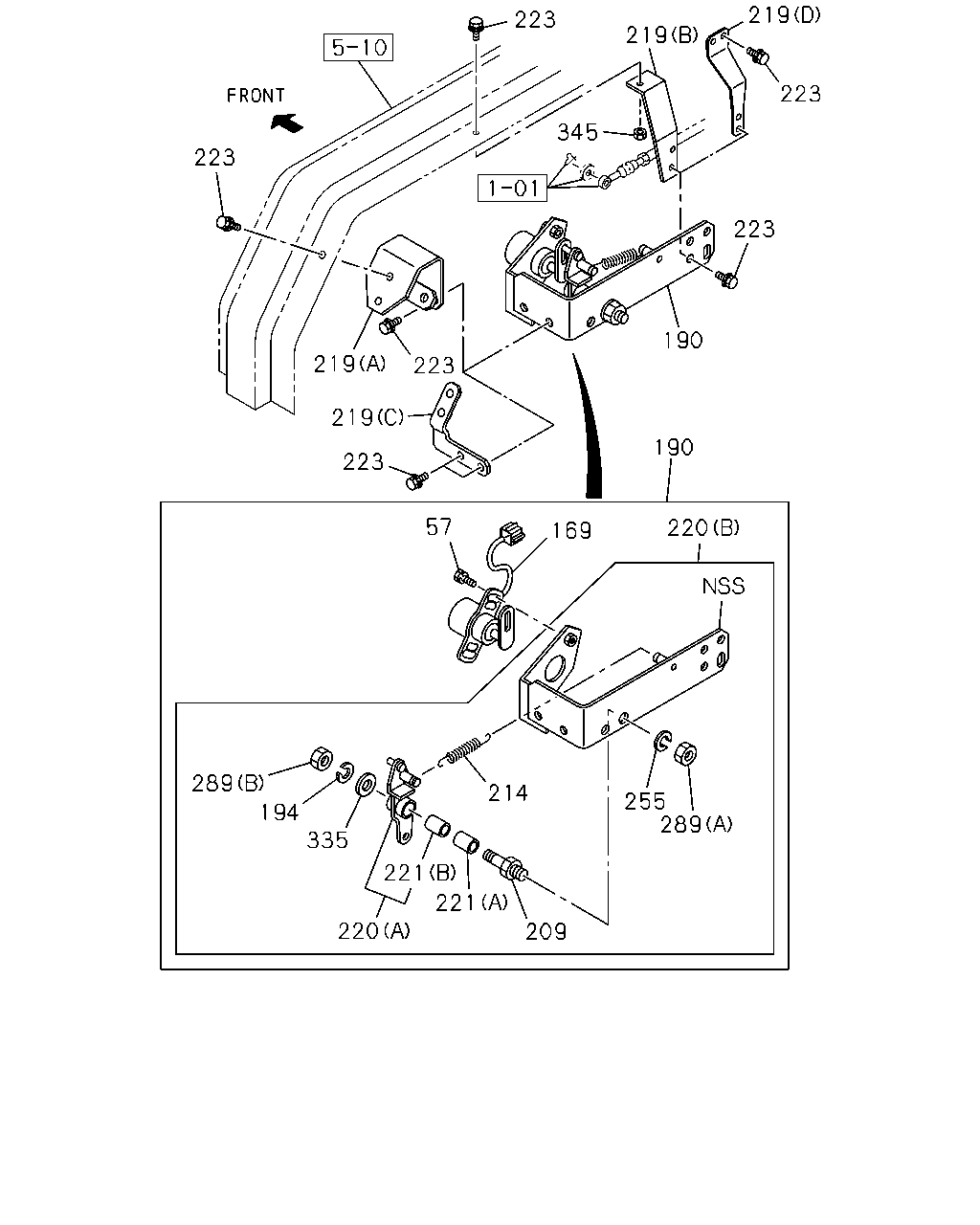

çizim 46170
219 223 219 223 345 223 223 190 219 223 219 190 223 57 220 169 289 214 255 289 194 335 221 221 220 209
BalonParca AdiParca NoAdetTipApplied Date A B C
57 BOLT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9906- ● ● ●
169 SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-81534-010-0 01 1 9906- ● ● ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-23335-504-0 01 1 9906- ● ● ●
194 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2 		9-09150-508-0 01 1 9906- ● ● ●
209 SHAFT; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-14336-002-1 01 1 9906- ● ● ●
214 SPRING; ENG CONT RETURN
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-94481-840-1 01 1 9906- ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23335-459-0 01 1 9906-9910 ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-23335-511-0 01 1 9911- ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-460-2 01 1 9906-9910 ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (D) 		1-23335-512-0 01 1 9911- ● ● ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23311-357-0 01 1 9906- ● ● ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-505-0 01 1 9906- ● ● ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-09330-057-0 01 1 9906- ● ● ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-09330-058-0 01 1 9906- ● ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE 		0-28680-820-0 07 1 9906-9910 ● ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE 		0-28680-820-0 08 1 9911-0008 ● ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE 		0-28680-820-0 06 1 0009- ● ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> M8X25 FLANGE 		0-28680-825-0 02 1 0009- ● ● ●
255 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2 		9-09150-510-0 01 1 9906- ● ● ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10 		9-09110-410-0 01 1 9906- ● ● ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8 		9-09111-408-0 01 1 9906- ● ● ●
335 WASHER; PL LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> 		5-09503-135-0 01 1 9906- ● ● ●
345 NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE 		0-91150-108-0 01 1 9906-9910 ● ● ●
345 NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE 		0-91150-108-0 02 1 9911- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
