Isuzu WW
▶
TRUCKS
▶
FSS
▶
11419 - FSS(AUST)EURO4
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

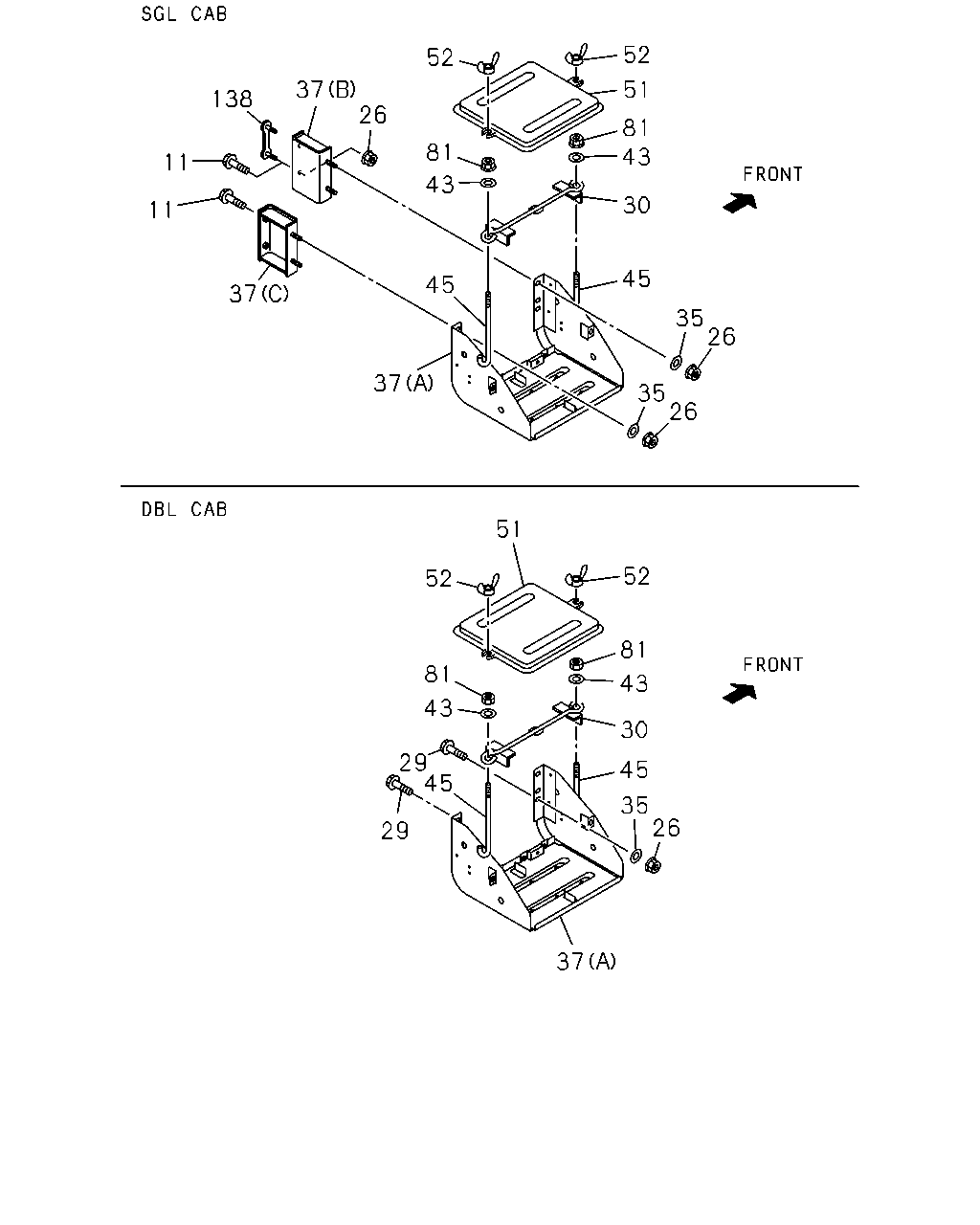

5-20 — BATTERY CARRIER
(#62362) — 21 parça
Tümü
A - FCS5MS
B - FCS5WS
52
52
37
26
51
138
81
43
81
11
43
30
11
45
45
37
35
26
37
35
26
51
52
52
81
81
43
43
30
29
45
45
35
26
29
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
11
BOLT; BRKT FIX
M10X35 FLANGE
0-28651-035-0
04
1
0712-0712
●
11
BOLT; BRKT FIX
M10X35 FLANGE
0-28651-035-0
02
1
0801-
●
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0712-
●
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0712-
●
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
0712-
●
30
PLATE; BATTERY
5-53615-004-1
01
1
0712-
●
●
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
0712-0712
●
●
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22
0-91614-610-0
04
1
0712-
●
●
37
BRACKET; BATTERY
(C)
8-98070-047-0
01
1
0712-0906
●
37
BRACKET; BATTERY
(C)
8-98144-194-0
01
1
0907-
●
37
BRACKET; BATTERY
(B)
8-98088-828-0
01
1
0712-
●
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
0712-
●
●
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
0712-
●
●
43
WASHER; PL,CLAMP
ID=8.4 OD=22
0-91614-708-0
02
1
0712-
●
●
45
ROD; TENSION,BATTERY
9-53616-615-0
02
1
0712-
●
●
51
COVER; BATTERY
8-97120-747-0
01
1
0712-
●
●
52
NUT; WING,COVER FIX
M8 WING NUT
0-91118-408-0
02
1
0712-
●
●
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
0712-
●
●
138
STUD
8-98066-802-0
01
1
0801-1010
●
138
STUD
8-98178-497-0
01
1
1011-1311
●
138
STUD
8-98255-710-0
01
1
1312-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
