◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11419 - FSS(AUST)EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#62356) — 16 parça

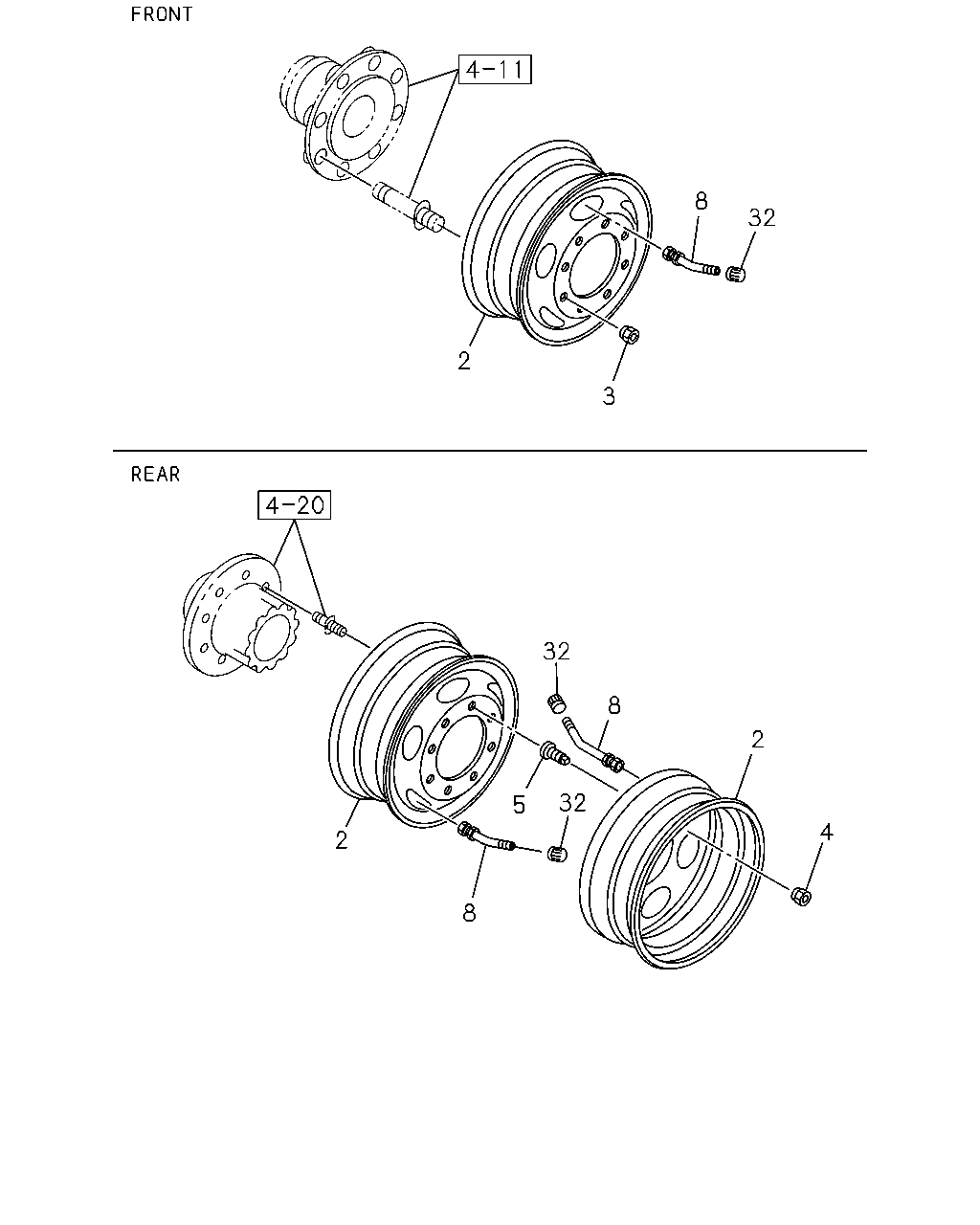

çizim 146601
8 32 2 3 32 8 2 32 5 4 2 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
FRONT 		1-42350-408-0 02 1 0712- ● ●
2 WHEEL; DISC
REAR 		1-42350-408-0 04 1 0712- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42350-408-0 01 1 0712-0811 ● ●
2 WHEEL; DISC
SPARE 		1-42350-408-0 01 1 0712-0811 ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42350-408-0 01 1 0812- ● ●
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 08 1 0712- ● ●
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 08 1 0712- ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 08 1 0712- ● ●
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 08 1 0712- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 0712- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 0712- ● ●
8 VALVE; TIRE
SPARE 		1-42370-020-3 01 1 0712-0811 ● ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42370-020-3 01 1 0812- ● ●
8 VALVE; TIRE
FRONT,REAR 		1-42370-020-3 06 1 0712- ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 07 1 0712- ● ●
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 06 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
