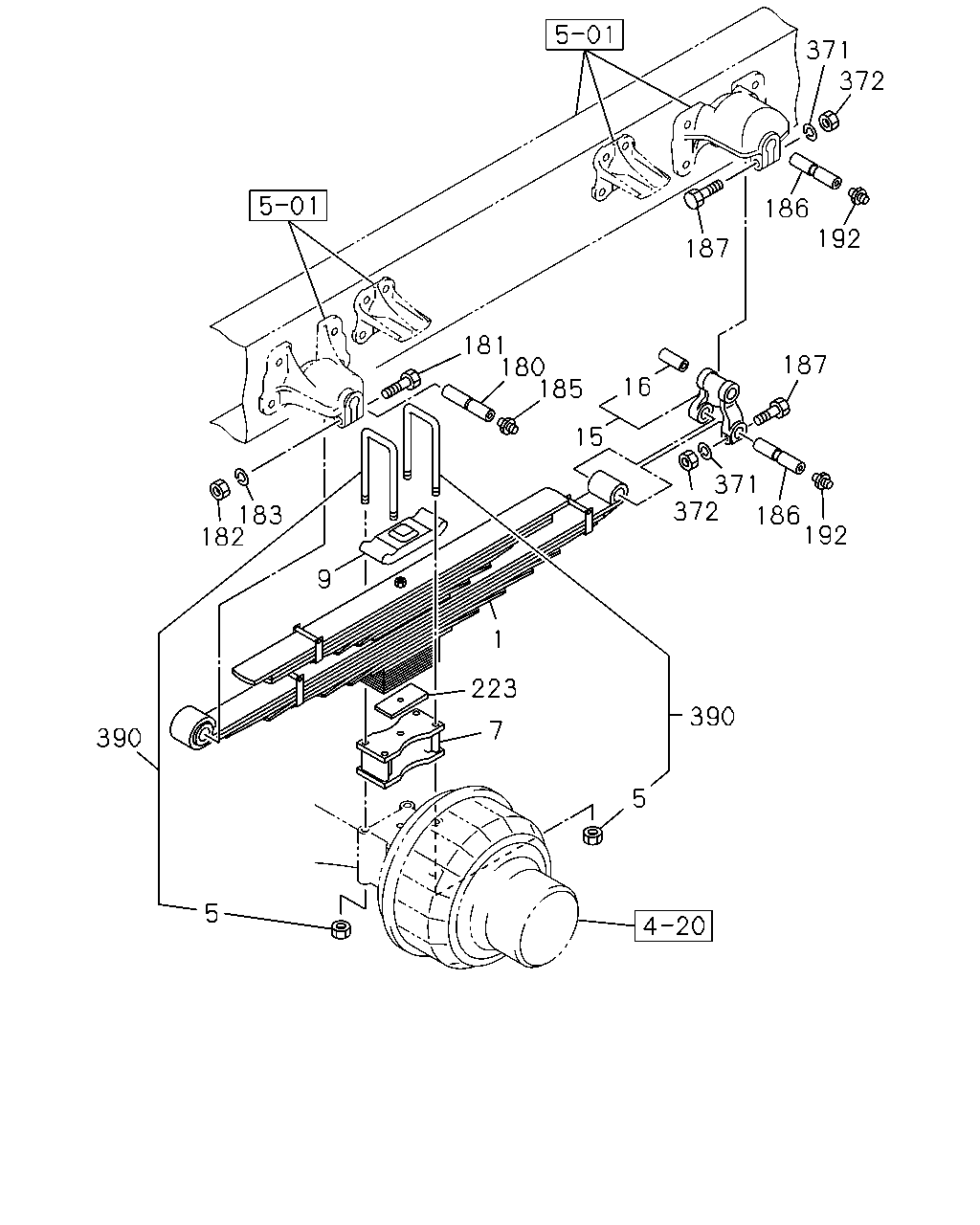

4-60 — REAR SUSPENSION
(#62354) — 20 parça
Tümü
A - FCS5MS
B - FCS5WS
371
372
186
192
187
181
180
185
187
16
15
371
372
183
182
186
192
9
1
223
390
7
390
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
8-98050-306-0
02
1
0712-
●
●
5
NUT; U-BOLT,RR SPR
M18 FLANGE
1-09440-039-1
08
1
0712-
●
●
7
SEAT; SPR,LWR
1-51385-090-1
02
1
0712-
●
●
9
PAD; U BOLT,RR SPR
1-51372-059-0
02
1
0712-
●
●
15
SHACKLE; RR SPR
1-51362-038-2
02
1
0712-
●
●
16
BUSHING; SHACKLE,RR SPR
ID=25
9-51151-032-0
02
1
0712-0902
●
●
16
BUSHING; SHACKLE,RR SPR
ID=25
8-98082-176-0
02
1
0903-
●
●
180
PIN; RR SPR
DO=25 L=115 PT1/8
1-51361-016-0
02
1
0712-
●
●
181
BOLT; SPR & SHACKLE
M12X70
0-10961-270-0
02
1
0712-
●
●
182
NUT; PIN,RR SPR
M12
0-91110-512-0
02
1
0712-
●
●
183
WASHER; LK,PIN,RR SPR
ID=12.2
0-91510-612-0
02
1
0712-
●
●
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
0712-
●
●
186
PIN; SHACKLE,RR SPR
DO=25 L=115 PT1/8
1-51361-016-0
04
1
0712-
●
●
187
BOLT; SPR & SHACKLE
M12X70
0-10961-270-0
04
1
0712-
●
●
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT
0-90301-410-0
04
1
0712-
●
●
223
SPACER; U BOLT,RR SPR
1-51377-329-1
02
1
0712-1006
●
●
223
SPACER; U BOLT,RR SPR
8-98063-307-0
02
1
1007-1212
●
●
371
WASHER; LK,SHACKLE
ID=12.2
0-91510-612-0
04
1
0712-
●
●
372
NUT; SHACKLE
M12
0-91110-512-0
04
1
0712-
●
●
390
U-BOLT SET; RR SPRING
L=540
1-87870-429-0
04
1
0712-
●
●
