1 |

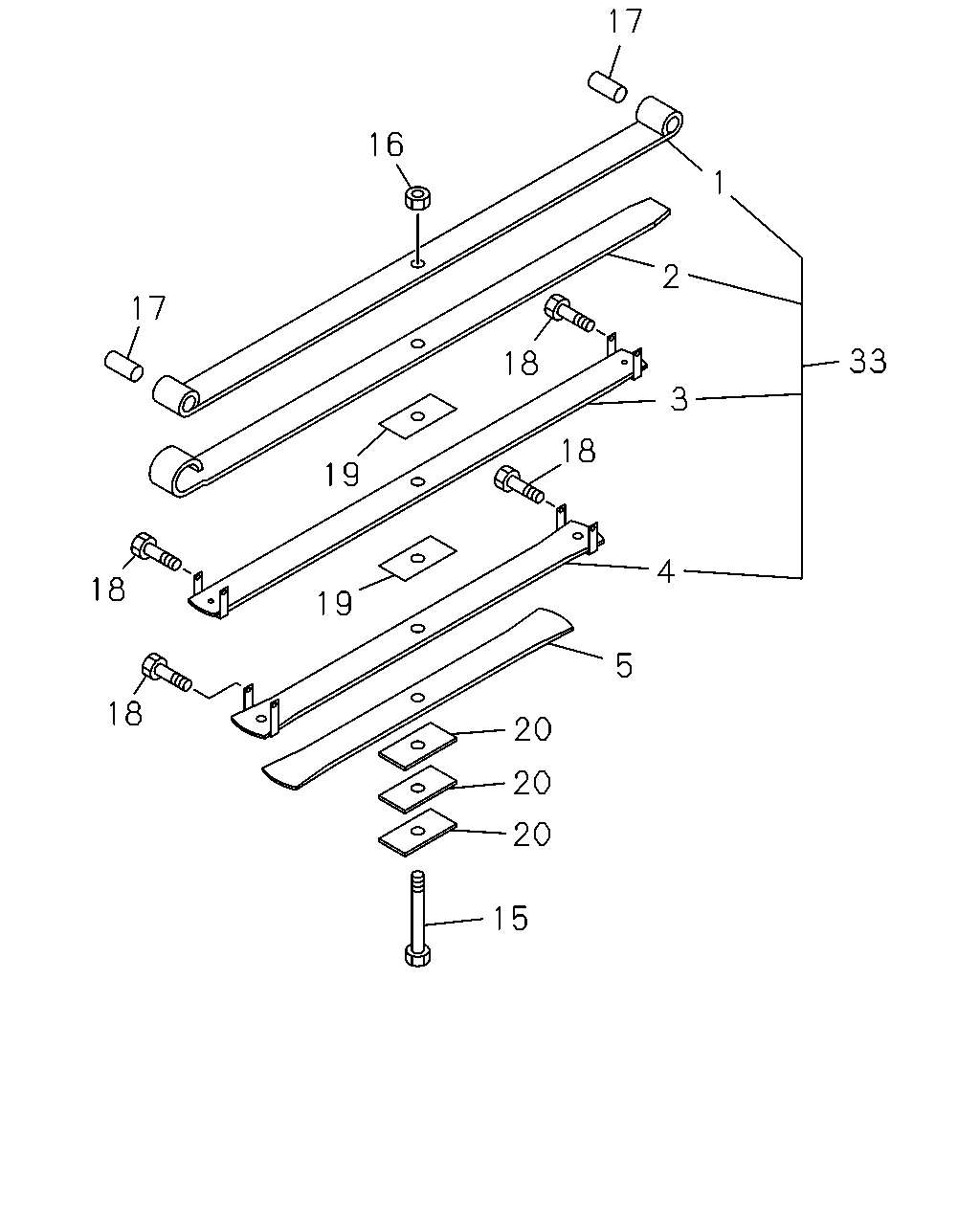

SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98073-724-1, C = 8-98138-339-0
|
1-51131-473-0 |
01 |
1 |
- |
| |
1 |
SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98138-338-0
|
8-98136-828-0 |
01 |
1 |
- |
| |
2 |
SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98073-724-1, C = 8-98138-339-0
|
8-98097-217-0 |
01 |
1 |
- |
| |
2 |
SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98138-338-0
|
8-98136-829-0 |
01 |
1 |
- |
| |
3 |
SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98073-724-1, C = 8-98138-339-0
|
8-98097-218-0 |
01 |
1 |
- |
| |
3 |
SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98138-338-0
|
8-98136-830-0 |
01 |
1 |
- |
| |
4 |
SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-98073-724-1, C = 8-98138-339-0
|
8-98097-219-0 |
01 |
1 |
- |
| |
4 |
SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-98138-338-0
|
8-98136-831-0 |
01 |
1 |
- |
| |
5 |
SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-98073-724-1, C = 8-98138-339-0
|
1-51135-473-0 |
01 |
1 |
- |
| |
5 |
SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-98138-338-0
|
8-98136-832-0 |
01 |
1 |
- |
| |
15 |
BOLT; CENTER,LEAF SPR,FRT
L=115
ASM PART: A = 8-98073-724-1, B = 8-98138-338-0,
C = 8-98138-339-0
|
8-98082-085-0 |
01 |
1 |
- |
| |
16 |
NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 8-98073-724-1, B = 8-98138-338-0,
C = 8-98138-339-0
|
9-99110-512-0 |
01 |
1 |
- |
| |
17 |
BUSHING; LEAF SPR,FRT
ID=25
ASM PART: A = 8-98073-724-1, B = 8-98138-338-0,
C = 8-98138-339-0
|
9-51151-032-0 |
02 |
1 |
- |
| |
18 |
BOLT; CLIP,LEAF SPR,FRT
M10X87
ASM PART: A = 8-98073-724-1, B = 8-98138-338-0,
C = 8-98138-339-0
|
1-09000-600-0 |
04 |
1 |
- |
| |
19 |
SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98073-724-1, B = 8-98138-338-0,
C = 8-98138-339-0
|
8-94448-734-0 |
02 |
1 |
- |
| |
20 |
SEAT; LEAF SPR,FRT
T=10 ASM PART: A = 8-98073-724-1, B = 8-98138-338-0,
C = 8-98138-339-0
|
1-51177-216-0 |
03 |
1 |
- |
| |
33 |
SPRING ASM; LEAF,FRT MAIN
ASM PART: A = 8-98073-724-1, C = 8-98138-339-0
|
8-98097-398-0 |
01 |
1 |
- |
| |
33 |
SPRING ASM; LEAF,FRT MAIN
ASM PART: B = 8-98138-338-0
|
8-98136-827-0 |
01 |
1 |
- |
