◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11419 - FSS(AUST)EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#62338) — 52 parça

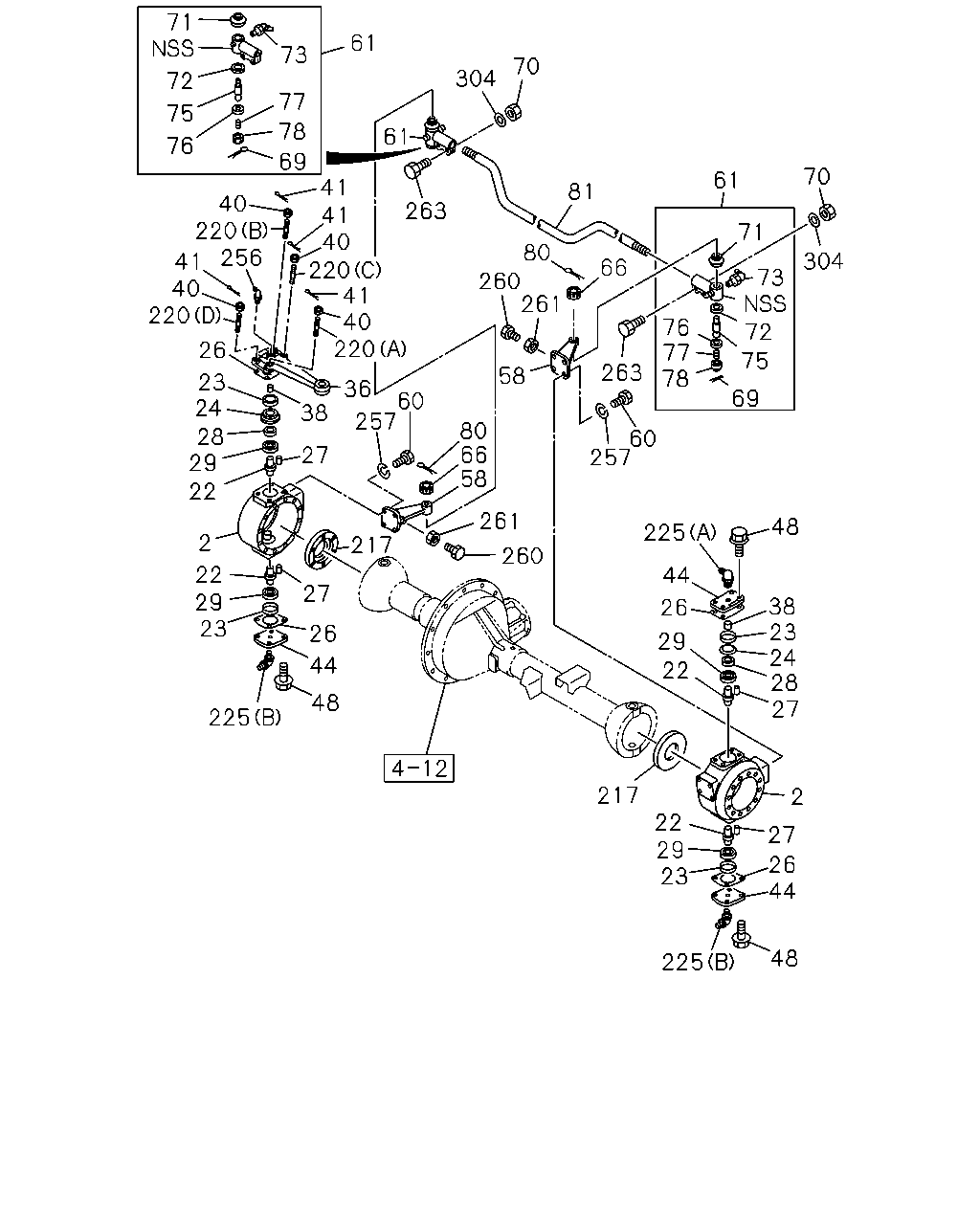

çizim 146588
71 61 73 70 304 72 77 75 78 61 76 69 70 61 41 41 40 220 41 40 220 81 40 220 256 263 71 80 304 41 40 220 73 72 66 260 261 76 77 78 26 75 263 58 23 24 36 69 60 257 38 80 66 58 28 29 60 257 27 22 261 48 225 2 217 260 22 29 23 44 27 38 23 24 28 27 26 26 29 44 22 48 225 217 2 22 29 23 27 26 44 48 225
BalonParca AdiParca NoAdetTipApplied Date A B
2 KNUCKLE; FRT AXLE 1-43242-006-3 01 1 0712- ● ●
2 KNUCKLE; FRT AXLE 9-43241-037-1 01 1 0712- ● ●
22 PIN; KING,FRT AXLE
H=50 		1-43264-003-0 04 1 0712- ● ●
23 COLLAR; DIST BRG 9-43267-004-0 04 1 0712- ● ●
24 RECEIVER; KING PIN 9-43269-008-0 02 1 0712- ● ●
26 SHIM; KING PIN,BRG
T=0.1 		9-43266-013-0 AR 1 0712- ● ●
26 SHIM; KING PIN,BRG
T=0.2 		9-43266-014-0 AR 1 0712- ● ●
26 SHIM; KING PIN,BRG
T=0.5 		9-43266-015-0 AR 1 0712- ● ●
27 PIN; STRAIGHT,KING PIN
OD=5 L=10 		9-08160-510-0 04 1 0712- ● ●
28 WASHER; KING PIN 9-43269-007-0 02 1 0712- ● ●
29 BEARING; KING PIN 9-00093-181-0 04 1 0712- ● ●
36 ARM; KNUCKLE 1-43261-025-0 01 1 0712- ● ●
38 KNOCK; KNUCKLE ARM 9-43269-009-1 02 1 0712- ● ●
40 NUT; KNUCKLE ARM
M14 SLOTTED 		0-91116-514-0 04 1 0712- ● ●
41 PIN; KNOCK,KNUCKLE ARM
OD=2.8 L=25 		0-81123-025-0 04 1 0712- ● ●
44 COVER; KING PIN 9-43265-007-1 03 1 0712- ● ●
48 BOLT; COVER
M14X35 FLANGE 		0-28861-435-0 12 1 0712- ● ●
58 ARM; TIE ROD 9-43262-017-1 01 1 0712- ● ●
58 ARM; TIE ROD 9-43263-011-1 01 1 0712- ● ●
60 BOLT; TIE ROD ARM
M16X40 		0-20951-640-0 08 1 0712- ● ●
61 ROD END; TIE ROD 1-43150-191-0 01 1 0712- ● ●
61 ROD END; TIE ROD 1-43150-192-0 01 1 0712- ● ●
66 NUT; TIE ROD END
M16 		9-09841-068-0 02 1 0712- ● ●
69 PIN; SPLIT,TIE ROD END 9-08114-065-0 02 1 0712-0808 ● ●
69 PIN; SPLIT,TIE ROD END 0-81124-065-0 02 1 0809- ● ●
70 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 0712- ● ●
71 BOOT; TIE ROD END 1-43159-009-0 02 1 0712-1202 ● ●
71 BOOT; TIE ROD END 1-43159-009-0 04 1 1203-1206 ● ●
71 BOOT; TIE ROD END 1-43159-009-0 02 1 1207- ● ●
72 SEAT; BALL,TIE ROD JOINT 9-44371-133-0 02 1 0712- ● ●
73 NIPPLE; GREASE,TIE ROD END
PT1/8 ELBOW 		0-90301-610-0 02 1 0712- ● ●
75 JOINT; BALL,DRAG LINK 1-44361-042-2 02 1 0712- ● ●
76 SEAT; SPR,DRAG LINK 9-44373-006-0 02 1 0712- ● ●
77 SPRING; TIE ROD END 9-09940-057-0 02 1 0712- ● ●
78 PLUG; ADJ,ROD END 1-44375-017-0 02 1 0712- ● ●
80 PIN; SPLIT,ROD END
OD=3.7 L=30 		0-81124-030-0 02 1 0712- ● ●
81 ROD; TIE 1-43151-048-0 01 1 0712- ● ●
217 WASHER; THRUST,SHAFT
LOCKING HUB FRT WHEEL DRIVE(W12) OD=100 ID=71 		1-43321-009-0 02 1 0712- ● ●
220 STUD; KNUCKLE ARM
(A) M14X54.5 L=72 		9-09830-131-0 01 1 0712- ● ●
220 STUD; KNUCKLE ARM
(B) M14X41.5 L=60.5 		9-09830-132-0 01 1 0712- ● ●
220 STUD; KNUCKLE ARM
(C) M14X46.5 L=72 		9-09830-133-0 01 1 0712- ● ●
220 STUD; KNUCKLE ARM
(D) M14X33.5 L=60.5 		9-09830-134-0 01 1 0712- ● ●
225 NIPPLE; GREASE,COVER
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0712- ● ●
225 NIPPLE; GREASE,COVER
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 0712- ● ●
256 NIPPLE; GREASE,KNUCKLE ARM
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0712- ● ●
257 WASHER; LK,TIE ROD ARM
ID=16.2 		0-91510-516-0 08 1 0712- ● ●
260 BOLT; STOPPER,TIE ROD ARM
M14X35 		0-20851-435-0 02 1 0712- ● ●
261 NUT; STOPPER BOLT
M14 		0-91111-514-0 02 1 0712- ● ●
263 BOLT; ROD END
M12X45 		9-92061-245-0 04 1 0712-0808 ● ●
263 BOLT; ROD END
M12X50 		0-20951-250-0 04 1 0809- ● ●
304 WASHER; PL
ID=12.5 		9-09164-512-0 04 1 0712-0808 ● ●
304 WASHER; PL
ID=12.5 		0-91614-512-0 04 1 0809- ● ●
