Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#62337) — 277 parça

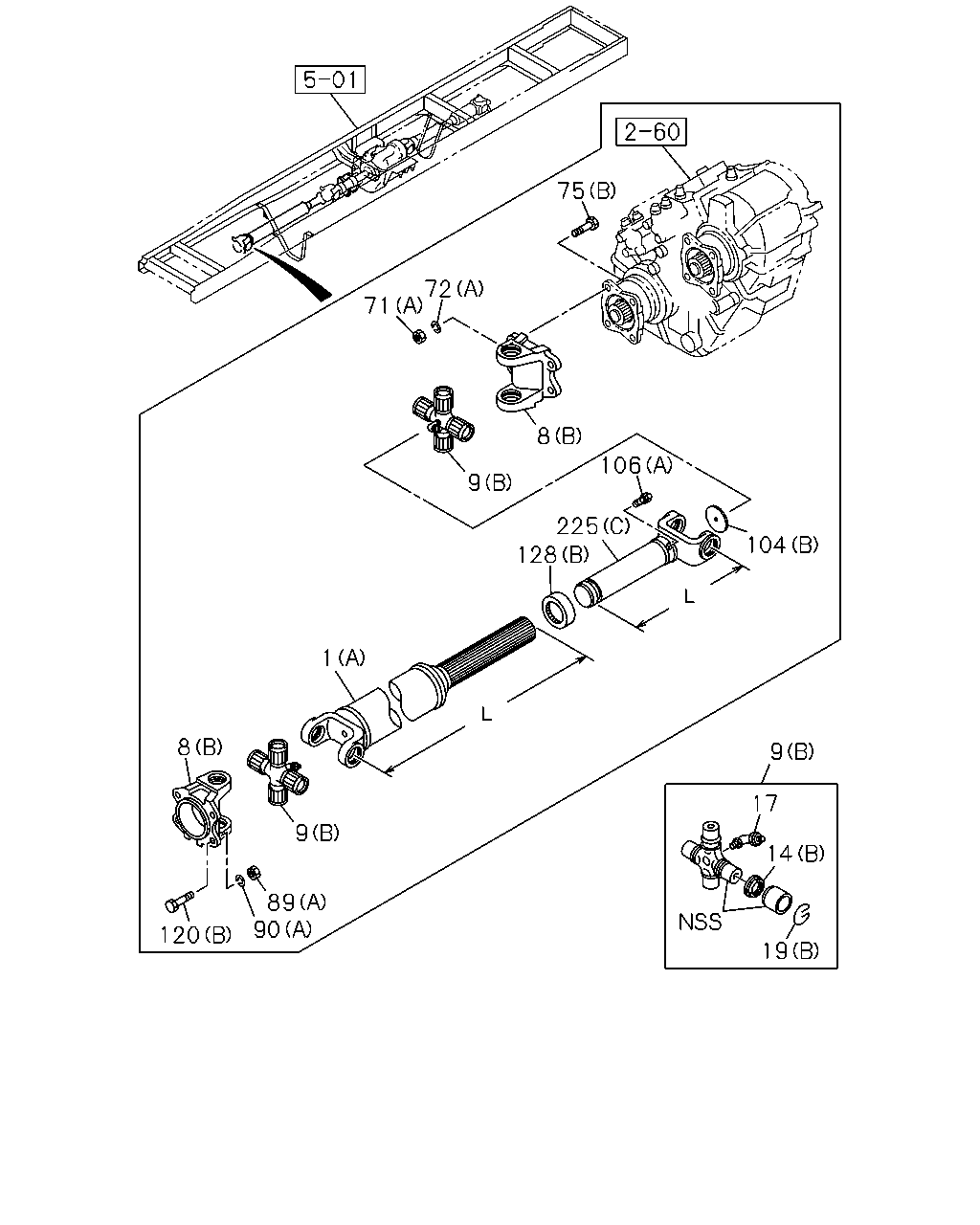

75 8 9 1 72 71 128 225 106 9 8 104 9 71 72 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (B) L=706	8-98069-691-0	01	1	0712-1009	●
1	SHAFT; PROP (B) L=721	8-98069-696-0	01	1	1010-	●
1	SHAFT; PROP (A) L=1497	8-98078-995-0	01	1	0712-	●	●
1	SHAFT; PROP MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=466	8-98116-108-0	01	1	0806-	●	●
1	SHAFT; PROP MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=526	8-98114-837-0	01	1	0806-	●	●
1	SHAFT; PROP (B) L=1201	8-98069-656-0	01	1	0712-1009		●
1	SHAFT; PROP (B) L=1231	8-98069-680-0	01	1	1010-		●
8	YOKE; FLANGE,PROP SHAFT (B) D=80	1-37211-037-4	02	1	0712-	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-056-3	02	1	0712-	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-056-3	02	1	0712-	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-102-1	AR	1	0712-	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-103-0	02	1	0712-1106	●	●
9	JOURNAL ASM; PROP SHAFT (B)	8-98020-789-1	02	1	1107-	●	●
9	JOURNAL ASM; PROP SHAFT (C)	8-98048-925-0	02	1	0712-0805	●	●
9	JOURNAL ASM; PROP SHAFT MLD6Q M/T(X5J) (C)	8-98048-925-0	02	1	0806-	●	●
9	JOURNAL ASM; PROP SHAFT (C)	8-98048-925-0	02	1	0806-	●	●
14	COVER; DUST,SPIDER (B)	1-37319-011-0	08	1	0712-1106	●	●
14	COVER; DUST,SPIDER (B)	8-98020-791-0	08	1	1107-	●	●
14	COVER; DUST,SPIDER (A)	1-37319-012-0	08	1	0712-	●	●
14	COVER; DUST,SPIDER (C)	8-98020-800-0	08	1	0712-0805	●	●
14	COVER; DUST,SPIDER MLD6Q M/T(X5J) (C)	8-98020-800-0	08	1	0806-	●	●
14	COVER; DUST,SPIDER (C)	8-98020-800-0	08	1	0806-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0712-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0712-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=1.95	1-09587-014-0	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.00	1-09587-015-2	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.05	1-09587-016-1	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0712-	●	●
71	NUT; YOKE (A) M12	0-91110-512-0	04	1	0712-	●	●
71	NUT; YOKE (B) M14	0-91110-514-0	04	1	0712-	●	●
71	NUT; YOKE (B) M14	0-91110-514-0	04	1	0712-	●	●
72	WASHER; LK,YOKE (A) ID=12.2	0-91510-612-0	04	1	0712-	●	●
72	WASHER; LK,YOKE (B) ID=14.2	0-91510-614-0	04	1	0712-	●	●
72	WASHER; LK,YOKE (B) ID=14.2	0-91510-614-0	04	1	0712-	●	●
75	BOLT; PROP SHAFT TO TRANS (B) M12X32	1-09000-076-1	04	1	0712-	●	●
75	BOLT; PROP SHAFT TO TRANS (A) M14X37	1-09000-121-0	04	1	0712-	●	●
104	PLUG; SLEEVE YOKE (B)	1-09600-014-0	01	1	0712-	●	●
104	PLUG; SLEEVE YOKE (A)	1-09600-064-0	01	1	0712-	●	●
104	PLUG; SLEEVE YOKE (A)	1-09600-064-0	01	1	0712-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	01	1	0712-0805	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT MLD6Q M/T(X5J) (B) M6 STRAIGHT	0-90301-406-0	01	1	0806-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	01	1	0806-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0712-0804	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0712-0804	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0805-0906	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT MZX6P M/T(RSW) (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0805-0906	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0907-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0907-	●	●
128	SEAL; SLEEVE (B)	1-37247-001-1	01	1	0712-	●	●
128	SEAL; SLEEVE (A)	1-37247-024-0	01	1	0712-	●	●
128	SEAL; SLEEVE (A)	1-37247-024-0	01	1	0712-	●	●
225	YOKE; SLEEVE,PROP SHAFT (C) L=228	1-37241-098-2	01	1	0712-	●	●
225	YOKE; SLEEVE,PROP SHAFT (A) L=254	8-98020-885-0	01	1	0712-0805	●	●
225	YOKE; SLEEVE,PROP SHAFT MLD6Q M/T(X5J) (A) L=254	8-98020-885-0	01	1	0806-	●	●
225	YOKE; SLEEVE,PROP SHAFT (A) L=254	8-98020-885-0	01	1	0806-	●	●
225	YOKE; SLEEVE,PROP SHAFT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241	1-37241-084-2	01	1	0712-0804	●	●
225	YOKE; SLEEVE,PROP SHAFT MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241	1-37241-084-2	01	1	0805-0906	●	●
225	YOKE; SLEEVE,PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241	1-37241-084-2	01	1	0907-	●	●
225	YOKE; SLEEVE,PROP SHAFT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271	1-37241-099-2	01	1	0712-0804	●	●
225	YOKE; SLEEVE,PROP SHAFT MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271	1-37241-099-2	01	1	0805-0906	●	●
225	YOKE; SLEEVE,PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271	1-37241-099-2	01	1	0907-	●	●

75 72 71 8 106 9 225 128 104 1 8 9 17 9 14 89 90 120 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (B) L=706	8-98069-691-0	01	1	0712-1009	●
1	SHAFT; PROP (B) L=721	8-98069-696-0	01	1	1010-	●
1	SHAFT; PROP (A) L=1497	8-98078-995-0	01	1	0712-	●	●
1	SHAFT; PROP MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=466	8-98116-108-0	01	1	0806-	●	●
1	SHAFT; PROP MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=526	8-98114-837-0	01	1	0806-	●	●
1	SHAFT; PROP (B) L=1201	8-98069-656-0	01	1	0712-1009		●
1	SHAFT; PROP (B) L=1231	8-98069-680-0	01	1	1010-		●
8	YOKE; FLANGE,PROP SHAFT (B) D=80	1-37211-037-4	02	1	0712-	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-056-3	02	1	0712-	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-056-3	02	1	0712-	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-102-1	AR	1	0712-	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-103-0	02	1	0712-1106	●	●
9	JOURNAL ASM; PROP SHAFT (B)	8-98020-789-1	02	1	1107-	●	●
9	JOURNAL ASM; PROP SHAFT (C)	8-98048-925-0	02	1	0712-0805	●	●
9	JOURNAL ASM; PROP SHAFT MLD6Q M/T(X5J) (C)	8-98048-925-0	02	1	0806-	●	●
9	JOURNAL ASM; PROP SHAFT (C)	8-98048-925-0	02	1	0806-	●	●
14	COVER; DUST,SPIDER (B)	1-37319-011-0	08	1	0712-1106	●	●
14	COVER; DUST,SPIDER (B)	8-98020-791-0	08	1	1107-	●	●
14	COVER; DUST,SPIDER (A)	1-37319-012-0	08	1	0712-	●	●
14	COVER; DUST,SPIDER (C)	8-98020-800-0	08	1	0712-0805	●	●
14	COVER; DUST,SPIDER MLD6Q M/T(X5J) (C)	8-98020-800-0	08	1	0806-	●	●
14	COVER; DUST,SPIDER (C)	8-98020-800-0	08	1	0806-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0712-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0712-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=1.95	1-09587-014-0	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.00	1-09587-015-2	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.05	1-09587-016-1	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0712-	●	●
71	NUT; YOKE (A) M12	0-91110-512-0	04	1	0712-	●	●
71	NUT; YOKE (B) M14	0-91110-514-0	04	1	0712-	●	●
71	NUT; YOKE (B) M14	0-91110-514-0	04	1	0712-	●	●
72	WASHER; LK,YOKE (A) ID=12.2	0-91510-612-0	04	1	0712-	●	●
72	WASHER; LK,YOKE (B) ID=14.2	0-91510-614-0	04	1	0712-	●	●
72	WASHER; LK,YOKE (B) ID=14.2	0-91510-614-0	04	1	0712-	●	●
75	BOLT; PROP SHAFT TO TRANS (B) M12X32	1-09000-076-1	04	1	0712-	●	●
75	BOLT; PROP SHAFT TO TRANS (A) M14X37	1-09000-121-0	04	1	0712-	●	●
89	NUT; YOKE TO RR AXLE (A) M12	0-91110-512-0	04	1	0712-	●	●
89	NUT; YOKE TO RR AXLE (B) M14	0-91110-514-0	04	1	0712-	●	●
90	WASHER; LK,YOKE TO RR AXLE (A) ID=12.2	0-91510-612-0	04	1	0712-	●	●
90	WASHER; LK,YOKE TO RR AXLE (B) ID=14.2	0-91510-614-0	04	1	0712-	●	●
104	PLUG; SLEEVE YOKE (B)	1-09600-014-0	01	1	0712-	●	●
104	PLUG; SLEEVE YOKE (A)	1-09600-064-0	01	1	0712-	●	●
104	PLUG; SLEEVE YOKE (A)	1-09600-064-0	01	1	0712-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	01	1	0712-0805	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT MLD6Q M/T(X5J) (B) M6 STRAIGHT	0-90301-406-0	01	1	0806-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	01	1	0806-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0712-0804	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0712-0804	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0805-0906	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT MZX6P M/T(RSW) (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0805-0906	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0907-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0907-	●	●
120	BOLT; YOKE TO RR AXLE (B) M12X32	1-09000-076-1	04	1	0712-	●	●
120	BOLT; YOKE TO RR AXLE (A) M14X37	1-09000-121-0	04	1	0712-	●	●
128	SEAL; SLEEVE (B)	1-37247-001-1	01	1	0712-	●	●
128	SEAL; SLEEVE (A)	1-37247-024-0	01	1	0712-	●	●
128	SEAL; SLEEVE (A)	1-37247-024-0	01	1	0712-	●	●
225	YOKE; SLEEVE,PROP SHAFT (C) L=228	1-37241-098-2	01	1	0712-	●	●
225	YOKE; SLEEVE,PROP SHAFT (A) L=254	8-98020-885-0	01	1	0712-0805	●	●
225	YOKE; SLEEVE,PROP SHAFT MLD6Q M/T(X5J) (A) L=254	8-98020-885-0	01	1	0806-	●	●
225	YOKE; SLEEVE,PROP SHAFT (A) L=254	8-98020-885-0	01	1	0806-	●	●
225	YOKE; SLEEVE,PROP SHAFT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241	1-37241-084-2	01	1	0712-0804	●	●
225	YOKE; SLEEVE,PROP SHAFT MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241	1-37241-084-2	01	1	0805-0906	●	●
225	YOKE; SLEEVE,PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241	1-37241-084-2	01	1	0907-	●	●
225	YOKE; SLEEVE,PROP SHAFT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271	1-37241-099-2	01	1	0712-0804	●	●
225	YOKE; SLEEVE,PROP SHAFT MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271	1-37241-099-2	01	1	0805-0906	●	●
225	YOKE; SLEEVE,PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271	1-37241-099-2	01	1	0907-	●	●

120 8 1 128 106 9 90 225 89 104 8 9 9 17 56 57 14 19 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (B) L=706	8-98069-691-0	01	1	0712-1009	●
1	SHAFT; PROP (B) L=721	8-98069-696-0	01	1	1010-	●
1	SHAFT; PROP (A) L=1497	8-98078-995-0	01	1	0712-	●	●
1	SHAFT; PROP MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=466	8-98116-108-0	01	1	0806-	●	●
1	SHAFT; PROP MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=526	8-98114-837-0	01	1	0806-	●	●
1	SHAFT; PROP (B) L=1201	8-98069-656-0	01	1	0712-1009		●
1	SHAFT; PROP (B) L=1231	8-98069-680-0	01	1	1010-		●
8	YOKE; FLANGE,PROP SHAFT (B) D=80	1-37211-037-4	02	1	0712-	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-056-3	02	1	0712-	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-056-3	02	1	0712-	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-102-1	AR	1	0712-	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-103-0	02	1	0712-1106	●	●
9	JOURNAL ASM; PROP SHAFT (B)	8-98020-789-1	02	1	1107-	●	●
9	JOURNAL ASM; PROP SHAFT (C)	8-98048-925-0	02	1	0712-0805	●	●
9	JOURNAL ASM; PROP SHAFT MLD6Q M/T(X5J) (C)	8-98048-925-0	02	1	0806-	●	●
9	JOURNAL ASM; PROP SHAFT (C)	8-98048-925-0	02	1	0806-	●	●
14	COVER; DUST,SPIDER (B)	1-37319-011-0	08	1	0712-1106	●	●
14	COVER; DUST,SPIDER (B)	8-98020-791-0	08	1	1107-	●	●
14	COVER; DUST,SPIDER (A)	1-37319-012-0	08	1	0712-	●	●
14	COVER; DUST,SPIDER (C)	8-98020-800-0	08	1	0712-0805	●	●
14	COVER; DUST,SPIDER MLD6Q M/T(X5J) (C)	8-98020-800-0	08	1	0806-	●	●
14	COVER; DUST,SPIDER (C)	8-98020-800-0	08	1	0806-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0712-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0712-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=1.95	1-09587-014-0	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.00	1-09587-015-2	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.05	1-09587-016-1	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0712-	●	●
56	NUT; YOKE M14	0-91110-514-0	04	1	0712-	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0712-	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0712-	●	●
89	NUT; YOKE TO RR AXLE (A) M12	0-91110-512-0	04	1	0712-	●	●
89	NUT; YOKE TO RR AXLE (B) M14	0-91110-514-0	04	1	0712-	●	●
90	WASHER; LK,YOKE TO RR AXLE (A) ID=12.2	0-91510-612-0	04	1	0712-	●	●
90	WASHER; LK,YOKE TO RR AXLE (B) ID=14.2	0-91510-614-0	04	1	0712-	●	●
104	PLUG; SLEEVE YOKE (B)	1-09600-014-0	01	1	0712-	●	●
104	PLUG; SLEEVE YOKE (A)	1-09600-064-0	01	1	0712-	●	●
104	PLUG; SLEEVE YOKE (A)	1-09600-064-0	01	1	0712-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	01	1	0712-0805	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT MLD6Q M/T(X5J) (B) M6 STRAIGHT	0-90301-406-0	01	1	0806-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	01	1	0806-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0712-0804	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0712-0804	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0805-0906	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT MZX6P M/T(RSW) (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0805-0906	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0907-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0907-	●	●
120	BOLT; YOKE TO RR AXLE (B) M12X32	1-09000-076-1	04	1	0712-	●	●
120	BOLT; YOKE TO RR AXLE (A) M14X37	1-09000-121-0	04	1	0712-	●	●
128	SEAL; SLEEVE (B)	1-37247-001-1	01	1	0712-	●	●
128	SEAL; SLEEVE (A)	1-37247-024-0	01	1	0712-	●	●
128	SEAL; SLEEVE (A)	1-37247-024-0	01	1	0712-	●	●
225	YOKE; SLEEVE,PROP SHAFT (C) L=228	1-37241-098-2	01	1	0712-	●	●
225	YOKE; SLEEVE,PROP SHAFT (A) L=254	8-98020-885-0	01	1	0712-0805	●	●
225	YOKE; SLEEVE,PROP SHAFT MLD6Q M/T(X5J) (A) L=254	8-98020-885-0	01	1	0806-	●	●
225	YOKE; SLEEVE,PROP SHAFT (A) L=254	8-98020-885-0	01	1	0806-	●	●
225	YOKE; SLEEVE,PROP SHAFT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241	1-37241-084-2	01	1	0712-0804	●	●
225	YOKE; SLEEVE,PROP SHAFT MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241	1-37241-084-2	01	1	0805-0906	●	●
225	YOKE; SLEEVE,PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241	1-37241-084-2	01	1	0907-	●	●
225	YOKE; SLEEVE,PROP SHAFT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271	1-37241-099-2	01	1	0712-0804	●	●
225	YOKE; SLEEVE,PROP SHAFT MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271	1-37241-099-2	01	1	0805-0906	●	●
225	YOKE; SLEEVE,PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271	1-37241-099-2	01	1	0907-	●	●

75 8 5 128 107 9 106 72 225 71 104 8 9 9 71 72 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	YOKE; STUB,PROP SHAFT POWER TAKE OFF-FLYWHEEL(6SZ) L=347	1-37171-090-1	01	1	0712-0804	●	●
5	YOKE; STUB,PROP SHAFT MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) L=347	1-37171-090-1	01	1	0805-0906	●	●
5	YOKE; STUB,PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=347	1-37171-090-1	01	1	0907-	●	●
5	YOKE; STUB,PROP SHAFT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=387	1-37171-086-1	01	1	0712-0804	●	●
5	YOKE; STUB,PROP SHAFT MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=387	1-37171-086-1	01	1	0805-0906	●	●
5	YOKE; STUB,PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=387	1-37171-086-1	01	1	0907-	●	●
8	YOKE; FLANGE,PROP SHAFT (B) D=80	1-37211-037-4	02	1	0712-	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-056-3	02	1	0712-	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-056-3	02	1	0712-	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-102-1	AR	1	0712-	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-103-0	02	1	0712-1106	●	●
9	JOURNAL ASM; PROP SHAFT (B)	8-98020-789-1	02	1	1107-	●	●
9	JOURNAL ASM; PROP SHAFT (C)	8-98048-925-0	02	1	0712-0805	●	●
9	JOURNAL ASM; PROP SHAFT MLD6Q M/T(X5J) (C)	8-98048-925-0	02	1	0806-	●	●
9	JOURNAL ASM; PROP SHAFT (C)	8-98048-925-0	02	1	0806-	●	●
14	COVER; DUST,SPIDER (B)	1-37319-011-0	08	1	0712-1106	●	●
14	COVER; DUST,SPIDER (B)	8-98020-791-0	08	1	1107-	●	●
14	COVER; DUST,SPIDER (A)	1-37319-012-0	08	1	0712-	●	●
14	COVER; DUST,SPIDER (C)	8-98020-800-0	08	1	0712-0805	●	●
14	COVER; DUST,SPIDER MLD6Q M/T(X5J) (C)	8-98020-800-0	08	1	0806-	●	●
14	COVER; DUST,SPIDER (C)	8-98020-800-0	08	1	0806-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0712-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0712-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=1.95	1-09587-014-0	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.00	1-09587-015-2	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (B) T=2.05	1-09587-016-1	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0712-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST (A) OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0712-	●	●
71	NUT; YOKE (A) M12	0-91110-512-0	04	1	0712-	●	●
71	NUT; YOKE (B) M14	0-91110-514-0	04	1	0712-	●	●
71	NUT; YOKE (B) M14	0-91110-514-0	04	1	0712-	●	●
72	WASHER; LK,YOKE (A) ID=12.2	0-91510-612-0	04	1	0712-	●	●
72	WASHER; LK,YOKE (B) ID=14.2	0-91510-614-0	04	1	0712-	●	●
72	WASHER; LK,YOKE (B) ID=14.2	0-91510-614-0	04	1	0712-	●	●
75	BOLT; PROP SHAFT TO TRANS (B) M12X32	1-09000-076-1	04	1	0712-	●	●
75	BOLT; PROP SHAFT TO TRANS (A) M14X37	1-09000-121-0	04	1	0712-	●	●
104	PLUG; SLEEVE YOKE (B)	1-09600-014-0	01	1	0712-	●	●
104	PLUG; SLEEVE YOKE (A)	1-09600-064-0	01	1	0712-	●	●
104	PLUG; SLEEVE YOKE (A)	1-09600-064-0	01	1	0712-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	01	1	0712-0805	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT MLD6Q M/T(X5J) (B) M6 STRAIGHT	0-90301-406-0	01	1	0806-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	01	1	0806-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0712-0804	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0712-0804	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0805-0906	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT MZX6P M/T(RSW) (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0805-0906	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0907-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0907-	●	●
107	COVER; RET,SLEEVE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-37249-060-1	01	1	0712-0804	●	●
107	COVER; RET,SLEEVE MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-37249-060-1	01	1	0805-0906	●	●
107	COVER; RET,SLEEVE MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-37249-060-1	01	1	0907-	●	●
128	SEAL; SLEEVE (B)	1-37247-001-1	01	1	0712-	●	●
128	SEAL; SLEEVE (A)	1-37247-024-0	01	1	0712-	●	●
128	SEAL; SLEEVE (A)	1-37247-024-0	01	1	0712-	●	●
225	YOKE; SLEEVE,PROP SHAFT (C) L=228	1-37241-098-2	01	1	0712-	●	●
225	YOKE; SLEEVE,PROP SHAFT (A) L=254	8-98020-885-0	01	1	0712-0805	●	●
225	YOKE; SLEEVE,PROP SHAFT MLD6Q M/T(X5J) (A) L=254	8-98020-885-0	01	1	0806-	●	●
225	YOKE; SLEEVE,PROP SHAFT (A) L=254	8-98020-885-0	01	1	0806-	●	●
225	YOKE; SLEEVE,PROP SHAFT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241	1-37241-084-2	01	1	0712-0804	●	●
225	YOKE; SLEEVE,PROP SHAFT MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241	1-37241-084-2	01	1	0805-0906	●	●
225	YOKE; SLEEVE,PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241	1-37241-084-2	01	1	0907-	●	●
225	YOKE; SLEEVE,PROP SHAFT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271	1-37241-099-2	01	1	0712-0804	●	●
225	YOKE; SLEEVE,PROP SHAFT MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271	1-37241-099-2	01	1	0805-0906	●	●
225	YOKE; SLEEVE,PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271	1-37241-099-2	01	1	0907-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
