Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#62336) — 256 parça

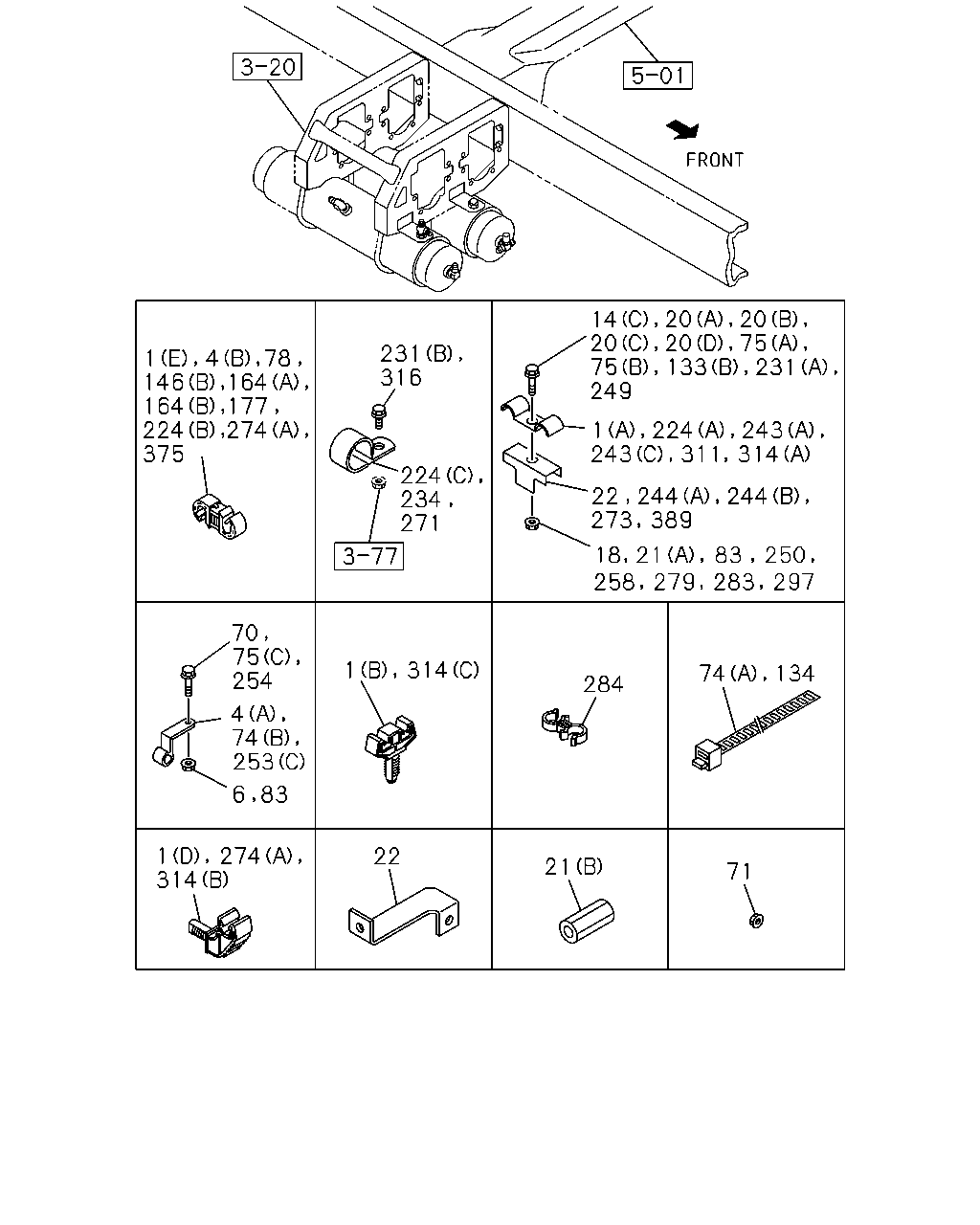

75 249 231 316 146 164 164 177 375 224 234 271 244 70 75 254 134 74 284 4 74 253 314 22 21 71 1 4 78 224 274 1 274 1 314 14 20 20 20 20 75 133 231 1 224 243 243 311 314 22 244 273 389 18 21 83 250 297 283 279 258 6 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE (A) ID=11 & 7 L=15 & 15	1-09700-659-0	03	1	0712-0802	●
1	CLIP; AIR PIPE (D) ID=6.35	1-09701-247-1	03	1	0803-	●	●
1	CLIP; AIR PIPE (D) ID=6.35	1-09701-247-1	03	1	0803-	●
1	CLIP; AIR PIPE (B)	8-98012-254-1	02	1	0712-0802	●
1	CLIP; AIR PIPE (D) ID=6.35	1-09701-247-1	04	1	0803-		●
1	CLIP; AIR PIPE (E) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-	●	●
1	CLIP; AIR PIPE (C) ID=11 L=16	0-95235-025-0	02	1	0712-0802		●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0803	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	06	1	0804-0811	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	06	1	0812-0812	●	●
4	CLIP; AIR PIPE (B) ID=10 & 12	1-09709-278-1	01	1	0812-	●	●
4	CLIP; AIR PIPE (A) ID=11 H=20 L=20	8-98033-780-0	01	1	0712-0802	●
4	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	0803-		●
4	CLIP; AIR PIPE (B) ID=6.35 & 6.35	1-09709-273-1	02	1	0812-	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	03	1	0812-	●
4	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	04	1	0906-	●
4	CLIP; AIR PIPE (C) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	04	1	0712-0802		●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0811		●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	04	1	0812-		●
4	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	02	1	0712-0811		●
4	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	06	1	0812-0909		●
4	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	08	1	0910-		●
4	CLIP; AIR PIPE (B) ID=10 & 12	1-09709-278-1	01	1	0712-0811		●
4	CLIP; AIR PIPE (B) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-		●
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
6	NUT; PIPE CLIP WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	01	1	0803-		●
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0712-0802		●
14	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0802		●
14	BOLT; PIPE CLIP (C) M8X25 FLANGE	0-28650-825-0	03	1	0803-0803	●	●
14	BOLT; PIPE CLIP (C) M8X25 FLANGE	0-28650-825-0	05	1	0804-	●	●
14	BOLT; PIPE CLIP (B) M8X40 FLANGE	0-28650-840-0	02	1	0712-0802		●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0712-0802	●
20	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	03	1	0712-0802	●
20	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	03	1	0803-	●	●
20	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	04	1	0712-0802	●
20	BOLT; CLIP (D) M8X45 FLANGE	0-28050-845-0	04	1	0803-	●	●
20	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	06	1	0712-0802		●
21	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	03	1	0712-0802	●
21	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
21	NUT; CLIP (B)	9-14149-158-0	03	1	0803-	●	●
22	BRACKET; CLIP	1-47475-427-1	01	1	0712-0802	●
70	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	0712-0802	●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	01	1	0803-		●
70	BOLT; CLIP,AIR PIPE M8X40 FLANGE	0-28650-840-0	04	1	0712-0802		●
71	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0803-	●	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	03	1	0803-	●	●
74	CLIP; NYLON TUBE (B) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0803-	●	●
75	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	05	1	0712-0802	●
75	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
75	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
78	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0712-0802	●
78	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	02	1	0803-		●
83	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
83	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
133	BOLT; BRKT (A) M6X20 FLANGE	0-28650-620-0	02	1	0712-0802	●
133	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	03	1	0712-0802	●
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0812-	●	●
146	CLIP; AIR PIPE (A) ID=10	1-09709-242-0	01	1	0712-0802	●
146	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	04	1	0803-	●
146	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	03	1	0712-0802		●
146	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	02	1	0803-		●
164	CLIP; AIR PIPE (B) ID=4.76 & 10.0	1-09709-305-0	04	1	0712-0811	●
164	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	06	1	0712-0811	●	●
164	CLIP; AIR PIPE (C) ID=10 & 12	1-09709-278-1	01	1	0712-0811		●
177	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0712-0811	●
177	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0811		●
224	CLIP; AIR PIPE (C) ID=9 L=16	0-95234-825-0	02	1	0712-0802	●
224	CLIP; AIR PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0712-0802	●
224	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	01	1	0712-0811	●
224	CLIP; AIR PIPE (D) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0811		●
231	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	0712-0802	●
231	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●
234	CLIP; UNION ID=11 L=16	0-95235-025-0	02	1	0803-	●	●
243	CLIP; AIR,PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	04	1	0712-0802	●
243	CLIP; AIR,PIPE (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0803-	●	●
243	CLIP; AIR,PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0712-0802		●
243	CLIP; AIR,PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	0712-0802		●
244	BRACKET; CLIP,AIR PIPE (B)	1-47475-427-1	01	1	0712-0802	●
244	BRACKET; CLIP,AIR PIPE (A) M8 W/NUT	1-47475-439-2	03	1	0712-0802	●	●
244	BRACKET; CLIP,AIR PIPE (B)	1-47475-427-1	01	1	0803-	●	●
249	BOLT; PIPE CLIP M8X45 FLANGE	0-28050-845-0	03	1	0803-	●	●
249	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0803-	●	●
250	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
250	NUT; PIPE CLIP	9-14149-158-0	03	1	0803-	●	●
253	CLIP; AIR PIPE (B) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	0712-0802		●
253	CLIP; AIR PIPE (C) ID=11 H=20 L=20	8-98033-780-0	04	1	0803-0803	●	●
253	CLIP; AIR PIPE (C) ID=11 H=20 L=20	8-98033-780-0	06	1	0804-	●	●
253	CLIP; AIR PIPE (A) ID=11 L=58	9-09917-135-2	01	1	0712-0802		●
254	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●
258	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0712-0802		●
258	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0803-0803	●	●
258	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0804-	●	●
271	CLIP; AIR PIPE FIX ID=11 L=20	0-95235-035-0	06	1	0712-	●	●
273	BRACKET; CLIP M8 W/NUT	1-47475-439-2	03	1	0712-0802	●
274	CLIP; AIR PIPE (A) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-	●
274	CLIP; AIR PIPE (B)	8-98012-254-1	03	1	0712-		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0712-0802	●
283	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0712-0802	●
284	CLIP; FLEX HOSE ID=18 & 18	8-94323-068-0	02	1	0712-0802	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0712-0802		●
311	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	05	1	0712-0802	●
311	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	0712-0802		●
314	CLIP; AIR PIPE (A) ID=6.35 & 6.35	1-09709-273-1	01	1	0712-0811	●
314	CLIP; AIR PIPE (A) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0811	●
314	CLIP; AIR PIPE (B) ID=6.35	1-09701-247-1	03	1	0803-0803	●	●
314	CLIP; AIR PIPE (C)	8-98012-254-1	03	1	0804-	●	●
316	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	04	1	0712-	●	●
375	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	08	1	0712-0811	●
389	BRACKET; UNION	1-47475-427-1	02	1	0712-0802	●

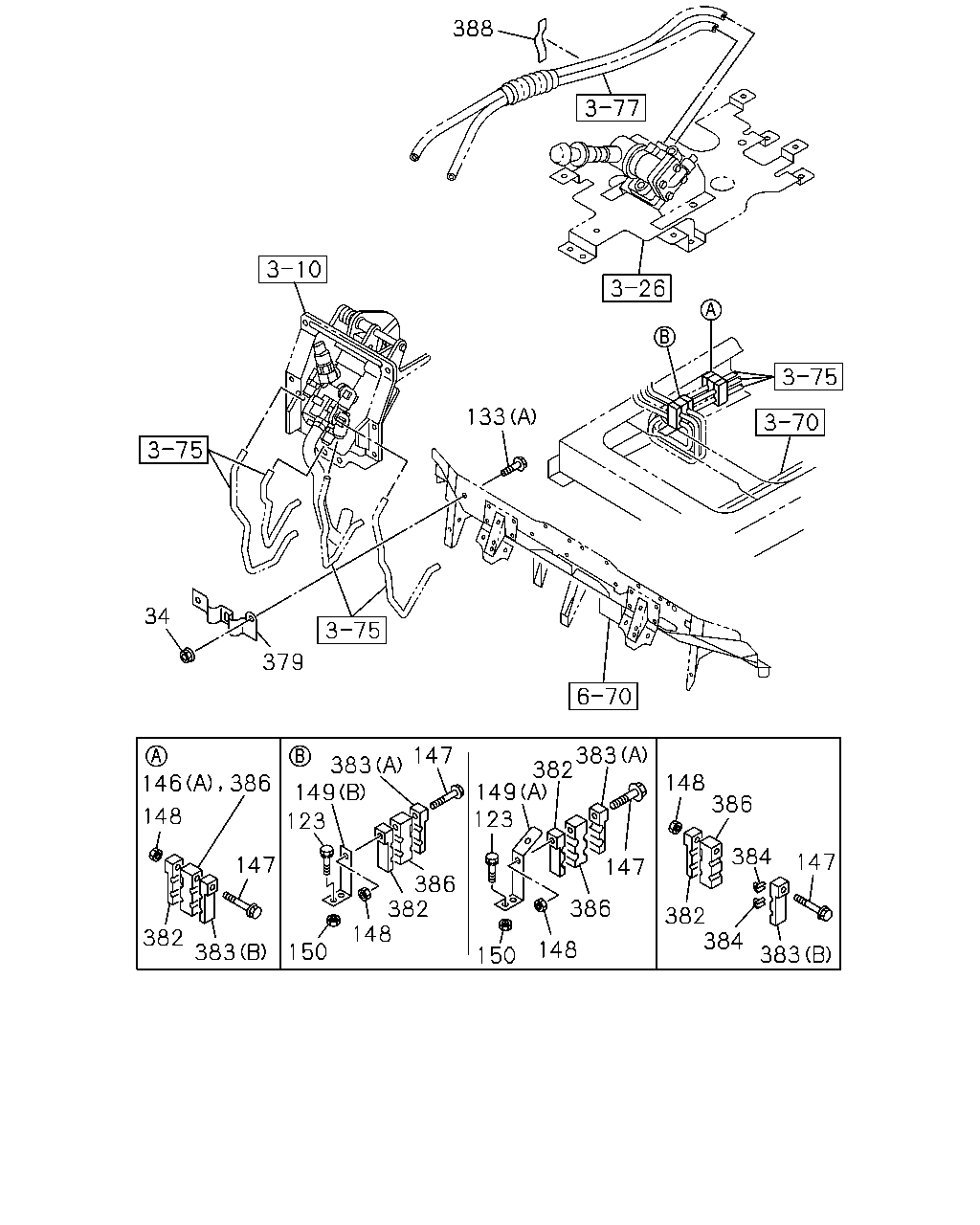

388 133 34 379 383 382 149 123 147 383 149 148 386 146 386 148 123 384 147 147 147 386 382 148 386 382 384 382 148 150 383 383 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0712-0802		●
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0803-	●	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
133	BOLT; BRKT (A) M6X20 FLANGE	0-28650-620-0	02	1	0712-0802	●
133	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	03	1	0712-0802	●
146	CLIP; AIR PIPE (A) ID=10	1-09709-242-0	01	1	0712-0802	●
146	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	04	1	0803-	●
146	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	03	1	0712-0802		●
146	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	02	1	0803-		●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	0712-0802	●	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	03	1	0803-	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	0803-		●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0712-0802	●	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0803-	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0803-		●
149	BRACKET; PIPE CLIP (A)	1-47479-986-1	01	1	0712-0802	●
149	BRACKET; PIPE CLIP (B)	1-47476-792-0	01	1	0712-0802		●
149	BRACKET; PIPE CLIP (B)	1-47476-792-0	01	1	0803-1409	●	●
149	BRACKET; PIPE CLIP (B)	8-98296-534-0	01	1	1410-	●	●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
379	BRACKET; NYLON TUBE	8-98030-950-0	01	1	0712-0802	●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	0712-0802		●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	0803-	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	03	1	0803-	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0712-0802	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	07	1	0803-0803	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	06	1	0804-	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0803-		●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	03	1	0803-	●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	04	1	0712-0802	●	●
383	CLIP; LWR (B) ID=10 & 10	1-09709-243-0	07	1	0803-0803	●	●
383	CLIP; LWR (B) ID=10 & 10	1-09709-243-0	06	1	0804-	●	●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	04	1	0803-		●
384	COLLAR ID=6	1-47459-010-0	02	1	0712-0802		●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	0712-0802	●	●
386	CLIP; CENTER ID=10	1-09709-242-0	03	1	0803-	●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	0803-		●
388	SEAL 100X40	1-72498-022-1	03	1	0712-	●	●

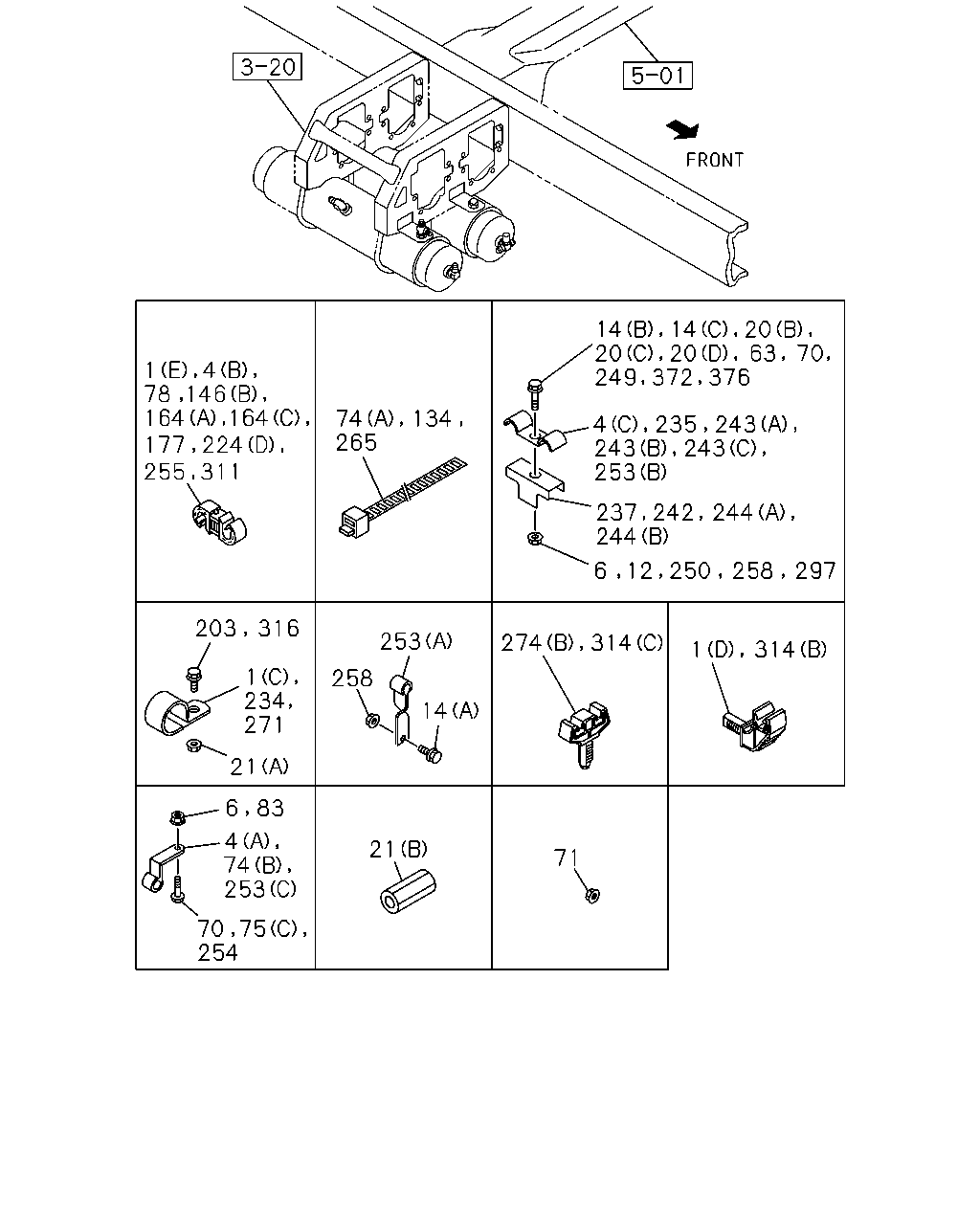

14 164 164 74 265 134 253 244 6 203 316 253 1 314 1 234 271 258 14 21 4 74 253 21 71 254 1 4 78 146 177 224 255 311 14 20 20 20 63 70 376 372 249 4 235 243 243 243 237 242 244 12 250 258 297 314 274 70 75 6 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE (A) ID=11 & 7 L=15 & 15	1-09700-659-0	03	1	0712-0802	●
1	CLIP; AIR PIPE (D) ID=6.35	1-09701-247-1	03	1	0803-	●	●
1	CLIP; AIR PIPE (D) ID=6.35	1-09701-247-1	03	1	0803-	●
1	CLIP; AIR PIPE (B)	8-98012-254-1	02	1	0712-0802	●
1	CLIP; AIR PIPE (D) ID=6.35	1-09701-247-1	04	1	0803-		●
1	CLIP; AIR PIPE (E) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-	●	●
1	CLIP; AIR PIPE (C) ID=11 L=16	0-95235-025-0	02	1	0712-0802		●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0803	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	06	1	0804-0811	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	06	1	0812-0812	●	●
4	CLIP; AIR PIPE (B) ID=10 & 12	1-09709-278-1	01	1	0812-	●	●
4	CLIP; AIR PIPE (A) ID=11 H=20 L=20	8-98033-780-0	01	1	0712-0802	●
4	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	0803-		●
4	CLIP; AIR PIPE (B) ID=6.35 & 6.35	1-09709-273-1	02	1	0812-	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	03	1	0812-	●
4	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	04	1	0906-	●
4	CLIP; AIR PIPE (C) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	04	1	0712-0802		●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0811		●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	04	1	0812-		●
4	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	02	1	0712-0811		●
4	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	06	1	0812-0909		●
4	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	08	1	0910-		●
4	CLIP; AIR PIPE (B) ID=10 & 12	1-09709-278-1	01	1	0712-0811		●
4	CLIP; AIR PIPE (B) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-		●
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
6	NUT; PIPE CLIP WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	01	1	0803-		●
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0712-0802		●
12	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
12	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	0712-0802		●
14	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-0802		●
14	BOLT; PIPE CLIP (C) M8X25 FLANGE	0-28650-825-0	03	1	0803-0803	●	●
14	BOLT; PIPE CLIP (C) M8X25 FLANGE	0-28650-825-0	05	1	0804-	●	●
14	BOLT; PIPE CLIP (B) M8X40 FLANGE	0-28650-840-0	02	1	0712-0802		●
20	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	03	1	0712-0802	●
20	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	03	1	0803-	●	●
20	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	04	1	0712-0802	●
20	BOLT; CLIP (D) M8X45 FLANGE	0-28050-845-0	04	1	0803-	●	●
20	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	06	1	0712-0802		●
21	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	03	1	0712-0802	●
21	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
21	NUT; CLIP (B)	9-14149-158-0	03	1	0803-	●	●
63	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	08	1	0712-0802		●
70	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	0712-0802	●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	01	1	0803-		●
70	BOLT; CLIP,AIR PIPE M8X40 FLANGE	0-28650-840-0	04	1	0712-0802		●
71	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0803-	●	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	03	1	0803-	●	●
74	CLIP; NYLON TUBE (B) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0803-	●	●
75	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	05	1	0712-0802	●
75	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
75	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0712-0802	●
78	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0712-0802	●
78	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	02	1	0803-		●
83	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802	●
83	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0812-	●	●
146	CLIP; AIR PIPE (A) ID=10	1-09709-242-0	01	1	0712-0802	●
146	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	04	1	0803-	●
146	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	03	1	0712-0802		●
146	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	02	1	0803-		●
164	CLIP; AIR PIPE (B) ID=4.76 & 10.0	1-09709-305-0	04	1	0712-0811	●
164	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	06	1	0712-0811	●	●
164	CLIP; AIR PIPE (C) ID=10 & 12	1-09709-278-1	01	1	0712-0811		●
177	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0712-0811	●
177	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0811		●
203	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-0802		●
224	CLIP; AIR PIPE (C) ID=9 L=16	0-95234-825-0	02	1	0712-0802	●
224	CLIP; AIR PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0712-0802	●
224	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	01	1	0712-0811	●
224	CLIP; AIR PIPE (D) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0811		●
234	CLIP; UNION ID=11 L=16	0-95235-025-0	02	1	0803-	●	●
235	CLIP; AIR PIPE ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	04	1	0712-0802		●
235	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	04	1	0712-0802		●
237	BRACKET; PIPE CLIP	1-47475-427-1	04	1	0712-0802		●
242	BRACKET; PIPE CLIP M8 W/NUT	1-47475-439-2	04	1	0712-0802		●
243	CLIP; AIR,PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	04	1	0712-0802	●
243	CLIP; AIR,PIPE (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0803-	●	●
243	CLIP; AIR,PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0712-0802		●
243	CLIP; AIR,PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	0712-0802		●
244	BRACKET; CLIP,AIR PIPE (B)	1-47475-427-1	01	1	0712-0802	●
244	BRACKET; CLIP,AIR PIPE (A) M8 W/NUT	1-47475-439-2	03	1	0712-0802	●	●
244	BRACKET; CLIP,AIR PIPE (B)	1-47475-427-1	01	1	0803-	●	●
249	BOLT; PIPE CLIP M8X45 FLANGE	0-28050-845-0	03	1	0803-	●	●
249	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0803-	●	●
250	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
250	NUT; PIPE CLIP	9-14149-158-0	03	1	0803-	●	●
253	CLIP; AIR PIPE (B) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	0712-0802		●
253	CLIP; AIR PIPE (C) ID=11 H=20 L=20	8-98033-780-0	04	1	0803-0803	●	●
253	CLIP; AIR PIPE (C) ID=11 H=20 L=20	8-98033-780-0	06	1	0804-	●	●
253	CLIP; AIR PIPE (A) ID=11 L=58	9-09917-135-2	01	1	0712-0802		●
254	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●
255	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	0712-0802		●
258	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0712-0802		●
258	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0803-0803	●	●
258	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0804-	●	●
265	CLIP; NYLON TUBE L=250	1-09707-126-0	01	1	0712-0802		●
271	CLIP; AIR PIPE FIX ID=11 L=20	0-95235-035-0	06	1	0712-	●	●
274	CLIP; AIR PIPE (A) ID=6.35 & 10.0	1-09709-274-1	01	1	0712-	●
274	CLIP; AIR PIPE (B)	8-98012-254-1	03	1	0712-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0712-0802		●
311	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	05	1	0712-0802	●
311	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	0712-0802		●
314	CLIP; AIR PIPE (A) ID=6.35 & 6.35	1-09709-273-1	01	1	0712-0811	●
314	CLIP; AIR PIPE (A) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-0811	●
314	CLIP; AIR PIPE (B) ID=6.35	1-09701-247-1	03	1	0803-0803	●	●
314	CLIP; AIR PIPE (C)	8-98012-254-1	03	1	0804-	●	●
316	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	04	1	0712-	●	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	04	1	0712-0802		●
376	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0712-0802		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
