Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#62334) — 78 parça

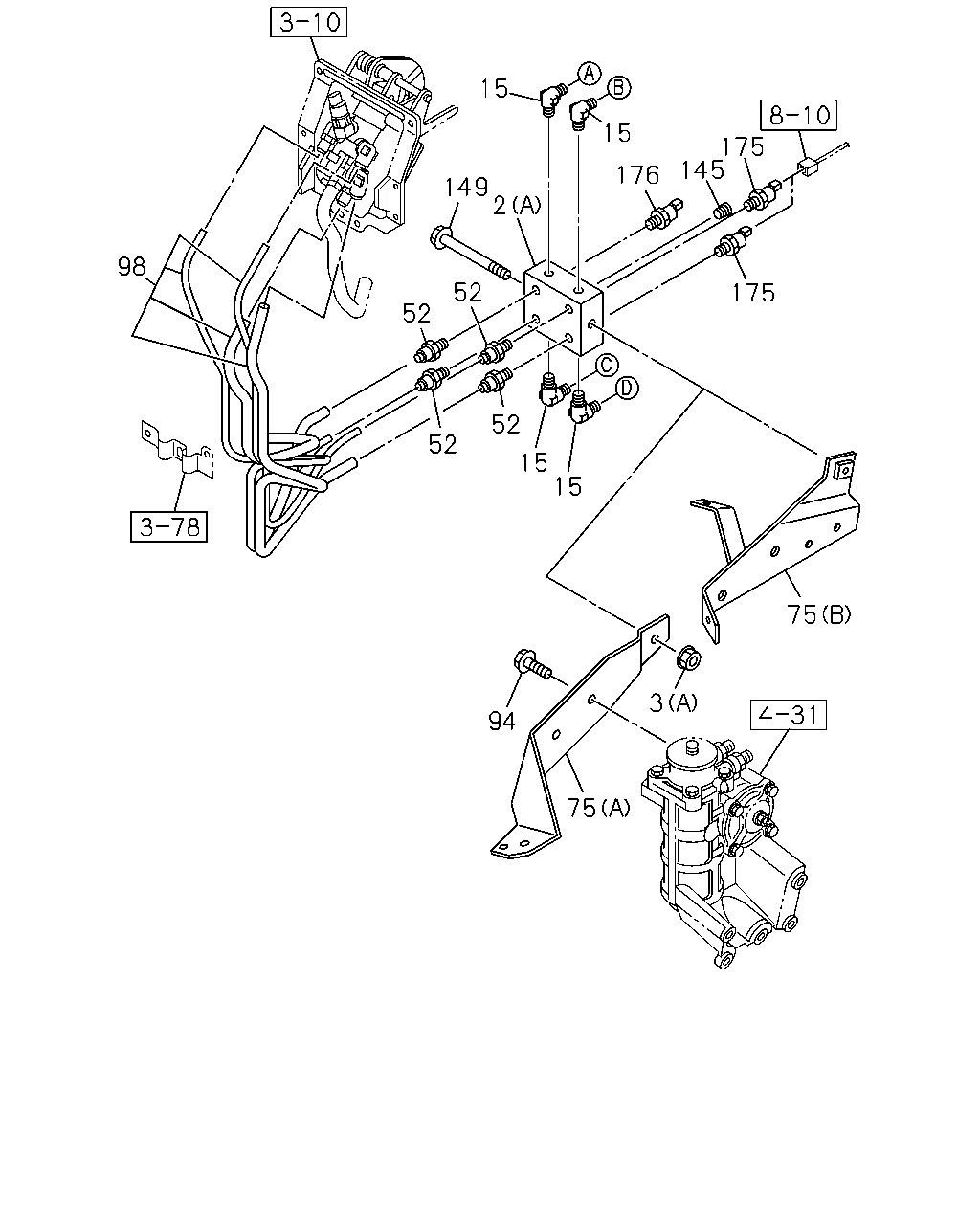

15 15 175 145 176 149 2 98 52 175 52 52 52 15 15 75 3 94 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	0712-0812	●	●
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	0712-	●	●
3	NUT; PIPE UNION (B) M16	0-91111-516-0	01	1	0712-	●	●
3	NUT; PIPE UNION (A) M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
3	NUT; PIPE UNION (A) M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
15	CONNECTOR; AIR PIPE M16 & PT1/4 ELBOW	0-92134-310-0	04	1	0712-	●	●
52	CONNECTOR; NYLON TUBE DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	0712-	●	●
75	BRACKET; UNION (B)	8-98031-117-0	01	1	0712-0802	●
75	BRACKET; UNION (A)	8-98066-785-0	01	1	0712-0802		●
75	BRACKET; UNION (A)	8-98066-785-0	01	1	0803-	●	●
94	BOLT; BRKT M10X16 FLANGE	0-28151-016-0	02	1	0712-0802	●	●
94	BOLT; BRKT M10X16 FLANGE	0-28151-016-0	02	1	0805-0911	●	●
94	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	02	1	0912-	●	●
98	TUBE; NYLON	8-98079-175-0	01	1	0712-0802		●
98	TUBE; NYLON	8-98079-175-0	01	1	0803-	●	●
145	PLUG PT1/4	9-99204-513-0	01	1	0712-	●	●
149	BOLT; UNION M8X100 FLANGE	0-28050-800-0	01	1	0712-	●	●
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	0712-	●	●
176	SWITCH; AIR PRESS	8-98010-857-0	01	1	0712-	●	●

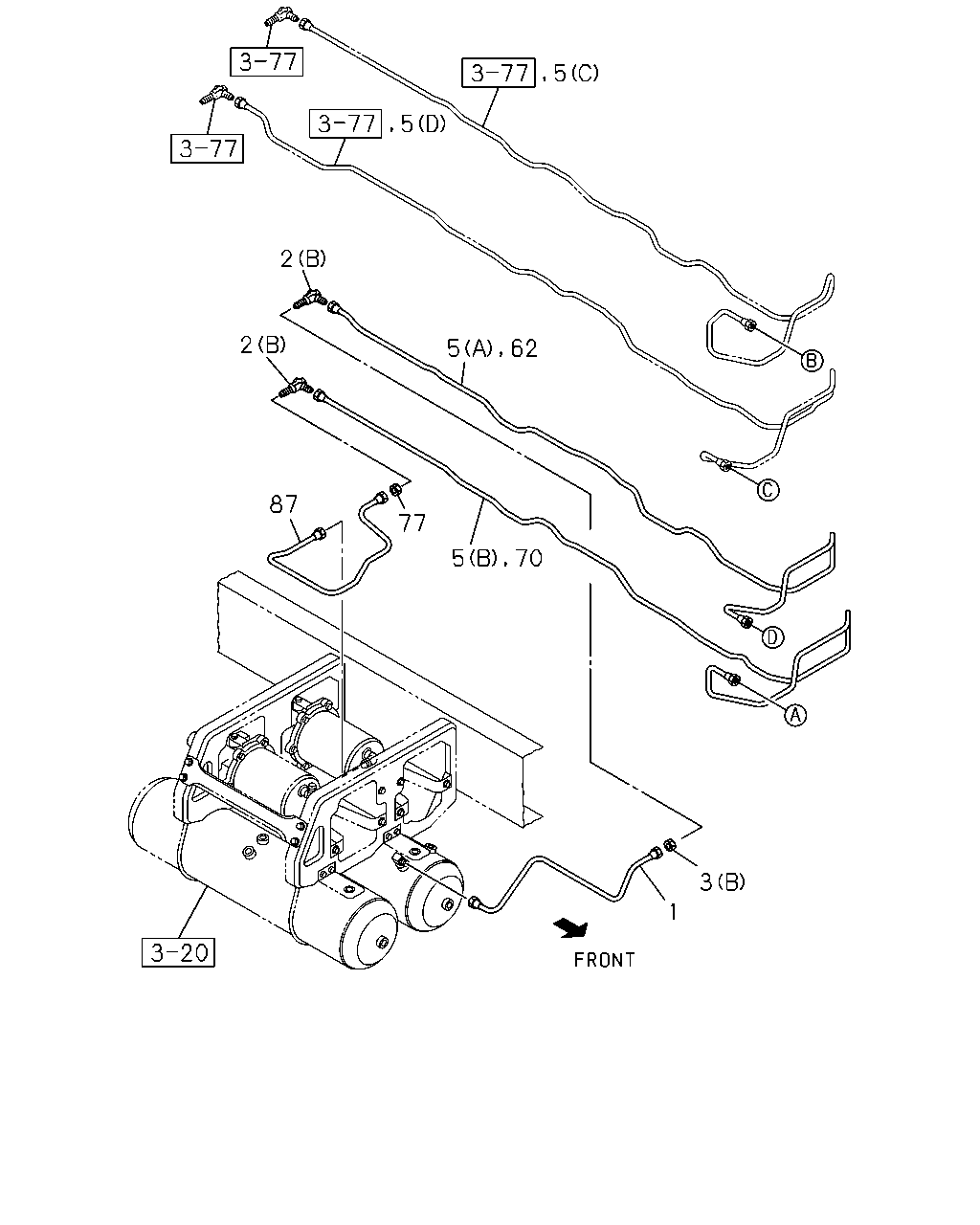

5 5 2 2 5 62 87 77 3 1 5 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION L=546 SERVICED BY L=550	1-47428-867-0	01	1	0712-0802	●
1	PIPE; AIR,AIR TANK TO UNION L=580 SERVICED BY L=600	1-47428-868-0	01	1	0803-	●
1	PIPE; AIR,AIR TANK TO UNION L=683 SERVICED BY L=700	1-47428-870-0	01	1	0712-0802		●
1	PIPE; AIR,AIR TANK TO UNION L=715 SERVICED BY L=730	1-47428-871-0	01	1	0803-		●
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	0712-0812	●	●
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	0712-	●	●
3	NUT; PIPE UNION (B) M16	0-91111-516-0	01	1	0712-	●	●
3	NUT; PIPE UNION (A) M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
3	NUT; PIPE UNION (A) M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
5	PIPE; AIR,UNION TO UNION (B) L=2975 SERVICED BY L=3300	1-47428-886-0	01	1	0803-	●
5	PIPE; AIR,UNION TO UNION (A) L=2497	8-98111-224-1	01	1	0803-	●
5	PIPE; AIR,UNION TO UNION (C) L=2804	8-98111-242-1	01	1	0803-	●
5	PIPE; AIR,UNION TO UNION (D) L=2919	8-98111-246-0	01	1	0803-	●
5	PIPE; AIR,UNION TO UNION (A) L=2540 SERVICED BY L=2600	1-47428-884-0	01	1	0712-0802		●
5	PIPE; AIR,UNION TO UNION (A) L=2560 SERVICED BY L=2600	1-47428-884-0	01	1	0803-		●
5	PIPE; AIR,UNION TO UNION (B) L=2864 SERVICED BY L=2900	1-47428-885-0	01	1	0712-0802		●
5	PIPE; AIR,UNION TO UNION (C) L=2738	8-98111-243-1	01	1	0803-		●
5	PIPE; AIR,UNION TO UNION (C) L=2716 SERVICED BY L=2900	1-47428-885-0	01	1	0712-0802		●
5	PIPE; AIR,UNION TO UNION (D) L=2956	8-98111-247-0	01	1	0803-		●
5	PIPE; AIR,UNION TO UNION (D) L=2931 SERVICED BY L=3300	1-47428-886-0	01	1	0712-0802		●
5	PIPE; AIR,UNION TO UNION (B) L=2907 SERVICED BY L=3300	1-47428-886-0	01	1	0803-		●
62	PIPE; AIR,UNION TO FLEX HOSE L=2463 SERVICED BY L=2500	1-47428-883-0	01	1	0712-0802	●
70	PIPE; AIR,FLEX HOSE TO UNION L=2956 SERVICED BY L=3300	1-47428-886-0	01	1	0712-0802	●
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	0712-	●	●
87	PIPE; AIR,UNION TO AIR MASTER L=745 SERVICED BY L=800	1-47428-872-0	01	1	0712-	●
87	PIPE; AIR,UNION TO AIR MASTER L=994 SERVICED BY L=1000	1-47428-874-0	01	1	0803-		●

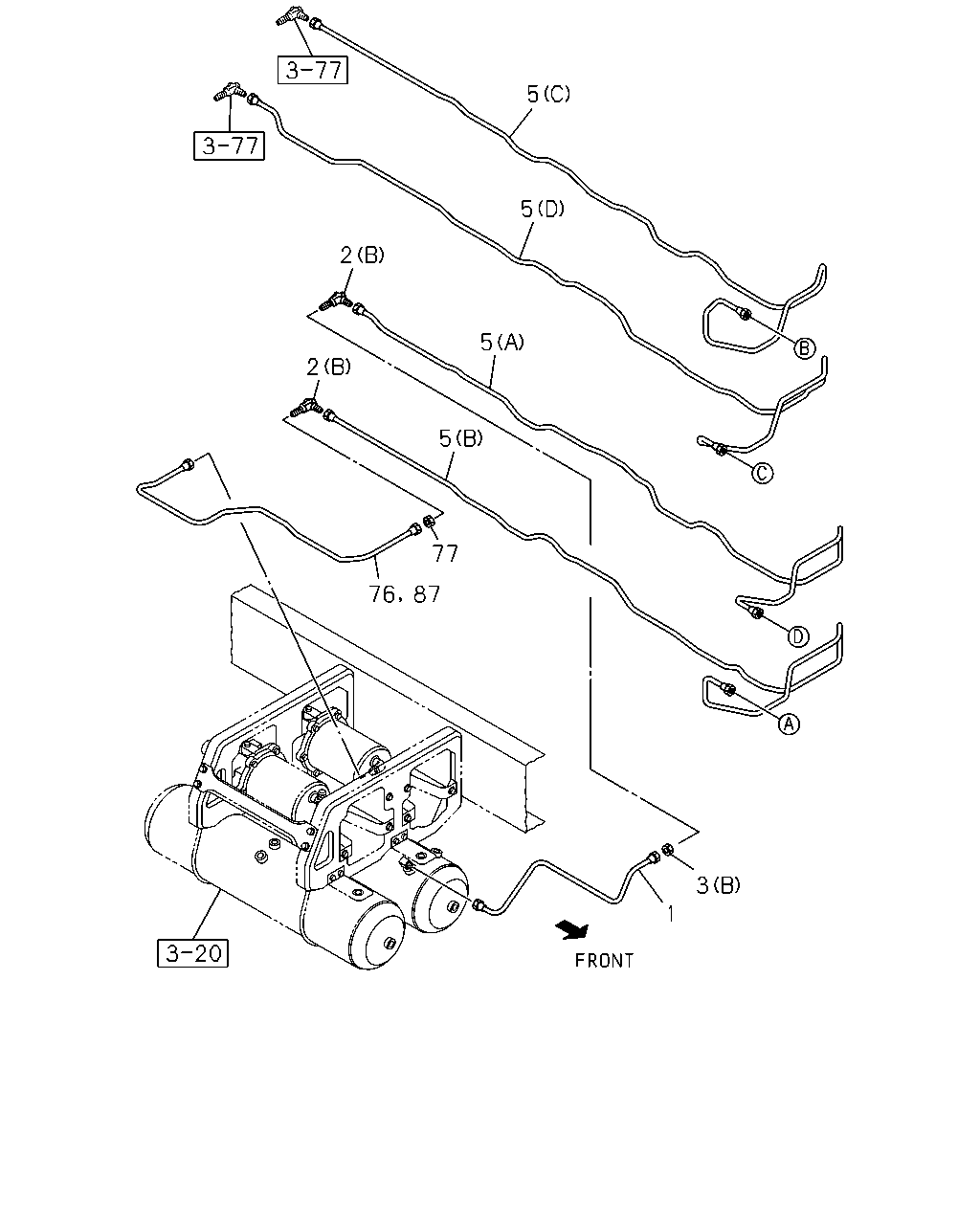

5 5 2 5 2 5 77 76 87 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION L=546 SERVICED BY L=550	1-47428-867-0	01	1	0712-0802	●
1	PIPE; AIR,AIR TANK TO UNION L=580 SERVICED BY L=600	1-47428-868-0	01	1	0803-	●
1	PIPE; AIR,AIR TANK TO UNION L=683 SERVICED BY L=700	1-47428-870-0	01	1	0712-0802		●
1	PIPE; AIR,AIR TANK TO UNION L=715 SERVICED BY L=730	1-47428-871-0	01	1	0803-		●
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	0712-0812	●	●
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	0901-	●	●
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	0712-	●	●
3	NUT; PIPE UNION (B) M16	0-91111-516-0	01	1	0712-	●	●
3	NUT; PIPE UNION (A) M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
3	NUT; PIPE UNION (A) M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
5	PIPE; AIR,UNION TO UNION (B) L=2975 SERVICED BY L=3300	1-47428-886-0	01	1	0803-	●
5	PIPE; AIR,UNION TO UNION (A) L=2497	8-98111-224-1	01	1	0803-	●
5	PIPE; AIR,UNION TO UNION (C) L=2804	8-98111-242-1	01	1	0803-	●
5	PIPE; AIR,UNION TO UNION (D) L=2919	8-98111-246-0	01	1	0803-	●
5	PIPE; AIR,UNION TO UNION (A) L=2540 SERVICED BY L=2600	1-47428-884-0	01	1	0712-0802		●
5	PIPE; AIR,UNION TO UNION (A) L=2560 SERVICED BY L=2600	1-47428-884-0	01	1	0803-		●
5	PIPE; AIR,UNION TO UNION (B) L=2864 SERVICED BY L=2900	1-47428-885-0	01	1	0712-0802		●
5	PIPE; AIR,UNION TO UNION (C) L=2738	8-98111-243-1	01	1	0803-		●
5	PIPE; AIR,UNION TO UNION (C) L=2716 SERVICED BY L=2900	1-47428-885-0	01	1	0712-0802		●
5	PIPE; AIR,UNION TO UNION (D) L=2956	8-98111-247-0	01	1	0803-		●
5	PIPE; AIR,UNION TO UNION (D) L=2931 SERVICED BY L=3300	1-47428-886-0	01	1	0712-0802		●
5	PIPE; AIR,UNION TO UNION (B) L=2907 SERVICED BY L=3300	1-47428-886-0	01	1	0803-		●
76	PIPE; AIR,UNION TO UNION	8-98099-022-0	01	1	0712-0802		●
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	0712-	●	●
87	PIPE; AIR,UNION TO AIR MASTER L=745 SERVICED BY L=800	1-47428-872-0	01	1	0712-	●
87	PIPE; AIR,UNION TO AIR MASTER L=994 SERVICED BY L=1000	1-47428-874-0	01	1	0803-		●

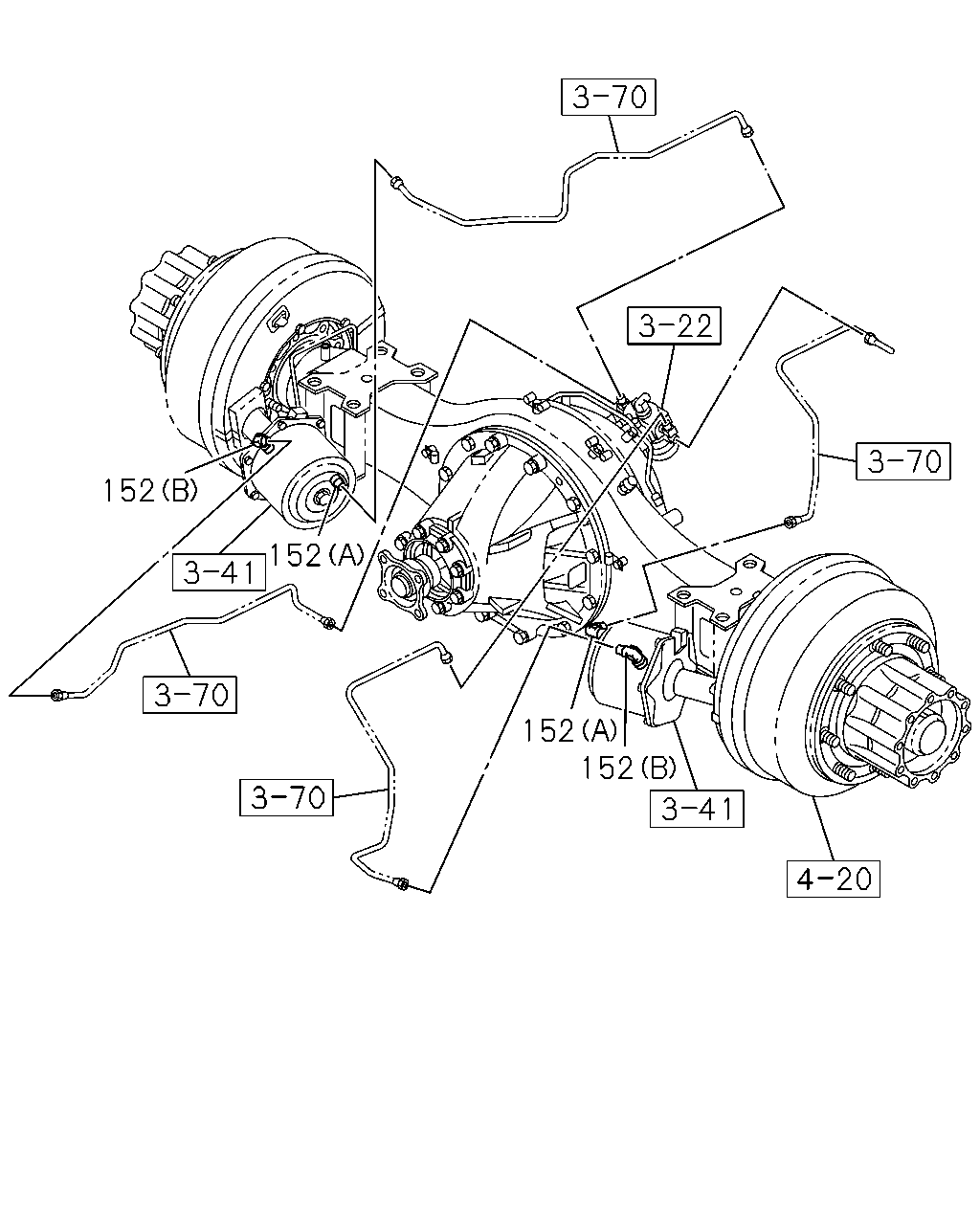

152 152 152 152

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	152	CONNECTOR; POWER CHAMBER (A) M14 & PT1/4 ELBOW	1-09650-432-0	02	1	0712-	●	●
	152	CONNECTOR; POWER CHAMBER (B) M14 & PT3/8 ELBOW	1-09650-437-0	02	1	0712-	●	●
