3-70 — BRAKE PIPING; AIR,AIR MASTER (#62333) — 373 parça

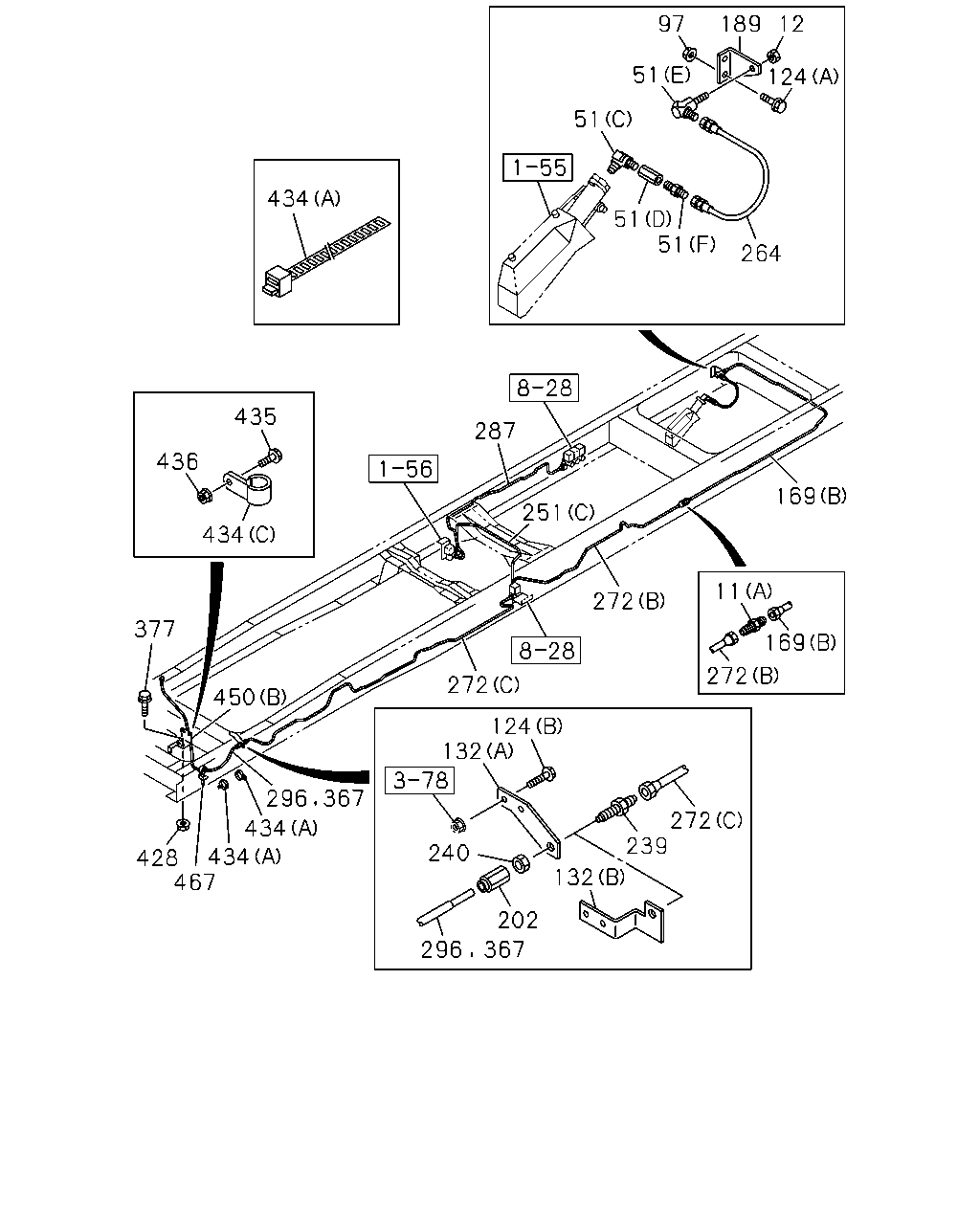

çizim 146546
97 189 12 51 124 51 434 51 51 264 435 287 436 169 251 434 11 272 377 169 272 272 450 124 132 272 239 132 434 240 467 202 428 434 296 367 296 367
BalonParca AdiParca NoAdetTipApplied Date A B
11 UNION; AIR PIPE
(A) M12 L=40 		0-92113-006-0 01 1 0712- ● ●
11 UNION; AIR PIPE
(B) M22 L=77 STRAIGHT 		0-92123-115-0 01 1 0712-0802 ●
12 NUT; UNION
M12 		0-91111-512-0 01 1 0712-0802 ● ●
12 NUT; UNION
M12 		9-09840-280-0 01 1 0803- ● ●
51 UNION
(A) M12 2WAY 		1-09654-059-2 01 1 0712-0802 ● ●
51 UNION
(E) M12 ELBOW 		0-92125-006-0 01 1 0803- ● ●
51 UNION
(B) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 0712-0802 ● ●
51 UNION
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0803-0806 ● ●
51 UNION
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803- ● ●
51 UNION
(D) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0803-0806 ● ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803- ● ●
124 BOLT; BRKT
(B) M10X20 FLANGE 		0-28651-020-0 02 1 0803-0811 ● ●
124 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 0812- ● ●
124 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0803- ● ●
132 BRACKET; PIPE UNION
(A) 		8-98114-415-0 01 1 0803-0811 ● ●
132 BRACKET; PIPE UNION
(B) 		8-98122-875-0 01 1 0812- ● ●
169 PIPE; AIR,UNION TO FLEX HOSE
(A) L=1259 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
169 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 3700MM(37W) (A) L=1173 SERVICED BY L=1200 		1-47428-816-0 01 1 0803- ●
169 PIPE; AIR,UNION TO FLEX HOSE
(B) L=1819 SERVICED BY L=1820 		1-47428-822-0 01 1 0712-0802 ●
169 PIPE; AIR,UNION TO FLEX HOSE
(B) L=1857 SERVICED BY L=2000 		1-47428-823-0 01 1 0803- ●
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 0803- ● ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803- ● ●
239 UNION; AIR PIPE
M12 L=56.5 		0-92113-106-0 01 1 0803- ● ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0803- ● ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=2185 SERVICED BY L=2500 		1-47428-883-0 01 1 0712-0802 ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0803- ● ●
251 PIPE; AIR,UNION TO MAG VLV
(B) L=632 SERVICED BY L=650 		1-47428-810-0 01 1 0712-0802 ●
264 HOSE; FLEX
L=380 		1-09363-919-0 01 1 0712-0802 ●
264 HOSE; FLEX
L=350 		1-09363-877-0 01 1 0803- ● ●
264 HOSE; FLEX
L=460 		1-09363-648-0 01 1 0712-0802 ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1275 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
272 PIPE; AIR,MAG VLV TO UNION
(B) L=1276 SERVICED BY L=1370 		1-47428-818-0 01 1 0803-0811 ● ●
272 PIPE; AIR,MAG VLV TO UNION
(B) L=1359 SERVICED BY L=1370 		1-47428-818-0 01 1 0812- ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (C) L=2403 		8-98111-612-0 01 1 0803-0811 ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (C) L=2449 		8-98122-836-0 01 1 0812- ● ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1186 SERVICED BY L=1200 		1-47428-816-0 01 1 0712-0802 ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (C) L=2377 		8-98111-576-0 01 1 0803-0811 ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (C) L=2422 		8-98122-837-0 01 1 0812- ● ●
287 PIPE; AIR,MAG VLV
L=1069 SERVICED BY L=1100 		1-47428-815-0 01 1 0803-0811 ●
287 PIPE; AIR,MAG VLV
L=1063 		8-98138-240-1 01 1 0812- ●
287 PIPE; AIR,MAG VLV
L=1337 SERVICED BY L=1370 		1-47428-818-0 01 1 0803- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0803- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0803- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803- ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0803-0905 ● ●
434 CLIP
(B) ID=35 L=33 		1-09700-945-0 01 1 0712-0802 ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0803- ● ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 0906- ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 0906- ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0803- ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 0906- ● ●
434 CLIP
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0712-0802 ●
434 CLIP
(B) ID=35 L=33 		1-09700-945-0 01 1 0803- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712-0802 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803- ●
436 NUT; CLIP
M22 		0-91111-522-0 01 1 0712-0802 ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0803- ● ●
450 BRACKET; CLIP
(A) 		8-98087-848-0 01 1 0712-0802 ●
450 BRACKET; CLIP
(A) 		8-98116-173-0 01 1 0803- ●
467 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0805- ● ●

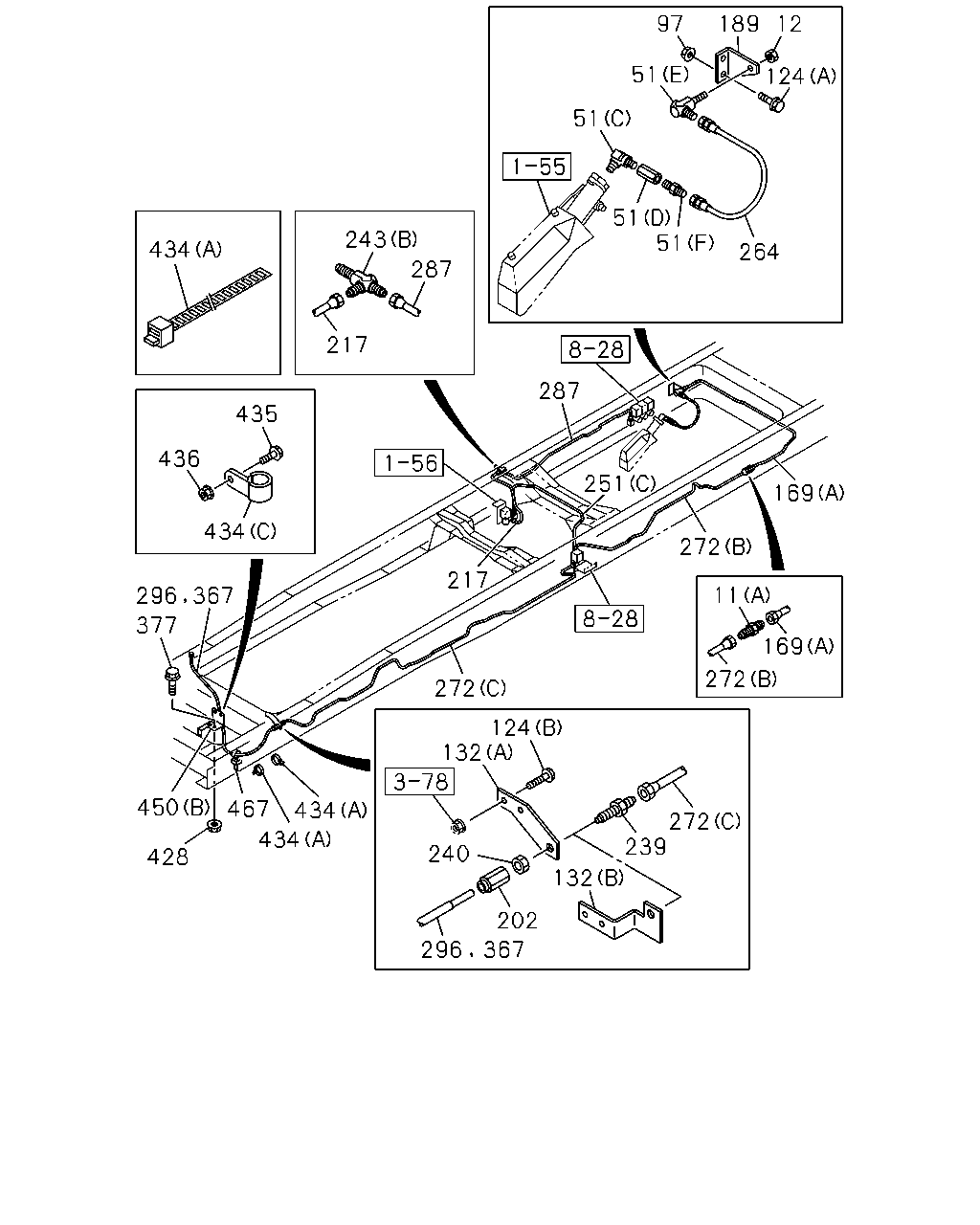

çizim 146551
97 189 12 51 124 51 51 51 243 434 264 287 217 287 435 436 251 169 434 272 217 11 377 169 272 272 124 132 450 467 434 272 239 132 240 434 428 202 296 367 296 367
BalonParca AdiParca NoAdetTipApplied Date A B
11 UNION; AIR PIPE
(A) M12 L=40 		0-92113-006-0 01 1 0712- ● ●
11 UNION; AIR PIPE
(B) M22 L=77 STRAIGHT 		0-92123-115-0 01 1 0712-0802 ●
12 NUT; UNION
M12 		0-91111-512-0 01 1 0712-0802 ● ●
12 NUT; UNION
M12 		9-09840-280-0 01 1 0803- ● ●
51 UNION
(A) M12 2WAY 		1-09654-059-2 01 1 0712-0802 ● ●
51 UNION
(E) M12 ELBOW 		0-92125-006-0 01 1 0803- ● ●
51 UNION
(B) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 0712-0802 ● ●
51 UNION
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0803-0806 ● ●
51 UNION
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803- ● ●
51 UNION
(D) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0803-0806 ● ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803- ● ●
124 BOLT; BRKT
(B) M10X20 FLANGE 		0-28651-020-0 02 1 0803-0811 ● ●
124 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 0812- ● ●
124 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0803- ● ●
132 BRACKET; PIPE UNION
(A) 		8-98114-415-0 01 1 0803-0811 ● ●
132 BRACKET; PIPE UNION
(B) 		8-98122-875-0 01 1 0812- ● ●
169 PIPE; AIR,UNION TO FLEX HOSE
(A) L=1259 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
169 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 3700MM(37W) (A) L=1173 SERVICED BY L=1200 		1-47428-816-0 01 1 0803- ●
169 PIPE; AIR,UNION TO FLEX HOSE
(B) L=1819 SERVICED BY L=1820 		1-47428-822-0 01 1 0712-0802 ●
169 PIPE; AIR,UNION TO FLEX HOSE
(B) L=1857 SERVICED BY L=2000 		1-47428-823-0 01 1 0803- ●
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 0803- ● ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803- ● ●
217 PIPE; VAC,UNION TO MAG VLV
L=262 		8-98054-511-0 01 1 0712-0802 ●
217 PIPE; VAC,UNION TO MAG VLV
L=419 		8-98111-790-0 01 1 0803- ●
239 UNION; AIR PIPE
M12 L=56.5 		0-92113-106-0 01 1 0803- ● ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0803- ● ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0712- ●
243 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 0803- ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=2185 SERVICED BY L=2500 		1-47428-883-0 01 1 0712-0802 ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0803- ● ●
251 PIPE; AIR,UNION TO MAG VLV
(B) L=632 SERVICED BY L=650 		1-47428-810-0 01 1 0712-0802 ●
264 HOSE; FLEX
L=380 		1-09363-919-0 01 1 0712-0802 ●
264 HOSE; FLEX
L=350 		1-09363-877-0 01 1 0803- ● ●
264 HOSE; FLEX
L=460 		1-09363-648-0 01 1 0712-0802 ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1275 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
272 PIPE; AIR,MAG VLV TO UNION
(B) L=1276 SERVICED BY L=1370 		1-47428-818-0 01 1 0803-0811 ● ●
272 PIPE; AIR,MAG VLV TO UNION
(B) L=1359 SERVICED BY L=1370 		1-47428-818-0 01 1 0812- ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (C) L=2403 		8-98111-612-0 01 1 0803-0811 ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (C) L=2449 		8-98122-836-0 01 1 0812- ● ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1186 SERVICED BY L=1200 		1-47428-816-0 01 1 0712-0802 ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (C) L=2377 		8-98111-576-0 01 1 0803-0811 ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (C) L=2422 		8-98122-837-0 01 1 0812- ● ●
287 PIPE; AIR,MAG VLV
L=1069 SERVICED BY L=1100 		1-47428-815-0 01 1 0803-0811 ●
287 PIPE; AIR,MAG VLV
L=1063 		8-98138-240-1 01 1 0812- ●
287 PIPE; AIR,MAG VLV
L=1337 SERVICED BY L=1370 		1-47428-818-0 01 1 0803- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0803- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0803- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803- ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0803-0905 ● ●
434 CLIP
(B) ID=35 L=33 		1-09700-945-0 01 1 0712-0802 ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0803- ● ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 0906- ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 0906- ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0803- ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 0906- ● ●
434 CLIP
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0712-0802 ●
434 CLIP
(B) ID=35 L=33 		1-09700-945-0 01 1 0803- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712-0802 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803- ●
436 NUT; CLIP
M22 		0-91111-522-0 01 1 0712-0802 ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0803- ● ●
450 BRACKET; CLIP
(A) 		8-98087-848-0 01 1 0712-0802 ●
450 BRACKET; CLIP
(A) 		8-98116-173-0 01 1 0803- ●
467 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0805- ● ●

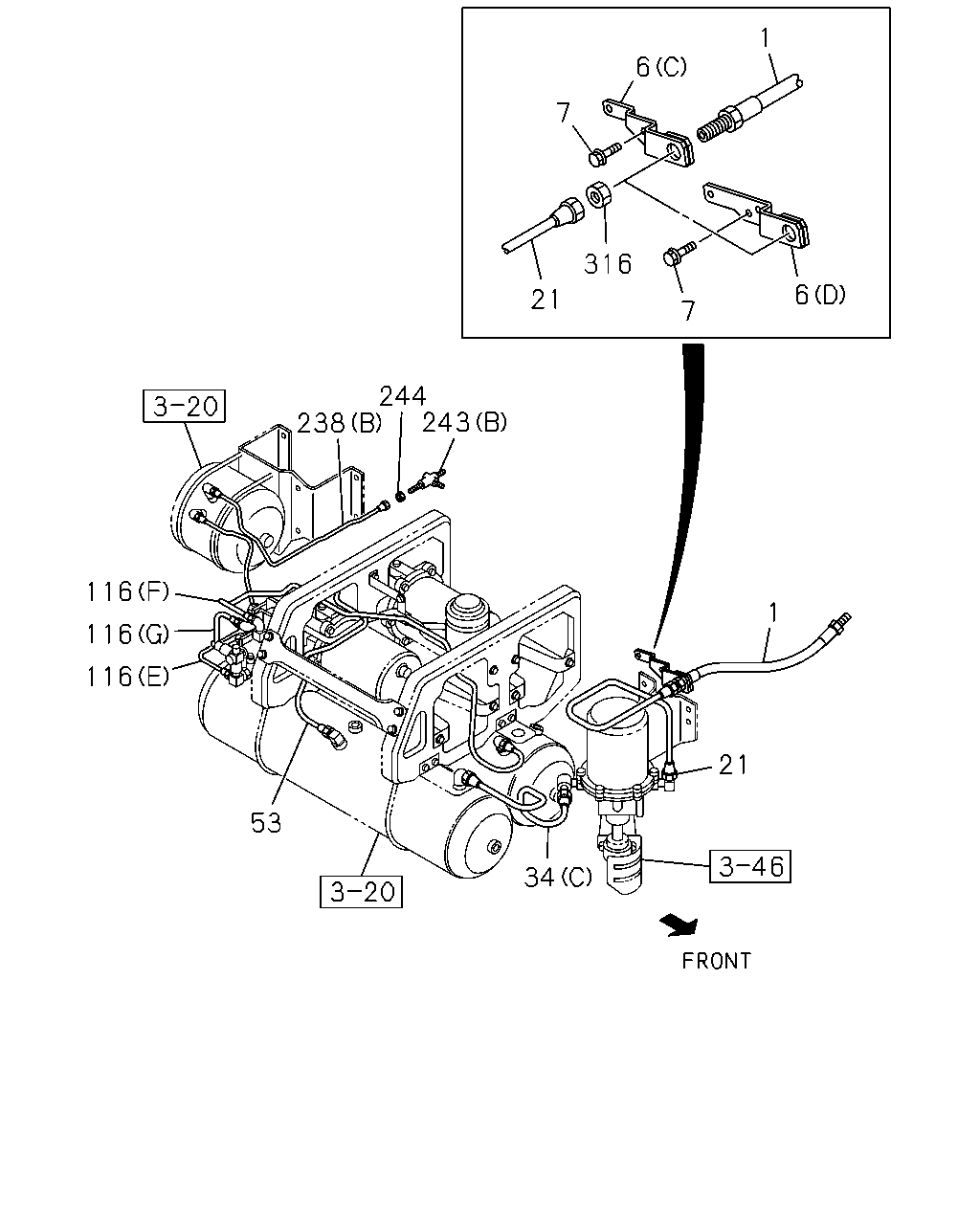

çizim 146552
1 6 7 316 6 21 7 244 238 243 116 1 116 116 21 53 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-97615-741-0 01 1 0712-0802 ●
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98080-164-0 01 1 0803- ●
1 HOSE; FLEX,AIR TANK 8-98087-669-0 01 1 0712-0802 ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09363-913-0 01 1 0803- ●
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98114-274-0 01 1 0803- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98116-053-0 01 1 0803- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0712-0802 ●
6 BRACKET; FLEX HOSE,AIR TANK
(C) 		8-98090-656-0 01 1 0803-0805 ●
6 BRACKET; FLEX HOSE,AIR TANK
(D) 		8-98119-929-0 01 1 0806- ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98095-224-0 01 1 0712-0802 ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98116-174-0 01 1 0803- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=824 		8-98083-265-0 01 1 0803- ●
21 PIPE; AIR,UNION TO AIR DRYER
L=703 		8-98095-357-0 01 1 0712- ●
34 PIPE; AIR
(A) L=363 		8-98054-484-0 01 1 0712-0802 ●
34 PIPE; AIR
(C) L=526 SERVICED BY L=550 		1-49115-478-0 01 1 0803- ●
34 PIPE; AIR
(B) L=1156 SERVICED BY L=1200 		1-49115-487-0 01 1 0712-0802 ●
34 PIPE; AIR
(B) L=1262 SERVICED BY L=1300 		1-49115-488-0 01 1 0803- ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98054-508-0 01 1 0712-0802 ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 0803- ● ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98098-222-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(A) 		8-98054-506-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0803- ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98054-507-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98108-561-0 01 1 0803- ● ●
116 PIPE; AIR,PROTECTION VLV
(E) L=1290 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98098-223-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(E) L=1064 SERVICED BY L=1100 		1-47428-815-0 01 1 0803- ●
116 PIPE; AIR,PROTECTION VLV
(D) 		8-98098-224-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(F) 		8-98108-563-0 01 1 0803- ● ●
238 PIPE; AIR,UNION TO UNION
(B) L=593 SERVICED BY L=600 		1-47428-809-0 01 1 0803- ●
238 PIPE; AIR,UNION TO UNION
(A) L=1524 SERVICED BY L=1620 		1-47428-820-0 01 1 0712-0802 ●
238 PIPE; AIR,UNION TO UNION
(A) L=1398 SERVICED BY L=1500 		1-47428-819-0 01 1 0803- ●
238 PIPE; AIR,UNION TO UNION
(B) L=349 		8-98111-571-0 01 1 0803- ●
238 PIPE; AIR,UNION TO UNION
(C) L=503 		8-98111-579-0 01 1 0803- ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0712- ●
243 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 0803- ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0712- ● ●
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 0803- ● ●

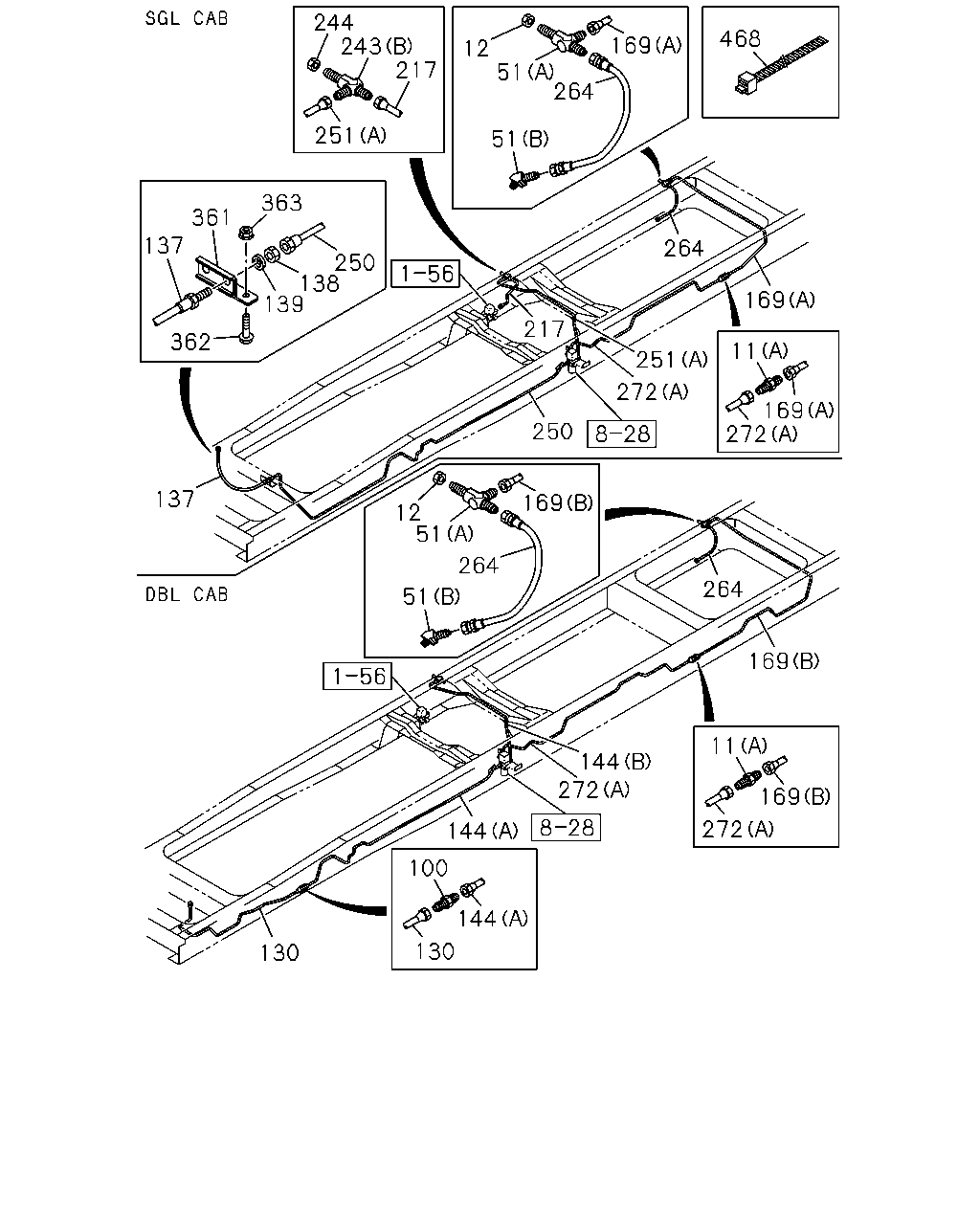

çizim 146556
244 243 217 468 169 12 51 264 251 51 363 361 137 264 250 138 139 169 217 362 11 251 272 169 272 250 137 169 12 51 264 264 51 169 11 144 272 169 272 144 100 144 130 130
BalonParca AdiParca NoAdetTipApplied Date A B
11 UNION; AIR PIPE
(A) M12 L=40 		0-92113-006-0 01 1 0712- ● ●
11 UNION; AIR PIPE
(B) M22 L=77 STRAIGHT 		0-92123-115-0 01 1 0712-0802 ●
12 NUT; UNION
M12 		0-91111-512-0 01 1 0712-0802 ● ●
12 NUT; UNION
M12 		9-09840-280-0 01 1 0803- ● ●
51 UNION
(A) M12 2WAY 		1-09654-059-2 01 1 0712-0802 ● ●
51 UNION
(E) M12 ELBOW 		0-92125-006-0 01 1 0803- ● ●
51 UNION
(B) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 0712-0802 ● ●
51 UNION
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0803-0806 ● ●
51 UNION
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803- ● ●
51 UNION
(D) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0803-0806 ● ●
100 CONNECTOR; AIR PIPE
M12 L=40 		0-92113-006-0 01 1 0712-0802 ●
130 PIPE; AIR,UNION TO UNION
L=1052 SERVICED BY L=1100 		1-47428-815-0 01 1 0712-0802 ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=560 		1-09363-654-0 01 1 0712-0802 ●
138 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0712-0802 ●
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0712-0802 ●
144 PIPE; AIR,UNION TO UNION
(B) L=904 SERVICED BY L=1000 		1-47428-814-0 01 1 0712-0802 ●
144 PIPE; AIR,UNION TO UNION
(A) L=1940 SERVICED BY L=2000 		1-47428-823-0 01 1 0712-0802 ●
169 PIPE; AIR,UNION TO FLEX HOSE
(A) L=1259 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
169 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 3700MM(37W) (A) L=1173 SERVICED BY L=1200 		1-47428-816-0 01 1 0803- ●
169 PIPE; AIR,UNION TO FLEX HOSE
(B) L=1819 SERVICED BY L=1820 		1-47428-822-0 01 1 0712-0802 ●
169 PIPE; AIR,UNION TO FLEX HOSE
(B) L=1857 SERVICED BY L=2000 		1-47428-823-0 01 1 0803- ●
217 PIPE; VAC,UNION TO MAG VLV
L=262 		8-98054-511-0 01 1 0712-0802 ●
217 PIPE; VAC,UNION TO MAG VLV
L=419 		8-98111-790-0 01 1 0803- ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0712- ●
243 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 0803- ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0712- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=2844 SERVICED BY L=2900 		1-47428-828-0 01 1 0712-0802 ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=2185 SERVICED BY L=2500 		1-47428-883-0 01 1 0712-0802 ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0803- ● ●
251 PIPE; AIR,UNION TO MAG VLV
(B) L=632 SERVICED BY L=650 		1-47428-810-0 01 1 0712-0802 ●
264 HOSE; FLEX
L=380 		1-09363-919-0 01 1 0712-0802 ●
264 HOSE; FLEX
L=350 		1-09363-877-0 01 1 0803- ● ●
264 HOSE; FLEX
L=460 		1-09363-648-0 01 1 0712-0802 ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1275 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
272 PIPE; AIR,MAG VLV TO UNION
(B) L=1276 SERVICED BY L=1370 		1-47428-818-0 01 1 0803-0811 ● ●
272 PIPE; AIR,MAG VLV TO UNION
(B) L=1359 SERVICED BY L=1370 		1-47428-818-0 01 1 0812- ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (C) L=2403 		8-98111-612-0 01 1 0803-0811 ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (C) L=2449 		8-98122-836-0 01 1 0812- ● ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1186 SERVICED BY L=1200 		1-47428-816-0 01 1 0712-0802 ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (C) L=2377 		8-98111-576-0 01 1 0803-0811 ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (C) L=2422 		8-98122-837-0 01 1 0812- ● ●
361 BRACKET; FLEX HOSE,AIR GOV 1-47476-781-0 01 1 0712-0802 ●
362 BOLT; BRKT,FLEX HOSE,AIR GOV
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
363 NUT; BRKT,FLEX HOSE,AIR GOV
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
468 CLIP; BAND
L=250 		1-09707-126-0 01 1 0712-0802 ●

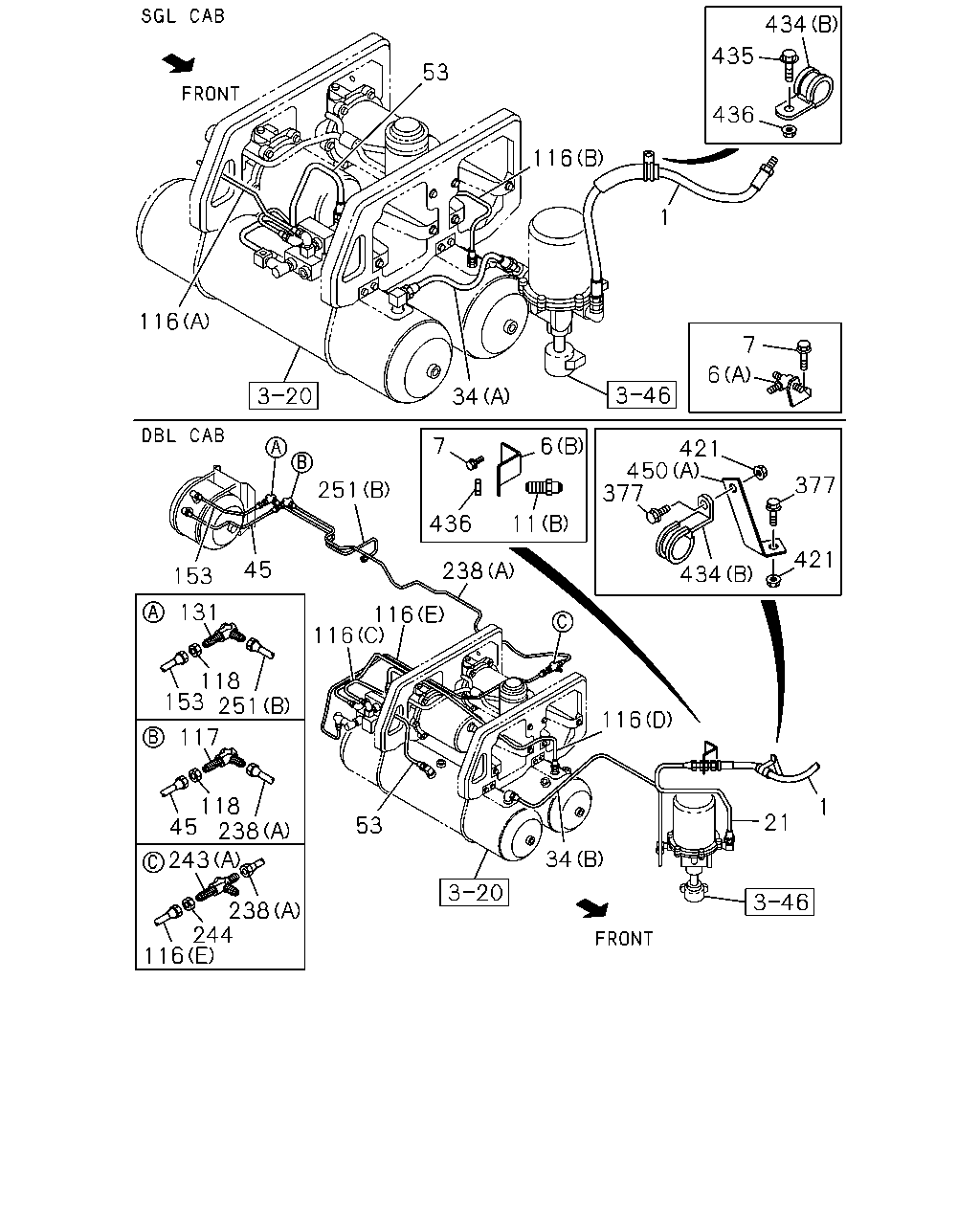

çizim 146558
434 435 53 436 116 1 116 7 6 34 7 6 421 450 377 377 251 436 11 421 45 238 434 153 131 116 116 118 153 251 116 117 118 45 238 1 21 53 34 243 238 244 116
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-97615-741-0 01 1 0712-0802 ●
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98080-164-0 01 1 0803- ●
1 HOSE; FLEX,AIR TANK 8-98087-669-0 01 1 0712-0802 ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09363-913-0 01 1 0803- ●
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98114-274-0 01 1 0803- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98116-053-0 01 1 0803- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0712-0802 ●
6 BRACKET; FLEX HOSE,AIR TANK
(C) 		8-98090-656-0 01 1 0803-0805 ●
6 BRACKET; FLEX HOSE,AIR TANK
(D) 		8-98119-929-0 01 1 0806- ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98095-224-0 01 1 0712-0802 ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98116-174-0 01 1 0803- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
11 UNION; AIR PIPE
(A) M12 L=40 		0-92113-006-0 01 1 0712- ● ●
11 UNION; AIR PIPE
(B) M22 L=77 STRAIGHT 		0-92123-115-0 01 1 0712-0802 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=824 		8-98083-265-0 01 1 0803- ●
21 PIPE; AIR,UNION TO AIR DRYER
L=703 		8-98095-357-0 01 1 0712- ●
34 PIPE; AIR
(A) L=363 		8-98054-484-0 01 1 0712-0802 ●
34 PIPE; AIR
(C) L=526 SERVICED BY L=550 		1-49115-478-0 01 1 0803- ●
34 PIPE; AIR
(B) L=1156 SERVICED BY L=1200 		1-49115-487-0 01 1 0712-0802 ●
34 PIPE; AIR
(B) L=1262 SERVICED BY L=1300 		1-49115-488-0 01 1 0803- ●
45 PIPE; AIR,UNION TO AIR TANK
L=381 		8-98099-038-0 01 1 0712-0802 ●
45 PIPE; AIR,UNION TO AIR TANK
L=361 		8-98111-262-0 01 1 0803- ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98054-508-0 01 1 0712-0802 ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 0803- ● ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98098-222-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(A) 		8-98054-506-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0803- ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98054-507-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98108-561-0 01 1 0803- ● ●
116 PIPE; AIR,PROTECTION VLV
(E) L=1290 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98098-223-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(E) L=1064 SERVICED BY L=1100 		1-47428-815-0 01 1 0803- ●
116 PIPE; AIR,PROTECTION VLV
(D) 		8-98098-224-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(F) 		8-98108-563-0 01 1 0803- ● ●
117 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0712-0802 ●
117 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0803- ●
118 NUT; UNION
M12 		9-09840-280-0 02 1 0712- ●
131 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
153 PIPE; AIR,AIR TANK TO UNION 8-98099-037-0 01 1 0712-0802 ●
238 PIPE; AIR,UNION TO UNION
(B) L=593 SERVICED BY L=600 		1-47428-809-0 01 1 0803- ●
238 PIPE; AIR,UNION TO UNION
(A) L=1524 SERVICED BY L=1620 		1-47428-820-0 01 1 0712-0802 ●
238 PIPE; AIR,UNION TO UNION
(A) L=1398 SERVICED BY L=1500 		1-47428-819-0 01 1 0803- ●
238 PIPE; AIR,UNION TO UNION
(B) L=349 		8-98111-571-0 01 1 0803- ●
238 PIPE; AIR,UNION TO UNION
(C) L=503 		8-98111-579-0 01 1 0803- ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0712- ●
243 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 0803- ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0712- ● ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=2185 SERVICED BY L=2500 		1-47428-883-0 01 1 0712-0802 ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 0803- ● ●
251 PIPE; AIR,UNION TO MAG VLV
(B) L=632 SERVICED BY L=650 		1-47428-810-0 01 1 0712-0802 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803- ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712- ●
434 CLIP
(B) ID=35 L=33 		1-09700-945-0 01 1 0712-0802 ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0803- ● ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 0906- ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 0906- ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0803- ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 0906- ● ●
434 CLIP
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0712-0802 ●
434 CLIP
(B) ID=35 L=33 		1-09700-945-0 01 1 0803- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712-0802 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803- ●
436 NUT; CLIP
M22 		0-91111-522-0 01 1 0712-0802 ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0803- ● ●
450 BRACKET; CLIP
(A) 		8-98087-848-0 01 1 0712-0802 ●
450 BRACKET; CLIP
(A) 		8-98116-173-0 01 1 0803- ●

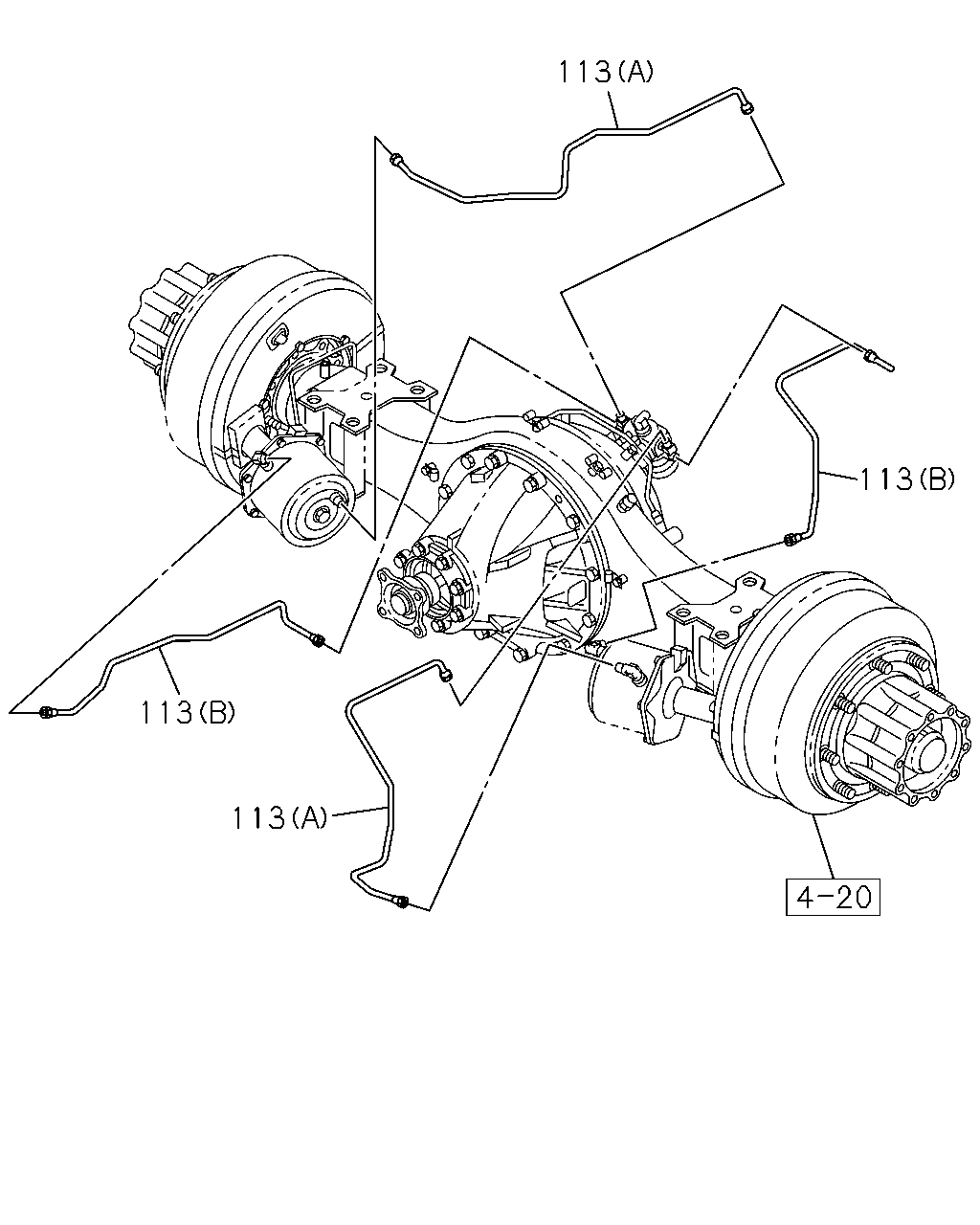

çizim 146561
113 113 113 113
BalonParca AdiParca NoAdetTipApplied Date A B
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(B) L=1064 		8-98089-688-0 01 1 0712- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(B) L=1064 		8-98089-689-0 01 1 0712- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(A) L=838 		8-98095-146-0 01 1 0712- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(A) L=838 		8-98095-147-0 01 1 0712- ● ●

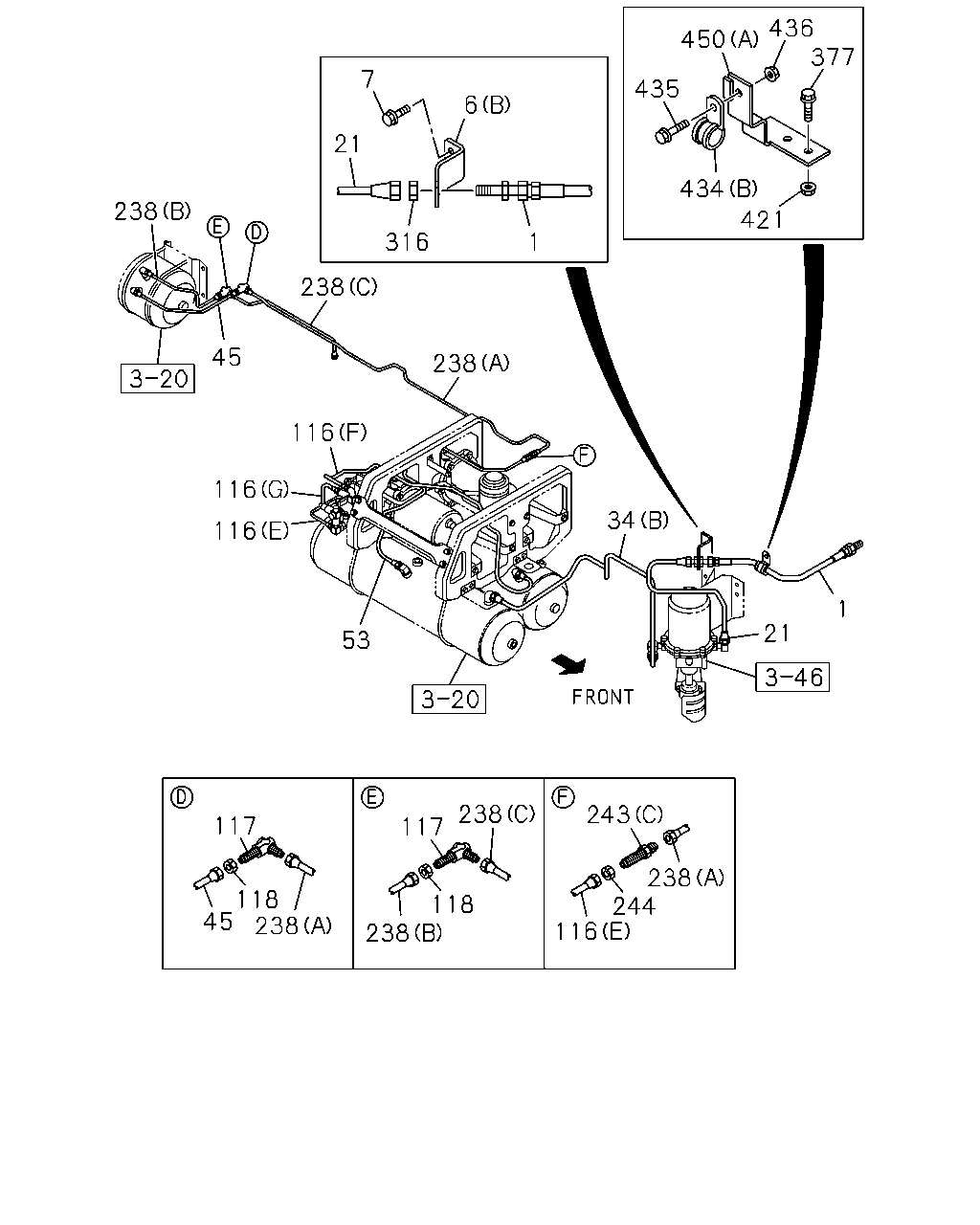

çizim 146563
436 377 450 7 435 6 21 434 238 421 316 1 238 238 116 116 34 116 1 21 53 238 243 117 117 238 244 116 118 45 238 118 238 45
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-97615-741-0 01 1 0712-0802 ●
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98080-164-0 01 1 0803- ●
1 HOSE; FLEX,AIR TANK 8-98087-669-0 01 1 0712-0802 ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09363-913-0 01 1 0803- ●
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98114-274-0 01 1 0803- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98116-053-0 01 1 0803- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98076-344-0 01 1 0712-0802 ●
6 BRACKET; FLEX HOSE,AIR TANK
(C) 		8-98090-656-0 01 1 0803-0805 ●
6 BRACKET; FLEX HOSE,AIR TANK
(D) 		8-98119-929-0 01 1 0806- ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98095-224-0 01 1 0712-0802 ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98116-174-0 01 1 0803- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=824 		8-98083-265-0 01 1 0803- ●
21 PIPE; AIR,UNION TO AIR DRYER
L=703 		8-98095-357-0 01 1 0712- ●
34 PIPE; AIR
(A) L=363 		8-98054-484-0 01 1 0712-0802 ●
34 PIPE; AIR
(C) L=526 SERVICED BY L=550 		1-49115-478-0 01 1 0803- ●
34 PIPE; AIR
(B) L=1156 SERVICED BY L=1200 		1-49115-487-0 01 1 0712-0802 ●
34 PIPE; AIR
(B) L=1262 SERVICED BY L=1300 		1-49115-488-0 01 1 0803- ●
45 PIPE; AIR,UNION TO AIR TANK
L=381 		8-98099-038-0 01 1 0712-0802 ●
45 PIPE; AIR,UNION TO AIR TANK
L=361 		8-98111-262-0 01 1 0803- ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98054-508-0 01 1 0712-0802 ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 0803- ● ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98098-222-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(A) 		8-98054-506-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(E) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 0803- ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98054-507-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98108-561-0 01 1 0803- ● ●
116 PIPE; AIR,PROTECTION VLV
(E) L=1290 SERVICED BY L=1370 		1-47428-818-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98098-223-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(E) L=1064 SERVICED BY L=1100 		1-47428-815-0 01 1 0803- ●
116 PIPE; AIR,PROTECTION VLV
(D) 		8-98098-224-0 01 1 0712-0802 ●
116 PIPE; AIR,PROTECTION VLV
(F) 		8-98108-563-0 01 1 0803- ● ●
117 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0712-0802 ●
117 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0803- ●
118 NUT; UNION
M12 		9-09840-280-0 02 1 0712- ●
238 PIPE; AIR,UNION TO UNION
(B) L=593 SERVICED BY L=600 		1-47428-809-0 01 1 0803- ●
238 PIPE; AIR,UNION TO UNION
(A) L=1524 SERVICED BY L=1620 		1-47428-820-0 01 1 0712-0802 ●
238 PIPE; AIR,UNION TO UNION
(A) L=1398 SERVICED BY L=1500 		1-47428-819-0 01 1 0803- ●
238 PIPE; AIR,UNION TO UNION
(B) L=349 		8-98111-571-0 01 1 0803- ●
238 PIPE; AIR,UNION TO UNION
(C) L=503 		8-98111-579-0 01 1 0803- ●
243 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0712- ●
243 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 0803- ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0712- ● ●
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 0803- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803- ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712- ●
434 CLIP
(B) ID=35 L=33 		1-09700-945-0 01 1 0712-0802 ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0803- ● ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 0906- ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 0906- ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 0803- ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 0906- ● ●
434 CLIP
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0712-0802 ●
434 CLIP
(B) ID=35 L=33 		1-09700-945-0 01 1 0803- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712-0802 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803- ●
436 NUT; CLIP
M22 		0-91111-522-0 01 1 0712-0802 ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0803- ● ●
450 BRACKET; CLIP
(A) 		8-98087-848-0 01 1 0712-0802 ●
450 BRACKET; CLIP
(A) 		8-98116-173-0 01 1 0803- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
