Isuzu WW
▶
TRUCKS
▶
FSS
▶
11419 - FSS(AUST)EURO4
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶

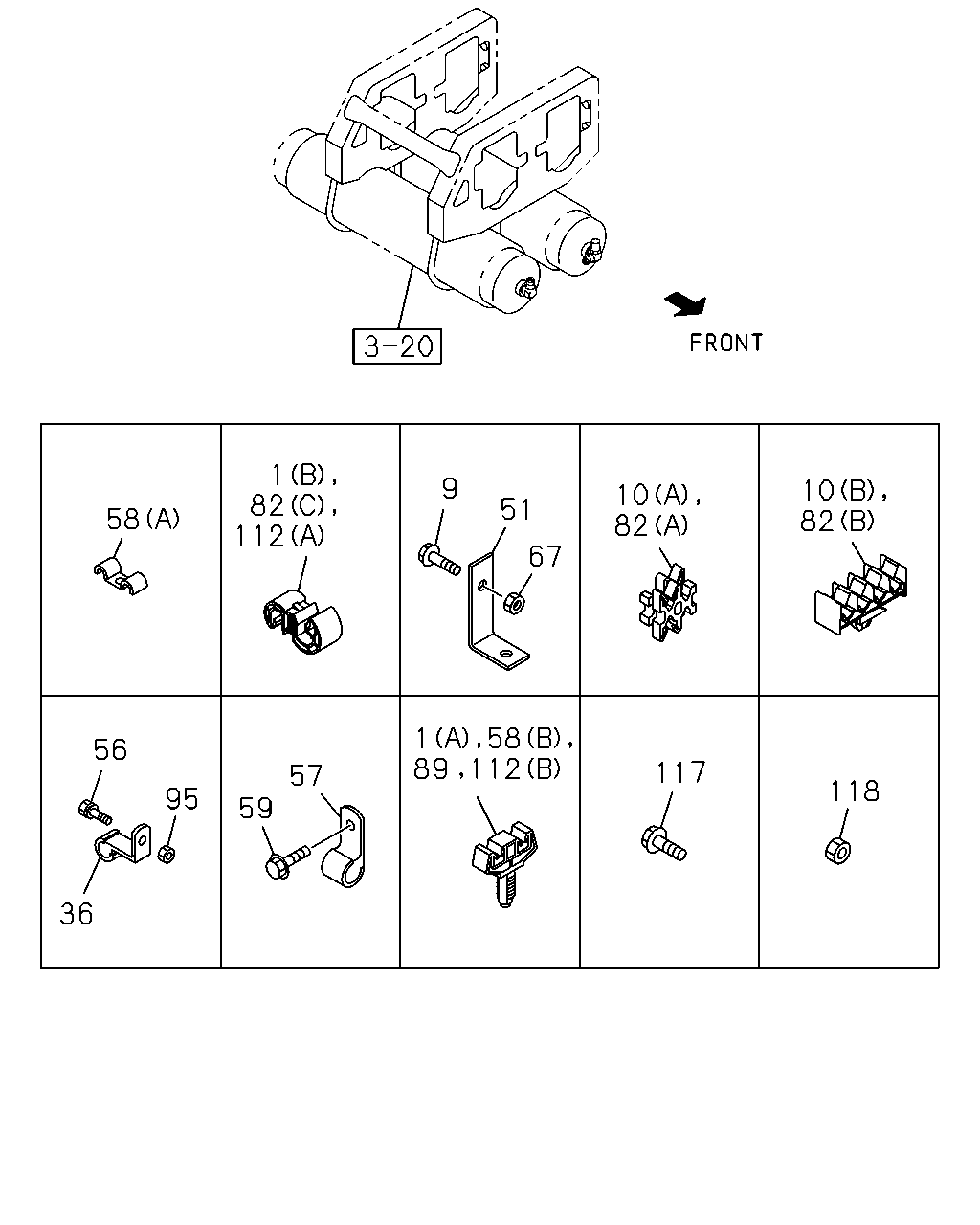

3-58 — FIXING PARTS; OIL PIPING
(#62332) — 31 parça
Tümü
A - FCS5MS
B - FCS5WS
1
82
112
9
10
82
10
82
51
58
67
56
117
57
118
95
59
36
1
89
112
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
01
1
0712-0802
●
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
03
1
0803-
●
●
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
02
1
0712-0802
●
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
06
1
0803-
●
●
1
CLIP; OIL PIPE TO BODY
(B) ID=4.76 & 6.35
1-09709-304-0
01
1
0804-
●
●
1
CLIP; OIL PIPE TO BODY
(B) ID=6.35 & 10.0
1-09709-274-1
01
1
0712-0802
●
9
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0712-0802
●
10
CLIP; OIL PIPE
(A) ID=4.76X4
1-09701-304-0
01
1
0712-0802
●
10
CLIP; OIL PIPE
(B) ID=4.76 & 10.0
1-09709-305-0
04
1
0712-0802
●
36
CLIP; BRK PIPE
ID=6 H=20 L=20
1-09700-603-0
02
1
0712-0802
●
51
BRACKET; OIL PIPE
L=65
1-47479-064-0
02
1
0712-0802
●
56
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
02
1
0712-0802
●
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
05
1
0712-1211
●
●
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
07
1
1212-
●
●
58
CLIP; OIL PIPE
(A) ID=11 & 7 L=17.5 & 17.5
1-09700-740-0
02
1
0712-0802
●
58
CLIP; OIL PIPE
(B)
8-98012-254-1
03
1
0712-0802
●
58
CLIP; OIL PIPE
(B)
8-98012-254-1
05
1
0803-
●
●
58
CLIP; OIL PIPE
(B)
8-98012-254-1
04
1
0712-0802
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
05
1
0712-1211
●
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
07
1
1212-
●
●
67
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0712-0802
●
82
CLIP; OIL PIPE
(A) ID=4.76X4
1-09701-304-0
12
1
0712-0811
●
82
CLIP; OIL PIPE
(B)
1-09701-305-0
02
1
0712-0811
●
82
CLIP; OIL PIPE
(C) ID=4.76 & 10.0
1-09709-305-0
02
1
0712-0811
●
82
CLIP; OIL PIPE
(C) ID=4.76 & 12
1-09709-306-0
01
1
0712-0811
●
89
CLIP; OIL PIPE
8-98012-254-1
02
1
0712-0802
●
95
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
0712-0802
●
112
CLIP; OIL PIPE
WHEEL BASE 3700MM(37W) (B)
8-98012-254-1
02
1
0804-
●
112
CLIP; OIL PIPE
(A) ID=6.35 & 6.35
1-09709-273-1
01
1
0712-0802
●
117
BOLT; CLIP,OIL PIPE
M8X16 FLANGE
0-28050-816-0
02
1
0712-0802
●
118
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
02
1
0712-0802
●
