3-55 — BRAKE PIPING; OIL,REAR (#62331) — 63 parça

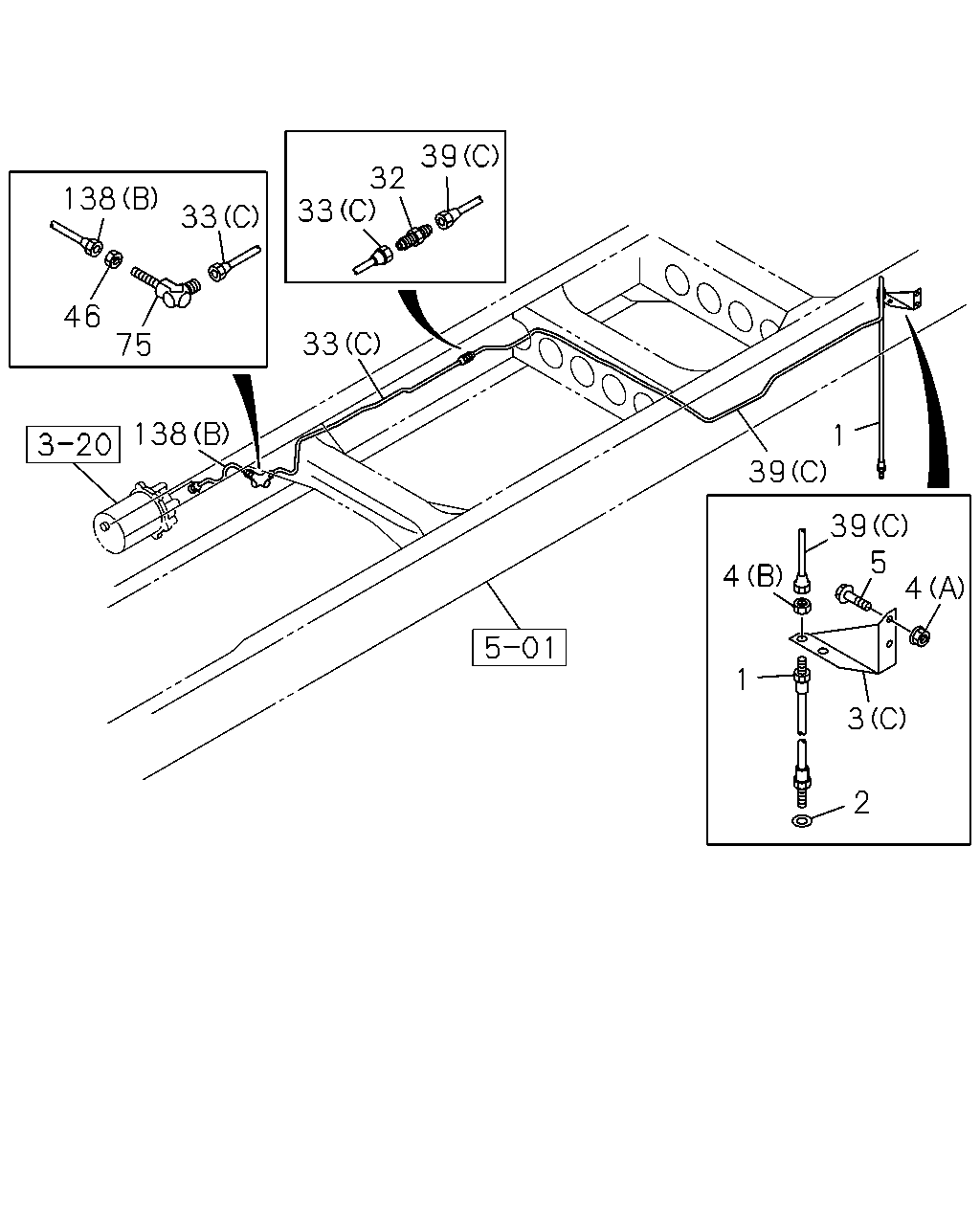

39 32 33 138 33 46 33 75 138 1 39 39 5 4 4 1 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK L=730	0-05213-730-0	01	1	0712-	●	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0712-0802		●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0803-0811	●	●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47476-701-2	01	1	0712-0802	●
3	BRACKET; FLEX HOSE,RR BRK (C)	8-98093-550-0	01	1	0803-	●	●
3	BRACKET; FLEX HOSE,RR BRK (B)	8-98099-644-0	01	1	0712-0802		●
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	0712-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0803-	●	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	0712-0905	●	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	02	1	0906-	●	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (A) L=1435 SERVICED BY L=1500	1-47428-735-0	01	1	0712-0802	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (C) L=1153	8-98111-594-0	01	1	0803-0808	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (C) L=1157	8-98121-273-0	01	1	0809-0811	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (C) L=1147	8-98138-233-0	01	1	0812-	●
33	PIPE; OIL,UNION TO UNION (B) L=860 SERVICED BY L=900	1-47428-729-0	01	1	0712-0802		●
33	PIPE; OIL,UNION TO UNION (C) L=1364	8-98111-596-0	01	1	0803-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=2087	8-98054-503-0	01	1	0712-0802	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=2537 SERVICED BY L=2650	1-47428-743-0	01	1	0712-0802		●
39	PIPE; OIL,UNION TO RR FLEX HOSE (C) L=2018 SERVICED BY L=2200	1-47428-740-0	01	1	0803-0808	●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (C) L=2022 SERVICED BY L=2200	1-47428-740-0	01	1	0809-	●	●
46	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0712-0802	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-0802		●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0803-	●	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0712-	●	●
138	PIPE; HYDRAULIC UNIT (B) L=491	8-98108-549-0	01	1	0803-	●
138	PIPE; HYDRAULIC UNIT (A) L=517 SERVICED BY L=550	1-47428-724-0	01	1	0712-0802		●
138	PIPE; HYDRAULIC UNIT (B) L=622 SERVICED BY L=650	1-47428-726-0	01	1	0803-		●

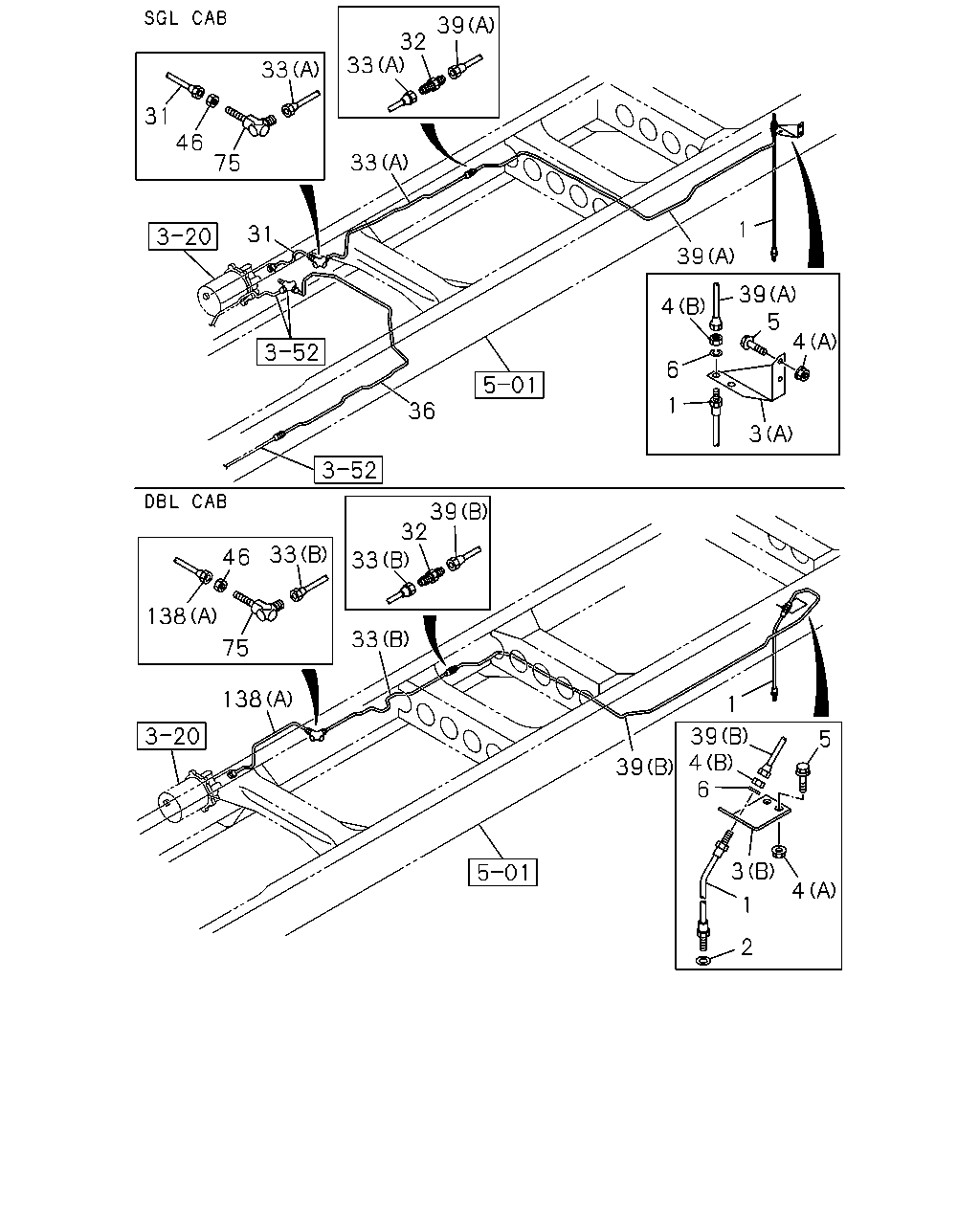

39 32 33 33 31 46 33 75 1 31 39 39 5 4 4 6 1 36 3 39 32 33 46 33 138 33 75 138 1 39 4 6 5 39 3 4 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK L=730	0-05213-730-0	01	1	0712-	●	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0712-0802		●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0803-0811	●	●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47476-701-2	01	1	0712-0802	●
3	BRACKET; FLEX HOSE,RR BRK (C)	8-98093-550-0	01	1	0803-	●	●
3	BRACKET; FLEX HOSE,RR BRK (B)	8-98099-644-0	01	1	0712-0802		●
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	0712-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0803-	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0712-0802	●	●
31	PIPE; OIL,AIR MASTER TO UNION L=253	8-98054-505-0	01	1	0712-0802	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	0712-0905	●	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	02	1	0906-	●	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (A) L=1435 SERVICED BY L=1500	1-47428-735-0	01	1	0712-0802	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (C) L=1153	8-98111-594-0	01	1	0803-0808	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (C) L=1157	8-98121-273-0	01	1	0809-0811	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) (C) L=1147	8-98138-233-0	01	1	0812-	●
33	PIPE; OIL,UNION TO UNION (B) L=860 SERVICED BY L=900	1-47428-729-0	01	1	0712-0802		●
33	PIPE; OIL,UNION TO UNION (C) L=1364	8-98111-596-0	01	1	0803-		●
36	PIPE; OIL,UNION TO UNION L=1747	8-98054-499-0	01	1	0712-0802	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=2087	8-98054-503-0	01	1	0712-0802	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=2537 SERVICED BY L=2650	1-47428-743-0	01	1	0712-0802		●
39	PIPE; OIL,UNION TO RR FLEX HOSE (C) L=2018 SERVICED BY L=2200	1-47428-740-0	01	1	0803-0808	●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (C) L=2022 SERVICED BY L=2200	1-47428-740-0	01	1	0809-	●	●
46	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0712-0802	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-0802		●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0803-	●	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0712-	●	●
138	PIPE; HYDRAULIC UNIT (B) L=491	8-98108-549-0	01	1	0803-	●
138	PIPE; HYDRAULIC UNIT (A) L=517 SERVICED BY L=550	1-47428-724-0	01	1	0712-0802		●
138	PIPE; HYDRAULIC UNIT (B) L=622 SERVICED BY L=650	1-47428-726-0	01	1	0803-		●

13 13

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

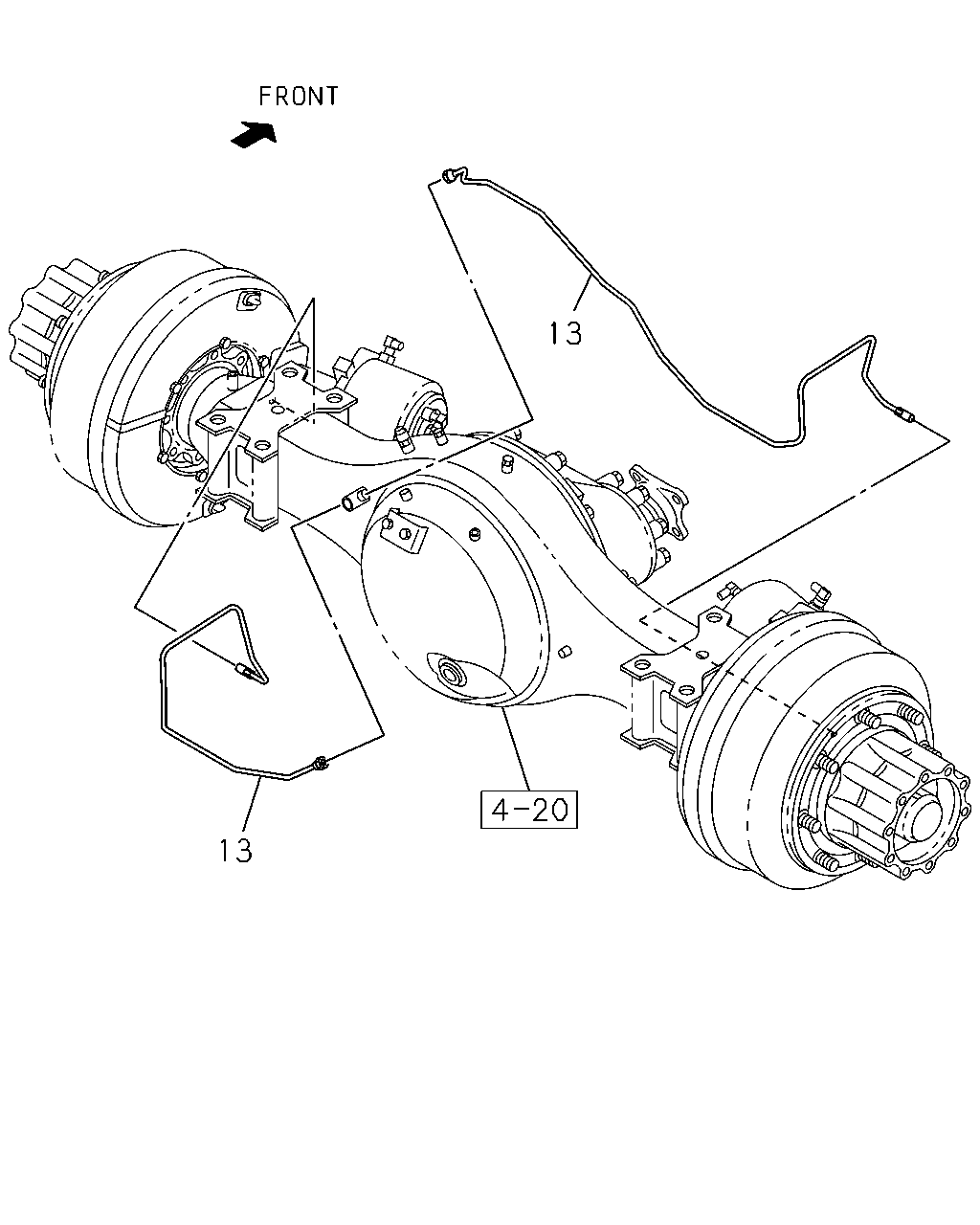

	13	PIPE; BRK,RR AXLE	8-98029-681-0	01	1	0712-	●	●
	13	PIPE; BRK,RR AXLE	8-98029-682-0	01	1	0712-	●	●
