3-52 — BRAKE PIPING; OIL,FRONT (#62330) — 163 parça

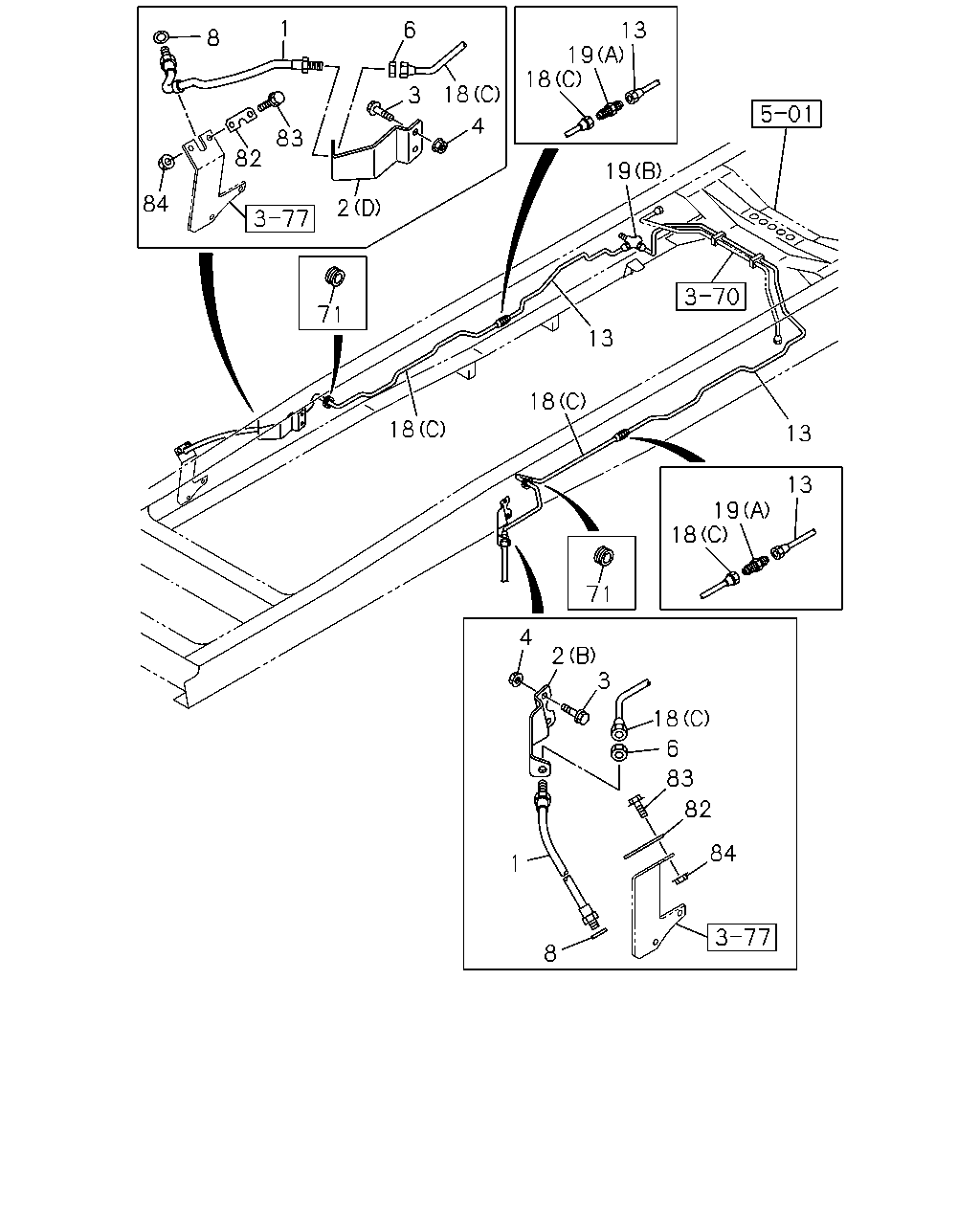

8 7 6 1 18 3 4 83 82 19 84 2 2 18 71 18 71 4 2 3 18 6 7 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK L=650	0-05312-650-0	02	1	0712-0802	●
1	HOSE; FLEX,FRT BRK L=650	0-05312-650-0	01	1	0803-0803	●	●
1	HOSE; FLEX,FRT BRK L=650	0-05312-650-0	01	1	0712-0802		●
1	HOSE; FLEX,FRT BRK	8-97623-929-0	01	1	0712-0802		●
1	HOSE; FLEX,FRT BRK	8-97623-929-0	01	1	0803-0803	●	●
1	HOSE; FLEX,FRT BRK	8-97623-929-0	02	1	0804-	●	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-97615-742-0	01	1	0712-0802	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-97615-743-0	01	1	0712-0802	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-850-0	01	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK (D)	8-98113-700-0	01	1	0803-	●	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	0803-	●	●
2	BRACKET; FLEX HOSE,FRT BRK (C)	8-98093-260-0	01	1	0712-0802		●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0712-	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	06	1	0712-0802		●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0803-	●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	0712-	●	●
7	WASHER; LK,FLEX HOSE,FRT BRK ID=12.2	0-91510-512-0	02	1	0712-0802	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	0712-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=955 SERVICED BY L=1000	1-47428-730-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=950 SERVICED BY L=1000	1-47428-730-0	01	1	0803-0811	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=958 SERVICED BY L=1000	1-47428-730-0	01	1	0812-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=711	8-98054-500-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=567 SERVICED BY L=600	1-47428-725-0	01	1	0803-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=1820 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2685 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802		●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	0803-	●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0712-0802		●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0803-0804	●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0805-	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-606-0	01	1	0805-		●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0712-	●	●
82	PLATE; FLEX HOSE	1-47476-241-1	01	1	0712-0802		●
82	PLATE; FLEX HOSE	1-47476-241-1	01	1	0803-0803	●	●
82	PLATE; FLEX HOSE	1-47476-241-1	02	1	0804-	●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	02	1	0712-0802		●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	02	1	0803-0803	●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	04	1	0804-	●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	02	1	0803-0803	●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	0804-	●	●

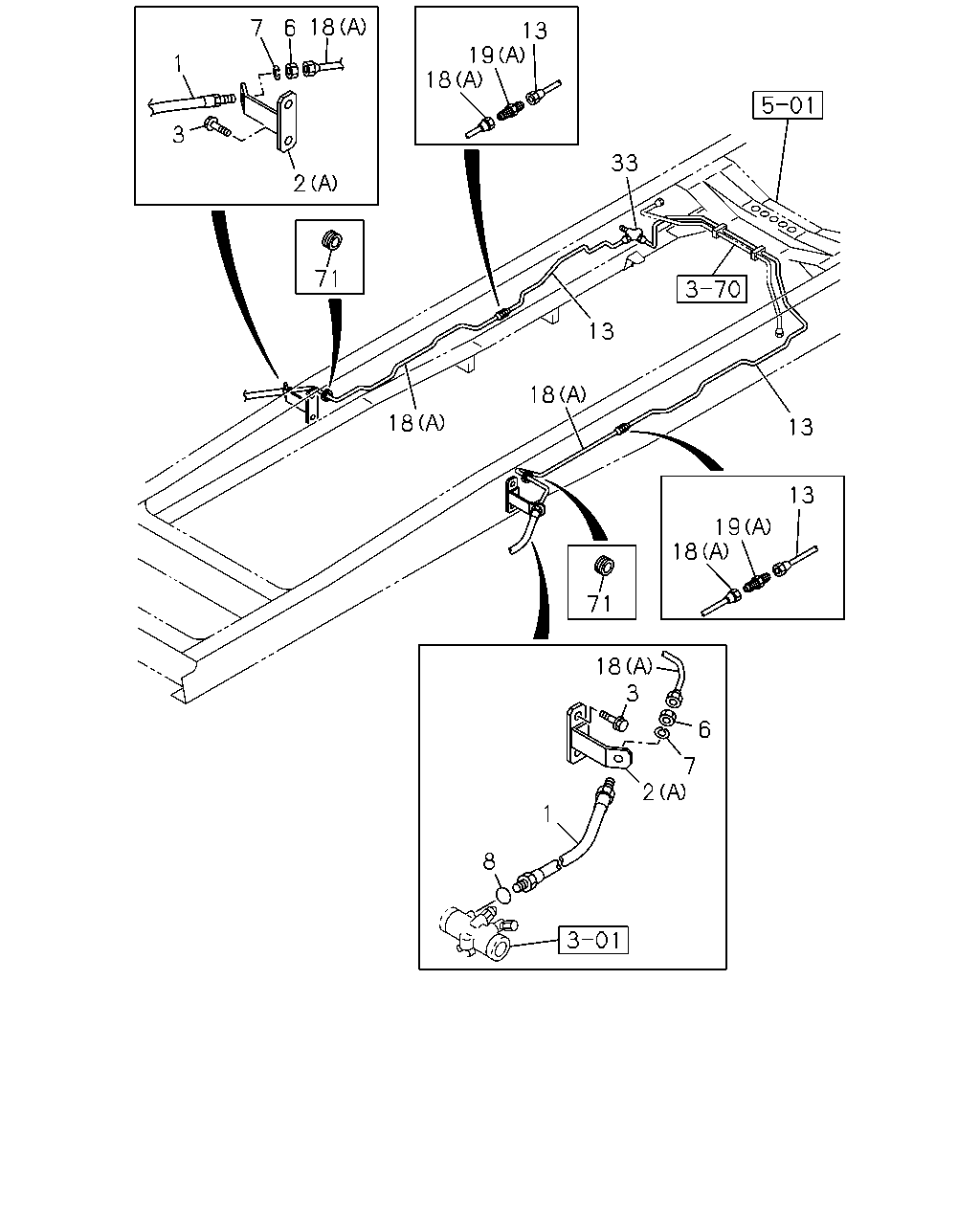

1 6 13 8 19 18 18 3 4 83 82 19 84 2 71 13 18 18 13 13 19 18 71 4 2 3 18 6 83 82 84 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK L=650	0-05312-650-0	02	1	0712-0802	●
1	HOSE; FLEX,FRT BRK L=650	0-05312-650-0	01	1	0803-0803	●	●
1	HOSE; FLEX,FRT BRK L=650	0-05312-650-0	01	1	0712-0802		●
1	HOSE; FLEX,FRT BRK	8-97623-929-0	01	1	0712-0802		●
1	HOSE; FLEX,FRT BRK	8-97623-929-0	01	1	0803-0803	●	●
1	HOSE; FLEX,FRT BRK	8-97623-929-0	02	1	0804-	●	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-97615-742-0	01	1	0712-0802	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-97615-743-0	01	1	0712-0802	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-850-0	01	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK (D)	8-98113-700-0	01	1	0803-	●	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	0803-	●	●
2	BRACKET; FLEX HOSE,FRT BRK (C)	8-98093-260-0	01	1	0712-0802		●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0712-	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	06	1	0712-0802		●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0803-	●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	0712-	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	0712-	●	●
13	PIPE; OIL,UNION TO UNION L=1840 SERVICED BY L=2000	1-47428-739-0	01	1	0712-0802	●
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	0803-	●
13	PIPE; OIL,UNION TO UNION L=631	8-98054-501-0	01	1	0712-0802	●
13	PIPE; OIL,UNION TO UNION L=1696 SERVICED BY L=1700	1-47428-737-0	01	1	0803-0811	●
13	PIPE; OIL,UNION TO UNION L=1754 SERVICED BY L=1820	1-47428-738-0	01	1	0812-	●
13	PIPE; OIL,UNION TO UNION L=1749 SERVICED BY L=1820	1-47428-738-0	01	1	0803-0811		●
13	PIPE; OIL,UNION TO UNION L=1805 SERVICED BY L=1820	1-47428-738-0	01	1	0812-		●
13	PIPE; OIL,UNION TO UNION L=1098 SERVICED BY L=1100	1-47428-731-0	01	1	0803-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=955 SERVICED BY L=1000	1-47428-730-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=950 SERVICED BY L=1000	1-47428-730-0	01	1	0803-0811	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=958 SERVICED BY L=1000	1-47428-730-0	01	1	0812-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=711	8-98054-500-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=567 SERVICED BY L=600	1-47428-725-0	01	1	0803-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=1820 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2685 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802		●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	0803-	●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0712-0802		●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0803-0804	●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0805-	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-606-0	01	1	0805-		●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0712-	●	●
82	PLATE; FLEX HOSE	1-47476-241-1	01	1	0712-0802		●
82	PLATE; FLEX HOSE	1-47476-241-1	01	1	0803-0803	●	●
82	PLATE; FLEX HOSE	1-47476-241-1	02	1	0804-	●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	02	1	0712-0802		●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	02	1	0803-0803	●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	04	1	0804-	●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	02	1	0803-0803	●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	0804-	●	●

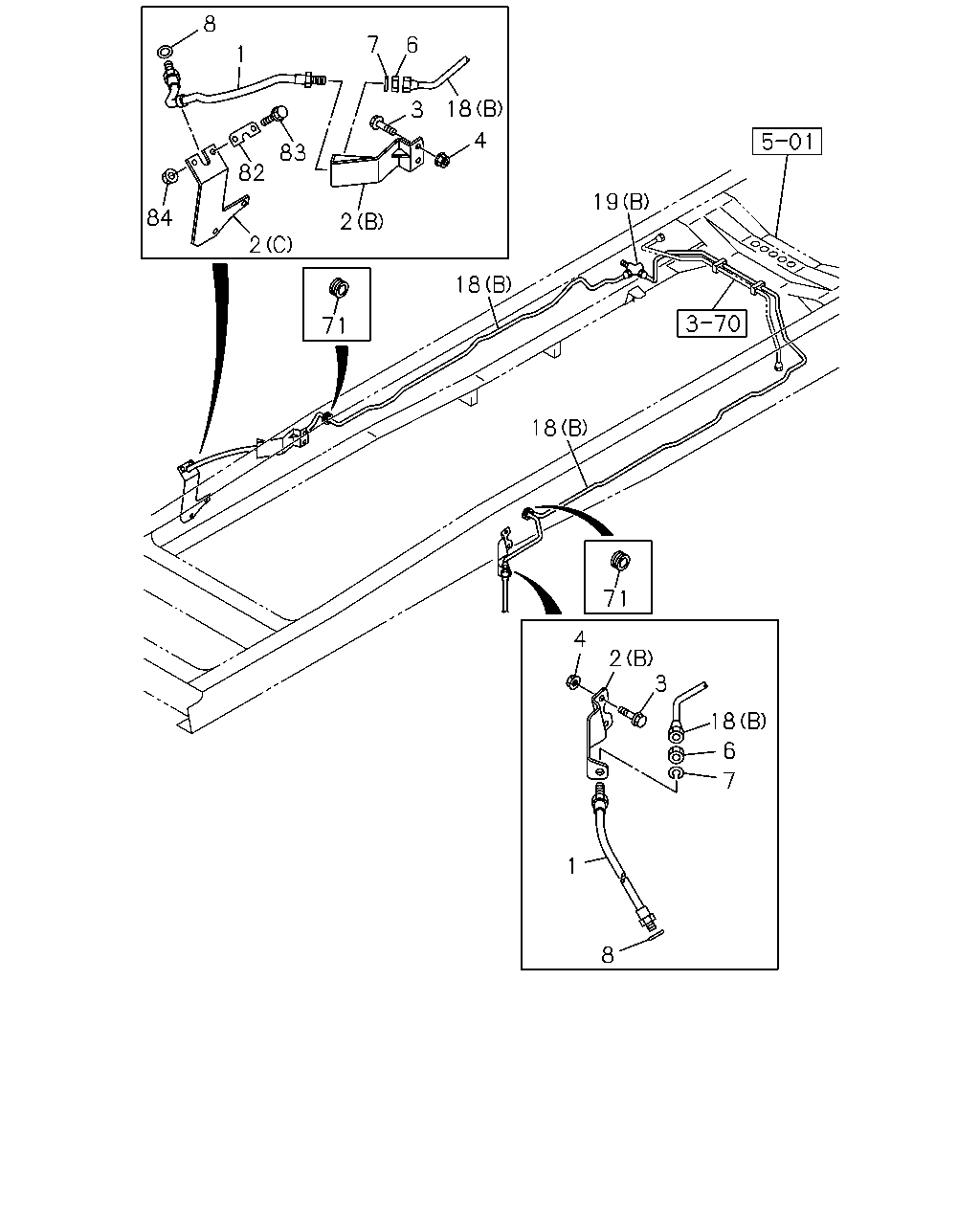

18 7 6 13 19 18 1 3 33 2 71 13 18 18 13 13 19 18 71 18 3 6 7 2 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK L=650	0-05312-650-0	02	1	0712-0802	●
1	HOSE; FLEX,FRT BRK L=650	0-05312-650-0	01	1	0803-0803	●	●
1	HOSE; FLEX,FRT BRK L=650	0-05312-650-0	01	1	0712-0802		●
1	HOSE; FLEX,FRT BRK	8-97623-929-0	01	1	0712-0802		●
1	HOSE; FLEX,FRT BRK	8-97623-929-0	01	1	0803-0803	●	●
1	HOSE; FLEX,FRT BRK	8-97623-929-0	02	1	0804-	●	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-97615-742-0	01	1	0712-0802	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-97615-743-0	01	1	0712-0802	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-850-0	01	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK (D)	8-98113-700-0	01	1	0803-	●	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	0712-0802		●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	0803-	●	●
2	BRACKET; FLEX HOSE,FRT BRK (C)	8-98093-260-0	01	1	0712-0802		●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0712-	●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	0712-	●	●
7	WASHER; LK,FLEX HOSE,FRT BRK ID=12.2	0-91510-512-0	02	1	0712-0802	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	0712-	●	●
13	PIPE; OIL,UNION TO UNION L=1840 SERVICED BY L=2000	1-47428-739-0	01	1	0712-0802	●
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	0803-	●
13	PIPE; OIL,UNION TO UNION L=631	8-98054-501-0	01	1	0712-0802	●
13	PIPE; OIL,UNION TO UNION L=1696 SERVICED BY L=1700	1-47428-737-0	01	1	0803-0811	●
13	PIPE; OIL,UNION TO UNION L=1754 SERVICED BY L=1820	1-47428-738-0	01	1	0812-	●
13	PIPE; OIL,UNION TO UNION L=1749 SERVICED BY L=1820	1-47428-738-0	01	1	0803-0811		●
13	PIPE; OIL,UNION TO UNION L=1805 SERVICED BY L=1820	1-47428-738-0	01	1	0812-		●
13	PIPE; OIL,UNION TO UNION L=1098 SERVICED BY L=1100	1-47428-731-0	01	1	0803-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=955 SERVICED BY L=1000	1-47428-730-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=950 SERVICED BY L=1000	1-47428-730-0	01	1	0803-0811	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=958 SERVICED BY L=1000	1-47428-730-0	01	1	0812-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=711	8-98054-500-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=567 SERVICED BY L=600	1-47428-725-0	01	1	0803-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=1820 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2685 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802		●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	0803-	●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0712-0802		●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0803-0804	●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0805-	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-606-0	01	1	0805-		●
33	UNION; OIL PIPE M12 3WAY	0-92138-906-0	02	1	0712-0802	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0712-	●	●

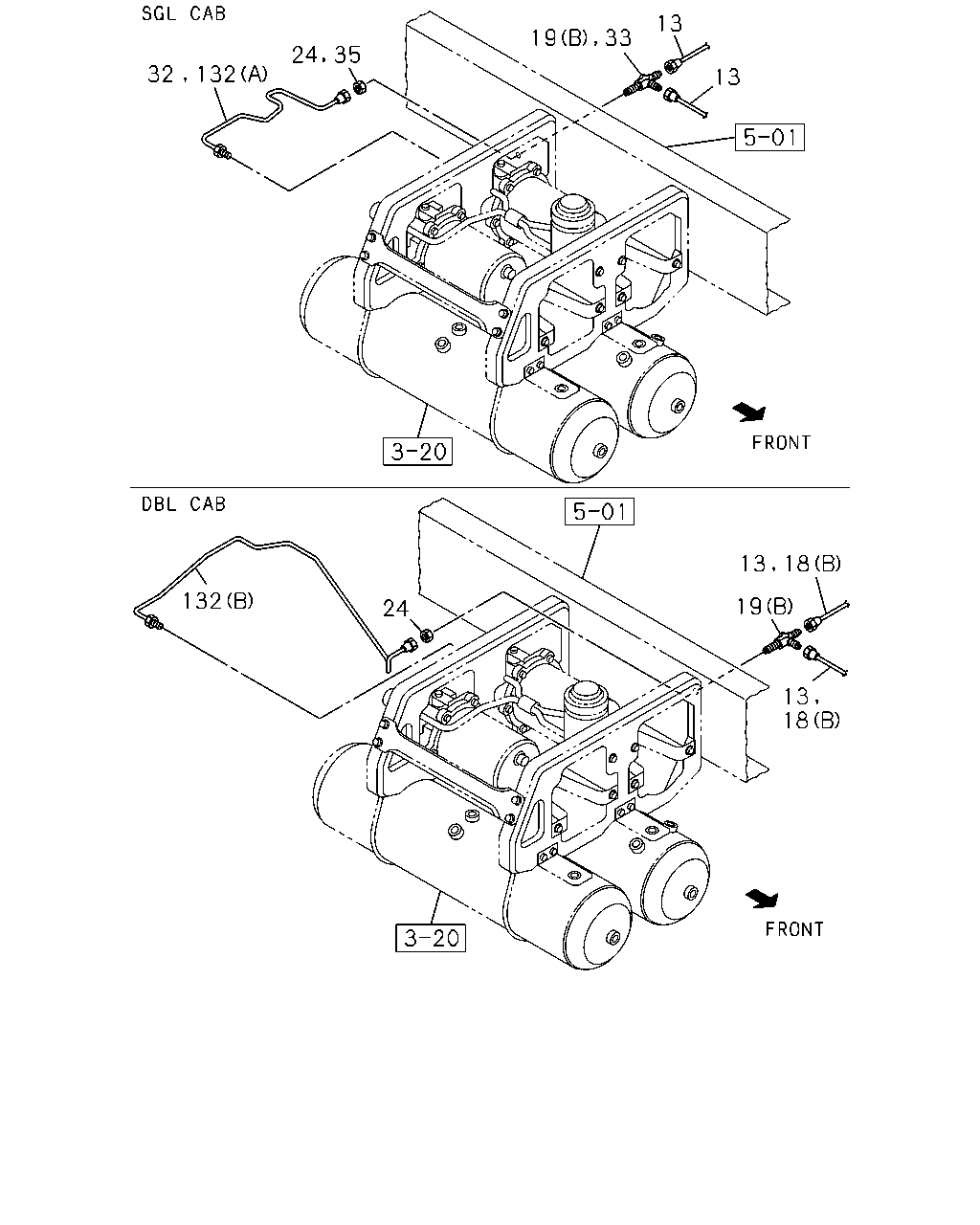

13 32 132 13 13 18 132 19 24 13 18 24 35 19 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,UNION TO UNION L=1840 SERVICED BY L=2000	1-47428-739-0	01	1	0712-0802	●
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	0803-	●
13	PIPE; OIL,UNION TO UNION L=631	8-98054-501-0	01	1	0712-0802	●
13	PIPE; OIL,UNION TO UNION L=1696 SERVICED BY L=1700	1-47428-737-0	01	1	0803-0811	●
13	PIPE; OIL,UNION TO UNION L=1754 SERVICED BY L=1820	1-47428-738-0	01	1	0812-	●
13	PIPE; OIL,UNION TO UNION L=1749 SERVICED BY L=1820	1-47428-738-0	01	1	0803-0811		●
13	PIPE; OIL,UNION TO UNION L=1805 SERVICED BY L=1820	1-47428-738-0	01	1	0812-		●
13	PIPE; OIL,UNION TO UNION L=1098 SERVICED BY L=1100	1-47428-731-0	01	1	0803-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=955 SERVICED BY L=1000	1-47428-730-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=950 SERVICED BY L=1000	1-47428-730-0	01	1	0803-0811	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=958 SERVICED BY L=1000	1-47428-730-0	01	1	0812-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=711	8-98054-500-0	01	1	0712-0802	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (C) L=567 SERVICED BY L=600	1-47428-725-0	01	1	0803-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=1820 SERVICED BY L=1820	1-47428-738-0	01	1	0712-0802		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=2685 SERVICED BY L=2900	1-47428-744-0	01	1	0712-0802		●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	0712-0802	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	0803-	●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0712-0802		●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0803-0804	●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	0805-	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-606-0	01	1	0805-		●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0712-	●	●
32	PIPE; OIL,AIR MASTER TO UNION L=588	8-98054-502-0	01	1	0712-0802	●
33	UNION; OIL PIPE M12 3WAY	0-92138-906-0	02	1	0712-0802	●
35	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0712-0802	●
132	PIPE; OIL,BRK,HYD UNIT (A) L=521 SERVICED BY L=550	1-47428-724-0	01	1	0803-	●
132	PIPE; OIL,BRK,HYD UNIT (B) L=970 SERVICED BY L=1000	1-47428-730-0	01	1	0712-0802		●
132	PIPE; OIL,BRK,HYD UNIT (B) L=902 SERVICED BY L=1000	1-47428-730-0	01	1	0803-		●
