2-75 — TRANSFER CONTROL (#62315) — 57 parça
çizim 146509
206 148 207 206 225 225 207 147 167 207 207 205 205
BalonParca AdiParca NoAdetTipApplied Date A B
147 BOLT; CLIP
M8X70 FLANGE 		0-28050-870-0 01 1 0712-0802 ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ● ●
148 NUT; CLIP 9-14149-158-0 01 1 0803-0804 ● ●
167 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0803-0804 ● ●
167 BOLT; CLIP,AIR PIPE
M8X70 FLANGE 		0-28050-870-0 01 1 0712-0802 ●
167 BOLT; CLIP,AIR PIPE
M8X70 FLANGE 		0-28050-870-0 01 1 0803-0804 ● ●
205 CLIP; UPR
ID=10 & 10 		1-09709-241-0 01 1 0712-0804 ● ●
206 CLIP; LWR
ID=10 & 10 		1-09709-241-0 01 1 0712-0804 ● ●
207 COLLAR
ID=6 		1-47459-010-0 04 1 0712-0802 ●
207 COLLAR
ID=6 		1-47459-010-0 04 1 0803-0804 ● ●
225 CLIP; CENTER
ID=10 		1-09709-242-0 01 1 0712-0804 ● ●

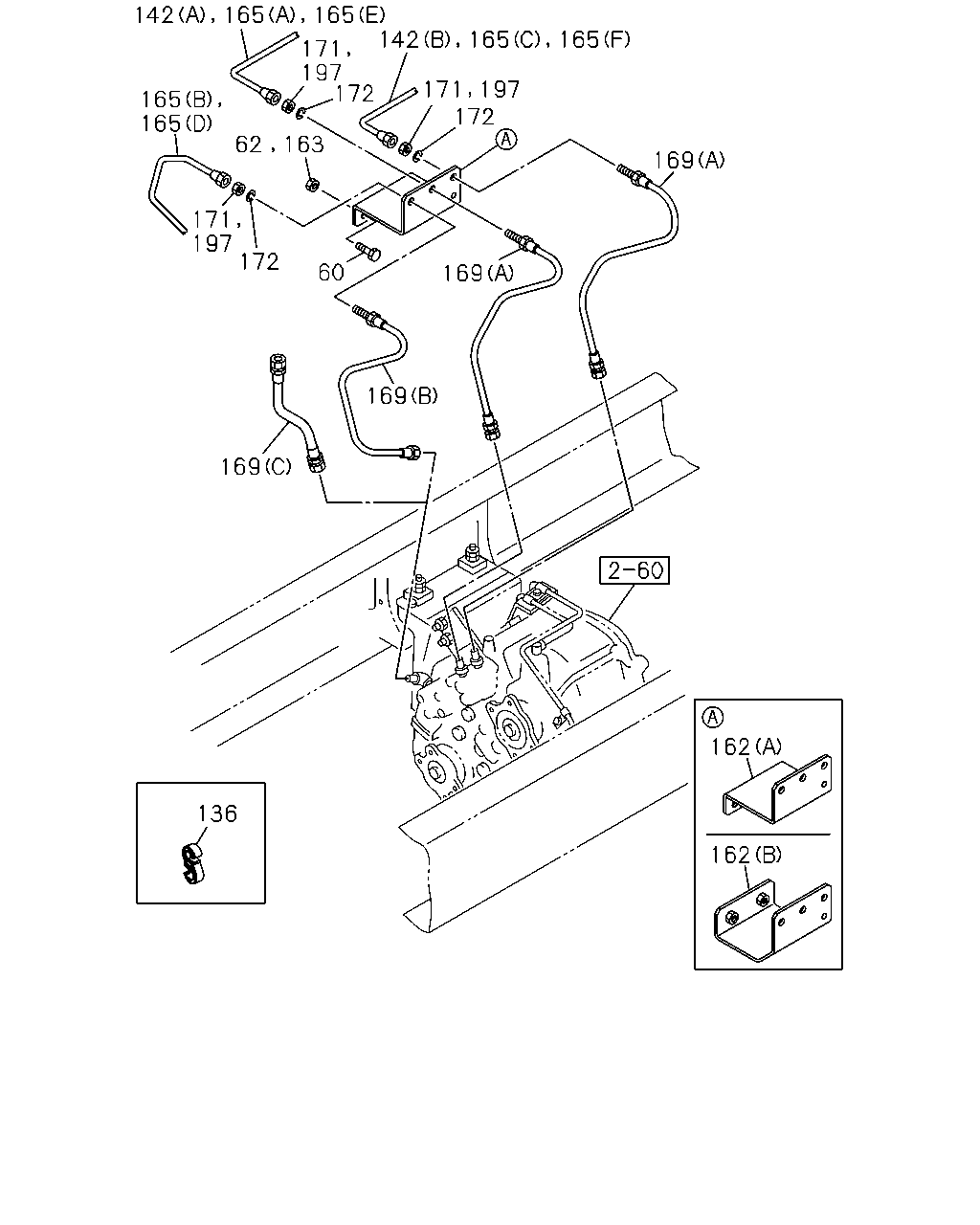

çizim 146513
142 165 165 142 165 165 171 197 172 171 197 172 165 165 163 62 169 171 197 172 60 169 169 169 162 136 162
BalonParca AdiParca NoAdetTipApplied Date A B
60 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ●
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
136 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 01 1 0712-0802 ●
136 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 02 1 0803- ● ●
136 CLIP; AIR PIPE
ID=6.35 & 6.35 		1-09709-273-1 02 1 0805- ● ●
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(B) L=552 SERVICED BY L=600 		1-47428-809-0 01 1 0803- ● ●
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(A) L=668 SERVICED BY L=700 		1-47428-811-0 01 1 0803- ● ●
162 BRACKET; FLEX HOSE,TRANSFER
(A) 		1-47479-525-0 01 1 0712-0802 ● ●
162 BRACKET; FLEX HOSE,TRANSFER
(A) 		1-47479-525-0 01 1 0712-0802 ●
162 BRACKET; FLEX HOSE,TRANSFER
(A) 		1-47479-525-0 01 1 0803-0806 ● ●
162 BRACKET; FLEX HOSE,TRANSFER
(B) 		8-98116-431-0 01 1 0803- ● ●
163 NUT; BRKT,FLEX HOSE
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
163 NUT; BRKT,FLEX HOSE
M8 FLANGE 		0-91180-108-0 02 1 0803-0811 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=579 SERVICED BY L=600 		1-47428-809-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(D) L=747 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=769 SERVICED BY L=800 		1-47428-812-0 01 1 0803- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=931 		8-98054-515-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(F) L=642 SERVICED BY L=650 		1-47428-810-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) L=794 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(G) L=1444 SERVICED BY L=1500 		1-47428-819-0 01 1 0712-0802 ●
169 HOSE; FLEX,TRANSFER CONT
(C) L=220 		1-09363-645-0 01 1 0712-0802 ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=490 		1-09363-632-0 01 1 0803- ● ●
169 HOSE; FLEX,TRANSFER CONT
(B) OD=12.7 L=450 		1-09363-631-0 01 1 0712-0802 ● ●
169 HOSE; FLEX,TRANSFER CONT
(B) OD=12.7 L=450 		1-09363-631-0 01 1 0712-0802 ●
169 HOSE; FLEX,TRANSFER CONT
(B) OD=12.7 L=450 		1-09363-631-0 01 1 0803-0806 ● ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=320 		1-09363-656-0 02 1 0712-0806 ● ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=340 		1-09363-622-0 02 1 0712-0802 ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=340 		1-09363-622-0 02 1 0803- ● ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 0712-0802 ● ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 0712-0802 ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 0803- ● ●
172 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 03 1 0712- ● ●
197 NUT; UNION
M12 		9-09840-280-0 03 1 0803-0811 ● ●

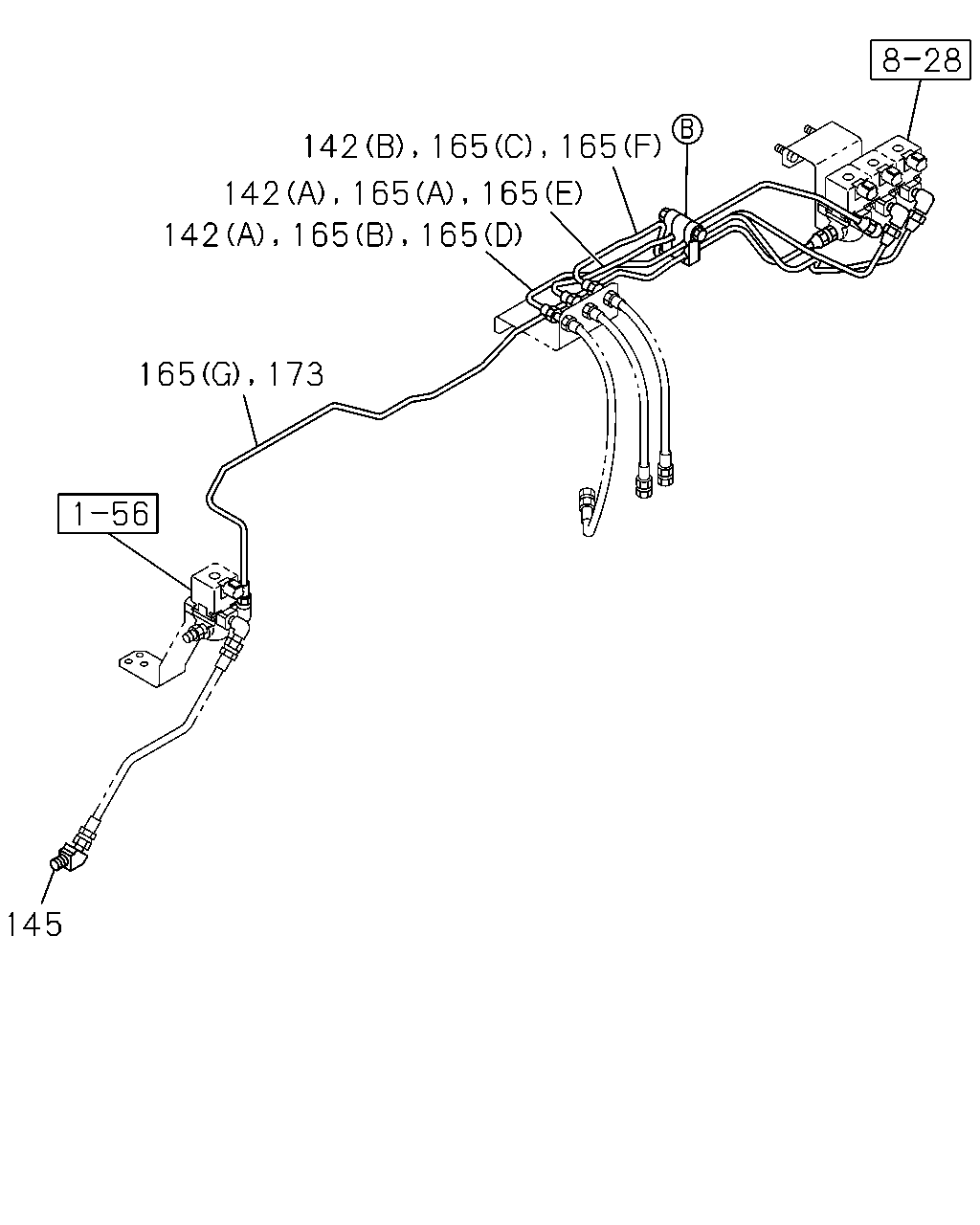

çizim 146518
142 165 165 165 165 142 165 142 165 165 173 145
BalonParca AdiParca NoAdetTipApplied Date A B
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(B) L=552 SERVICED BY L=600 		1-47428-809-0 01 1 0803- ● ●
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(A) L=668 SERVICED BY L=700 		1-47428-811-0 01 1 0803- ● ●
145 CONNECTOR; TRANSFER
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=579 SERVICED BY L=600 		1-47428-809-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(D) L=747 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=769 SERVICED BY L=800 		1-47428-812-0 01 1 0803- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=931 		8-98054-515-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(F) L=642 SERVICED BY L=650 		1-47428-810-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) L=794 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(G) L=1444 SERVICED BY L=1500 		1-47428-819-0 01 1 0712-0802 ●
173 PIPE; AIR,MAG VALVE TO VALVE
L=1394 SERVICED BY L=1500 		1-47428-819-0 01 1 0712-0802 ●
