2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#62313) — 19 parça

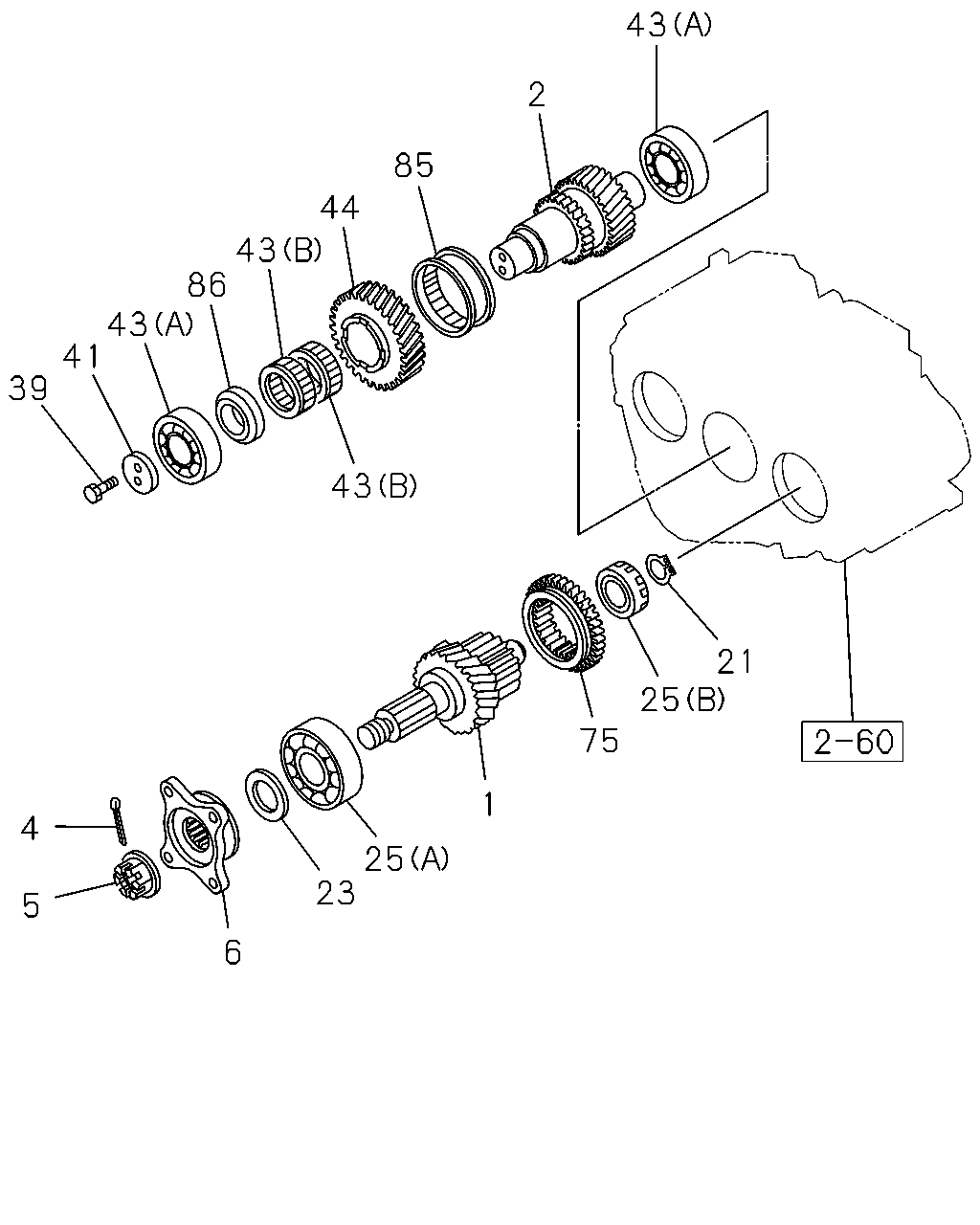

çizim 146522
43 2 85 44 43 86 43 41 39 43 21 25 75 1 4 25 23 5 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; GEAR,INPUT 1-36211-025-0 01 1 0712- ● ●
2 SHAFT; GEAR,IDLE 1-36251-023-0 01 1 0712- ● ●
4 PIN; SPLIT 9-08116-045-0 01 1 0712- ● ●
5 NUT; YOKE,TRANSFER,INPUT
M30 		1-09440-018-0 01 1 0712- ● ●
6 FLANGE; INPUT
W/COVER:DUST 		1-37240-079-1 01 1 0712- ● ●
21 RING; SNAP,PILOT BRG 1-09588-157-0 01 1 0712- ● ●
23 COLLAR; DIST,INPUT SHAFT 9-36215-006-1 01 1 0712- ● ●
25 BEARING; BALL,INPUT SHAFT
(A) NSK 		1-09800-055-0 01 1 0712- ● ●
25 BEARING; BALL,INPUT SHAFT
(A) NTN 		1-09800-064-0 01 1 0712- ● ●
25 BEARING; BALL,INPUT SHAFT
(B) NSK 		1-09810-087-0 01 1 0712- ● ●
39 BOLT; LK PLATE
M8X20 		1-09050-005-1 02 1 0712- ● ●
41 PLATE; LK,IDLE SHAFT 1-33313-002-0 01 1 0712- ● ●
43 BEARING; ROLLER,IDLE SHAFT
(A) NSK 		1-09812-038-0 02 1 0712- ● ●
43 BEARING; ROLLER,IDLE SHAFT
(A) NACHI 		1-09812-039-0 02 1 0712- ● ●
43 BEARING; ROLLER,IDLE SHAFT
(B) KOYO 		9-00096-240-1 02 1 0712- ● ●
44 GEAR; IDLE,LOW RANGE 1-36271-045-0 01 1 0712- ● ●
75 SLEEVE; HIGH,INPUT 1-36262-021-0 01 1 0712- ● ●
85 SLEEVE; LOW,IDLE 1-36262-020-0 01 1 0712- ● ●
86 WASHER; THRUST,IDLE 1-36255-006-0 01 1 0712- ● ●
