2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#62309) — 22 parça

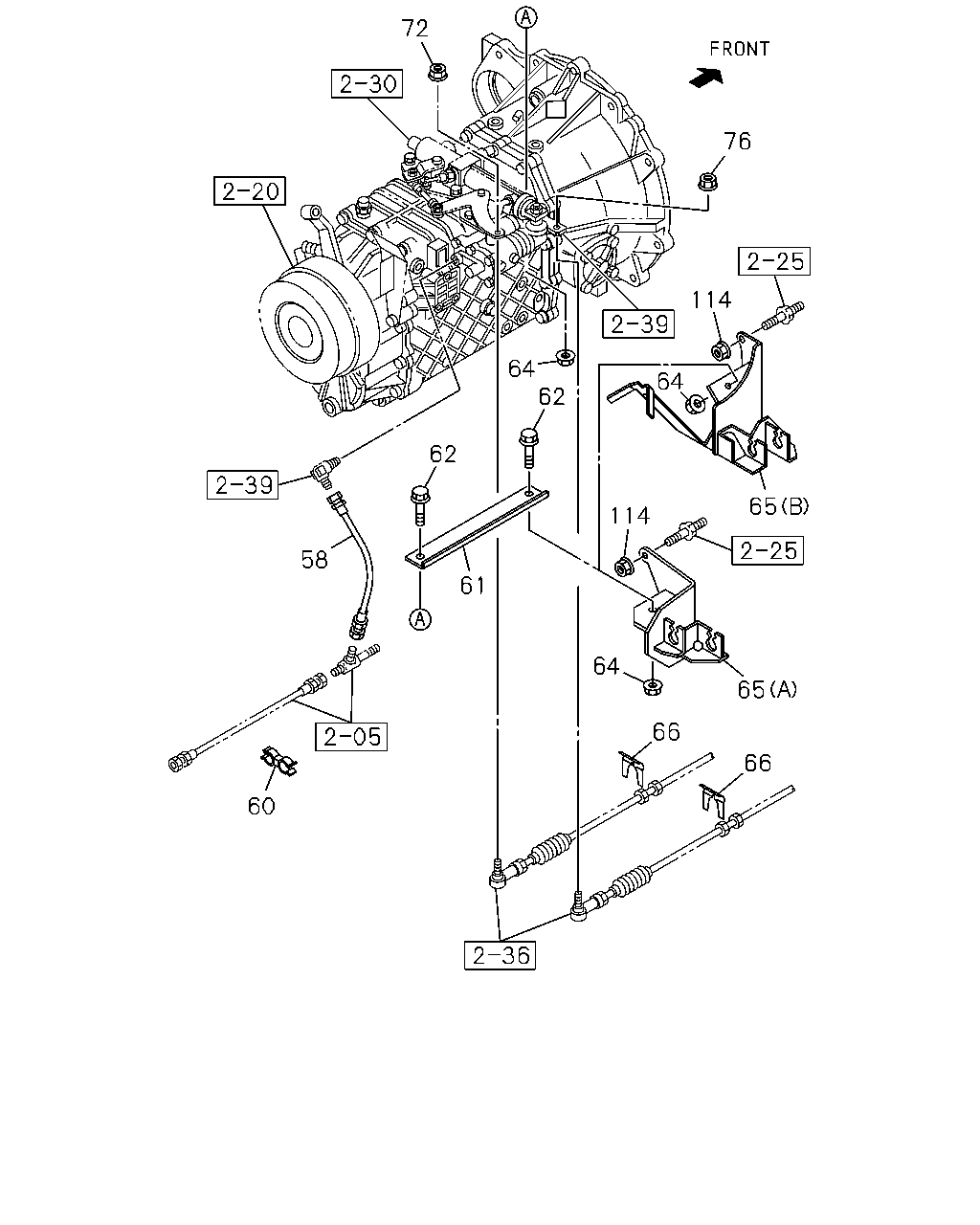

çizim 146519
72 76 114 64 62 64 62 65 114 58 61 64 65 66 66 60
BalonParca AdiParca NoAdetTipApplied Date A B
58 HOSE; FLEX,POWER ASSISTOR
MLD6Q M/T(X5J) L=310 		1-09363-713-0 01 1 0806- ● ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW) L=290 		1-09363-875-0 01 1 0712-0906 ● ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=290 		1-09363-875-0 01 1 0907- ● ●
60 CLIP; FLEX HOSE
ID=11.8 & 7.5 		1-09709-182-0 01 1 0712- ● ●
61 STAY; BRKT,TRANS CONT 1-33657-402-0 01 1 0712-1003 ●
61 STAY; BRKT,TRANS CONT 8-98165-370-0 01 1 1004-1309 ●
61 STAY; BRKT,TRANS CONT 8-98251-404-0 01 1 1310- ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J) 		1-33657-349-0 01 1 0806- ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW) 		1-33657-267-0 01 1 0712-0906 ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		1-33657-267-0 01 1 0907- ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 02 1 0712- ● ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) (A) 		8-98114-255-1 01 1 0806- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) (A) 		8-98010-158-1 01 1 0712-0906 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98010-158-1 01 1 0907- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) (B) 		8-98114-752-1 01 1 0806- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) (B) 		8-98090-822-0 01 1 0712-0906 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98090-822-0 01 1 0907- ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0712- ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0712- ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0712- ● ●
114 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
