◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11419 - FSS(AUST)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#62308) — 114 parça

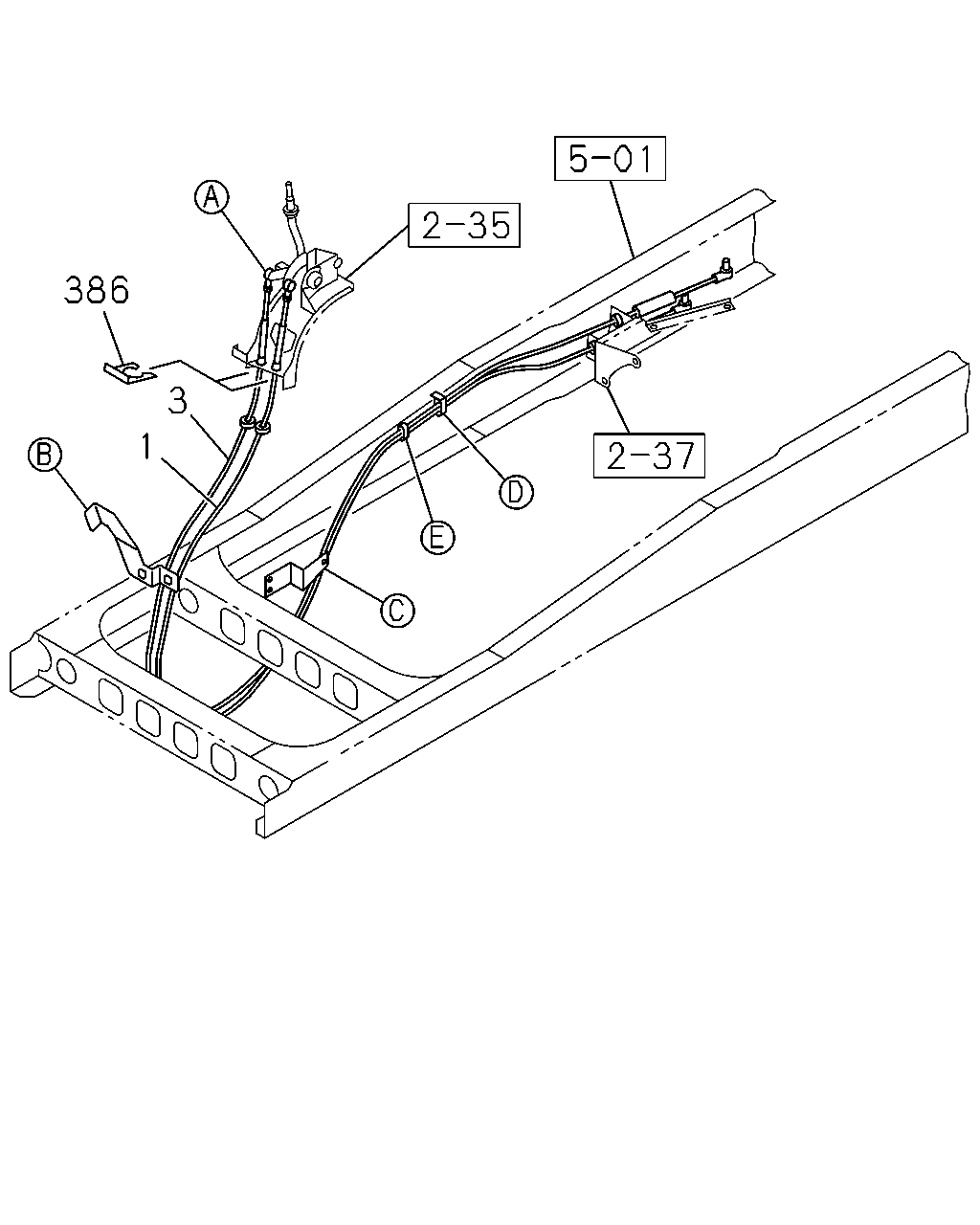

çizim 146492
386 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3025 		8-98122-063-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2965 		8-98122-059-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2920 		8-98122-056-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=2980 		8-98122-061-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3050 		8-98077-960-0 01 1 0712-0802 ● ●
1 CABLE; SHIFT,TRANS CONT
GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=2980 		8-98112-916-0 01 1 0803-0804 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=2980 		8-98112-916-2 01 1 0805-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=2980 		8-98112-916-2 01 1 0907- ● ●
1 CABLE; SHIFT,TRANS CONT
GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2990 		8-98077-959-0 01 1 0712-0802 ● ●
1 CABLE; SHIFT,TRANS CONT
GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2920 		8-98112-915-0 01 1 0803-0804 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2920 		8-98112-915-2 01 1 0805-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2920 		8-98112-915-2 01 1 0907- ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2950 		8-98010-422-1 01 1 0712-0802 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2875 		8-98112-919-2 01 1 0803-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2875 		8-98112-919-2 01 1 0907- ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=3010 		8-98010-424-1 01 1 0712-0802 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=2935 		8-98112-920-2 01 1 0803-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=2935 		8-98112-920-2 01 1 0907- ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3025 		8-98122-073-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2965 		8-98122-069-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2920 		8-98122-067-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=2980 		8-98122-071-2 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3205 		8-98122-064-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3145 		8-98122-060-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=3105 		8-98122-058-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=3165 		8-98122-062-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3165 		8-98077-962-0 01 1 0712-0802 ● ●
3 CABLE; SELECT,TRANS CONT
GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3095 		8-98112-923-0 01 1 0803-0804 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3095 		8-98112-923-3 01 1 0805-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3095 		8-98112-923-3 01 1 0907- ● ●
3 CABLE; SELECT,TRANS CONT
GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3105 		8-98077-961-0 01 1 0712-0802 ● ●
3 CABLE; SELECT,TRANS CONT
GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3035 		8-98112-922-0 01 1 0803-0804 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3035 		8-98112-922-3 01 1 0805-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3035 		8-98112-922-3 01 1 0907- ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=3085 		8-98010-462-1 01 1 0712-0802 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2995 		8-98112-927-4 01 1 0803-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2995 		8-98112-927-4 01 1 0907- ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=3145 		8-98010-464-1 01 1 0712-0802 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=3055 		8-98112-928-3 01 1 0803-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=3055 		8-98112-928-3 01 1 0907- ● ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=2655 		8-98122-074-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2595 		8-98122-070-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=3105 		8-98122-068-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=2615 		8-98122-072-3 01 1 0806- ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0712- ● ●

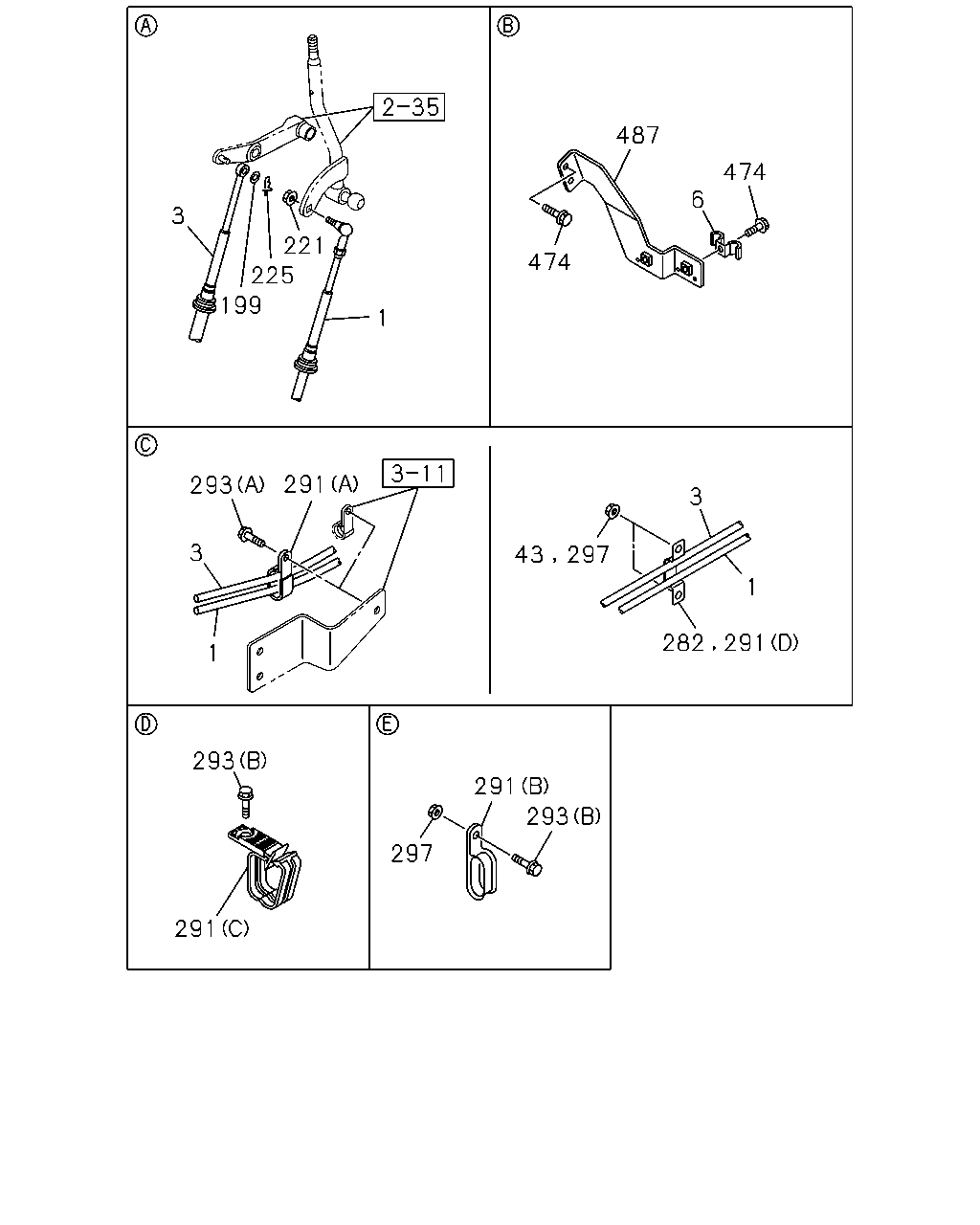

çizim 146495
487 474 6 3 221 474 225 199 1 291 293 3 3 1 1 293 291 293 297 291 43 297 282 291
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3025 		8-98122-063-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2965 		8-98122-059-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2920 		8-98122-056-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=2980 		8-98122-061-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3050 		8-98077-960-0 01 1 0712-0802 ● ●
1 CABLE; SHIFT,TRANS CONT
GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=2980 		8-98112-916-0 01 1 0803-0804 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=2980 		8-98112-916-2 01 1 0805-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=2980 		8-98112-916-2 01 1 0907- ● ●
1 CABLE; SHIFT,TRANS CONT
GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2990 		8-98077-959-0 01 1 0712-0802 ● ●
1 CABLE; SHIFT,TRANS CONT
GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2920 		8-98112-915-0 01 1 0803-0804 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2920 		8-98112-915-2 01 1 0805-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2920 		8-98112-915-2 01 1 0907- ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2950 		8-98010-422-1 01 1 0712-0802 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2875 		8-98112-919-2 01 1 0803-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2875 		8-98112-919-2 01 1 0907- ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=3010 		8-98010-424-1 01 1 0712-0802 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=2935 		8-98112-920-2 01 1 0803-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=2935 		8-98112-920-2 01 1 0907- ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3025 		8-98122-073-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2965 		8-98122-069-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2920 		8-98122-067-2 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=2980 		8-98122-071-2 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3205 		8-98122-064-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3145 		8-98122-060-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=3105 		8-98122-058-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=3165 		8-98122-062-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3165 		8-98077-962-0 01 1 0712-0802 ● ●
3 CABLE; SELECT,TRANS CONT
GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3095 		8-98112-923-0 01 1 0803-0804 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3095 		8-98112-923-3 01 1 0805-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3095 		8-98112-923-3 01 1 0907- ● ●
3 CABLE; SELECT,TRANS CONT
GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3105 		8-98077-961-0 01 1 0712-0802 ● ●
3 CABLE; SELECT,TRANS CONT
GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3035 		8-98112-922-0 01 1 0803-0804 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3035 		8-98112-922-3 01 1 0805-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3035 		8-98112-922-3 01 1 0907- ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=3085 		8-98010-462-1 01 1 0712-0802 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2995 		8-98112-927-4 01 1 0803-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2995 		8-98112-927-4 01 1 0907- ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=3145 		8-98010-464-1 01 1 0712-0802 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=3055 		8-98112-928-3 01 1 0803-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=3055 		8-98112-928-3 01 1 0907- ● ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=2655 		8-98122-074-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2595 		8-98122-070-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=3105 		8-98122-068-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=2615 		8-98122-072-3 01 1 0806- ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0712- ● ●
43 NUT; BRKT
GENERATOR 24V90A(K44) M8 FLANGE 		0-91180-108-0 02 1 0712-0805 ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0712- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0712-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0712- ● ●
282 BRACKET; TRANS SIDE
GENERATOR 24V90A(K44) 		8-98080-966-0 01 1 0712-0805 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0712-0805 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(C) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0806- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
GENERATOR 24V90A(K44) (B) ID=13 & 13 L=32 		8-97389-264-0 02 1 0712- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
GENERATOR 24V90A(K44) (D) 		8-98080-966-0 01 1 0806- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
EXC. GENERATOR 24V90A(K44) (A) ID=11X2 L=16 		0-95325-026-0 01 1 0712- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
EXC. GENERATOR 24V90A(K44) (B) ID=13 & 13 L=32 		8-97389-264-0 01 1 0712- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
GENERATOR 24V90A(K44) (B) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0906 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
GENERATOR 24V90A(K44) (B) M8X25 FLANGE 		0-28650-825-0 03 1 0907- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
EXC. GENERATOR 24V90A(K44) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0712-0906 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
EXC. GENERATOR 24V90A(K44) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0907- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
EXC. GENERATOR 24V90A(K44) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
297 NUT; CLIP
GENERATOR 24V90A(K44) M8 FLANGE 		0-91180-108-0 02 1 0806- ● ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 0712-0805 ● ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 0806- ● ●
487 BRACKET; CONT CABLE 8-98021-920-2 01 1 0712-0805 ● ●
487 BRACKET; CONT CABLE 8-98021-920-2 01 1 0806-1012 ● ●
487 BRACKET; CONT CABLE 8-98183-009-0 01 1 1101- ● ●
