Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#62306) — 332 parça

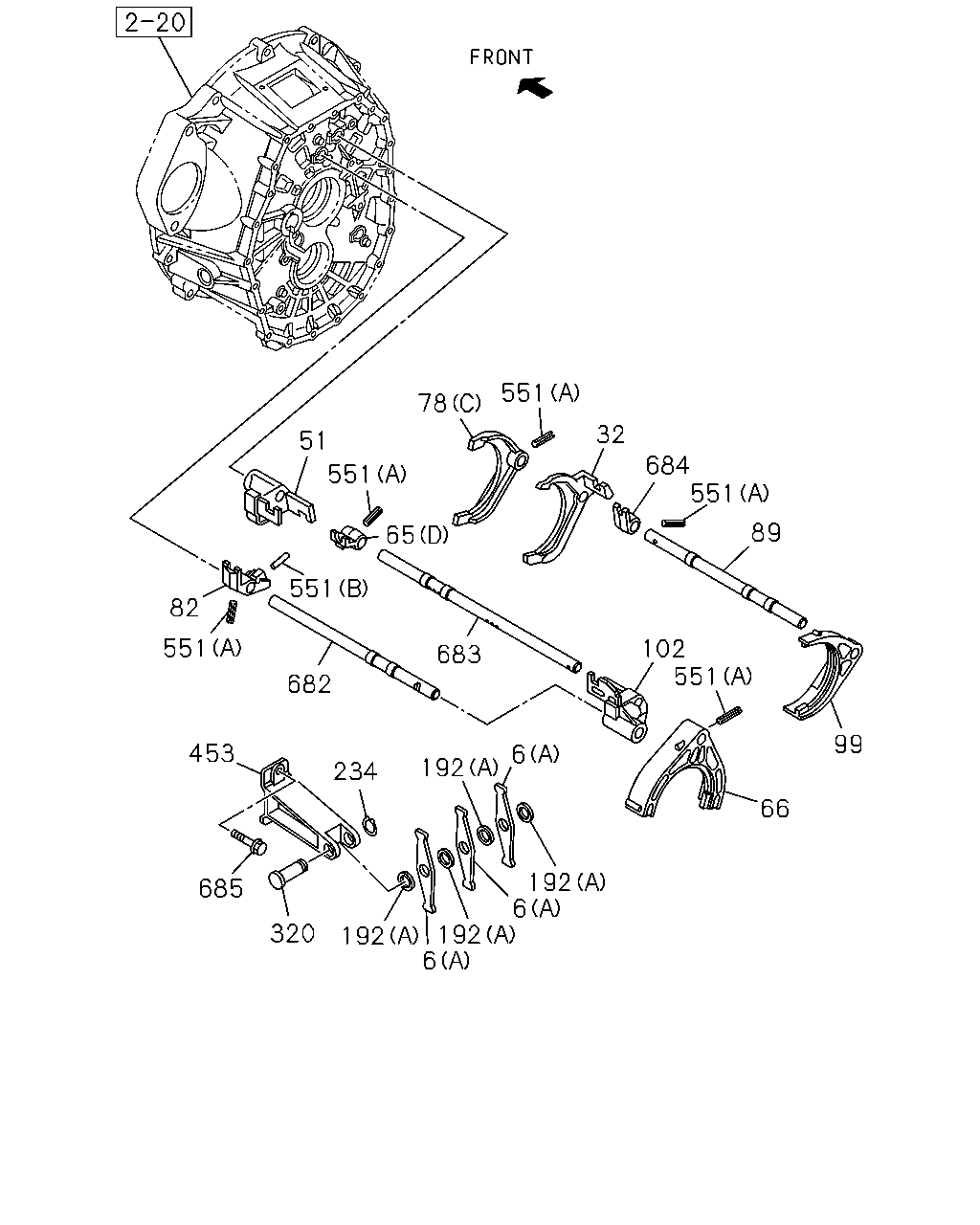

551 78 32 51 684 551 551 89 65 551 82 551 102 551 683 682 99 453 6 192 234 66 192 6 685 320 192 6 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0712-0906	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0907-	●	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	0712-0906	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	0907-	●	●
6	LEVER; RELAY (C)	8-98059-183-0	01	1	0806-			●
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	0712-0906	●
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	0907-1307	●	●
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-	●	●
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	0712-0906	●
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	0907-	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	8-97388-980-1	01	1	0712-0906	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	8-97388-980-1	01	1	0907-	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0806-			●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0806-			●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0806-			●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	0712-0906	●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	0907-	●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0806-			●
78	ARM; SHIFT,REV (C)	8-97388-975-1	01	1	0712-0906	●
78	ARM; SHIFT,REV (C)	8-97388-975-1	01	1	0907-	●	●
78	ARM; SHIFT,REV (A)	1-33511-082-0	01	1	0806-			●
78	ARM; SHIFT,REV (B)	1-33511-234-1	01	1	0806-			●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	0712-0906	●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	0907-	●	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0806-			●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0712-0906	●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0907-	●	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0806-1202			●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-			●
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	0712-0906	●
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	0907-	●	●
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	0712-0906	●
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	0907-	●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0712-0906	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0907-	●	●
192	WASHER; PL (B)	8-97305-661-0	02	1	0712-0906	●
192	WASHER; PL (B)	8-97305-661-0	02	1	0907-	●	●
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	0712-0906	●
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	0907-	●	●
320	SHAFT; LEVER	8-97377-928-0	01	1	0712-0906	●
320	SHAFT; LEVER	8-97377-928-0	01	1	0907-	●	●
453	BLOCK; RELAY LEVER	8-97377-927-0	01	1	0712-0906	●
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	0907-	●	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0712-0906	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0907-	●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0712-0906	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0907-	●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0712-0906	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0907-	●	●
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	0712-0906	●
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	0907-	●	●
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	0712-0906	●
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	0907-	●	●
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	0712-0906	●
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	0907-	●	●
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	0712-0906	●
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	0907-	●	●

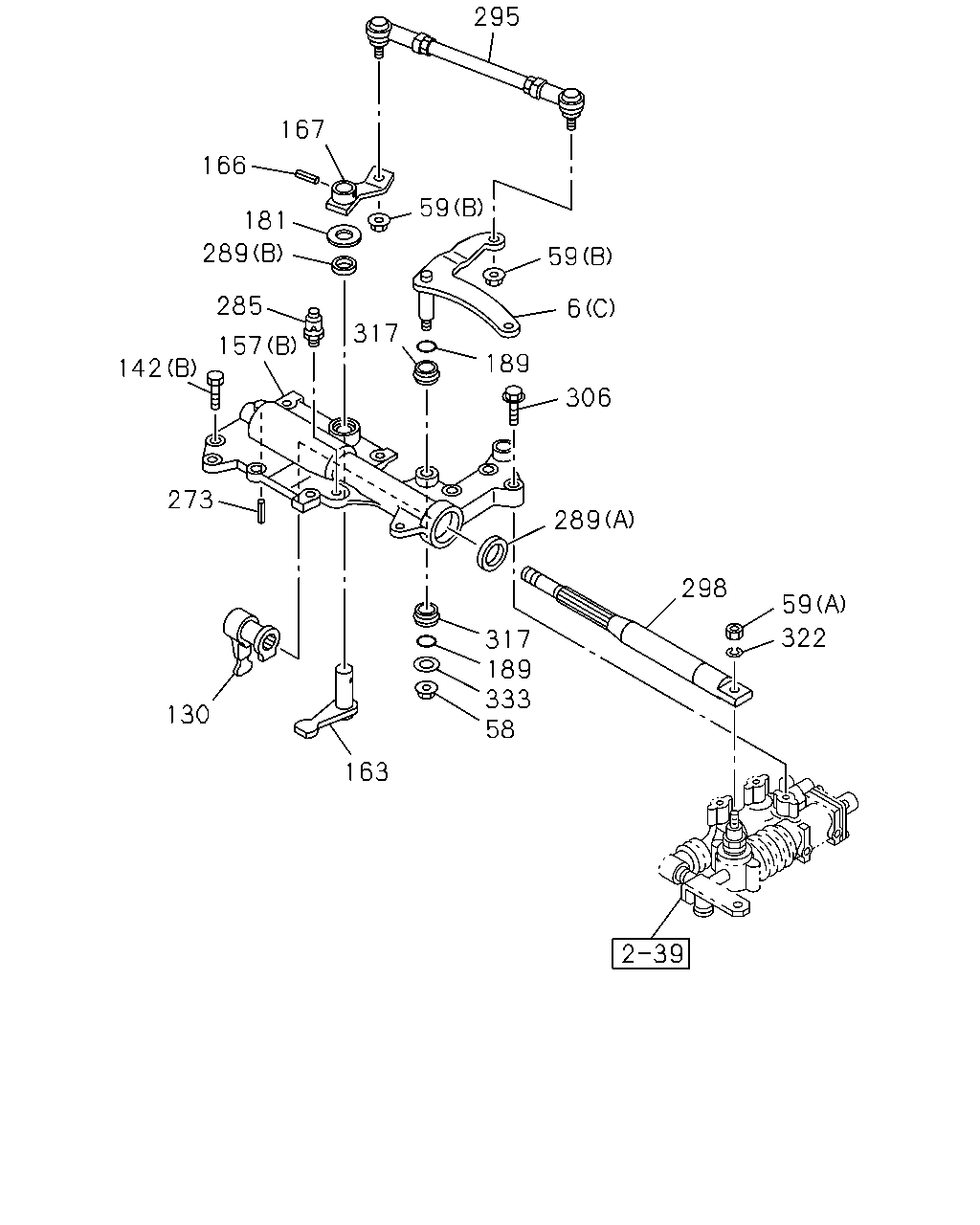

295 167 166 59 181 289 59 285 6 317 157 189 142 306 273 289 298 59 322 317 189 333 58 130 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0712-0906	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0907-	●	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	0712-0906	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	0907-	●	●
6	LEVER; RELAY (C)	8-98059-183-0	01	1	0806-			●
58	NUT M10 FLANGE	0-91180-110-0	01	1	0712-0805	●
58	NUT M10 FLANGE	0-91180-110-0	01	1	0806-0906	●		●
58	NUT M10 FLANGE	0-91180-110-0	01	1	0907-	●	●	●
59	NUT (A) M12	0-91110-512-0	01	1	0712-0805	●
59	NUT (A) M12	0-91110-512-0	01	1	0806-0906	●		●
59	NUT (A) M12	0-91110-512-0	01	1	0907-	●	●	●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0712-0805	●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0806-0906	●		●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0907-	●	●	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0712-0906	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0907-	●	●
130	LEVER; SHIFT,INTERNAL	8-98114-548-0	01	1	0806-			●
142	BOLT; QUAD BOX (E) M8X22 FLANGE	8-97365-376-0	04	1	0712-0906	●
142	BOLT; QUAD BOX (E) M8X22 FLANGE	8-97365-376-0	04	1	0907-	●	●
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28151-060-0	04	1	0806-			●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-			●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	01	1	0806-			●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	11	1	0806-			●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0806-			●
157	BOX; QUAD,TRANS (B)	8-98059-176-0	01	1	0806-			●
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0712-0906	●
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0907-	●	●
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	0806-			●
166	PIN; SPR,SELECT LEVER L=25 OD=5	1-09748-032-0	01	1	0806-			●
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	0712-0906	●
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	0907-	●	●
167	LEVER; SELECT,EXTERNAL	8-98059-180-0	01	1	0806-			●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	0712-0906	●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	0907-	●	●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0806-			●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0712-0805	●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0806-0906	●		●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0907-	●	●	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	0712-0906	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	0907-	●	●
273	PIN; SPR,STOPPER L=30 OD=4	1-09748-031-0	01	1	0806-			●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0806-1204			●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1404	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1405-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	0806-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-600-0	01	1	0806-			●
295	ROD; LINK,RELAY LEVER	8-98059-185-0	01	1	0806-			●
298	SHAFT; SHIFT LEVER	8-98097-117-0	01	1	0712-0906	●
298	SHAFT; SHIFT LEVER	8-98097-117-0	01	1	0907-	●	●
298	SHAFT; SHIFT LEVER	8-98059-178-0	01	1	0806-			●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28051-050-0	03	1	0712-0805	●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28051-050-0	03	1	0806-0906	●		●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28051-050-0	03	1	0907-	●	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0712-0805	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0806-0906	●		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0907-	●	●	●
322	WASHER; LK	8-98031-750-0	01	1	0712-0805	●
322	WASHER; LK	8-98031-750-0	01	1	0806-0906	●		●
322	WASHER; LK	8-98031-750-0	01	1	0907-	●	●	●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	0712-0805	●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	0806-0906	●		●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	0907-	●	●	●

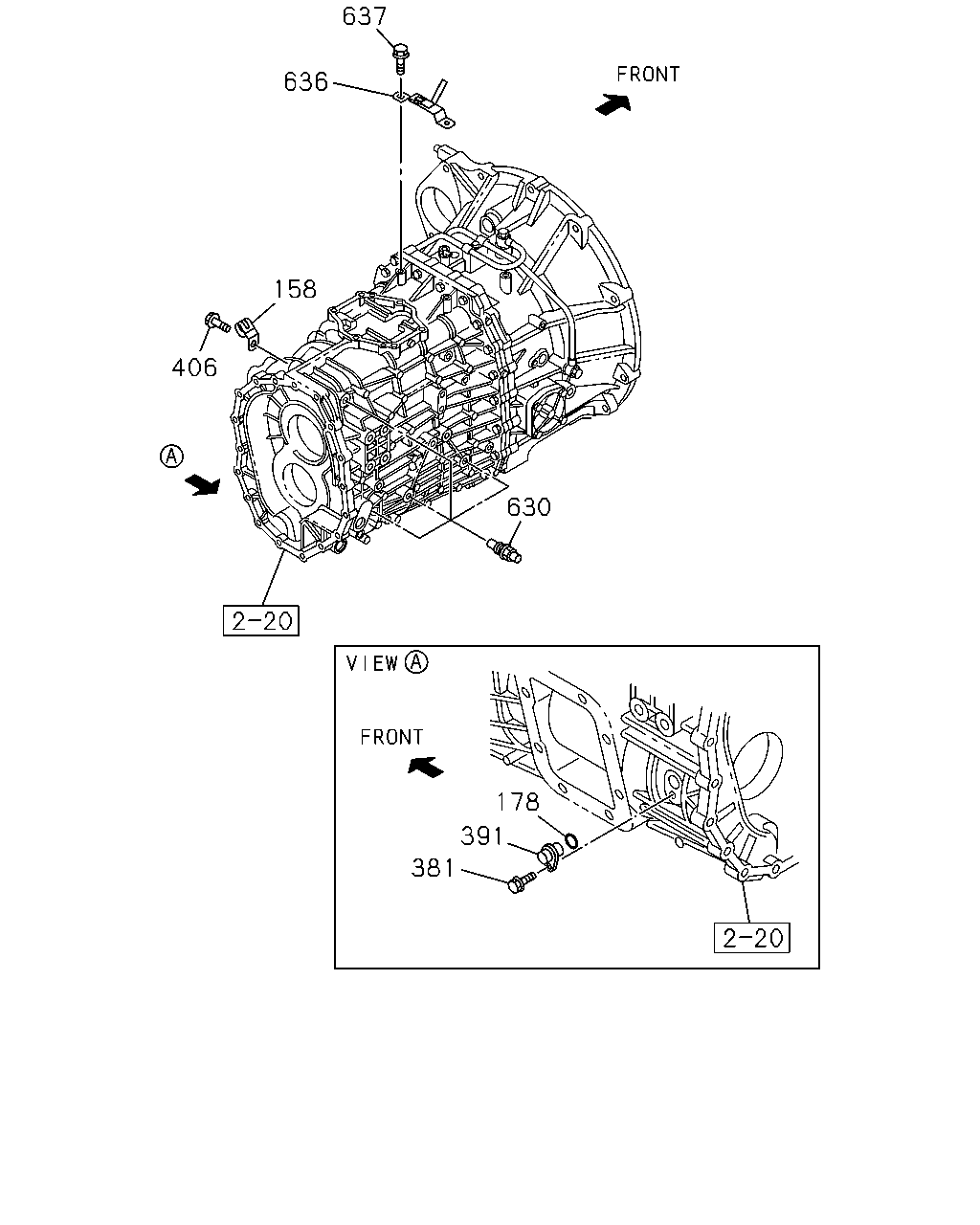

637 636 158 406 630 178 391 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
158	CLIP; HARNESS ID=12 B=14 ID=8.5	5-09700-350-0	02	1	0712-0801	●
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0802-0906	●
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0907-	●	●
158	CLIP; HARNESS ID=8	8-94107-659-0	02	1	0806-			●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	0712-0906	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	0907-	●	●
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	0712-0906	●
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	0907-	●	●
391	PLUG; SW HOLE	8-97300-273-1	01	1	0712-0906	●
391	PLUG; SW HOLE	8-97300-273-1	01	1	0907-	●	●
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	0712-0906	●
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	0907-	●	●
630	DETENT ASM	8-98019-536-0	04	1	0712-0906	●
630	DETENT ASM	8-98019-536-0	04	1	0907-	●	●
636	BRACKET; CLIP	8-97610-092-1	01	1	0712-0906	●
636	BRACKET; CLIP	8-97610-092-1	01	1	0907-	●	●
637	BOLT; BRACKET M8X16 FLANGE	0-28050-816-0	02	1	0712-0906	●
637	BOLT; BRACKET M8X16 FLANGE	0-28050-816-0	02	1	0907-	●	●

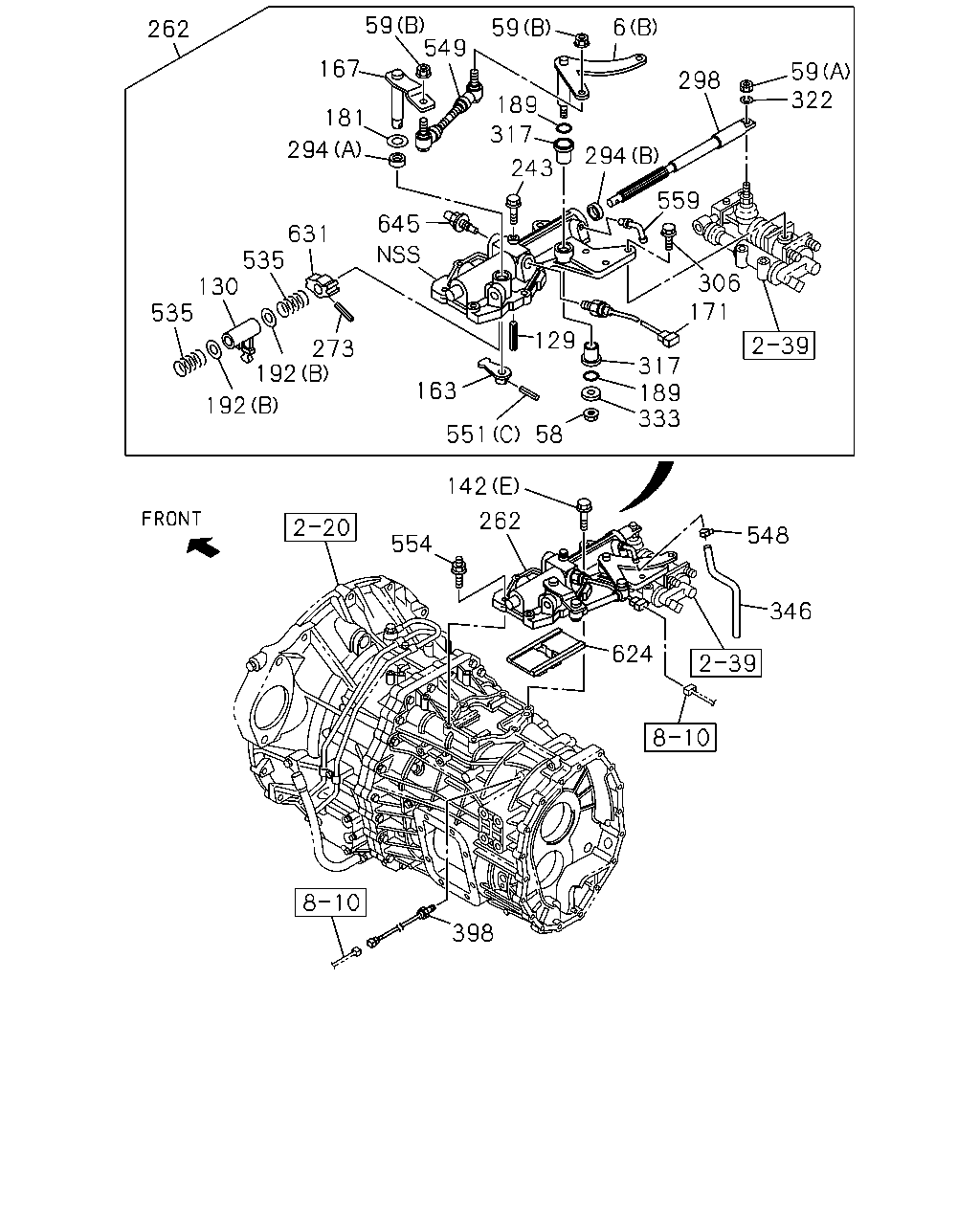

59 549 6 59 262 167 59 322 298 189 181 317 294 294 243 559 645 631 535 130 535 306 171 129 273 192 317 189 333 163 192 551 58 142 262 548 554 346 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0712-0906	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0907-	●	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	0712-0906	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	0907-	●	●
6	LEVER; RELAY (C)	8-98059-183-0	01	1	0806-			●
58	NUT M10 FLANGE	0-91180-110-0	01	1	0712-0805	●
58	NUT M10 FLANGE	0-91180-110-0	01	1	0806-0906	●		●
58	NUT M10 FLANGE	0-91180-110-0	01	1	0907-	●	●	●
59	NUT (A) M12	0-91110-512-0	01	1	0712-0805	●
59	NUT (A) M12	0-91110-512-0	01	1	0806-0906	●		●
59	NUT (A) M12	0-91110-512-0	01	1	0907-	●	●	●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0712-0805	●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0806-0906	●		●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0907-	●	●	●
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	0712-0906	●
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	0907-	●	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0712-0906	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0907-	●	●
130	LEVER; SHIFT,INTERNAL	8-98114-548-0	01	1	0806-			●
142	BOLT; QUAD BOX (E) M8X22 FLANGE	8-97365-376-0	04	1	0712-0906	●
142	BOLT; QUAD BOX (E) M8X22 FLANGE	8-97365-376-0	04	1	0907-	●	●
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28151-060-0	04	1	0806-			●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-			●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	01	1	0806-			●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	11	1	0806-			●
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0712-0906	●
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0907-	●	●
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	0806-			●
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	0712-0906	●
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	0907-	●	●
167	LEVER; SELECT,EXTERNAL	8-98059-180-0	01	1	0806-			●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0712-0906	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0907-1312	●	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0806-1104			●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109			●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-			●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	0712-0906	●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	0907-	●	●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0806-			●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0712-0805	●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0806-0906	●		●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0907-	●	●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0712-0906	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0907-	●	●
192	WASHER; PL (B)	8-97305-661-0	02	1	0712-0906	●
192	WASHER; PL (B)	8-97305-661-0	02	1	0907-	●	●
243	BOLT; COVER M6X12 FLANGE	0-28050-612-0	01	1	0712-0906	●
243	BOLT; COVER M6X12 FLANGE	0-28050-612-0	01	1	0907-0912	●	●
243	BOLT; COVER M6X12 FLANGE	1-33739-842-0	01	1	1001-	●	●
262	BOX ASM; SHIFT CONT	8-98004-473-3	01	1	0712-0906	●
262	BOX ASM; SHIFT CONT	8-98004-473-4	01	1	0907-1204	●	●
262	BOX ASM; SHIFT CONT	8-98207-563-0	01	1	1205-1306	●	●
262	BOX ASM; SHIFT CONT	8-98249-038-0	01	1	1307-1312	●	●
262	BOX ASM; SHIFT CONT	8-98240-998-0	01	1	1401-1404	●	●
262	BOX ASM; SHIFT CONT	8-98276-158-1	01	1	1405-	●	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	0712-0906	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	0907-	●	●
273	PIN; SPR,STOPPER L=30 OD=4	1-09748-031-0	01	1	0806-			●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	0712-0906	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	0907-	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	0712-0906	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	0907-	●	●
298	SHAFT; SHIFT LEVER	8-98097-117-0	01	1	0712-0906	●
298	SHAFT; SHIFT LEVER	8-98097-117-0	01	1	0907-	●	●
298	SHAFT; SHIFT LEVER	8-98059-178-0	01	1	0806-			●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28051-050-0	03	1	0712-0805	●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28051-050-0	03	1	0806-0906	●		●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28051-050-0	03	1	0907-	●	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0712-0805	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0806-0906	●		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0907-	●	●	●
322	WASHER; LK	8-98031-750-0	01	1	0712-0805	●
322	WASHER; LK	8-98031-750-0	01	1	0806-0906	●		●
322	WASHER; LK	8-98031-750-0	01	1	0907-	●	●	●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	0712-0805	●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	0806-0906	●		●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	0907-	●	●	●
346	HOSE; AIR	8-97309-855-0	01	1	1405-	●	●
346	HOSE; AIR	8-97309-855-0	01	1	0712-0906	●
346	HOSE; AIR	8-97309-855-0	01	1	0907-1204	●	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0712-0906	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0907-1312	●	●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0806-1209			●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-			●
535	SPRING; LEVER	8-97385-713-0	02	1	0712-0906	●
535	SPRING; LEVER	8-97385-713-0	02	1	0907-	●	●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-	●	●
548	CLIP; HOSE	8-97031-674-0	01	1	0712-0906	●
548	CLIP; HOSE	8-97031-674-0	01	1	0907-1204	●	●
549	ROD; LINK	8-98023-095-0	01	1	0712-0906	●
549	ROD; LINK	8-98023-095-0	01	1	0907-	●	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0712-0906	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0907-	●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0712-0906	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0907-	●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0712-0906	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0907-	●	●
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	0712-0906	●
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	0907-	●	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-	●	●
559	PIPE; BREATHER	8-97358-318-0	01	1	0712-0906	●
559	PIPE; BREATHER	8-97358-318-0	01	1	0907-1204	●	●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0712-0906	●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0907-	●	●
631	STOPPER; SPRING	8-98014-158-0	01	1	0712-0906	●
631	STOPPER; SPRING	8-98014-158-0	01	1	0907-	●	●
645	DETENT ASM	8-98019-536-0	01	1	0712-0906	●
645	DETENT ASM	8-98019-536-0	01	1	0907-	●	●

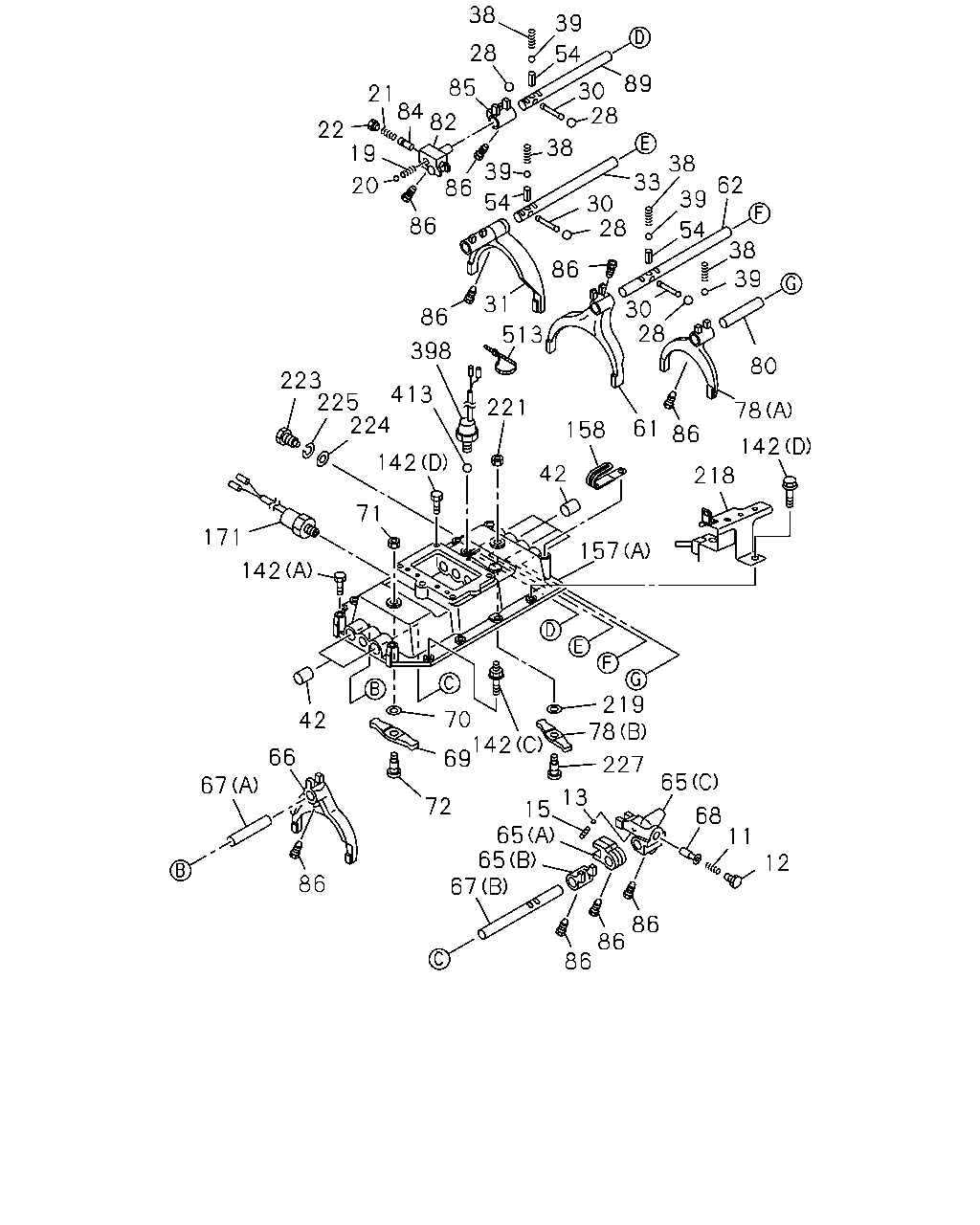

38 39 28 54 89 85 30 28 21 84 82 22 19 38 38 33 39 62 20 86 39 54 30 28 86 54 38 86 39 31 30 28 86 513 398 80 223 225 224 413 221 78 61 158 86 142 142 42 218 71 171 157 142 219 78 70 142 69 42 66 227 65 67 13 72 15 65 65 67 68 11 12 86 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0806-			●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0806-			●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0806-			●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0806-			●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0806-			●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0806-			●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0806-			●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0806-			●
28	BALL; INTER LK	9-00097-501-0	04	1	0806-			●
30	PIN; INTER LK	9-33534-003-0	03	1	0806-			●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0806-			●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0806-1202			●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-			●
38	SPRING; DETENT	1-09580-379-0	04	1	0806-			●
39	BALL; DETENT	1-09843-012-0	04	1	0806-			●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0806-			●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0806-			●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0806-			●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0806-1202			●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-			●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	8-97388-980-1	01	1	0712-0906	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	8-97388-980-1	01	1	0907-	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0806-			●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0806-			●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0806-			●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	0712-0906	●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	0907-	●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0806-			●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0806-1202			●
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-			●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0806-1202			●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-			●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0806-			●
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0806-			●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0806-			●
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0806-			●
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0806-			●
78	ARM; SHIFT,REV (C)	8-97388-975-1	01	1	0712-0906	●
78	ARM; SHIFT,REV (C)	8-97388-975-1	01	1	0907-	●	●
78	ARM; SHIFT,REV (A)	1-33511-082-0	01	1	0806-			●
78	ARM; SHIFT,REV (B)	1-33511-234-1	01	1	0806-			●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0806-1202			●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-			●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	0712-0906	●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	0907-	●	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0806-			●
84	SLEEVE; REV	1-33516-025-0	01	1	0806-			●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0806-			●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0806-			●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0712-0906	●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0907-	●	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0806-1202			●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-			●
142	BOLT; QUAD BOX (E) M8X22 FLANGE	8-97365-376-0	04	1	0712-0906	●
142	BOLT; QUAD BOX (E) M8X22 FLANGE	8-97365-376-0	04	1	0907-	●	●
142	BOLT; QUAD BOX (A) M10X60 FLANGE	0-28151-060-0	04	1	0806-			●
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-			●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	01	1	0806-			●
142	BOLT; QUAD BOX (D) M10X28 FLANGE	8-98044-944-0	11	1	0806-			●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0806-			●
157	BOX; QUAD,TRANS (B)	8-98059-176-0	01	1	0806-			●
158	CLIP; HARNESS ID=12 B=14 ID=8.5	5-09700-350-0	02	1	0712-0801	●
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0802-0906	●
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0907-	●	●
158	CLIP; HARNESS ID=8	8-94107-659-0	02	1	0806-			●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0712-0906	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0907-1312	●	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0806-1104			●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109			●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-			●
218	BRACKET; HARNESS CLIP,QUAD BOX	8-98114-116-0	01	1	0806-			●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0806-			●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0806-			●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0806-			●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0806-			●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0806-			●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0806-			●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0712-0906	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0907-1312	●	●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0806-1209			●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-			●
413	BALL; BACK SW	9-00097-013-0	01	1	0806-			●
513	CLIP; BAND L=140	5-09707-031-1	01	1	0806-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
