11419 - FSS(AUST)EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶

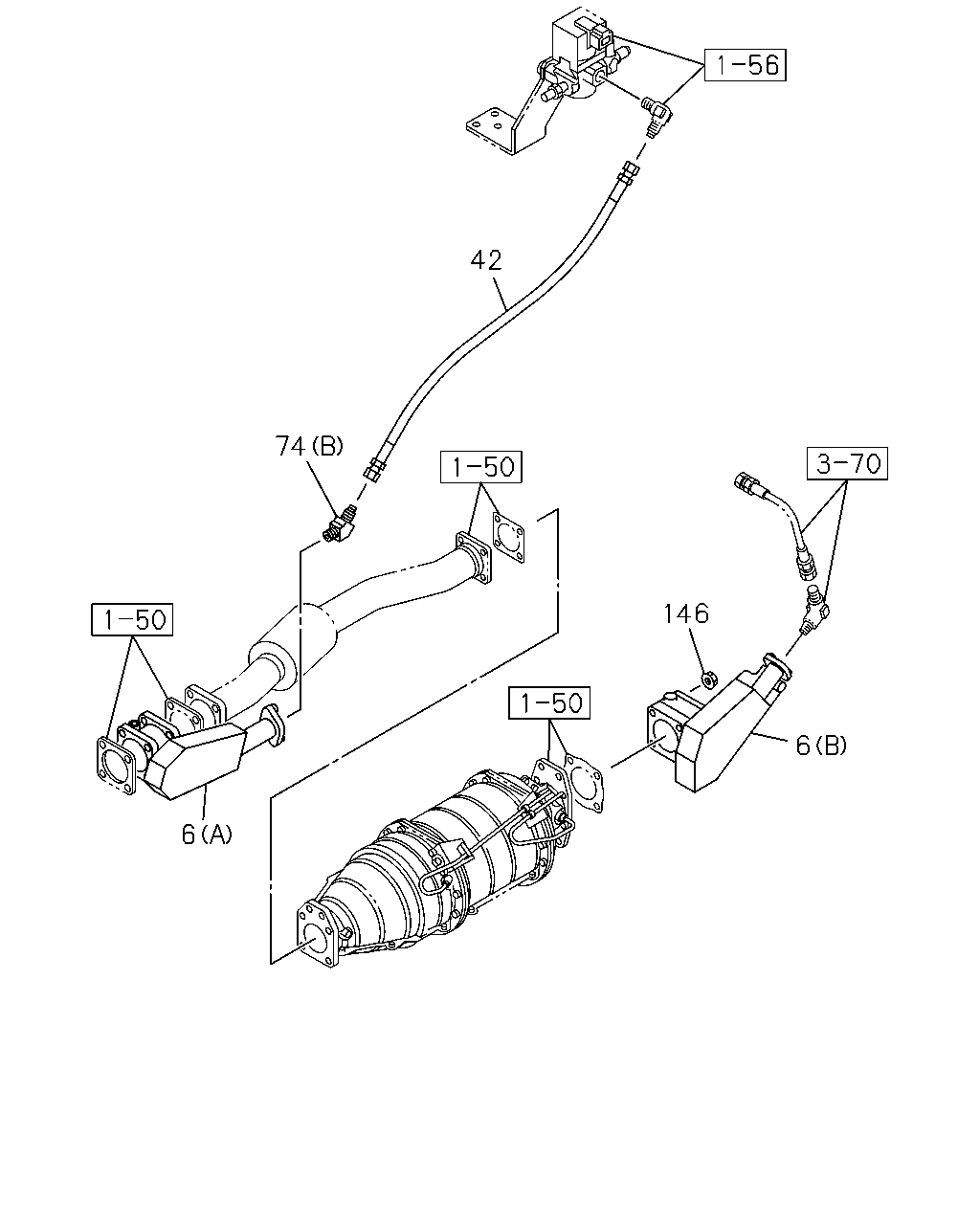

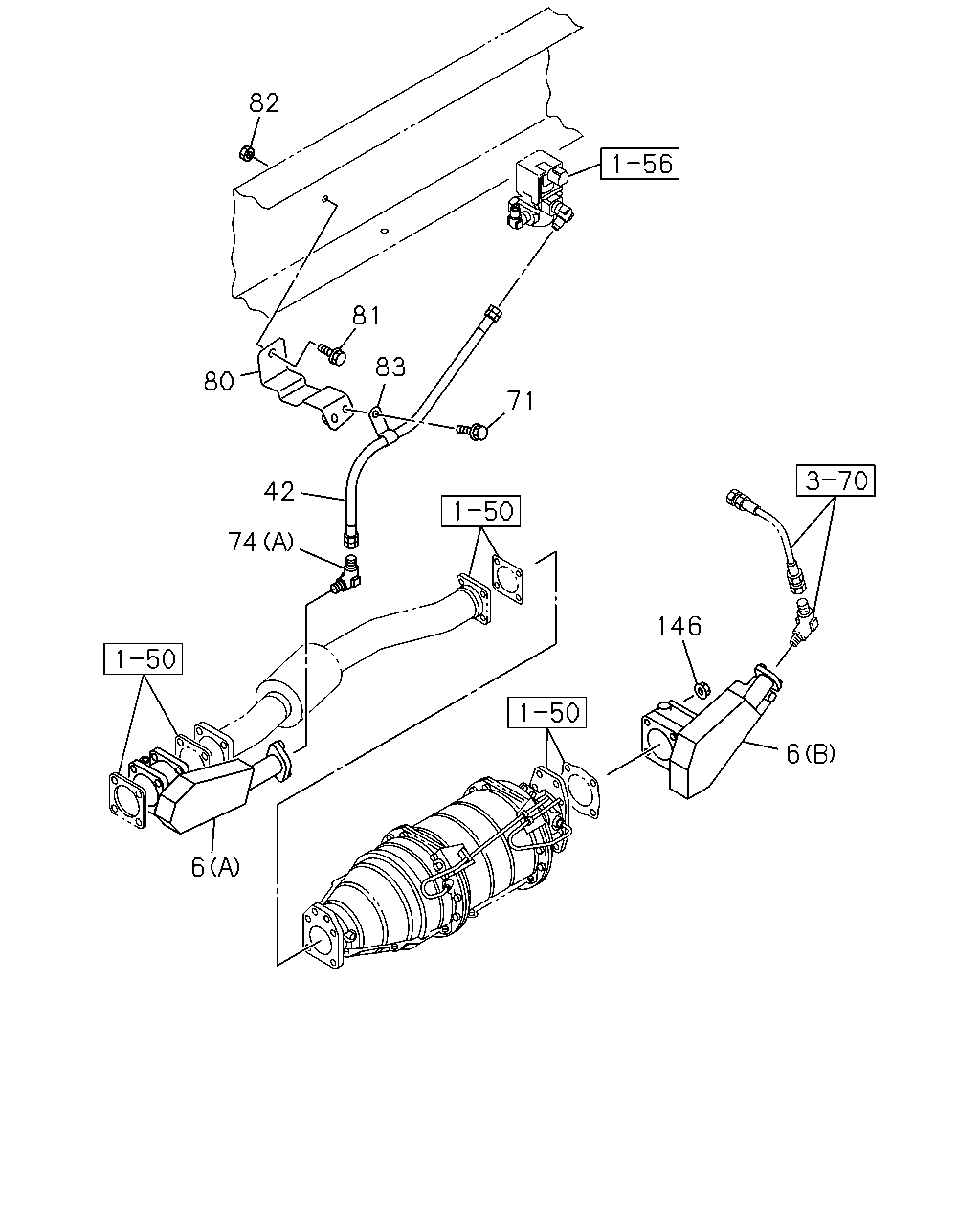

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#62295) — 26 parça
◀
[155A] -'08/2 SGL CAB (8 parça)
[155A] -'08/2 DBL CAB,'08/3- ALL MODEL (18 parça)
▶
42
74
146
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
(A)
8-98054-172-6
01
1
0712-
6
VALVE; EXH BRAKE
(B)
8-98054-189-6
01
1
0712-
42
HOSE; FLEX,EXH BRK
FSS STD SGL CAB(FC**M*) L=470
1-09363-714-0
01
1
0712-0802
42
HOSE; FLEX,EXH BRK
FSS STD DBL CAB(FC**W*) L=560
1-09363-914-0
01
1
0712-0802
42
HOSE; FLEX,EXH BRK
L=540
1-09363-612-1
01
1
0803-
74
CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0712-
74
CONNECTOR; EXH BRK VLV
FSS STD SGL CAB(FC**M*) (B) M12 & PT1/4 ELBOW
1-48629-258-0
01
1
0712-0802
146
NUT; EXH BRK VLV
M8 W/LK WASHER
8-97581-234-0
04
1
0712-
82
81
83
80
71
42
74
146
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
(A)
8-98054-172-6
01
1
0712-
6
VALVE; EXH BRAKE
(B)
8-98054-189-6
01
1
0712-
42
HOSE; FLEX,EXH BRK
FSS STD SGL CAB(FC**M*) L=470
1-09363-714-0
01
1
0712-0802
42
HOSE; FLEX,EXH BRK
FSS STD DBL CAB(FC**W*) L=560
1-09363-914-0
01
1
0712-0802
42
HOSE; FLEX,EXH BRK
L=540
1-09363-612-1
01
1
0803-
71
BOLT; CLIP
FSS STD DBL CAB(FC**W*) M8X25 FLANGE
0-28650-825-0
01
1
0712-0802
71
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0803-
74
CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0712-
74
CONNECTOR; EXH BRK VLV
FSS STD SGL CAB(FC**M*) (B) M12 & PT1/4 ELBOW
1-48629-258-0
01
1
0712-0802
80
BRACKET; FLEX HOSE
FSS STD DBL CAB(FC**W*)
8-98090-040-0
01
1
0712-0802
80
BRACKET; FLEX HOSE
8-98090-040-0
01
1
0803-
81
BOLT; HOSE BRKT
FSS STD DBL CAB(FC**W*) M10X30 FLANGE
0-28651-030-0
01
1
0712-0802
81
BOLT; HOSE BRKT
M10X30 FLANGE
0-28651-030-0
01
1
0803-
82
NUT; HOSE BRKT
FSS STD DBL CAB(FC**W*) M10 FLANGE
0-91180-210-0
01
1
0712-0802
82
NUT; HOSE BRKT
M10 FLANGE
0-91180-210-0
01
1
0803-
83
CLIP; FLEX HOSE
FSS STD DBL CAB(FC**W*) ID=15 L=28
1-09701-216-0
01
1
0712-0802
83
CLIP; FLEX HOSE
ID=15 L=28
1-09701-216-0
01
1
0803-
146
NUT; EXH BRK VLV
M8 W/LK WASHER
8-97581-234-0
04
1
0712-
