1-50 — EXHAUST PIPE AND SILENCER (#62294) — 178 parça

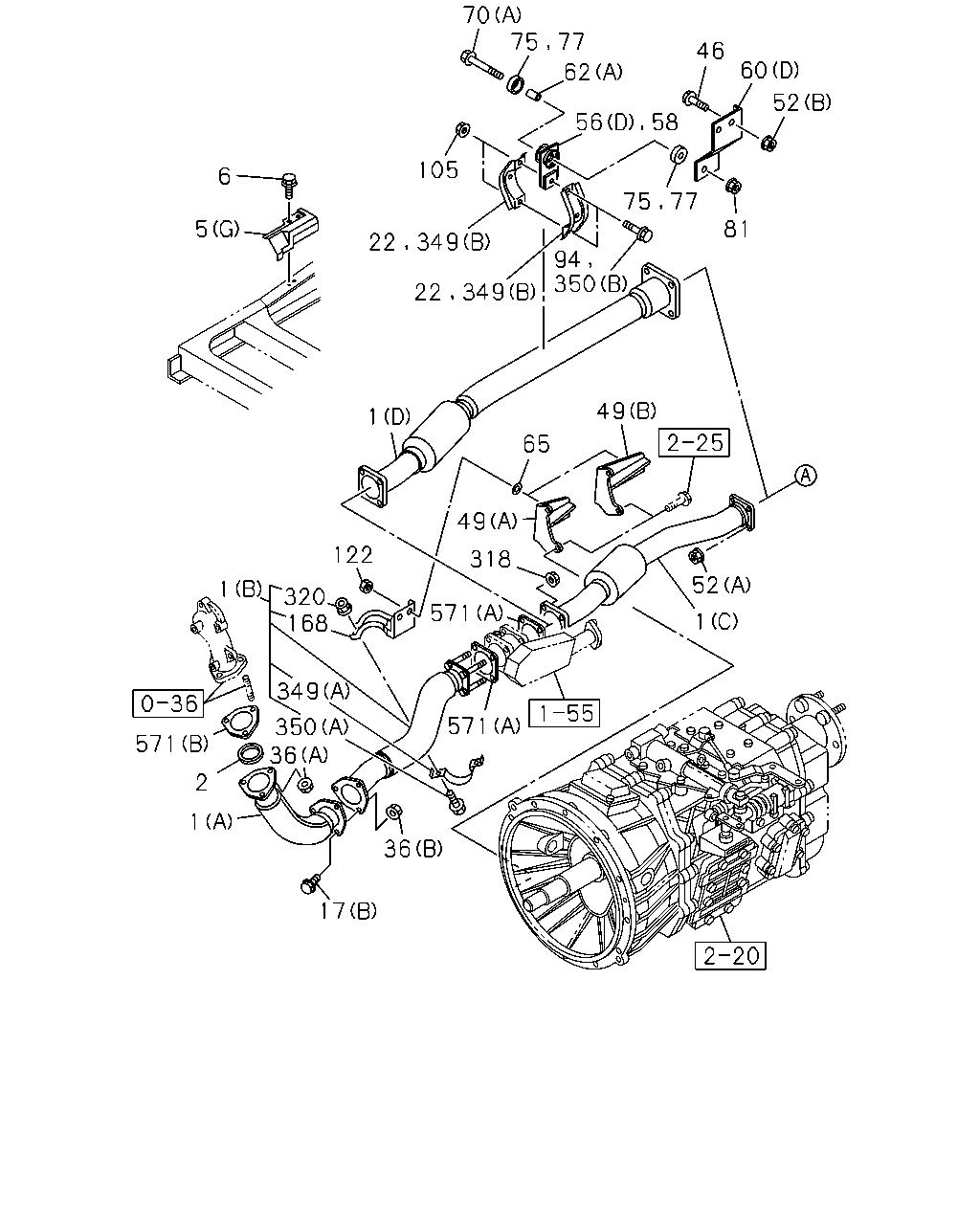

çizim 146470
70 46 60 52 105 6 81 5 94 350 49 1 65 49 122 318 52 1 320 168 571 1 349 571 350 36 571 2 1 36 17 22 349 22 349 56 58 75 77 75 77 62
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(C) 		8-97620-515-1 01 1 0712- ●
1 PIPE; EXH
(A) 		8-97620-509-2 01 1 0712-0712 ● ●
1 PIPE; EXH
(A) 		8-97624-422-0 01 1 0712-1301 ● ●
1 PIPE; EXH
(A) 		8-97636-047-0 01 1 1302- ● ●
1 PIPE; EXH
(B) 		8-97623-966-0 01 1 0712-0712 ● ●
1 PIPE; EXH
(B) 		8-97624-443-0 01 1 0712-1301 ● ●
1 PIPE; EXH
(B) 		8-98234-579-0 01 1 1302- ● ●
1 PIPE; EXH
(D) 		8-98075-107-2 01 1 0712- ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97381-455-0 01 1 0712- ● ●
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0712- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0712- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0712- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0712- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0712- ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0712- ● ●
5 PROTECTOR; HEAT
(G) 		8-98044-122-0 01 1 0712- ● ●
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28051-035-0 03 1 0712- ● ●
17 BOLT; EXH PIPE
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0712- ● ●
22 CLAMP; EXH PIPE
ID=75-78 		1-22133-232-0 02 1 0712-0712 ● ●
36 NUT; EXH PIPE
(D) M10 		0-91110-510-0 04 1 0712- ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		0-91180-210-0 03 1 0712- ● ●
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0712- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0712- ● ●
46 BOLT; BRKT,EXH PIPE
M10X35 FLANGE 		0-28651-035-0 02 1 0712- ● ●
49 BRACKET; EXH PIPE TO TRANS
POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97618-397-0 01 1 0712- ● ●
49 BRACKET; EXH PIPE TO TRANS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-97624-003-0 01 1 0712- ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0712-0712 ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0712-0712 ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0801- ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 06 1 0712-0712 ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0801- ● ●
52 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 04 1 0712- ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 08 1 0801- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97623-042-0 01 1 0712-1107 ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98174-489-0 01 1 1108- ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98050-970-0 01 1 0712- ●
56 BRACKET; CLAMP,EXH PIPE
(D) L=94 		1-22131-575-0 01 1 0712-0712 ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-97622-012-0 01 1 0712- ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) 		8-97622-013-0 01 1 0712- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98095-172-0 01 1 0712- ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98098-414-0 01 1 0712- ●
58 BRACKET; EXH PIPE,RR
L=94 		1-22131-575-0 01 1 0801- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 02 1 0712-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-0 01 1 0712- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 0712- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98095-188-0 01 1 0712- ● ●
62 TUBE; DIST,BRKT
(C) L=37.5 		9-22151-217-0 01 1 1108- ●
62 TUBE; DIST,BRKT
(B) 		8-98060-852-0 02 1 1108- ● ●
62 TUBE; DIST,BRKT
(B) 		8-98060-852-0 02 1 1108- ●
62 TUBE; DIST,BRKT
(B) 		8-98060-852-0 02 1 0712-1107 ● ●
62 TUBE; DIST,BRKT
(B) 		8-98060-852-0 02 1 0712-1107 ● ●
62 TUBE; DIST,BRKT
(B) 		8-98060-852-0 01 1 1108- ●
62 TUBE; DIST,BRKT
(A) L=22 		9-22159-024-0 01 1 0712- ● ●
65 WASHER; PL
ID=10.5 		8-98073-091-0 02 1 0712- ● ●
70 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 01 1 0712- ● ●
70 BOLT; BRKT
(B) M10X70 FLANGE 		0-28051-070-0 02 1 0712- ● ●
70 BOLT; BRKT
(B) M10X70 FLANGE 		0-28051-070-0 02 1 0712- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 02 1 0712-0712 ● ●
77 RUBBER; CUSHION,BRKT
OD=40 		1-22159-094-0 02 1 0801- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0712-0712 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0712-0712 ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
122 NUT; HANGER BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712-0712 ● ●
168 BRACKET; EXH PIPE,FRT 8-97623-998-0 01 1 0712- ● ●
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER 		8-97581-234-0 04 1 0712- ● ●
320 NUT; CLAMP,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
349 CLAMP; EXH PIPE
(A) 		1-22133-295-0 01 1 0712-1301 ● ●
349 CLAMP; EXH PIPE
(A) 		8-98147-597-1 01 1 1302- ● ●
349 CLAMP; EXH PIPE
(B) ID=75-78 		1-22133-232-0 02 1 0801- ● ●
350 BOLT; CLAMP,EXH PIPE
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0712- ● ●
350 BOLT; CLAMP,EXH PIPE
(B) M10X40 FLANGE 		0-28651-040-0 02 1 0801- ● ●
571 GASKET
(A) ID=64 		8-97373-108-0 02 1 0712- ● ●
571 GASKET
(B) 		8-97614-617-0 01 1 0712- ● ●

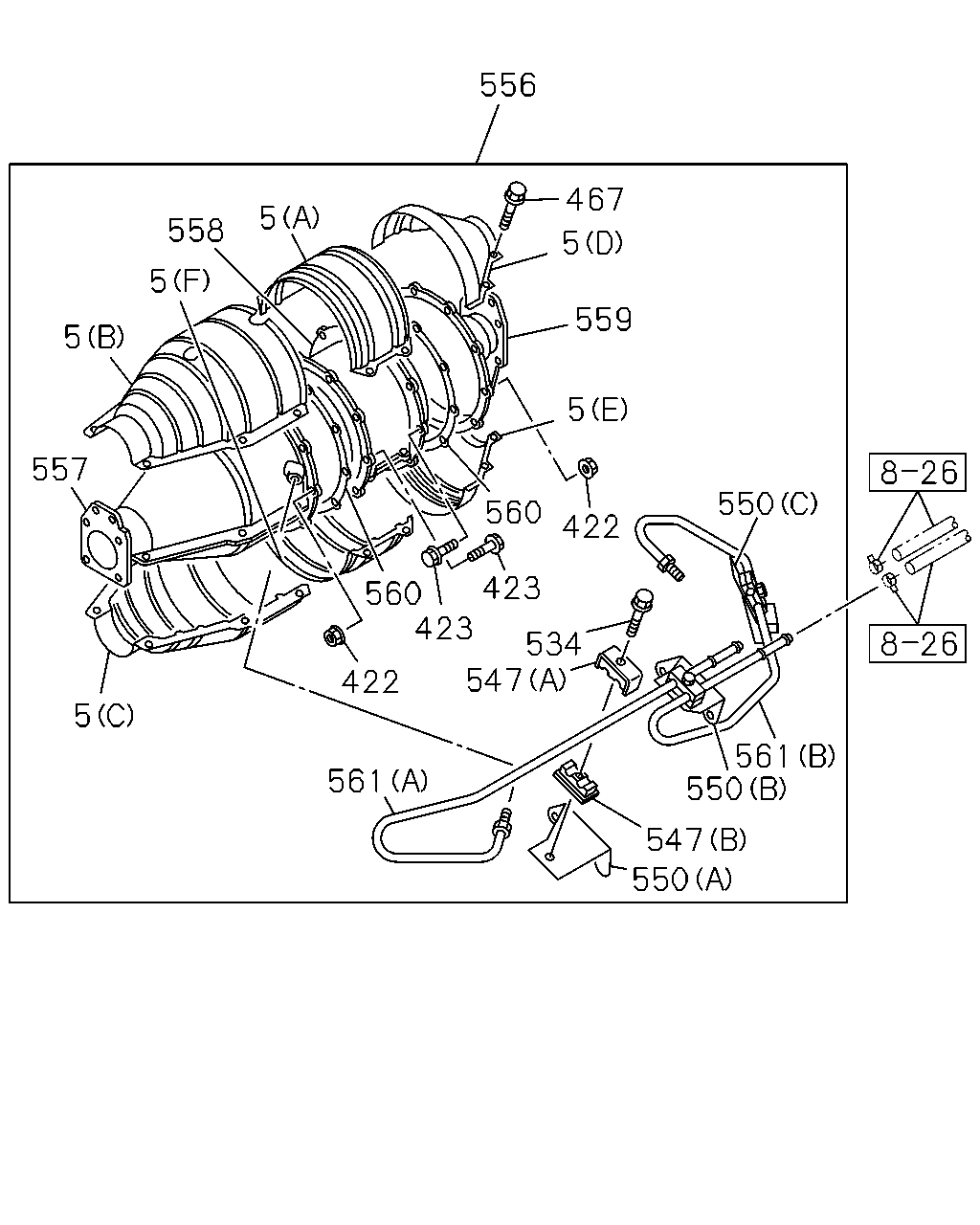

çizim 146475
556 467 5 558 5 5 559 5 5 557 550 560 422 423 560 423 534 547 422 5 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0712- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0712- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0712- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0712- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0712- ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0712- ● ●
5 PROTECTOR; HEAT
(G) 		8-98044-122-0 01 1 0712- ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0712- ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0712- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0712- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0712- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0712- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0712- ● ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0712- ● ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0712- ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0712- ● ●
556 DPD ASM 8-97613-331-6 01 1 0712-1010 ● ●
556 DPD ASM 8-97622-883-3 01 1 1011- ● ●
557 CATALYST ASM 8-97608-055-7 01 1 0712- ● ●
558 FILTER ASM 8-97608-057-3 01 1 0712- ● ●
559 COVER; RR 8-97611-078-0 01 1 0712-1010 ● ●
559 COVER; RR 8-97622-887-0 01 1 1011- ● ●
560 GASKET; DPD 8-97611-080-0 02 1 0712- ● ●
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 0712-1010 ● ●
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1011- ● ●
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 0712-1010 ● ●
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1011- ● ●

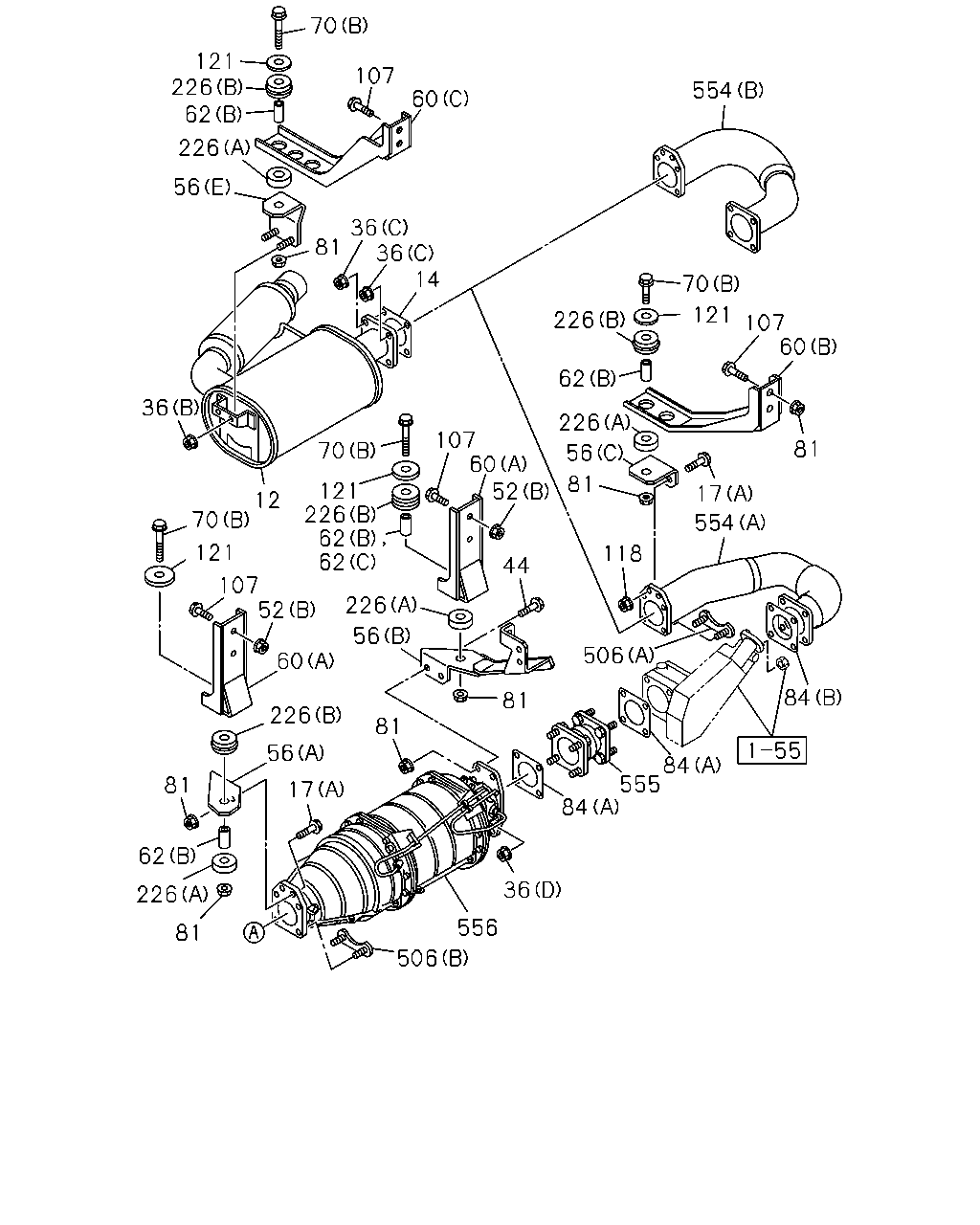

çizim 146477
70 121 226 62 107 554 60 226 56 36 36 14 81 70 121 226 107 60 62 36 226 107 60 52 81 70 56 81 121 226 62 62 17 12 70 554 121 118 44 107 52 226 56 506 60 84 81 226 81 56 84 555 81 17 84 62 36 226 556 81 506
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH 8-98070-098-2 01 1 0712- ● ●
14 GASKET; SILENCER TO EXH PIPE 1-22116-042-0 01 1 0712- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28051-035-0 03 1 0712- ● ●
17 BOLT; EXH PIPE
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0712- ● ●
36 NUT; EXH PIPE
(D) M10 		0-91110-510-0 04 1 0712- ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		0-91180-210-0 03 1 0712- ● ●
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 0712- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0712- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0712-0712 ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0712-0712 ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0712-0712 ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0712-0712 ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0712-0712 ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 06 1 0801- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0808 ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809- ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0712-0712 ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0712-0712 ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0801- ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 06 1 0712-0712 ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0801- ● ●
52 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 04 1 0712- ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 08 1 0801- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97623-042-0 01 1 0712-1107 ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98174-489-0 01 1 1108- ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98050-970-0 01 1 0712- ●
56 BRACKET; CLAMP,EXH PIPE
(D) L=94 		1-22131-575-0 01 1 0712-0712 ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-97622-012-0 01 1 0712- ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) 		8-97622-013-0 01 1 0712- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98095-172-0 01 1 0712- ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98098-414-0 01 1 0712- ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 02 1 0712-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-0 01 1 0712- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 0712- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98095-188-0 01 1 0712- ● ●
62 TUBE; DIST,BRKT
(C) L=37.5 		9-22151-217-0 01 1 1108- ●
62 TUBE; DIST,BRKT
(B) 		8-98060-852-0 02 1 1108- ● ●
62 TUBE; DIST,BRKT
(B) 		8-98060-852-0 02 1 1108- ●
62 TUBE; DIST,BRKT
(B) 		8-98060-852-0 02 1 0712-1107 ● ●
62 TUBE; DIST,BRKT
(B) 		8-98060-852-0 02 1 0712-1107 ● ●
62 TUBE; DIST,BRKT
(B) 		8-98060-852-0 01 1 1108- ●
62 TUBE; DIST,BRKT
(A) L=22 		9-22159-024-0 01 1 0712- ● ●
70 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 01 1 0712- ● ●
70 BOLT; BRKT
(B) M10X70 FLANGE 		0-28051-070-0 02 1 0712- ● ●
70 BOLT; BRKT
(B) M10X70 FLANGE 		0-28051-070-0 02 1 0712- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0712-0712 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
84 GASKET; EXH PIPE
(B) 		1-22116-040-0 01 1 0712-0712 ● ●
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 01 1 0712- ● ●
84 GASKET; EXH PIPE
(A) ID=64 		8-97373-108-0 02 1 0712- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0712- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0712- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 0712- ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 0712- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0712- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0712- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0712- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0712- ● ●
506 BRACKET; STUD
(B) M12X35 		1-22131-963-0 02 1 0712- ● ●
506 BRACKET; STUD
(A) 		1-22134-214-0 02 1 0712- ● ●
554 PIPE; EXH,SILENCER
(A) 		8-97623-039-1 01 1 0712- ●
554 PIPE; EXH,SILENCER
(B) 		8-98098-540-0 01 1 0712- ●
555 PIPE; EXH,DPD 8-98060-847-0 01 1 0712- ● ●
556 DPD ASM 8-97613-331-6 01 1 0712-1010 ● ●
556 DPD ASM 8-97622-883-3 01 1 1011- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
