1-41 — FUEL PIPING; CHASSIS (#62292) — 377 parça

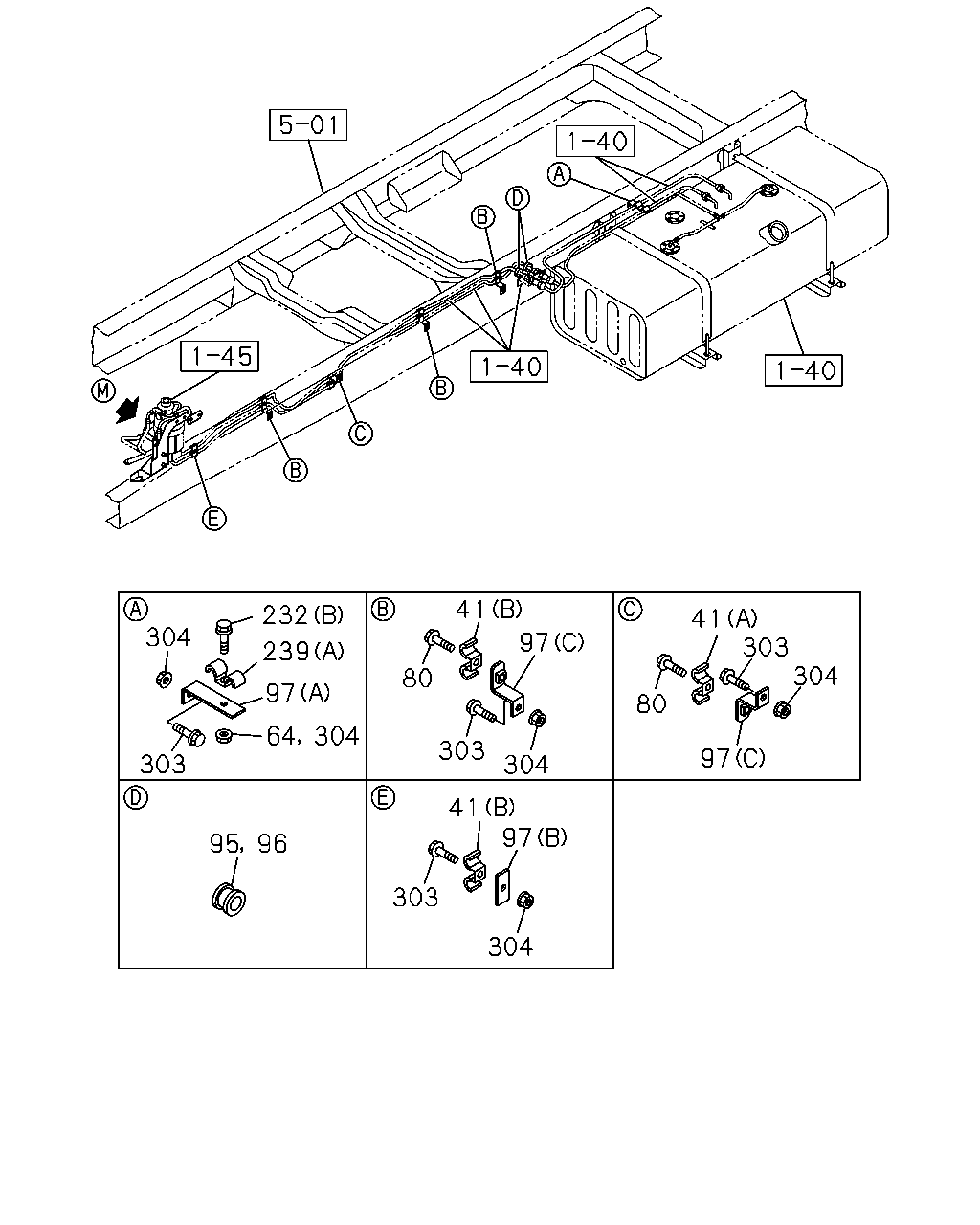

303 97 24 67 41 67 41 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0812-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (C) ID=14.5 & 14.5	1-09701-246-1	01	1	0812-	●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802		●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (E) ID=14	1-09704-102-0	04	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	04	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 & 9 L=20 & 18	1-09700-691-0	01	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0803-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	02	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	04	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	0803-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=13	8-94238-571-0	02	1	0812-	●
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0802		●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (C) L=760 SERVICED BY L=3000	0-01262-300-0	01	1	0812-0812	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	0812-	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0812-0812	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (C) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	0812-	●
96	GROMMET; PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	01	1	0812-	●	●
96	GROMMET; PIPE,FUEL TANK ID=24 OD=30 T=17	9-09956-092-1	01	1	0712-0802		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (G)	1-21464-170-2	01	1	0812-	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0803-0803	●	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0804-0805	●	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0804-0805	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0806-0811	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (B) M8 W/NUT	1-47475-729-0	01	1	0812-	●
97	BRACKET; CLIP (F)	8-98111-710-1	02	1	0803-	●	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0806-	●	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0712-0802		●
97	BRACKET; CLIP (F)	8-98111-710-1	01	1	0803-		●
97	BRACKET; CLIP (A) L=68.5	1-47475-591-0	01	1	0712-0802		●
97	BRACKET; CLIP (E)	8-98111-711-0	02	1	0803-0811		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (E)	8-98111-711-0	02	1	0812-	●
97	BRACKET; CLIP (E)	8-98111-711-0	02	1	0812-		●
97	BRACKET; CLIP (C)	1-47478-981-0	04	1	0712-0802		●
97	BRACKET; CLIP (E)	8-98111-711-0	01	1	0803-0811	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (E)	8-98111-711-0	01	1	0812-	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0712-0802		●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0803-	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0803-0811	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	05	1	0712-0802		●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0811		●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0812-0812	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-0812		●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-		●

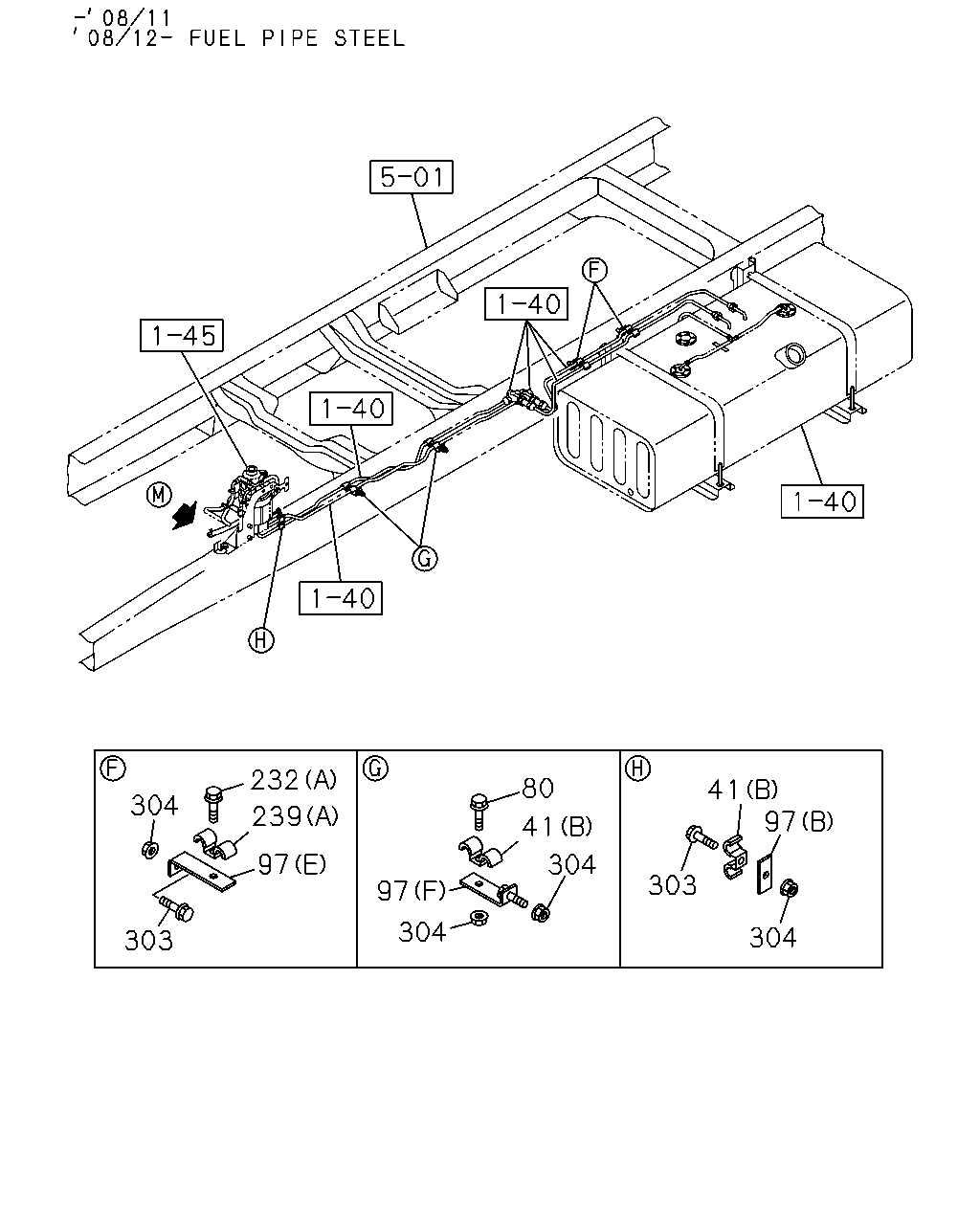

41 304 232 41 303 304 97 239 80 97 80 64 304 303 97 303 304 41 97 95 96 303 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (E) ID=14	1-09704-102-0	04	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	04	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 & 9 L=20 & 18	1-09700-691-0	01	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0803-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	02	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	04	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	0803-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=13	8-94238-571-0	02	1	0812-	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0803-0805	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0806-	●	●
80	BOLT; CLIP,FUEL TANK EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	04	1	0812-	●	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	05	1	0712-0802		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	03	1	0803-0811	●	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	03	1	0812-	●	●
95	BUSHING; PIPE,FUEL TANK ID=24 OD=30 T=17	9-09956-092-1	01	1	0712-0802		●
96	GROMMET; PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	01	1	0812-	●	●
96	GROMMET; PIPE,FUEL TANK ID=24 OD=30 T=17	9-09956-092-1	01	1	0712-0802		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (G)	1-21464-170-2	01	1	0812-	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0803-0803	●	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0804-0805	●	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0804-0805	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0806-0811	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (B) M8 W/NUT	1-47475-729-0	01	1	0812-	●
97	BRACKET; CLIP (F)	8-98111-710-1	02	1	0803-	●	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0806-	●	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0712-0802		●
97	BRACKET; CLIP (F)	8-98111-710-1	01	1	0803-		●
97	BRACKET; CLIP (A) L=68.5	1-47475-591-0	01	1	0712-0802		●
97	BRACKET; CLIP (E)	8-98111-711-0	02	1	0803-0811		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (E)	8-98111-711-0	02	1	0812-	●
97	BRACKET; CLIP (E)	8-98111-711-0	02	1	0812-		●
97	BRACKET; CLIP (C)	1-47478-981-0	04	1	0712-0802		●
97	BRACKET; CLIP (E)	8-98111-711-0	01	1	0803-0811	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (E)	8-98111-711-0	01	1	0812-	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0712-0802		●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0803-	●	●
232	BOLT; CLIP,PIPE (A) M8X20 FLANGE	0-28050-820-0	02	1	0803-0811	●	●
232	BOLT; CLIP,PIPE FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28050-820-0	02	1	0812-	●	●
232	BOLT; CLIP,PIPE (B) M8X16 FLANGE	0-28050-816-0	01	1	0712-0802		●
232	BOLT; CLIP,PIPE (C) M8X20 FLANGE	0-28650-820-0	01	1	0803-		●
239	CLIP; FUEL PIPE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X2 H=85 L=30	1-09701-062-0	02	1	0812-0812	●
239	CLIP; FUEL PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0803-0811	●	●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-	●	●
239	CLIP; FUEL PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0712-		●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0803-0811	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	05	1	0712-0802		●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0811		●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0812-0812	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-0812		●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-		●
304	NUT; BRKT EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0812-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	0712-0802		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0803-	●	●

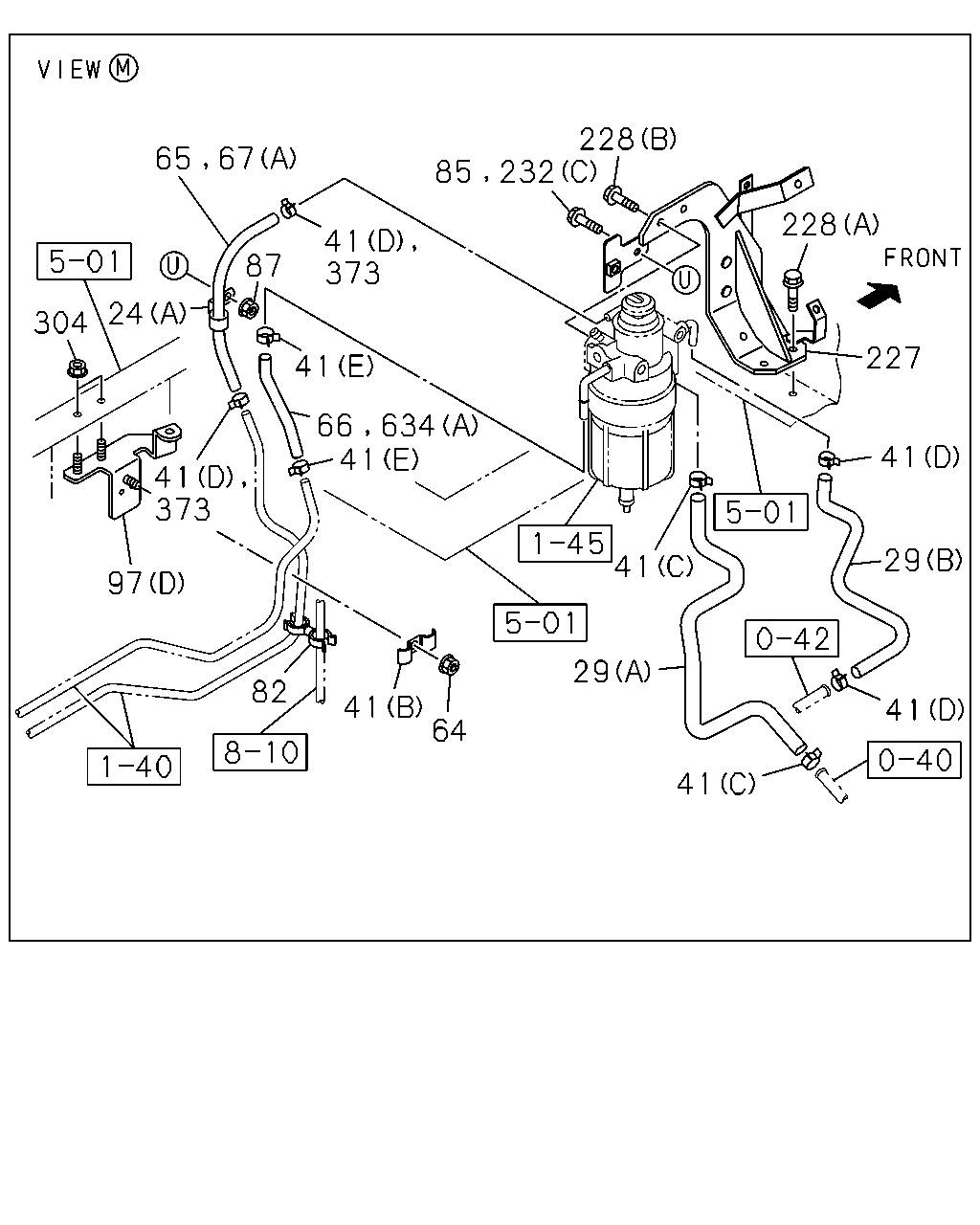

65 67 41 373 87 24 304 41 373 97 82 41 64 29 41 41 29 41 227 228 228 232 85 41 66 634 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0812-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (C) ID=14.5 & 14.5	1-09701-246-1	01	1	0812-	●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802		●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-	●	●
29	HOSE; FUEL (A)	8-98078-194-2	01	1	0712-0802		●
29	HOSE; FUEL (A)	8-98078-194-3	01	1	0803-	●	●
29	HOSE; FUEL (B)	8-98078-195-1	01	1	0712-0802		●
29	HOSE; FUEL (B)	8-98078-195-1	01	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (E) ID=14	1-09704-102-0	04	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	04	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 & 9 L=20 & 18	1-09700-691-0	01	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0803-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	02	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	04	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	0803-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=13	8-94238-571-0	02	1	0812-	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0803-0805	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0806-	●	●
65	HOSE; FUEL,DELIVERY PIPE L=140 SERVICED BY L=3000	0-01260-300-0	01	1	0803-	●	●
66	HOSE; FUEL,RETURN PIPE . L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0803-	●	●
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0802		●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (C) L=760 SERVICED BY L=3000	0-01262-300-0	01	1	0812-0812	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	0812-	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0812-0812	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (C) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	0812-	●
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	0803-	●	●
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	0804-	●	●
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	0712-0802		●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	0712-0802		●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (G)	1-21464-170-2	01	1	0812-	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0803-0803	●	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0804-0805	●	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0804-0805	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0806-0811	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (B) M8 W/NUT	1-47475-729-0	01	1	0812-	●
97	BRACKET; CLIP (F)	8-98111-710-1	02	1	0803-	●	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0806-	●	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0712-0802		●
97	BRACKET; CLIP (F)	8-98111-710-1	01	1	0803-		●
97	BRACKET; CLIP (A) L=68.5	1-47475-591-0	01	1	0712-0802		●
97	BRACKET; CLIP (E)	8-98111-711-0	02	1	0803-0811		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (E)	8-98111-711-0	02	1	0812-	●
97	BRACKET; CLIP (E)	8-98111-711-0	02	1	0812-		●
97	BRACKET; CLIP (C)	1-47478-981-0	04	1	0712-0802		●
97	BRACKET; CLIP (E)	8-98111-711-0	01	1	0803-0811	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (E)	8-98111-711-0	01	1	0812-	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0712-0802		●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0803-	●	●
227	BRACKET; FUEL SEDIMENTER	8-98044-367-3	01	1	0712-0808	●	●
227	BRACKET; FUEL SEDIMENTER	8-98130-667-0	01	1	0809-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0712-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
232	BOLT; CLIP,PIPE (A) M8X20 FLANGE	0-28050-820-0	02	1	0803-0811	●	●
232	BOLT; CLIP,PIPE FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28050-820-0	02	1	0812-	●	●
232	BOLT; CLIP,PIPE (B) M8X16 FLANGE	0-28050-816-0	01	1	0712-0802		●
232	BOLT; CLIP,PIPE (C) M8X20 FLANGE	0-28650-820-0	01	1	0803-		●
304	NUT; BRKT EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0812-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	0712-0802		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0803-	●	●
373	CLAMP; HOSE,FUEL ID=13	8-94238-571-0	02	1	0803-	●	●
634	HOSE; RUBBER RETURN EXC. FUEL PIPE STEEL<E2N> (B) L=1050 SERVICED BY L=3000	0-01558-300-0	01	1	0812-0812	●
634	HOSE; RUBBER RETURN EXC. FUEL PIPE STEEL<E2N> (B) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0812-	●
634	HOSE; RUBBER RETURN (A) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0712-0802		●

232 80 41 97 304 239 41 97 304 303 97 304 304 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (E) ID=14	1-09704-102-0	04	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	04	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 & 9 L=20 & 18	1-09700-691-0	01	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0803-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	02	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	04	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	0803-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=13	8-94238-571-0	02	1	0812-	●
80	BOLT; CLIP,FUEL TANK EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	04	1	0812-	●	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	05	1	0712-0802		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	03	1	0803-0811	●	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	03	1	0812-	●	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (G)	1-21464-170-2	01	1	0812-	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0803-0803	●	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0804-0805	●	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0804-0805	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0806-0811	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (B) M8 W/NUT	1-47475-729-0	01	1	0812-	●
97	BRACKET; CLIP (F)	8-98111-710-1	02	1	0803-	●	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0806-	●	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0712-0802		●
97	BRACKET; CLIP (F)	8-98111-710-1	01	1	0803-		●
97	BRACKET; CLIP (A) L=68.5	1-47475-591-0	01	1	0712-0802		●
97	BRACKET; CLIP (E)	8-98111-711-0	02	1	0803-0811		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (E)	8-98111-711-0	02	1	0812-	●
97	BRACKET; CLIP (E)	8-98111-711-0	02	1	0812-		●
97	BRACKET; CLIP (C)	1-47478-981-0	04	1	0712-0802		●
97	BRACKET; CLIP (E)	8-98111-711-0	01	1	0803-0811	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (E)	8-98111-711-0	01	1	0812-	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0712-0802		●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0803-	●	●
232	BOLT; CLIP,PIPE (A) M8X20 FLANGE	0-28050-820-0	02	1	0803-0811	●	●
232	BOLT; CLIP,PIPE FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28050-820-0	02	1	0812-	●	●
232	BOLT; CLIP,PIPE (B) M8X16 FLANGE	0-28050-816-0	01	1	0712-0802		●
232	BOLT; CLIP,PIPE (C) M8X20 FLANGE	0-28650-820-0	01	1	0803-		●
239	CLIP; FUEL PIPE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X2 H=85 L=30	1-09701-062-0	02	1	0812-0812	●
239	CLIP; FUEL PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0803-0811	●	●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-	●	●
239	CLIP; FUEL PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0712-		●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0803-0811	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	05	1	0712-0802		●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0811		●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0812-0812	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-0812		●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-		●
304	NUT; BRKT EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0812-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	0712-0802		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0803-	●	●

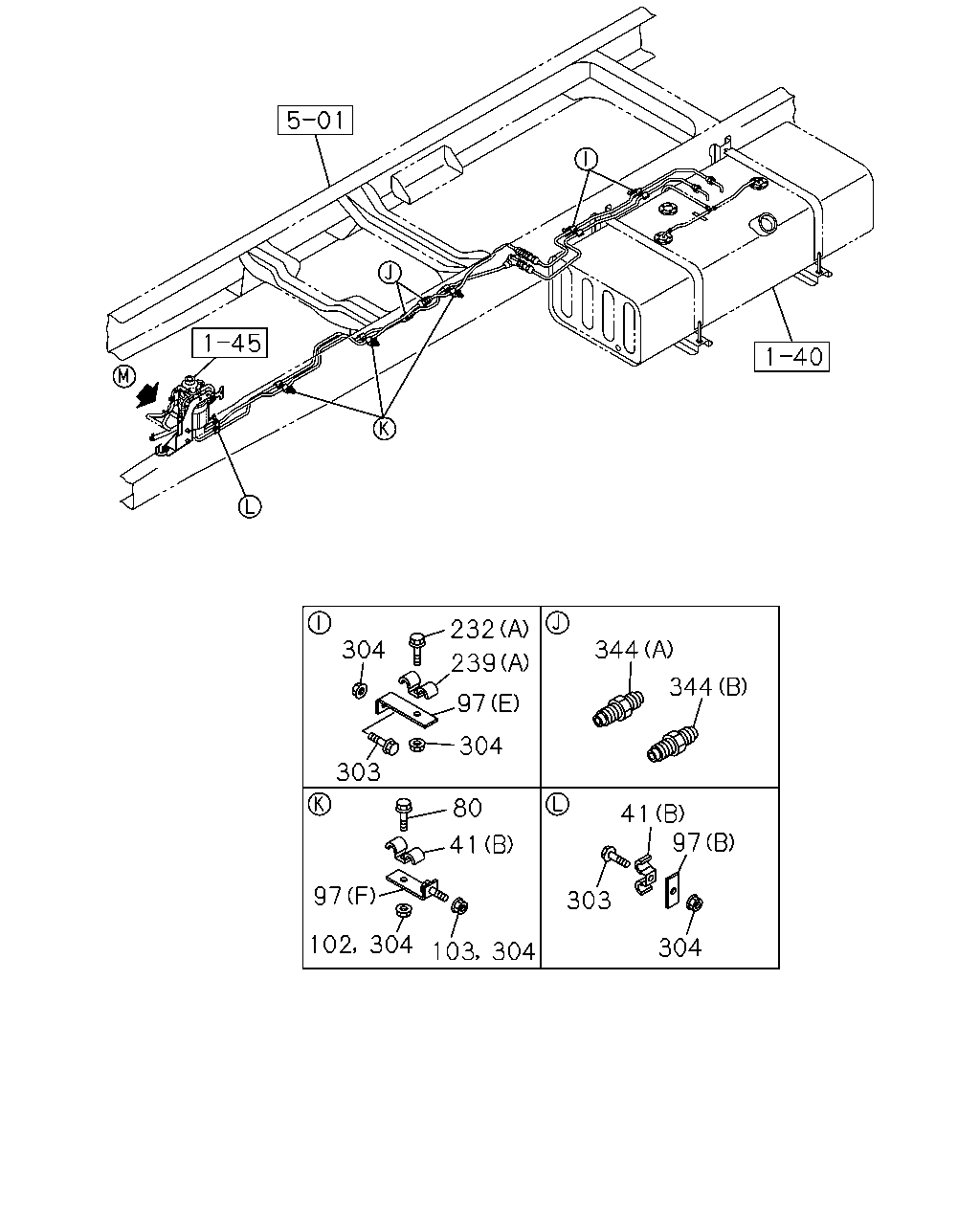

344 97 304 303 80 41 97 41 97 303 102 304 304 103 304 304 232 344 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (E) ID=14	1-09704-102-0	04	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	04	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 & 9 L=20 & 18	1-09700-691-0	01	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0803-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	02	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	04	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	0803-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=13	8-94238-571-0	02	1	0812-	●
80	BOLT; CLIP,FUEL TANK EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	04	1	0812-	●	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	05	1	0712-0802		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	03	1	0803-0811	●	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	03	1	0812-	●	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (G)	1-21464-170-2	01	1	0812-	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0803-0803	●	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0804-0805	●	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0804-0805	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0806-0811	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (B) M8 W/NUT	1-47475-729-0	01	1	0812-	●
97	BRACKET; CLIP (F)	8-98111-710-1	02	1	0803-	●	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0806-	●	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0712-0802		●
97	BRACKET; CLIP (F)	8-98111-710-1	01	1	0803-		●
97	BRACKET; CLIP (A) L=68.5	1-47475-591-0	01	1	0712-0802		●
97	BRACKET; CLIP (E)	8-98111-711-0	02	1	0803-0811		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (E)	8-98111-711-0	02	1	0812-	●
97	BRACKET; CLIP (E)	8-98111-711-0	02	1	0812-		●
97	BRACKET; CLIP (C)	1-47478-981-0	04	1	0712-0802		●
97	BRACKET; CLIP (E)	8-98111-711-0	01	1	0803-0811	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (E)	8-98111-711-0	01	1	0812-	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0712-0802		●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0803-	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	01	1	0803-		●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-		●
232	BOLT; CLIP,PIPE (A) M8X20 FLANGE	0-28050-820-0	02	1	0803-0811	●	●
232	BOLT; CLIP,PIPE FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28050-820-0	02	1	0812-	●	●
232	BOLT; CLIP,PIPE (B) M8X16 FLANGE	0-28050-816-0	01	1	0712-0802		●
232	BOLT; CLIP,PIPE (C) M8X20 FLANGE	0-28650-820-0	01	1	0803-		●
239	CLIP; FUEL PIPE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X2 H=85 L=30	1-09701-062-0	02	1	0812-0812	●
239	CLIP; FUEL PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0803-0811	●	●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-	●	●
239	CLIP; FUEL PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0712-		●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0803-0811	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	05	1	0712-0802		●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0811		●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0812-0812	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-0812		●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-		●
304	NUT; BRKT EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0812-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	0712-0802		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0803-	●	●
344	UNION; STRAIGHT (B) M14 STRAIGHT	0-92113-008-0	01	1	0803-		●
344	UNION; STRAIGHT (A) M16 L=42	0-92123-010-0	01	1	0803-		●

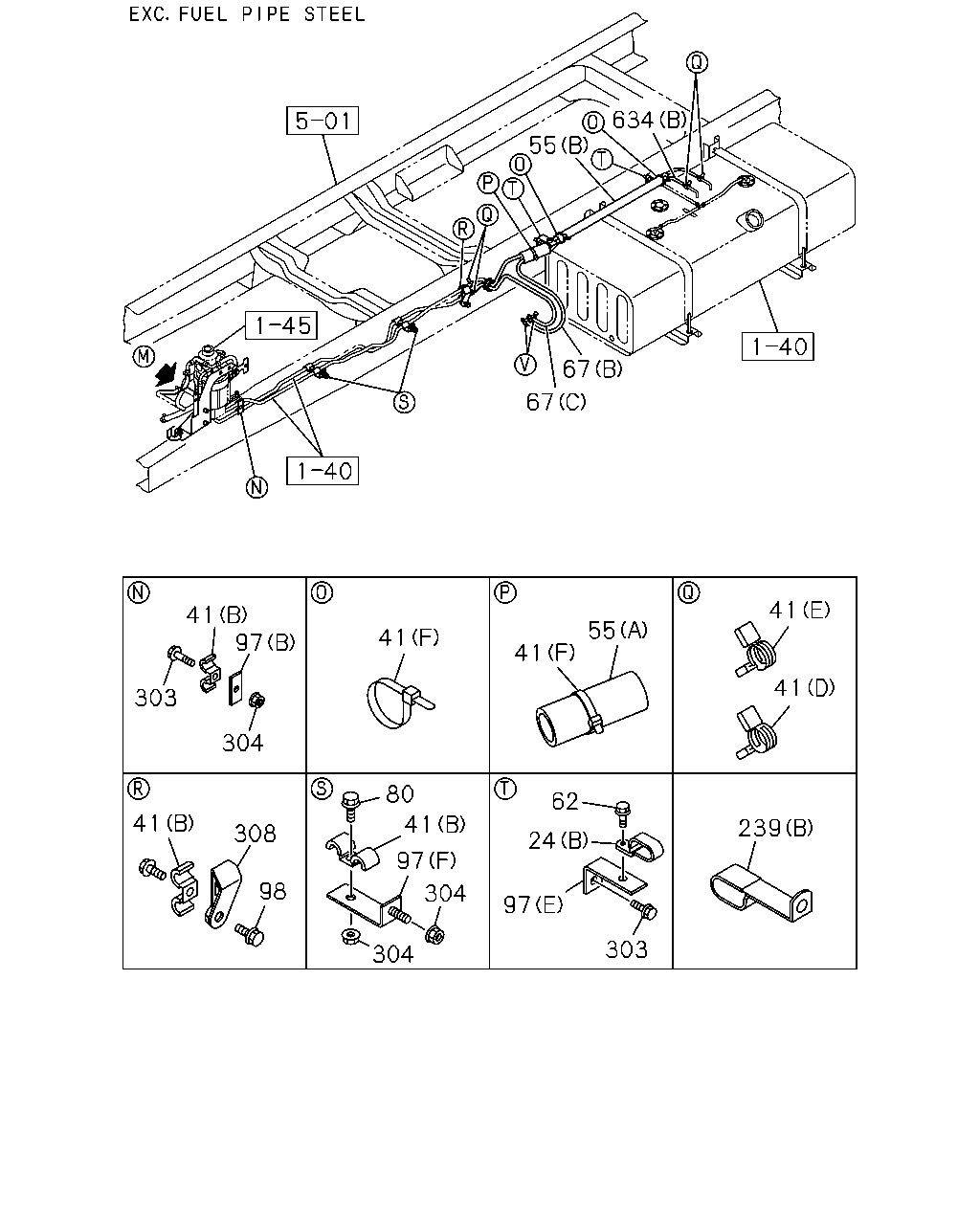

67 67 41 303 304 97 41 41 55 41 41 239 62 24 97 303 80 41 97 304 304 41 308 98 634 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0812-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (C) ID=14.5 & 14.5	1-09701-246-1	01	1	0812-	●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802		●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (E) ID=14	1-09704-102-0	04	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	04	1	0812-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 & 9 L=20 & 18	1-09700-691-0	01	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0803-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	02	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	04	1	0712-0802		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	0803-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=13	8-94238-571-0	02	1	0812-	●
55	COVER; PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=29 OD=39 L=100	1-09337-022-0	02	1	0812-0812	●
55	COVER; PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=29 OD=39 L=100	1-09337-022-0	01	1	0812-	●
55	COVER; PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=27 L=500	8-98119-327-0	01	1	0812-	●
62	BOLT; CLIP FIX EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0812-	●
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0802		●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (C) L=760 SERVICED BY L=3000	0-01262-300-0	01	1	0812-0812	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	0812-	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0812-0812	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (C) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	0812-	●
80	BOLT; CLIP,FUEL TANK EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	04	1	0812-	●	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	05	1	0712-0802		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	03	1	0803-0811	●	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	03	1	0812-	●	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (G)	1-21464-170-2	01	1	0812-	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0803-0803	●	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0804-0805	●	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0804-0805	●
97	BRACKET; CLIP (B) M8 W/NUT	1-47475-729-0	01	1	0806-0811	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (B) M8 W/NUT	1-47475-729-0	01	1	0812-	●
97	BRACKET; CLIP (F)	8-98111-710-1	02	1	0803-	●	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0806-	●	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0712-0802		●
97	BRACKET; CLIP (F)	8-98111-710-1	01	1	0803-		●
97	BRACKET; CLIP (A) L=68.5	1-47475-591-0	01	1	0712-0802		●
97	BRACKET; CLIP (E)	8-98111-711-0	02	1	0803-0811		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (E)	8-98111-711-0	02	1	0812-	●
97	BRACKET; CLIP (E)	8-98111-711-0	02	1	0812-		●
97	BRACKET; CLIP (C)	1-47478-981-0	04	1	0712-0802		●
97	BRACKET; CLIP (E)	8-98111-711-0	01	1	0803-0811	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (E)	8-98111-711-0	01	1	0812-	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0712-0802		●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0803-	●	●
98	BOLT; BRKT,FUEL PIPE EXC. FUEL PIPE STEEL<E2N> M10X25 FLANGE	0-28651-025-0	01	1	0812-	●
239	CLIP; FUEL PIPE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X2 H=85 L=30	1-09701-062-0	02	1	0812-0812	●
239	CLIP; FUEL PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0803-0811	●	●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-	●	●
239	CLIP; FUEL PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0712-		●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0803-0811	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	05	1	0712-0802		●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0811		●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0812-0812	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-0812		●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0812-	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-		●
304	NUT; BRKT EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0812-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	0712-0802		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0803-	●	●
308	BRACKET; FUEL PIPE EXC. FUEL PIPE STEEL<E2N>	8-98117-691-0	01	1	0812-	●
634	HOSE; RUBBER RETURN EXC. FUEL PIPE STEEL<E2N> (B) L=1050 SERVICED BY L=3000	0-01558-300-0	01	1	0812-0812	●
634	HOSE; RUBBER RETURN EXC. FUEL PIPE STEEL<E2N> (B) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0812-	●
634	HOSE; RUBBER RETURN (A) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0712-0802		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
