0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#6228) — 125 parça

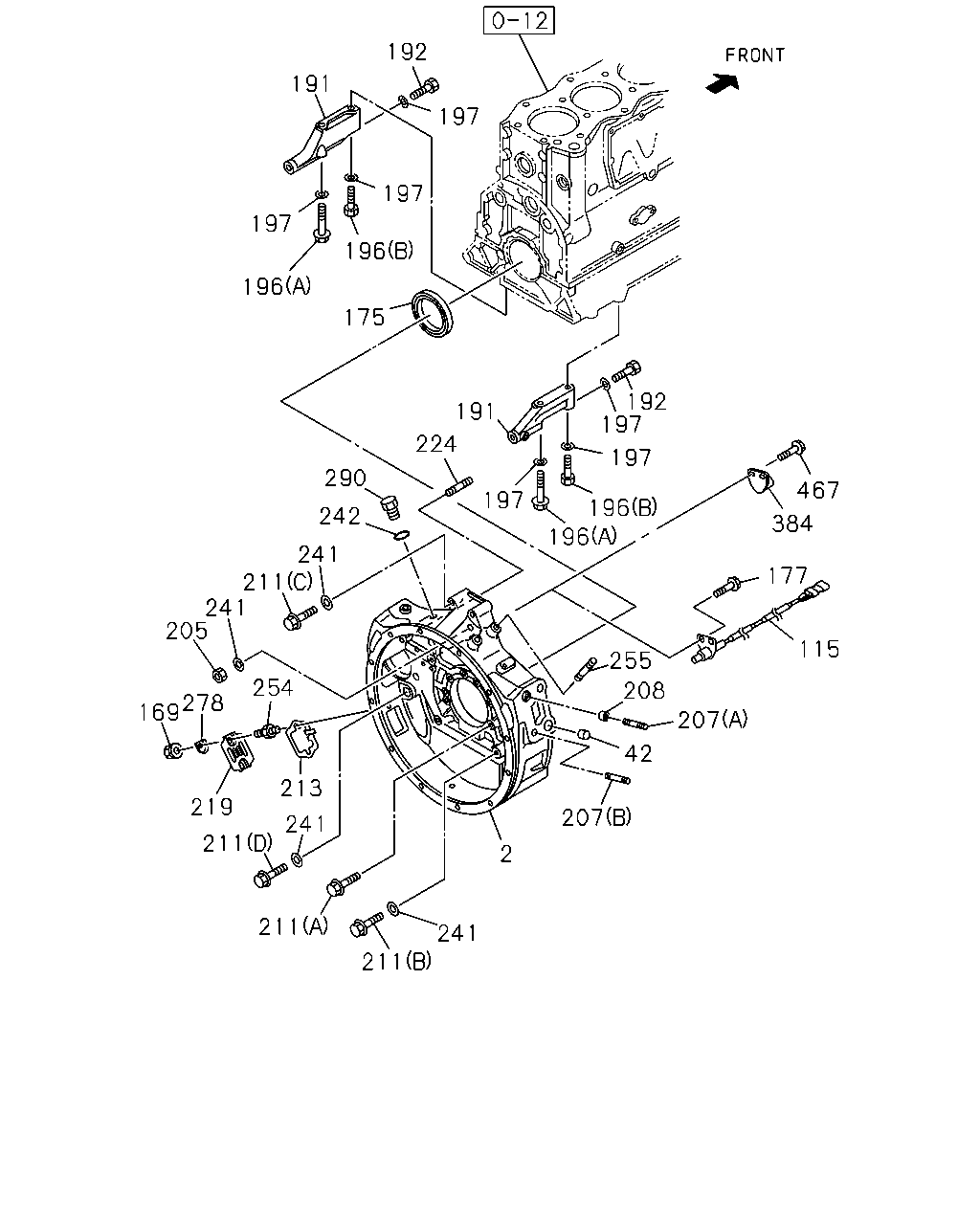

192 191 197 197 197 196 196 175 192 197 191 224 197 290 467 197 196 242 384 196 241 177 211 241 205 115 255 254 208 278 169 207 42 213 219 207 241 211 2 211 241 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL	1-11340-271-7	01	1	9906-9906	●	●	●
2	HOUSING; FLYWHEEL	1-11340-271-8	01	1	9907-	●		●
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	9906-9906	●	●	●
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	9907-	●		●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-426-5	01	1	9906-	●		●
169	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	9906-9906	●	●	●
169	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	9907-	●		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	1-09625-557-1	01	1	9906-9906	●	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	1-09625-557-1	01	1	9907-	●		●
177	BOLT; SENSOR M8X16 FLANGE	0-28080-816-0	02	1	9906-	●		●
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	9906-9906	●	●	●
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	9907-	●		●
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	9906-9906	●	●	●
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	9907-	●		●
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	9906-9906	●	●	●
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	9907-	●		●
196	BOLT; STAY TO C/BL (A) M14X100	9-91666-400-0	02	1	9906-9906	●	●	●
196	BOLT; STAY TO C/BL (A) M14X100	9-91666-400-0	02	1	9907-	●		●
196	BOLT; STAY TO C/BL (B) M14X70	9-91666-470-0	02	1	9906-9906	●	●	●
196	BOLT; STAY TO C/BL (B) M14X70	9-91666-470-0	02	1	9907-	●		●
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	9906-9906	●	●	●
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	9907-	●		●
205	NUT; HSG M14	9-99110-514-0	01	1	9906-9906	●	●	●
205	NUT; HSG M14	9-99110-514-0	01	1	9907-	●		●
207	STUD; ENG FOOT (B) M18X60 L=96	9-04321-860-0	04	1	9906-9906	●	●	●
207	STUD; ENG FOOT (B) M18X60 L=96	9-04321-860-0	04	1	9907-	●		●
207	STUD; ENG FOOT (A) M18X80 L=116	9-04321-880-0	04	1	9906-9906	●	●	●
207	STUD; ENG FOOT (A) M18X80 L=116	9-04321-880-0	04	1	9907-	●		●
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	9906-9906	●	●	●
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	9907-	●		●
211	BOLT; HSG (A) M8X35 FLANGE	0-28080-835-0	08	1	9906-9906	●	●	●
211	BOLT; HSG (A) M8X35 FLANGE	0-28080-835-0	08	1	9907-	●		●
211	BOLT; HSG (B) M14X50	9-91666-450-0	02	1	9906-9906	●	●	●
211	BOLT; HSG (B) M14X50	9-91666-450-0	02	1	9907-	●		●
211	BOLT; HSG (C) M14X70	9-91666-470-0	02	1	9906-9906	●	●	●
211	BOLT; HSG (C) M14X70	9-91666-470-0	02	1	9907-	●		●
211	BOLT; HSG (D) M14X45	9-92361-445-0	10	1	9906-9906	●	●	●
211	BOLT; HSG (D) M14X45	9-92361-445-0	10	1	9907-	●		●
213	POINTER; FLYWHEEL HSG	1-11327-045-0	01	1	9906-9906	●	●	●
213	POINTER; FLYWHEEL HSG	1-11327-045-0	01	1	9907-	●		●
219	COVER; POINTER	1-11349-131-0	01	1	9906-9906	●	●	●
219	COVER; POINTER	1-11349-131-0	01	1	9907-	●		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	03	1	9906-9906	●	●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	03	1	9907-	●		●
241	WASHER; PL,HSG ID=15 OD=26	9-09164-514-0	15	1	9906-9906	●	●	●
241	WASHER; PL,HSG ID=15 OD=26	9-09164-514-0	15	1	9907-	●		●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	01	1	9906-9906	●	●	●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	01	1	9907-	●		●
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	9906-9906	●	●	●
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	9907-	●		●
255	STUD; RELAY LEVER BRKT M12X30 L=48	9-94411-230-0	03	1	9906-9906	●	●	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	9-94411-230-0	03	1	9907-	●		●
278	WASHER; COVER FIX	1-11349-127-0	01	1	9906-9906	●	●	●
278	WASHER; COVER FIX	1-11349-127-0	01	1	9907-	●		●
290	PLUG; SENSOR HOLE M20X10.5	9-09662-005-0	01	1	9906-9906	●	●	●
290	PLUG; SENSOR HOLE M20X10.5	9-09662-005-0	01	1	9907-	●		●
384	PLATE	1-11343-007-0	01	1	9906-9906		●
467	BOLT; PLATE M8X16 FLANGE	0-28080-816-0	02	1	9906-9906		●

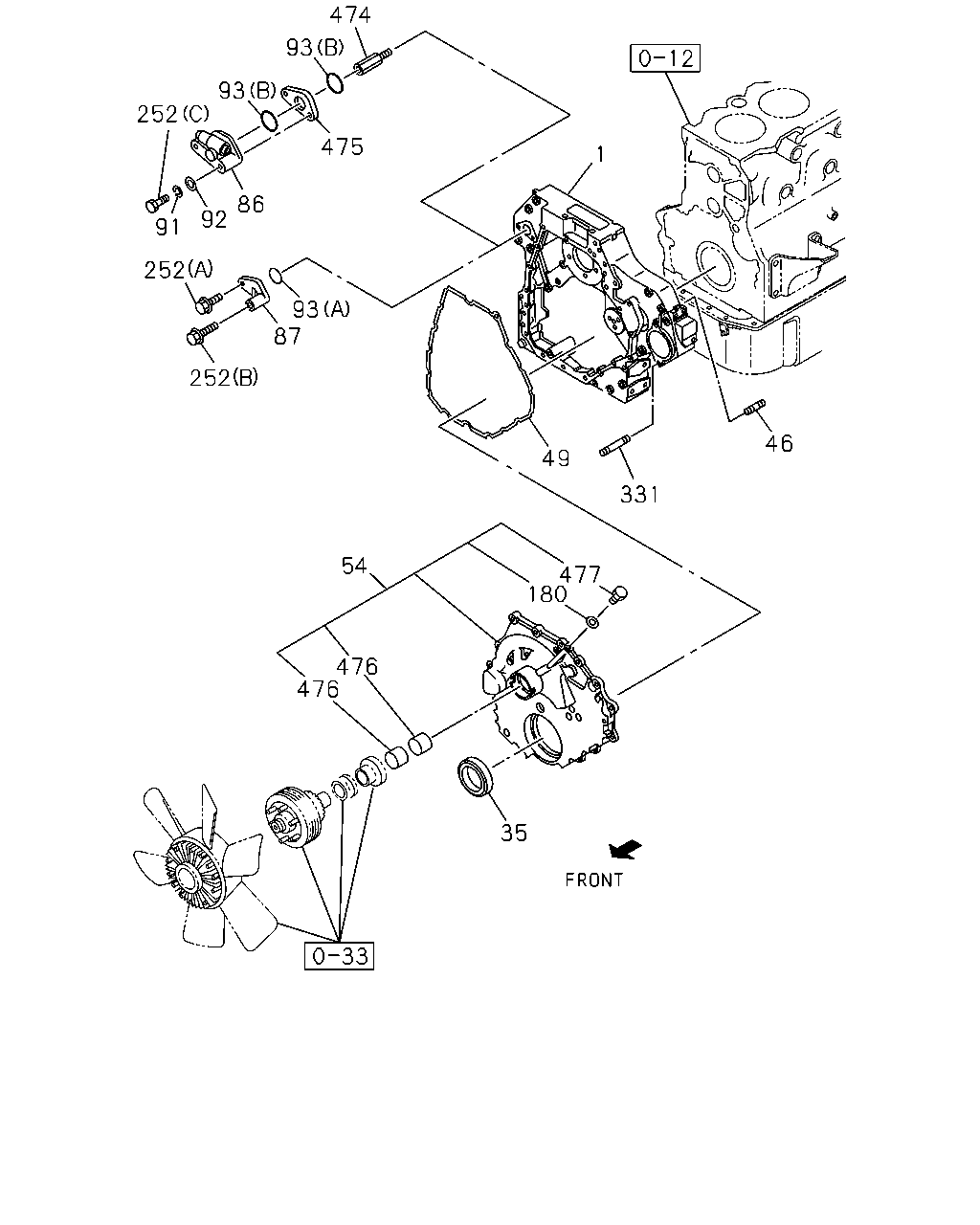

474 93 93 252 475 1 86 92 91 252 93 87 252 46 49 331 54 477 180 476 476 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CASE; TIMING GEAR	1-11310-053-3	01	1	9906-9906	●	●	●
1	CASE; TIMING GEAR	1-11310-053-4	01	1	9907-	●		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	1-09625-556-1	01	1	9906-9906	●	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	1-09625-556-2	01	1	9907-	●		●
46	STUD; BRG COVER,RR M14X45 L=66	9-04411-445-0	01	1	9906-9906	●	●	●
46	STUD; BRG COVER,RR M14X45 L=66	9-04411-445-0	01	1	9907-	●		●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-11322-044-1	01	1	9906-9906	●	●	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-11322-044-1	01	1	9907-	●		●
54	COVER; GEAR CASE	1-11320-096-5	01	1	9906-9906	●	●	●
54	COVER; GEAR CASE	1-11320-096-6	01	1	9907-	●		●
86	ELBOW; TACHOMETER DRIVE	1-85860-048-2	01	1	9906-9906		●
87	COVER; TACHOMETER DRIVE	1-11349-151-2	01	1	9906-	●		●
91	WASHER; LK,ELBOW ID=8.2	9-09150-508-0	01	1	9906-9906		●
92	WASHER; PL,ELBOW ID=8.4	9-09160-508-0	01	1	9906-9906		●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.7	1-09623-416-0	01	1	9906-	●		●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=35.7	1-09623-416-0	02	1	9906-9906		●
180	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9906-9906	●	●	●
180	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9907-	●		●
252	BOLT; GEAR BOX (A) M8X20 FLANGE	0-28080-820-0	01	1	9906-	●		●
252	BOLT; GEAR BOX (B) M8X60 FLANGE	0-28080-860-0	01	1	9906-	●		●
252	BOLT; GEAR BOX (C) M8X80	0-10805-880-0	01	1	9906-9906		●
252	BOLT; GEAR BOX (C) M8X30 FLANGE	0-28080-830-0	01	1	9906-9906		●
331	STUD; P/S PUMP M10X25 L=40	9-04411-025-0	02	1	9906-9906	●	●	●
331	STUD; P/S PUMP M10X25 L=40	9-04411-025-0	02	1	9907-	●		●
474	ADAPTER; ELBOW DRIVE	1-12539-026-0	01	1	9906-9906		●
475	SPACER; ELBOW	1-85869-001-1	01	1	9906-9906		●
476	BUSHING; COVER	1-09330-096-0	02	1	9906-9906	●	●	●
476	BUSHING; COVER	1-09330-096-0	02	1	9907-	●		●
477	PLUG; OIL HOLE M10X7	9-09202-310-0	01	1	9906-9906	●	●	●
477	PLUG; OIL HOLE M10X7	9-09202-310-0	01	1	9907-	●		●

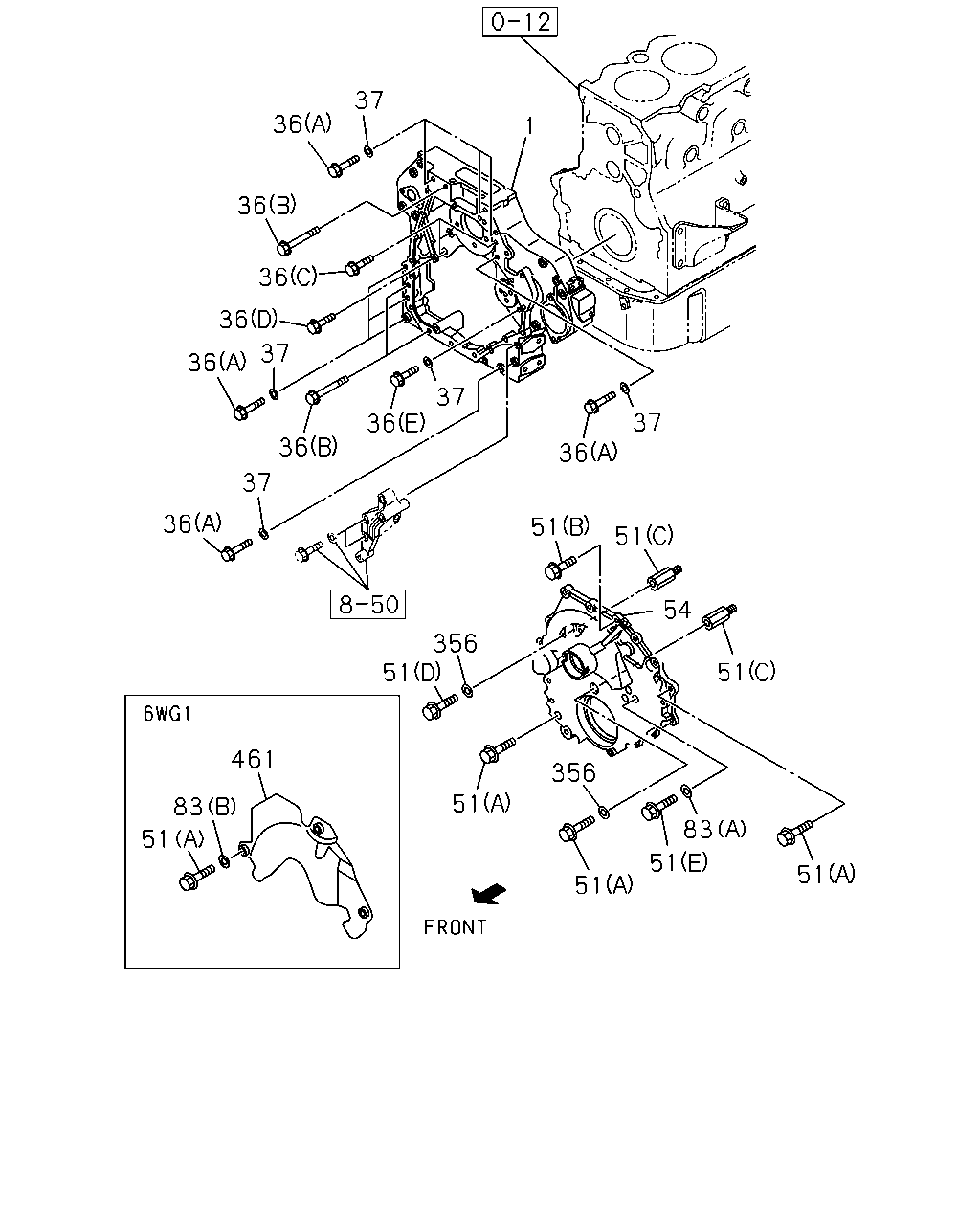

37 36 1 36 36 36 37 36 37 37 36 36 36 37 36 51 51 54 356 51 51 461 356 51 83 83 51 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CASE; TIMING GEAR	1-11310-053-3	01	1	9906-9906	●	●	●
1	CASE; TIMING GEAR	1-11310-053-4	01	1	9907-	●		●
36	BOLT; GEAR CASE (B) M10X100 FLANGE	0-28181-000-0	03	1	9906-9906	●	●	●
36	BOLT; GEAR CASE (B) M10X100 FLANGE	0-28181-000-0	03	1	9907-	●		●
36	BOLT; GEAR CASE (C) M10X25 FLANGE	0-28181-025-0	04	1	9906-9906	●	●	●
36	BOLT; GEAR CASE (C) M10X25 FLANGE	0-28181-025-0	04	1	9907-	●		●
36	BOLT; GEAR CASE (D) M10X35 FLANGE	0-28181-035-0	01	1	9906-9906	●	●	●
36	BOLT; GEAR CASE (D) M10X35 FLANGE	0-28181-035-0	01	1	9907-	●		●
36	BOLT; GEAR CASE (E) M14X60	1-09020-146-0	01	1	9906-9906	●	●	●
36	BOLT; GEAR CASE (E) M14X60	1-09020-146-0	01	1	9907-	●		●
36	BOLT; GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) (A) M14X110	1-09020-007-0	08	1	9906-9906	●	●	●
36	BOLT; GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) (A) M14X110	1-09020-007-0	08	1	9907-	●		●
36	BOLT; GEAR CASE HEATER & DEFROSTER(C41) (A) M14X110	1-09020-007-0	10	1	9906-9906	●	●	●
36	BOLT; GEAR CASE HEATER & DEFROSTER(C41) (A) M14X110	1-09020-007-0	10	1	9907-	●		●
37	WASHER; PL,GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26	9-09164-514-0	09	1	9906-9906	●	●	●
37	WASHER; PL,GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26	9-09164-514-0	09	1	9907-	●		●
37	WASHER; PL,GEAR CASE HEATER & DEFROSTER(C41) ID=15 OD=26	9-09164-514-0	11	1	9906-9906	●	●	●
37	WASHER; PL,GEAR CASE HEATER & DEFROSTER(C41) ID=15 OD=26	9-09164-514-0	11	1	9907-	●		●
51	BOLT; GEAR CASE COVER (A) M10X30 FLANGE	0-28181-030-0	17	1	9906-9906	●	●	●
51	BOLT; GEAR CASE COVER (A) M10X30 FLANGE	0-28181-030-0	17	1	9907-	●		●
51	BOLT; GEAR CASE COVER (B) M10X40 FLANGE	0-28181-040-0	01	1	9906-9906	●	●	●
51	BOLT; GEAR CASE COVER (B) M10X40 FLANGE	0-28181-040-0	01	1	9907-	●		●
51	BOLT; GEAR CASE COVER (C) M10X90	1-11329-024-1	03	1	9906-9906	●	●	●
51	BOLT; GEAR CASE COVER (C) M10X90	1-11329-024-1	03	1	9907-	●		●
51	BOLT; GEAR CASE COVER (D) M10X55 FLANGE	8-94399-863-1	02	1	9906-9906	●	●	●
51	BOLT; GEAR CASE COVER (D) M10X55 FLANGE	8-94399-863-1	02	1	9907-	●		●
51	BOLT; GEAR CASE COVER (E) M8X40	9-01065-840-0	03	1	9906-9906	●	●	●
51	BOLT; GEAR CASE COVER (E) M8X40	9-01065-840-0	03	1	9907-	●		●
51	BOLT; GEAR CASE COVER (A) M10X30 FLANGE	0-28181-030-0	03	1	9906-			●
54	COVER; GEAR CASE	1-11320-096-5	01	1	9906-9906	●	●	●
54	COVER; GEAR CASE	1-11320-096-6	01	1	9907-	●		●
83	WASHER; PL,COVER (A) ID=8.5 OD=20	5-09503-111-0	03	1	9906-9906	●	●	●
83	WASHER; PL,COVER (A) ID=8.5 OD=20	5-09503-111-0	03	1	9907-	●		●
83	WASHER; PL,COVER (B) ID=10.5 OD=26	9-09160-710-0	03	1	9906-			●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0	9-09571-410-0	03	1	9906-9906	●	●	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0	9-09571-410-0	03	1	9907-	●		●
461	COVER; GEAR CASE COVER	1-19380-114-6	01	1	9906-			●
