Isuzu WW
▶
TRUCKS
▶
FVM
▶
11391 - FVM(INDONESIA)6HK1
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#62279) — 154 parça
Tümü
A - 6HK1-TCN ENG
B - 6HK1-TCS ENG
◀

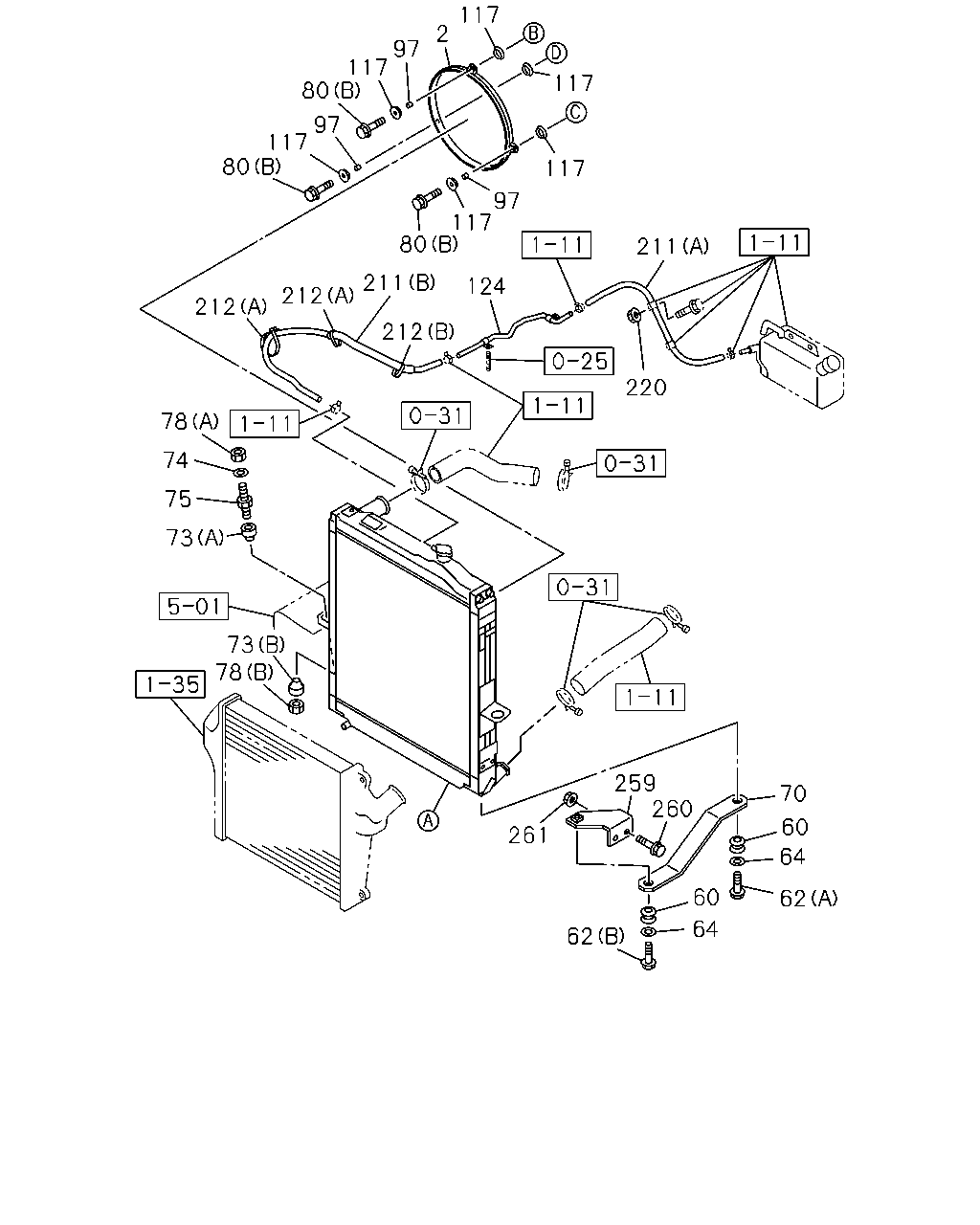

[110A] NO.1 (47 parça)

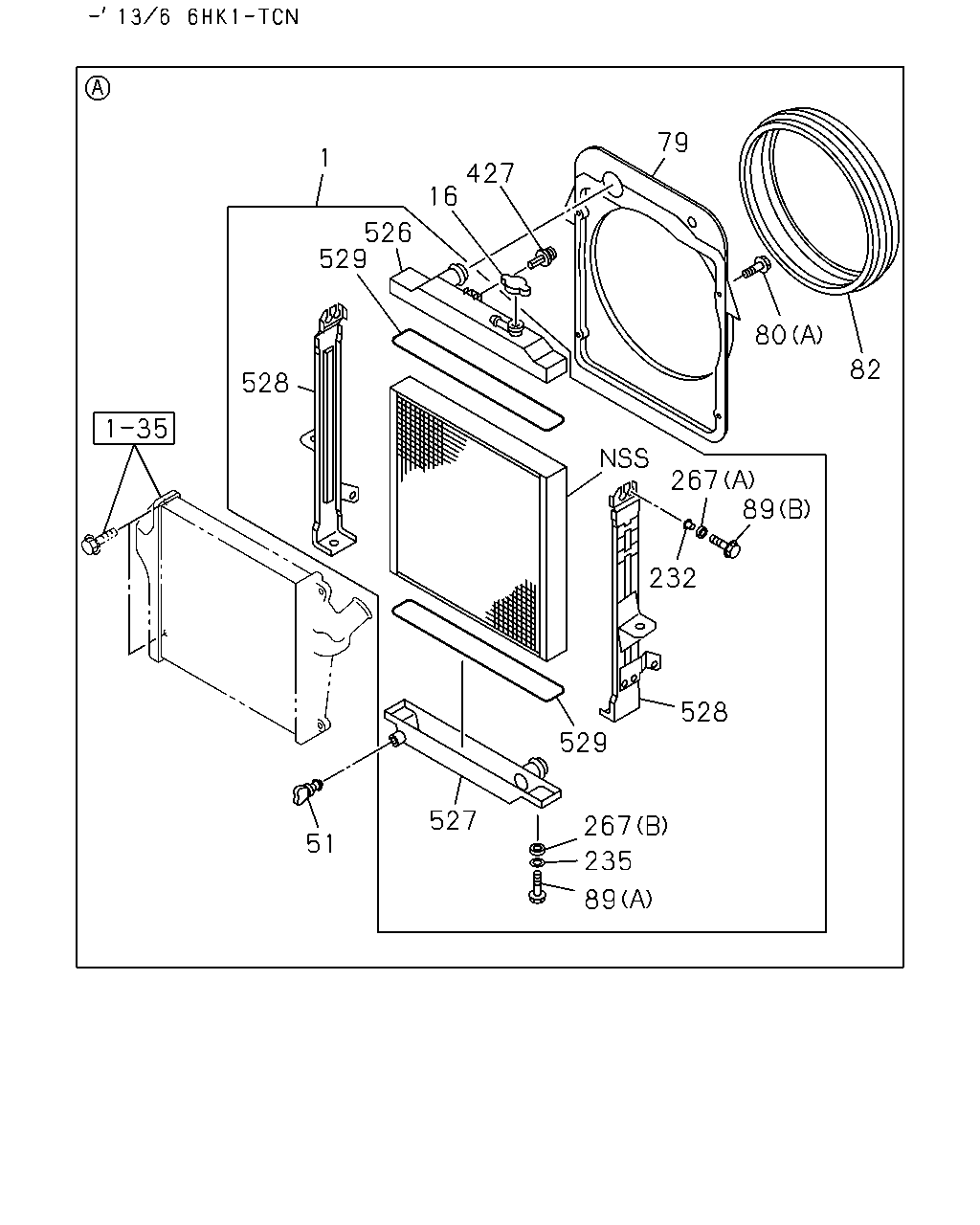

[110A] NO.3 (44 parça)

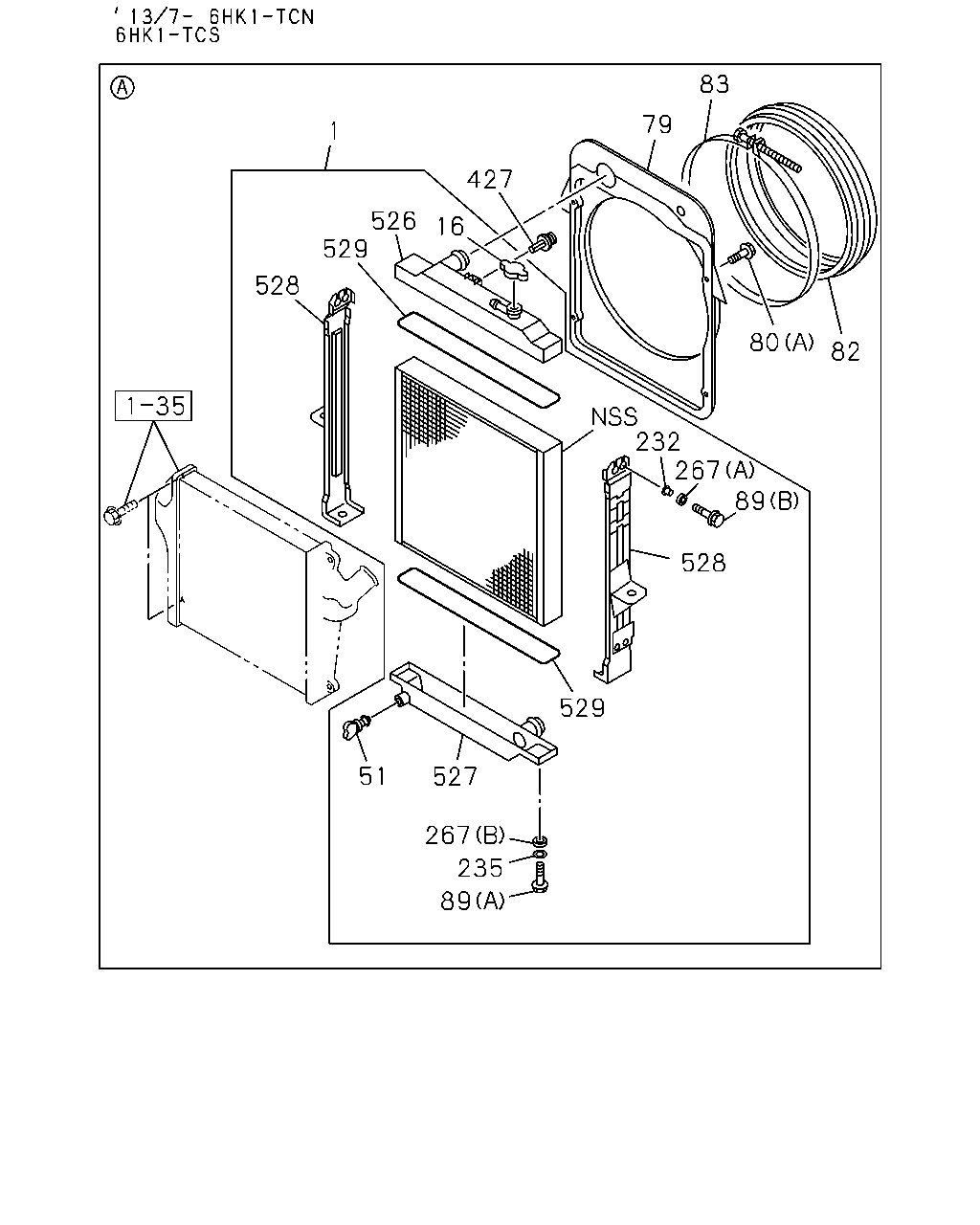

[110A] NO.2 (43 parça)

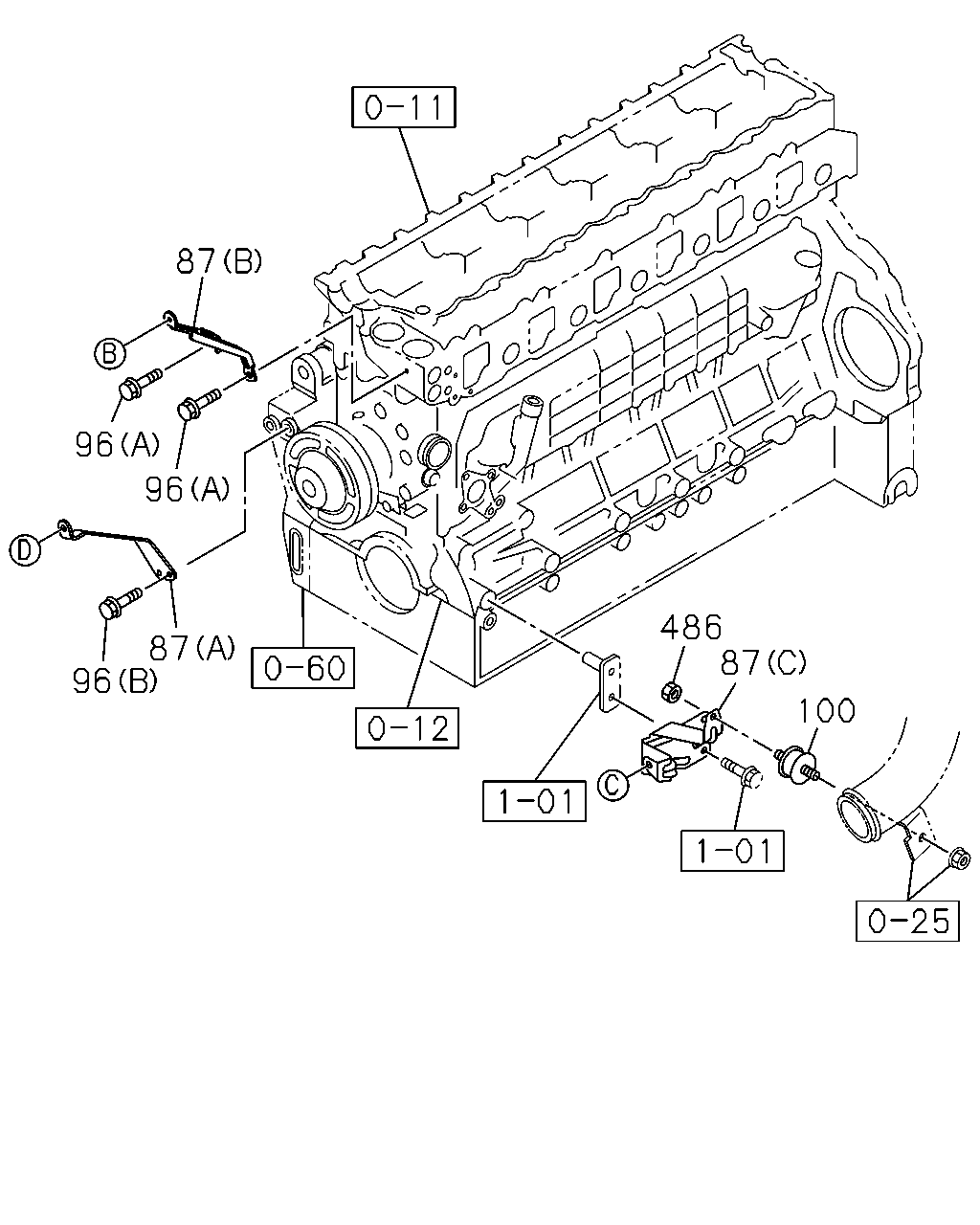

[110A] NO.4 (20 parça)
▶
62
64
60
62
64
60
70
260
259
261
220
211
117
117
117
2
97
117
80
97
117
80
97
117
80
124
211
212
212
212
78
74
75
73
73
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GUIDE; FAN
8-94393-779-1
01
1
1108-1309
●
2
GUIDE; FAN
8-94393-779-1
01
1
1310-
●
●
60
GROMMET
1-09332-117-0
04
1
1108-1309
●
60
GROMMET
1-09332-117-0
04
1
1310-
●
●
62
BOLT; STAY
(A) M8X30
1-09009-020-1
02
1
1108-1309
●
62
BOLT; STAY
(A) M8X30
1-09009-020-1
02
1
1310-
●
●
62
BOLT; STAY
(B) M8X26
1-09009-175-0
02
1
1108-1309
●
62
BOLT; STAY
(B) M8X26
1-09009-175-0
02
1
1310-
●
●
64
WASHER; STAY TO RAD
ID=12.5 OD=26
0-91610-612-0
04
1
1108-1309
●
64
WASHER; STAY TO RAD
ID=12.5 OD=26
0-91610-612-0
04
1
1310-
●
●
70
STAY; RAD
8-98004-132-2
02
1
1108-1309
●
70
STAY; RAD
8-98004-132-2
02
1
1310-
●
●
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1108-
●
●
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1108-
●
●
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1108-
●
●
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1108-
●
●
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-210-0
02
1
1108-
●
●
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
1108-
●
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1108-1309
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1310-
●
●
80
BOLT; FAN GUIDE
(A) M8X14 IDN
8-98046-222-0
04
1
1108-1309
●
80
BOLT; FAN GUIDE
(A) M8X14 IDN
8-98046-222-0
04
1
1310-1410
●
●
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1411-
●
●
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
1108-1309
●
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
1310-
●
●
117
RUBBER; MTG,FAN GUIDE
OD=32
8-94395-766-0
06
1
1108-1309
●
117
RUBBER; MTG,FAN GUIDE
OD=32
8-94395-766-0
06
1
1310-
●
●
124
PIPE; WATER,TANK TO RAD
8-97611-022-1
01
1
1108-1309
●
124
PIPE; WATER,TANK TO RAD
8-97611-022-1
01
1
1310-
●
●
211
HOSE; RAD TO PIPE
(B) L=970 IDN
8-98073-545-0
01
1
1310-
●
211
HOSE; RAD TO PIPE
(B) L=940 IDN
8-98073-544-0
01
1
1108-
●
211
HOSE; RAD TO PIPE
(A) L=560 IDN
8-98119-375-0
01
1
1108-1309
●
211
HOSE; RAD TO PIPE
(A) L=560 IDN
8-98119-375-0
01
1
1310-
●
●
212
CLIP; HOSE
(A) L=250 IDN
5-09707-030-1
02
1
1108-1309
●
212
CLIP; HOSE
(A) L=250 IDN
5-09707-030-1
02
1
1310-
●
●
212
CLIP; HOSE
(B) L=140 IDN
5-09707-031-1
01
1
1108-1309
●
212
CLIP; HOSE
(B) L=140 IDN
5-09707-031-1
01
1
1310-
●
●
220
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1108-1309
●
220
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1310-
●
●
259
BRACKET; RAD STAY
8-98071-821-0
01
1
1108-1309
●
259
BRACKET; RAD STAY
8-98071-821-0
01
1
1310-
●
●
259
BRACKET; RAD STAY
8-98071-822-0
01
1
1108-1309
●
259
BRACKET; RAD STAY
8-98071-822-0
01
1
1310-
●
●
260
BOLT; BRKT
M8X20 FLANGE IDN
0-28650-820-0
04
1
1108-1309
●
260
BOLT; BRKT
M8X20 FLANGE IDN
0-28650-820-0
04
1
1310-
●
●
261
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
1108-1309
●
261
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
1310-
●
●
83
79
427
526
529
528
232
80
267
528
89
529
527
51
267
235
89
82
16
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
IDN
8-98248-324-0
01
1
1310-
●
1
RADIATOR ASM
IDN
8-98042-837-3
01
1
1108-1306
●
1
RADIATOR ASM
IDN
8-98248-323-0
01
1
1307-
●
16
CAP; RAD
8-98096-226-0
01
1
1310-
●
16
CAP; RAD
IDN
8-97239-187-0
01
1
1108-
●
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1108-1309
●
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1310-
●
●
79
GUIDE; FAN,RAD
IDN
8-98010-384-0
01
1
1310-1410
●
79
GUIDE; FAN,RAD
IDN
8-98273-634-0
01
1
1411-
●
79
GUIDE; FAN,RAD
IDN
8-98004-207-0
01
1
1108-1410
●
79
GUIDE; FAN,RAD
IDN
8-98286-937-0
01
1
1411-
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1108-1309
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1310-
●
●
80
BOLT; FAN GUIDE
(A) M8X14 IDN
8-98046-222-0
04
1
1108-1309
●
80
BOLT; FAN GUIDE
(A) M8X14 IDN
8-98046-222-0
04
1
1310-1410
●
●
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1411-
●
●
82
COVER; FAN,RAD
IDN
8-98004-211-0
01
1
1108-1309
●
82
COVER; FAN,RAD
IDN
8-98004-211-0
01
1
1310-1410
●
●
82
COVER; FAN,RAD
IDN
8-98293-253-0
01
1
1411-
●
●
83
CLIP; FAN COVER
IDN
1-09707-177-2
01
1
1411-
●
●
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1108-1309
●
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1310-
●
●
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1108-1309
●
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1310-
●
●
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1108-1309
●
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1310-
●
●
235
WASHER; CUSHION RUBBER
IDN
1-21469-133-0
02
1
1108-1309
●
235
WASHER; CUSHION RUBBER
IDN
1-21469-133-0
02
1
1310-
●
●
267
RUBBER; CUSHION
(A) IDN
1-21469-130-0
04
1
1108-1309
●
267
RUBBER; CUSHION
(A) IDN
1-21469-130-0
04
1
1310-
●
●
267
RUBBER; CUSHION
(B) IDN
1-21469-131-0
02
1
1108-1309
●
267
RUBBER; CUSHION
(B) IDN
1-21469-131-0
02
1
1310-
●
●
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
1108-1309
●
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
1310-1410
●
●
526
TANK; UPR,RADIATOR CORE
IDN
8-98004-202-2
01
1
1108-1309
●
526
TANK; UPR,RADIATOR CORE
IDN
8-98004-202-2
01
1
1310-
●
●
527
TANK; LWR,RADIATOR CORE
IDN
8-98004-203-0
01
1
1108-1309
●
527
TANK; LWR,RADIATOR CORE
IDN
8-98004-203-0
01
1
1310-
●
●
528
PLATE; SIDE,RADIATOR CORE
IDN
8-98010-372-4
01
1
1310-
●
528
PLATE; SIDE,RADIATOR CORE
IDN
8-98185-754-0
01
1
1310-
●
528
PLATE; SIDE,RADIATOR CORE
IDN
8-98042-838-3
01
1
1108-
●
528
PLATE; SIDE,RADIATOR CORE
IDN
8-98042-839-2
01
1
1108-
●
529
GASKET; CORE,RADIATOR
IDN
8-98004-206-0
02
1
1108-1309
●
529
GASKET; CORE,RADIATOR
IDN
8-98004-206-0
02
1
1310-
●
●
528
529
526
16
427
79
80
267
232
528
529
267
235
89
527
51
89
82
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
IDN
8-98248-324-0
01
1
1310-
●
1
RADIATOR ASM
IDN
8-98042-837-3
01
1
1108-1306
●
1
RADIATOR ASM
IDN
8-98248-323-0
01
1
1307-
●
16
CAP; RAD
8-98096-226-0
01
1
1310-
●
16
CAP; RAD
IDN
8-97239-187-0
01
1
1108-
●
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1108-1309
●
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1310-
●
●
79
GUIDE; FAN,RAD
IDN
8-98010-384-0
01
1
1310-1410
●
79
GUIDE; FAN,RAD
IDN
8-98273-634-0
01
1
1411-
●
79
GUIDE; FAN,RAD
IDN
8-98004-207-0
01
1
1108-1410
●
79
GUIDE; FAN,RAD
IDN
8-98286-937-0
01
1
1411-
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1108-1309
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1310-
●
●
80
BOLT; FAN GUIDE
(A) M8X14 IDN
8-98046-222-0
04
1
1108-1309
●
80
BOLT; FAN GUIDE
(A) M8X14 IDN
8-98046-222-0
04
1
1310-1410
●
●
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1411-
●
●
82
COVER; FAN,RAD
IDN
8-98004-211-0
01
1
1108-1309
●
82
COVER; FAN,RAD
IDN
8-98004-211-0
01
1
1310-1410
●
●
82
COVER; FAN,RAD
IDN
8-98293-253-0
01
1
1411-
●
●
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1108-1309
●
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1310-
●
●
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1108-1309
●
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1310-
●
●
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1108-1309
●
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1310-
●
●
235
WASHER; CUSHION RUBBER
IDN
1-21469-133-0
02
1
1108-1309
●
235
WASHER; CUSHION RUBBER
IDN
1-21469-133-0
02
1
1310-
●
●
267
RUBBER; CUSHION
(A) IDN
1-21469-130-0
04
1
1108-1309
●
267
RUBBER; CUSHION
(A) IDN
1-21469-130-0
04
1
1310-
●
●
267
RUBBER; CUSHION
(B) IDN
1-21469-131-0
02
1
1108-1309
●
267
RUBBER; CUSHION
(B) IDN
1-21469-131-0
02
1
1310-
●
●
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
1108-1309
●
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
1310-1410
●
●
526
TANK; UPR,RADIATOR CORE
IDN
8-98004-202-2
01
1
1108-1309
●
526
TANK; UPR,RADIATOR CORE
IDN
8-98004-202-2
01
1
1310-
●
●
527
TANK; LWR,RADIATOR CORE
IDN
8-98004-203-0
01
1
1108-1309
●
527
TANK; LWR,RADIATOR CORE
IDN
8-98004-203-0
01
1
1310-
●
●
528
PLATE; SIDE,RADIATOR CORE
IDN
8-98010-372-4
01
1
1310-
●
528
PLATE; SIDE,RADIATOR CORE
IDN
8-98185-754-0
01
1
1310-
●
528
PLATE; SIDE,RADIATOR CORE
IDN
8-98042-838-3
01
1
1108-
●
528
PLATE; SIDE,RADIATOR CORE
IDN
8-98042-839-2
01
1
1108-
●
529
GASKET; CORE,RADIATOR
IDN
8-98004-206-0
02
1
1108-1309
●
529
GASKET; CORE,RADIATOR
IDN
8-98004-206-0
02
1
1310-
●
●
87
96
96
96
87
486
87
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
87
STAY; FAN GUIDE
KD ENGINE<7MB> (B)
8-97520-825-0
01
1
1411-
●
●
87
STAY; FAN GUIDE
KD ENGINE<7MB> (C)
8-97520-826-0
01
1
1411-
●
●
87
STAY; FAN GUIDE
KD ENGINE<7MB> (A)
8-97520-828-0
01
1
1411-
●
●
87
STAY; FAN GUIDE
(B)
8-94393-776-1
01
1
1108-1309
●
87
STAY; FAN GUIDE
(B)
8-94393-776-1
01
1
1310-1410
●
●
87
STAY; FAN GUIDE
EXC. KD ENGINE<7MB> (B)
8-94393-776-1
01
1
1411-
●
●
87
STAY; FAN GUIDE
(C)
8-94393-778-2
01
1
1108-1309
●
87
STAY; FAN GUIDE
(C)
8-94393-778-2
01
1
1310-1410
●
●
87
STAY; FAN GUIDE
EXC. KD ENGINE<7MB> (C)
8-94393-778-2
01
1
1411-
●
●
87
STAY; FAN GUIDE
(A)
8-97602-988-0
01
1
1108-1309
●
87
STAY; FAN GUIDE
(A)
8-97602-988-0
01
1
1310-1410
●
●
87
STAY; FAN GUIDE
EXC. KD ENGINE<7MB> (A)
8-97602-988-0
01
1
1411-
●
●
96
BOLT; STAY FIX
(B) M8X16 FLANGE
0-28050-816-0
02
1
1108-1309
●
96
BOLT; STAY FIX
(B) M8X16 FLANGE
0-28050-816-0
02
1
1310-
●
●
96
BOLT; STAY FIX
(A) M10X16 FLANGE
0-28151-016-0
02
1
1108-1309
●
96
BOLT; STAY FIX
(A) M10X16 FLANGE
0-28151-016-0
02
1
1310-
●
●
100
RUBBER; MTG
8-98148-109-0
01
1
1108-1309
●
100
RUBBER; MTG
8-98148-109-0
01
1
1310-1410
●
●
486
NUT; MTG RUBBER
M8 FLANGE
0-91180-108-0
01
1
1108-1309
●
486
NUT; MTG RUBBER
M8 FLANGE
0-91180-108-0
01
1
1310-1410
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
