◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11391 - FVM(INDONESIA)6HK1 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶
0-65 — STARTER (#62276) — 64 parça

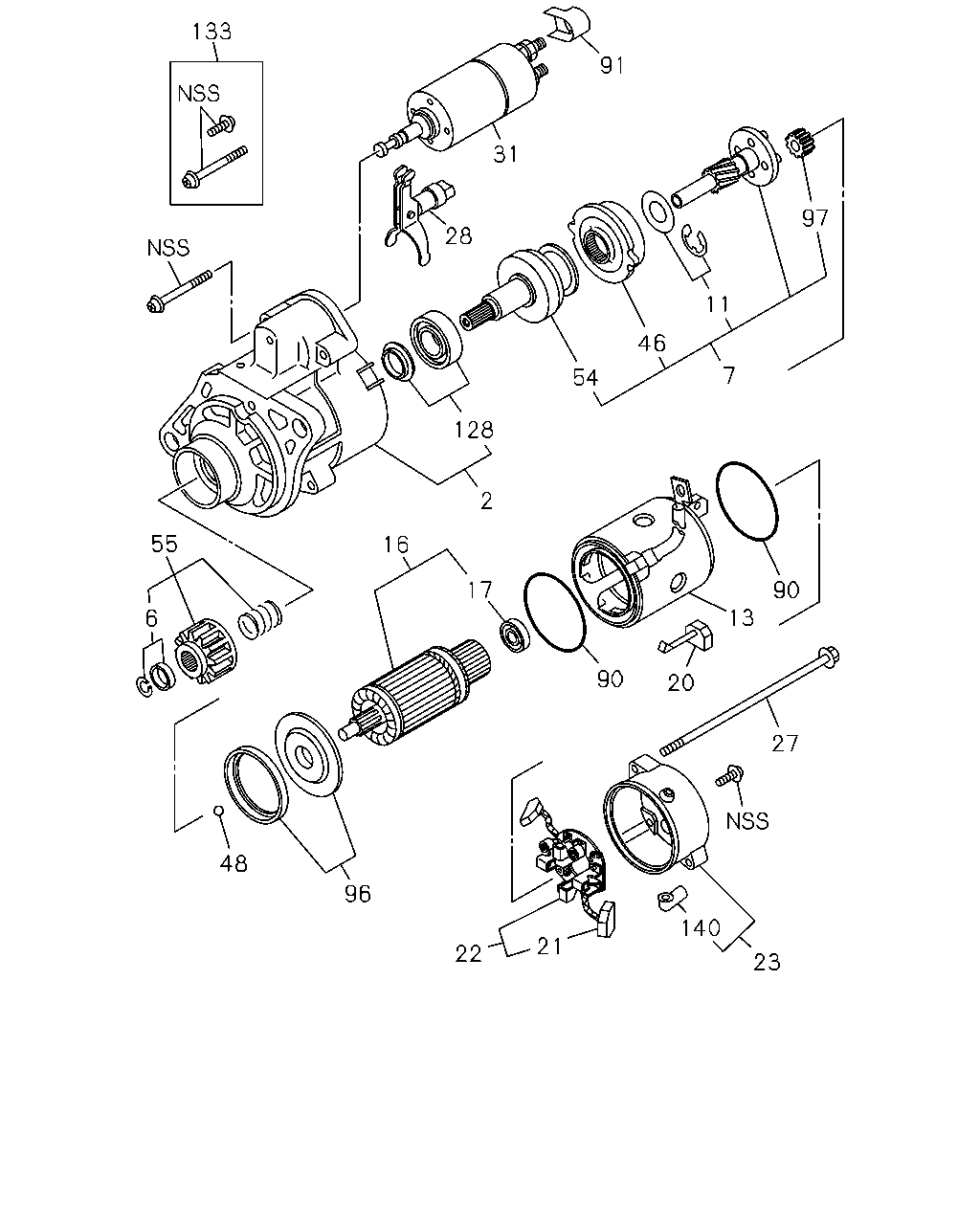

çizim 145844
48 96 22 21 140 23 27 20 90 13 90 17 16 2 128 54 46 11 7 97 55 28 31 91 133 6
BalonParca AdiParca NoAdetTipApplied Date
1 SEAL KIT; STARTER
ASM PART: A = 8-97695-240-2 		8-98259-229-0 01 1 -
2 CASE; PINION,STARTER
MITSUBISHI ASM PART: B = 8-98141-206-3 		8-98152-868-0 01 1 -
2 CASE; PINION,STARTER
ASM PART: C = 8-98261-669-0 		8-98261-349-0 01 1 -
2 CASE; PINION,STARTER
ASM PART: A = 8-97695-240-2 		8-98287-509-0 01 1 -
5 CLIP; PINION STOPPER STARTER
ASM PART: A = 8-97695-240-2 		8-98017-134-0 01 1 -
6 STOPPER; PINION STARTER
ASM PART: B = 8-98141-206-3, C = 8-98261-669-0 		8-94475-688-0 01 1 -
6 STOPPER; PINION STARTER
ASM PART: A = 8-97695-240-2 		8-98017-131-0 01 1 -
7 CLUTCH ASM; PINION,STARTER
ASM PART: B = 8-98141-206-3 		1-81129-759-0 01 1 -1407
7 CLUTCH ASM; PINION,STARTER
ASM PART: B = 8-98141-206-3 		8-98245-549-0 01 1 1408-
7 CLUTCH ASM; PINION,STARTER
ASM PART: C = 8-98261-669-0 		8-98245-549-0 01 1 -
7 CLUTCH ASM; PINION,STARTER
ASM PART: A = 8-97695-240-2 		8-98259-210-0 01 1 -
8 BRACKET; CENTER STARTER
ASM PART: A = 8-97695-240-2 		8-98259-221-0 01 1 -
10 SHAFT; GEAR STARTER
ASM PART: A = 8-97695-240-2 		8-98259-218-0 01 1 -
11 WASHER; GEAR SHAFT STARTER
ASM PART: B = 8-98141-206-3, C = 8-98261-669-0 		8-97116-484-0 01 1 -
11 WASHER; GEAR SHAFT STARTER
ASM PART: A = 8-97695-240-2 		8-98259-216-0 01 1 -
13 YOKE; STARTER
MITSUBISHI ASM PART: B = 8-98141-206-3 		8-98152-277-0 01 1 -
13 YOKE; STARTER
ASM PART: A = 8-97695-240-2 		8-98259-206-0 01 1 -
13 YOKE; STARTER
ASM PART: C = 8-98261-669-0 		8-98285-040-0 01 1 -
16 ARMATURE; STARTER
ASM PART: B = 8-98141-206-3, C = 8-98261-669-0 		1-81121-075-0 01 1 -
16 ARMATURE; STARTER
ASM PART: A = 8-97695-240-2 		8-98259-205-0 01 1 -
17 BEARING; ARMATURE,STARTER
ASM PART: B = 8-98141-206-3, C = 8-98261-669-0 		1-81129-837-0 01 1 -
20 BRUSH; (+),STARTER
ASM PART: B = 8-98141-206-3, C = 8-98261-669-0 		1-81116-066-0 02 1 -
21 SPRING; BRUSH HOLDER STARTER
ASM PART: B = 8-98141-206-3, C = 8-98261-669-0 		1-81129-768-0 04 1 -
22 HOLDER; BRUSH STARTER
ASM PART: B = 8-98141-206-3 		1-81121-066-0 01 1 -1407
22 HOLDER; BRUSH STARTER
ASM PART: A = 8-97695-240-2 		8-98017-144-0 01 1 -
22 HOLDER; BRUSH STARTER
ASM PART: C = 8-98261-669-0 		8-98245-553-0 01 1 -
22 HOLDER; BRUSH STARTER
ASM PART: B = 8-98141-206-3 		8-98245-553-0 01 1 1408-
23 COVER; RR COVER STARTER
ASM PART: B = 8-98141-206-3 		1-81115-229-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: C = 8-98261-669-0 		8-98248-764-0 01 1 -
27 BOLT; THROUGH,STARTER
ASM PART: B = 8-98141-206-3, C = 8-98261-669-0 		1-81129-769-0 01 1 -
27 BOLT; THROUGH,STARTER
ASM PART: A = 8-97695-240-2 		8-97020-269-0 02 1 -
28 LEVER; SHIFT,STARTER
ASM PART: B = 8-98141-206-3, C = 8-98261-669-0 		1-81129-762-0 01 1 -
28 LEVER; SHIFT,STARTER
ASM PART: A = 8-97695-240-2 		8-98017-125-0 01 1 -
29 PIN; SHIFT LEVER STARTER
ASM PART: A = 8-97695-240-2 		8-98259-208-0 01 1 -
30 PLATE; ENGAGE SW STARTER
ASM PART: A = 8-97695-240-2 		8-98017-128-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: B = 8-98141-206-3 		8-98152-274-0 01 1 -1308
31 SWITCH; ENGAGE STARTER
ASM PART: B = 8-98141-206-3 		8-98237-257-0 01 1 1309-
31 SWITCH; ENGAGE STARTER
ASM PART: A = 8-97695-240-2 		8-98259-226-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: C = 8-98261-669-0 		8-98285-039-0 01 1 -
41 SCREW; RR COVER,STARTER
ASM PART: A = 8-97695-240-2 		8-98259-228-0 02 1 -
46 GEAR; CLU STARTER
ASM PART: C = 8-98261-669-0 		8-97116-485-0 01 1 -
46 GEAR; CLU STARTER
ASM PART: B = 8-98141-206-3 		8-97116-485-0 01 1 1408-
46 GEAR; CLU STARTER
ASM PART: B = 8-98141-206-3 		8-97178-153-0 01 1 -1407
48 BALL; PINION,STARTER
IDN ASM PART: A = 8-97695-240-2 		1-81129-713-0 01 1 -
48 BALL; PINION,STARTER
ASM PART: B = 8-98141-206-3, C = 8-98261-669-0 		8-97116-515-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: B = 8-98141-206-3, C = 8-98261-669-0 		1-81129-761-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 8-97695-240-2 		8-98259-213-0 01 1 -
55 PINION; CLU,STARTER
ASM PART: B = 8-98141-206-3, C = 8-98261-669-0 		8-98060-835-0 01 1 -
55 PINION; CLU,STARTER
ASM PART: A = 8-97695-240-2 		8-98259-209-0 01 1 -
57 COVER ASM; RR,STARTER
ASM PART: A = 8-97695-240-2 		8-98259-225-0 01 1 -
79 HOLDER; SHIFT LEVER
ASM PART: A = 8-97695-240-2 		8-98017-126-0 01 1 -
85 BOLT; ENGAGE SW FIX,STARTER
ASM PART: A = 8-97695-240-2 		8-94178-026-0 02 1 -
90 GASKET; ARMATURE
ASM PART: B = 8-98141-206-3, C = 8-98261-669-0 		1-81129-767-0 02 1 -
91 COVER; STARTER
ASM PART: B = 8-98141-206-3, C = 8-98261-669-0 		1-81129-764-0 01 1 -
96 GASKET; FRT CASE
ASM PART: B = 8-98141-206-3 		8-97116-489-0 01 1 -
96 GASKET; FRT CASE
ASM PART: C = 8-98261-669-0 		8-98248-761-0 01 1 -
97 GEAR; STARTER
ASM PART: B = 8-98141-206-3, C = 8-98261-669-0 		8-97116-490-0 04 1 -
97 GEAR; STARTER
ASM PART: A = 8-97695-240-2 		8-98054-064-0 04 1 -
109 WASHER; PINION STOPPER,STARTER
ASM PART: A = 8-97695-240-2 		8-98259-217-0 02 1 -
128 BEARING; STARTER
ASM PART: B = 8-98141-206-3, C = 8-98261-669-0 		1-81129-758-0 01 1 -
131 COVER; PINION,STARTER
ASM PART: A = 8-97695-240-2 		8-98017-146-0 01 1 -
133 SCREW SET; STARTER
ASM PART: B = 8-98141-206-3, C = 8-98261-669-0 		1-81129-765-0 01 1 -
135 SPRING; STARTER
ASM PART: A = 8-97695-240-2 		8-98017-147-0 02 1 -
140 GROMMET; RR COVER
ASM PART: B = 8-98141-206-3 		8-97376-390-0 01 1 -
