0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#62275) — 57 parça

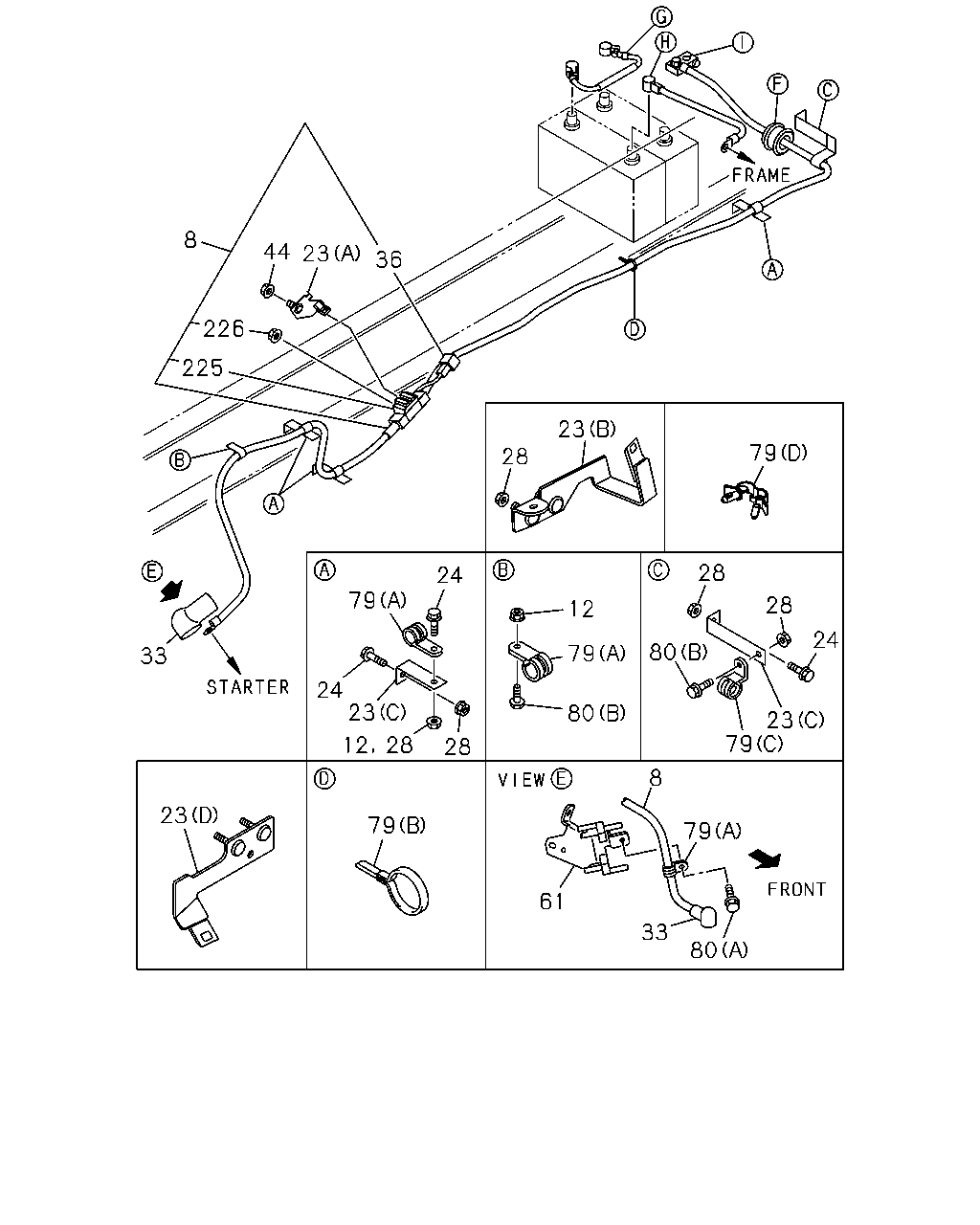

çizim 145823
8 23 44 36 226 225 23 79 28 28 24 23 79 80 12 79 80 24 79 24 23 12 28 28 79 23 33 61 33 80 79 8 28
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
6HK1-TCS ENG(80L) IDN 		8-98182-518-0 01 1 1310-1502
8 CABLE; BATTERY,STARTER
6HK1-TCS ENG(80L) IDN 		8-98295-225-0 01 1 1503-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) IDN 		8-98186-230-0 01 1 1108-1303
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) IDN 		8-98186-230-0 01 1 1304-1502
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) IDN 		8-98295-620-0 01 1 1503-
8 CABLE; BATTERY,STARTER
WHEEL BASE 7100MM(71W) IDN 		8-98186-400-0 01 1 1108-1303
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 7100MM(71W) IDN 		8-98186-400-0 01 1 1304-1502
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 7100MM(71W) IDN 		8-98295-227-0 01 1 1503-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1108-
23 BRACKET; CABLE CLIP TO FRAME
ZF9S1110 DD M/T(Y5P) (D) 		8-98201-490-0 01 1 1310-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98195-168-0 01 1 1108-1303
23 BRACKET; CABLE CLIP TO FRAME
MZW6P M/T(RSZ) (B) 		8-98195-168-0 01 1 1304-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=55 		1-47475-304-0 01 1 1108-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=145 		1-47475-655-0 01 1 1108-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 1108-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1108-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 03 1 1108-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 05 1 1108-
33 CAP; INSULATOR 1-82699-431-0 01 1 1108-
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1108-1502
36 FUSIBLE LINK; BATTERY
IDN 		8-98295-762-0 01 1 1503-
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1108-
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 1108-
79 CLIP; BATTERY CABLE
(C) ID=19 L=24 H=21 		1-09700-109-1 01 1 1108-
79 CLIP; BATTERY CABLE
(B) ID=20 L=70 		1-09700-485-0 01 1 1108-
79 CLIP; BATTERY CABLE
(A) ID=16 L=28 		1-09700-872-0 01 1 1108-
79 CLIP; BATTERY CABLE
(D) ID=13-18 L=26 		1-09709-293-0 03 1 1108-
79 CLIP; BATTERY CABLE
(A) ID=21 L=24 		8-98019-191-0 02 1 1108-
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1108-
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE IDN 		0-28650-825-0 03 1 1108-
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1108-1502
225 BLOCK; TERMINAL
IDN 		8-98294-524-0 01 1 1503-
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1108-1502
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS IDN 		8-98297-112-0 01 1 1503-

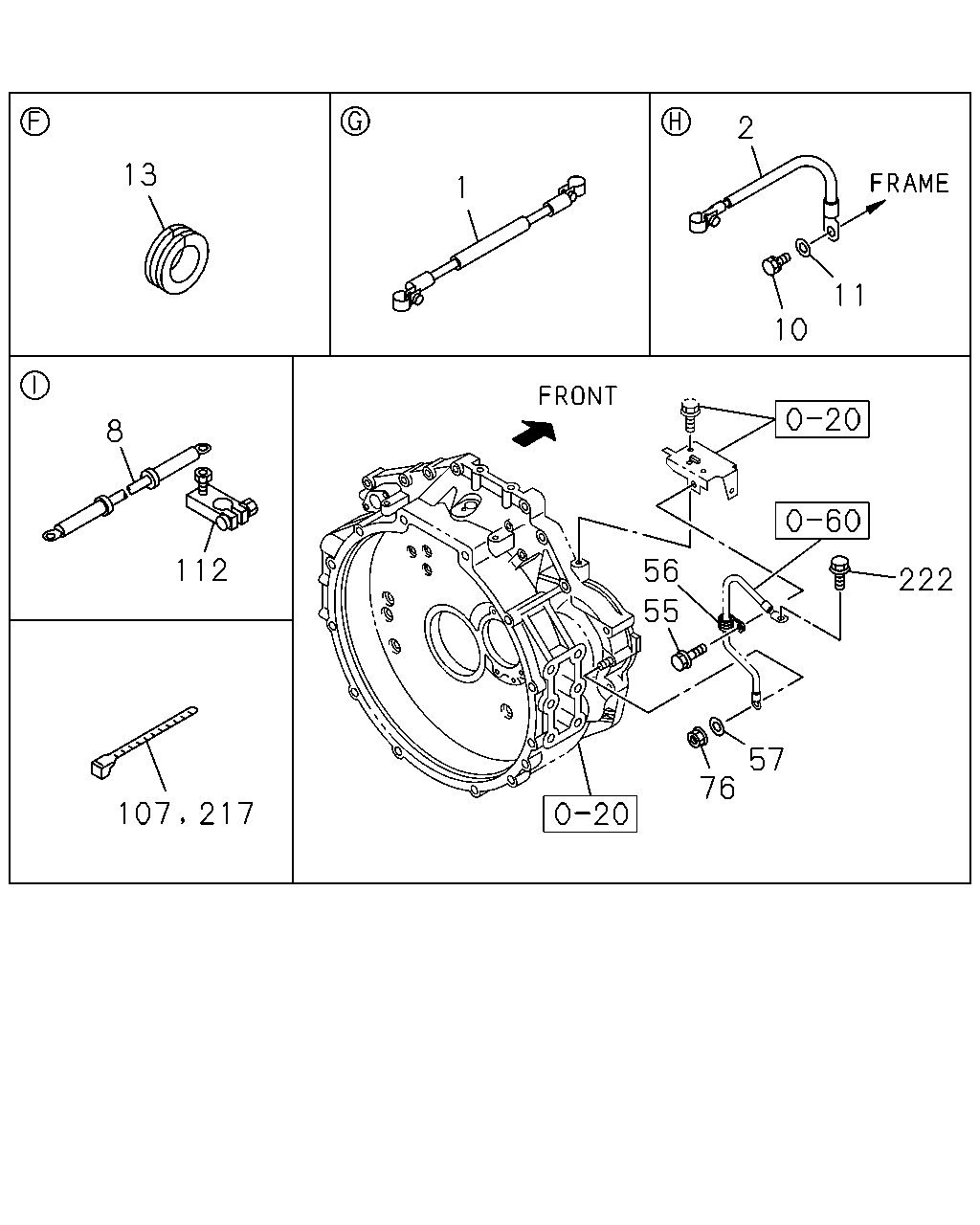

çizim 145849
13 8 112 107 217 76 57 222 10 11 2 1 56 55
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 IDN 		8-98025-412-3 01 1 1108-
2 CABLE; BATTERY
L=280 IDN 		8-98035-647-1 01 1 1108-
8 CABLE; BATTERY,STARTER
6HK1-TCS ENG(80L) IDN 		8-98182-518-0 01 1 1310-1502
8 CABLE; BATTERY,STARTER
6HK1-TCS ENG(80L) IDN 		8-98295-225-0 01 1 1503-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) IDN 		8-98186-230-0 01 1 1108-1303
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) IDN 		8-98186-230-0 01 1 1304-1502
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) IDN 		8-98295-620-0 01 1 1503-
8 CABLE; BATTERY,STARTER
WHEEL BASE 7100MM(71W) IDN 		8-98186-400-0 01 1 1108-1303
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 7100MM(71W) IDN 		8-98186-400-0 01 1 1304-1502
8 CABLE; BATTERY,STARTER
6HK1-TCN ENG(82L) WHEEL BASE 7100MM(71W) IDN 		8-98295-227-0 01 1 1503-
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1108-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1108-
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1108-
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 1108-
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 1108-
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1108-
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 1108-
107 CLIP; BAND
L=140 IDN 		5-09707-031-1 01 1 1108-
112 TERMINAL; BATTERY
<+> IDN 		8-97365-771-0 01 1 1108-1408
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409-
217 CLIP; BAND,CABLE
WHEEL BASE 5500MM(55W) L=350 		1-09707-183-0 01 1 1108-
217 CLIP; BAND,CABLE
L=250 IDN 		5-09707-030-1 01 1 1108-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1108-
